Defender 90 NAS. Manual - part 80





76

CHASSIS AND BODY

18

REPAIR

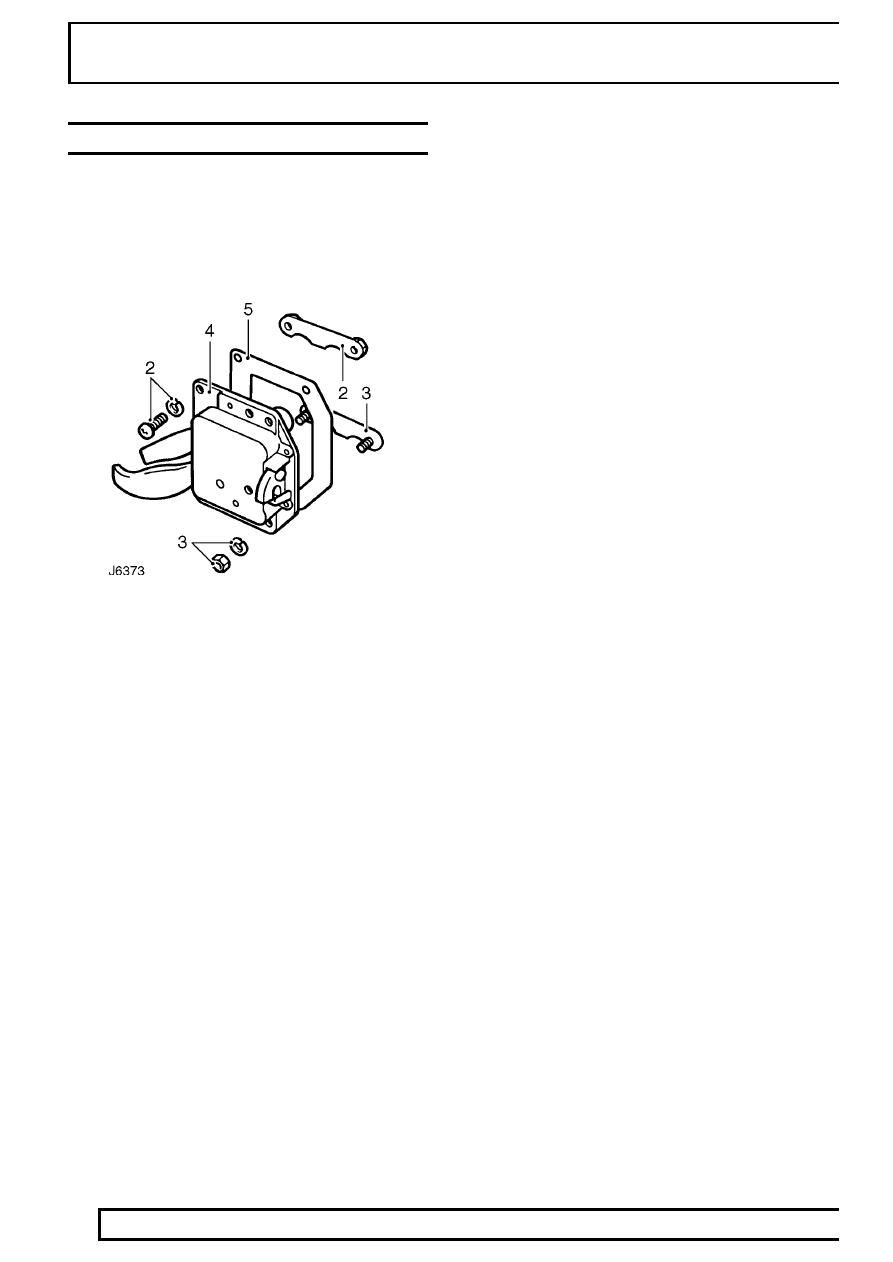

DOOR LOCK - TAIL DOOR

Service repair no - 76.37.16

Remove

1. Remove door trim casing.

See trim casing -

tail door

2. Remove screws, washers and nut retainer plate

securing top of lock to door.

3. Remove nuts, washers and stud retainer plate

securing bottom of lock to door.

4. Withdraw lock assembly.
5. Remove door lock gasket.
6. Clean sealant from retainer plates.
7. Insert key into barrel.
8. Depress lock barrel plunger and withdraw barrel

from lock.

Refit

9. Fit new barrel into lock.

10. Apply sealant to lock retainer plates.
11. Fit lock to door with a new gasket.
12. Secure with retainer plates, screws, washers

and nuts.

13. Close door and check for correct latching with

striker. Adjust striker as necessary.

See

Adjustment, Tail door striker - adjust

14. Fit door trim casing.

See trim casing - tail

door

CHASSIS AND BODY

19

REPAIR

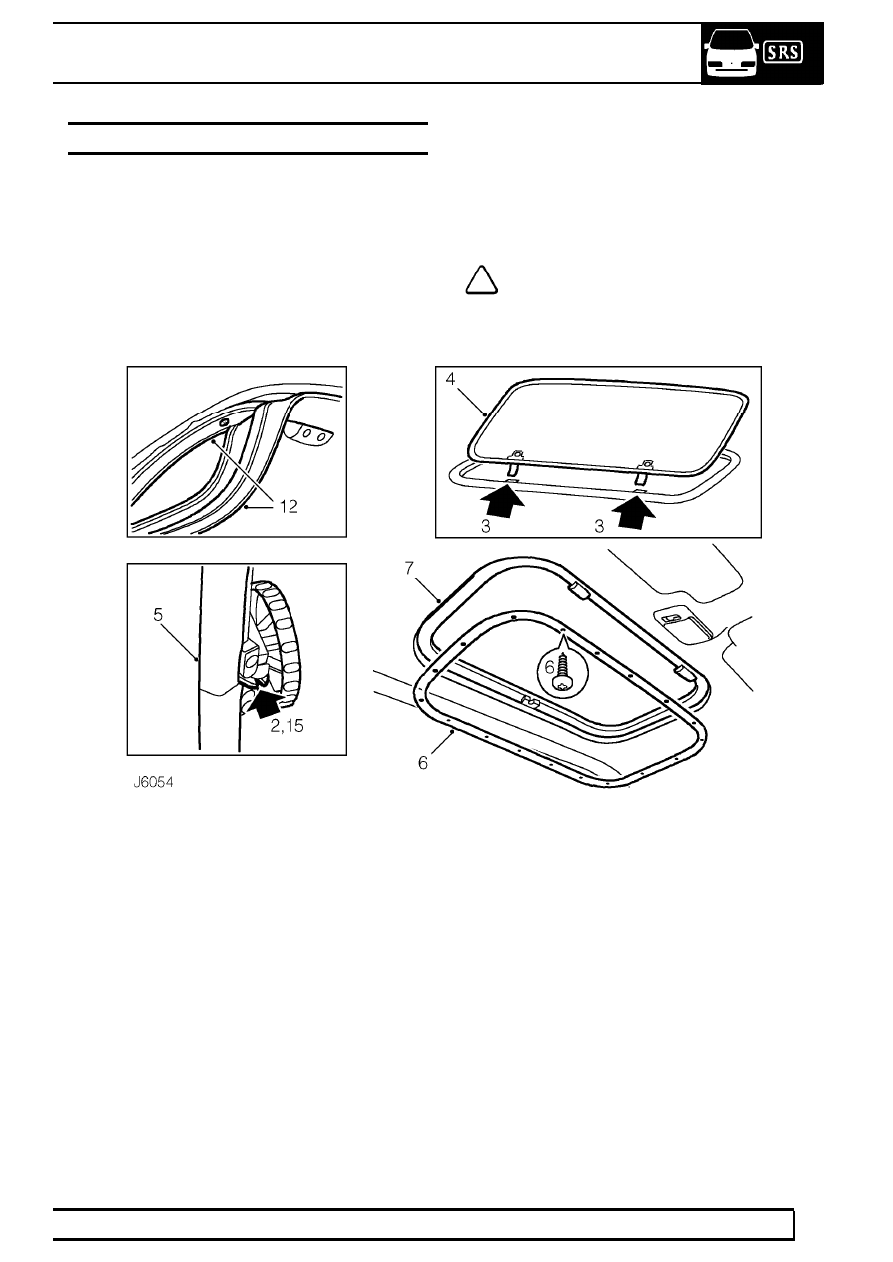

SUN ROOF

Service repair no - 76.83.01

Remove

1. Open sun roof fully.
2. Disengage spring lock from operating handle

catch.

3. Holding sun roof at both sides, release hinges

from locating brackets at front of outer frame.

4. Remove sun roof.
5. Starting from centre rear, peel headlining finisher

from inner frame.

6. Remove 18 screws securing inner frame to outer

frame and detach inner frame.

7. Lift outer frame from roof.

NOTE: Assistance may be required to
remove the sun roof assembly.

Refit

8. Clean roof area around outer frame seating.
9. Position outer frame on roof.

10. Fit inner frame to headlining and secure to outer

frame with 18 screws but do not fully tighten.

11. Check alignment of inner and outer frames with

roof mounting and headlining, adjust as
necessary, and fully tighten fixing screws to

10

Nm, 7 lbf ft.

12. Starting from centre rear, fit headlining finisher

lip into locating channel of inner frame.

13. Press finisher firmly over inner frame and

continue around complete frame, ensuring
finisher lies flat on headlining.

14. Fit sun roof hinges fully into locating brackets on

outer frame, and lower the glass panel.

15. Engage operating handle catch with spring lock

of outer frame and close sunroof.

76

CHASSIS AND BODY

20

REPAIR

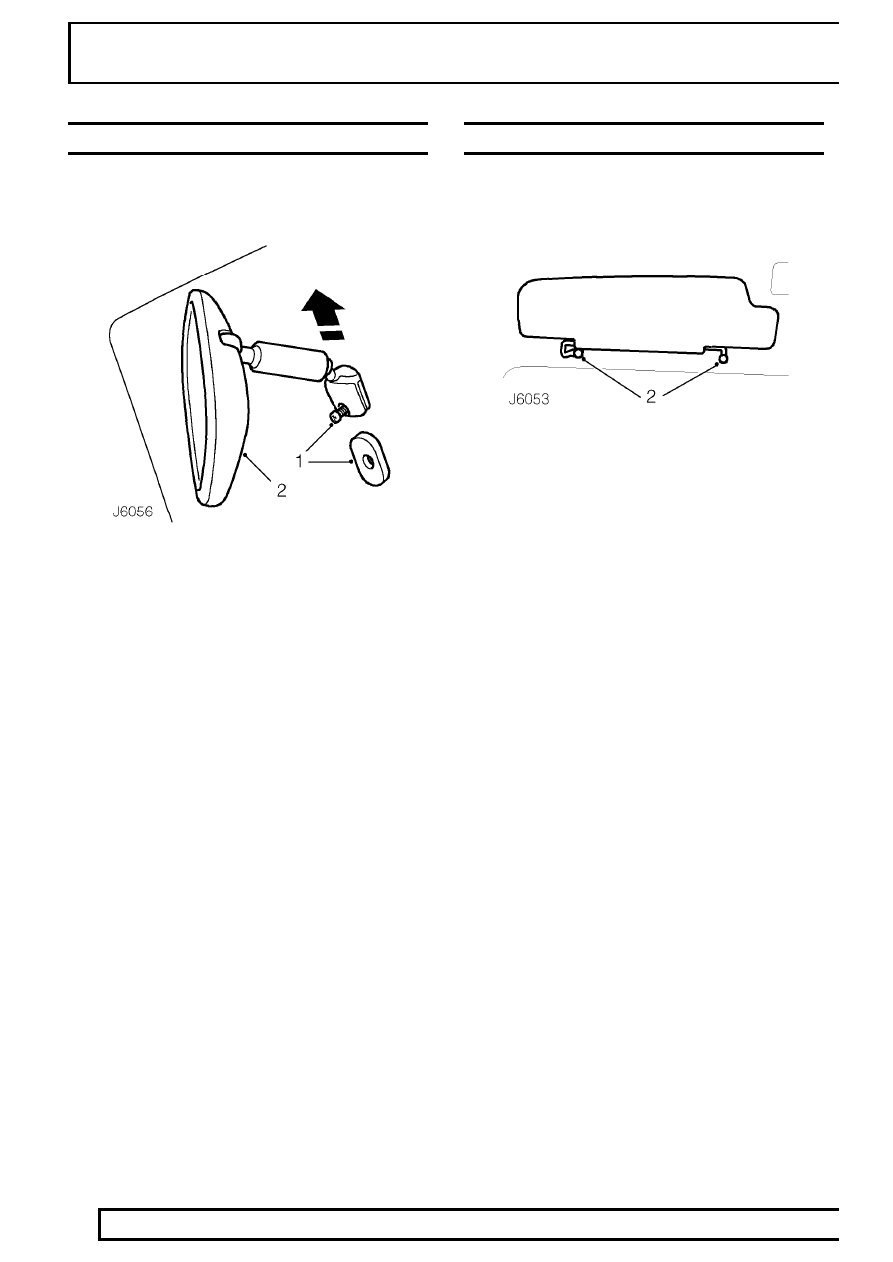

INTERIOR MIRROR

Service repair no - 76.10.51

Remove

1. Remove retaining screw securing mirror

adjustment arm to mounting slug.

2. Slide adjustment arm up from mounting slug and

remove mirror.

Refit

3. Slide mirror adjustment arm over mounting slug.
4. Secure mirror with retaining screw.

SUN VISORS

Service repair no - 76.10.47

Remove

1. Raise sun visor.
2. Remove 2 screws and collect sun visor.

Refit

3. Position sun visor and secure with 2 screws.

CHASSIS AND BODY

21

REPAIR

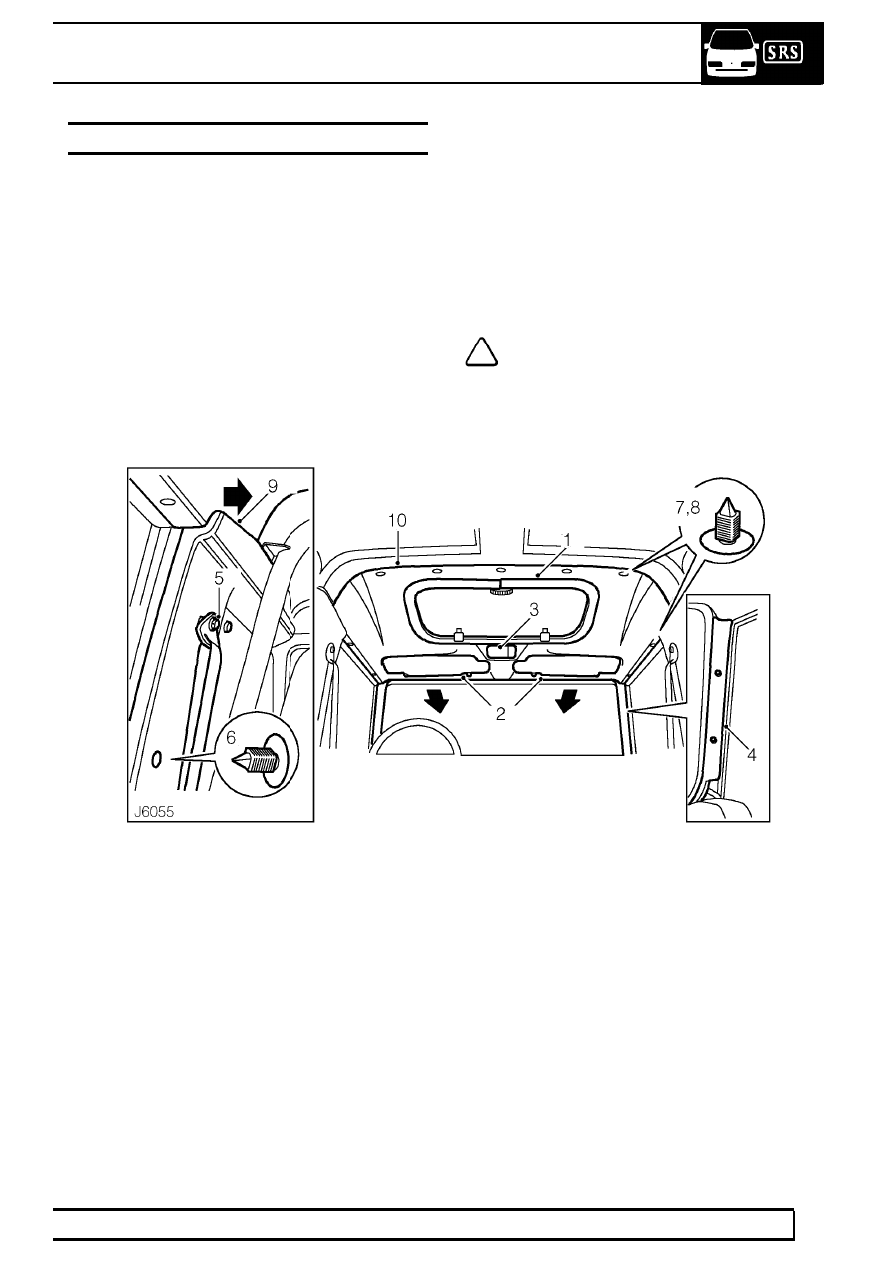

FRONT HEADLINING - HARD TOP

Service repair no - 76.64.10

Remove

1. Remove sun roof headlining finisher.
2. Remove sun visors.

See Sun visors

3. Remove interior lamp.

See ELECTRICAL,

Repair, Interior lamp

4. Remove 4 retaining screws and detach both ’A’

post trims.

5. Remove caps and unscrew front seat belt fixing

bolts from ’B/C’ posts.

6. Carefully prise side trim panel cap fastener from

’B/C’ posts.

7. Carefully prise 2 cap fasteners, from each side,

securing headlining to body at door apertures.

8. Carefully prise out 7 cap fasteners securing front

and rear headlinings to roof.

9. From both sides, pull side trim panel inwards

enough to release rear corners of front
headlining.

10. Lower headlining, disconnect interior lamp

harness plug at ’A’ post, and remove headlining
from vehicle.

NOTE: Take care not to bend the
headlining on removal and refitting.

11.

Do not carry out further dismantling if
component is removed for access only.

12. Remove interior lamp harness from headlining.

Refit

13. Tape interior lamp harness to headlining.
14. With assistance, raise headlining to roof.
15. Carefully pull side trim panel inwards, on both

sides, and slide headlining behind trim panel.

16. Position front headlining into recess of rear

headlining and secure both to roof mounting
brackets with cap fasteners.

17. Secure both sides of front headlining to body at

door apertures with cap fasteners.

18. Fit side cap fasteners at ’B/C’ posts.
19. Secure seat belts to ’B/C’ posts and tighten bolts

to

32 Nm, 24 lbf ft. Fit caps to bolts.

20. Fit ’A’ post trims.
21. Fit interior lamp.

See ELECTRICAL, Repair,

Interior lamp

22. Fit sun visors.

See Sun visors

23. Fit sun roof headlining finisher.
