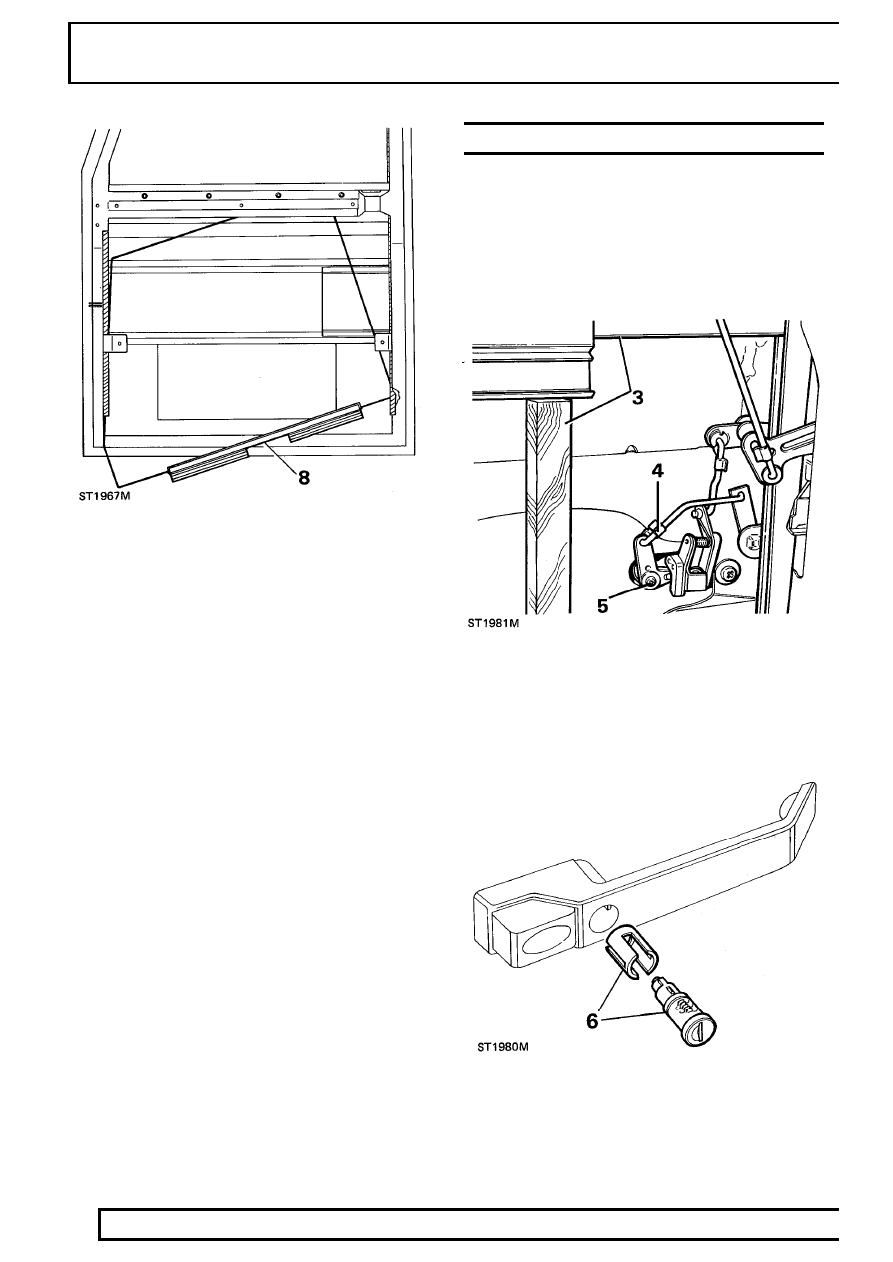

8. Insert glass into runners at an angle as

illustrated.

9. Whilst lifting glass, position it squarely in

runners, raise to top of travel and insert timber
support.

10. Secure hinge side runner with single screw

ensuring that packing strip is in position.

11. Locate packing strip and secure opposite runner

with 2 screws. Ensure that all 3 screw heads are
well below bottom of runners to prevent damage
to glass.

12. Locate regulator in window lift channels.
13. Fit mounting panel

See Mounting panel - front

door

LOCKING BARREL - FRONT DOOR

Service repair no - 76.37.39

Remove

1. Remove door trim

See Trim casing - front

door and plastic sheet.

2. Remove mounting panel

See Mounting panel

- front door

3. Raise and support glass to gain access to latch

mechanism.

4. Release spring clip and disconnect rod from lock

operating lever.

5. Remove single screw and withdraw lock lever

assembly.

6. Withdraw lock barrel from exterior door handle

complete with locking sleeve.

CHASSIS AND BODY

11

REPAIR

7. To remove barrel from plastic retaining sleeve,

depess spring loaded button and withdraw
sleeve.

Refit

NOTE: If a new barrel is being fitted, check
that number on barrel coincides with
number on accompanying key.

8. Push plastic retaining sleeve over barrel until

spring loaded peg locks it into position.

9. Fit barrel and plastic sleeve assembly to locking

sleeve and insert into exterior handle reversing
instruction 6.

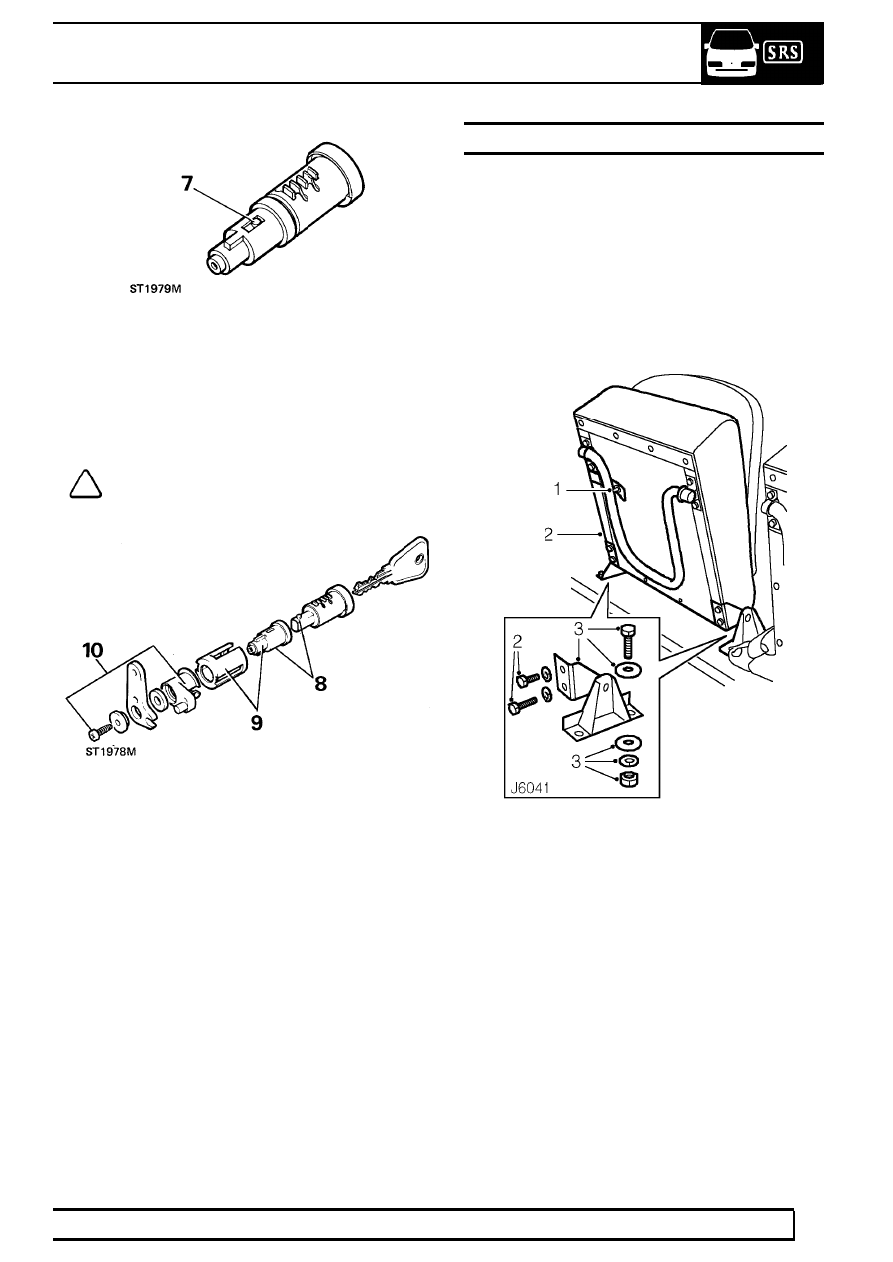

10. Assemble lock lever components as illustrated

and from inside of door panel, fit them to barrel
assembly with single screw.

11. Connect operating rod to lock lever and secure

with spring clip, reversing instruction 4.

12. Fit mounting panel.

See Mounting panel -

front door

REAR SEAT CUSHION

Service repair no - 78.10.18/99

Remove

1. Release seat cushion stowage strap.
2. Remove 4 bolts and spring washers and lift seat

cushion from pivot brackets.

3. Remove 4 bolts, plain washers, spring washers

and nuts. Detach both pivot brackets from wheel
arch.

Refit

4. Secure pivot brackets to wheel arch and tighten

bolts to

10 Nm, 7 lbf ft.

5. Position seat cushion in pivot brackets and

secure with 4 bolts and spring washers.

6. Fit stowage strap.

76

CHASSIS AND BODY

12

REPAIR

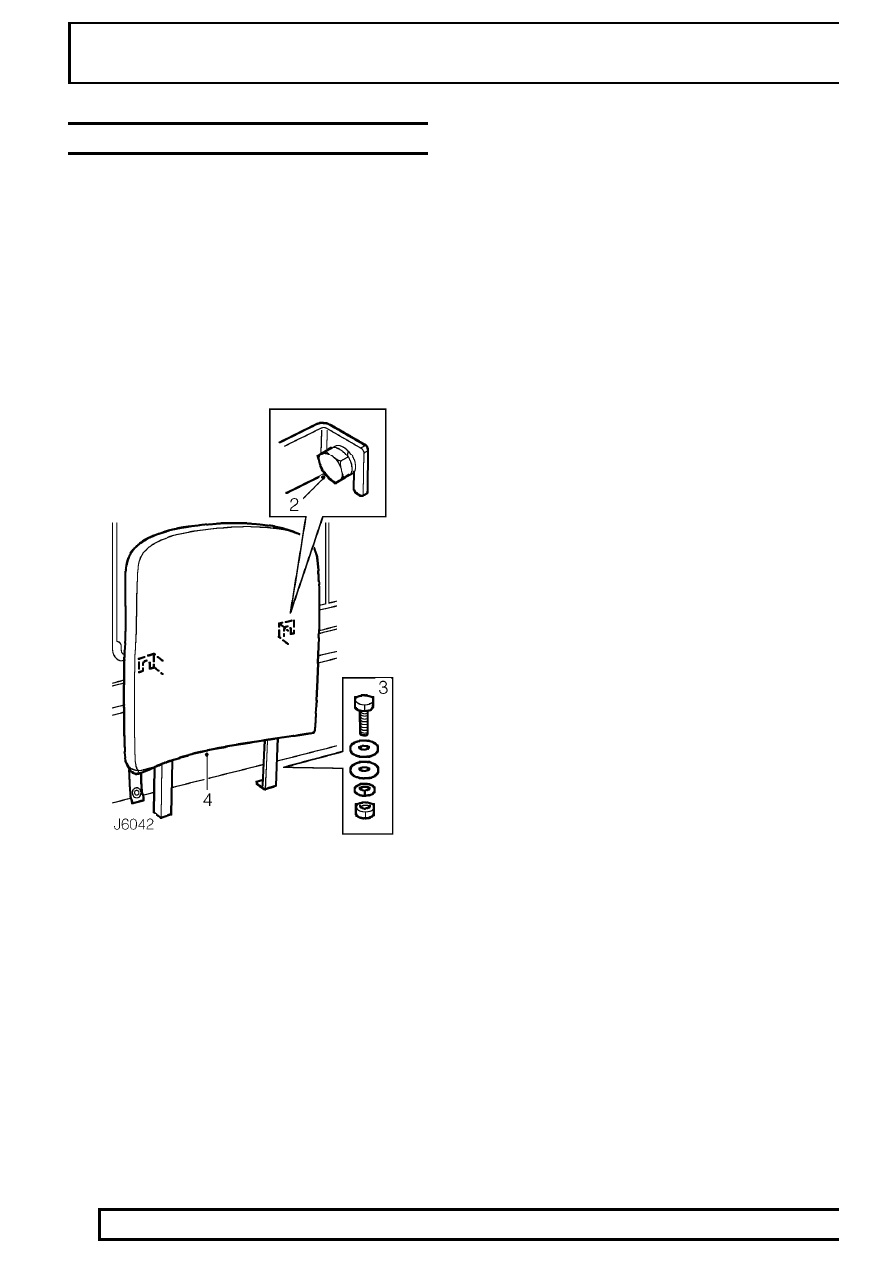

REAR SEAT SQUAB

Service repair no - 78.10.58/99

Remove

1. Release seat cushion stowage strap and lower

seat cushion.

2. Loosen 2 bolts securing seat squab brackets to

body side.

3. Remove 2 bolts, plain washers, spring washers

and nuts securing seat squab to wheel arch.

4. Lift and release brackets from retaining bolts and

remove seat squab.

Refit

5. Lower seat squab brackets over retaining bolts,

tighten bolts to

10 Nm, 7 lbf ft .

6. Secure seat squab to wheel arch, tighten bolts to

10 Nm, 7 lbf ft.

7. Raise seat cushion and fit stowage strap.

CHASSIS AND BODY

13

REPAIR

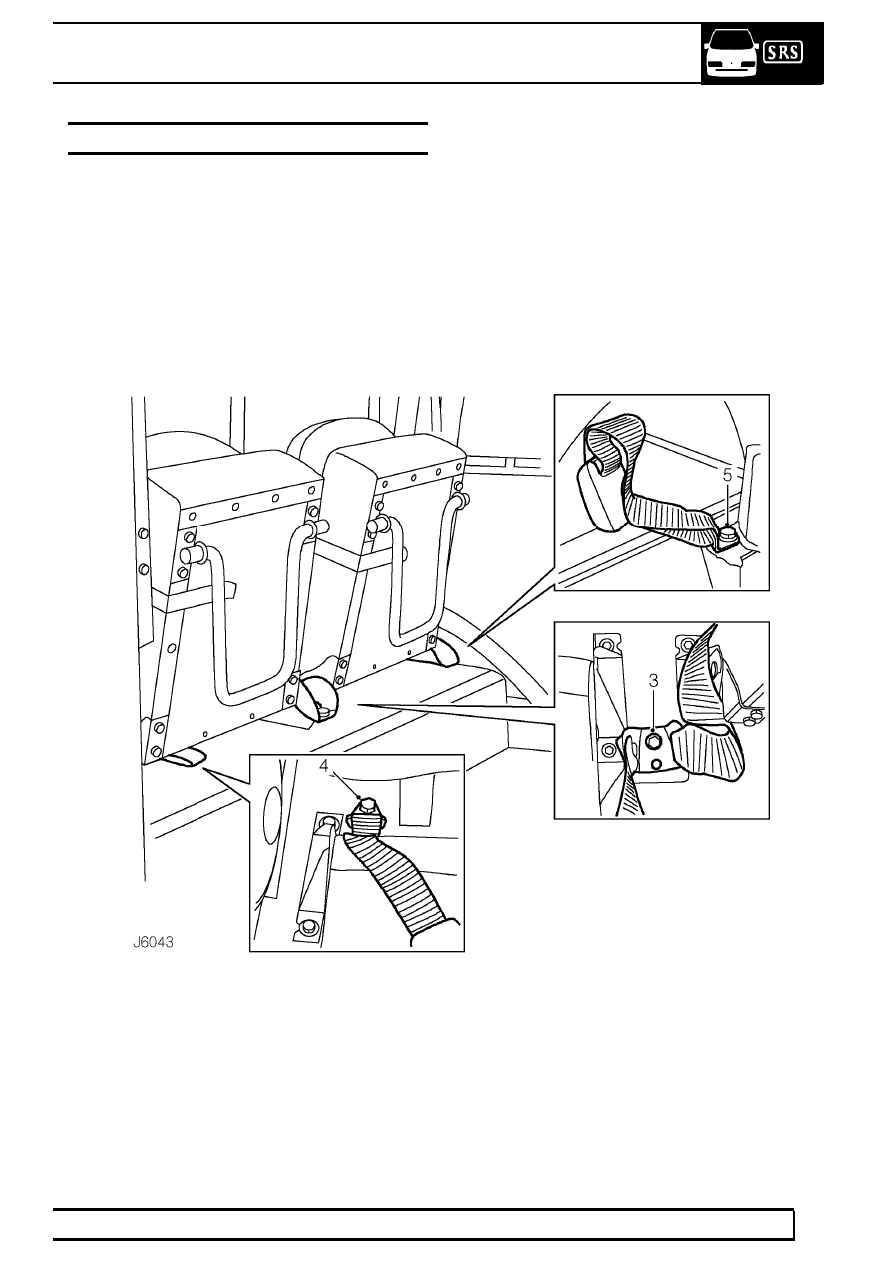

REAR SEAT BELTS

Service repair no - 76.73.18

Remove

1. Release belt straps from buckles on both seats.
2. Raise both seat cushions and secure with

stowage straps.

3. Unscrew bolt and remove bracket and inner seat

belt straps.

4. Unscrew bolt and remove rear seat buckle strap

from wheel arch.

5. Unscrew bolt and remove front seat buckle strap

from interior roll-over bar mounting.

Refit

6. Reverse removal procedure, ensuring seat belt

fixing bolts are tightened to

32 Nm, 24 lbf ft).
