Defender (1999-2002). Manual - part 98





CHASSIS AND BODY

21

REPAIR

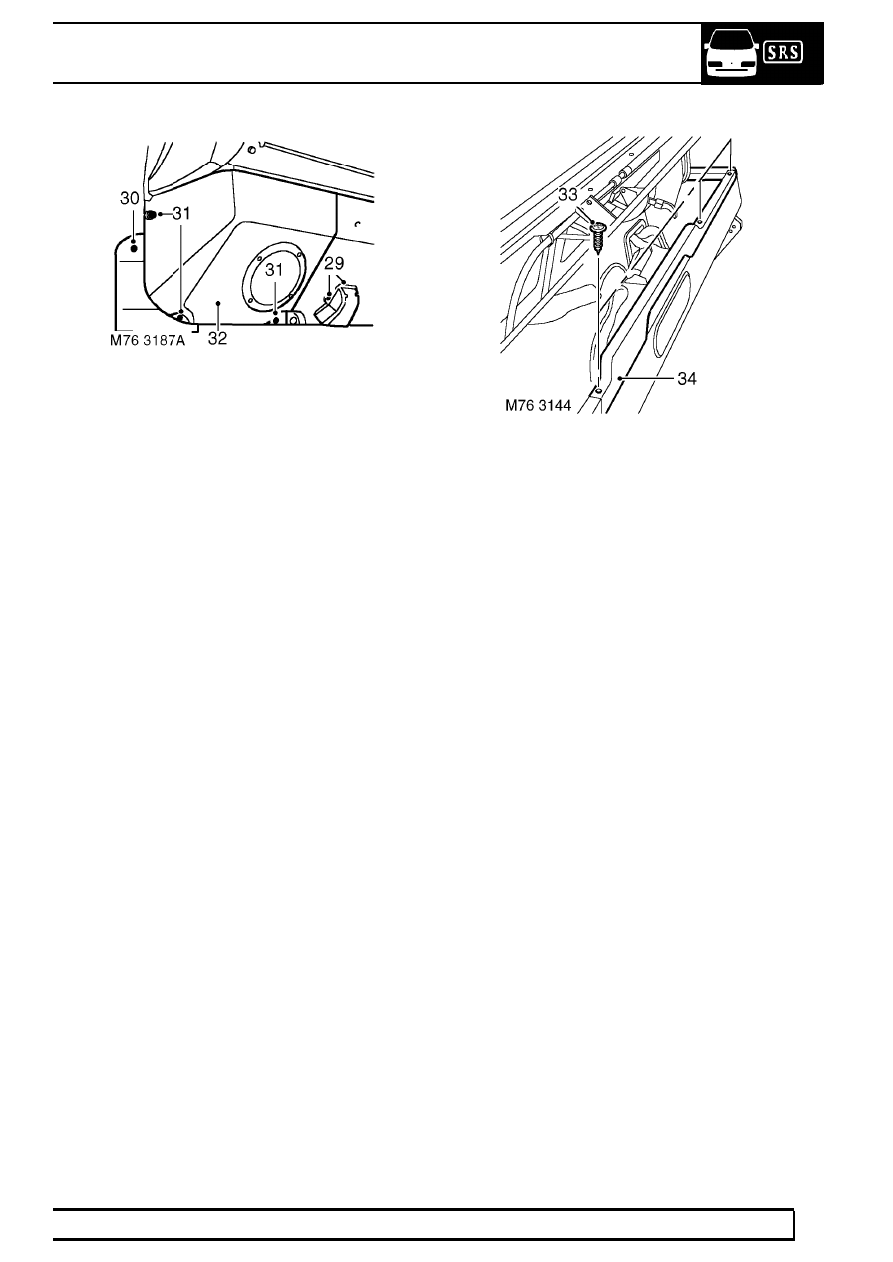

29. Remove 2 screws securing each footwell vent

and remove vents from lower fascia.

30. Remove screw securing each door check strap

cover and remove both covers.

31. Remove 3 screws securing wiper motor cover to

bulkhead.

32. Remove wiper motor cover.

33. Remove 3 screws securing finisher rail to lower

fascia.

34. Remove finisher rail.

76

CHASSIS AND BODY

22

REPAIR

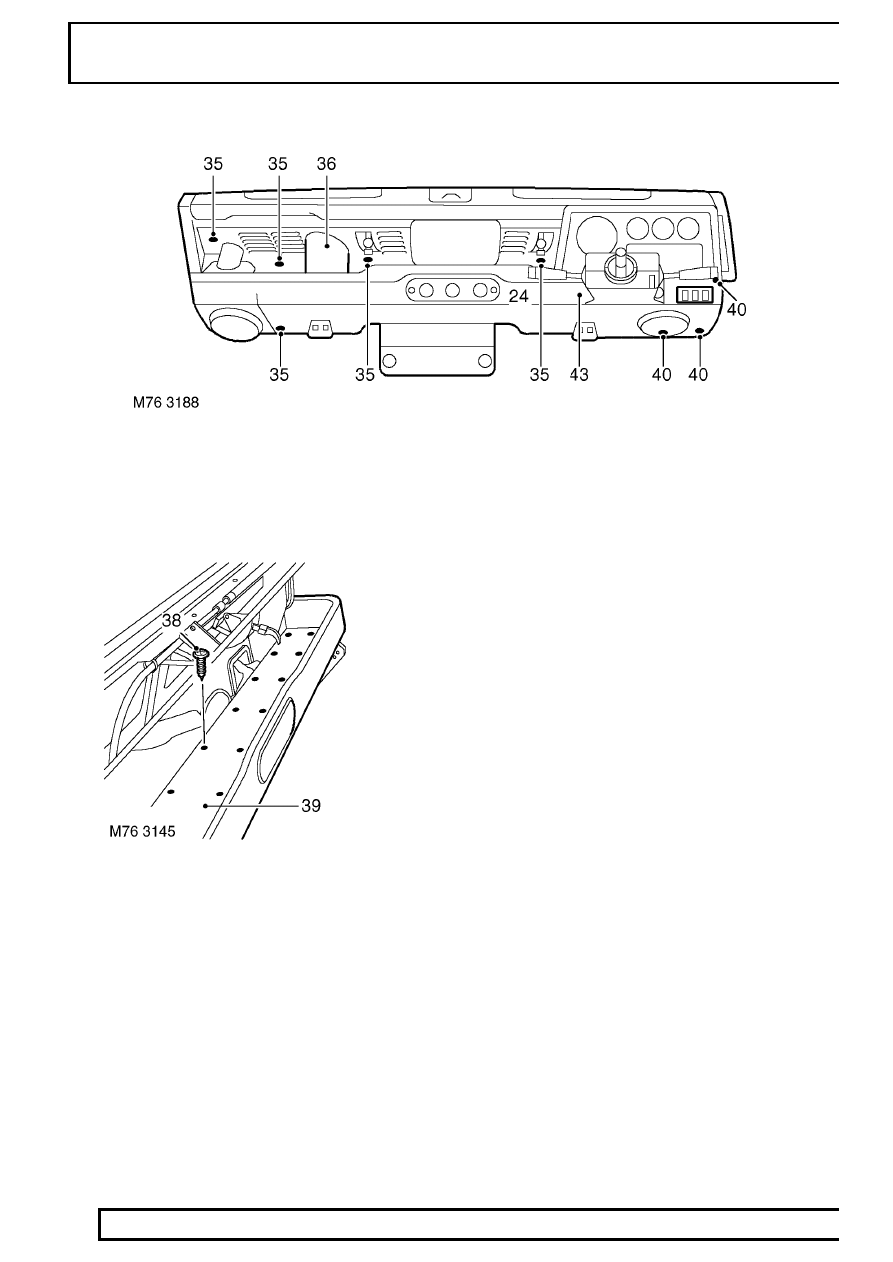

35. Remove 7 trim clips securing trim upper fascia

trim casing to bulkhead.

36. Carefully fold back trim casing over fresh air vent

operating levers and remove.

37. Release demist hose from parcel shelf.
38. Remove 18 screws securing parcel shelf to

lower fascia panel.

39. Remove parcel shelf.
40. Remove 7 screws securing bottom edge of lower

fascia panel to bulkhead.

41. Remove both retaining plates and lower footwell

covers.

42. Remove 2 bolts securing top of lower fascia to

bulkhead.

43. With assistance, remove lower fascia.

Refit

44. With assistance, fit lower fascia.
45. Fit 2 bolts securing top of lower fascia to

bulkhead.

46. Fit both retaining plates and footwell covers to

lower fascia.

47. Fit 7 screws securing bottom edge of lower

fascia to bulkhead.

48. Fit parcel shelf to lower fascia and secure with

screws.

49. Fit demist hose to parcel shelf.
50. Carefully manoeuvre upper fascia trim casing

over fresh air vents and fit to fascia.

51. Fit trim clips securing trim casing to bulkhead.
52. Fit finisher rail to lower fascia and secure with

screws.

53. Fit wiper motor cover and secure with screws.
54. Fit both door check strap covers and secure with

screws.

55. Fit both footwell vents to lower fascia and secure

with screws.

56. Fit interior fuse box cover.
57. Fit auxilliary switch panel cover.
58. Fit auxilliary switch panel. See this Section.

CHASSIS AND BODY

23

REPAIR

59. Fit radio housing to fascia and secure with trim

studs.

60. Position radio to fascia and connect multiplugs

and aerial.

61. Fit radio to fascia.
62. Fit crash pad to fascia and secure with screws.
63. Fit both demister vents to crash pad and secure

with screws.

64. Fit grab handle to fascia and secure with screws.
65. Fit Land Rover decal to grab handle.
66. Position both front speakers to fascia and

connect multiplugs.

67. Fit speakers to fascia and secure with screws.
68. Fit locking rings to speakers.
69. Connect multiplugs and Lucars to HRW, Rear

Fog Guard Lamp, and Hazard Warning
Switches.

70. Fit switches to fascia.
71. Position heater controls to fascia and secure

with screws.

72. Fit instrument pack. See ELECTRICAL,

Repair.

73. Fit 2 halves of nacelle to steering column and

secure with screws.

74. Fit steering wheel. See STEERING, Repair.
75. Reconnect battery negative lead.

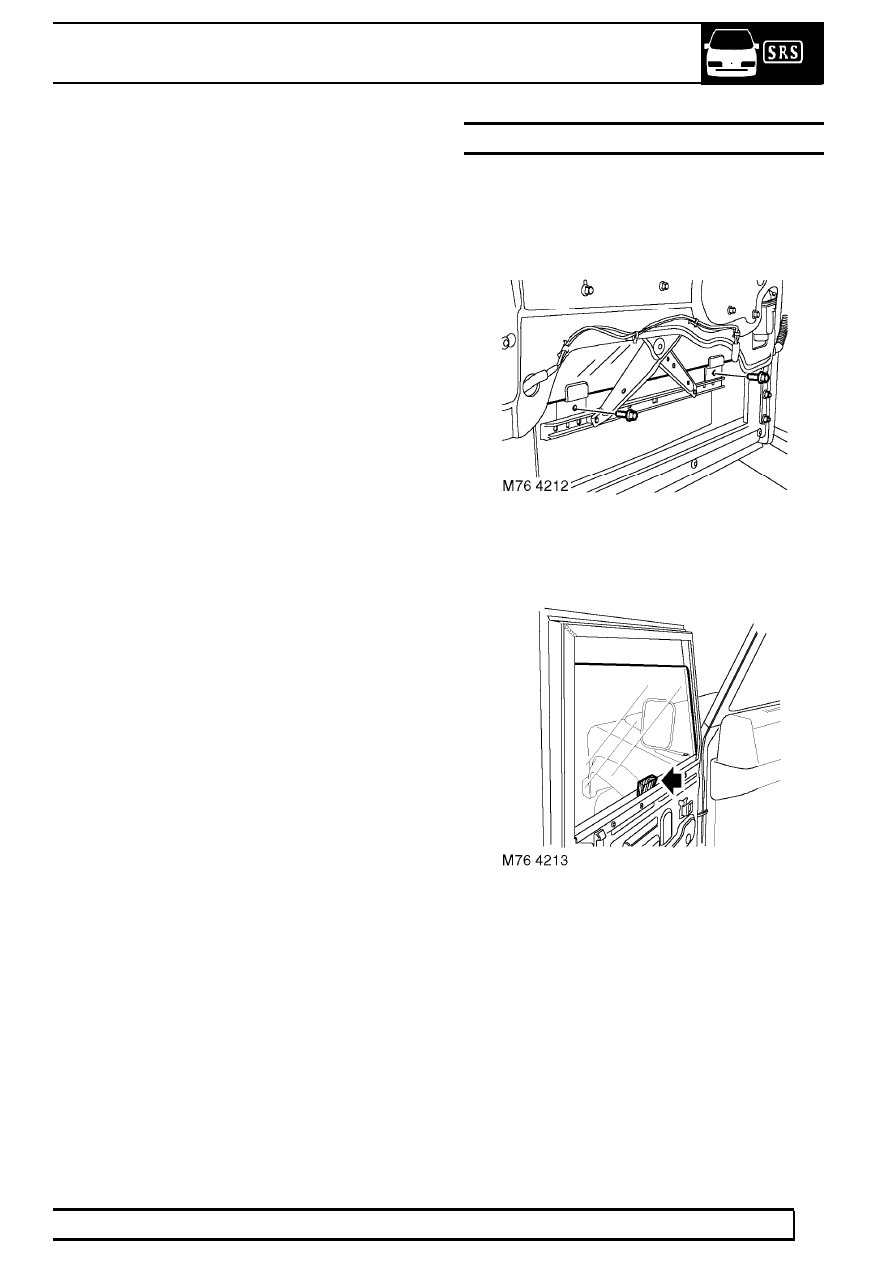

PANEL - MOUNTING - FRONT DOOR - FROM 02MY

Service repair no - 76.11.28

Remove

1. Remove plastic sheet. See this Section.

2. Lower glass and remove 2 bolts securing door

glass to regulator.

3. Release glass from regulator, raise and wedge

in raised position.

76

CHASSIS AND BODY

24

REPAIR

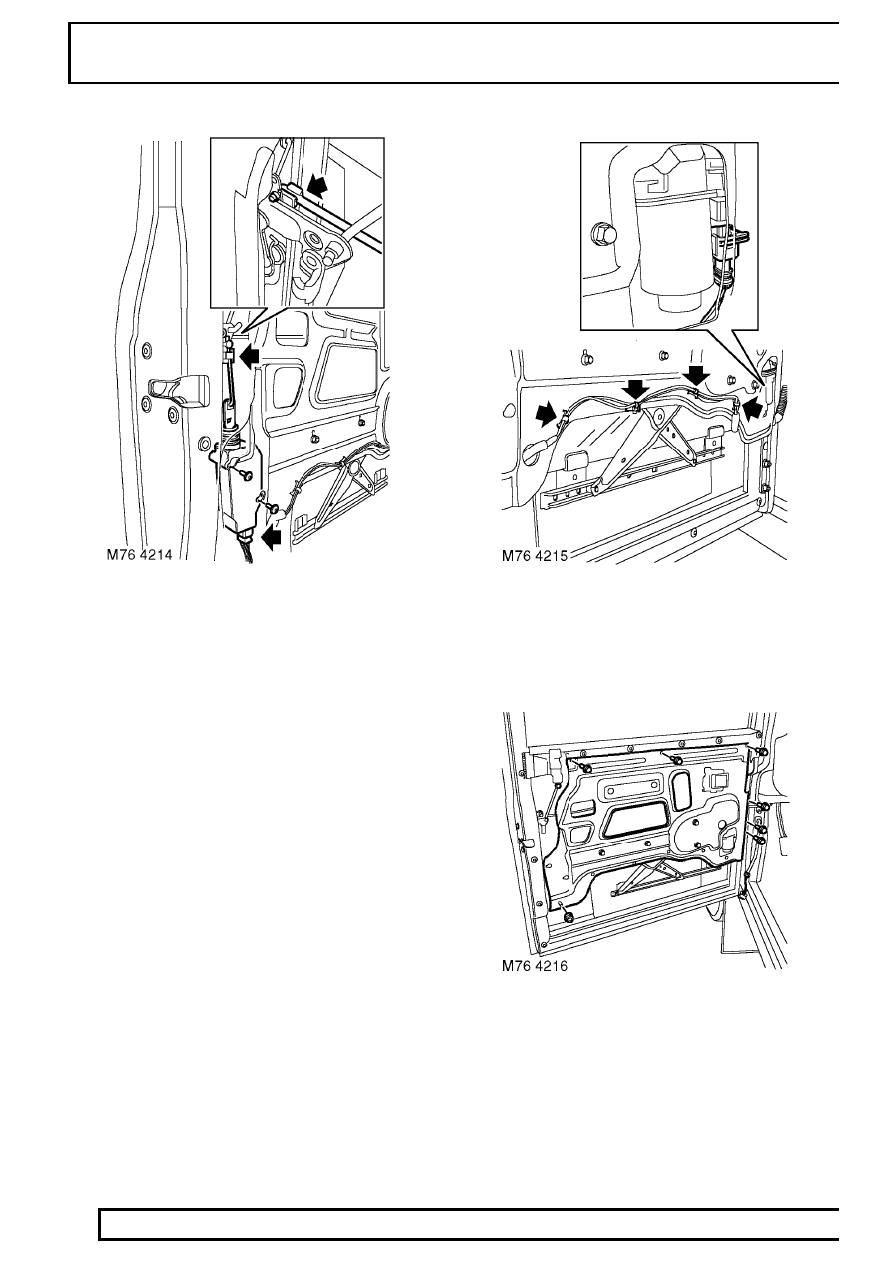

4. Release clip, detach and remove lock solenoid

link.

5. Loosen 2 screws securing solenoid, release

solenoid from mounting panel, disconnect
multiplug and remove solenoid.

6. Release clip and disconnect interior handle link

from latch mechanism.

7. Release clips securing harness to panel.
8. Disconnect multiplug from motor.
9. Release harness sleeve and withdraw harness

from door.

10. Remove 6 bolts and 1 nut securing panel.
11. Remove panel assembly.
