TRANSFER GEARBOX

3

REPAIR

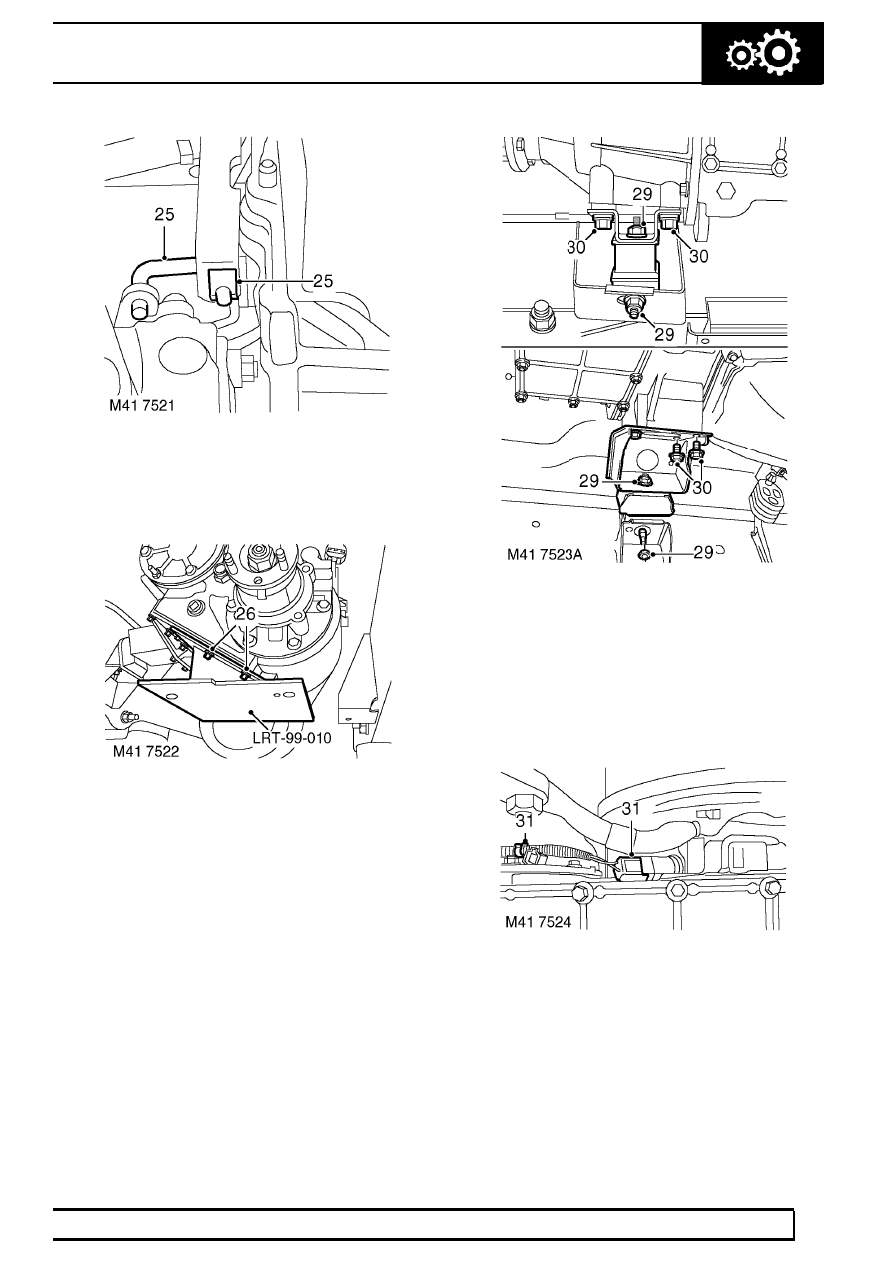

25. Remove retaining clip at lower end of pivot arm

and disconnect differential lock control operating
rod.

26. Remove 4 central bolts from transfer gearbox

bottom cover, position support plate LRT-99-010
to transfer gearbox and tighten bolts.

27. Position gearbox support jack and secure

support plate to jack using 4 bolts.

28. Support the weight of the transfer gearbox.

29. Remove 4 nuts securing LH and RH mountings

to chassis and transfer gearbox mounting
brackets.

30. Remove 8 bolts securing mounting brackets to

transfer gearbox, raise gearbox and remove both
mountings, heat shield from LH mounting and
brackets.

31. Disconnect multiplug from speed sensor and

release harness from clip on transfer gearbox.

41

TRANSFER GEARBOX

4

REPAIR

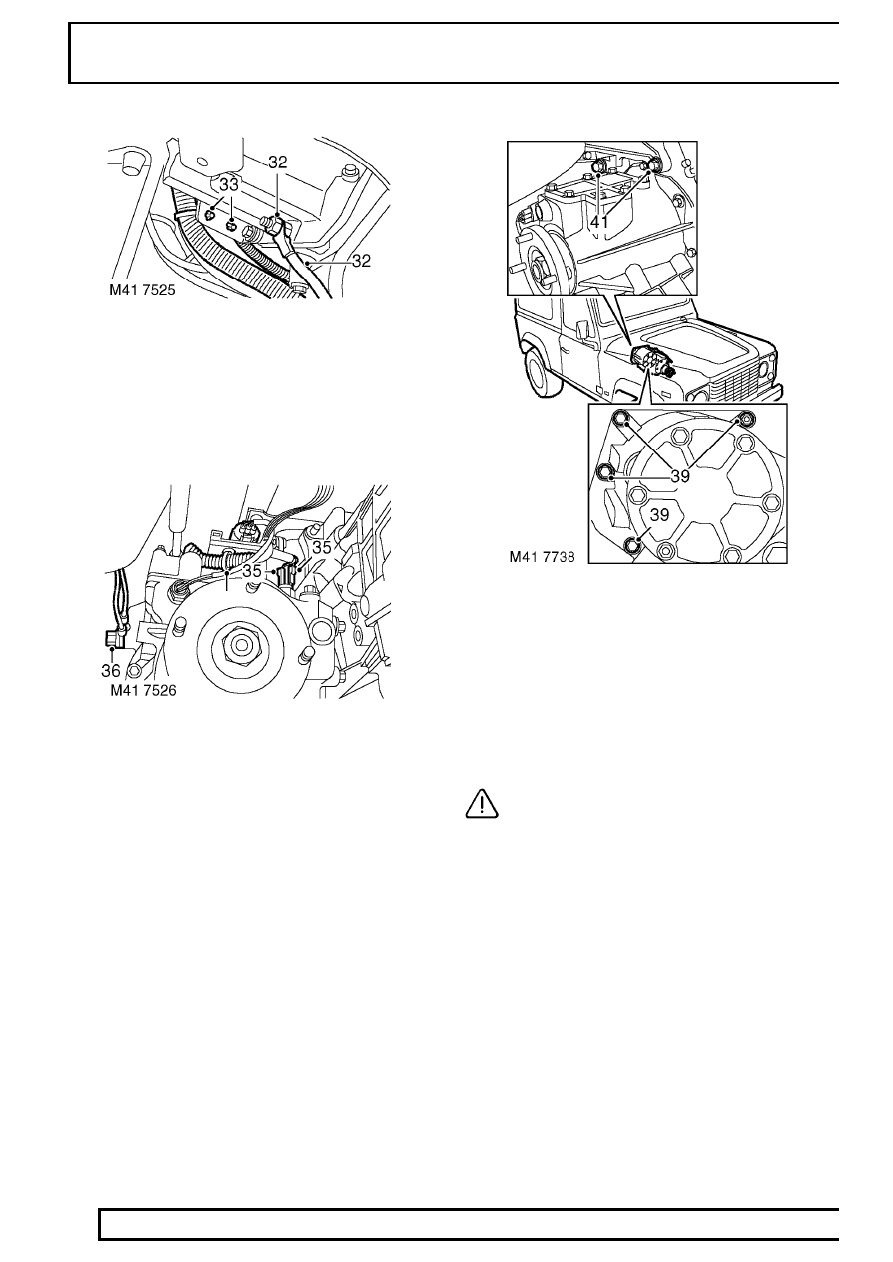

32. Remove retaining nut and release battery earth

lead from transfer gearbox.

33. Release body harness clips from bracket on top

of transfer gearbox.

34. Lower gearbox jack sufficiently to allow transfer

gearbox lever to clear tunnel.

35. Disconnect Lucars from differential lock warning

lamp switch and multiplug from low ratio detect
switch, and release multiplug from bracket.

36. Remove bolt and release earth leads from RH

side of transfer gearbox.

37. Move the high/low selector lever upwards to gain

access to adjacent nut securing transfer gearbox
to main gearbox.

38. Position a jack to support main gearbox and

engine.

39. Noting their fitted positions, remove 4 bolts

securing transfer gearbox to main gearbox
extension case.

40. Fit 3 guide studs LRT-41-009 through transfer

gearbox bolt holes to support it during during
removal.

41. Remove 2 nuts securing transfer gearbox to

main gearbox extension case.

CAUTION: If studs are removed during this
operation, they must be discarded and
new studs fitted.

42. With assistance, remove transfer gearbox from

main gearbox.

TRANSFER GEARBOX

5

REPAIR

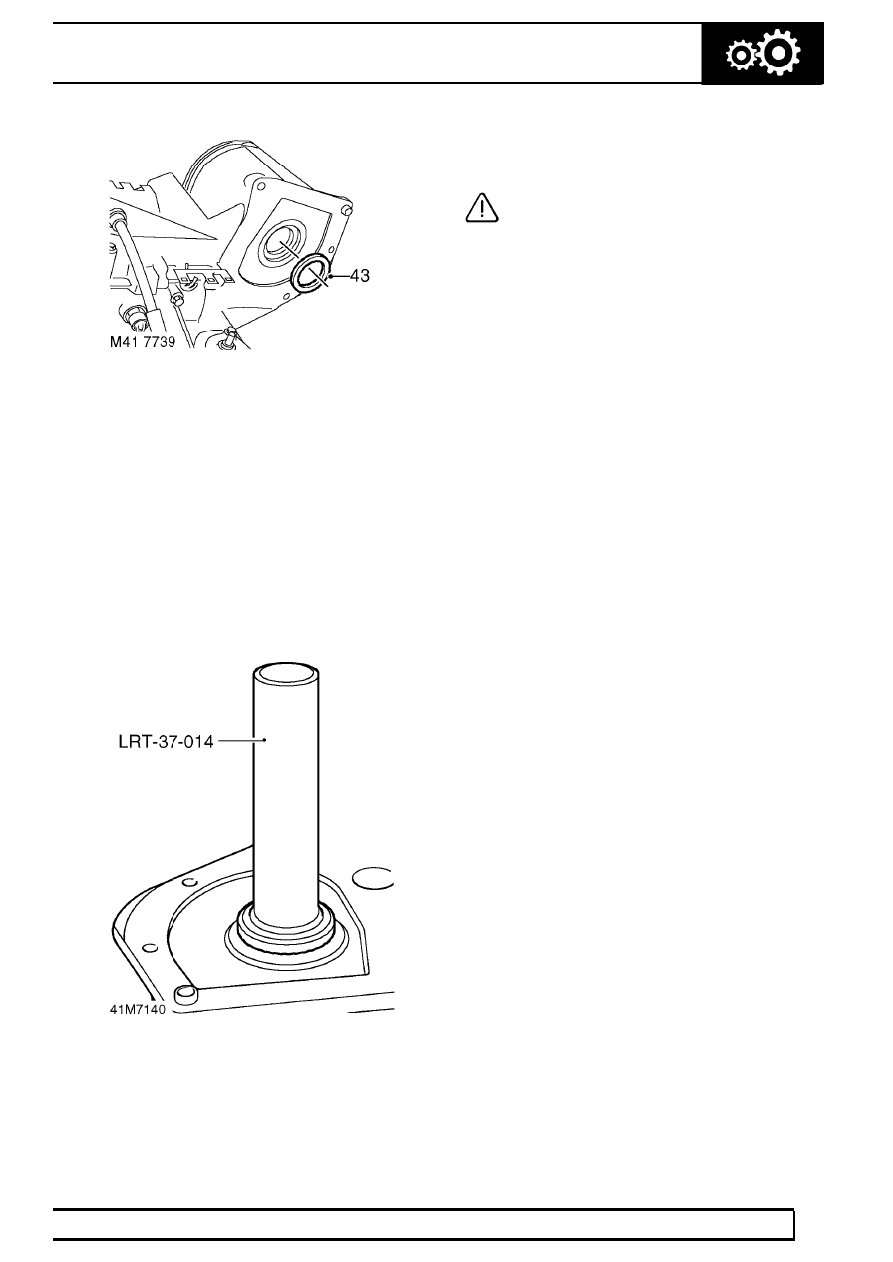

43. If transfer gearbox is to be refitted, remove and

discard input shaft oil seal.

Refit

44. Clean mating faces of main gearbox extension

case and transfer gearbox.

45. Remove all traces of sealant from threads of

transfer gearbox securing bolts and studs.

46. Clean input shaft oil seal recess in transfer

gearbox.

47. Lubricate new input shaft oil seal with transfer

gearbox oil.

48. Using tool LRT-37-014, fit input shaft oil seal, lip

side facing inwards.

49. Ensure guide studs LRT-41-009 are fitted in

main gearbox extension case.

CAUTION: If securing studs were removed
during transfer gearbox removal, apply
Loctite 290 to threads of new studs; fit

studs and tighten to 45 Nm (33 lbf.ft).

50. Secure transfer gearbox to support plate

LRT-99-010, fit and tighten 4 bolts.

51. Raise transmission hoist until transfer gearbox

can be located over guide studs LRT-41-009.

52. Apply Loctite 290 to threads of securing bolts

and studs.

53. Fit and lightly tighten 2 nuts to secure transfer

gearbox to main gearbox extension case.

54. Remove guide studs LRT-41-009.
55.
Ensuring bolts are in their original fitted

locations, fit and lightly tighten 4 bolts to secure
transfer gearbox to main gearbox extension
case.

56. Progressively tighten nuts and bolts to 45 Nm

(33 lbf.ft).

57. Position earth leads to RH side of transfer

gearbox, fit and tighten bolt.

58. Connect low ratio detect switch multiplug and

secure to bracket. Connect Lucars to differential
lock warning lamp switch.

59. Raise gearbox jack and guide transfer gearbox

lever through tunnel.

60. Connect body harness clips to bracket on top of

transfer gearbox.

61. Position earth lead to transfer gearbox, tighten

nut to 45 Nm (33 lbf.ft).

62. Connect speed sensor multiplug and secure

harness in clip.

63. Position heat shield to LH mounting, fit

mountings and brackets and tighten bolts to 85
Nm (63 lbf.ft).

64. Fit nuts securing RH and LH mountings and

tighten to 48 Nm (35 lbf.ft).

65. Position breather pipe to transfer gear box, fit

new sealing washers and tighten banjo bolts to
15 Nm (11 lbf.ft).

66. Remove bolts securing support plate to gearbox

jack.

67. Remove bolts securing LRT-99-010 to transfer

gearbox.

68. Apply Loctite 290 to threads of bottom cover

securing bolts, fit bolts and tighten to 25 Nm (18
lbf.ft)

69. Position differential lock control rod and secure

with retaining clip.

70. Clean rear propeller shaft to brake drum flange

mating faces.

41

TRANSFER GEARBOX

6

REPAIR

71. Release propeller shaft, align flange markings

and connect to studs.

72. Fit nuts securing propeller shaft and tighten to 48

Nm (33 lbf.ft).

73. Clean front propeller to transfer gearbox flange

mating faces.

74. Fit propeller shaft, align flange markings and

tighten nuts to 48 Nm (33 lbf.ft).

75. Using new gasket, fit intermediate silencer and

tighten nuts to 25 Nm (18 lbf.ft).

76. Fit exhaust front pipe. See MANIFOLD AND

EXHAUST SYSTEM, Repair.

77. Refill transfer gearbox with recommended oil.
78. Fit cooling fan cowl.
79. Fit high/low operating rod and secure with

retaining clip.

80. Position handbrake outer cable to heelboard.
81. Position handbrake cable to lever, fit clevis pin,

washer and new split pin.

82. Position handbrake gaiter and secure with trim

studs.

83. Fit insulation pad to tunnel.
84. Fit gear lever cover.
85. Fit gear lever knobs.
86. Position diagnostic plug bracket, access panel

and tighten screws.

87. Fit carpet to transmission tunnel.
88. Fit cubby box. See CHASSIS AND BODY,

Repair.

89. Fit cooling fan. See COOLING SYSTEM,

Repair.

90. Reconnect battery negative lead.
91. Fit battery cover.

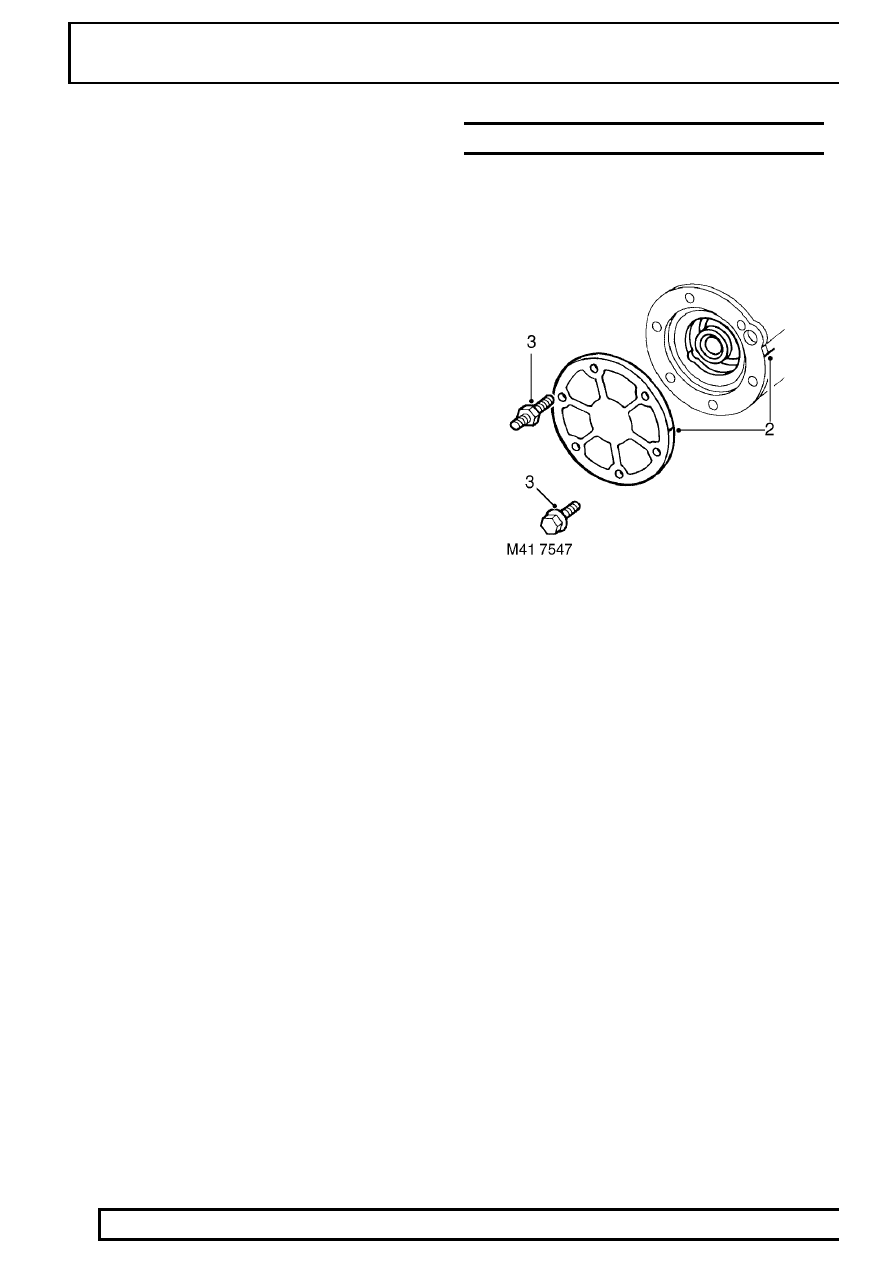

GASKET - REAR COVER PLATE

Service repair no - 41.20.30

Remove

1. Raise vehicle on ’4 post ramp’.

2. Mark rear cover plate to bearing housing for

assembly purposes.

3. Noting fitted position of stud bolt and harness

clip bracket, remove 5 bolts and stud bolt
securing cover plate.

4. Collect harness clip bracket.
5. Remove cover plate.

Refit

6. Clean cover plate and mating face.
7. Apply Hylosil RTV 102 to rear cover mating face.
8. Align reference marks, fit cover plate.
9. Clean cover bolts and apply Loctite 290 threads

of bolts and stud nut.

10. Position clip bracket, fit stud nut and bolts,

tighten by diagonal selection to 25 Nm (18
lbf.ft).

11. Check/top-up transfer gearbox oil.
12. Lower vehicle.
