Defender (1993+). Manual - part 81





BRAKING SYSTEM

REMOVE AND  OVERHAUL BRAKE CALIPERS

Special  tool:
18G672 - LRT-70-500 - Piston clamp

Remove  caliper

1.

Slacken  the  wheel  retaining  nuts, jack-up the

vehicle,  lower  onto  axle  stands  and  remove
the wheels.

2.

Expose  the  brake flexible  hose by  moving the

coiled protective covering and clamp the  hose.

Disconnect the hose from  the caliper.

NOTE:  Three  different  methods  of  retaining  the
brake  pads  are  used.  Each  type  is  listed

below

and shown

in

the illustrations referred to:

Type  A

Plate anti-rattle springs

Fig. ST1157M.

Type

Wire  anti-rattle springs

Fig.  ST1810M.

Type C

Coil anti-rattle springs

Fig. ST3441

3.  Removing

friction

pads

plate

type

anti-rattle springs
Straighten  the  splayed  ends

of

the  pad

retaining  pins  and  withdraw  the  pins.  Collect

the  anti-rattle  springs  and  withdraw  the  pads.
If

the  same  pads  are  to

be

refitted,  identify

them for  assembly

to

their original locations.

Removing  friction

pads

wire

or

coil

anti-rattle springs
Remove  the

four

spring  clips  or  split  cotters

and  remove  the  retaining  pins.  Withdraw  me
friction  pads.  If  the  same  pads  are  to  be

refitted,  identify  them

for

assembly  to  their

original locations.

4.

Remove  the

two

bolts

and  withdraw  the

caliper from  the vehicle.

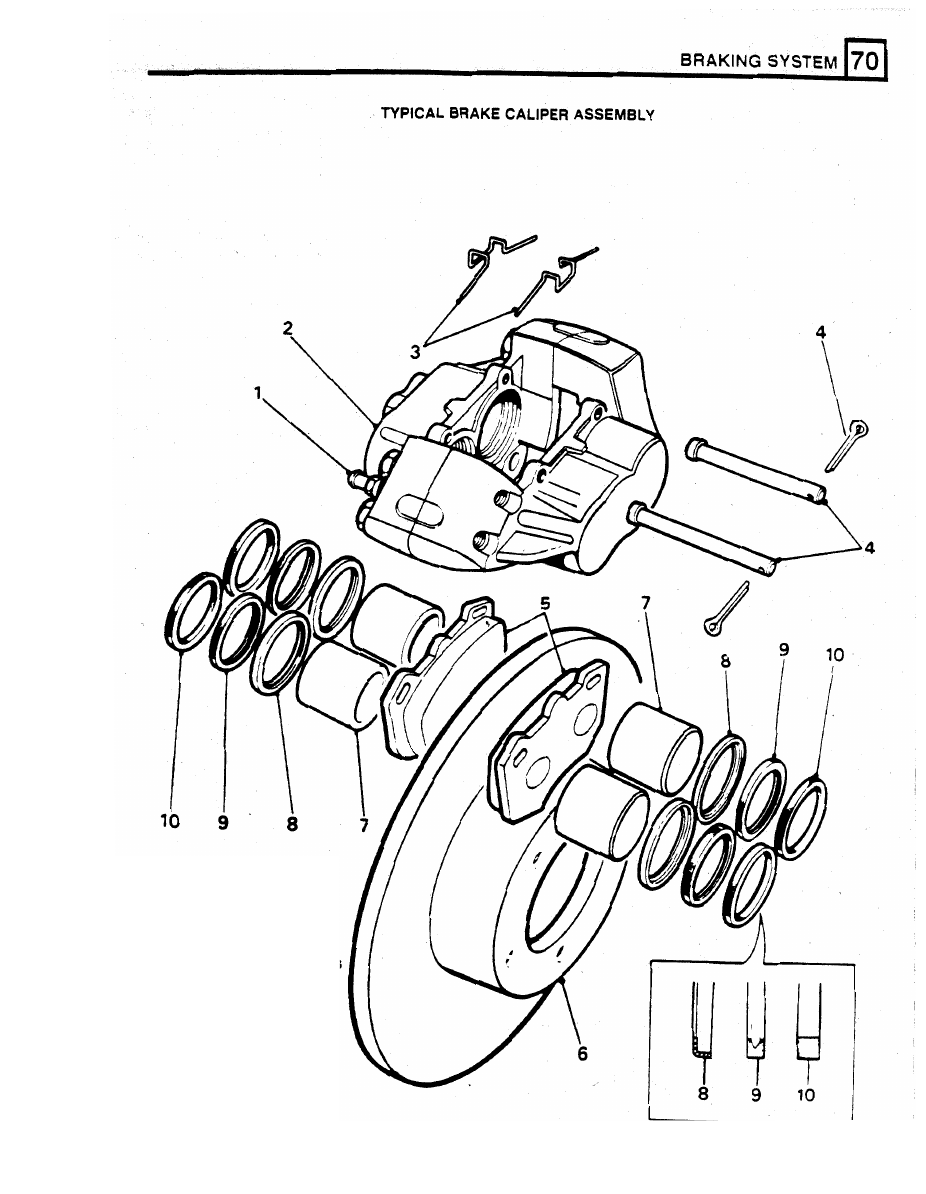

KEY TO

CALIPER

1.  Bleed screw

Caliper

3.  Hold  down  springs.
4.

Retaining  pins  and  clips

5.  Friction  pads.
6.  Brake  disc.
7.  Piston.
8.  Wiper  seal  retainer.
9.  Wiper seal.

or  split  pins.

10.  Fluid  seal.

ST2721M

BRAKING SYSTEM

Slide  the  assembly,  seal  first,  over  the

Do not separate the caliper halves.

protruding  piston  and  into  the  bore  recess

Remove  the  piston  clamp  from  the  mounting
half  and  use  the  clamp  to  press  home

the

seal retainer and piston.

5.

Clean  the  outer  surfaces  of  the  caliper  with
methylated spirit.

6.

Using  special  tool

18G672,

clamp  the  pistons

in  the  mounting half  of  the  caliper  and  gently,
keeping  fingers  clear,  and  with  CAUTION,

Mounting-half pistons

apply  air  pressure

to

the  fluid  inlet  port  to

expel  the  rim  half  pistons. Since

it

is  unlikely

that  both  pistons  will  expel  at  the  same  time,
regulate  the  rate  with  a  suitable  piece  of

to

13.

timber  between  the  appropriate  piston  and
caliper.

7 .

Finally,  remove  the  pistons  keeping  them

15.

Fit  the  caliper  to  the  axle  and  secure  with  the

identified with their  respective bores.

two

bolts  tightening  evenly  to  the  correct

8.

Remove the  wiper  seal  retainer  by  inserting a

torque,

see

data.

blunt  screw  driver  between  the  retainer  and

16.

Connect the  brake flexible  hose  to  the  caliper

the  seal  and  prise  the  retainer  carefully  from

and remove the hose clamp.

the mouth of  the bore.

17.

Lightly Smear  the  back  and  edges

of

the  pads

9.

Taking  care  not  to  damage the  seal  grooves,

with

disc  brake lubricant carefully  avoiding the

extract the wiper  seal and fluid seal.

friction material.

10.

Clean  the  bores,  pistons  and  particularly  the

18.

Fit  the

friction

pads  and  secure  using  new

seal  grooves

with

clean  brake  fluid  or

pins  and  split  pins  and  anti-rattle  springs.

methylated spirit  only.  If  the caliper  or  pistons

Splay  the  ends

of

the  early  type  retaining

are  corroded

or

if

their condition is not

perfect

pins.

the parts

must

be

renewed.

14.

Clamp  the  rim-half  pistons  and  carry  out  the
same  procedure  as  for  removing  and  fitting
the  rim  half  pistons  and  seals,  instructions

Fit calipers and  pads to vehicle

Assemble

rim-half

pistons

1 1 .

Coat  a

new

fluid  seal  with  Lockheed  disc

brake  lubricant. Ease the  seal into  the  groove
in the  bore  using only  the  fingers  and ensure

that

it

is  properly  seated.  The  fluid  seal  and

the  groove are not the same in  section

so

that

when

the  seal  is  seated

it

feels  proud to  the

touch  at  the  edge  furthest  away

from

the

mouth

of

me bore.

12.

Smear  the  appropriate  piston  with  hydraulic
brake  lubricant and  insert

it

squarely  into  the

bore  by  hand  only.

Do

not

tilt

the

piston

during insertion and leave approximately

mm

projecting from the bore.

13.

Coat  a  new  wiper  seal  with  hydraulic  brake
lubricant and fit  it to  a new  seal retainer.

19.  Bleed  the  brake  hydraulic  system  as

described later

in

this section.

28.

When  the

foregoing

instructions  have  been

completed on  both calipers,  depress the brake

pedal

firmly

several times to  locate the friction

pads.

21.

Fit  the  road  wheels,  remove  the  axle  stands

and  finally  tighten  the  road  wheel  nuts,  see
data.

22.

Road  test  the  vehicle.  remembering

that  if

new

friction

pads have been

fitted

they  are  not

‘bedded

-  in'  and  may  take  several  hundred

miles  before  the  brakes  are  at  maximum
efficiency.

BRAKING

SYSTEM

OVERHAUL REAR BRAKES - 110 models

DISMANTLING

7 .   Remove the two dust covers.

WARNING:

Do

not  use  an  air  line  to  blow

dust

from  the  brake  assemblies  -  asbestos  dust  from
brake  linings  can  be  a  serious  health

risk

if

11.

Clean  components  with  Girling  cleaning  fluid

inhaled.

and allow to dry.

12.

Examine  the  cylinder

and  pistons  for

1.

Slacken  the  road  wheel  nuts,  jack-up  the

corrosion,  scores  and  wear.  Renew  any
component  that  is  not  satisfactory  or  replace
complete cylinder assembly.

2.

Slacken  the  two  brake  shoe  adjusters  on  the

13.

Fit  new  seals  to  the  pistons  noting  that  the

brake drum.

14.  Lubricate  the  pistons  with  new  clean  Girling

3.  Disconnect  the  brake  fluid  pipe  to  the  wheel

ingress of dirt.

16.  Fit the dust covers.

4.  Remove  the  two  retaining  nuts  and  withdraw

the wheel cylinder

from

the back-plate.

Dismantle  and  overhaul  wheel  cylinder

8.

Withdraw  the pistons and discard seals.

9.

Remove the spring.

10.

Remove the bleed screw.

vehicle,  lower  onto  axle  stands  and  remove
the road wheels.

rear  of  the  back-plate  to  assist  removal  of

seal lip is towards the cylinder.

brake fluid.

cylinder  and  cover  the  pipe  end  to  prevent

15.

17.  Fit the bleed screw and tighten to 0,5  to

0,8

kgf

m.

Fit the spring  between the

two

pistons.

Assembling  rear  brake

5.  Remove  the  single  retaining  screw  and

18.

Fit  the  wheel  cylinder  to  the  back-plate  and

6

Assemble  new  brake  shoe  pull-off springs  to

secure with the two  nuts and spring washers.

relined  brake  s h o e s  as illustrated.

withdraw the brake drum.

position of  the pull-off springs.

Lever off the brake shoes whilst noting  the

19.
