Defender (1993+). Manual - part 79





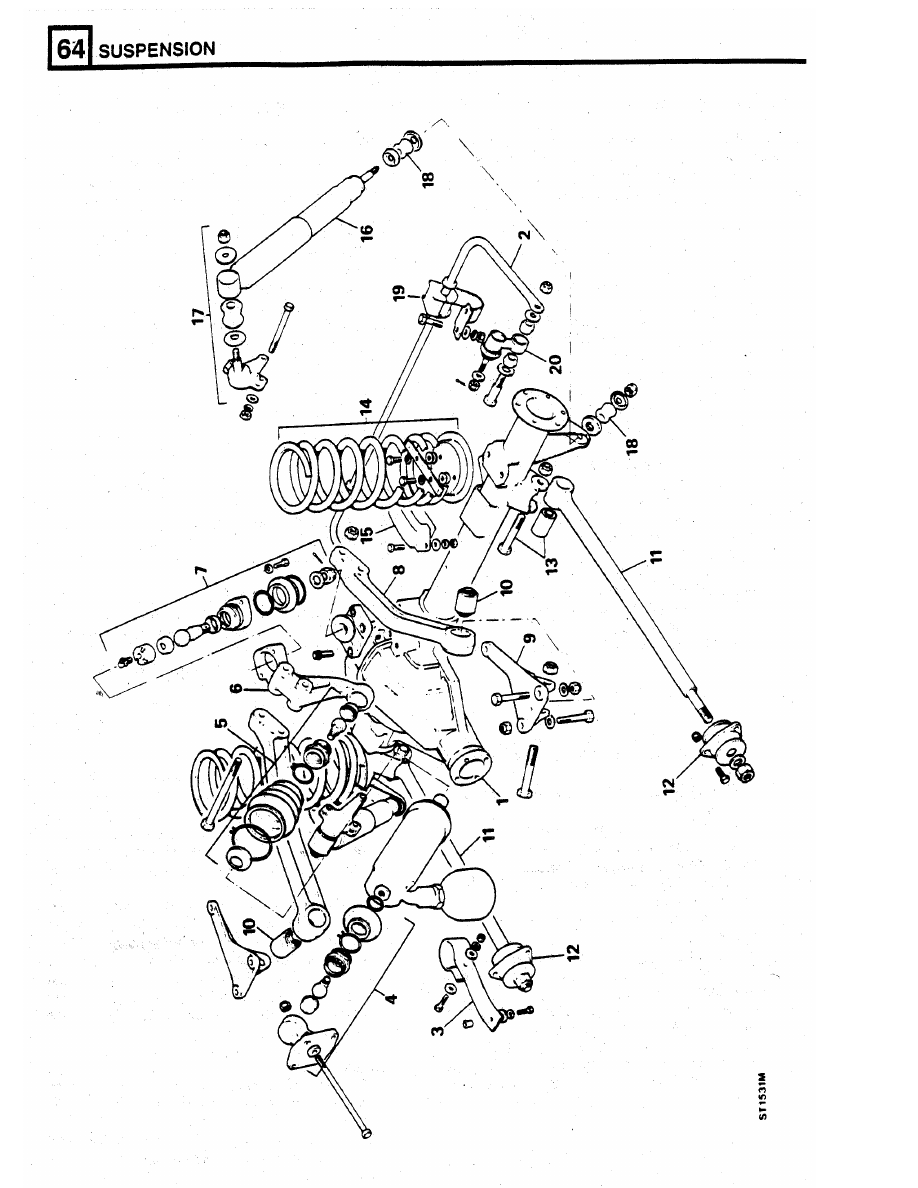

SUSPENSION

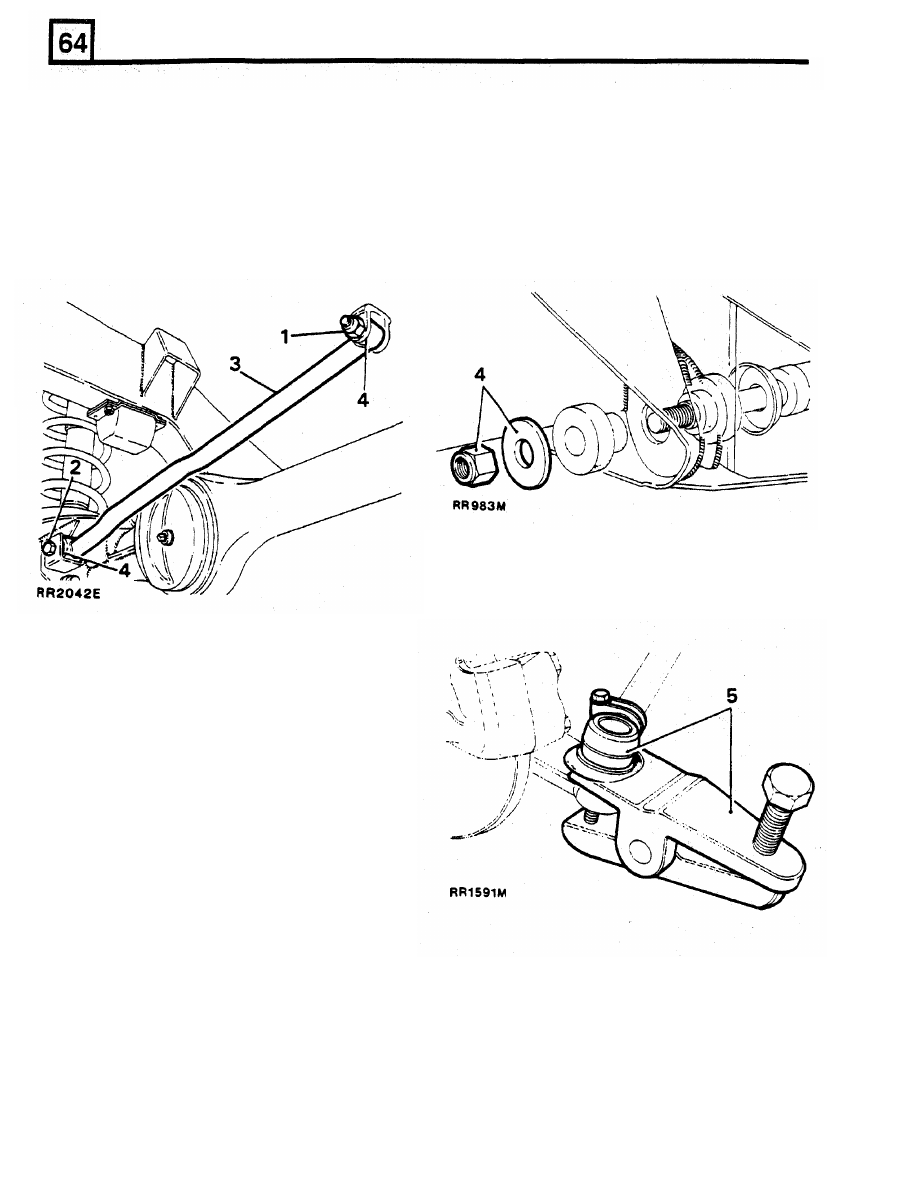

PAN HARD ROD                                                                                RADIUS ARM

Remove

Remove

1.

Remove fixings at  mounting arm.

1.

Loosen road wheel retaining nuts.

2.

Remove fixings at  axle bracket.

2.

Raise  front  of  vehicle.  Support  chassis  on

3.

Remove Panhard rod.

stands and remove wheel.

4.

Press  out  flexible  bushes.  Ensure  the  steel

3.

Support front  axle weight with jack.

tubing  locates on  the  outer  edge  of  the  bush
and  not on the rubber inner.

4.

Remove  radius  arm  to  chassis  side  member

fixings.

5.

Disconnect track  rod at  ball joint.

6.  Remove fixings, radius arm to axle.

7.

Lower  radius  arm  front  end  to  clear  axle  and
remove from vehicle.

Refit

5.

Fit

replacement bushes.

CAUTION:  Apply  pressure to  outer edge of  bush,

and not rubber inner.

6.  Reverse 1

to

4.

Tighten fixings

to

88Nm.

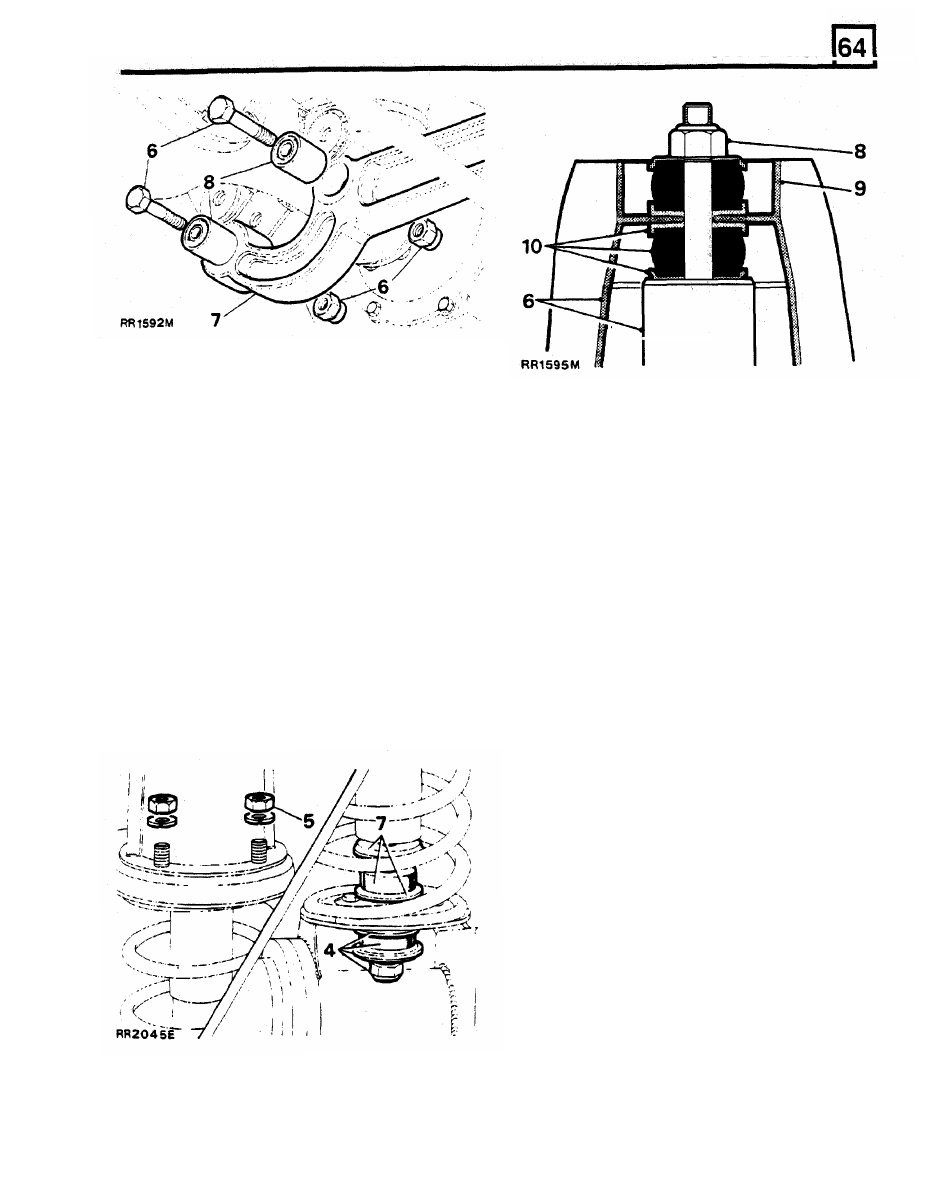

SUSPENSION

8.

Press out flexible bushes.

Refit

9.  Press in replacement bushes.

7.  Withdraw  lower  seating  washer,  rubber  bush

and cupwasher.

8.

Remove  fixings,  shock  absorber  to  mounting
bracket.

9.  Withdraw mounting bracket.

10.  Lift

off

top  seating  washer,  rubber  bush  and

CAUTION:  When  pressing  in  new  bushes  press
on outer edge of bush and not  rubber inner.

10.

Reverse

to

7.  Tighten  fixings  to  following

torques:

cupwasher.

Radius arm to chassis 176Nm.
Radius arm to axle  197Nm.

Refit

FRONT SHOCK ABSORBER

11.  Reverse instructions 1 to 10.

Remove

1.

Loosen road wheel retaining

nuts.

2.

Support  chassis  on  stands  and  remove  road

wheel.

3.  Support axle weight with jack.

4.

Remove  shock  absorber  lower  fixing  and

withdraw  e  cupwasher,  rubber  bush  and

seating washer.

5.

Remove four  shock absorber  bracket fixings.

6.

Withdraw

shock

absorber

and

bracket

complete.
