Defender (1993+). Manual - part 58

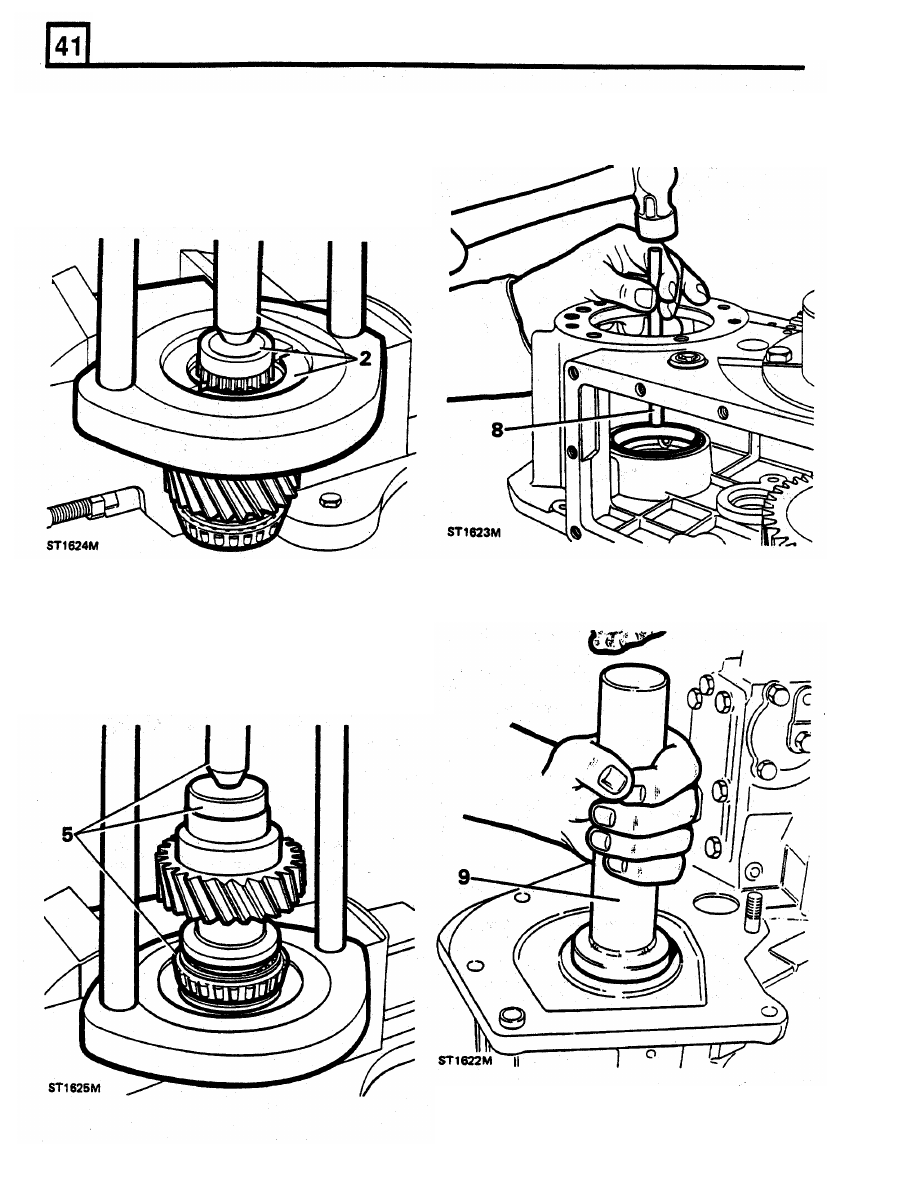

LT230T

TRANSFER GEARBOX

2.

Secure  hand  press  MS47  in  the  vice  and

7.  Prop  up  the  transfer  box  casing on  the  bench

using  collars  18G47  -  7 and  button  18G47  -
BB/3,  remove  rear  taper  roller  bearing  from

3.  Invert input gear  assembly  in hand press and

remove front  taper  roller bearing.

4.

Clean input gear.

with the rear face uppermost.

8.  Drift in the front taper  bearing track.

input gear  assembly.

9.

Reposition  transfer  box  casing

so

the  front

face  is  uppermost  and  fit

oil

seal  (lip  side

inwards) using replacer tool 18G1422.

Re-assembling input gear assembly

5.

Position rear taper roller bearing on input gear

and  using  hand  press  MS47  and  collars

18G47

press the shaft onto bearing.

6.  Invert  input  gear  and  fit  the  front  taper  roller

bearing using the press and collars.

10.  Lubricate both bearings with clean

oil.

11.  Fit  the  input  gear  assembly  into  the  transfer

box casing with the dog teeth uppermost.

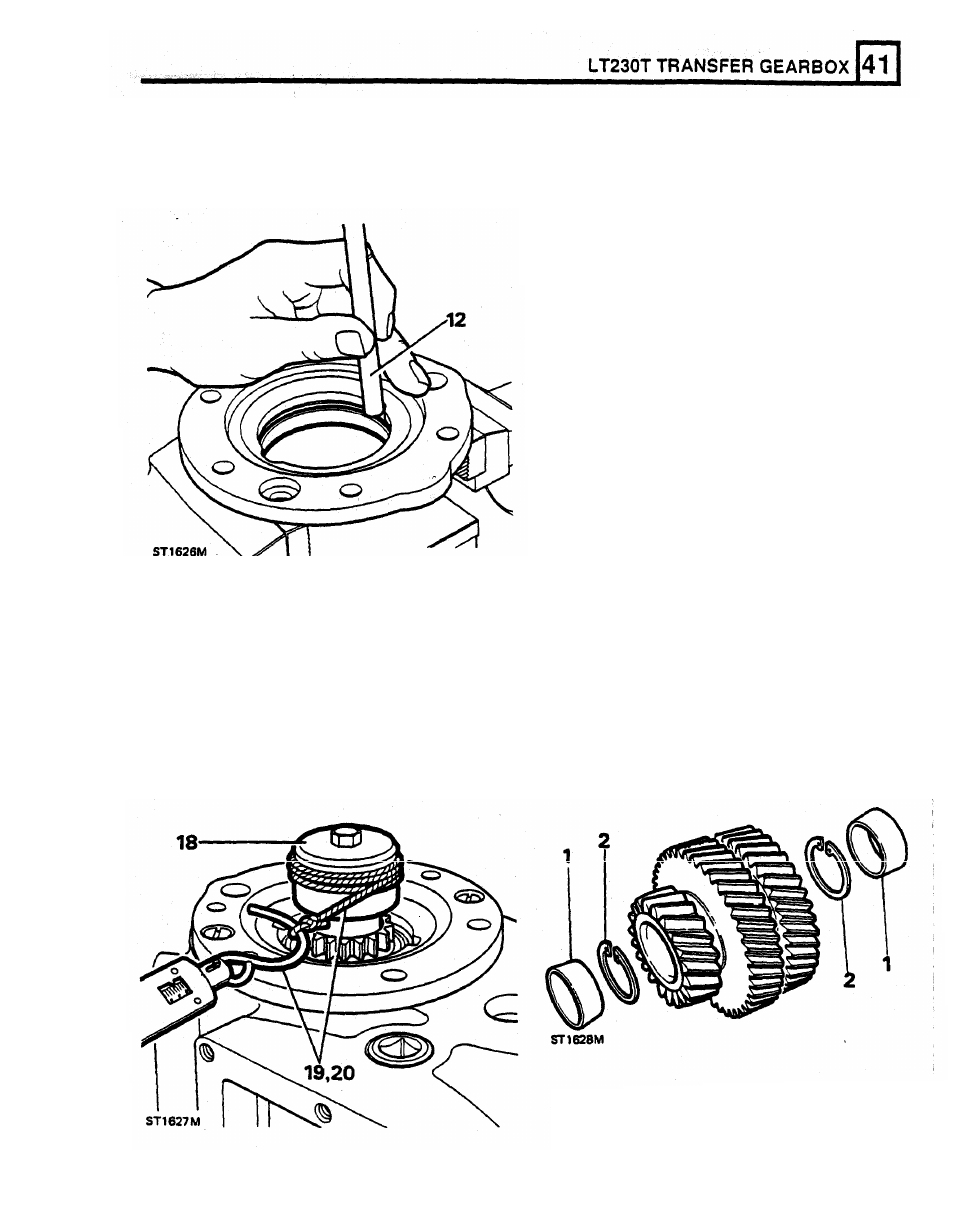

Checking input gear bearing pre - load

19.

Tie  a  length of  string

to

the  split  pin and

fit  it

to

the service tool as  shown.

12.  Secure  bearing support  plate in the vice.  Drift

20.  Attach  a  spring  balance  to  the  string  and

out  input  gear  bearing  track,  and  remove

carefully  tension the spring until a load to  turn

shim.

the

input gear  is obtained.

pull of 2,26  kg

to

9 kg

(5

Ib

to  20 Ib) is required.

NOTE: Alternatively using a suitable torque
wrench  applied  to  the  nut  on  the  service

tool,  torque  to  turn  the  input  gear  should

be

0.56  to

2.25

Nm

(5

to

20

in Ib).

21.  If  the  reading  obtained  is  outside  the  above

limits, the original shim must be changed.

22.  Remove the spring balance, string and service

tool.

23.  Remove the six  bolts and the  bearing support

plate.

24.

Drift  out  the  input gear  bearing track  from the
support plate and discard original

shim.

25.

Select  the  correct  size  shim  to  obtain

load

to  turn

of

2,26  kg  to  9  kg

(5

Ib

to

20

Ib)

or

torque to turn 0.56 to 2.25

Nm

(5

to

20 i n

lb).

26.  Fit  shim  to  support  plate, locate  bearing track

and press home.

27.  Fit  bearing  support  plate  and  secure

to

13.

Clean  bearing  support  plate  and  shim.

transfer  box  casing  with  the  six  bolts

(do

not

Measure original shim and  note its thickness.

tighten).

14.

Fit

the original shim

to

the support plate.

28.  Repeat  the  rolling  resistance  check  as

15.

Locate  the  bearing  track  in  the  support  plate

previously  described,  and  note  the  value

and press fully  home.

16.

Apply  grease  to  the  gasket  and  fit  on  to  the
transfer  box  casing.

17.

box  casing  and  secure  with  the  six bolts,  but
do  not  tighten,

18.

Fit  the  service  tool  LST105

to

input gear  and

engage the spline.

2.

Remove circlips.

obtained.

Fit the  bearing  support plate on to  the transfer

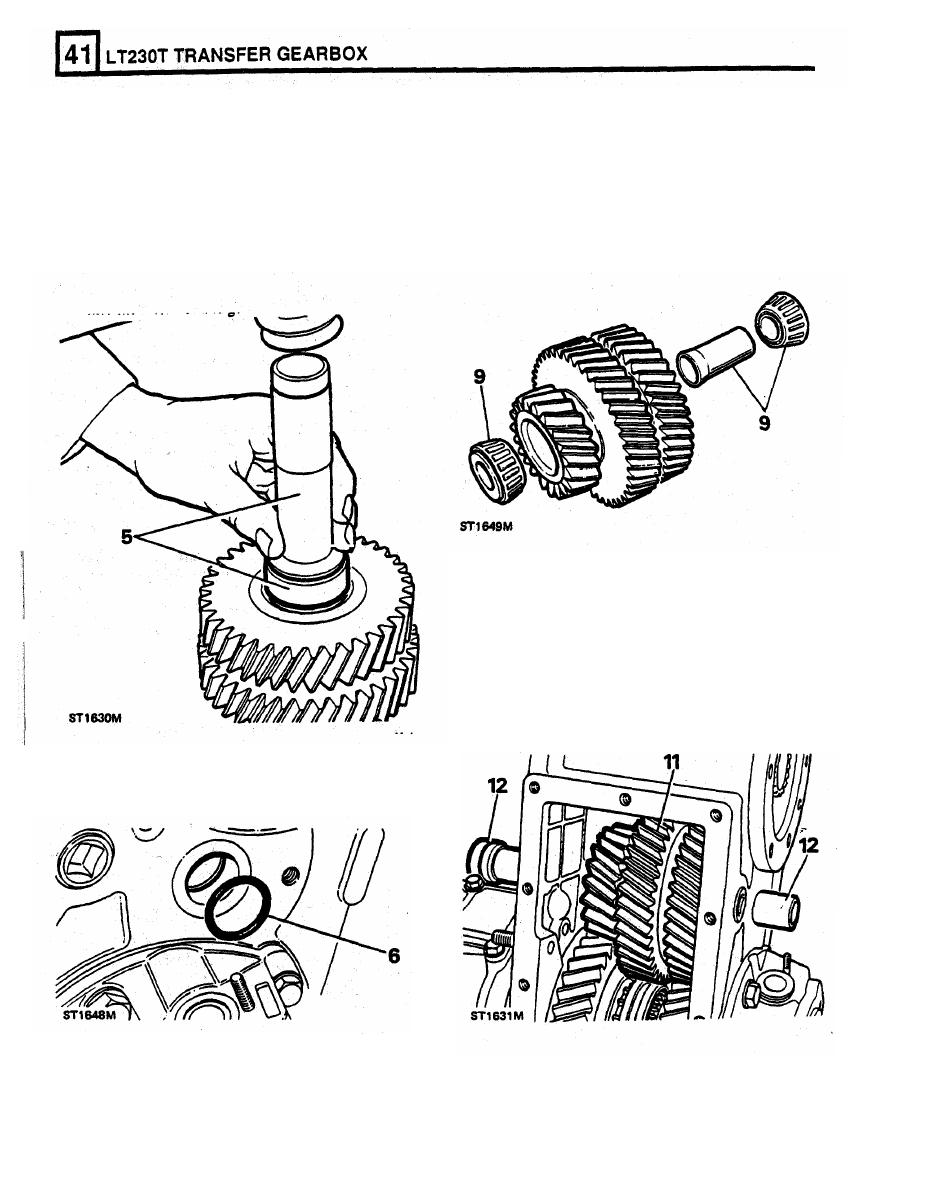

Intermediate gear assembly overhaul

1.

Drift out intermediate gear bearing tracks.

3.

Clean  all  intermediate  gear  components  and

Intermediate gear reassembly

7.

Check  for  damage  to  the  intermediate  shaft

4.

Fit  new  circlips  into  the  intermediate  gear

thread  and  if  necessary  clean  up  with  a  fine

5.

Using tools LST550 - 4 and MS550 fit bearing

8.  Lubricate  the  taper  roller  bearing  and

intermediate gear shaft.

9.

Insert  new  bearing  spacer  to  gear  assembly,

followed by the taper  roller bearings.

lock  plate.  Check  for  damage  or  wear  and
replace as necessary.

cluster,

file or  stone.

tracks into the  intermediate gear cluster.

10.

Fit dummy  shaft

LST104

into the intermediate

gear cluster.

11.

Locate the gear assembly into the transfer box

casing from the

bottom

cover aperture.

12.

Insert intermediate shaft

from

the  front  of  the

transfer

box

casing,  pushing the  dummy  shaft

right  through as  shown  and  remove.  (Making
sure that the intermediate gear  cluster  meshes
with  the  input  gear  and  high  range  and  low
range gears.)

6.  Fit  the

‘O’

rings

to

the  intermediate shaft  and

into the  intermediate shaft  bore at

the

front  of

the transfer

box

casing.

LT230T TRANSFER  GEARBOX

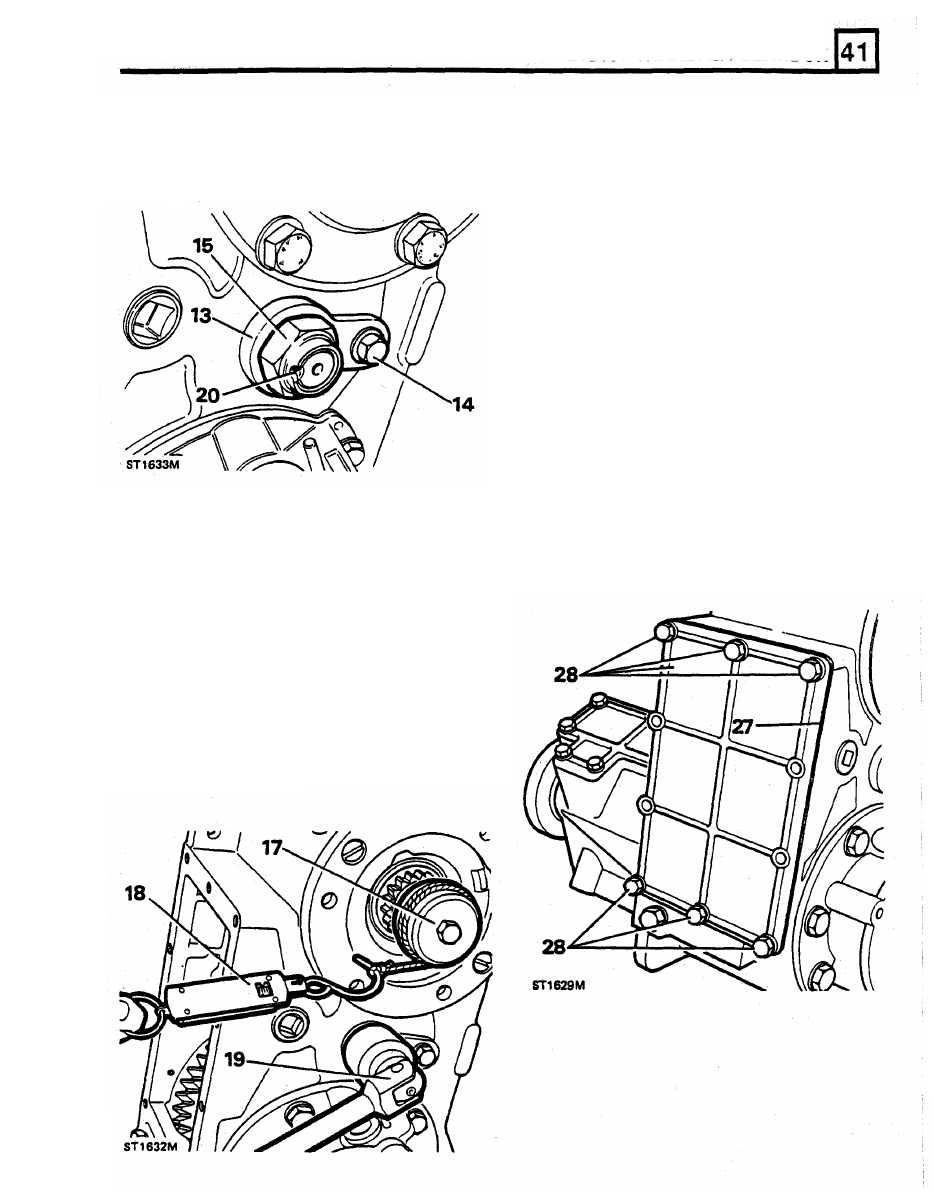

13.  Turn  the  intermediate shaft  to  allow  fitting  of

20.

Peen  the  stake  nut  by  carefully  forming  the

retaining plate.

collar  of  the  nut  into  the  intermediate  shaft

14.  Fit  retaining  plate  and  secure  with  retaining

recess, as illustrated.

bolt and washer.

15.

Fit  the  intermediate gear  shaft  retaining stake

CAUTION: A round nose tool must be  used

nut.

for  this  operation  to  avoid  splitting  the

collar of the nut.

Power take -

off cover - reassemble

21.  Clean power take -

off

cover and gasket face.

22.  Fit the two  countersunk screws and tighten.
23.  Remove the  six  bolts from the bearing support

plate.

24.  Apply  sealant to the cover  plate gasket and fit

it

to the  bearing support  plate.

25.  Apply  Loctite 290  to  bolt  threads  and  secure

the  power  take

off

cover  with  the  six  bolts

and washers.

Bottom cover - reassemble

Adjusting intermediate gear torque -

to -

turn

26.  Clean bottom cover and gasket face.
27.  Apply  sealant  to  cover  gasket  and  fit  to

16.  Select neutral.

transfer

box

casing.

17.  Fit  service

tool

LST105  to  input  gear  and

28.  Apply  Loctite 290  to  bolt  threads  and  secure

engage spline.

18.  Tie

length

of

string  to  a  split

pin

and  fit  to

the  service  tool  as  shown.  Attach  the  spring
balance to the string.

19.

To

obtain  the  correct  figures  and

to

collapse

the  spacer  within  the  intermediate  gear
cluster,  tighten the  intermediate shaft  nut  until

the  load

to

turn has increased by

3,7

kg (7

Ib)  ±  1,63  kg  (±  3  Ib)  on  that  noted  when
checking input shaft load - to - turn.

the

bottom

cover with

SIX

bolts and washers.
