Defender (1993+). Manual - part 56





LT230T

TRANSFER GEARBOX

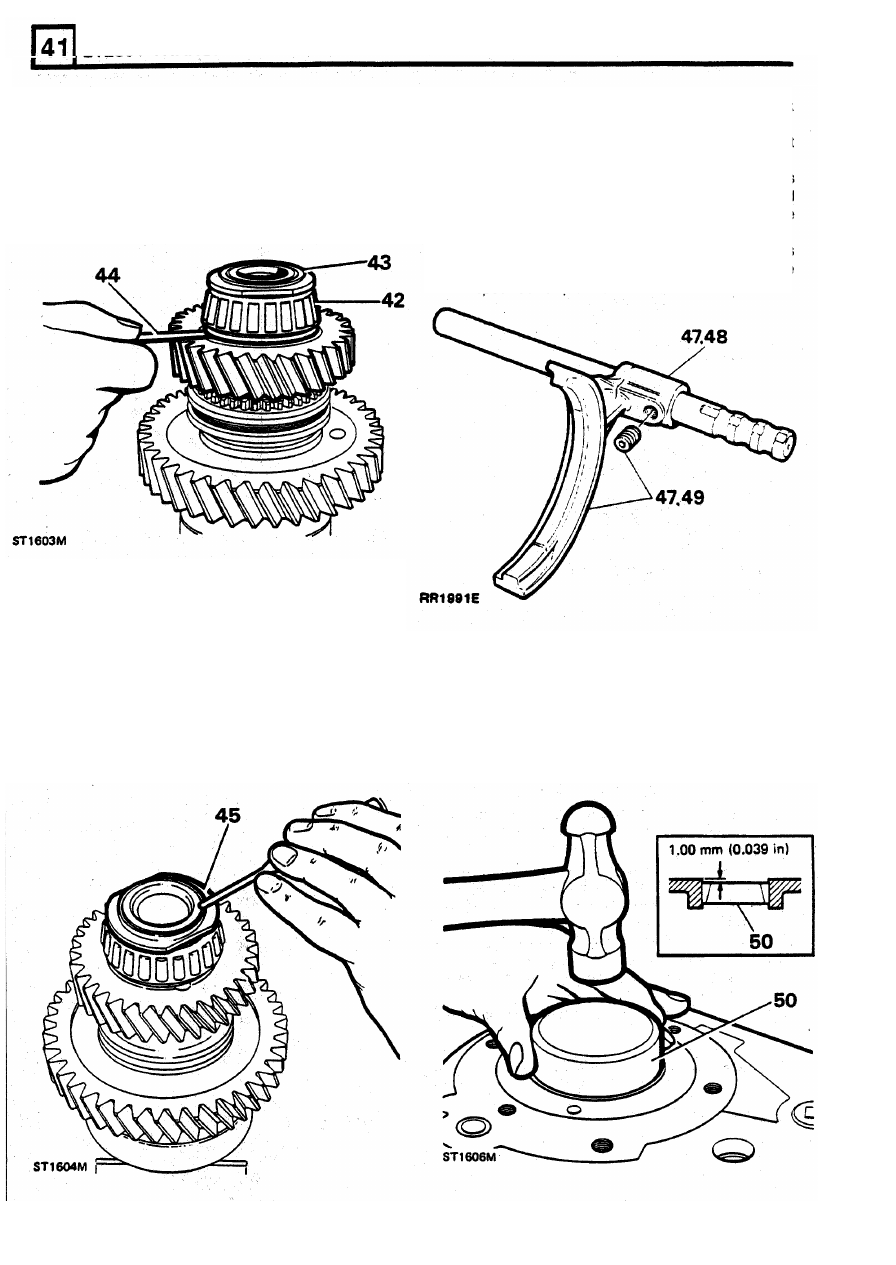

42.  Locate  the  rear  differential  bearing  on

to

the

46.  Clean  and  check  high/low  selector  fork

hub  and  press

it

into  position  using  the

assembly for  wear  and renew

if

necessary.

smaller  end

of

tool  18G1424, see  instruction

47.

To  renew  the  selector  fork  remove  the  set

36.

screw  and slide the fork  from the shaft.

43.  Fit  the  stake  nut  and  tighten

to

the  specified

48.  Fit the  new  selector  fork  with  its boss towards

torque using

tool

18G1423.

the  three  detent  grooves.  Align  the  tapped

44.

Check the end float  of  the high and  low range

hole  in  the  fork  boss  with  the  indent  in  the

gears

0,05

to 0,15

mm (0.002

to 0.005

in).

shaft nearest

to

the detent grooves.

49.  Apply  Loctite

290

to  the  set  screw  threads

and

fit

the  set  screw  and  tighten

to

the

specified torque.

NOTE:  If  the  clearances  vary  from  those
specified,  the  assembly  must

be  rebuilt

using the relevant new

parts.

45.  Peen the  stake  nut  collar by  carefully forming

the collar

of

the nut into the

slot

as illustrated.

CAUTION:

A  round nose tool must be used

for  this  operation  to  avoid  splitting  the
collar of  the nut.

Centre differential rear bearing track

50.  Fit the  differential  rear  bearing track

1,00

mm

(0.039

in)  below the outer face of  casing using

suitable

tool

as

shown.

20

REISSUED: FEB 1993

LT230T TRANSFER GEARBOX

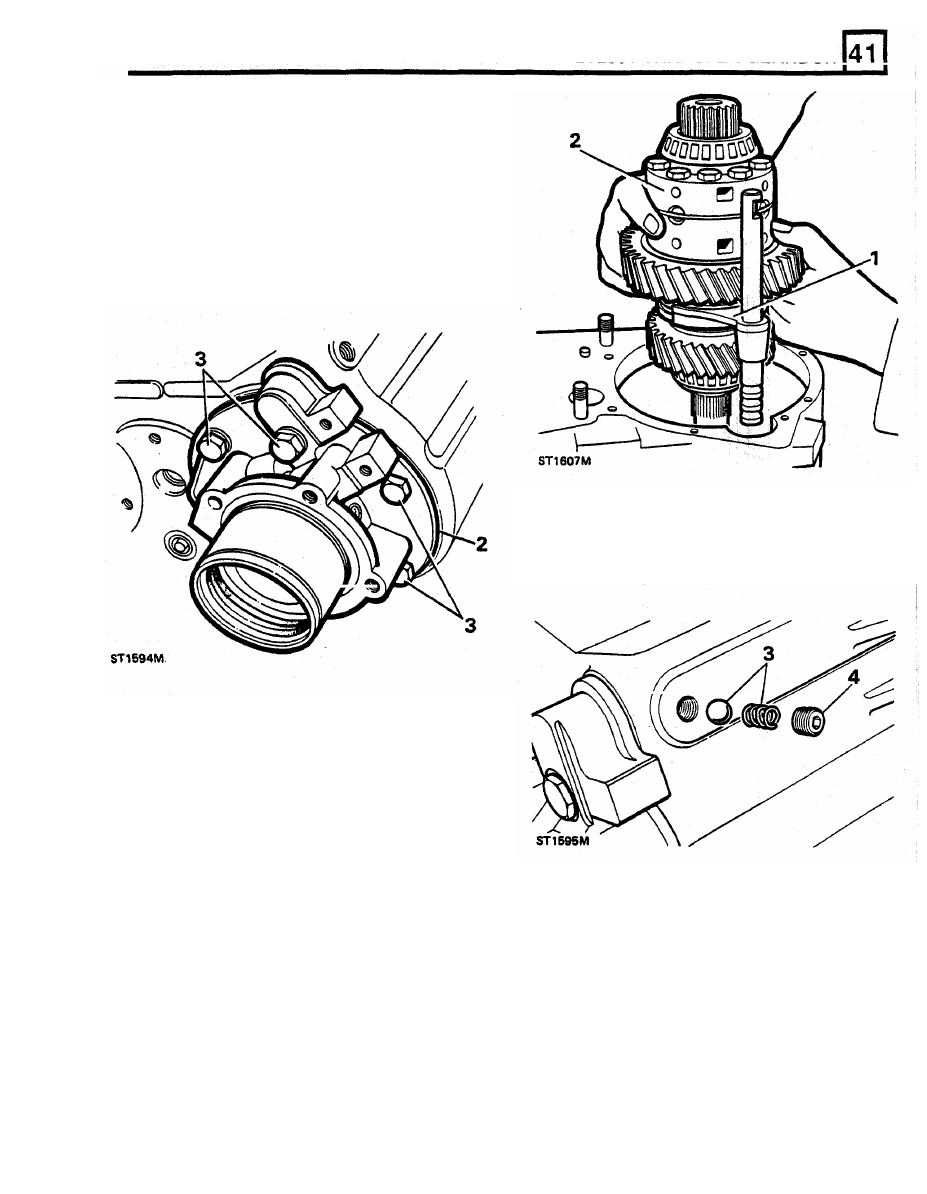

Rear output housing

refit

1.

Grease output housing gasket  and position

on

to the rear face of  the transfer box casing.

2.

Fit

output  housing  and  ensure  clearance  of

100

mm  (0.039 in) between housing face  and

gasket.

3.

Fit

the  six  output  housing  bolts  with  Loctite

290

on  the  threads,  with  washers  and  tighten,

evenly to the correct torque, which will  pull the
rear bearing into position.

3.

Fit  selector  shaft  ball  and  spring  through  the
side

of

the transfer  box  casing.

4.

Apply  Loctite  290  to  detent  plug;  fit  and-
locate, by screwing gently fully  home and then
unscrewing two turns.

Centre differential unit refit

1.

Fit

the  selector  fork/shaft  assembly  to  the

high/low  selector  sleeve

on

the  differential

assembly,  with  detent  groove

to

the  rear

of

the

differential assembly.

2.

Locate the differential  assembly complete with

selector  fork  into  the  transfer  box  casing.  It
may be necessary to rotate the output  shaft  to
ease  fitment,  and  engage  selector  shaft  into
its hole.

LT230T

TRANSFER

GEARBOX

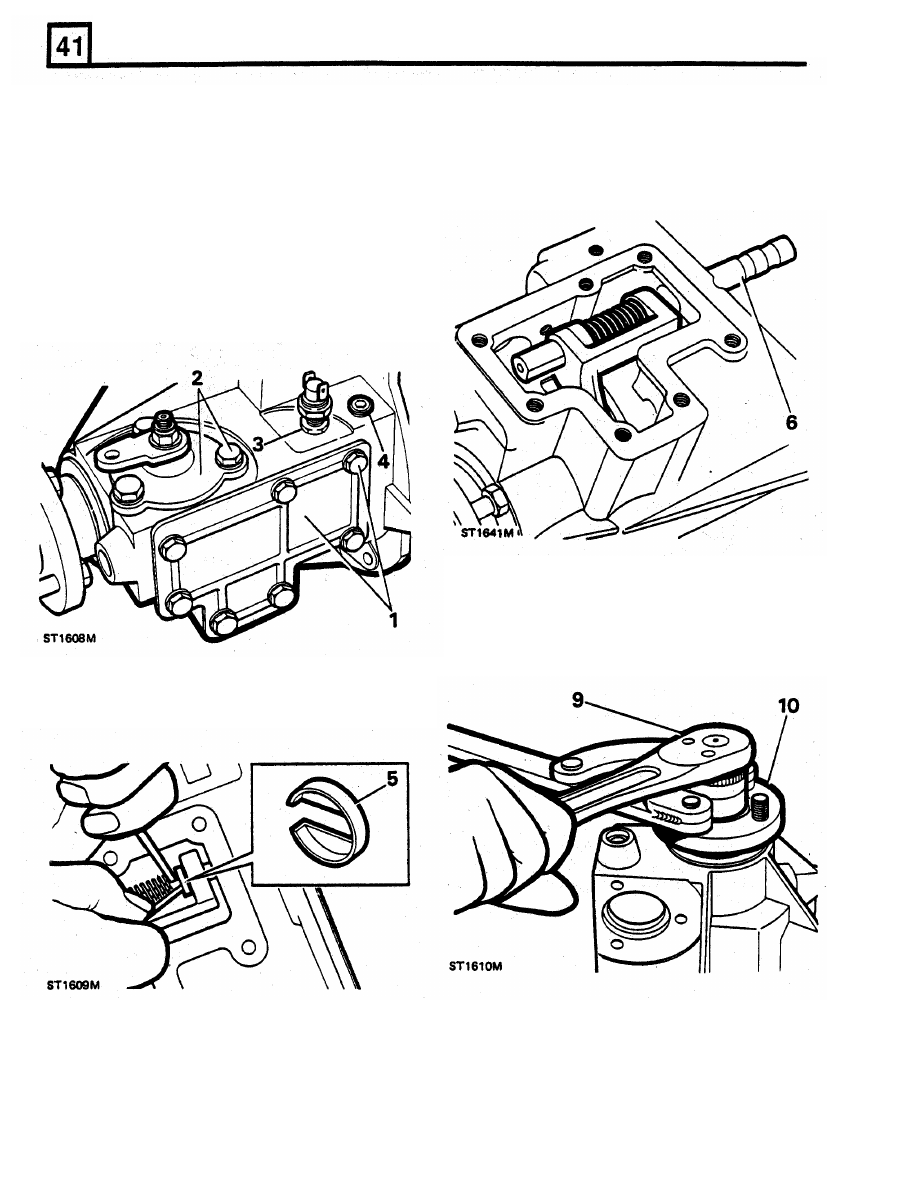

Front output  housing dismantle and overhaul

6.

Withdraw  the  selector  shaft  from  the  rear  of
the output housing.

1.

Unscrew  seven  retaining  bolts  and  washers

7.

Remove the  selector fork  and  spring  through

the side cover aperture.

8.  Remove lock  -  up  sleeve from  the rear of the

and remove the differential lock  selector  side

2.

Unscrew three retaining bolts  and  washers

output  housing.

and  lift the  differential  lock  finger  housing and
actuator  assembly

from

the  front  output

3.  Slacken  the  locknut

and

unscrew

the

4.  Remove slector shaft  detent  plug,  spring  and

9.

Using  flange  wrench

18G1205

and  socket

wrench,  remove the  flange  nut,

steel

and  felt

washers.

NOTE:  Ensure  that  flange  bolts  are  fully
engaged

in the wrench.

5.

Compress the selector fork  spring and remove
the two  spring retaining caps.

cover and gasket.

housing.

differential  lock  warning  light switch.

ball using a suitable magnet.

LT230T TRANSFER GEARBOX

10.  Remove the output flange with oil seal shield.

16.

Drift  out  centre  differential  front  taper  roller

bearing track  and shim.

NOTE:  These  parts need  not  be  separated
unless the flange bolts are to  be renewed.

11.  Drift  output  shaft  rearwards  from  housing

using a soft headed mallet.

12.

Slide

off

the collar from the output shaft.

13.

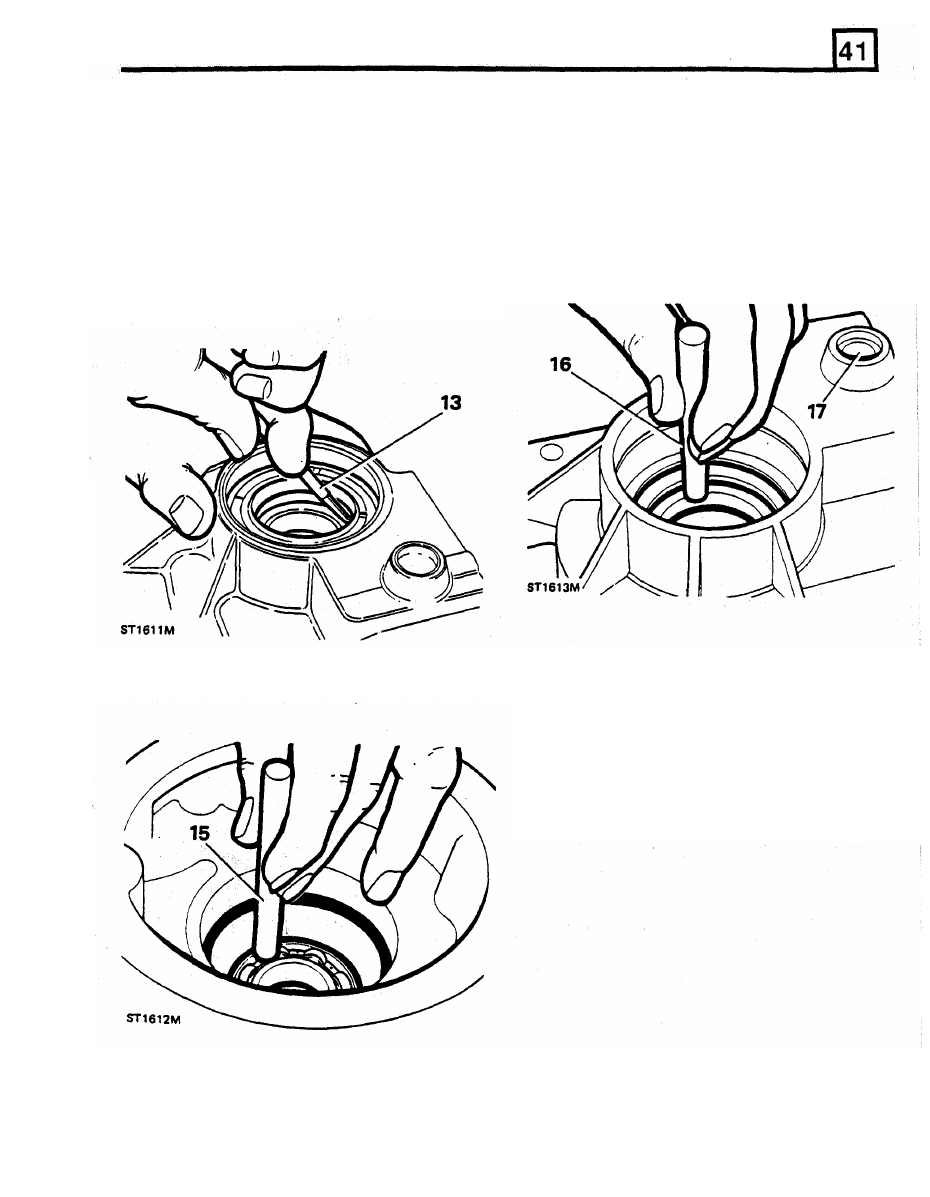

Remove  and  discard  oil  seal  from  output
housing  using  service  tool  18G1271 to  avoid

damaging the housing.

14.

Remove circlip with circlip pliers 18G257.

17.

Drift out  selector shaft cup plug from housing.

18.

Clean  all  components  ensuring  all  traces  of
'Loctite'  are removed from faces  and threads.

19.

Examine components for  wear  or  damage and
renew if  necessary.

NOTE:  Renew  oil  seal  and  felt  seal  and

flange nut.

15.

Invert  housing  and  drift  out  bearing  from
inside the case as  shown.

Re-assembling front output  housing

20.  Press the bearing into the housing: do  not use

excessive  force.

To

facilitate  fitting  the

bearing,  heat  the  front  output  housing
uniformally

to

a  temperature  that  must  not

exceed 100°C (212°F).

21.

Using  circlip  pliers,  fit  the  bearing  retaining

clips.
