LT230T

TRANSFER GEARBOX

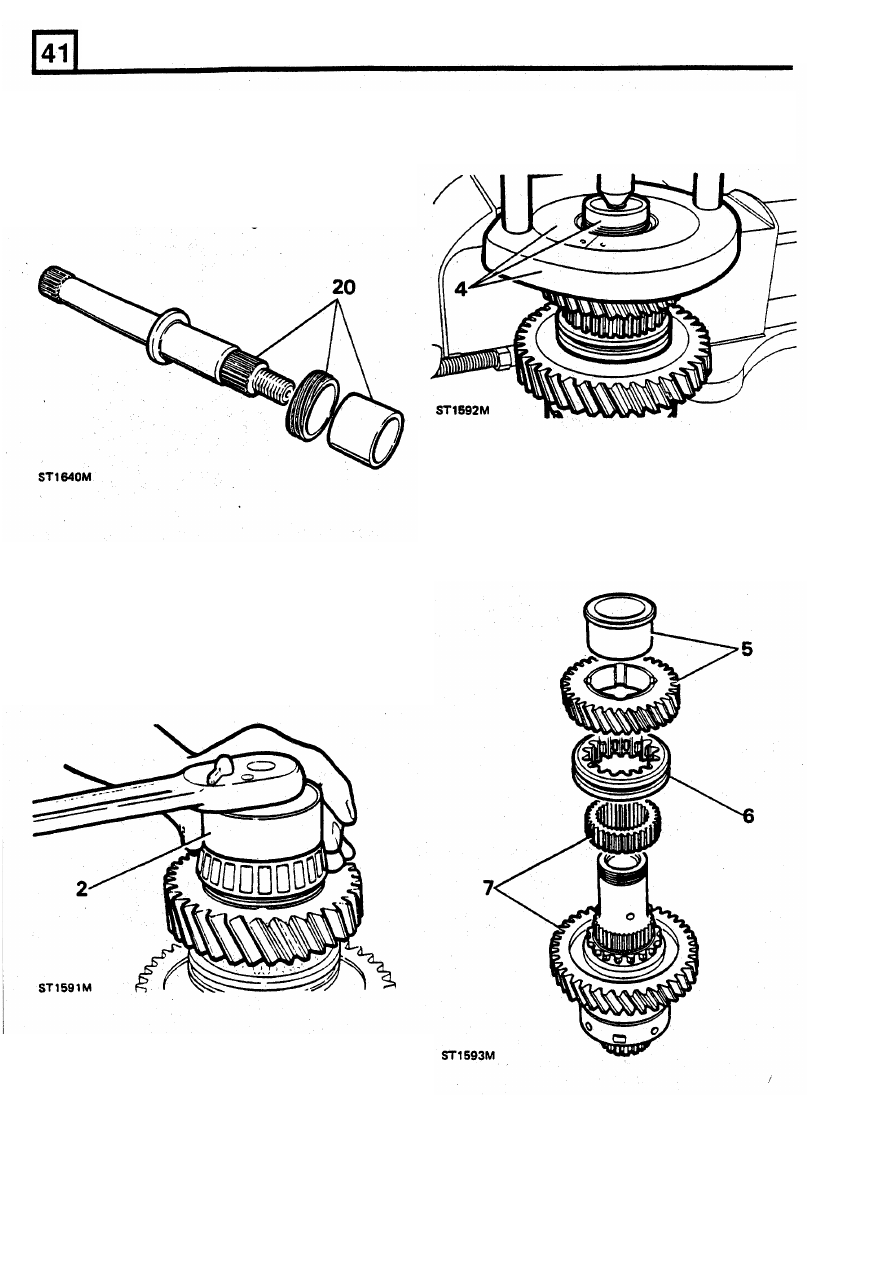

20.  Slide  drive  gear  and  spacer  on

to

the  output

4.  Secure  hand  press  MS47  in  vice  with  collars

shaft.

18G47BB

and  using  button  18G47BB/3

21.  Locate  output  shaft  into  the  bearing  in  the

remove the rear taper  bearing and collars.

housing and drive

into

position.

22.

Locate  speedometer  gear  (driven)  housing

assembly  into the  output housing and  press in
until flush with the  housing face.

5.  Remove the  high range gear  and  bush, taking

care not to disturb the high/low sleeve.

6.

Mark the relationship

of  the  high/low sleeve to

the hub and then remove the  sleeve.

7.

Using  a  suitable  press  behind  the  low  range
gear  carefully  remove  the  high/low  hub  and

low

range gear.

Centre differential unit dismantle and overhaul

1.  Secure  centre  differential  unit

to  a  vice

fitted

with

soft  jaws,  and  release  stake  nut  from

recess.

2.  Remove  stake  nut  using  tool

18G1423

and

suitable socket wrench and discard stake nut.

3.

Remove the differential unit from the vice.

16

REISSUED:

FEB

1993

LT230T TRANSFER GEARBOX

8.

Substituting  collar  LST47  -  1  remove  front
taper roller bearing from the  differential.

9.

Remove hand press from the  vice.

10.

Using  soft  jaws  secure  the  differential  unit  in

the vice by gripping the hub splines.

16.

Inspect all  components for damage or  wear,

fit

new components

if

necessary.

17.

Using

soft  jaws  secure  the  rear  (longest half)

of  the  differential  unit

in

the  vice  by  gripping

the hub splines.

18.

Lubricate  and  install  the  cross  shafts  and
pinion  gears  with  new  dished  washers

DO

NOT fit the rear bevel gear  at this stage.

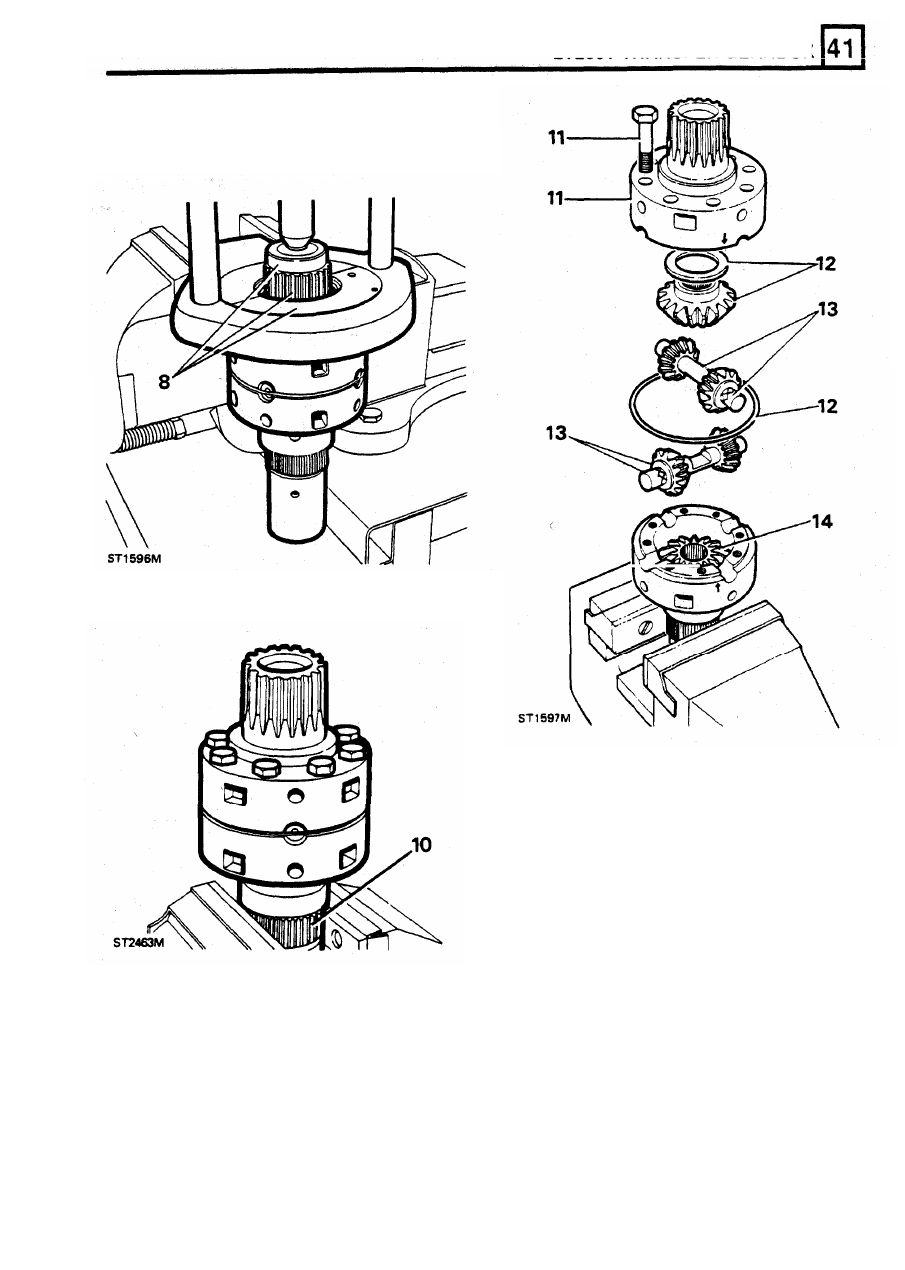

11.

Remove  the  eight  retaining  bolts  and  lift  off
the front part

of the differential unit.

12.

Release  the  retaining  ring  and  remove  front
upper  sun gear  and thrust washer.

13.

Remove the  planet gears and dished washers
along with the cross shafts.

14.

Remove  the  rear  lower  sun  gear  and  thrust

washer  from  the  rear  part  of  the  differential
unit.

15.

Remove the  rear  differential unit from  the vice

and clean all components.

REISSUED: FEB 1993

17

LT230T

TRANSFER GEARBOX

19.

Lubricate  and

fit

the  front  bevel  gear

and

thinnest thrust washer  (FRC6956 1.05mm).

20.  Fit  the  front  half  of  the  differential  casing

ensuring  that  the

two  engraved  arrows  are

aligned.

21.  Fit  securing  bolts  and  tighten

to  the  correct

torque (see section 06 - TORQUE

VALUES).

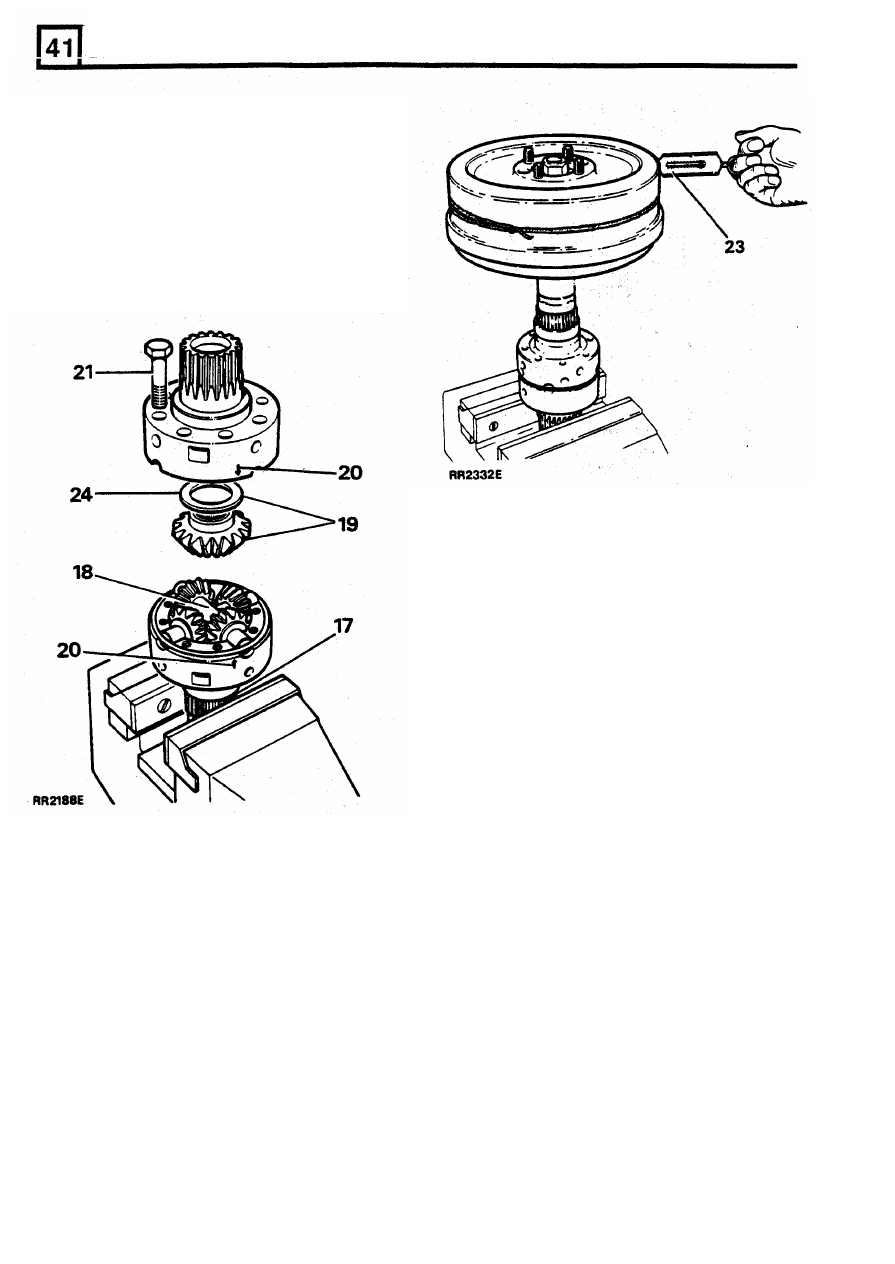

22.  Lubricate and  insert  the  rear  output  shaft  into

the  bevel  gear  and  check  that  the  gears  are
free

to

rotate.

NOTE: Gears that have been run

will rotate

smoothly  and

will  require a  torque  of

0.56

Nm  (5  in  lb).  Equivalent  force  using  a
spring balance: 0.45  Kg (1 Ib).
New

gears  will  rotate  with  a  "notchy"  feel

and  will  require a torque of  not  more than
2.26  Nm (20 in Ib). Equivalent force using a
spring balance: 1.72  Kg (3.8  Ib).
Keep  all  components well  lubricated

when

carrying out these adjustments.

24.  Change the thrust  washer  for  a thicker  one

if

the  torque  reading  is  too  low.  Five  thrust
washers  are  available

in

0.10

mm  steps

ranging from

1.05

to 1,45 mm.

25.  Dismantle  the  unit  when  the  front  bevel  gear

thrust washer is selected.

26.  Remove and  retain the  front  bevel and  thrust

23.  Fit  the  transmission brake drum to  the  output

washer combination.

drive  flange  and  check  the torque  required

to

27.  Reassemble the  unit  with  the  rear  bevel gear

rotate the  gears.  Tie a  length of  string around

and thinnest thrust washer

in

position.

the brake drum,  attach a spring balance

to the

28.  Using  soft jaws secure the front (shortest half)

string  and  carefully  tension  the  string  until  a

of  the  differential unit  in  the  vice  by  gripping

load  to  turn

is

obtained,  Alternatively  use  a

the hub splines.

torque  wrench  applied

to

the  brake  drum

29.  Repeat  the  above  procedure

to  obtain  the

flange  nut.  Rotate the drum  slowly  by hand to

correct thrust washer for  the rear bevel gear.

overcome  initial  load  when  using  either
method.  Note  that  the  illustration  RR2332E
shows checking torque at  rear bevel gear.

18

REISSUED:

FEB

1993

LT230T TRANSFER GEARBOX

Re-assembling  centre  differential

30.

Fit the  selected thrust  washer  and  bevel gear

into the rear differential unit.

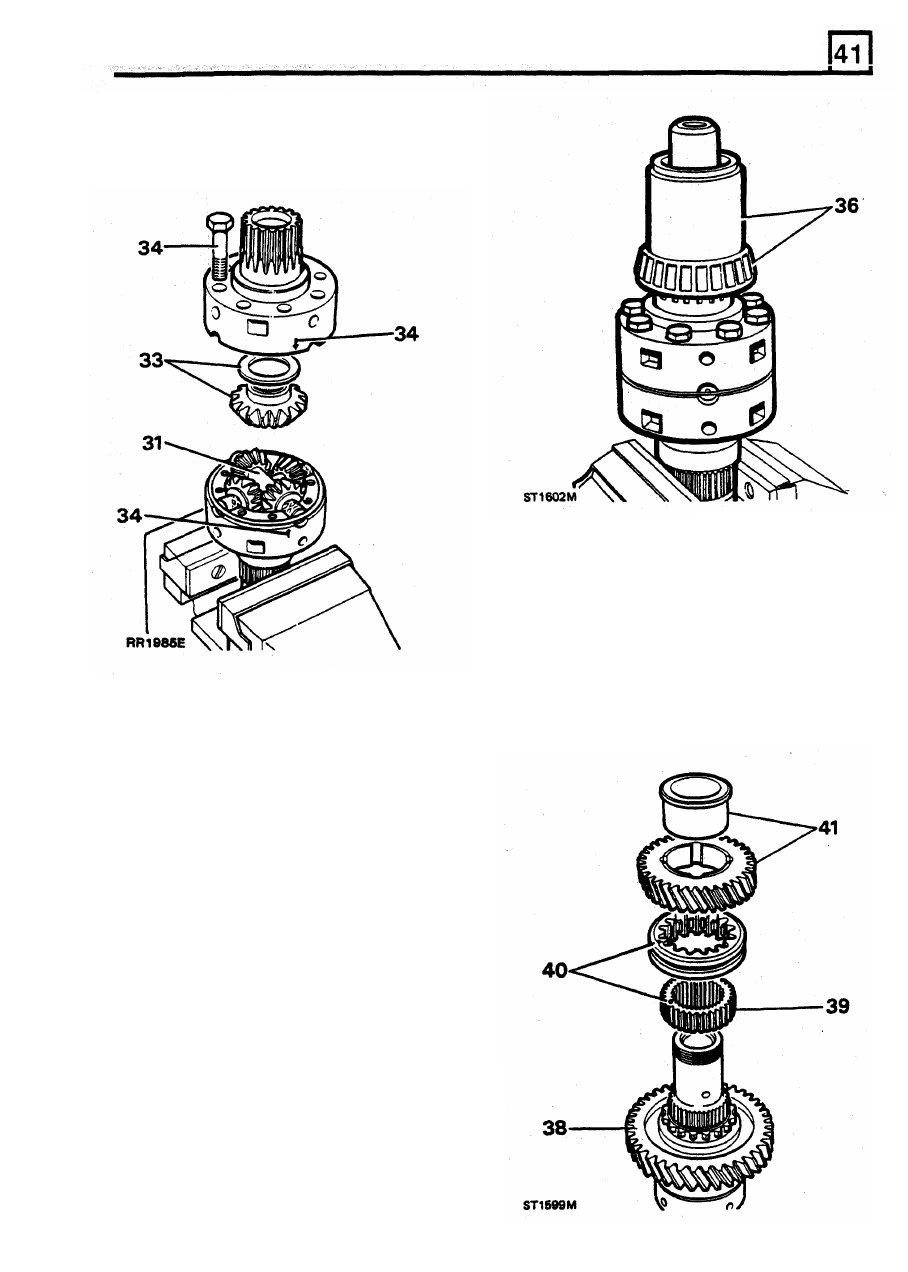

38.  Fit  the  low  range  gear,  with  its  dog  teeth

uppermost

to

the  differential assembly.

39.

Press  the  high/low  hub  on

to

the  differential

splines.

40.  Slide  the  high/low  selector  sleeve

on  to

the

high/low  hub  ensuring  that  the  alignment
marks are opposite each other.

41.  Fit  the  bush  into

the

high range  gear

so  that

the  flange is fitted on the  opposite side of  the
gear

to  the  dog  teeth.  Slide  the  bushed gear

on  to  the  differential  assembly  with  the  dog
teeth down.

31.

Assemble  both  pinion  assemblies  and  dished
washers  onto  their  respective  shafts  and  fit
the

rear

differential

unit.

Secure

the

assemblies with the retaining ring.

32.  Lubricate all the components.
33.  Fit the selected thrust washer  and bevel gear

into the front upper differential unit.

34.  Align  both  units  as  previously  described  and

secure  with  the  eight  bolts

to  the  specified

torque.

35.  Check  the  overall  torque  required to  turn  the

differential.  This  should  be  approximately
equal  to  the  resistance

of  both  bevel  gears

added together.

36.  Locate  the  front  differential  bearing  onto  the

front,  upper  differential  shaft  and  press  into

position  using  larger  end  of

tool  18G1424 as

shown.

37.

Invert  the  differential  unit  and  secure  in  the
vice.

NOTE: During the following sequences all
parts  should  be  lubricated  as  they  are
fitted.

RElSSUED:

FEB

1993

19
