Defender Electric Diagrams. Manual - part 135

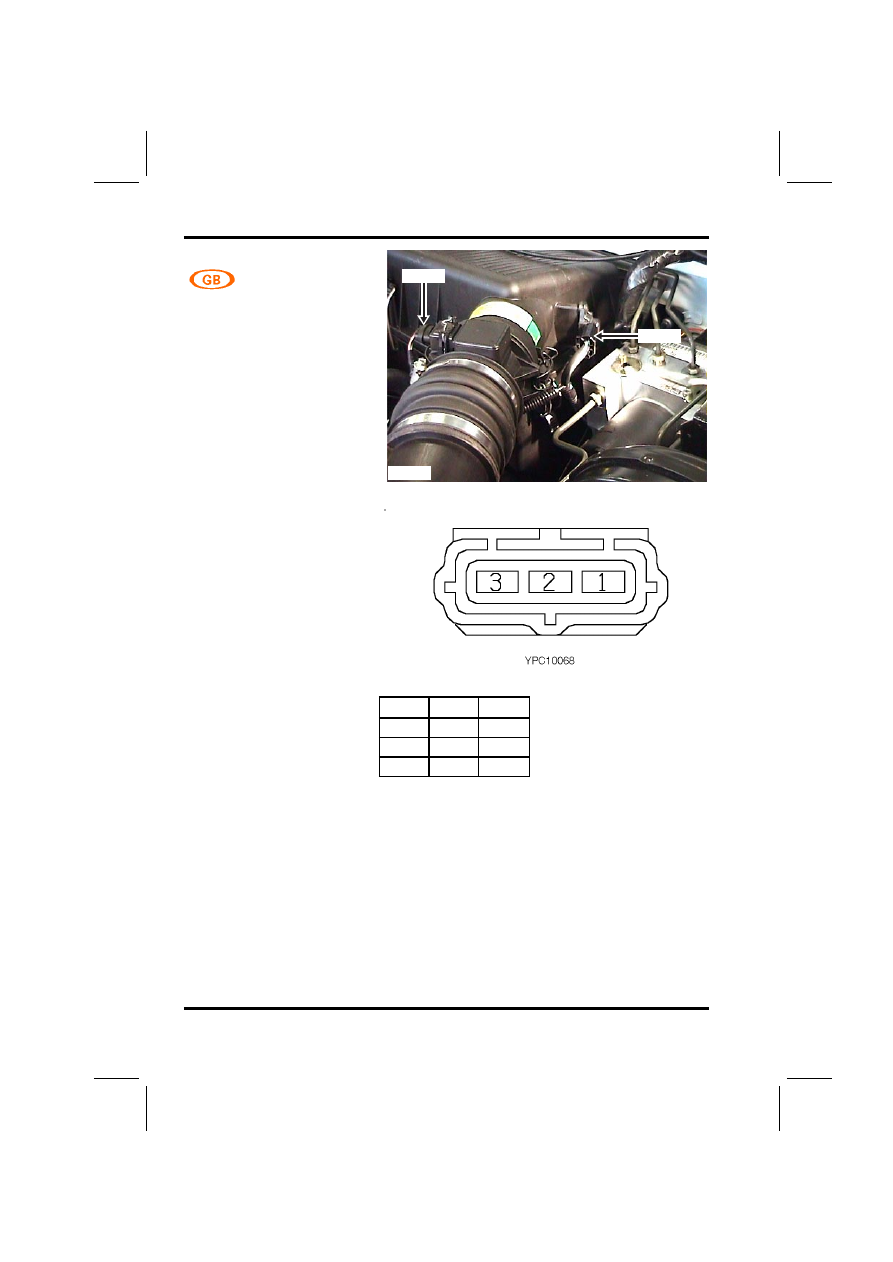

C0188

CONNECTOR

DEFENDER 1999 MY

Sensor - Ambient Air
Pressure (AAP) - Td5

Female
BLACK

Rear LH side of engine
compartment

P5570

C0188

C0149

Cav

Col

CCT

1

KB

ALL

2

WY

ALL

3

KP

ALL

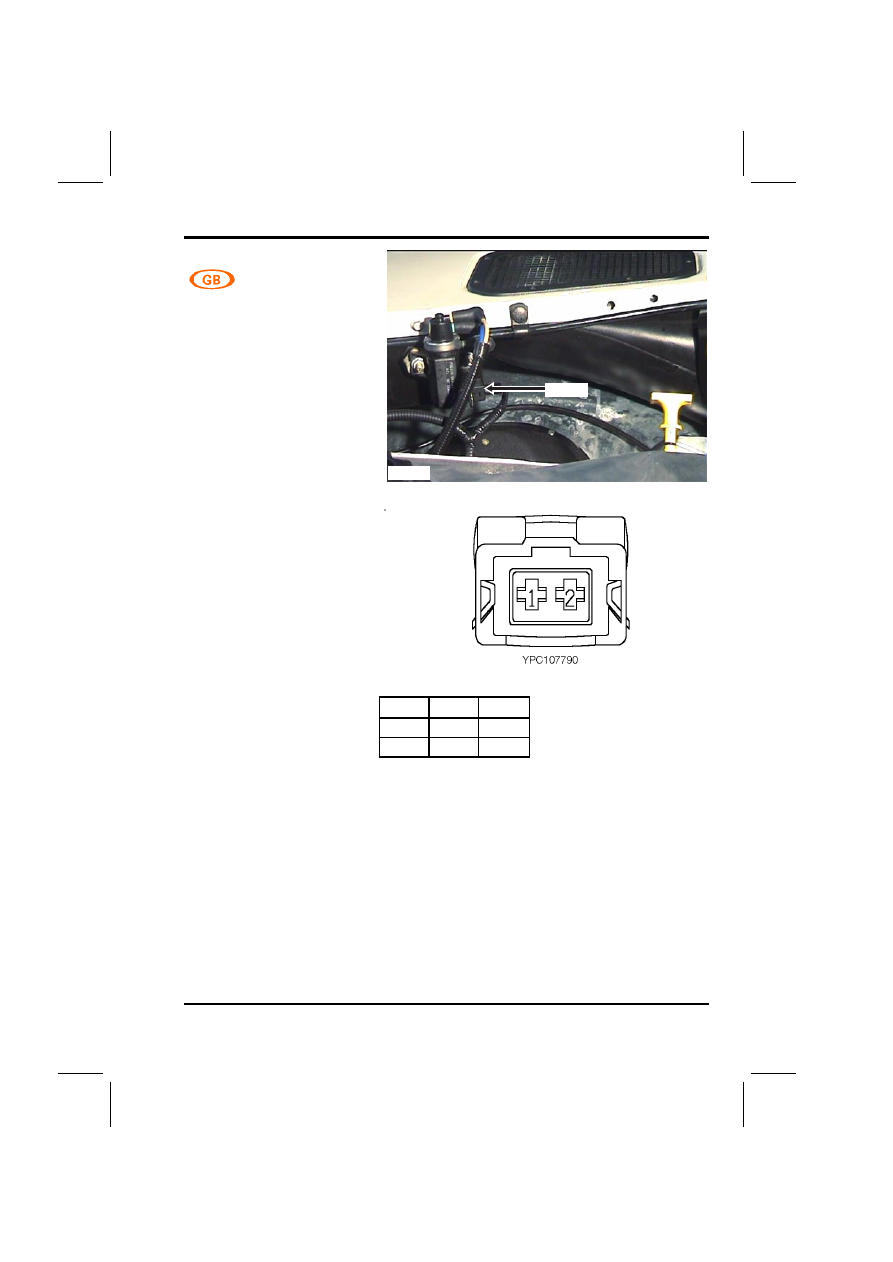

CONNECTOR

C0191

DEFENDER 1999 MY

Solenoid - EGR - Td5

Female
BLACK

Front RH side of engine
compartment

P5571

C0191

Cav

Col

CCT

1

NO

ALL

2

U

ALL

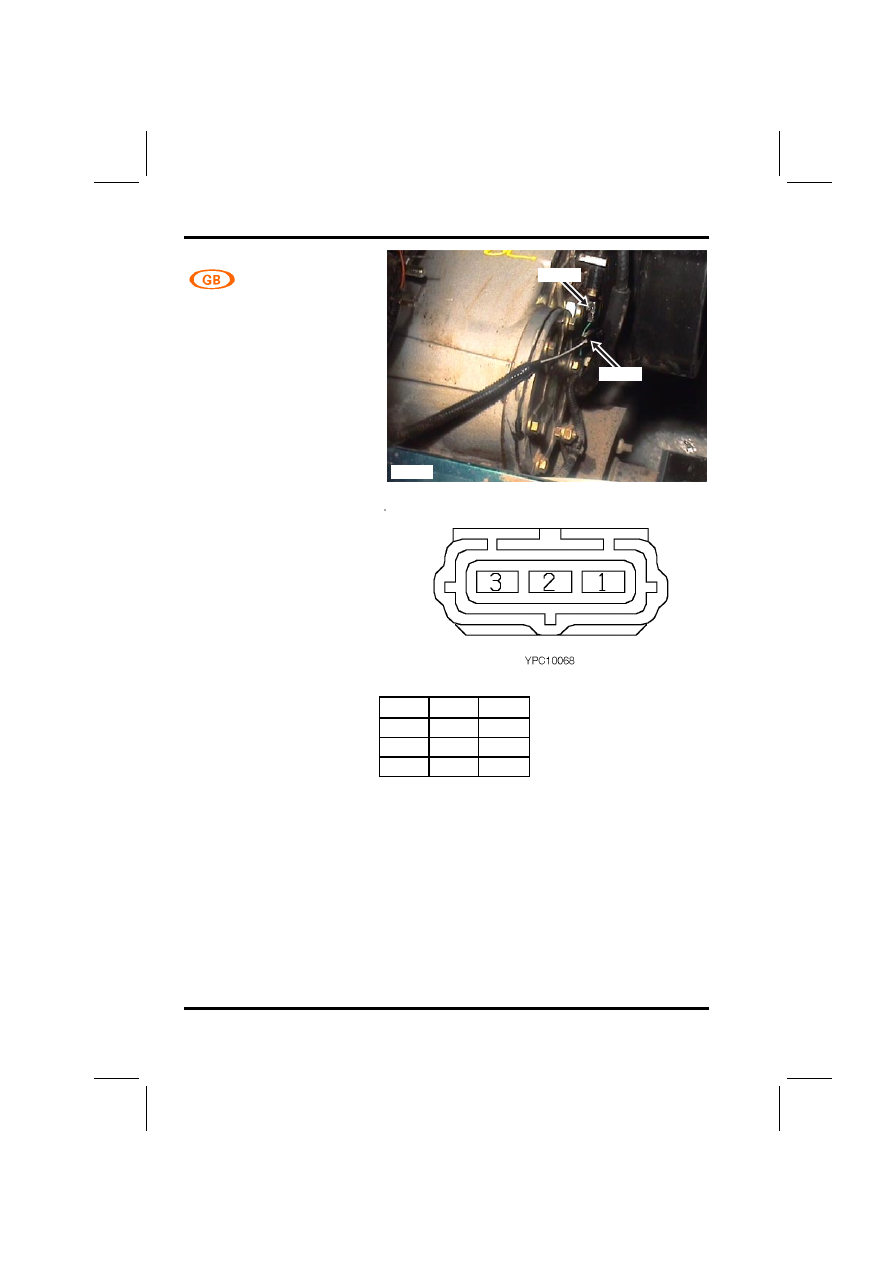

C0195

CONNECTOR

DEFENDER 1999 MY

Speed transducer - Td5

Female
BLACK

RH side of gearbox

P5536

C0219

C0195

Cav

Col

CCT

1

GY

ALL

2

B

ALL

3

BR

ALL

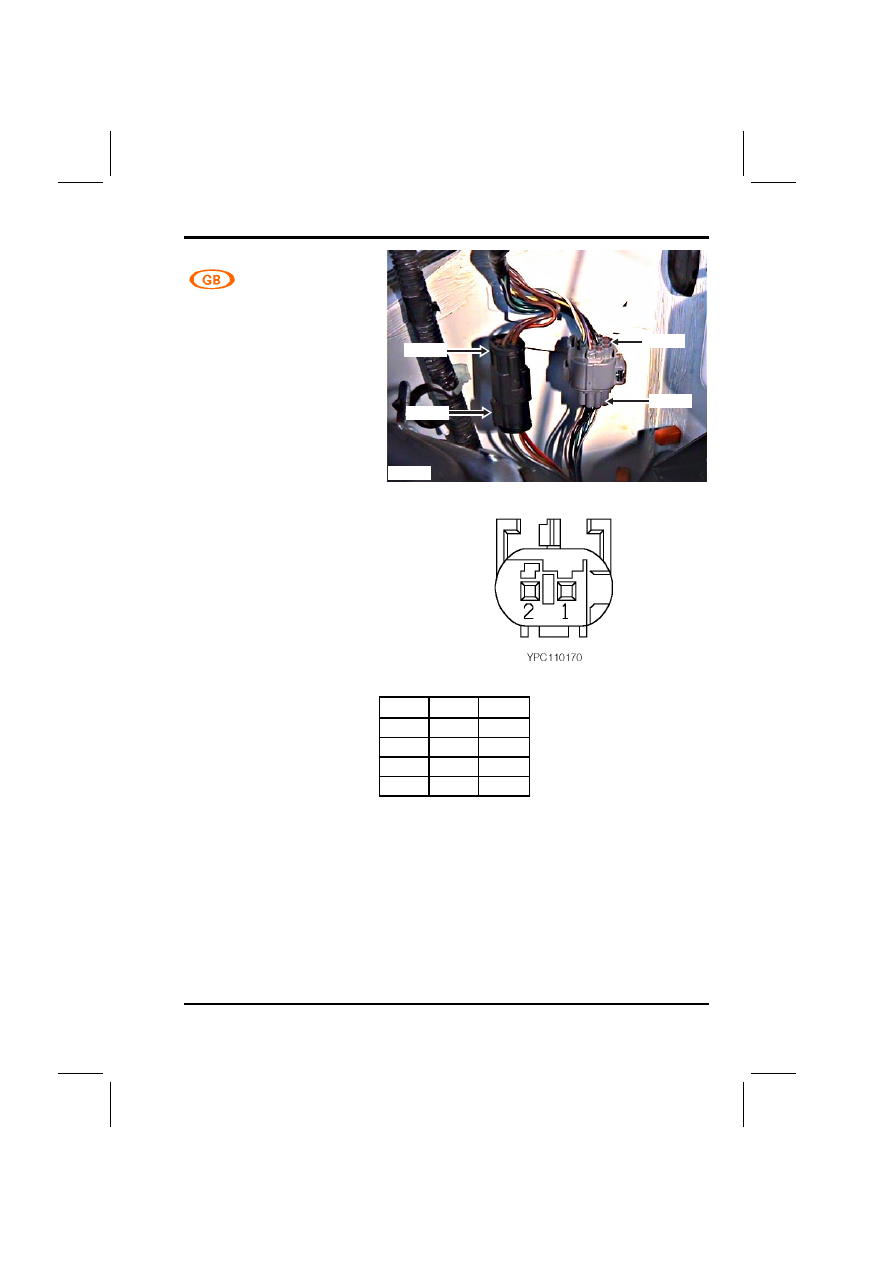

CONNECTOR

C0203

DEFENDER 1999 MY

Engine harness to main
harness - Td5

Male
BLACK

Lower RH rear of engine
compartment

P5567

C0449

C0203

C0448

C0162

Cav

Col

CCT

1

NR

ALL

2

WG

1

2

NO

ALL

3

NS

1
