Defender Electric Diagrams. Manual - part 136

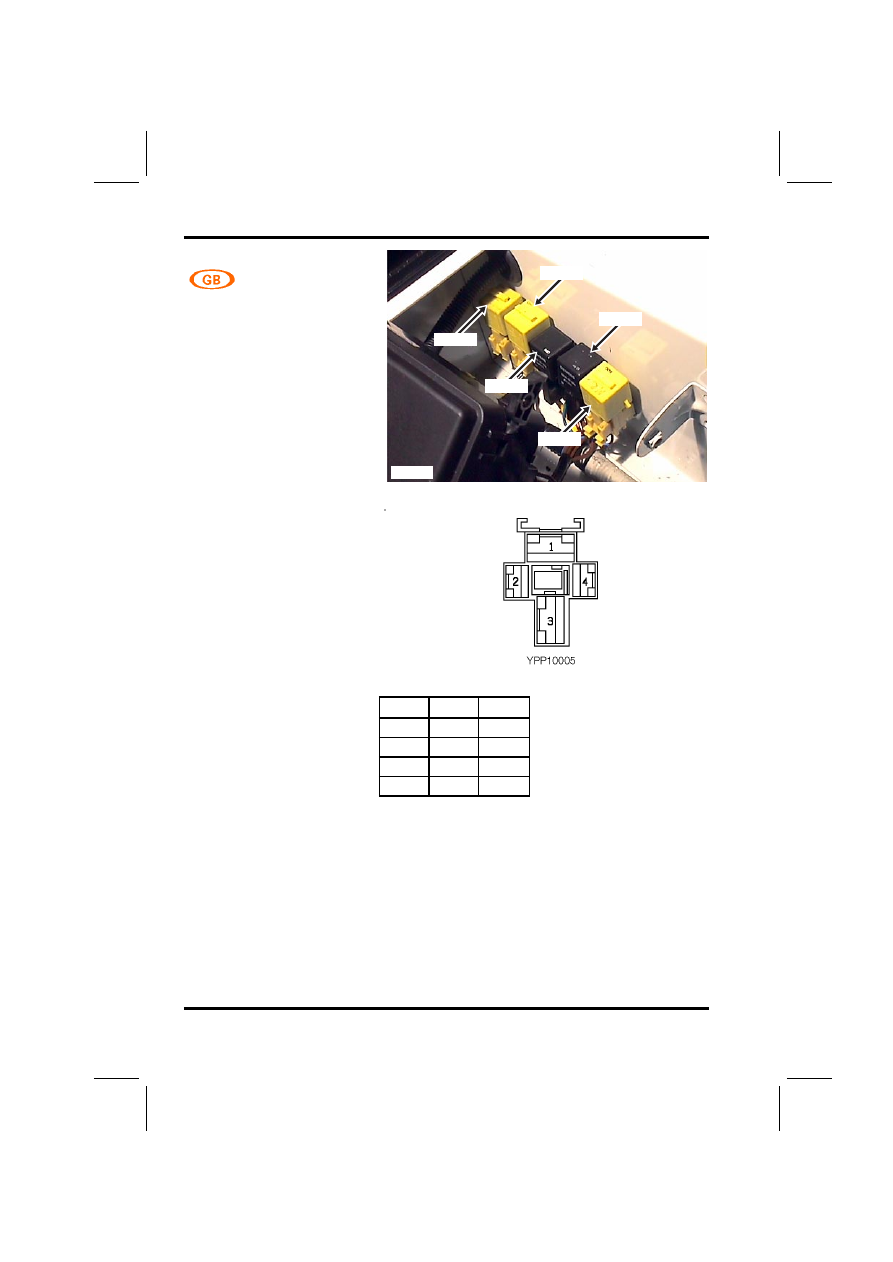

C0215

CONNECTOR

DEFENDER 1999 MY

Relay - Glow plug - Td5

Female
BLACK

Beneath RH seat

P5596

C1268

C0019

C0508

C0215

C0063

Cav

Col

CCT

1

N

ALL

2

NO

ALL

3

YB

ALL

4

GU

ALL

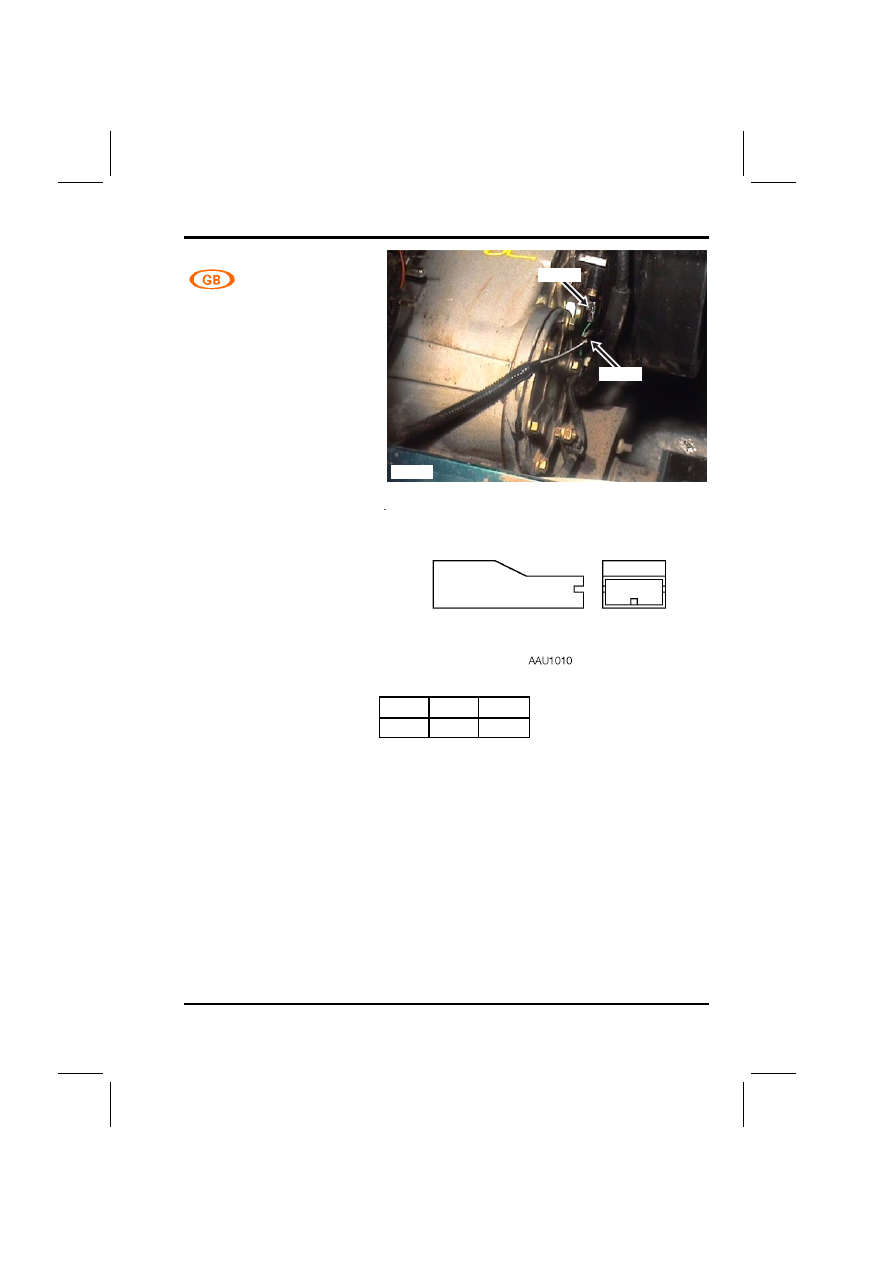

CONNECTOR

C0219

DEFENDER 1999 MY

Switch - Oil temperature -
V8

Female
BLACK

Above gearbox

P5536

C0219

C0195

Cav

Col

CCT

1

SR

ALL

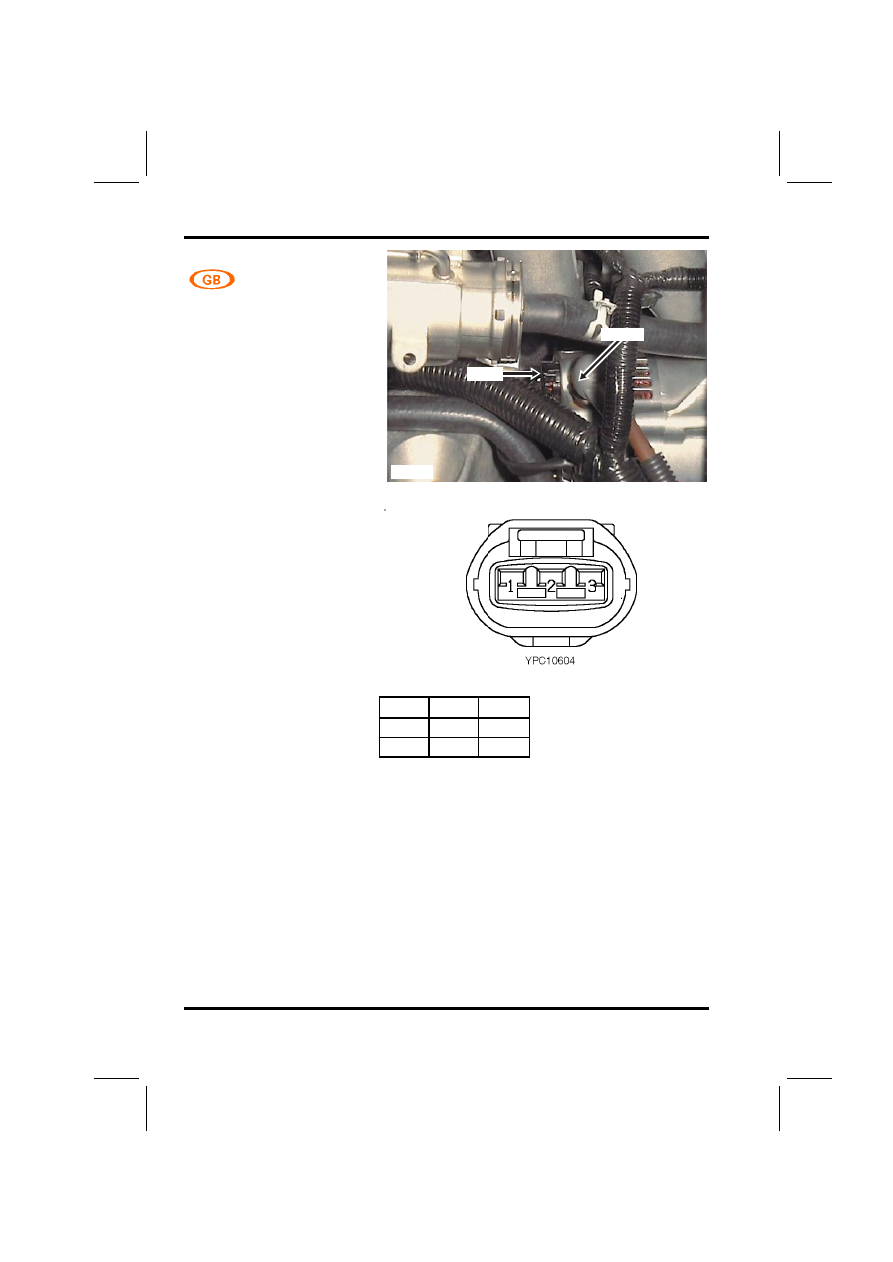

C0226

CONNECTOR

DEFENDER 1999 MY

Alternator / generator - Td5

Female
BLACK

Front RH side of engine

C226

P5783

C0183

Cav

Col

CCT

1

NY

ALL

2

GY

ALL

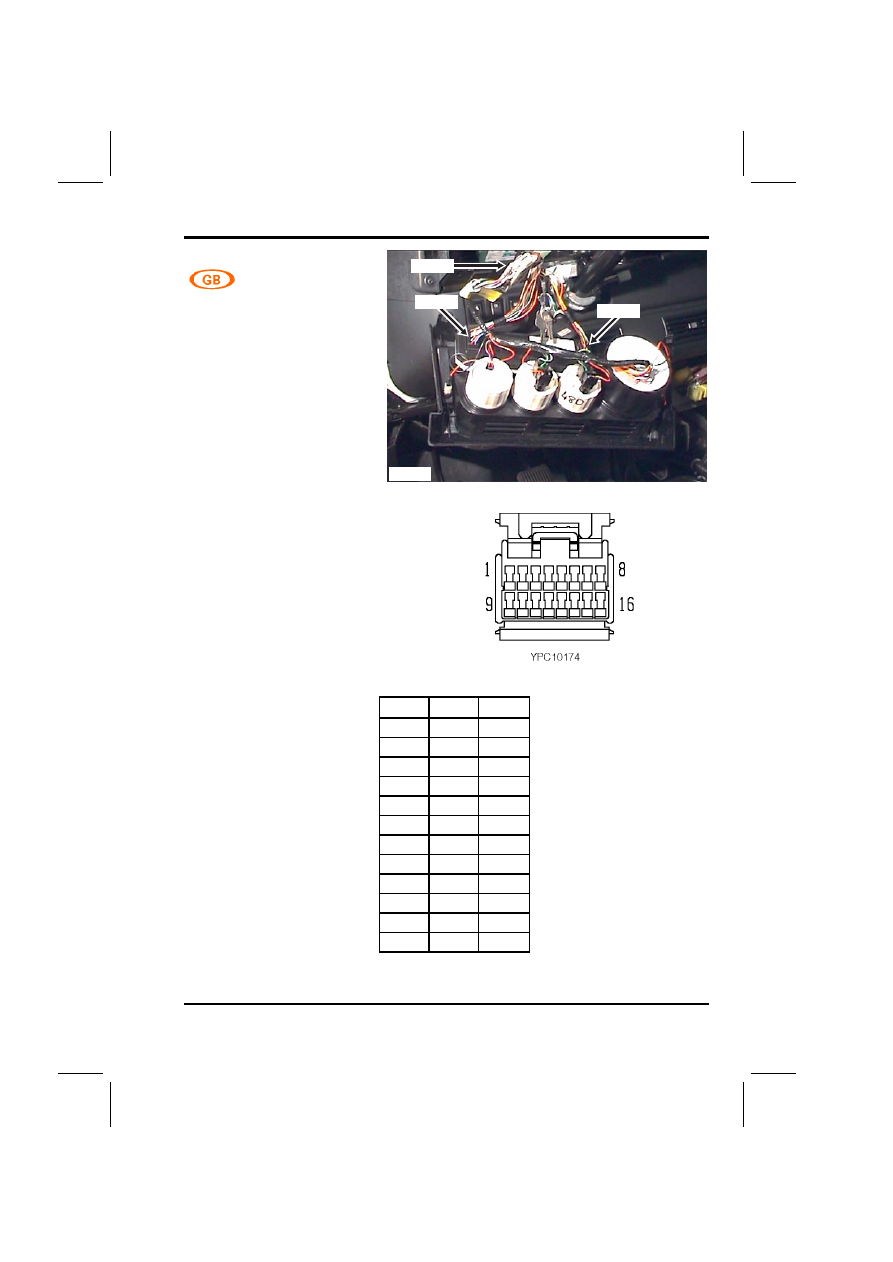

CONNECTOR

C0230

DEFENDER 1999 MY

Instrument Pack

Female
BLACK

Behind instrument pack

P5648

C0230

C0140

C0233

Cav

Col

CCT

1

WG

ALL

2

YB

28

4

OG

21

5

SR

ALL

6

RS

ALL

7

RS

ALL

8

B

ALL

9

BW

ALL

10

RS

ALL

13

BW

ALL

14

BW

ALL

16

YS

ALL
