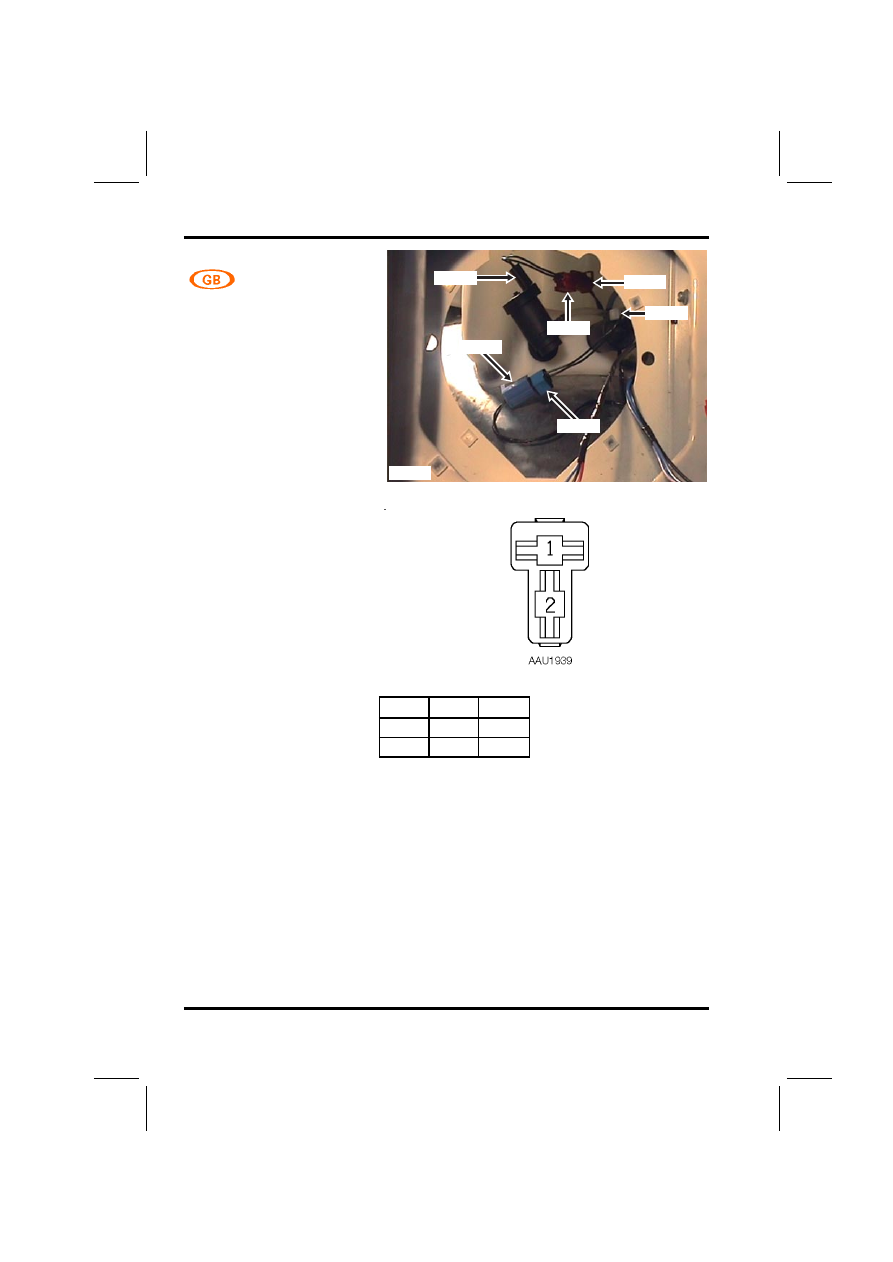

C0021

CONNECTOR

DEFENDER 1999 MY

Pump - Washer - Rear
screen

Female
NATURAL

Behind LH headlamp

P5577

C1308

C0021

C0008

C1309

C1310

C1307

Cav

Col

CCT

1

B

ALL

2

BLG

ALL

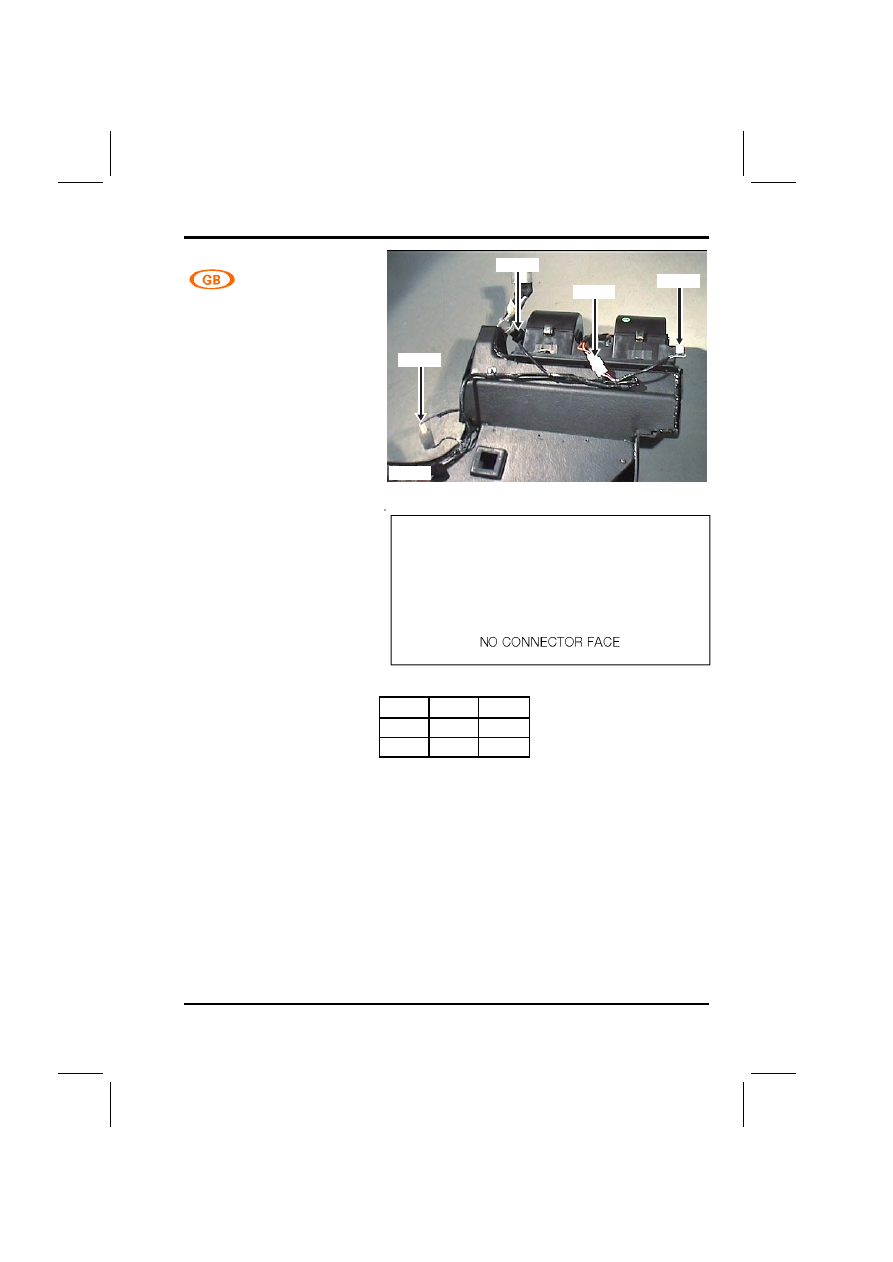

CONNECTOR

C0023

DEFENDER 1999 MY

Motor - Blower - Front

Female
WHITE

Behind RH side of fascia

P5766

C0134

C0279

C0023

C0068

Cav

Col

CCT

1

WR

1

2

RB

1

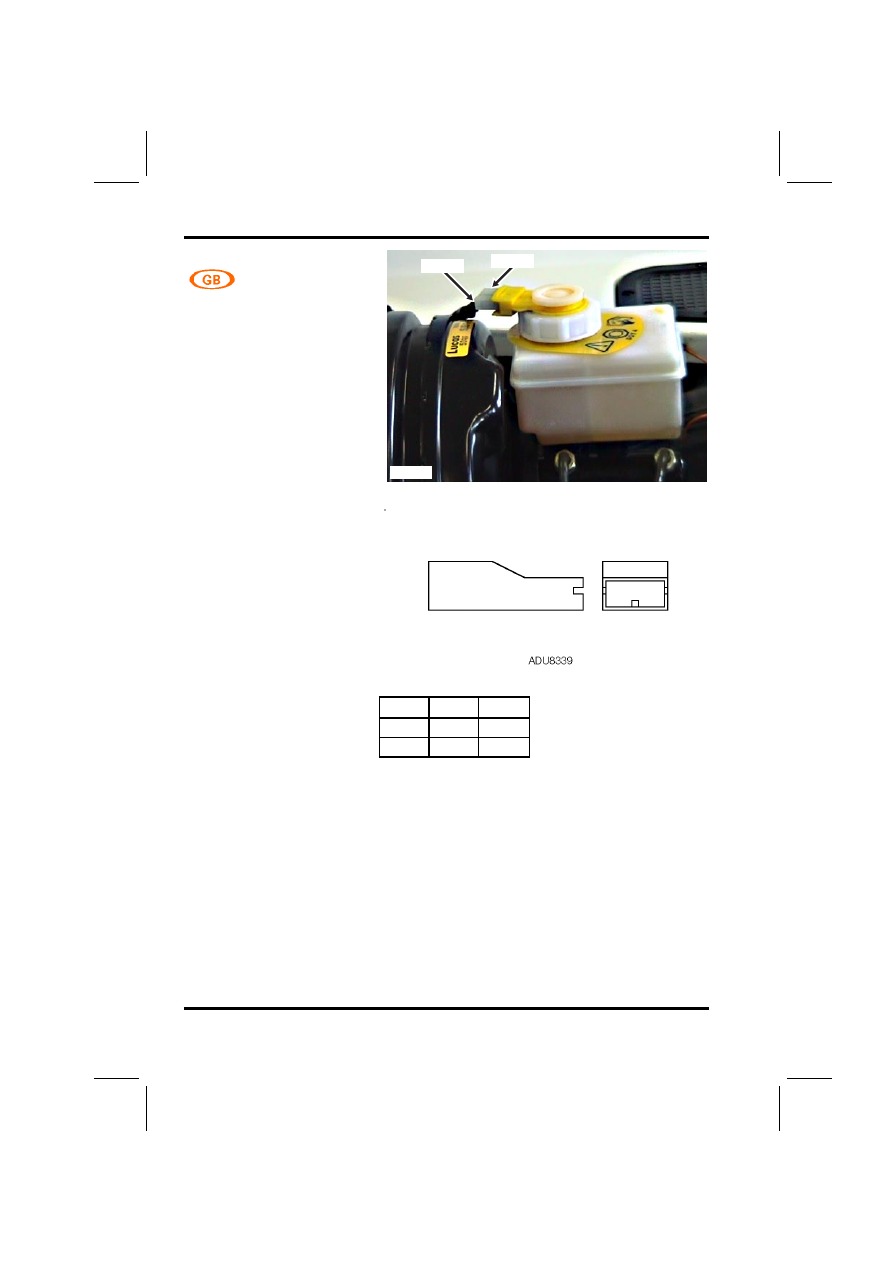

C0026

CONNECTOR

DEFENDER 1999 MY

Switch - Brake fluid level

Female
NATURAL

Adjacent pedal box

P5569

C0026

C0031

Cav

Col

CCT

1

BW

3

1

B

4

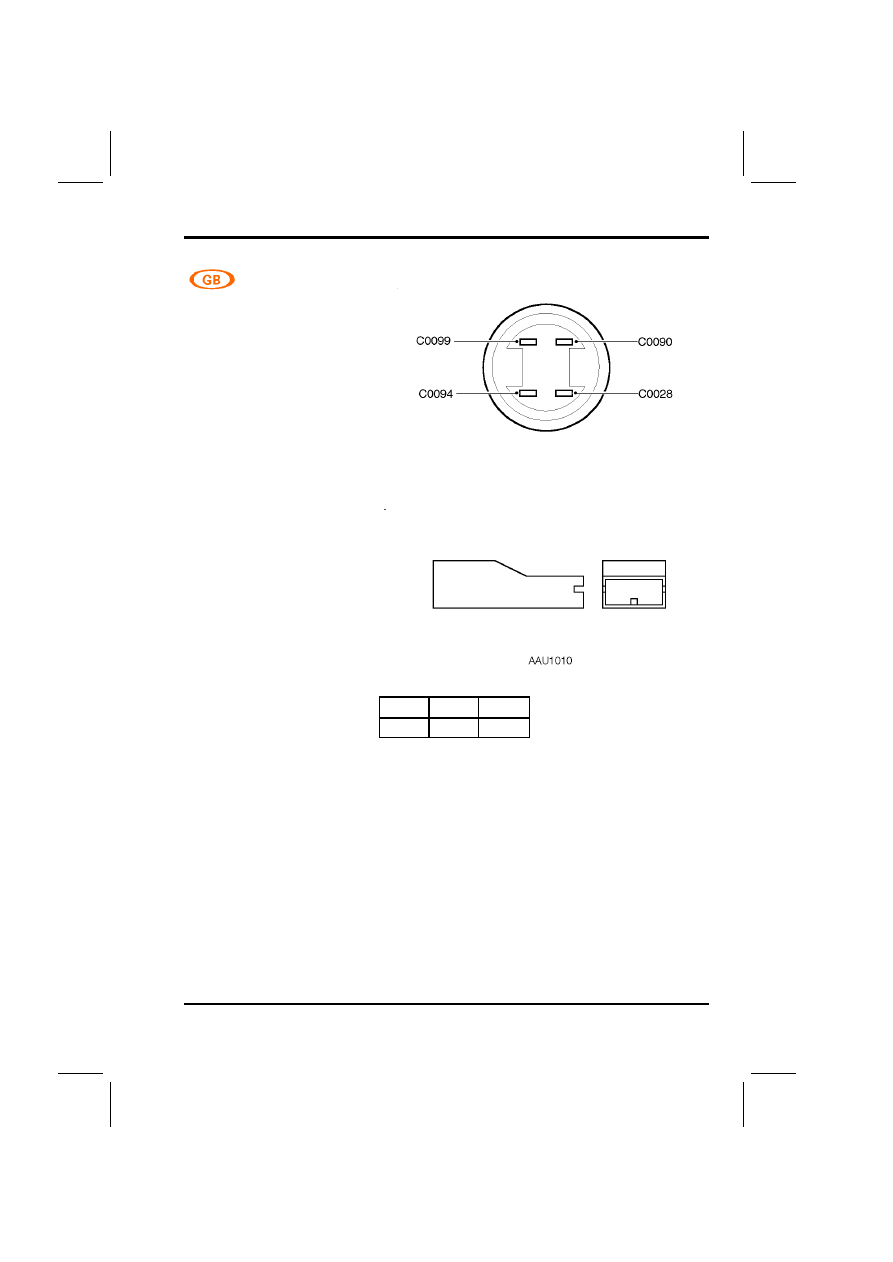

CONNECTOR

C0028

DEFENDER 1999 MY

Switch - Ignition

Female
BLACK

Behind instrument pack

Cav

Col

CCT

1

NW

ALL
