Defender Electric Diagrams. Manual - part 117

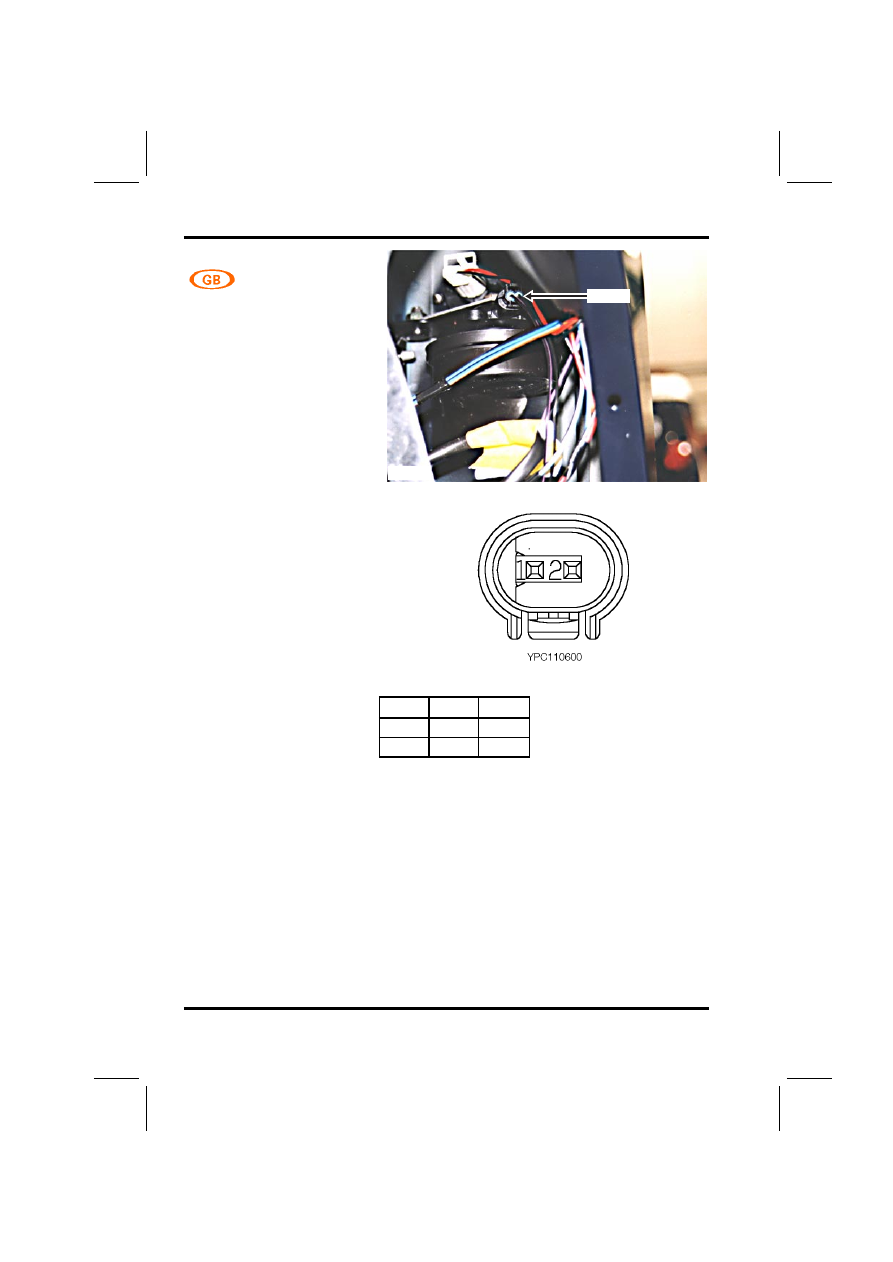

C0004

CONNECTOR

DEFENDER 1999 MY

Horn - RH

Female
BLUE

Behind RH headlamp

P5553

C0004

Cav

Col

CCT

1

B

ALL

2

PB

ALL

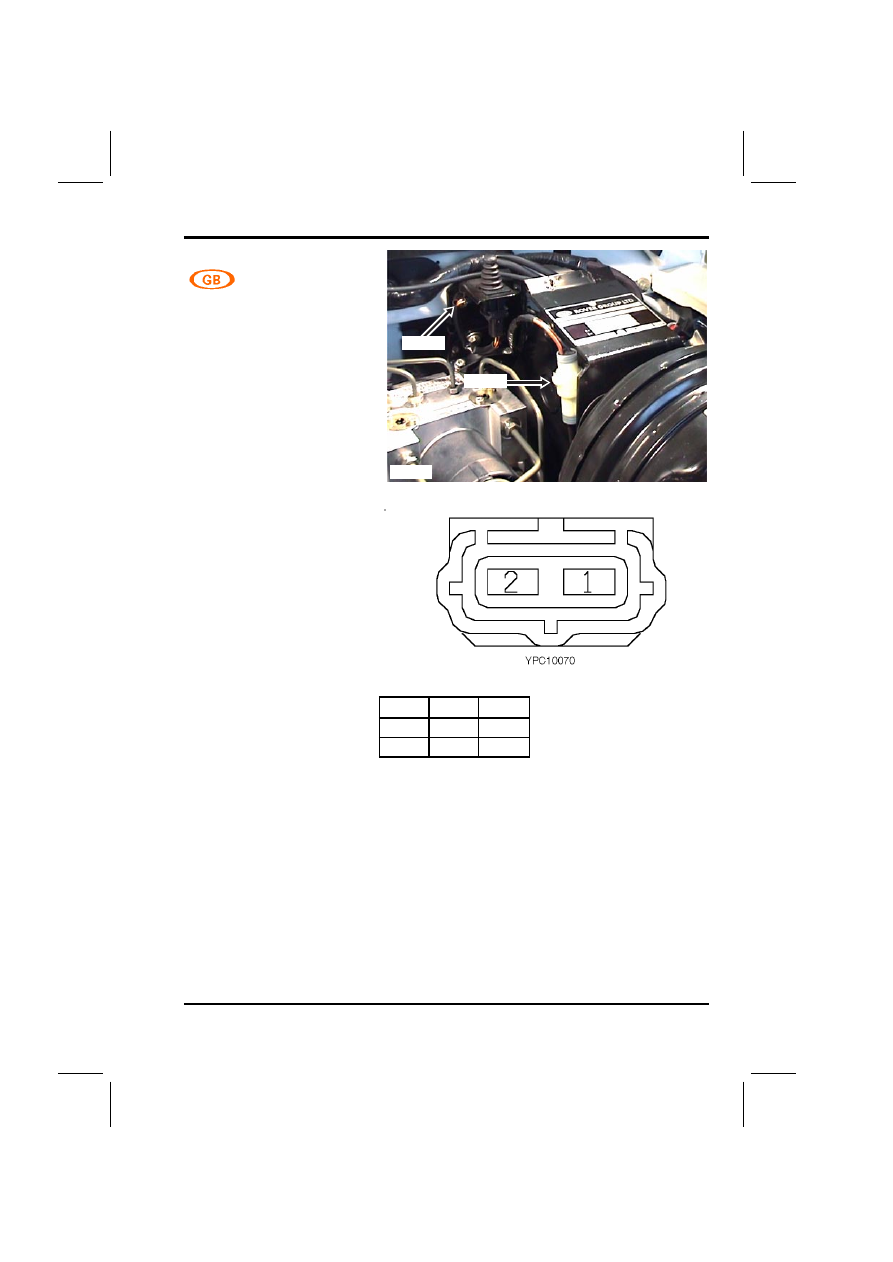

CONNECTOR

C0007

DEFENDER 1999 MY

Switch - Bonnet

Female
BLACK

Adjacent pedal box

P5565

C0007

C0507

Cav

Col

CCT

1

B

ALL

2

OU

ALL

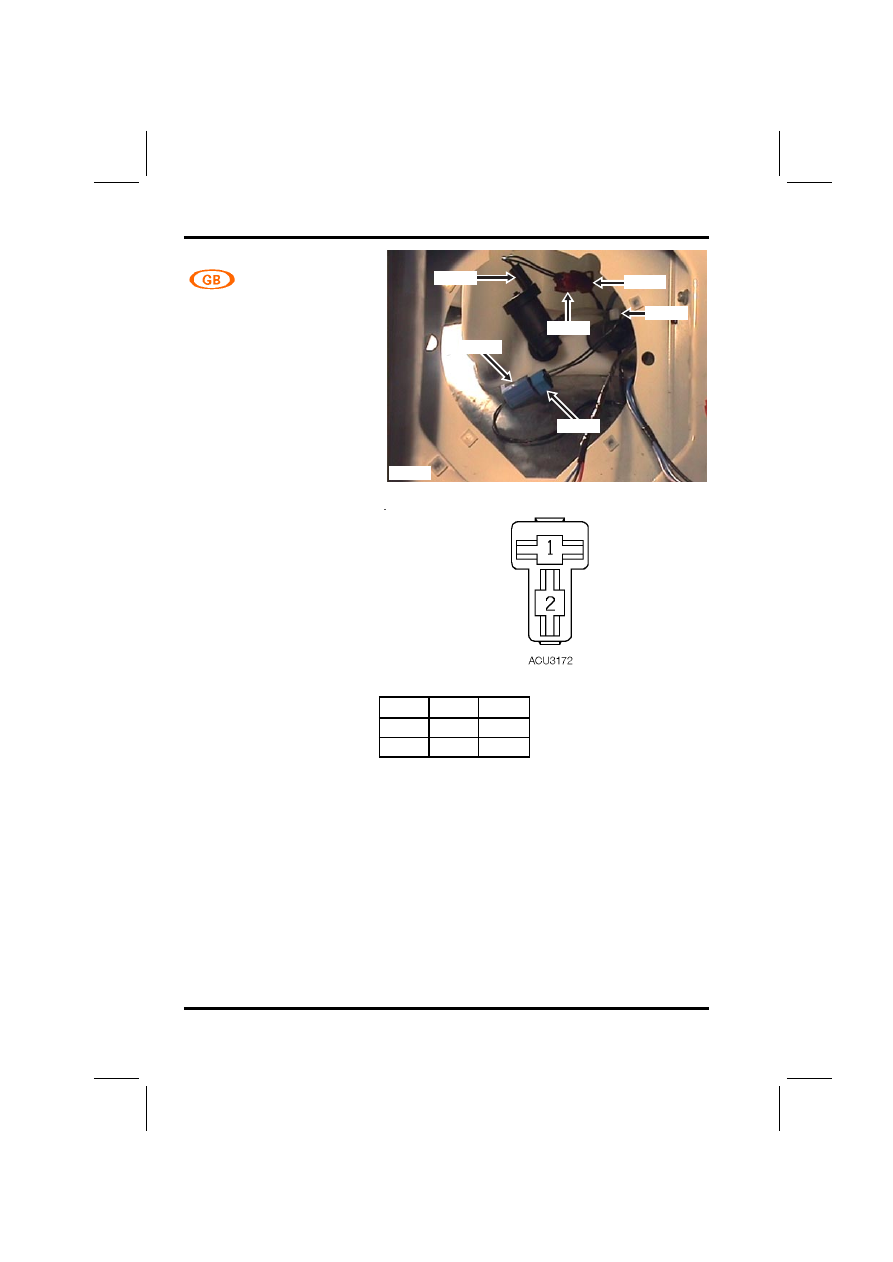

C0008

CONNECTOR

DEFENDER 1999 MY

Pump - Washer -
Windscreen

Female
BLACK

Behind LH headlamp

P5577

C1308

C0021

C0008

C1309

C1310

C1307

Cav

Col

CCT

1

B

ALL

2

LGB

ALL

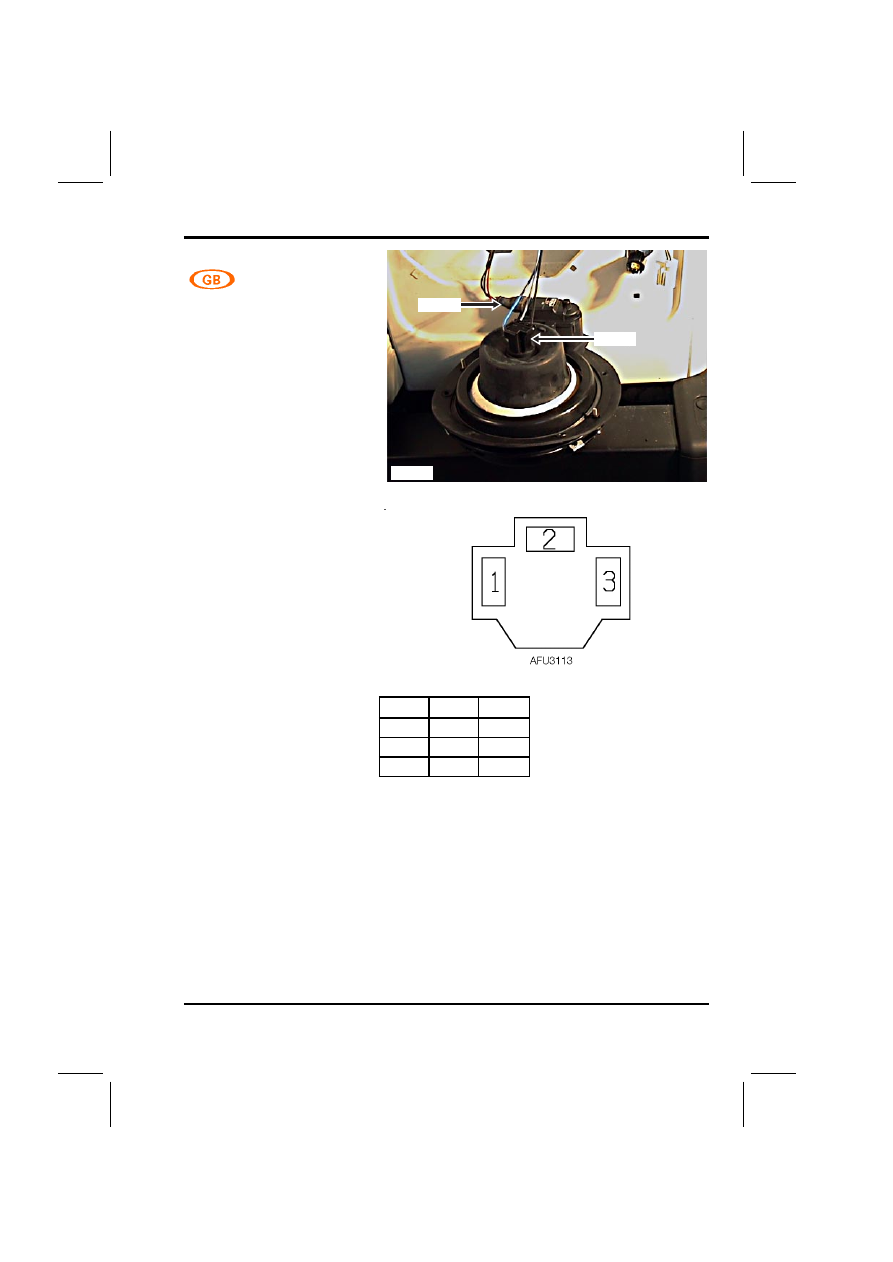

CONNECTOR

C0009

DEFENDER 1999 MY

Headlamp - LH

Female
BLACK

Behind LH headlamp

P5581

C0009

C0071

Cav

Col

CCT

1

US

ALL

2

UK

ALL

3

B

ALL
