Engine Cooling - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Coolant Expansion Tank

Removal and Installation

Removal

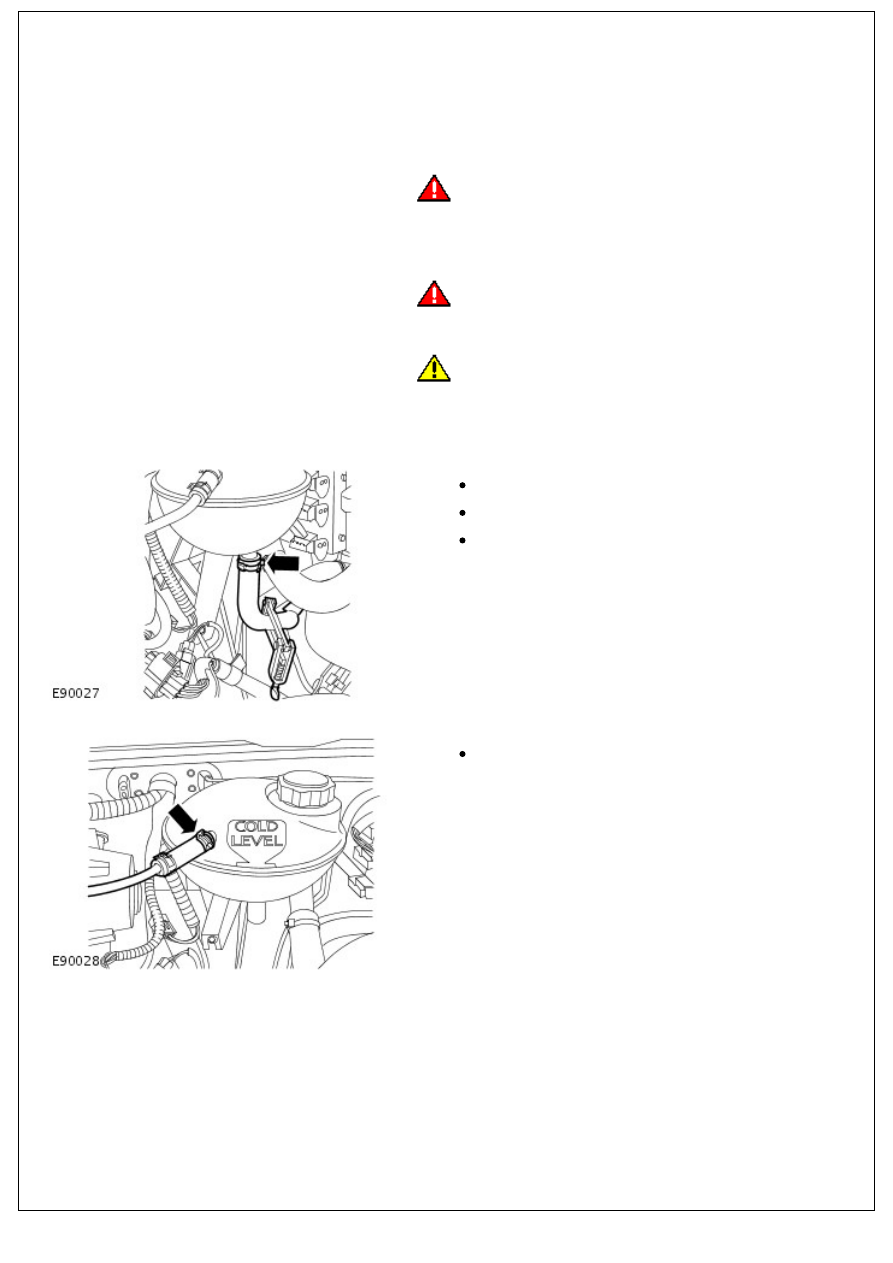

1. WARNINGS:

 Release the cooling system pressure by slowly turning the

coolant expansion tank cap a quarter of a turn. Cover the

expansion tank cap with a thick cloth to prevent the possibility

of scalding. Failure to follow this instruction may result in

personal injury.

 Since injury such as scalding could be caused by escaping

steam or coolant, do not remove the filler cap from the coolant

expansion tank while the system is hot.

CAUTION: Engine coolant will damage the paint finished

surfaces. If spilt, immediately remove the coolant and clean the

area with water.

Release the cooling system pressure.

2. Disconnect the coolant hose.

Clamp the hose to minimize coolant loss.

Position a container to collect the fluid spillage.

Release the clip.

3. Disconnect the radiator bleed hose.

Release the clip.

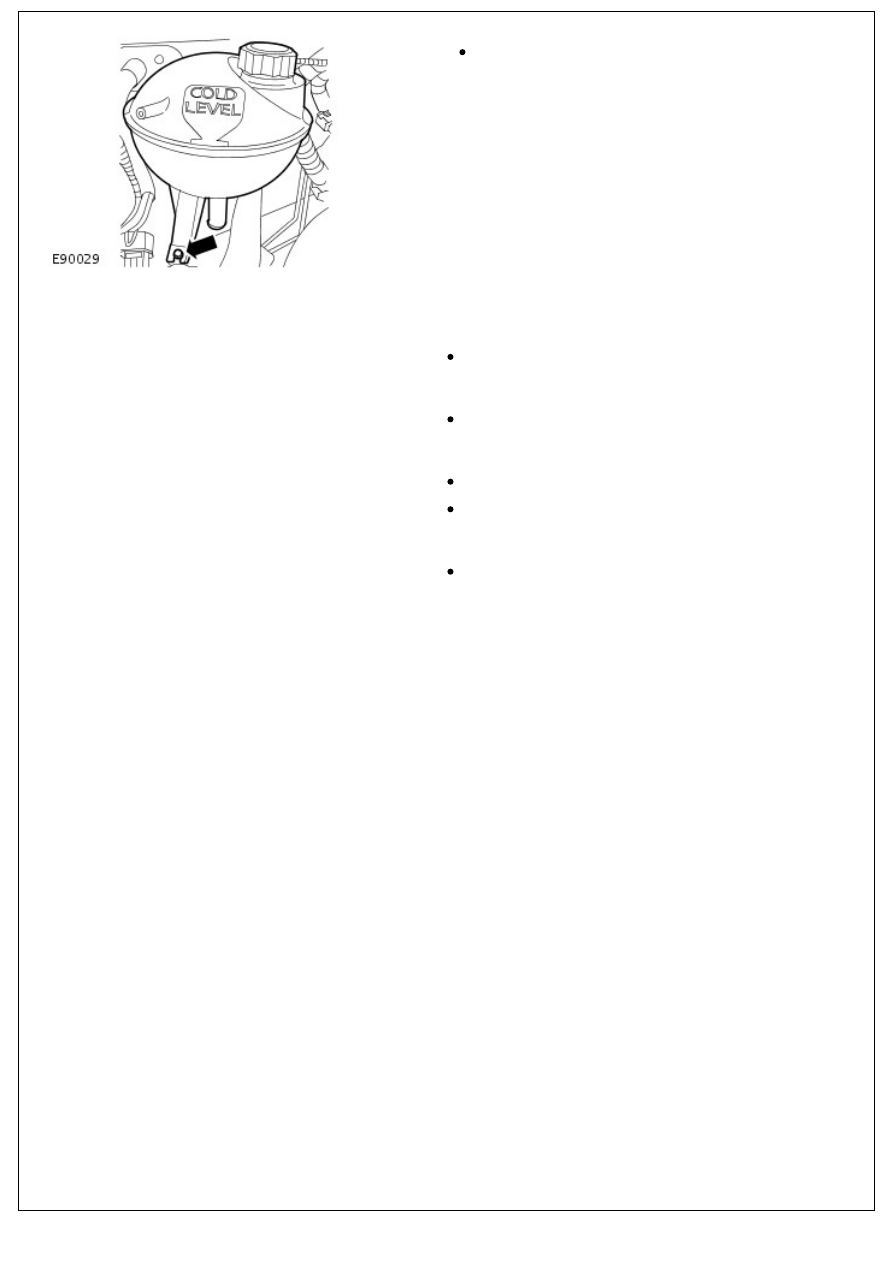

4. Remove the coolant expansion tank.

4. Remove the coolant expansion tank.

Remove the bolt.

Installation

1. Install the coolant expansion tank.

Tighten the bolt to 10 Nm (7 lb.ft).

2. Connect the radiator bleed hose.

Secure with the clip.

3. Connect the coolant hose.

Secure with the clip.

Remove the hose clamp.

4. Check and top up the coolant.

Remove the container.

Engine Cooling - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

Cooling Fan

Removal and Installation

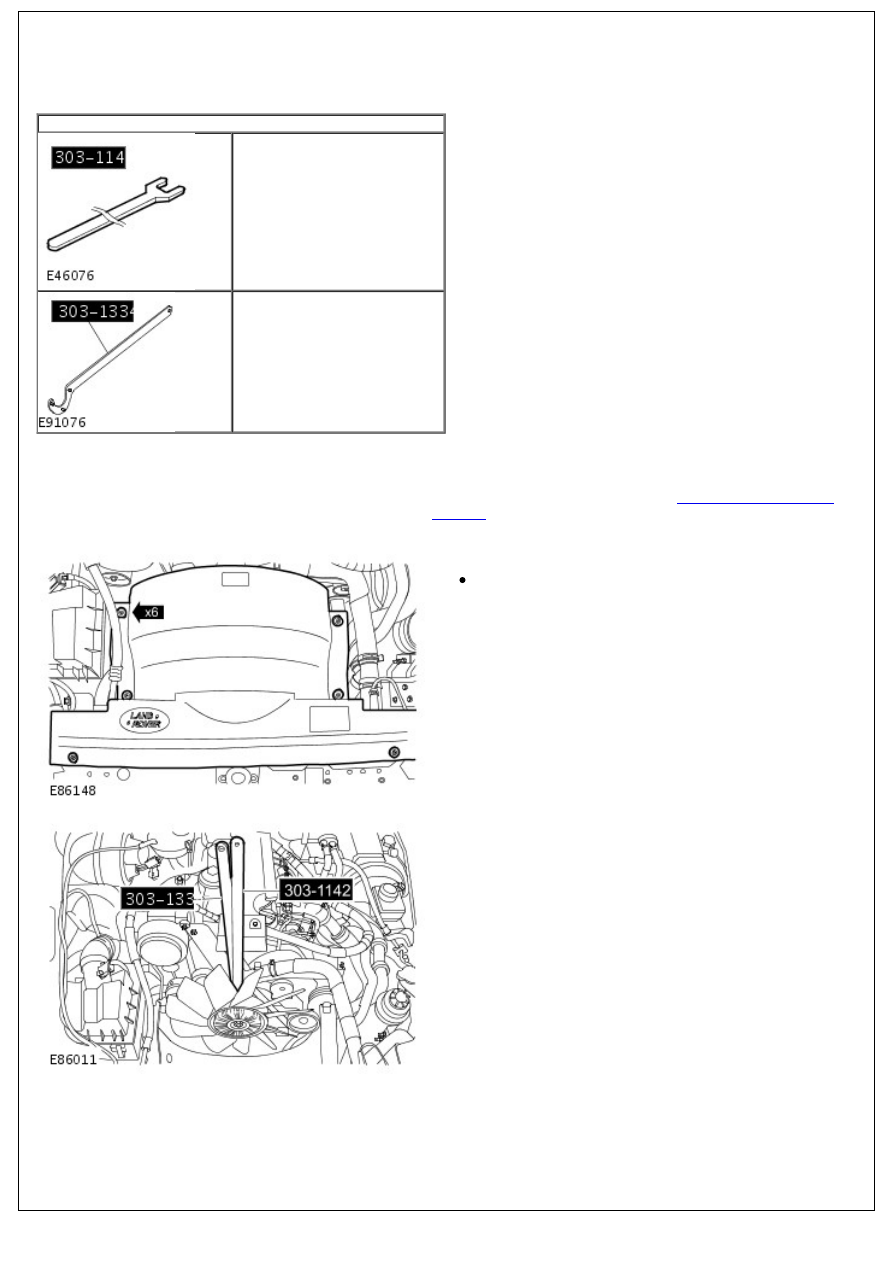

Special Tool(s)

303-1142

Cooling fan spanner

303-1334

Cooling fan retaining tool

Removal

1. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and

Connect

 (414-01 Battery, Mounting and Cables, General

Procedures).

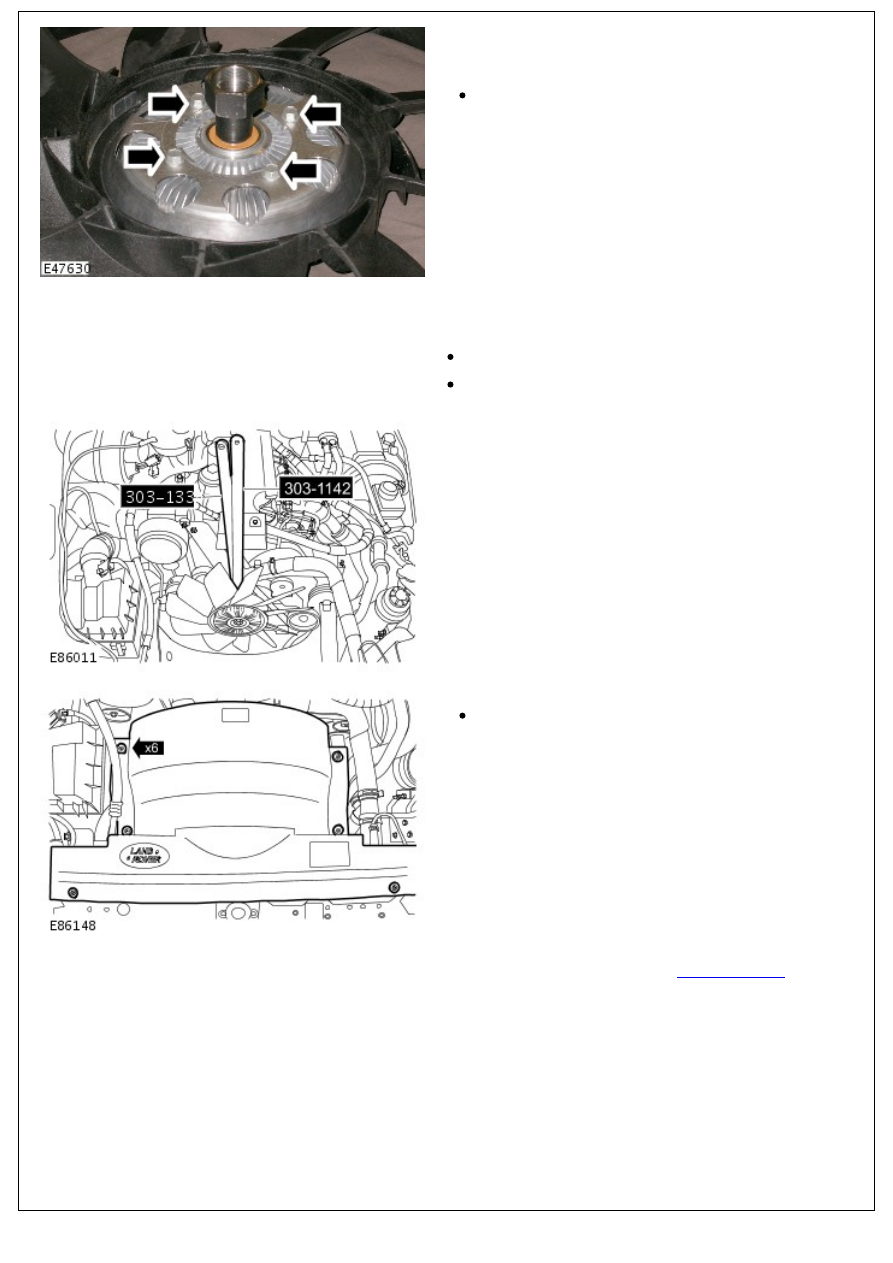

2. Remove the cooling fan upper shroud.

Release the 6 clips.

3. Using the special tools, remove the cooling fan.

4. NOTE: Do not disassemble further if the component is

4. NOTE: Do not disassemble further if the component is

removed for access only.

Remove the viscous coupling.

Remove the 4 bolts.

Installation

1. Install the viscous coupling.

Clean the component mating faces.

Tighten the bolts to 10 Nm (7 lb.ft).

2. Using the special tools, install the cooling fan.

3. Install the cooling fan upper shroud.

Secure the 6 clips.

4. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01

Battery, Mounting and Cables, General Procedures).
