Engine Cooling - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

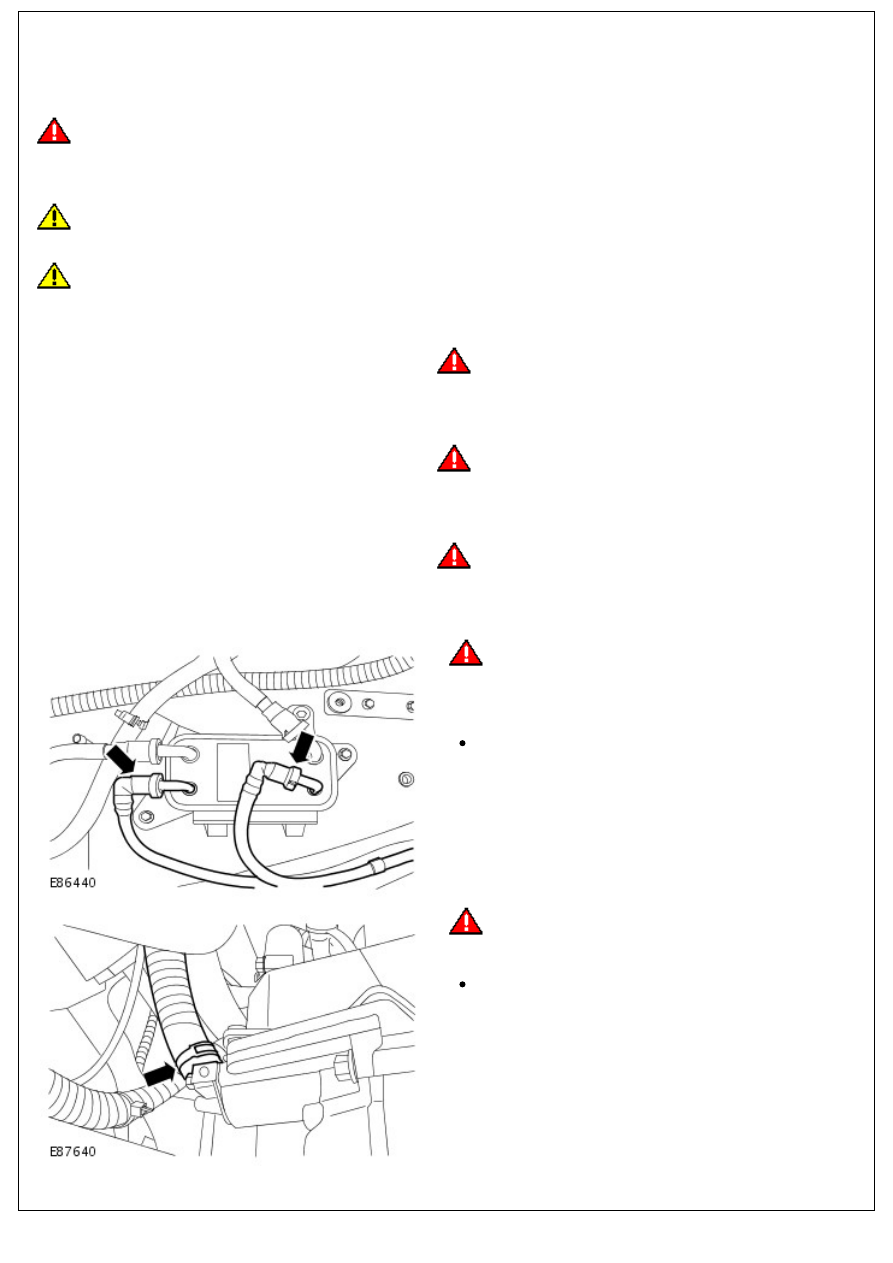

Cooling System Draining, Filling and Bleeding

General Procedures

WARNING: Since injury such as scalding could be caused by escaping steam or coolant, do not remove the filler

cap from the coolant expansion tank while the system is hot.

• CAUTIONS:

 The engine cooling system must be maintained with the correct concentration and type of anti-freeze solution to

prevent corrosion and frost damage. Failure to follow this instruction may result in damage to the engine.

 Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area

with water.

1. Set the heater controls to Hot.

2.

WARNING: Since injury such as scalding could be

caused by escaping steam or coolant, do not remove the filler

cap from the coolant expansion tank while the system is hot.

Remove the coolant expansion tank cap.

3.

WARNING: Since injury such as scalding could be

caused by escaping steam or coolant, do not remove the

cooling system bleed screw while the system is hot.

Loosen the cooling system bleed screw.

4.

WARNING: Do not work on or under a vehicle

supported only by a jack. Always support the vehicle on safety

stands.

Raise and support the vehicle.

5.

WARNING: Eye protection must be worn.

• NOTE: Position a container to collect the coolant.

Disconnect the 2 fuel cooler coolant pipes.

Allow the coolant to drain.

6.

WARNING: Eye protection must be worn.

Disconnect the oil thermostat coolant hose.

Allow the coolant to drain.

7. Remove the container.

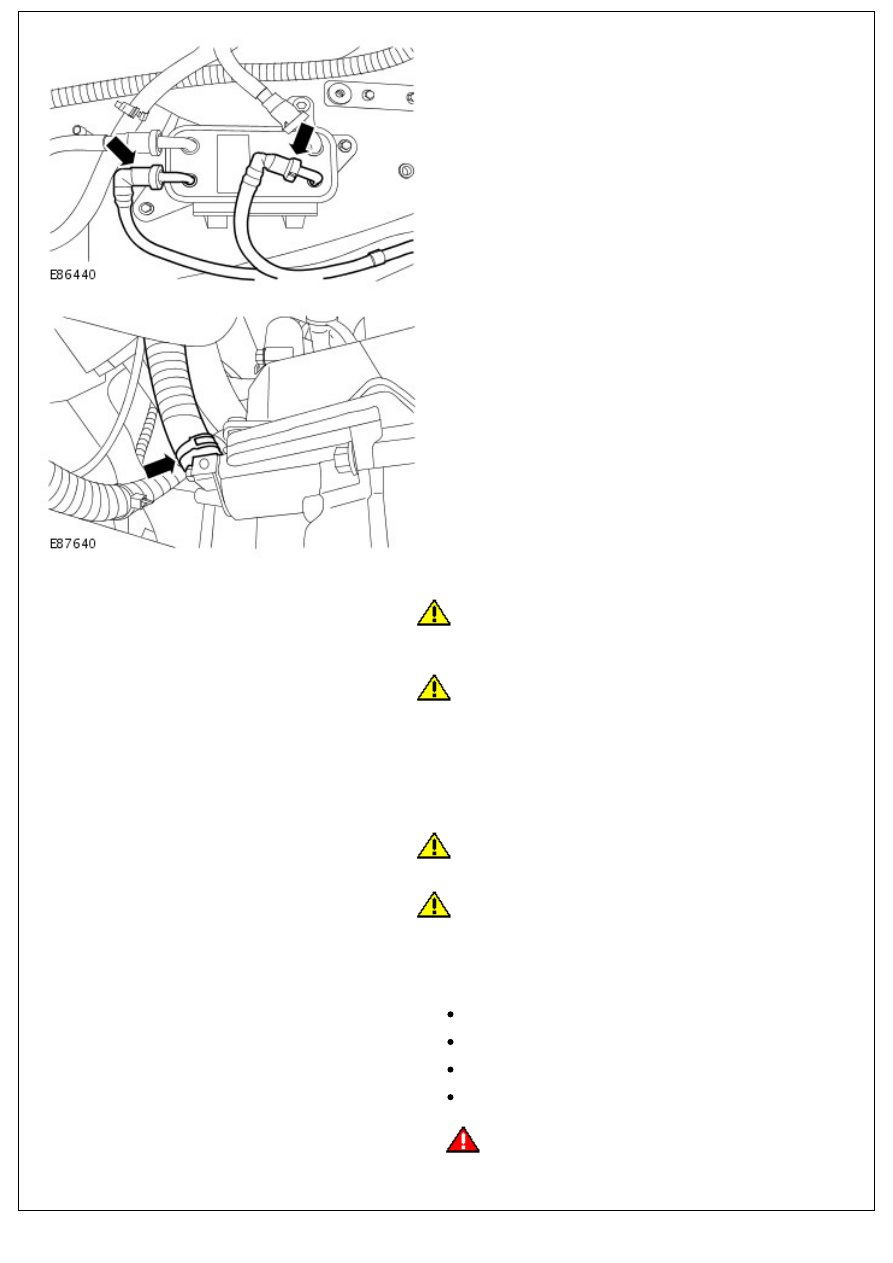

8. Connect the 2 fuel cooler coolant pipes.

9. Connect the oil thermostat coolant hose.

10. CAUTIONS:

 Engine coolant will damage the paint finished surfaces. If

spilt, immediately remove the coolant and clean the area with

water.

 Anti-freeze concentration must be maintained at 50%.

Fill the cooling system expansion tank until the coolant level

becomes static with in the "COLD FILL RANGE".

11. Tighten the cooling system bleed screw.
12. Install the coolant expansion tank cap.

13. CAUTIONS:

 Make sure the coolant level remains above the "COLD

FILL RANGE" lower level mark.

 Observe the engine temperature gauge. If the engine

starts to over-heat switch off immediately and allow to cool.

Failure to follow this instruction may cause damage to the

vehicle.

Start and run the engine.

Hold the engine speed at 3,000 RPM for one minute.

Return the engine to idle for five minutes.

Hold the engine speed at 3,000 RPM for one minute.

Run the engine until the thermostat opens.

14.

WARNING: Release the cooling system pressure by

slowly turning the coolant expansion tank cap a quarter of a

turn. Cover the expansion tank cap with a thick cloth to prevent

the possibility of scalding. Failure to follow this instruction may

result in personal injury.

• NOTE: When the coolant bleed is complete and prior to

installing the expansion tank cap, top-up the expansion tank to

30mm above the maximum level.

Switch the engine off.

Remove the coolant expansion cap, allow the level to

settle and top-up so that the level is 30mm above the

upper level.

Allow the engine to cool.

15. Clean any spilt coolant from the vehicle.
16. Check and top-up the coolant if required.

Engine Cooling - 2.4L Duratorq-TDCi HPCR (103kW/140PS) - Puma -

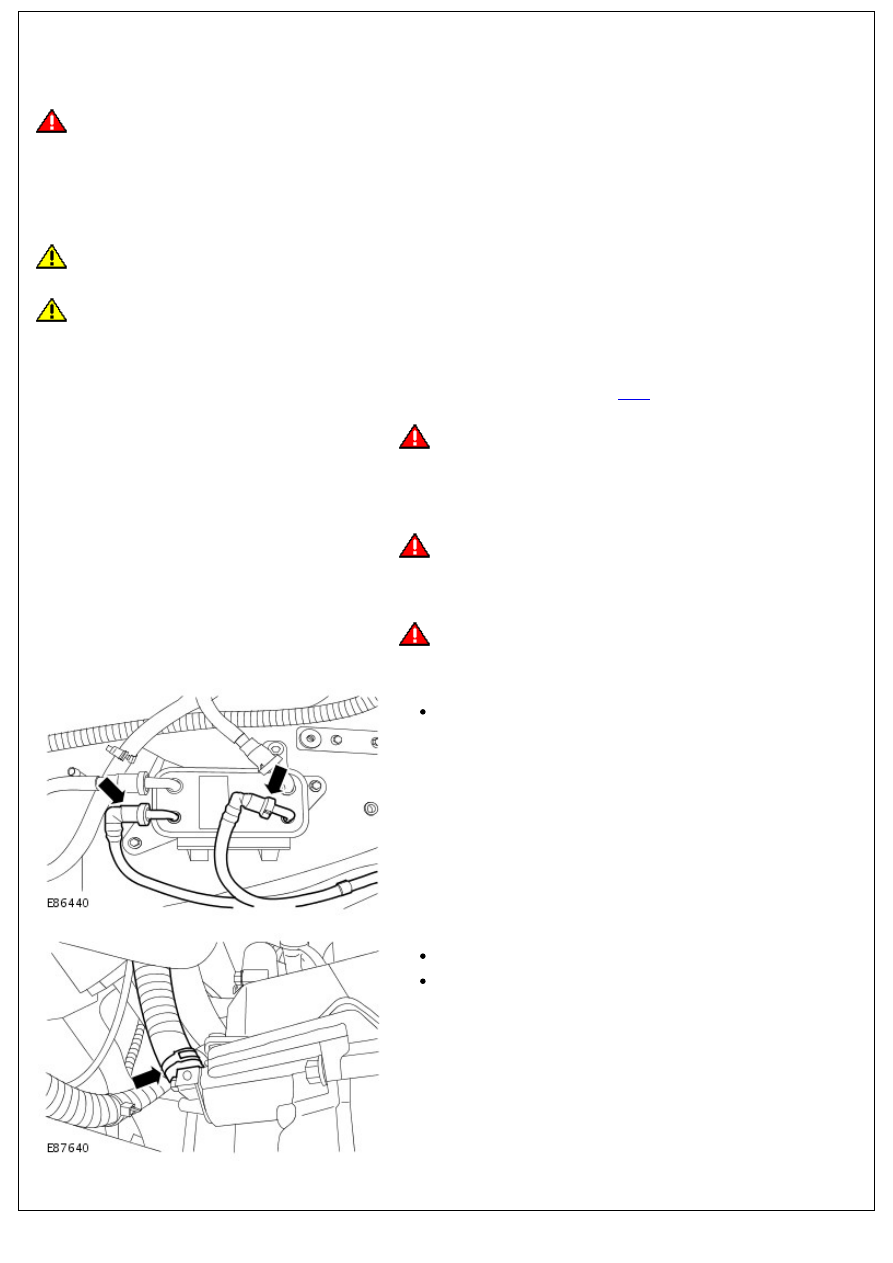

Cooling System Draining and Vacuum Filling

General Procedures

WARNING: To avoid having scalding hot coolant or steam blowing out of the cooling system, use extreme care

when removing the coolant pressure cap from a hot cooling system. Wait until the engine has cooled, then wrap a thick

cloth around the coolant pressure cap and turn it slowly until the pressure begins to release. Step back while the

pressure is released from the system. When certain all the pressure has been released (still with a cloth) turn and

remove the coolant pressure cap from the coolant expansion tank. Failure to follow these instructions may result in

personal injury.

• CAUTIONS:

 The engine cooling system must be maintained with the correct concentration and type of anti-freeze solution to

prevent corrosion and frost damage. Failure to follow this instruction may result in damage to the vehicle.

 Engine coolant will damage paint finished surfaces. If spilled, immediately remove coolant and clean area with

water.

1. Set the heater controls to maximum HOT.
2. Remove the hood.

For additional information, refer to:

Hood

 (501-02 Front End

Body Panels, Removal and Installation).

3.

WARNING: Since injury such as scalding could be

caused by escaping steam or coolant, do not remove the filler

cap from the coolant expansion tank while the system is hot.

Remove coolant expansion tank filler cap.

4. Loosen the cooling system bleed screw.

5.

WARNING: Do not work on or under a vehicle

supported only by a jack. Always support the vehicle on safety

stands.

Raise and support the vehicle.

6.

WARNING: Eye protection must be worn.

Position container to collect coolant.

7. Disconnect the 2 fuel cooler coolant pipes.

Allow the coolant to drain.

8. Disconnect the coolant hose from the engine oil cooler.

Release the clip.

Allow the coolant to drain.

9. Connect coolant hose to engine oil cooler.
