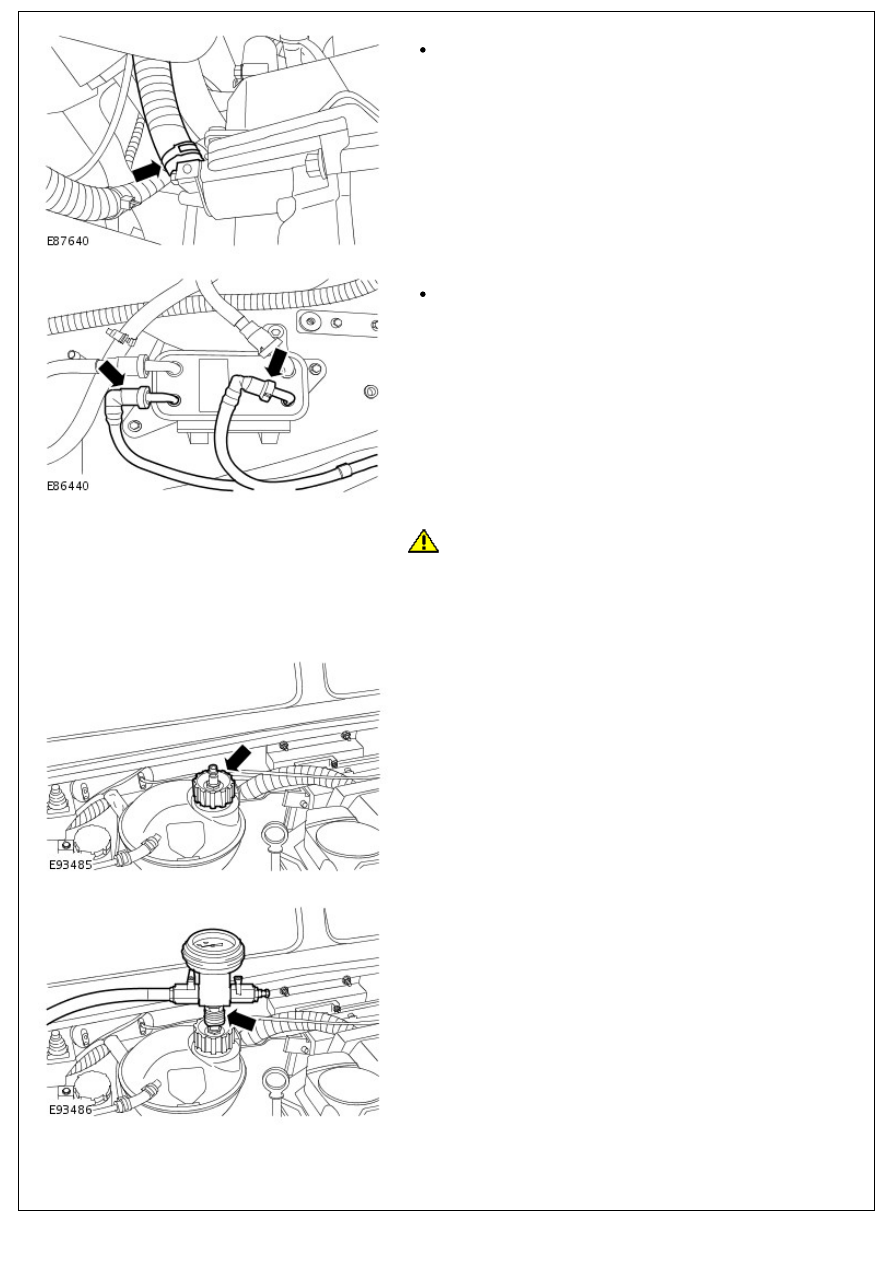

9. Connect coolant hose to engine oil cooler.

Install the clip.

10. Connect the 2 fuel cooler coolant pipes.

Remove the container.

11. Tighten the cooling system bleed screw.

12.

CAUTION: The engine cooling system must be

maintained with the correct concentration and type of anti-

freeze solution to prevent corrosion and frost damage. Failure

to follow this instruction may result in damage to the vehicle.

Prepare a sufficient amount of coolant to the required

concentration and transfer to a container.

13. Install the cooling system vacuum refill adaptor to the

expansion tank.

14. Install the vacuum filler gauge to the cooling system

vacuum refill adaptor.

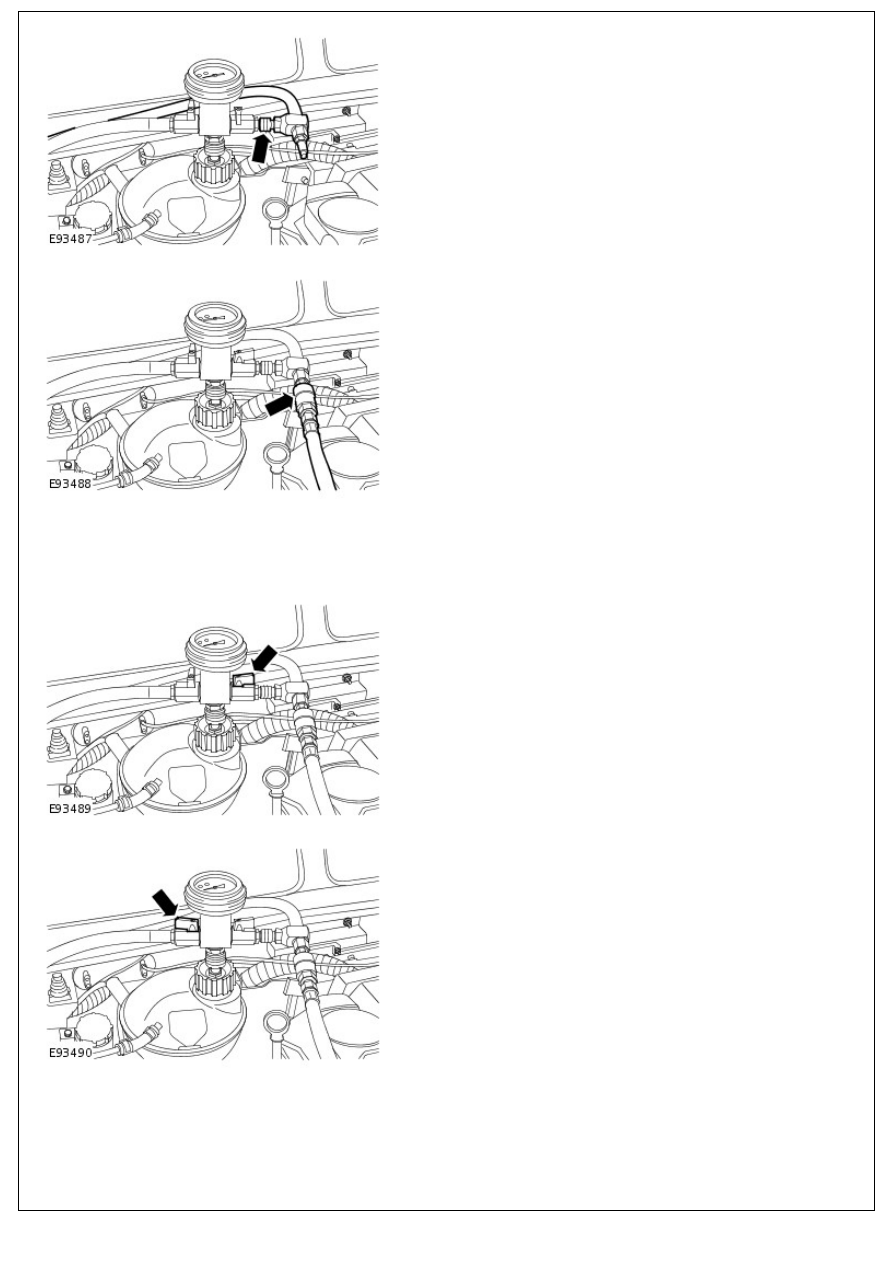

15. Install the venturi tube assembly to the vacuum filler

15. Install the venturi tube assembly to the vacuum filler

gauge.

16. NOTE: Make sure both valves on gauge assembly are in

the closed position.

Connect a regulated compressed air supply to the venturi

tube assembly.

17. NOTE: Make sure air cannot enter the hose.

Position the coolant pick-up pipe into a container of clean

coolant.

18. Position the evacuated air hose into a container.

19. NOTE: Make sure the coolant supply valve is in the closed

position on the vacuum filler gauge assembly.

• NOTE: The coolant vacuum fill tool needs an air pressure of

6 to 8 bar (87 to 116 psi) to operate correctly.

• NOTE: Small diameter or long airlines may restrict airflow to

the coolant vacuum fill tool.

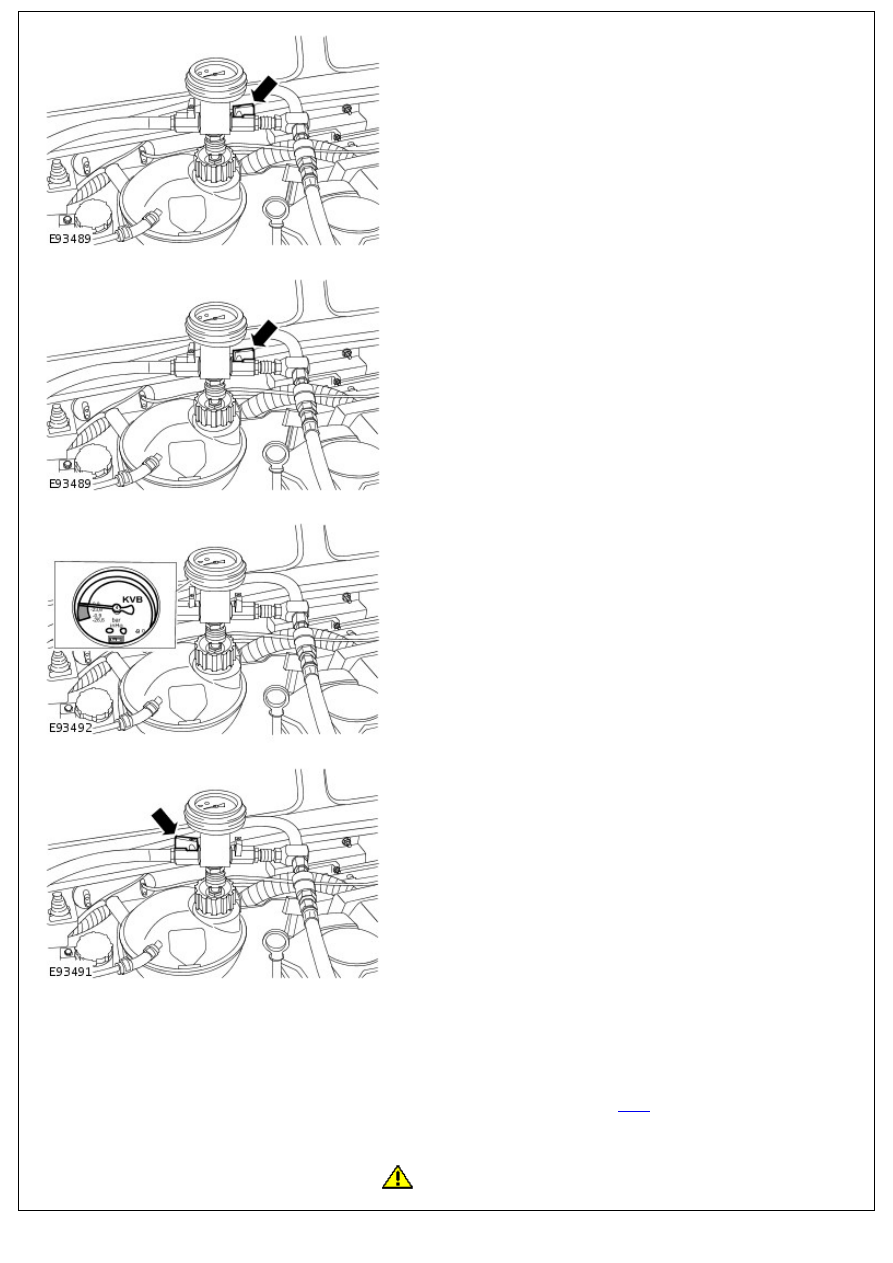

Open air supply valve.

20. Open coolant supply valve for 2 seconds to prime coolant

supply hose.

21. Apply air pressure progressively until the arrow on the

21. Apply air pressure progressively until the arrow on the

vacuum filler gauge reaches the green segment.

22. Close air supply valve and disconnect air supply.

23. Allow 1 minute to check vacuum is held.

24. Open coolant supply valve and allow coolant to be drawn

into system.

25. When expansion tank is full and coolant movement has

ceased close coolant supply valve.

26. Remove vacuum refill adaptor and gauge from expansion

tank.

27. Install the coolant expansion tank filler cap.
28. Install the hood.

For additional information, refer to:

Hood

 (501-02 Front End

Body Panels, Removal and Installation).

29. CAUTIONS:

 Make sure the coolant level remains above the "COLD

FILL RANGE" lower level mark.

 Observe the engine temperature gauge. If the engine

starts to over-heat switch off immediately and allow to cool.

Failure to follow this instruction may cause damage to the

vehicle.

Start and run engine.

Hold the engine speed at 3,000 RPM for one minute.

Return the engine to idle for five minutes.

Hold the engine speed at 3,000 RPM for one minute.

Run the engine until normal operating temperature is

reached.

30. Switch off the engine and allow to cool.

31.

WARNING: Since injury such as scalding could be

caused by escaping steam or coolant, do not remove the filler

cap from the coolant expansion tank while the system is hot.

Check and top-up the coolant level if required.
