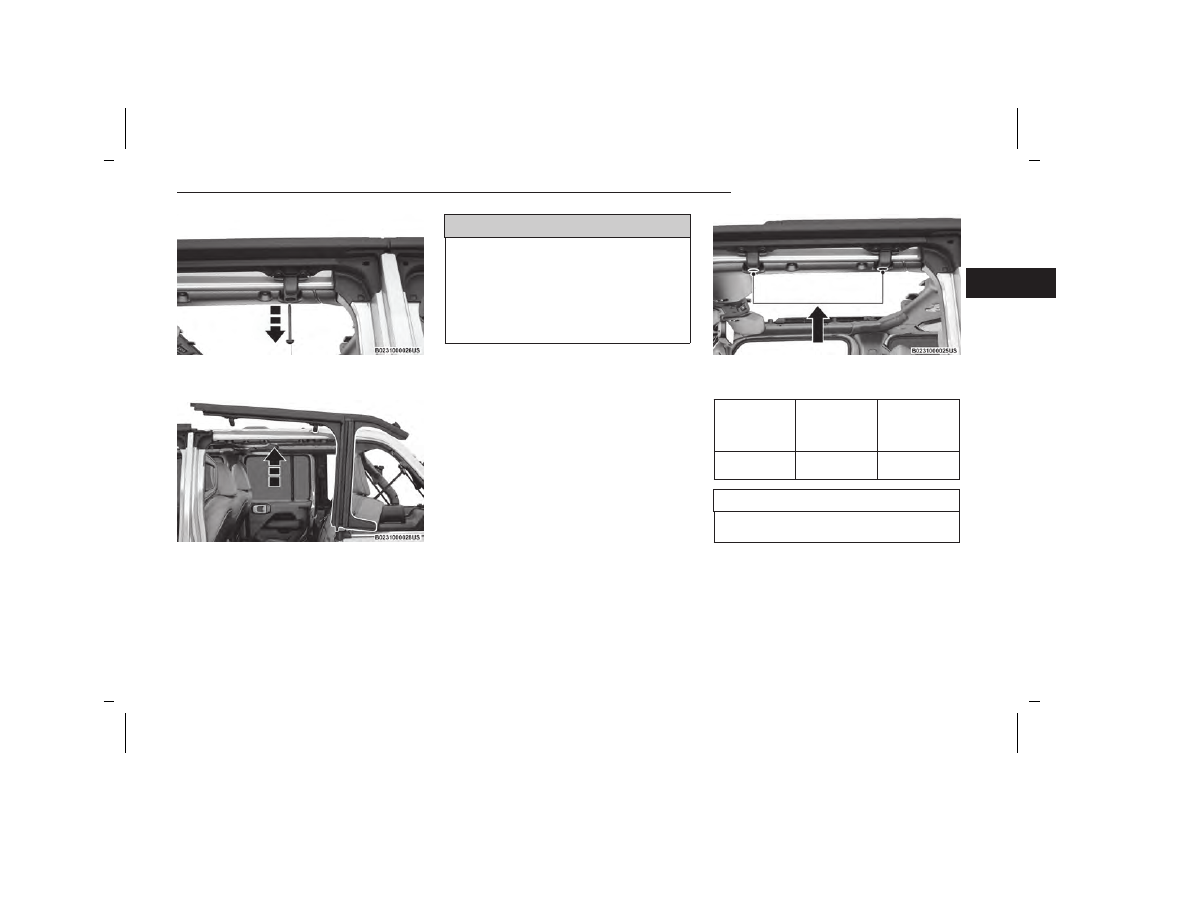

3. Lift the frame upward, removing it from the vehicle.

4. Store screws in a secure location.

5. Repeat procedure on the front door frame (four door

models).

WARNING!

•

Do not drive your vehicle on public roads with the
door frame(s) removed as you will lose the protec-
tion that they can provide. This procedure is fur-
nished for use during off-road operation only.

•

Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for
use during off-road operation only.

DOOR FRAME INSTALLATION FOUR
DOOR MODELS — IF EQUIPPED

1. Install the front door rail first.

2. Carefully place the front door rail in the rubber seal

at the top of the windshield, and line up the holes
for the Torx head screws (two for each door).

3. Swing the frame bracket around the side of the rail,

and insert the screws from underneath. Tighten with
#40 Torx head driver until they are snug, being care-
ful not to cross-thread the screws or overtighten.
Refer to the following table for the appropriate
torque specifications for the door rail screws.

Target Torque
Specification
For Torx
Fasteners

Maximum

Minimum

79.6 in-lb
(9 N·m)

87.6 in-lb
(9.9 N·m)

71.7 in-lb
(8.1 N·m)

CAUTION!

Do not overtighten the screws. You can strip the
screws if they are overtightened.

Remove Screws From Below Frame

Step Three

GETTING TO KNOW YOUR VEHICLE

111

5538906_24_JL_OM_EN_USC_t_E1.pdf 111

5/22/2023 9:02:21 AM

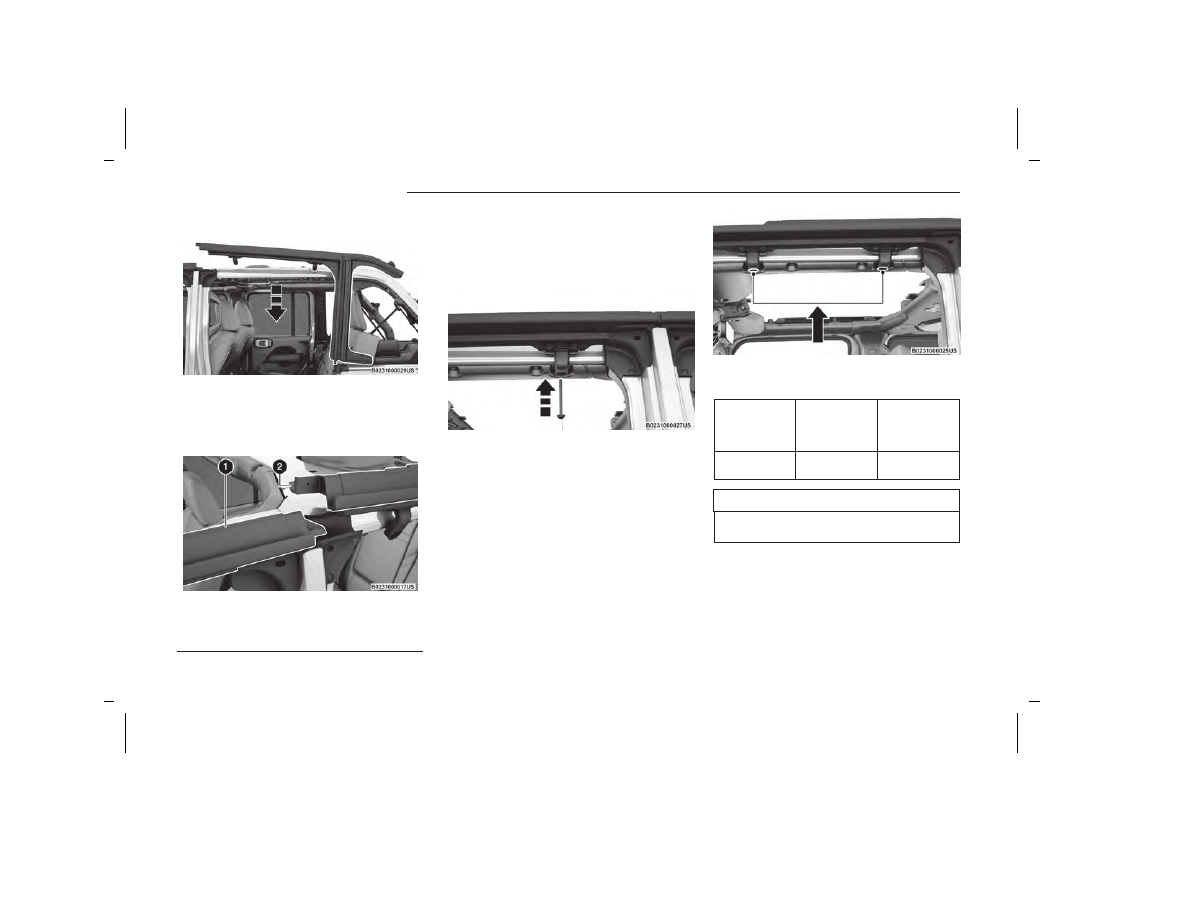

4. Set the rear door frame pin into the hole on top of

the body side, just behind the rear door opening.

5. Carefully position the top of the door frame onto the

rear of the front door rail, making sure rubber seals
lie flat. Ensure the seals are installed correctly to
avoid water leaks.

6. Swing the frame bracket around the side of the rail,

and insert the screws from underneath. Tighten with
#40 Torx head driver until they are snug, being care-
ful not to cross-thread the screws or overtighten.
Refer to the previous table for the appropriate
torque specifications for the door rail screws.

DOOR FRAME INSTALLATION TWO
DOOR MODELS — IF EQUIPPED

1. Carefully place the front door rail in the rubber seal

at the top of the windshield, and line up the holes
for the Torx head screws (two for each door).

2. Swing the frame bracket around the side of the rail,

Target Torque
Specification
For Torx
Fasteners

Maximum

Minimum

79.6 in-lb
(9 N·m)

87.6 in-lb
(9.9 N·m)

71.7 in-lb
(8.1 N·m)

CAUTION!

Do not overtighten the screws. You can strip the
screws if they are overtightened.

Step Four

Position Of Frame Above Door

1 — Front Door Rail
2 — Rear Door Frame

Insert Screws From Below Frame

Step Two

112

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 112

5/22/2023 9:02:21 AM

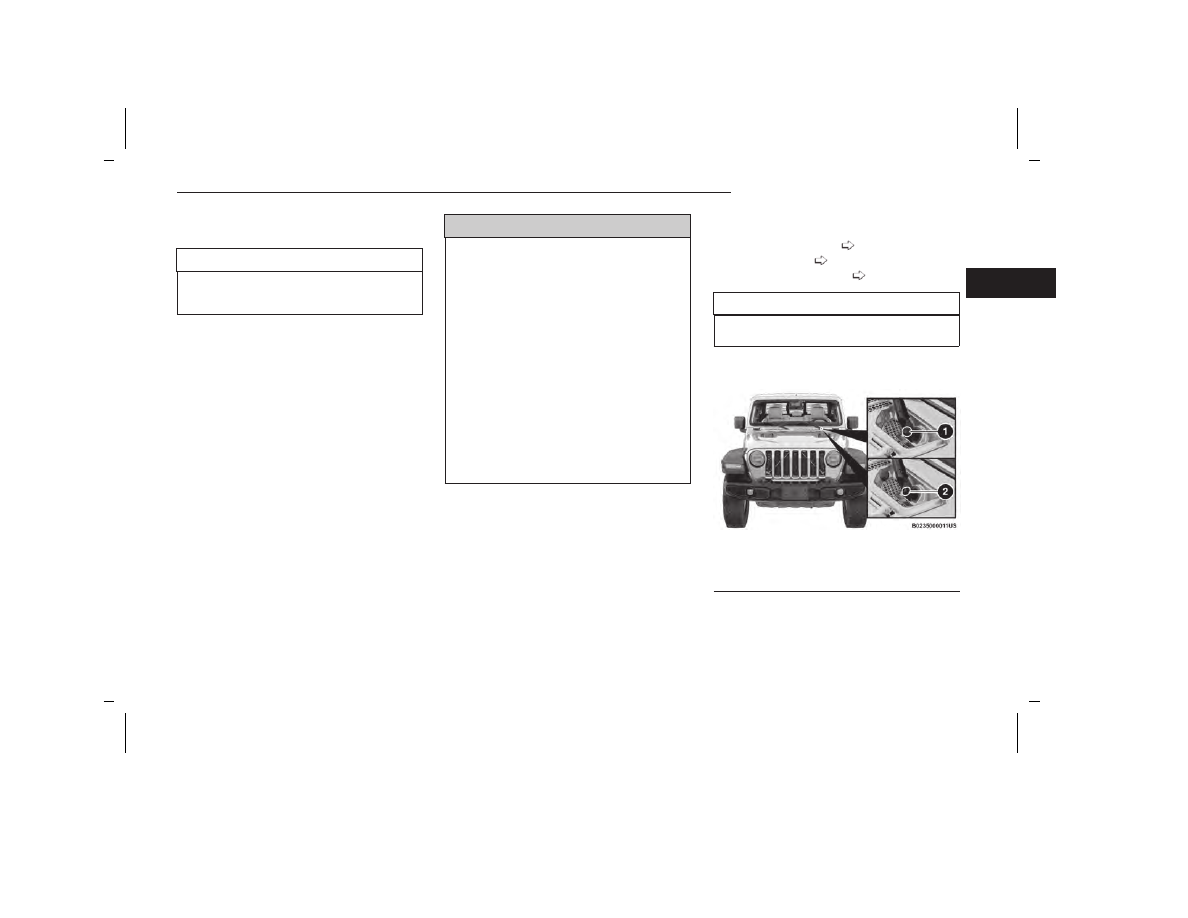

FOLDING WINDSHIELD

CAUTION!

Lowering of the windshield is NOT recommended in
vehicles equipped with a Power Sliding Top. Damage
will occur to the top as well as the header seal.

The fold-down windshield on your vehicle is a structural
element that can provide some protection in some acci-
dents. The windshield also provides some protection
against weather, road debris and intrusion of small
branches and other objects.

Do not drive your vehicle on-road with the windshield
down, as you lose the protection this structural element
can provide.

If required for certain off-road uses, the windshield can
be folded down. However, the protection afforded by the
windshield is then lost. If you fold down the windshield,
drive slowly and cautiously. It is recommended that the
speed of the vehicle be limited to 10 mph (16 km/h),
with low range operation preferred if you are driving
off-road with the windshield folded down.

Raise the windshield as soon as the task that required
its removal is completed and before you return to
on-road driving. Both you and your passengers should
wear seat belts at all times, on-road and off-road,
regardless of whether the windshield is raised or folded
down.

WARNING!

Carefully follow these warnings to help protect
against personal injury:

•

Do not drive your vehicle on-road with the wind-
shield down.

•

Do not drive your vehicle unless the windshield is
securely fastened, either up or down.

•

Eye protection, such as goggles, should be worn at
all times when the windshield is down.

•

Be sure that you carefully follow the instructions
for raising the windshield. Make sure that the fold-
ing windshield, windshield wipers, side bars, and
all associated hardware and fasteners are cor-
rectly and tightly assembled before driving your
vehicle. Failure to follow these instructions may
prevent your vehicle from providing you and your
passengers’ protection in some accidents.

•

If you remove the doors, store them outside the
vehicle. In the event of an accident, a loose door
may cause personal injury.

LOWERING THE WINDSHIELD

1. Before completing the following steps:

○

If your vehicle is equipped with a Soft Top, the
top

MUST

be lowered, and the door rails must be

removed prior to lowering the windshield.

○

If your vehicle is equipped with a Hard Top, the
Freedom Panels

MUST

be removed prior to lower-

ing the windshield.

○

Refer to the following instructions for more
information:

•

Soft Top Lowering

page 92

•

Door Frame

page 110

•

Freedom Top Panels

page 102

CAUTION!

Failure to follow this step will cause damage to the
vehicle’s header seal.

2. Manually remove the protective caps over the wind-

shield wiper hex bolts.

3. Using the provided 15 mm socket, remove the two

hex bolts and remove the wiper arms.

Step Two

1 — Hex Bolt Cover Installed
2 — Hex Bolt Cover Removed

GETTING TO KNOW YOUR VEHICLE

113

5538906_24_JL_OM_EN_USC_t_E1.pdf 113

5/22/2023 9:02:21 AM

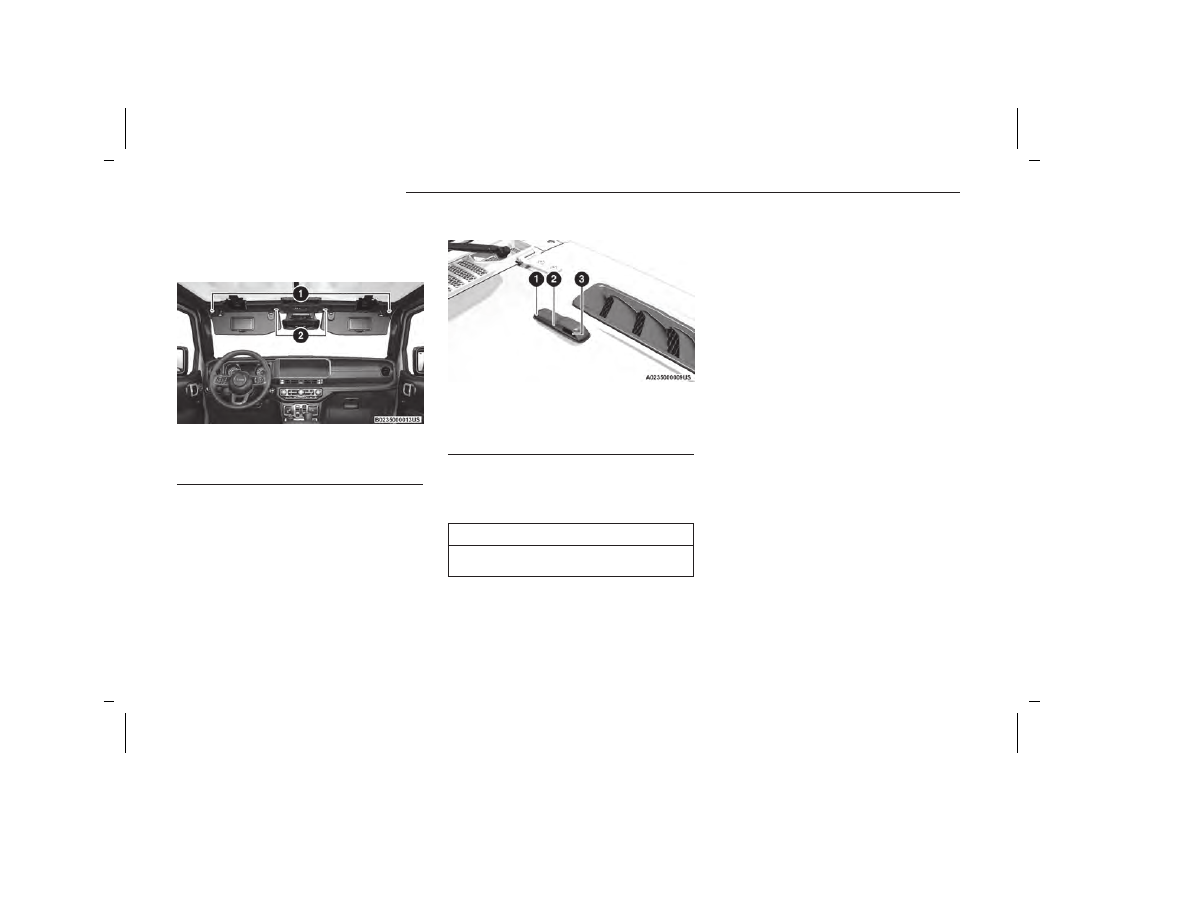

4. Move to the inside of the vehicle and lower both sun

visors.

5. Using the provided #40 Torx head driver, remove the

four Torx screws located along the interior of the
windshield.

NOTE:

Store all of the mounting bolts in their original
threaded holes and tighten for safekeeping.

6. Lower the windshield gently until it contacts the tie-

down bumpers (if equipped).

7. Secure the windshield by passing a cinch strap

through the tie-down on either side of the hood and
on the windshield frame. Tighten the strap to secure
the windshield in place.

CAUTION!

Do Not Overtighten! Damage to the windshield could
result.

Adaptive Cruise Control (ACC)/Forward

Collision Warning (FCW) Sensor

Protective Cover — If Equipped

Your vehicle may be equipped with a protective cover
that is to be used whenever the windshield is folded
down in order to protect the Adaptive Cruise Control
(ACC)/Forward Collision Warning (FCW) sensor. To
install the cover, follow these instructions:

1. Secure the top part of the cover so that it hinges to

the header.

2. Swing the cover down and push on it so that it cov-

ers the opening.

3. Check to make sure the cover is secured properly.

NOTE:

Be sure to remove the cover before returning the wind-
shield to the normal position. Store the cover in the
cargo area.

Cleaning Instructions

During windshield down applications, dust/dirt can
accumulate in the cover and block the camera lens.
Use a microfiber cloth to clean the camera lens, mod-
ule, and inside cover, being careful not to damage or
scratch the module.

Step Five

1 — Outside Torx Screws
2 — Inside Torx Screws

Step Six

1 — Washer Nozzle
2 — Bumper
3 — Tie-Down

114

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 114

5/22/2023 9:02:21 AM

RAISING THE WINDSHIELD

1. Release the strap that secured the windshield in the

lowered position.

2. Raise the windshield.

3. Using the provided #40 Torx head driver, reinstall the

four Torx screws located along the interior of the wind-
shield. Secure them until they are snug, being careful
not to cross-thread the screws or overtighten.

4. Reinstall the windshield wiper arms using the pro-

vided 15 mm socket. First, align the tips of the
blade to the “T” mark in the glass. Then, while hold-
ing the arm in that position, reinstall the hex nut and
tighten until snug. Be careful not to overtighten.
Repeat for the other arm.

5. Reinstall the protective caps over the wiper arm hex

bolts and push gently until they snap into place.

6. After completing the previous steps:

○

If your vehicle is equipped with a Soft Top, rein-
stall the Door Rails and raise the top.

○

If your vehicle is equipped with a Hard Top, rein-
stall the Freedom Panels.

HOOD

OPENING THE HOOD

WARNING!

For PHEV models:

Always place the ignition in the OFF

position before opening the hood. If the ignition is in
the RUN position and the Propulsion System is active
when the hood is opened, the engine could automati-
cally start, and persons not clear of the vehicle could
be injured by the engine’s moving parts.

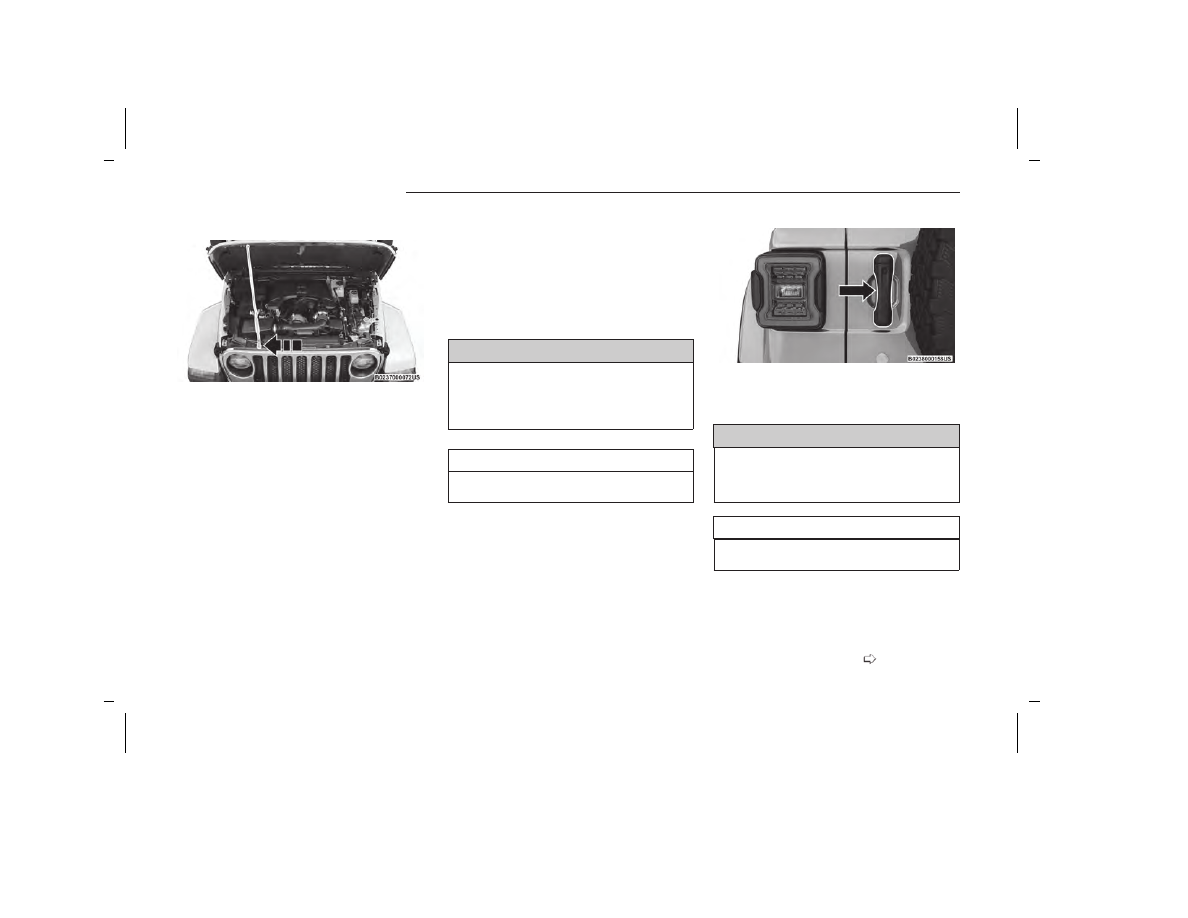

Release both of the outside hood latches.

Raise the hood slightly, and place a hand palm-side
down in the center of the hood opening. Locate the
safety latch in the middle, and push the latch to the
right to open.

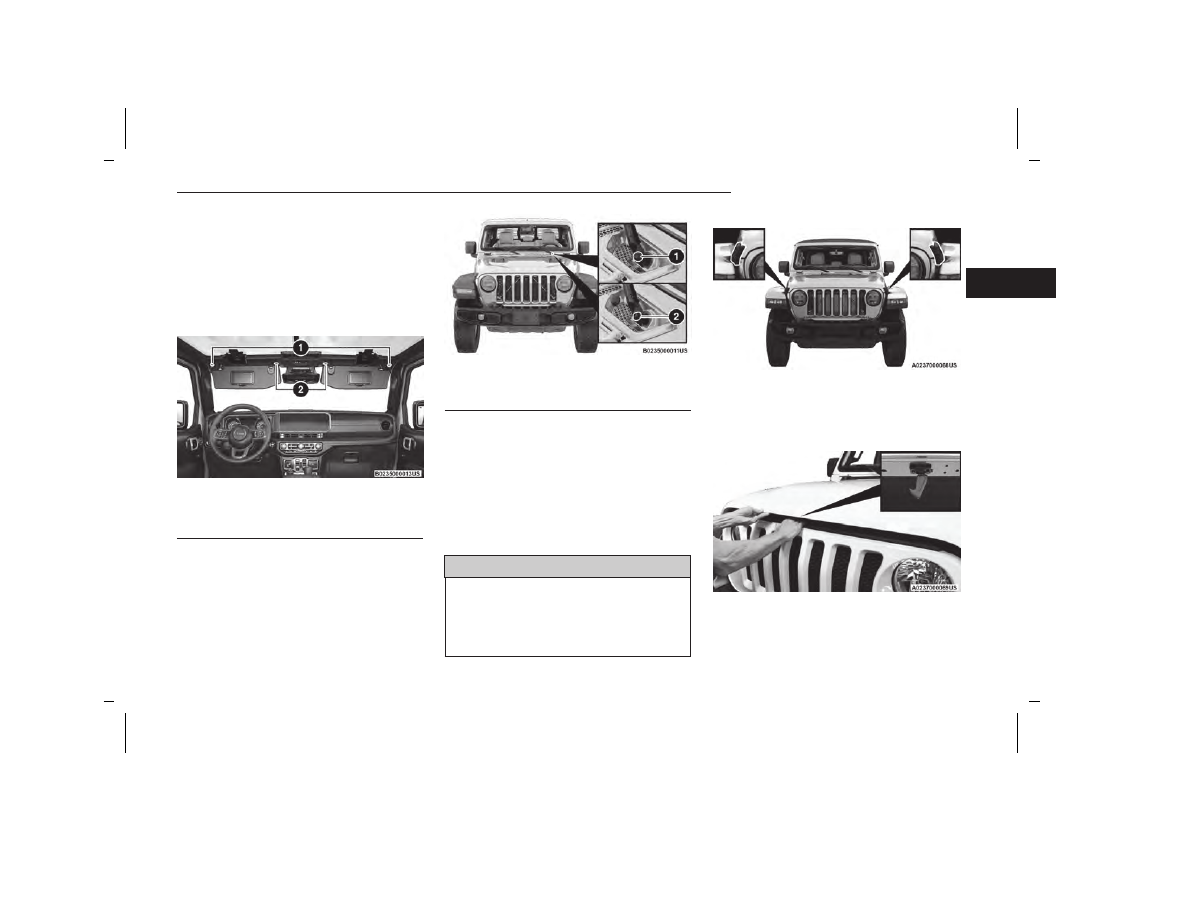

Interior Torx Screw Locations

1 — Outside Torx Screws
2 — Inside Torx Screws

Step Five

1 — Hex Bolt Cover Installed
2 — Hex Bolt Cover Removed

Hood Latch Locations

Place Hand In Hood Opening

GETTING TO KNOW YOUR VEHICLE

115

5538906_24_JL_OM_EN_USC_t_E1.pdf 115

5/22/2023 9:02:21 AM

Remove the support rod from the hood, and insert it
into the radiator crossmember.

NOTE:

•

Vehicle must be at a stop and the gear selector
must be in PARK.

•

You may have to push down slightly on the hood
before pushing the safety latch.

•

While lifting the hood, use both hands.

•

Before lifting the hood, check that the wiper arms
are not in motion and not in the lifted position.

•

For PHEV models:

If the vehicle was actively charg-

ing the high voltage battery when the hood was
opened, the vehicle will stop charging until the hood
is closed.

•

For PHEV models:

Electric drive mode will not be

available while the hood is open. A message will
show in the instrument cluster display to alert the
driver.

CLOSING THE HOOD

To close the hood, remove the support rod from the slot
and replace it on the hood panel retaining clip. Lower
the hood slowly. Secure both of the hood latches.

NOTE:

For PHEV models:

If the vehicle stopped charging the

high voltage battery when the hood was opened, the
vehicle will resume charging when the hood closes.

WARNING!

Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.

CAUTION!

To prevent possible damage, do not slam the hood to
close it.

REAR SWING GATE

The rear swing gate can be unlocked by using one of
the following methods:

•

Mechanical key (with mechanical lock — if equipped)

•

Remote Keyless Entry key fob (if equipped)

•

Power door unlock switch on the front doors
(if equipped)

•

Passive Entry swing gate handle (if equipped)

To open the swing gate, pull on the handle.

NOTE:

Close the rear flip-up window before attempting to close
the swing gate (hard top models only).

WARNING!

Driving with the flip-up window open can allow poisonous
exhaust gases into your vehicle. You and your passen-
gers could be injured by these fumes. Keep the flip-up
window closed when you are operating the vehicle.

CAUTION!

Do not push on rear wiper blade when closing the rear
flip-up window, as damage to the blade will result.

NOTE:

The swing gate hinges and check strap may require
cleaning if a squeak can be heard when opening the
swing gate. Progressive accumulation of dirt or debris
on the check strap arm may cause failure of the check
strap, requiring replacement. For further information on
vehicle cleaning procedures, see

page 337.

Hood Prop Rod Slot

Swing Gate Handle

116

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 116

5/22/2023 9:02:21 AM

CARGO AREA FEATURES

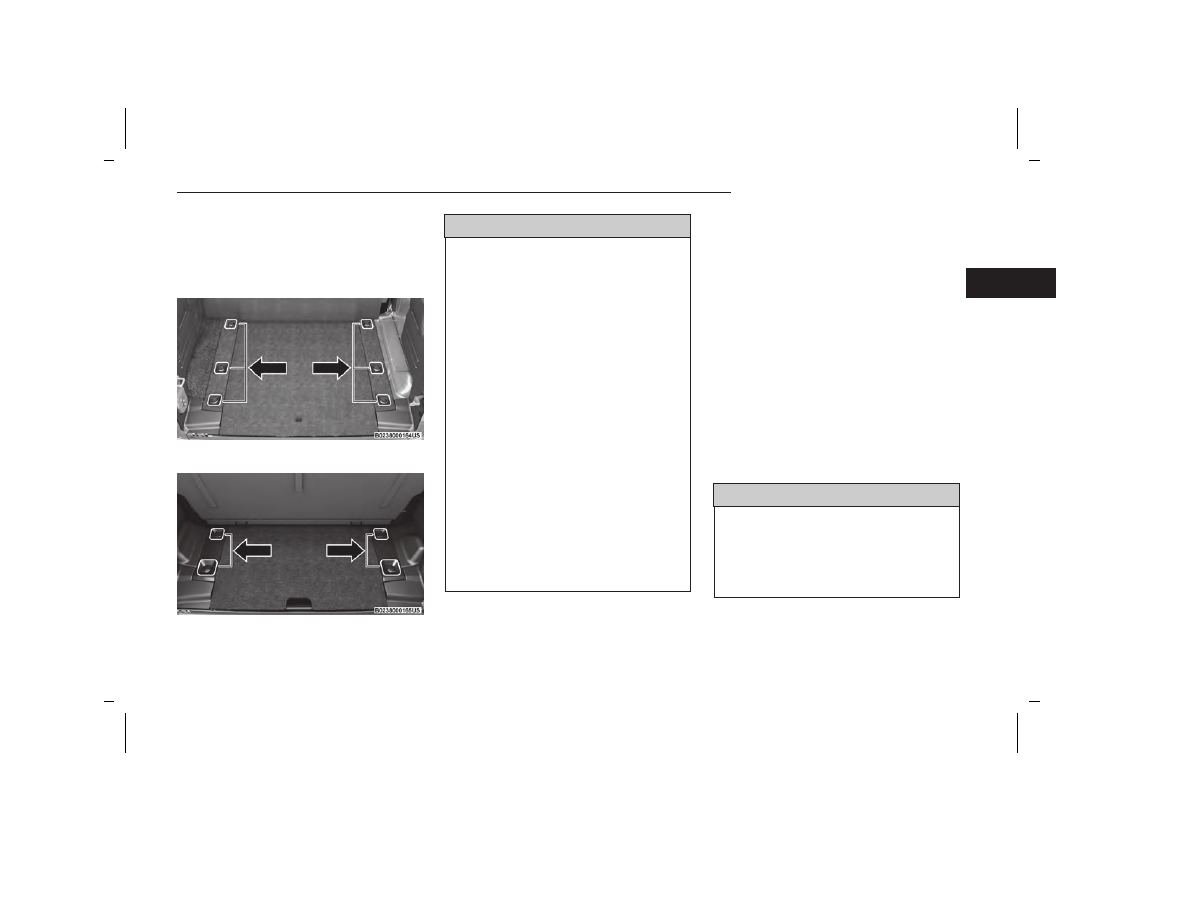

Cargo Tie-Down Hooks And Loops

The cargo tie-downs, located on the cargo area floor,
should be used to safely secure loads when the vehicle
is moving.

WARNING!

•

Cargo tie-downs are not safe anchors for a child
seat tether strap. In a sudden stop or accident, a
tie-down could pull loose and allow the child seat
to come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.

•

To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying pur-
poses only, not for passengers, who should sit in
seats and use seat belts.

The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle han-
dling. To avoid loss of control resulting in personal
injury, follow these guidelines for loading your vehicle:

•

Do not carry loads that exceed the load limits
described on the label attached to the left door or
left door center pillar.

•

Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as
possible.

•

Place as much cargo as possible in front of the
rear axle. Too much weight or improperly placed
weight over or behind the rear axle can cause the
vehicle to sway.

•

Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or become
a dangerous projectile in a sudden stop or
accident.

ROOF LUGGAGE RACK — IF EQUIPPED

NOTE:

Roof rack applications are for Hard Top models

ONLY

The load carried on the roof, when equipped with a lug-
gage rack, must not exceed 100 lb (45 kg), this
includes the weight of the crossbars, and it should be
uniformly distributed over the cargo area.

Crossbars should always be used whenever cargo is
placed on the roof rack. Check the straps frequently to
be sure that the load remains securely attached.

NOTE:

Crossbars can be purchased at an authorized dealer
through Mopar® parts.

External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant
and luggage load inside the vehicle, plus the load on
the luggage rack, does not exceed the maximum
vehicle load capacity.

WARNING!

Cargo must be securely tied down before driving your
vehicle. Anything improperly secured to the roof rack,
crossbars, or the roof itself can fly off the vehicle,
particularly at high speeds, resulting in collisions,
personal injury or property damage. Follow the roof
rack cautions when carrying anything on your roof or
roof rack.

Cargo Tie-Down Loops (Four Door Models)

Cargo Tie-Down Loops (Two Door Models)

GETTING TO KNOW YOUR VEHICLE

117

5538906_24_JL_OM_EN_USC_t_E1.pdf 117

5/22/2023 9:02:21 AM

CAUTION!

•

To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity.
Always distribute heavy loads as evenly as possible
and appropriately secure the load and any protec-
tive layer placed between the load and the roof
surface.

•

Long loads, which extend over the windshield,
should be secured to both the front and rear of the
vehicle.

•

Place a blanket or other protection between the
surface of the roof and the load.

•

Travel at reduced speeds and turn corners care-
fully when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift. It is rec-
ommended to not carry large flat loads, such as
wood panels or surfboards, which may result in
damage to the cargo or your vehicle.

•

Load should always be secured to crossbars first,
with tie down loops used as additional securing
points if needed. Tie loops are intended as supple-
mentary tie down points only. Do not use ratchet-
ing mechanisms with the tie loops. Check the
straps frequently to be sure that the load remains
securely attached.

118

GETTING TO KNOW YOUR VEHICLE

5538906_24_JL_OM_EN_USC_t_E1.pdf 118

5/22/2023 9:02:21 AM

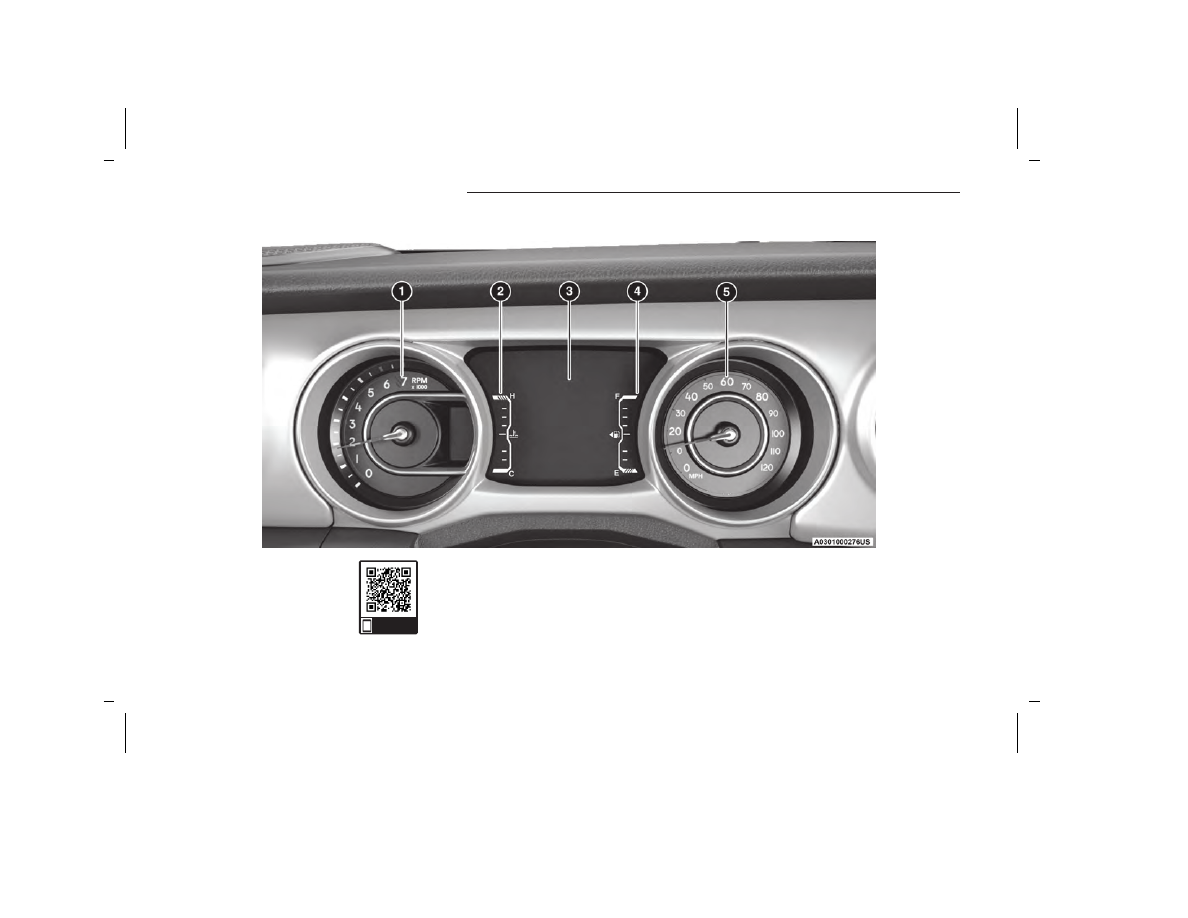

INSTRUMENT CLUSTER
DESCRIPTIONS

Tachometer

○

Indicates the engine speed in revolutions per
minute (RPM x 1000).

CAUTION!

Do not operate the engine with the tachometer
pointer in the red area. Engine damage will occur.

Temperature Gauge

○

The temperature gauge shows engine coolant
temperature. Any reading within the normal
range indicates that the engine cooling system
is operating satisfactorily.

○

The pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.

WARNING!

A hot engine cooling system is dangerous. You or oth-
ers could be badly burned by steam or boiling cool-
ant. It is recommended to call an authorized dealer
for service if your vehicle overheats.

CAUTION!

Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H”, turn the engine off immediately and call an
authorized dealer for service.

Instrument Cluster Display

○

The instrument cluster display features a driver
interactive display

page 124.

Fuel Gauge

○

The pointer shows the level of fuel in the fuel
tank when the ignition switch is in the ON/RUN
position.

○

The fuel pump symbol points to the
side of the vehicle where the fuel
filler door is located.

Speedometer

○

Indicates vehicle speed.

GETTING TO KNOW YOUR INSTRUMENT PANEL

121

5538906_24_JL_OM_EN_USC_t_E1.pdf 121

5/22/2023 9:02:21 AM

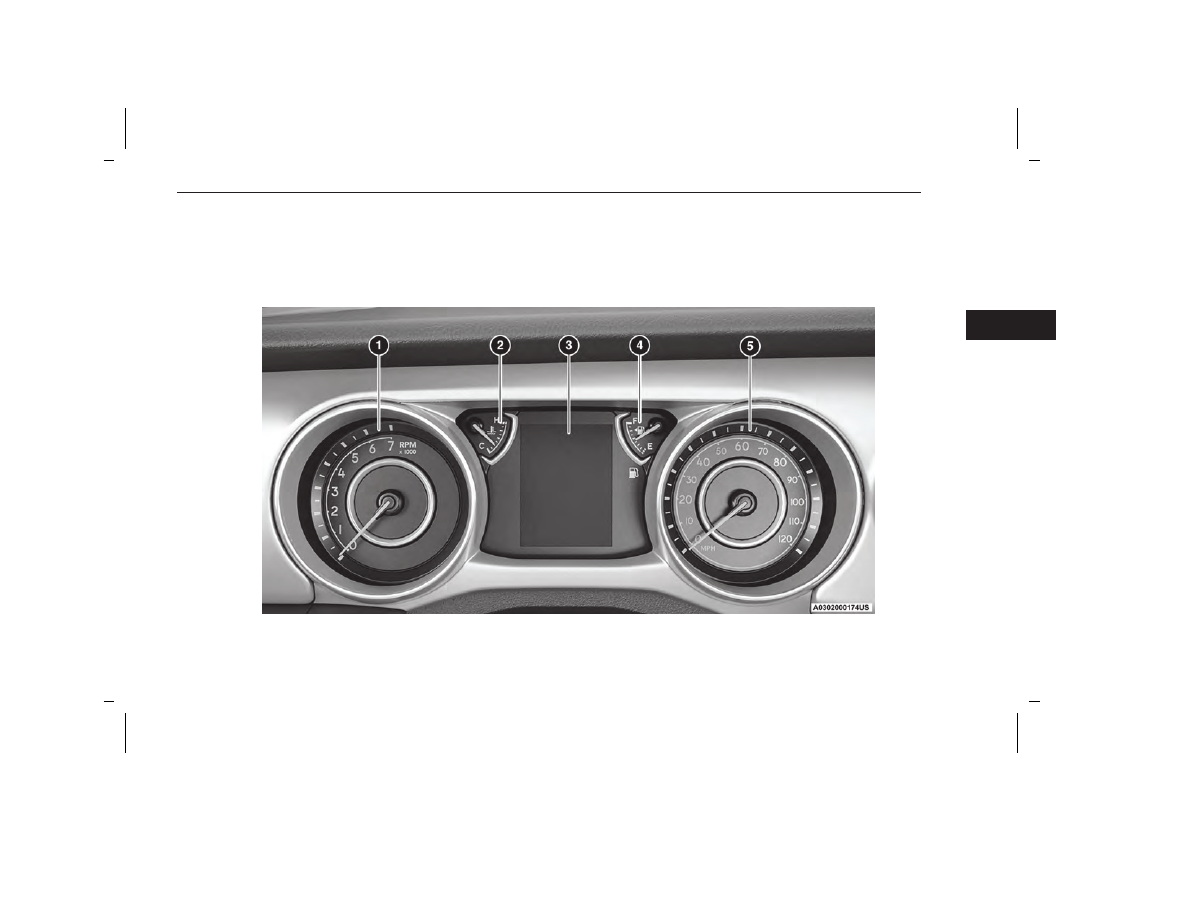

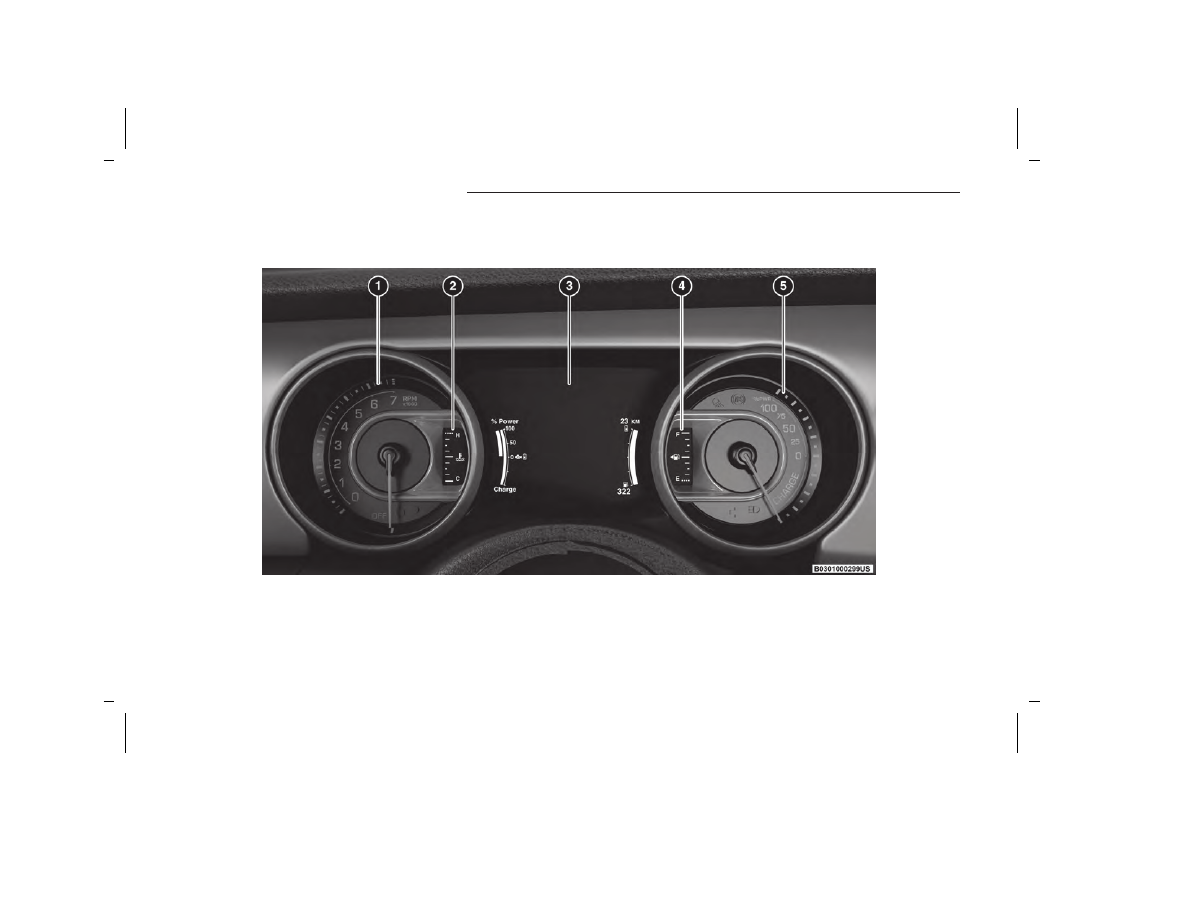

INSTRUMENT CLUSTER
DESCRIPTIONS — PHEV ONLY

Tachometer

○

Indicates the engine speed in revolutions per
minute (RPM x 1000).

CAUTION!

Do not operate the engine with the tachometer
pointer in the red area. Engine damage will occur.

Engine Coolant Temperature

○

This gauge shows the engine coolant tempera-
ture. The gauge pointer will likely show higher
temperatures when driving in hot weather, up
mountain grades, or in heavy stop and go traf-
fic. If the red Warning Light turns on while driv-
ing, safely bring the vehicle to a stop, and turn
off the engine. DO NOT operate the vehicle until
the cause is corrected.

WARNING!

A hot engine cooling system is dangerous. You or oth-
ers could be badly burned by steam or boiling cool-
ant. It is recommended to call an authorized dealer
for service if your vehicle overheats.

CAUTION!

Instrument Cluster Display

○

The instrument cluster display features a driver
interactive display. When the appropriate condi-
tions exist, this display shows messages

page 124.

Fuel Gauge

○

The pointer shows the level of fuel in the fuel tank
when the ignition is in the ON/RUN position.

○

The fuel pump symbol points to the
side of the vehicle where the fuel
door is located.

Power/Charge Gauge

○

This gauge represents the source of the power
utilized to accelerate the vehicle. The green
outer ring represents the High Voltage (HV) bat-
tery output during acceleration, and input power
during regeneration. The yellow inner ring repre-
sents the engine output power.

GETTING TO KNOW YOUR INSTRUMENT PANEL

123

5538906_24_JL_OM_EN_USC_t_E1.pdf 123

5/22/2023 9:02:21 AM

INSTRUMENT CLUSTER DISPLAY

Your vehicle will be equipped with an instrument cluster
display, which offers useful information to the driver. With
the ignition in the OFF mode, opening/closing of a door
will activate the display for viewing, and display the total
miles, or kilometers, in the odometer. Your instrument
cluster display is designed to display important informa-
tion about your vehicle’s systems and features. Using a
driver interactive display located on the instrument panel,
your instrument cluster display can show you how systems
are working and give you warnings when they aren’t. The
steering wheel mounted controls allow you to scroll
through and enter the main menus and submenus. You
can access the specific information you want and make
selections and adjustments.

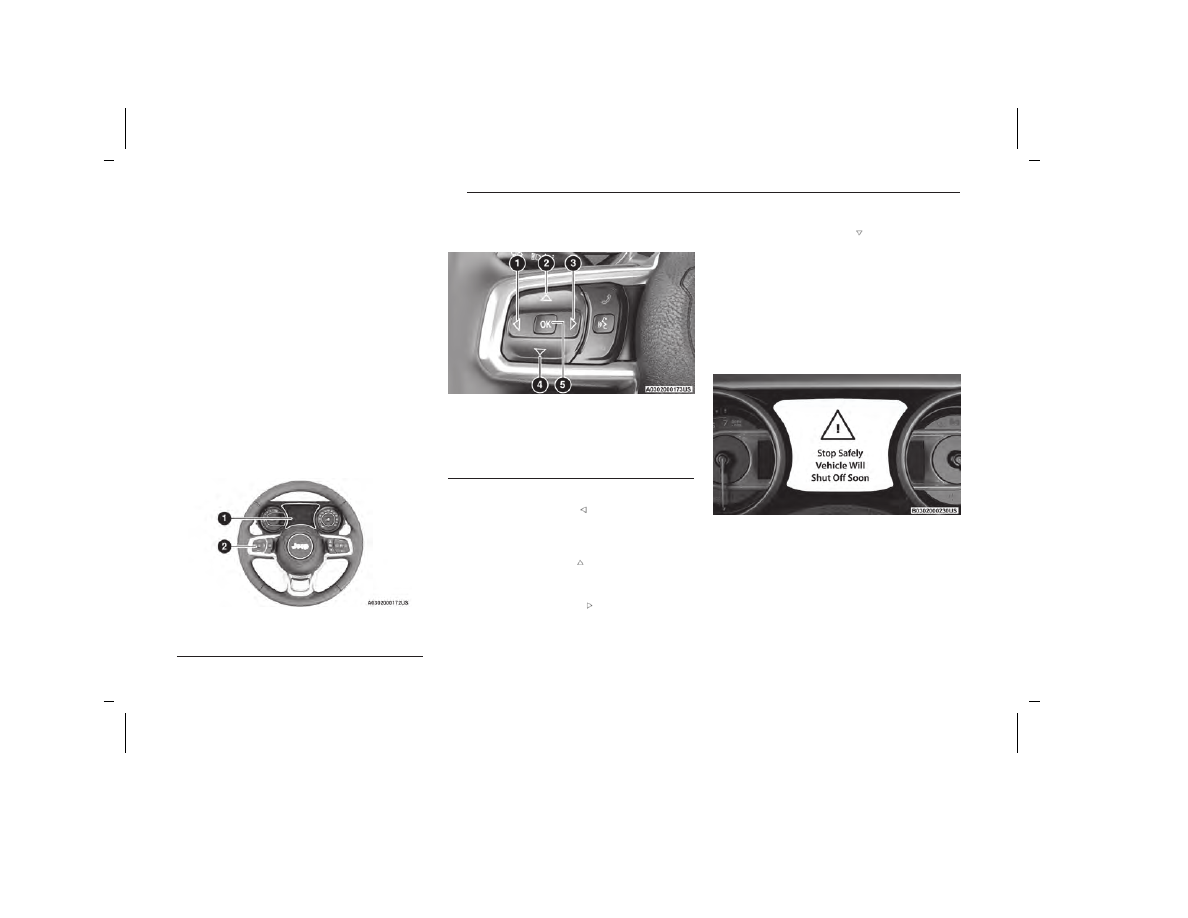

INSTRUMENT CLUSTER DISPLAY
LOCATION AND CONTROLS

The instrument cluster display is located in the center
of the instrument cluster.

The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:

•

Left Arrow Button

Push and release the

left

arrow button to

access the information screens or submenu screens
of a main menu item.

•

Up Arrow Button

Push and release the

arrow button to scroll

upward through the Main Menu items.

•

Right Arrow Button

Push and release the

right

arrow button to

access the information screens or submenu screens
of a main menu item.

•

Down Arrow Button

Push and release the

down

arrow button to

scroll downward through the Main Menu items.

•

OK Button

Push the

button to access/select the informa-

tion screens or submenu screens of a Main Menu
item. Push and hold the

arrow button for two

seconds to reset displayed/selected features that
can be reset.

Stop Safely Vehicle Will Shut Off Soon —
PHEV Only

This warning will be displayed on the instrument panel
display when the vehicle has determined an operational
issue will occur shortly, which will cause the vehicle's pro-
pulsion system to turn off. If the light turns on while driv-
ing, stop the vehicle in a safe location as soon as pos-
sible. Have the vehicle transported to an authorized
dealer.

•

This message will be displayed continuously

•

Cannot be cleared with button press

•

A single chime will sound

Instrument Cluster Display Location

1 — Instrument Cluster Display Screen
2 — Instrument Cluster Display Controls

Instrument Cluster Display Control Buttons

1 — Left Arrow Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — OK Button

Stop Safely Vehicle Will Shut Off Soon Warning Message

124

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 124

5/22/2023 9:02:21 AM

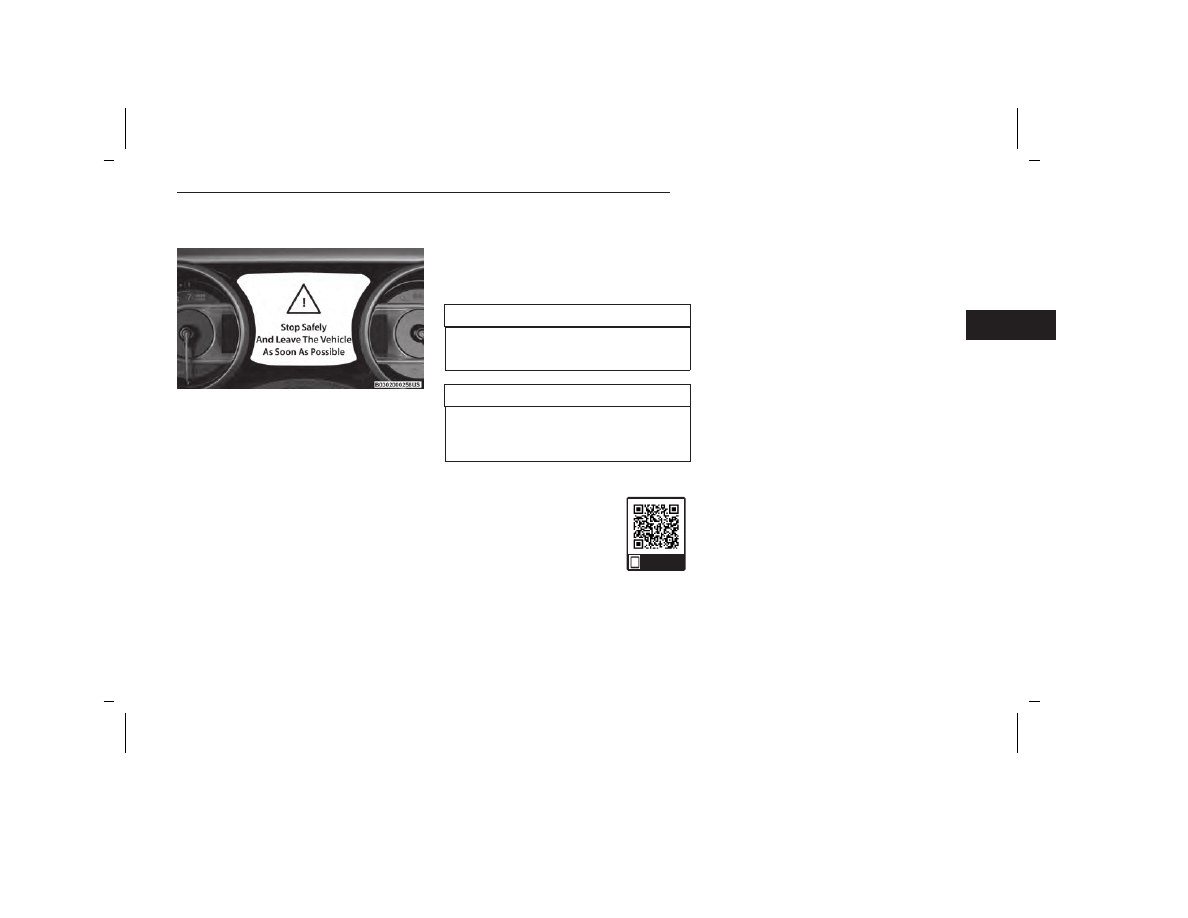

Stop Safely And Leave The Vehicle As
Soon As Possible — PHEV Only

A warning will appear on the instrument panel display if
the system detects the high voltage battery has over-
heated. This can result in a vehicle fire, and the release
of toxic and/or flammable gases. To reduce the risk of a
larger fire,

the vehicle’s high voltage propulsion system

will turn off within thirty seconds of displaying this
warning

. At that time, the vehicle may not accelerate.

You can still steer and brake the vehicle.

Stop and park the vehicle in an open area

. Have all

passengers exit the vehicle as soon as possible and
move to a safe distance away from the vehicle. After all
passengers safely exit the vehicle, call emergency
responders immediately.

Even if you do not see flames, a fire may start at any
moment, so do not attempt to re-enter or start the
vehicle.

•

This message will be displayed continuously.

•

Cannot be cleared with a button press.

•

A continuous and rapid chime will sound.

CAUTION!

If the instrument cluster instructs you to change the
engine oil, do not reset the service indicator without
changing the oil. Engine damage may result.

CAUTION!

•

An overheated High Voltage Battery may result in
electrical systems damage. Do not attempt to restart
the vehicle. The vehicle must be towed to an autho-
rized dealer.

OIL CHANGE RESET — IF EQUIPPED

Use this QR code to access your digital
experience.

Your vehicle may be equipped with an
engine oil change indicator system. The
“Oil Change Required” message will dis-
play in the instrument cluster display for
five seconds after a single chime has
sounded to indicate the next scheduled oil change
interval.

The engine oil change indicator system is duty cycle
based, which means the engine oil change interval may
fluctuate, dependent upon your personal driving style.

Unless reset, this message will continue to display each
time you place the ignition in the ON/RUN position. To
turn off the message temporarily, push and release the

button. To reset the oil change indicator system

(after performing the scheduled maintenance), refer to
the following procedure.

Oil Life Reset

1. Without pushing the brake pedal, place the ignition

in the ON/RUN mode (do not start the engine).

2. Navigate to "Oil Life" submenu in "Vehicle Info" in the

instrument cluster display.

3. Push and hold the

button until the gauge resets

to 100%.

Secondary Method For Oil Change Reset Procedure

1. Without pushing the brake pedal, place the ignition

in the ON/RUN position (do not start the engine).

2. Fully press the accelerator pedal, slowly, three times

within ten seconds.

3. Without pushing the brake pedal, place the ignition

in the OFF position.

NOTE:

If the indicator message illuminates when you start the
vehicle, the oil change indicator system did not reset. If
necessary, repeat this procedure.

Stop Safely And Leave The Vehicle As Soon As Possible

Warning Message

Scan me

GETTING TO KNOW YOUR INSTRUMENT PANEL

125

5538906_24_JL_OM_EN_USC_t_E1.pdf 125

5/22/2023 9:02:21 AM

ELECTRIC MODE TEMPORARILY
UNAVAILABLE

If Electric Drive mode is unavailable, the reason will
display for five seconds at start up. If your check engine
light comes on, see an authorized dealer immediately.

See the following information for the most common
reasons that the Electric mode would be unavailable:

Operator Choices that can inhibit Electric mode

•

Transmission in Manual Shift mode - Shift to Drive
to use Electric mode.

•

Heavily depressed accelerator pedal position,
requesting high power demand - Beyond the limits
of the electric drivetrain, will cause engine to run,
enabling the powertrain to produce its full combined
power available in Hybrid mode.

•

Sustained high speed operation in Electric mode -
Using the engine is more efficient for high speeds
than Electric drive.

•

Transfer case and drive mode selection - eSave
mode almost always runs the engine. Hybrid mode,
in 4WD Low, will also run the engine.

•

Electric range is depleted - You need to recharge to
enjoy Electric mode, or you can continue normally in
Hybrid.

•

Hood open (or a hood switch fault) - This is to pre-
vent unexpected engine starts with the hood open.

Thermal Protection that can inhibit Electric mode

•

Engine, transmission or engine starting belt too
cold - Some systems require warm up to function
properly if the outside temperature is below 32°F
(15°F in Electric Drive mode).

•

Electric cabin heating capacity limits (or electric
cabin heater fault) - Unlike Battery Electric Vehicles
(BEV's), the PHEV Wrangler can warm the cabin
more efficiently with engine heat when operating
below 15°F outside temperature.

•

HV battery, motors or contactors over temperature -
This is a temporary hardware protection feature.
Vehicle performance will resume once protection is
no longer required. If the vehicle performance is
accompanied with a Malfunction Indicator Lamp

(MIL)

, have the vehicle serviced at an autho-

rized dealership.

Component Protection that can inhibit Electric mode

•

HV battery undervoltage - Sustained EV operation at
high speed, especially with aftermarket wheels and
tires, can induce this.

•

Other electric propulsion system faults indicated by
a MIL - Please bring the vehicle to your dealership
for service.

•

Fuel And Oil Refresh mode - See the following
section.

Fuel And Oil Refresh Mode

Since it is possible to operate this vehicle for extended
periods of time without running the gas engine, the fuel
within the vehicle’s fuel tank can become stale or the
engine oil’s lubricating properties can be reduced. To
prevent engine and/or fuel system damage due to stale
fuel, as well as maintaining internal engine lubrication,
this vehicle is equipped with a Fuel and Oil Refresh
mode.

The vehicle will automatically enter into the Fuel and Oil
Refresh mode to minimize potential for stale fuel, and
to ensure lubrication of internal engine components.
When operating in this mode, the gas engine will run to
provide vehicle propulsion (electric only operation is
inhibited). A message will be displayed in the instru-
ment cluster whenever Fuel and Oil Refresh mode is
active.

The vehicle will automatically exit the Fuel and Oil
Refresh mode when fuel and lubrication conditions
have been satisfied. If the vehicle enters Fuel and Oil
Refresh mode, due to fuel which has been in the fuel
tank for a long period of time (becoming stale fuel), the

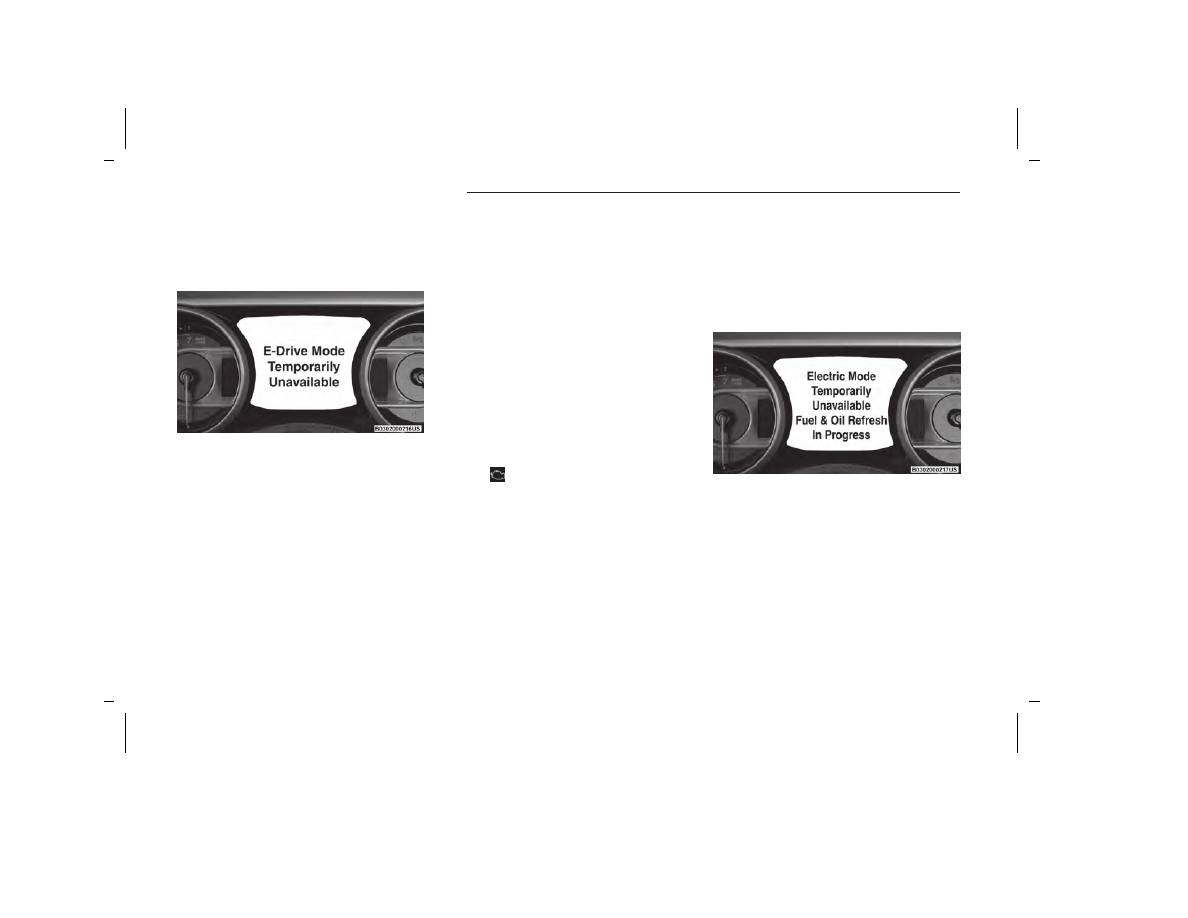

Electric Mode Temporarily Unavailable Message

Fuel And Oil Refresh Mode Message

126

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 126

5/22/2023 9:02:21 AM

engine will run whenever the vehicle is operational (no
electric only operation) until the low fuel level warning is
activated. It is also possible to exit the Fuel and Oil
Refresh mode sooner by adding a minimum of four gal-
lons (15 Liters) of new fuel to the vehicle’s fuel tank.

NOTE:

If the vehicle enters Fuel and Oil Refresh mode to main-
tain engine lubrication, adding fuel will not exit the
mode sooner.

If the vehicle enters Fuel and Oil Refresh mode to main-
tain engine lubrication properties, the engine may run
for a period of up to 2.5 hours when fully warm when-
ever the vehicle is operational (no electric only opera-
tion). If the vehicle is shut down before conditions to
exit the refresh mode have been satisfied, the engine
may run for additional time on subsequent trips. Oil
refresh may take significantly longer in freezing
temperatures.

NOTE:

•

Frequent short trips at low ambient temperature
conditions where the engine does not reach normal
operating temperatures are more likely to trigger the
lubrication based mode.

•

Electric drive mode will be temporarily unavailable
while the Fuel And Oil Refresh Mode (FORM) is
active. Do not attempt to return to Electric Mode
until the FORM cycle is complete.

CAUTION!

If the instrument cluster instructs you to change the
engine oil, do not reset the service indicator without
changing the oil. Engine damage may result.

DISPLAY AND MESSAGES

The instrument cluster display is located in the center
portion of the cluster and consist of multiple sections:

•

Main Screen — The inner ring of the display will illu-
minate in black under normal conditions, yellow for
noncritical warnings and red for critical warnings

•

Submenu Dots — Whenever there are submenus
available, the position within the submenus is
shown here

•

Reconfigurable Telltales/Information

•

Gear Selector Status (PRND)

•

Driver Interactive Display (Compass, Temp, Range to
Empty, Trip A, Trip B, Average Fuel Economy, Current
Fuel Economy and Time)

•

Four-Wheel Drive (4WD) Status — If Equipped

The instrument cluster display will normally display the
main menu or the screens of a selected feature of the
main menu. The main display area also displays pop-up
messages and warning or information messages. These
pop-up messages fall into several categories:

•

Five Second Stored Messages

When the appropriate conditions occur, this type of
message takes control of the main display area for
five seconds and then returns to the previous
screen. Most of the messages of this type are then
stored (as long as the condition that activated it
remains active) and can be reviewed from the “Mes-
sages” main menu item. Examples of this message
type are “Right Front Turn Signal Lamp Out” and
“Low Tire Pressure”.

•

Unstored Messages

This message type is displayed indefinitely or until
the condition that activated the message is cleared.
Examples of this message type are “Turn Signal On”
(if a turn signal is left on) and “Lights On” (if driver
leaves the vehicle with the lights on).

•

Unstored Messages Until RUN

These messages deal primarily with the Remote
Start feature. This message type is displayed until
the ignition is in the RUN state. Examples of this
message type are “Remote Start Canceled - Door
Ajar” and “Press Brake Pedal and Push Button to
Start”.

•

Five Second Unstored Messages

When the appropriate conditions occur, this type of
message takes control of the main display area for
five seconds and then returns to the previous
screen. An example of this message type is
“Automatic High Beams On”.

GETTING TO KNOW YOUR INSTRUMENT PANEL

127

5538906_24_JL_OM_EN_USC_t_E1.pdf 127

5/22/2023 9:02:21 AM

Messages include the following, but not limited to:

NOTE:

Certain messages may require dealer service.

Front Seat Belts Unbuckled

Oil Change Due

ACC Override

Driver Seat Belt Unbuckled

Fuel Low

Cruise Set To XXX mph or km/h

Passenger Seat Belt Unbuckled

Service Anti-lock Brake System

Service Shifter

Traction Control Off

Service Electronic Throttle Control

Tire Pressure Screen With Low Tire(s)

Washer Fluid Low

Service Power Steering

Service Tire Pressure System

Oil Pressure Low

Cruise Off

Park Brake Engaged

Oil Level Low – If Equipped

Cruise Ready

Brake Fluid Low

Engine Temperature Hot

Lights On

Right Front Turn Signal Light Out

Right Rear Turn Signal Light Out

Left Front Turn Signal Light Out

Left Rear Turn Signal Light Out

Ignition or Accessory On

Vehicle Not In Park

Remote Start Active Push Start Button

Remote Start Canceled Fuel Low

Remote Start Canceled Hood Open

Remote Start Canceled Liftgate Open

Remote Start Canceled Door Open

Remote Start Canceled Time Expired

Remote Start Disabled Start To Reset

Service Air Bag System

Service Air Bag Warning Light

Door Open

Doors Open

Hood Open

Vehicle Speed Too High To Shift to D

Liftgate Open

Shift Not Allowed

Vehicle Speed is Too High to Shift to R

Vehicle Speed is Too High to Shift to P

Service Transmission

128

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 128

5/22/2023 9:02:21 AM

INSTRUMENT CLUSTER DISPLAY
SELECTABLE ITEMS

The instrument cluster display can be used to view the
following main menu items:

NOTE:

Depending on the vehicles options, feature settings
may vary.

Speedometer

Driver Assist —
If Equipped

Stop/Start

Vehicle Info

Fuel Economy

Audio

Off Road

Trip Info

Messages

Screen Setup

Phone Call
Status —
If Equipped

NOTE:

The instrument cluster menu items display in the center
of the instrument cluster. Menu items may vary depend-
ing on your vehicle features.

Speedometer

Push and release the

down

arrow button

until the speedometer menu icon is displayed in the
instrument cluster display. Push and release the

button to toggle between MPH and km/h.

Vehicle Info

Push and release the

down

arrow button

until the Vehicle Info menu icon is displayed in the
instrument cluster display. Push and release the

left

right

arrow button to scroll through the infor-

mation submenus and push and release the

button

to select or reset the resettable submenus.

Tire Pressure

Coolant
Temperature

Transmission
Temperature —
Automatic
Transmission
Only

Oil Temperature

Oil Pressure

Oil Life

Battery Voltage

Single Gauge
Submenu —
If Equipped

Critical Level
Logic —
If Equipped

Off Road

Push and release the

down

arrow button

until the Off Road menu icon is displayed in the instru-
ment cluster display. Push and release the

left

right

arrow button to scroll through the information

submenus.

•

Drivetrain

○

Front Wheel Angle: displays the graphical and
numerical value of calculated average front
wheel angle from the steering wheel orientation.

○

Transfer Case Lock Status: displays “Lock”
graphic only during 4WD High, 4WD High Part
Time, 4WD Low status.

○

Axle Lock And Sway Bar Status (If Equipped): dis-
plays front and rear or rear only axle locker
graphic, and sway bar connection graphic with
text message (connected or disconnected).

•

Pitch And Roll

○

Displays the pitch and roll of the vehicle in the
graphic with the angle number on the screen.

NOTE:

When vehicle speed becomes too high to display the
pitch and roll, “- -” will display in place of the numbers,
and the graphic will be greyed out. A message indicat-
ing the necessary speed for the feature to become
available will also display.

Driver Assist — If Equipped

The Driver Assist menu displays the status of the ACC
systems.

Push and release the

down

arrow button

until the Driver Assist menu is displayed in the instru-
ment cluster display.

Adaptive Cruise Control (ACC) Feature — If Equipped

The instrument cluster display displays the current ACC
system settings. The information displayed depends on
ACC system status.

Push the ACC ON/OFF button (located on the steering
wheel) until one of the following displays in the instru-
ment cluster display:

Adaptive Cruise Control Off

When ACC is deactivated, the display will read “Adaptive
Cruise Control Off.”

GETTING TO KNOW YOUR INSTRUMENT PANEL

129

5538906_24_JL_OM_EN_USC_t_E1.pdf 129

5/22/2023 9:02:21 AM

Adaptive Cruise Control Ready

When ACC is activated but the vehicle speed setting
has not been selected, the display will read “Adaptive
Cruise Control Ready.”

Push the SET + or the SET - button (located on the
steering wheel), and the following will display in the
instrument cluster display.

ACC SET

When ACC is set, the set speed will display in the instru-
ment cluster.

The ACC screen may display once again if any of the
following ACC activity occurs:

•

System Cancel

•

Driver Override

•

System Off

•

ACC Proximity Warning

•

ACC Unavailable Warning

NOTE:

The instrument cluster display will return to the last
display selected after five seconds of no ACC display
activity

page 173.

Fuel Economy

Push and release the

down

arrow button

until the Fuel Economy icon is highlighted in the instru-
ment cluster display. Push and hold the

button to

reset average fuel economy feature.

Toggle

left

right

to select a display with or

without Current Fuel Economy Information.

•

Range – The display shows the estimated distance
(mi or km) that can be traveled with the fuel remain-
ing in the tank. When the Range value is less than
10 miles (16 kilometers), the Range display will

change to a “LOW” message. Adding a significant
amount of fuel to the vehicle will turn off the “LOW”
message and a new Range value will display. Range
cannot be reset through the

button.

NOTE:

Significant changes in driving style or vehicle load-
ing will greatly affect the actual drivable distance of
the vehicle, regardless of the Range displayed value.

•

Average – The display shows the average fuel
economy (MPG, L/100 km, or km/L) since the last
reset.

•

Current – This display shows the current fuel
economy (MPG, L/100 km, km/L) while driving.

Energy Economy — If Equipped

Push and release the

down

arrow button

until Energy Economy is highlighted in the instrument
cluster display. Push the

left

right

arrow but-

ton to scroll through the following information
submenus:

•

Average Energy Economy gauge + value (hold

reset)

•

Current Energy Economy gauge + value

•

Total Range

Hybrid Info

Push and release the

down

arrow button

until Hybrid Info is highlighted in the instrument cluster
display. Push the

left

right

arrow button to

scroll through the following information submenus:

Range to Empty

•

Electric Range

•

Hybrid Range

•

Total Range

Efficiency Coach

Efficiency Coach will monitor your current driving to
help you drive as efficient as possible.

•

“Accel” is based on amount of acceleration (Differ-
ent from MPG).

○

The gauge will only move up when accelerator
pedal is pushed (or accelerating with Cruise Con-
trol or ACC).

○

Above a certain rate of change will be considered
inefficient.

○

The color of the gauge bar will change from green
to yellow to orange.

•

“Brake” is based on amount of deceleration (slow-
ing down).

○

The gauge will only move down when brake pedal is
pushed (or decelerating with Cruise Control or ACC).

○

The color of the gauge bar will change from green
to yellow to orange.

•

The gauge bar color will transition smoothly up and
down, and have a gradual change based on efficiency.

○

Center of gauge is 0% Accel and 0% Brake.

○

+/-0-35% of gauge fills green, +/-36-80% yellow,
and +/-81-100% orange (with a blend between
each color).

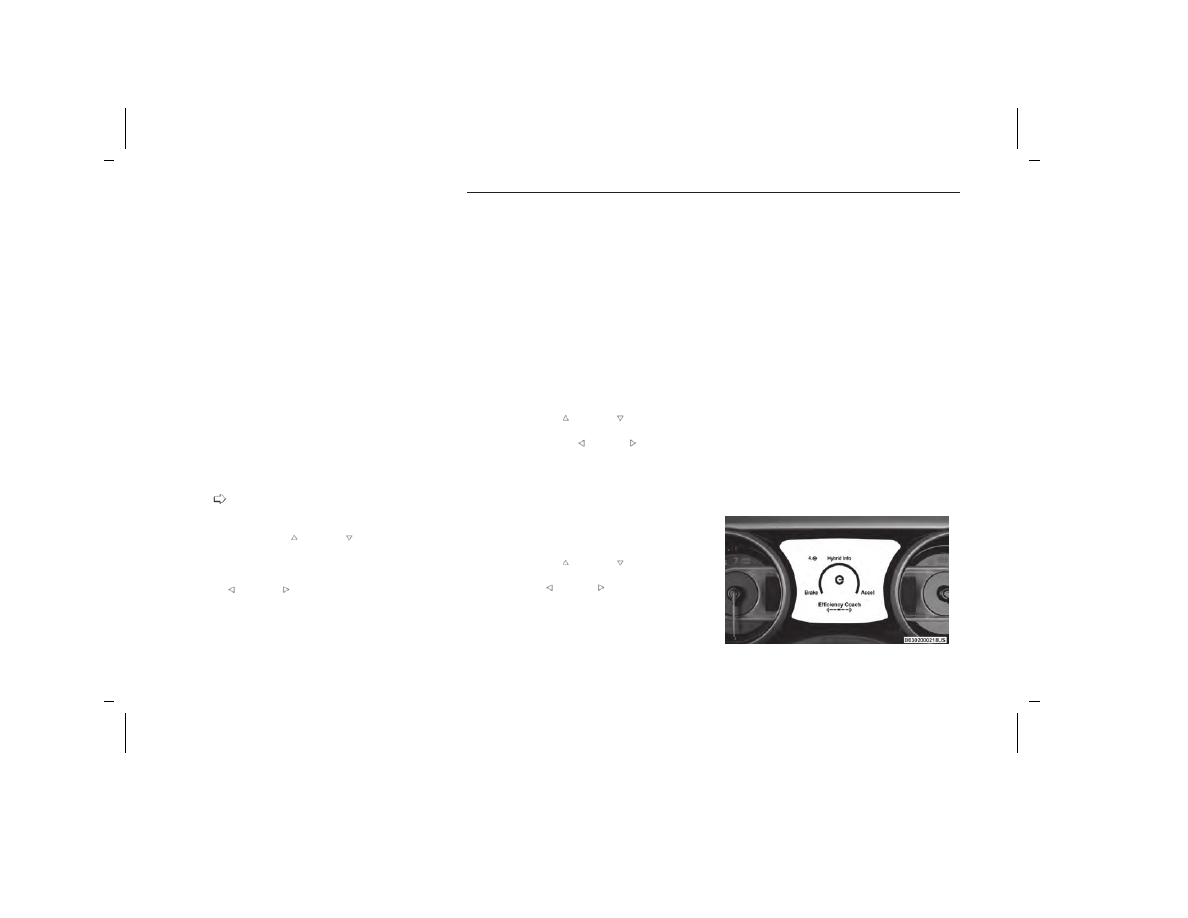

Efficiency Coach Gauge

130

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 130

5/22/2023 9:02:21 AM

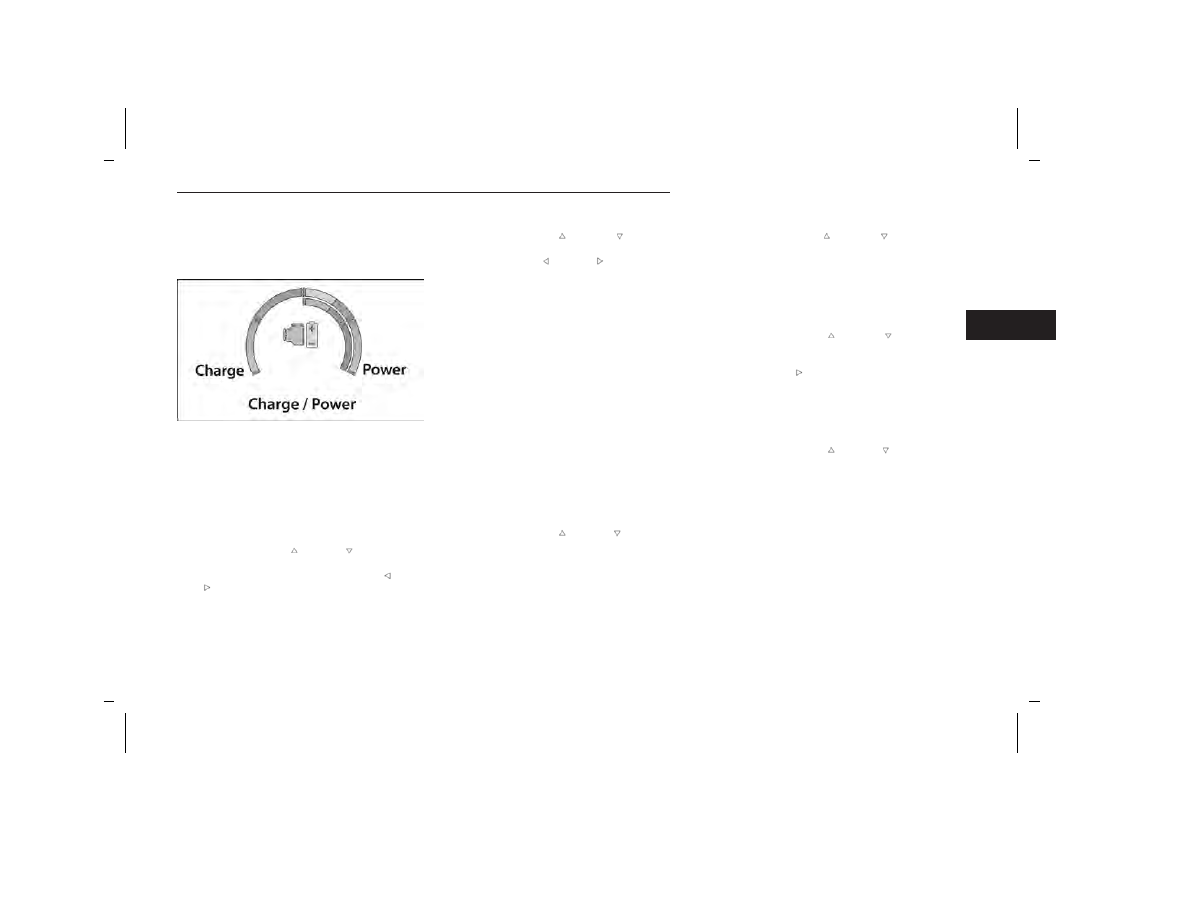

Charge/Power

•

Charging is represented by the gauge filling on the
left hand side.

•

Power is represented by the gauge filling on the
right hand side.

E-Drive Mode

•

Hybrid automatically adapts for most efficient driving.

•

Electric mode saves fuel for later use.

•

e-Save mode saves battery for later use.

Trip Info

GASOLINE

Push and release the

down

arrow button

until the Trip icon/title is highlighted in the instrument
cluster display, then push and release the

left

right

arrow button to select Trip A or Trip B.

The Trip A and Trip B information will display the following:

•

Distance

•

Average Fuel Economy

•

Elapsed Time

Hold the

button to reset all the information.

PHEV ONLY

Push and release the

down

arrow button

until Trip Info is highlighted in the instrument cluster
display. Push the

left

right

arrow button to

scroll through the Trip A and Trip B submenus. The Trip
information will display the following:

Trip A

•

Distance Electric

•

Distance Hybrid

•

Distance Total

•

Average Energy Economy

•

Elapsed Time

Hold the

button to reset feature information.

Trip B

•

Distance Electric

•

Distance Hybrid

•

Distance Total

•

Average Energy Economy

•

Elapsed Time

Hold the

button to reset feature information.

Stop/Start — If Equipped

Push and release the

down

arrow button

until the Stop/Start icon/title is highlighted in the
instrument cluster display. The screen will display the
Stop/Start status.

Audio

Push and release the

down

arrow button

until the Audio Menu icon/title is highlighted in the
instrument cluster display. This menu will display the
audio source information, including the Song name,
Artist name, and audio source with an accompanying
graphic.

Messages

Push and release the

down

arrow button

until the Messages Menu item is highlighted. This fea-
ture shows the number of stored warning messages.
Pushing the

right

arrow button will allow you to see

what the stored messages are.

When no messages are present, a “No Stored Mes-
sages” will display.

Screen Setup

Push and release the

down

arrow button

until the Screen Setup Menu Icon/Title is highlighted in
the instrument cluster display. Push and release the

button to enter the submenus and follow the prompts
on the screen as needed. The Screen Setup feature
allows you to change what information is displayed in
the instrument cluster as well as the location that infor-
mation is displayed.

NOTE:

Based upon equipment options and current vehicle
status, some of the features may not be available.

Charge/Power Gauge

GETTING TO KNOW YOUR INSTRUMENT PANEL

131

5538906_24_JL_OM_EN_USC_t_E1.pdf 131

5/22/2023 9:02:21 AM

Screen Setup Driver Selectable Items

Upper Left and Right

None

Current MPG
(or L/100km,
km/L)

Average MPG
(or L/100km,
km/L)

Outside Temp

Compass

Trip A Distance

Range To Empty

Time

Trip B Distance

Center

None

Compass

Time

Outside Temp

Average MPG
(or L/100km,
km/L)

Trip A Distance

Range to Empty

Audio

Speedometer

Current MPG
(or L/100km,
km/L)

Trip B Distance

Menu Title

Favorite Menus

Speedometer

Stop/Start

Vehicle Info

Off Road –
If Equipped
(show/hide)

Messages

Driver Assist –
If Equipped
(show/hide)

Fuel Economy
(show/hide)

Screen Setup

Trip Info
(Show/Hide)

Audio
(show/hide)

Gear Display — If Equipped

•

Full

•

Single

Current Gear — If Equipped

•

Off

Odometer — If Equipped

•

Show

•

Hide

Defaults (Restores All Settings To Default Settings)

•

Cancel

•

Restore

The menu with (show/hide) means user can press

button to choose show or hide this menu on the instru-
ment cluster display.

Phone Call Status — If Equipped

A pop-up message for an incoming call will appear on
any screen within your instrument cluster. The pop-up
message will appear on your screen until it is cleared
out of the call is ignored, answered, or the calling ends.

NOTE:

The Uconnect Settings can be programmed to turn the
pop-up off. This will not affect the audio menu or any
phone status information

page 201.

Any incoming calls, active calls, and outgoing calls will
take the place of your audio information.

A caller’s name will only be displayed if:

•

A number is associated with the call. The phone num-
ber will be displayed in place of the caller’s name.

•

The test/font of the name is not supported by the
instrument cluster. The instrument cluster will not
display anything in place of the name.

•

The caller’s name exceeds the maximum number of
characters. The last two to three digits that will fit
will be replaced with “...”.

NOTE:

Any audio information will return to the instrument clus-
ter once the call has ended.

BATTERY SAVER ON/BATTERY
SAVER MODE MESSAGE —
ELECTRICAL LOAD REDUCTION
ACTIONS — IF EQUIPPED

This vehicle is equipped with an Intelligent Battery Sen-
sor (IBS) to perform additional monitoring of the electri-
cal system and status of the vehicle battery.

In cases when the IBS detects charging system failure,
or the vehicle battery conditions are deteriorating, elec-
trical load reduction actions will take place to extend
the driving time and distance of the vehicle. This is
done by reducing power to or turning off non-essential
electrical loads.

Load reduction is only active when the engine is run-
ning. It will display a message if there is a risk of battery
depletion to the point where the vehicle may stall due
to lack of electrical supply, or will not restart after the
current drive cycle.

When load reduction is activated, the message “Battery
Saver On” or “Battery Saver Mode” will appear in the
instrument cluster display.

These messages indicate the vehicle battery has a low
state of charge and continues to lose electrical charge
at a rate that the charging system cannot sustain.

132

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 132

5/22/2023 9:02:21 AM

NOTE:

•

The charging system is independent from load
reduction. The charging system performs a diagnos-
tic on the charging system continuously.

•

If the Battery Charge Warning Light is on it may indi-
cate a problem with the charging system

page 134.

The following are electrical loads that may be switched
off (if equipped), and vehicle functions which can be
affected by load reduction:

•

Heated Seat/Vented Seats/Heated Wheel

•

Rear Defroster And Heated Mirrors

•

HVAC System

•

150W Power Inverter System

•

Audio and Telematics System

Loss of the battery charge may indicate one or more of
the following conditions:

•

The charging system cannot deliver enough electri-
cal power to the vehicle system because the electri-
cal loads are larger than the capability of the charg-
ing system. The charging system is still functioning
properly.

•

Turning on all possible vehicle electrical loads (e.g.
HVAC to max settings, exterior and interior lights,
overloaded power outlets +12 Volt, 150W, USB
ports) during certain driving conditions (city driving,
towing, frequent stopping).

•

Installing options like additional lights, upfitter elec-
trical accessories, audio systems, alarms and simi-
lar devices.

•

Unusual driving cycles (short trips separated by long
parking periods).

•

The vehicle was parked for an extended period of
time (weeks, months).

•

The battery was recently replaced and was not
charged completely.

•

The battery was discharged by an electrical load left
on when the vehicle was parked.

•

The battery was used for an extended period with
the engine not running to supply radio, lights, char-
gers, +12 Volt portable appliances like vacuum
cleaners, game consoles and similar devices.

What to do when an electrical load reduction action
message is present (“Battery Saver On” or “Battery
Saver Mode”)

During a trip:

•

Reduce power to unnecessary loads if possible:

○

Turn off redundant lights (interior or exterior)

○

Check what may be plugged in to power outlets
+12 Volt, 150W, USB ports

○

Check HVAC settings (blower, temperature)

○

Check the audio settings (volume)

After a trip:

•

Check if any aftermarket equipment was installed
(additional lights, upfitter electrical accessories,
audio systems, alarms) and review specifications if
any (load and Ignition Off Draw currents).

•

Evaluate the latest driving cycles (distance, driving
time and parking time).

•

The vehicle should have service performed if the
message is still present during consecutive trips
and the evaluation of the vehicle and driving pattern
did not help to identify the cause.

WARNING LIGHTS AND MESSAGES

The warning/indicator lights will illuminate in the instru-
ment panel together with a dedicated message and/or
acoustic signal when applicable. These indications are
indicative and precautionary and as such must not be
considered as exhaustive and/or alternative to the
information contained in the Owner’s Manual, which
you are advised to read carefully in all cases. Always
refer to the information in this chapter in the event of a
failure indication. All active telltales will display first if
applicable. The system check menu may appear differ-
ent based upon equipment options and current vehicle
status. Some telltales are optional and may not appear.

RED WARNING LIGHTS

Air Bag Warning Light

This warning light will illuminate to indicate a
fault with the air bag, and will turn on for
four to eight seconds as a bulb check when
the ignition is placed in the ON/RUN or ACC/

ON/RUN position. This light will illuminate with a single
chime when a fault with the air bag has been detected,
it will stay on until the fault is cleared. If the light is not
on during startup, stays on, or turns on while driving,
have the system inspected at an authorized dealer as
soon as possible.

GETTING TO KNOW YOUR INSTRUMENT PANEL

133

5538906_24_JL_OM_EN_USC_t_E1.pdf 133

5/22/2023 9:02:22 AM

Brake Warning Light

This warning light monitors various brake
functions, including brake fluid level and
parking brake application. If the brake light
turns on it may indicate that the parking

brake is applied, that the brake fluid level is low, or that
there is a problem with the Anti-Lock Brake System
reservoir.

If the light remains on when the parking brake has
been disengaged, and the fluid level is at the full mark
on the master cylinder reservoir, it indicates a possible
brake hydraulic system malfunction or that a problem
with the Brake Booster has been detected by the Anti-
Lock Brake System (ABS) / Electronic Stability Control
(ESC) system. In this case, the light will remain on until
the condition has been corrected. If the problem is
related to the brake booster, the ABS pump will run
when applying the brake, and a brake pedal pulsation
may be felt during each stop.

The dual brake system provides a reserve braking
capacity in the event of a failure to a portion of the
hydraulic system. A leak in either half of the dual brake
system is indicated by the Brake Warning Light, which
will turn on when the brake fluid level in the master
cylinder has dropped below a specified level.

The light will remain on until the cause is corrected.

NOTE:

The light may flash momentarily during sharp cornering
maneuvers, which change fluid level conditions. The
vehicle should have service performed, and the brake
fluid level checked.

If brake failure is indicated, immediate repair is
necessary.

WARNING!

Driving a vehicle with the red brake light on is danger-
ous. Part of the brake system may have failed. It will
take longer to stop the vehicle. You could have a colli-
sion. Have the vehicle checked immediately.

Vehicles equipped with the Anti-Lock Brake System
(ABS) are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.

Operation of the Brake Warning Light can be checked
by turning the ignition switch from the OFF position to
the ON/RUN position. The light should illuminate for
approximately two seconds. The light should then turn
off unless the parking brake is applied or a brake fault
is detected. If the light does not illuminate, have the
light inspected by an authorized dealer.

The light also will turn on when the parking brake is
applied with the ignition switch in the ON/RUN position.

NOTE:

This light shows only that the parking brake is applied.
It does not show the degree of brake application.

Battery Charge Warning Light

This warning light will illuminate when the
battery is not charging properly. If it stays on
while the engine is running, there may be a
malfunction with the charging system. Con-

tact an authorized dealer as soon as possible.

This indicates a possible problem with the electrical
system or a related component.

Door Open Warning Light

This indicator will illuminate when a door is
ajar/open and not fully closed.

NOTE:

If the vehicle is moving, there will also be a single chime.

Electric Power Steering (EPS) Fault

Warning Light

This warning light will turn on when there's a
fault with the EPS system

page 167.

WARNING!

Continued operation with reduced assist could pose a
safety risk to yourself and others. Service should be
obtained as soon as possible.

Electronic Throttle Control (ETC) Warning

Light

This warning light will illuminate to indicate a
problem with the ETC system. If a problem is
detected while the vehicle is running, the light
will either stay on or flash depending on the

nature of the problem. Cycle the ignition when the vehicle
is safely and completely stopped and the transmission is
placed in the PARK (P) position. The light should turn off.
If the light remains on with the vehicle running, your
vehicle will usually be drivable; however, see an autho-
rized dealer for service as soon as possible.

134

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 134

5/22/2023 9:02:22 AM

NOTE:

This light may turn on if the accelerator and brake ped-
als are pressed at the same time.

If the light continues to flash when the vehicle is running,
immediate service is required and you may experience
reduced performance, an elevated/rough idle, or engine
stall and your vehicle may require towing. The light will
come on when the ignition is placed in the ON/RUN or
ACC/ON/RUN position and remain on briefly as a bulb
check. If the light does not come on during starting, have
the system checked by an authorized dealer.

Engine Coolant Temperature Warning

Light

This warning light warns of an overheated
engine condition. If the engine coolant tem-
perature is too high, this indicator will illumi-
nate and a single chime will sound. If the

temperature reaches the upper limit, a continuous
chime will sound for four minutes or until the engine is
able to cool, whichever comes first.

If the light turns on while driving, safely pull over and
stop the vehicle. If the Air Conditioning (A/C) system is
on, turn it off. Also, shift the transmission into NEUTRAL
(N) and idle the vehicle. If the temperature reading
does not return to normal, turn the engine off immedi-
ately and call for service

page 277.

Hood Open Warning Light

This indicator will illuminate when the hood
is ajar/open and not fully closed.

NOTE:

If the vehicle is moving, there will also be a single chime.

Hybrid Electric Vehicle System Service

Warning Light — PHEV Only

This warning light will illuminate when ser-
vice to the hybrid electric system is needed.
It will be accompanied by a "Service Hybrid
Electric Vehicle System" message in the clus-

ter. If the telltale stays on or continues to come on, con-
tact an authorized dealer as soon as possible.

Oil Pressure Warning Light

This warning light will illuminate, and a
chime will sound, to indicate low engine oil
pressure. If the light and chime turn on while
driving, safely stop the vehicle and turn off

the engine as soon as possible. After the vehicle is
safely stopped, restart the engine and monitor the Oil
Pressure Warning Light. If the Oil Pressure Warning
Light is still illuminated, turn the engine OFF and con-
tact an authorized dealer for further assistance. Do not
operate the vehicle until the cause is corrected. If the
light is no longer illuminated, the engine can be oper-
ated but it is recommended to take the vehicle to an
authorized dealer as soon as possible.

Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.

Oil Temperature Warning Light

This warning light will illuminate to indicate
the engine oil temperature is high. If the light
turns on while driving, stop the vehicle and
shut off the engine as soon as possible. Wait

for oil temperature to return to normal levels.

Plug Status Fault Warning Light — PHEV

Only

This warning light will illuminate when a plug
status fault is detected (when vehicle not in
motion). It will be accompanied by a cluster
message indicating the type of fault. You

may receive one of the following messages if a fault is
detected:

•

“Service Charging System” – If you see this mes-
sage, it is recommended to unplug and plug in
again, or try a different charging station. If an issue
continues, contact an authorized dealer to service
your high voltage charging system.

•

“Issue Detected Check External Charging Station” –
If you see this message, the charging station might
be powered off, have an internal fault or be sched-
uled to charge later. It is recommended to try a dif-
ferent charging station. If an issue continues, then
contact an authorized dealer.

NOTE:

•

Older or non-compliant J1772 EVSE models may not
support charging of this vehicle. If this vehicle does
not charge, it may be connected to a non-compliant
Level 2 EVSE, and will flash indicators. Please iden-
tify this failure to the site operator and/or EVSE
provider.

•

Before this vehicle can be driven, the EVSE Charging
Cord must be disconnected from the vehicle.

GETTING TO KNOW YOUR INSTRUMENT PANEL

135

5538906_24_JL_OM_EN_USC_t_E1.pdf 135

5/22/2023 9:02:22 AM

Seat Belt Reminder Warning Light

This warning light indicates when the driver
or passenger seat belt is unbuckled. When
the ignition is first placed in the ON/RUN or
ACC/ON/RUN position and if the driver’s

seat belt is unbuckled, a chime will sound and the light
will turn on. When driving, if the driver or front passen-
ger seat belt remains unbuckled, the Seat Belt
Reminder Light will flash or remain on continuously and
a chime will sound

page 239.

Swing Gate Open Warning Light

This warning light will illuminate when the
swing gate is open.

NOTE:

If the vehicle is moving, there will also be a single chime.

Torque Limited Warning Light —

PHEV Only

This warning light illuminates when vehicle
acceleration is limited due to a reduction in
engine or electric motor performance. Con-
tact an authorized dealer for service if illumi-

nation persists.

Transmission Temperature Warning Light

This warning light will illuminate to warn of a
high transmission fluid temperature. This
may occur with strenuous usage such as
trailer towing. If this light turns on, stop the

vehicle and run the engine at idle or slightly faster, with
the transmission in PARK (P) or NEUTRAL (N), until the
light turns off. Once the light turns off, you may con-
tinue to drive normally.

WARNING!

If you continue operating the vehicle when the Trans-
mission Temperature Warning Light is illuminated you
could cause the fluid to boil over, come in contact
with hot engine or exhaust components and cause a
fire. If you continue to operate the vehicle when the
“CLUTCH HOT” message is displayed, or the Transmis-
sion Temperature Warning Light is illuminated, you
could cause the clutch to overheat and cause a fire.

CAUTION!

Continuous driving with the Transmission Tempera-
ture Warning Light illuminated will eventually cause
severe transmission damage or transmission failure.
If you continue to operate the vehicle when the
“CLUTCH HOT” message is displayed, or the Transmis-
sion Temperate Warning Light is illuminated, you
could cause the clutch to overheat and cause severe
clutch damage, transmission damage, or failure.

Vehicle Security Warning Light —

If Equipped

This light will flash at a fast rate for approxi-
mately 15 seconds when the Vehicle Secu-
rity system is arming, and then will flash
slowly until the vehicle is disarmed.

YELLOW WARNING LIGHTS

Anti-Lock Brake System (ABS) Warning

Light

This warning light monitors the ABS. The
light will turn on when the ignition is placed
in the ON/RUN or ACC/ON/RUN position and
may stay on for as long as four seconds.

If the ABS light remains on or turns on while driving,
then the Anti-Lock portion of the brake system is not
functioning and service is required as soon as possible.
However, the conventional brake system will continue to
operate normally, assuming the Brake Warning Light is
not also on.

If the ABS light does not turn on when the ignition is
placed in the ON/RUN or ACC/ON/RUN position, have
the brake system inspected by an authorized dealer.

Electronic Stability Control (ESC) Active

Warning Light — If Equipped

This warning light will indicate when the
Electronic Stability Control system is Active.
The ESC Indicator Light in the instrument
cluster will come on when the ignition is

placed in the ON/RUN or ACC/ON/RUN position, and
when ESC is activated. It should go out with the engine
running. If the ESC Indicator Light comes on continu-
ously with the engine running, a malfunction has been
detected in the ESC system. If this warning light
remains on after several ignition cycles, and the vehicle
has been driven several miles (kilometers) at speeds
greater than 30 mph (48 km/h), see an authorized
dealer as soon as possible to have the problem diag-
nosed and corrected.

136

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 136

5/22/2023 9:02:22 AM

•

The ESC OFF Indicator Light and the ESC Indicator
Light come on momentarily each time the ignition is
placed in the ON/RUN or ACC/ON/RUN position.

•

The ESC system will make buzzing or clicking
sounds when it is active. This is normal; the sounds
will stop when ESC becomes inactive.

•

This light will come on when the vehicle is in an ESC
event.

Electronic Stability Control (ESC) OFF

Warning Light — If Equipped

This warning light indicates the ESC is off.

Each time the ignition is turned to ON/RUN
or ACC/ON/RUN, the ESC system will be on,
even if it was turned off previously.

Fuel Level Sensor Failure Warning Light

This light illuminates when there is a fuel
level sensor failure. If this light illuminates,
take it to an authorized dealer and have
them inspect it.

Loose Fuel Filler Cap Warning Light —

If Equipped

This warning light will illuminate when the
fuel filler cap is loose. Properly close the
filler cap to disengage the light. If the light
does not turn off, please see an authorized

dealer.

Low Fuel Warning Light

When the fuel level reaches approximately
2.0 gal (7.5 L), this light will turn on and a
chime will sound. The light will remain on
until fuel is added.

Low Washer Fluid Warning Light —

If Equipped

This warning light will illuminate when the
windshield washer fluid is low

page 288.

Engine Check/Malfunction Indicator

Warning Light (MIL)

The MIL is a part of an Onboard Diagnostic
System called OBD II that monitors engine
and automatic transmission control systems.
This warning light will illuminate when the

ignition is in the ON/RUN position before engine start.
If the bulb does not come on when turning the ignition
switch from OFF to ON/RUN, have the condition
checked promptly.

Certain conditions, such as a loose or missing gas cap,
poor quality fuel, etc., may illuminate the light after
engine start. The vehicle should be serviced if the light
stays on through several typical driving styles. In most
situations, the vehicle will drive normally and will not
require towing.

When the engine is running, the MIL may flash to alert
serious conditions that could lead to immediate loss of
power or severe catalytic converter damage. The
vehicle should be serviced by an authorized dealer as
soon as possible if this occurs.

WARNING!

A malfunctioning catalytic converter, as previously
referenced, can reach higher temperatures than in
normal operating conditions. This can cause a fire if

(Continued)

WARNING!

you drive slowly or park over flammable substances
such as dry plants, wood, cardboard, etc. This could
result in death or serious injury to the driver, occu-
pants or others.

CAUTION!

Prolonged driving with the Malfunction Indicator Light
(MIL) on could cause damage to the vehicle control
system. It also could affect fuel economy and drive-
ability. If the MIL is flashing, severe catalytic converter
damage and power loss will soon occur. Immediate
service is required.

Service 4WD Warning Light —

If Equipped

This warning light will illuminate to signal a
fault with the 4WD system. If the light stays
on or comes on during driving, it means that
the 4WD system is not functioning properly

and that service is required. We recommend you drive
to the nearest service center and have the vehicle ser-
viced immediately.

Service Adaptive Cruise Control Warning

Light — If Equipped

This light will turn on when a ACC is not oper-
ating and needs service

page 173.

GETTING TO KNOW YOUR INSTRUMENT PANEL

137

5538906_24_JL_OM_EN_USC_t_E1.pdf 137

5/22/2023 9:02:22 AM

Service Forward Collision Warning

(FCW) Light — If Equipped

This warning light will illuminate to indicate a
fault in the Forward Collision Warning Sys-
tem. Contact an authorized dealer for ser-
vice

page 234.

Service Stop/Start System Warning

Light — If Equipped

This warning light will illuminate when the
Stop/Start system is not functioning properly
and service is required. Contact an autho-
rized dealer for service.

Cruise Control Fault Warning Light

This warning light will illuminate to indicate
the Cruise Control system is not functioning
properly and service is required. Contact an
authorized dealer.

Sway Bar Fault Warning Light

This light will illuminate when there is a fault
in the sway bar disconnect system

page 159.

Tire Pressure Monitoring System (TPMS)

Warning Light

The warning light switches on and a mes-
sage is displayed to indicate that the tire
pressure is lower than the recommended
value and/or that slow pressure loss is

occurring. In these cases, optimal tire duration and fuel
consumption may not be guaranteed.

Should one or more tires be in the condition previously
mentioned, the display will show the indications corre-
sponding to each tire.

CAUTION!

Do not continue driving with one or more flat tires as
handling may be compromised. Stop the vehicle,
avoiding sharp braking and steering. If a tire puncture
occurs, repair immediately using the dedicated tire
repair kit and contact an authorized dealer as soon
as possible.

Each tire, including the spare (if provided), should be
checked monthly when cold and inflated to the inflation
pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label. If
your vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation pres-
sure label, you should determine the proper tire infla-
tion pressure for those tires.

As an added safety feature, your vehicle has been
equipped with a TPMS that illuminates a low tire pres-
sure telltale when one or more of your tires is signifi-
cantly underinflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and check
your tires as soon as possible, and inflate them to the
proper pressure. Driving on a significantly under
inflated tire causes the tire to overheat and can lead to
tire failure. Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling
and stopping ability.

Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if underinflation
has not reached the level to trigger illumination of the
TPMS low tire pressure telltale.

Your vehicle has also been equipped with a TPMS mal-
function indicator to indicate when the system is not
operating properly. The TPMS malfunction indicator is
combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for
approximately one minute and then remain continu-
ously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunc-
tion exists. When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions may
occur for a variety of reasons, including the installation
of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after
replacing one or more tires or wheels on your vehicle to
ensure that the replacement or alternate tires and
wheels allow the TPMS to continue to function properly.

CAUTION!

The TPMS has been optimized for the original equip-
ment tires and wheels. TPMS pressures and warning
have been established for the tire size equipped on
your vehicle. Undesirable system operation or sensor
damage may result when using replacement equip-
ment that is not of the same size, type, and/or style.
Aftermarket wheels can cause sensor damage. Using
aftermarket tire sealants may cause the Tire Pressure
Monitoring System (TPMS) sensor to become inoper-
able. After using an aftermarket tire sealant it is rec-
ommended that you take your vehicle to an autho-
rized dealer to have your sensor function checked.

138

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 138

5/22/2023 9:02:22 AM

Traffic Sign Recognition (TSR) Fault

Warning Light — If Equipped

This light will illuminate to indicate a TSR
fault. Contact an authorized dealer if the
light remains on after restarting the engine.

YELLOW INDICATOR LIGHTS

4WD Indicator Light — If Equipped

This light alerts the driver that the vehicle is
in the Four-Wheel Drive (4WD) mode, and
the front and rear driveshafts are mechani-
cally locked together forcing the front and

rear wheels to rotate at the same speed.

4WD Low Indicator Light — If Equipped

This light alerts the driver that the vehicle is
in the 4WD Low mode. The front and rear
driveshafts are mechanically locked together
forcing the front and rear wheels to rotate at

the same speed. Low range provides a greater gear
reduction ratio to provide increased torque at the
wheels

page 154.

4WD Part Time Indicator Light —

If Equipped

This light alerts the driver that the vehicle is
in the Four-Wheel Drive part time mode, and
the front and rear driveshafts are mechani-
cally locked together forcing the front and

rear wheels to rotate at the same speed.

Axle Locker Fault Indicator Light

This light indicates when the front and/or
rear axle locker fault has been detected.

Forward Collision Warning (FCW) OFF

Indicator Light — If Equipped

This indicator light illuminates to indicate
that Forward Collision Warning is off

page 234.

Front And Rear Axle Lock Indicator Light

This light indicates when the front, rear, or
both axles have been locked. The telltale will
display the lock icon on the front and rear
axles to indicate the current lock status.

Neutral Indicator Light — If Equipped

This light alerts the driver that the vehicle is
in the Neutral mode.

Off Road+ Indicator Light — If Equipped

This indicator light will illuminate when Off
Road+ has been activated.

Rear Axle Lock Indicator Light

This light indicates when the rear axle lock
has been activated

page 154.

Sway Bar Indicator Light — If Equipped

This indicator light will illuminate when the
front sway bar is disconnected

page 159.

GREEN INDICATOR LIGHTS

Adaptive Cruise Control (ACC) Set With

No Target Detected Indicator Light —

If Equipped

This light will turn on when the Adaptive
Cruise Control is set and there is no vehicle
in front detected

page 173.

Adaptive Cruise Control (ACC) Set With

Target Indicator Light — If Equipped

This will display when the ACC is set and a
vehicle in front is detected

page 173.

GETTING TO KNOW YOUR INSTRUMENT PANEL

139

5538906_24_JL_OM_EN_USC_t_E1.pdf 139

5/22/2023 9:02:22 AM

4WD Auto Indicator Light — If Equipped

This light alerts the driver that the vehicle is
in the Four-Wheel Drive auto mode. The sys-
tem will provide power to all four wheels and
shift the power between the front and rear

axles as needed. This will provide maximum traction in
dry and slippery conditions.

Cruise Control SET Indicator Light —

If Equipped With A Premium Instrument

Cluster

This indicator light will illuminate when the
Cruise Control is set to the desired speed

page 171.

Front Fog Indicator Light — If Equipped

This indicator light will illuminate when the
front fog lights are on

page 70.

Max Regeneration Indicator Light —

PHEV Only

This indicator light will illuminate to indicate
that Max Regeneration is on and capable.

When the switch is pressed, the following
instrument cluster messages will be seen:

•

“Max Regeneration On” – appears when the feature
is turned on.

•

“Max Regeneration Off” – appears when the feature
is turned off.

•

“Max Regeneration Unavailable” – appears when
the feature is requested, but the vehicle is unable to
comply. LED will flash for five seconds to indicate
unavailability

page 19.

Parking/Headlights On Indicator Light

This indicator light will illuminate when the
parking lights or headlights are turned on.

Plug Status Indicator Light — PHEV Only

When plugged in, the green plug indicator
light will illuminate if the Electric Vehicle
Supply Equipment (EVSE) charging plug is
securely attached to the charging port. This

indicates that the plug is detected, but doesn't mean it
is charging. It will be accompanied with a cluster mes-
sage indicating the charge status:

•

“Plugged In And Charging”

•

“Plugged In And Waiting to Charge On A Set
Schedule”

•

“Plugged in and Charging Complete”

NOTE:

The vehicle cannot be driven until it is unplugged.

Ready To Drive Indicator Light — PHEV

Only

This indicator light will illuminate to indicate
that the vehicle has enough power to be
driven, regardless of the speed of the
vehicle.

Stop/Start Active Indicator Light —

If Equipped

This indicator light will illuminate when the
Stop/Start function is in “Autostop” mode.

Turn Signal Indicator Lights

When the left or right turn signal is activated,
the turn signal indicator will flash indepen-
dently and the corresponding exterior turn
signal lamps will flash. Turn signals can be

activated when the multifunction lever is moved down
(left) or up (right).

NOTE:

•

A continuous chime will sound if the vehicle is
driven more than 1 mile (1.6 km) with either turn
signal on.

•

Check for an inoperative outside light bulb if either
indicator flashes at a rapid rate.

WHITE INDICATOR LIGHTS

Adaptive Cruise Control (ACC) Ready

Indicator Light — If Equipped

This light will turn on when the vehicle
equipped with ACC has been turned on, but
not set.

140

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 140

5/22/2023 9:02:22 AM

2WD High Indicator Light — If Equipped

With a Premium Instrument Cluster

This light alerts the driver that the vehicle is
in the Two-Wheel Drive High mode.

Hill Descent Control (HDC) Indicator

Light — If Equipped

This indicator shows when the HDC feature
is turned on. The light will be on solid when
HDC is armed. HDC can only be armed when
the transfer case is in the 4WD Low position

and the vehicle speed is less than 30 mph (48 km/h). If
these conditions are not met while attempting to use
the HDC feature, the HDC indicator light will flash
on/off.

Max Regeneration Indicator Light —

PHEV Only

This indicator light will illuminate to indicate
that Max Regeneration is on and not ready.

When the switch is pressed, the following
instrument cluster messages will be seen:

•

“Max Regeneration On” – appears when the feature
is turned on.

•

“Max Regeneration Off” – appears when the feature
is turned off.

•

“Max Regeneration Unavailable” – appears when
the feature is requested, but the vehicle is unable to
comply. LED will flash for five seconds to indicate
unavailability

page 19.

Selec-Speed Control Indicator Light —

If Equipped

This light will turn on when “Selec-Speed
Control” is activated.

To activate “Selec-Speed Control”, ensure
the vehicle is in 4WD Low and push the but-

ton on the Instrument Panel.

NOTE:

If the vehicle is not in 4WD Low, “To Enter Selec-Speed
Shift to 4WD Low” will appear in the instrument cluster
display.

Cruise Control Ready Indicator Light —

If Equipped With A Premium Instrument

Cluster

This light will turn on when the Cruise Con-
trol has been turned on, but not set.

Cruise Control SET Indicator Light —

If Equipped With Base Instrument

Cluster

This indicator light will illuminate when the
Cruise Control is set.

BLUE INDICATOR LIGHTS

High Beam Indicator Light

This indicator light will illuminate to indicate
that the high beam headlights are on. With
the low beams activated, push the multifunc-
tion lever forward (toward the front of the

vehicle) to turn on the high beams. Pull the multifunc-
tion lever rearward (toward the rear of the vehicle) to
turn off the high beams. If the high beams are off, pull
the lever toward you for a temporary high beam on,
"flash to pass" scenario.

GRAY INDICATOR LIGHTS

Cruise Control Ready Indicator Light —

If Equipped With Base Instrument Cluster

This light will turn on when the Cruise Con-
trol has been turned on, but not set.

ONBOARD DIAGNOSTIC SYSTEM — OBD II

Your vehicle is equipped with a sophisticated Onboard
Diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and trans-
mission control systems. When these systems are oper-
ating properly, your vehicle will provide excellent perfor-
mance and fuel economy, as well as engine emissions
well within current government regulations.

If any of these systems require service, the OBD II sys-
tem will turn on the Malfunction Indicator Light (MIL).
It will also store diagnostic codes and other information
to assist your service technician in making repairs.

GETTING TO KNOW YOUR INSTRUMENT PANEL

141

5538906_24_JL_OM_EN_USC_t_E1.pdf 141

5/22/2023 9:02:22 AM

Although your vehicle will usually be drivable and not
need towing, see an authorized dealer for service as
soon as possible.

CAUTION!

•

Prolonged driving with the MIL on could cause fur-
ther damage to the emission control system. It could
also affect fuel economy and driveability. The vehicle
must be serviced before any emissions tests can be
performed.

•

If the MIL is flashing while the vehicle is running,

severe catalytic converter damage and power loss
will soon occur. Immediate service is required.

ONBOARD DIAGNOSTIC SYSTEM
(OBD II) CYBERSECURITY

Your vehicle is required to have OBD II and a connection
port to allow access to information related to the perfor-
mance of your emissions controls. Authorized service
technicians may need to access this information to
assist with the diagnosis and service of your vehicle
and emissions system

page 201.

WARNING!

•

ONLY an authorized service technician should con-
nect equipment to the OBD II connection port in order
to read the VIN, diagnose, or service your vehicle.

•

If unauthorized equipment is connected to the
OBD II connection port, such as a driver-behavior
tracking device, it may:

○

Be possible that vehicle systems, including safety
related systems, could be impaired or a loss of
vehicle control could occur that may result in an
accident involving serious injury or death.

(Continued)

WARNING!

○

Access, or allow others to access, information
stored in your vehicle systems, including per-
sonal information.

EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS

In some localities, it may be a legal requirement to pass
an inspection of your vehicle's emissions control sys-
tem. Failure to pass could prevent vehicle registration.

For states that require an Inspection and
Maintenance (I/M), this check verifies the
Malfunction Indicator Light (MIL) is function-
ing and is not on when the engine is running,

and that the OBD II system is ready for testing.

The OBD II system may

not

be ready if your vehicle was

recently serviced, recently had a depleted battery or a
battery replacement. If the OBD II system should be
determined not ready for the I/M test, your vehicle may
fail the test.

Your vehicle has a simple ignition actuated test, which you
can use prior to going to the test station. To check if your
vehicle's OBD II system is ready, you must do the
following:

1. Cycle the ignition switch to the ON position, but do

not crank or start the engine.

NOTE:

If you crank or start the engine, you will have to start
this test over.

2. As soon as you cycle the ignition switch to the ON

position, you will see the Malfunction Indicator Light
(MIL) symbol come on as part of a normal bulb
check.

3. Approximately 15 seconds later, one of two things

will happen:

○

The MIL will flash for about 10 seconds and
then return to being fully illuminated until you
turn OFF the ignition or start the engine. This
means that your vehicle's OBD II system is

not

ready

and you should

not

proceed to the I/M

station.

○

The MIL will not flash at all and will remain fully
illuminated until you place the ignition in the off
position or start the engine. This means that
your vehicle's OBD II system is

ready

and you

can proceed to the I/M station.

If your OBD II system is

not ready,

you should see an

authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replace-
ment, you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the previously men-
tioned test routine may then indicate that the system is

now ready

Regardless of whether your vehicle's OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.

142

GETTING TO KNOW YOUR INSTRUMENT PANEL

5538906_24_JL_OM_EN_USC_t_E1.pdf 142

5/22/2023 9:02:22 AM

Jeep Wrangler (2024 year). Manual in english - page 4
