Jeep Grand Cherokee (2023 year). Manual in english

172

STARTING AND OPERATING



If the Blind Spot Monitoring (BSM) system

detects a vehicle in the adjacent lane, and the

turn signal is applied in that direction, the BSM

LED on the mirror will flash. If the driver

continues to attempt the lane change, steering

wheel torque will be provided to keep the

vehicle within its lane markings.

The driver may manually override the steering

assist warning by applying force to the steering

wheel at any time.
When only a single lane marking is detected and

the driver drifts across the lane marking (no turn

signal applied), the Active Lane Management

system provides a visual warning in the instrument

cluster, as well as a steering assist torque (if

configured in Uconnect Settings), to prompt the

driver to remain within the lane boundaries. If the

driver continues to drift out of the lane, the system

provides a flashing visual warning through the

instrument cluster display as well as a haptic

steering wheel vibration (if configured in Uconnect

Settings) when the vehicle crosses the lane

boundary.
NOTE:

When operating conditions have been met, the

Active Lane Management system will monitor if the

driver’s hands are on the steering wheel and

provides an audible and visual warning to the

driver if removed. The system will cancel if the

driver does not return their hands to the wheel.

URNING

CTIVE

ANE

ANAGEMENT

The Active Lane Management button is

located on the switch panel above the

Uconnect display.

To turn the system on, push the Active Lane

Management button (LED turns off). A message is

shown in the instrument cluster display.
To turn the system off, push the button again (LED

turns on).
NOTE:

The Active Lane Management system will retain

the last system state on or off from the last ignition

cycle when the ignition is placed in the ON/RUN

position.

CTIVE

ANE

ANAGEMENT

ARNING

ESSAGE

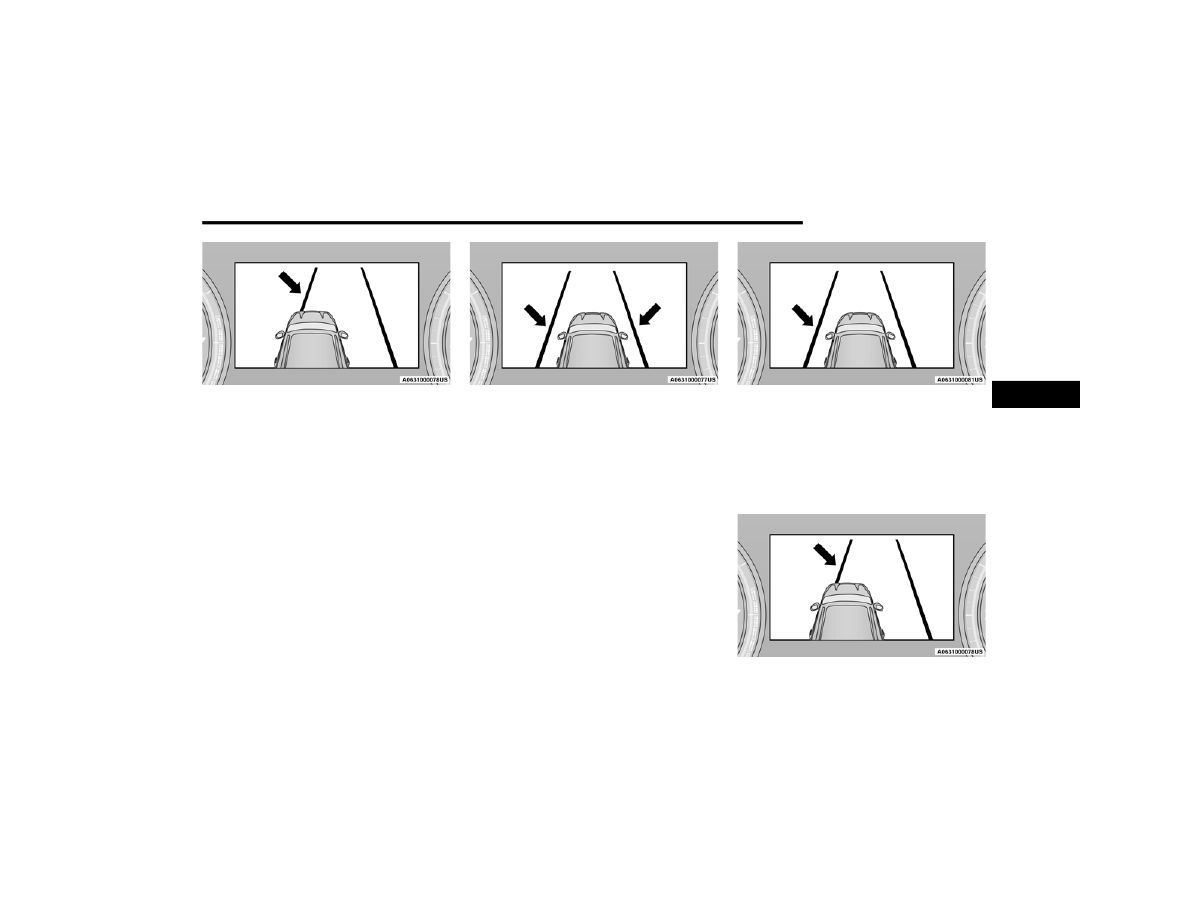

The Active Lane Management system will indicate

the current lane drift condition through the

instrument cluster display.

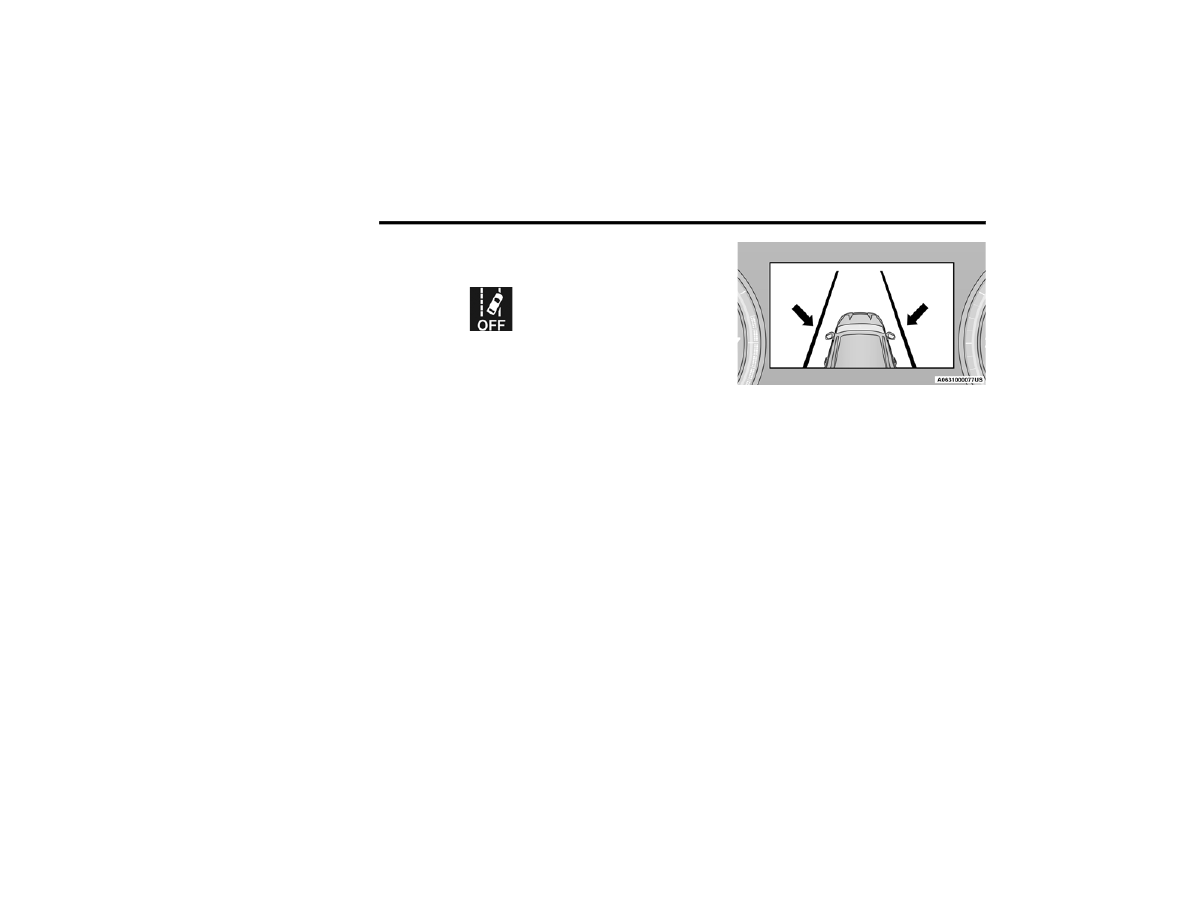

When the system is on, the lane lines are gray

when both of the lane boundaries have not been

detected.

System On (Gray Lines)

Left Lane Departure — Only Left Lane Detected



When the system is on and only the left lane

marking has been detected, and the system is

ready to provide visual warnings in the instru

ment cluster display and a vibration and/or

steering assist warning in the steering wheel if a

lane departure occurs, the left lane line will be

green.



When the system senses the lane line has been

approached (but not crossed), the left lane line

will change to solid yellow and the system will

provide a haptic steering wheel vibration and/or

steering assist torque (if programmed in

Uconnect Settings).



When the system senses the lane line is being

crossed, the left lane line will change to flashing

yellow.

STARTING AND OPERATING

173

Lane Crossed (Flashing Yellow Line)

NOTE:

The Active Lane Management system operates

with similar behavior for a right lane departure

when only the right lane marking has been

detected.
Left Lane Departure — Both Lanes Detected



When the system is on, the lane lines turn from

gray to green to indicate that both of the lane

markings have been detected. When both lane

markings have been detected, the system is

ready to provide visual warnings in the instru

ment cluster display and a vibration and/or

steering assist warning in the steering wheel if a

lane departure occurs.

Lanes Sensed (Green Lines)



When the system senses a lane drift situation,

the left lane line turns solid yellow. At this time,

steering assist warning is applied to the steering

wheel in the opposite direction of the lane

boundary.
For example: If approaching the left side of the

lane, the steering wheel will turn to the right.

Lane Drift (Solid Yellow Line)



When the system senses the lane line is being

crossed, the left lane line changes from solid

yellow to flashing yellow (on/off). At this time,

vibration is applied to the steering wheel.
For example: If approaching the left side of the

lane, the steering wheel will turn to the right.

Lane Crossed (Flashing Yellow Line)

174

STARTING AND OPERATING

NOTE:



The Active Lane Management system operates

with similar behavior for a right lane departure.



If the turn signal is activated, and the vehicle

begins to depart the lane at the same time the

Blind Spot Monitoring (BSM) system detects

another vehicle in the BSM zones, the system

will provide a haptic steering wheel vibration

and/or steering assist torque (if programmed in

Uconnect Settings).

HANGING

CTIVE

ANE

ANAGEMENT

TATUS

Configurable settings for the Active Lane

Management system are available within the

Uconnect system

page 204.

Selectable Warning Types:



Vibration Only



Steering Assist Only



Vibration And Steering Assist

Other configurable settings for this system are for

the intensity of the vibration (high/med/low),

steering assist warning (hi/med/low), and the

warning zone sensitivity (early/medium/late).

NOTE:



The system will not apply vibration and/or

steering assist to the steering wheel whenever a

safety system engages (Anti-Lock Brakes, Trac

tion Control System, Electronic Stability Control,

Forward Collision Warning, etc.).



The Blind Spot Monitoring system will be forced

on when the ALM system is enabled.



The ALM system will be suppressed when the

Active Driving Assist system (if equipped) is

engaged.

PARKVIEW REAR BACK UP CAMERA

Your vehicle is equipped with the ParkView Rear

Back Up Camera that allows you to see an

on-screen image of the rear surroundings of your

vehicle whenever the gear selector is put into

REVERSE. The image will be displayed on the

Uconnect display screen along with a caution note

to “Check Entire Surroundings” across the top of

the screen. After five seconds this note will

disappear. The ParkView camera is located on the

rear of the vehicle above the rear license plate.
When the vehicle is shifted out of REVERSE with

camera delay turned off, the rear camera mode is

exited and the previous screen appears.

Manual Activation Of The Back Up Camera
1. Press the Vehicle button located on the

bottom of the Uconnect display and then

select the Controls menu.

2. Press the Back Up Camera icon to turn the

Rear View Camera system on.

NOTE:

The ParkView Rear Back Up Camera has program

mable modes of operation that may be selected

through the Uconnect system

page 204.

When the vehicle is shifted out of REVERSE with

camera delay turned off, the rear camera mode is

exited and the previous screen appears. When the

vehicle is shifted out of REVERSE with camera delay

turned on, the camera image will continue to be

displayed for up to 10 seconds unless the following

conditions occur: the vehicle speed exceeds 8 mph

(13 km/h), the vehicle is shifted into PARK, the

vehicle’s ignition is placed in the OFF position, or the

touchscreen X button to disable the display of the

Rear View Camera is pressed.
When enabled, active guidelines are overlaid on

the image to illustrate the width of the vehicle and

its projected backup path based on the steering

wheel position. A dashed center line overlay

indicates the center of the vehicle to assist with

parking or aligning to a hitch/receiver. Different

colored zones indicate the distance to the rear of

the vehicle.

STARTING AND OPERATING

175

The following table shows the approximate

distances for each zone:

NOTE:

If snow, ice, mud, or any foreign substance builds

up on the camera lens, clean the lens, rinse with

water, and dry with a soft cloth. Do not cover the

lens.
Rear Camera Washer (If Equipped)
When the rear window washer is activated by

pushing the windshield wiper/washer lever

forward, the Rear Back Up camera and Digital

Rearview Mirror (if equipped) cameras are also

washed. For more information, see

page 66.

OOM

IEW

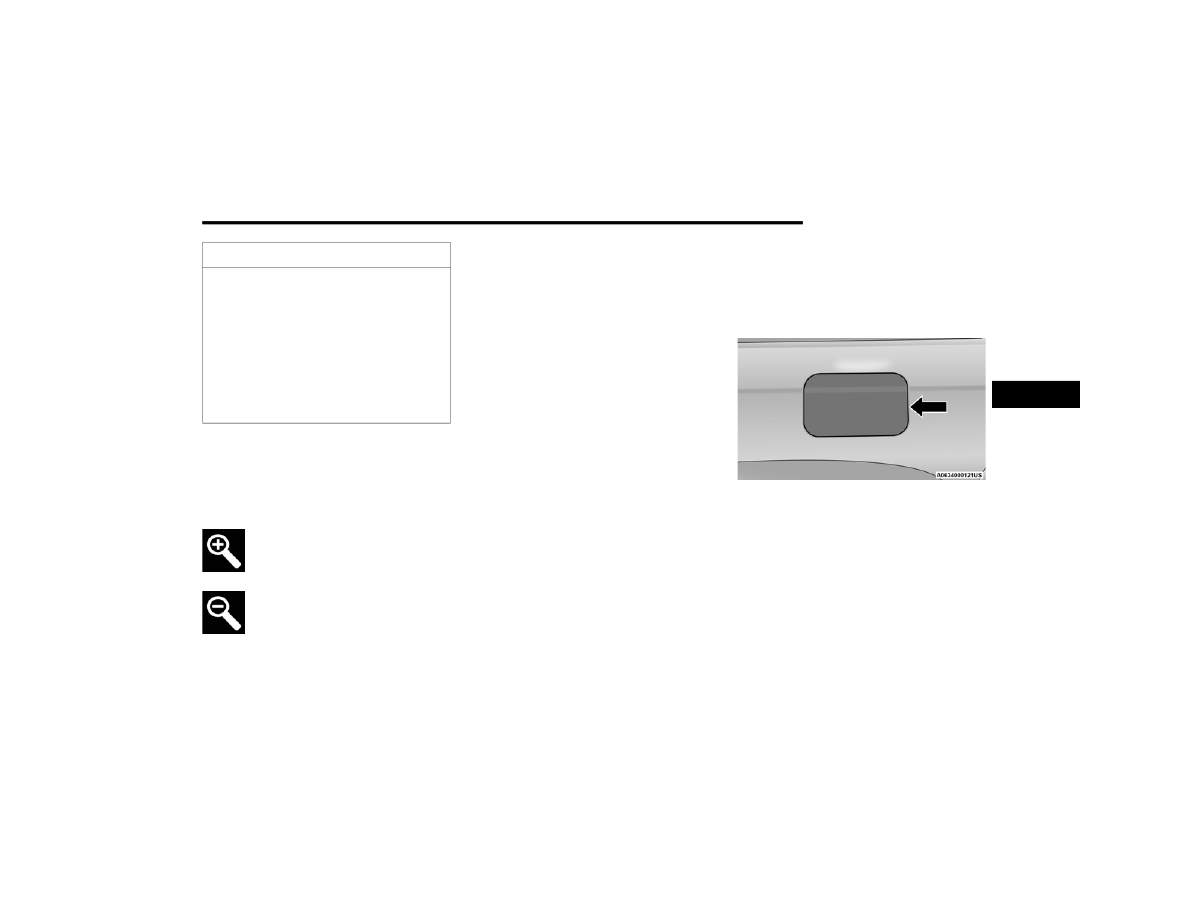

When the Rear View Camera image is

being displayed, and the vehicle speed is

below 8 mph (13 km/h) while in any gear

selector position, Zoom View is available.

By pressing the “magnifying glass” icon in the

upper left of the display screen, the image will

zoom in to four times the standard view. Pressing

the icon a second time will return the view to the

standard Back Up Camera display.
When Zoom View is selected while the vehicle is in

REVERSE, then shifted to DRIVE, the camera delay

view will display the standard Back Up Camera

view. If the vehicle is then returned to REVERSE

gear from DRIVE, the Zoom View selection will

automatically resume.
Shifting to NEUTRAL from any gear will maintain

the selected view (Zoom or Standard) as long as

the vehicle speed is below 8 mph (13 km/h).
If the vehicle is in PARK, Zoom View is available

until the gear selector is placed in DRIVE or

REVERSE and speeds are at or above 8 mph

(13 km/h).

Zone

Distance To The Rear Of

The Vehicle

Red

0 - 1 ft (0 - 30 cm)

Yellow

1 ft - 6.5 ft (30 cm - 2 m)

Green

6.5 ft or greater

(2 m or greater)

WARNING!

Drivers must be careful when backing up even

when using the ParkView Rear Back Up Camera.

Always check carefully behind your vehicle, and

be sure to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety of

your surroundings and must continue to pay

attention while backing up. Failure to do so can

result in serious injury or death.

CAUTION!



To avoid vehicle damage, ParkView should

only be used as a parking aid. The ParkView

camera is unable to view every obstacle or

object in your drive path.



To avoid vehicle damage, the vehicle must be

driven slowly when using ParkView to be able

to stop in time when an obstacle is seen. It is

recommended that the driver look frequently

over his/her shoulder when using ParkView.

176

STARTING AND OPERATING

NOTE:



If the vehicle is in DRIVE, NEUTRAL, or REVERSE,

and speed is greater than or equal to 8 mph

(13 km/h), Zoom View is unavailable and the

icon will appear gray.



While in Zoom View, the guidelines will not be

visible.

IEWING

PEED

When the vehicle is in PARK, NEUTRAL or

DRIVE, the Rear View Camera can be

activated with the Back Up Camera

button in the Controls menu. This feature

allows the customer to monitor the area directly

behind the vehicle (or trailer, if equipped) for up to

10 seconds while driving. If the vehicle speed

remains below 8 mph (13 km/h), the Rear View

Camera image will be displayed continuously until

deactivated via the X button on the touchscreen.

TRAILCAM SYSTEM — IF EQUIPPED

The TrailCam system allows you to you see an

on-screen image of the front view of your vehicle.

The image will be displayed on the Uconnect

display along with a caution note “Check Entire

Surroundings” across the top of the screen.

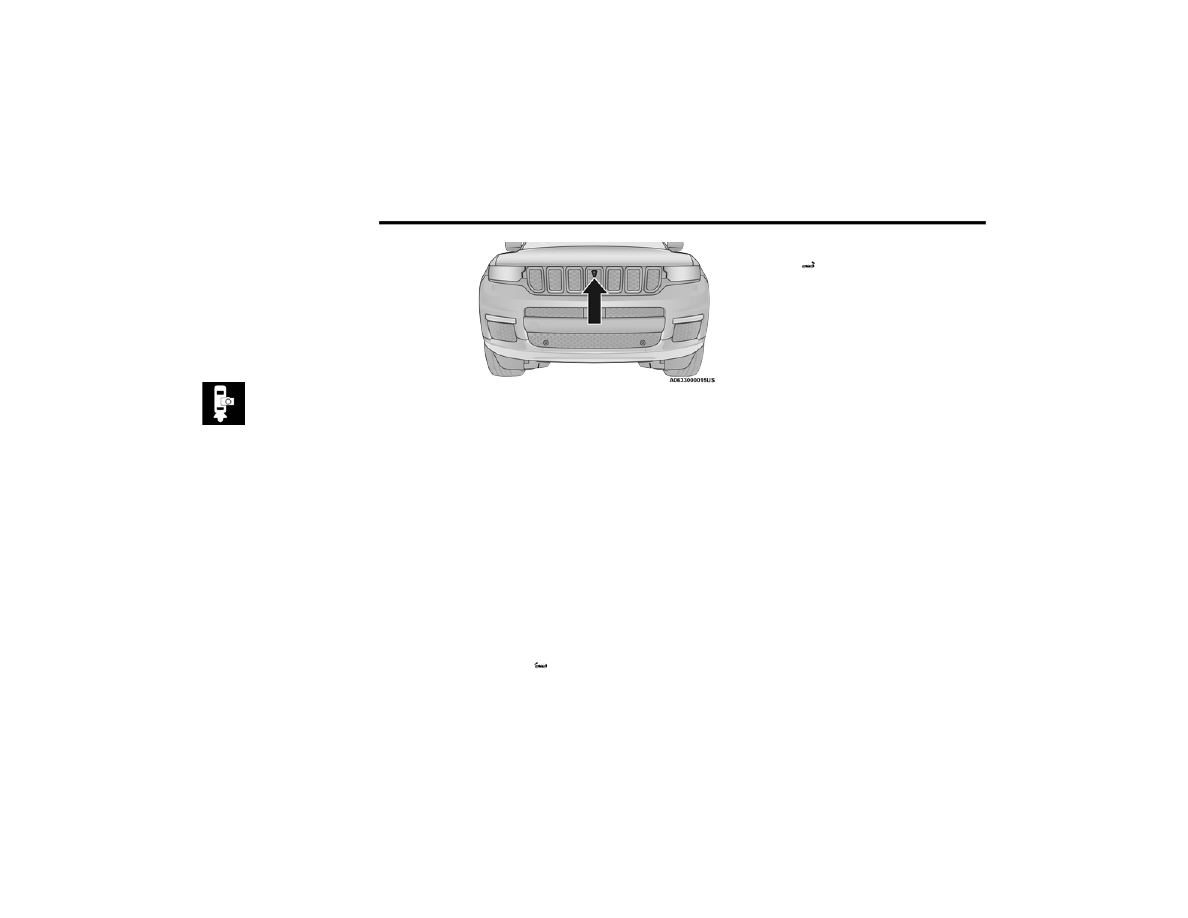

Front View Camera

NOTE:

The system will stay active while in 4WD Low.
The TrailCam system has programmable settings

that may be selected through the Uconnect system

page 204.

Manual Activation Of The TrailCam
TrailCam view can be activated via the following

methods:



Press the FWD Camera button on the controls

screen.



Press the Forward Facing Camera button on the

apps menu.



Press the TrailCam button on the Off-Road

Pages.

The TrailCam view can also be activated by
pressing the icon on the Back Up Camera view.

The Back Up Camera view can also be activated by
pressing the icon on the TrailCam view.
When the vehicle is shifted out of REVERSE with

camera delay turned off and TrailCam view is

active, the TrailCam mode is exited and the

previous screen appears again.
When the vehicle is shifted out of REVERSE with

camera delay turned on and the TrailCam view is

active, the TrailCam image will be displayed for up

to 10 seconds unless the vehicle speed exceeds

8 mph (13 km/h), the transmission is shifted into

PARK, the ignition is placed in the OFF position, or

the touchscreen X button to disable display of the

TrailCam view is pressed.
NOTE:



If the vehicle speed remains below 8 mph

(13 km/h) while in 2WD or 4WD High, the

TrailCam image will be displayed continuously

until deactivated via the touchscreen X button,

the transmission is shifted into PARK, or the

ignition is placed in the OFF position.



The touchscreen X button to disable the display

of the camera image is made available ONLY

when the vehicle is not in REVERSE.



The TrailCam view will stay active regardless of

the vehicle speed and time while in 4WD Low.

STARTING AND OPERATING

177

Cleaning The TrailCam
Press and hold the Clean Camera button located

on the TrailCam view to wash the TrailCam. Washer

fluid will stop when the button is released. The

camera can be washed up to 20 seconds at a time

while holding the button.
NOTE:



Pressing the Clean Camera button will also

wash the Night Vision camera (if equipped).



If the front window washer feature is activated,

all of the front cameras on the vehicle will be

washed as well. The front camera washers will

not operate when the low washer fluid warning

is displayed.

When enabled, active dynamic tire lines are

projected on the ground plane of the TrailCam view

based on the steering wheel position.

FAMCAM SYSTEM — IF EQUIPPED

The FamCam system consists of an interior

monitoring camera mounted on the headliner that

allows the driver to view cargo/passengers in the

rear interior of the vehicle through the Uconnect

screen.

To activate the feature, press the

FamCam button in the Controls tab of the

Vehicle menu. The FamCam feature can

also be accessed from the App Drawer, or

the status bar at the top of the Uconnect display.

The display will show the entire view inside the

vehicle on the left side of the screen, and will show

a zoomed in view of the selected seat on the right

side of the screen.

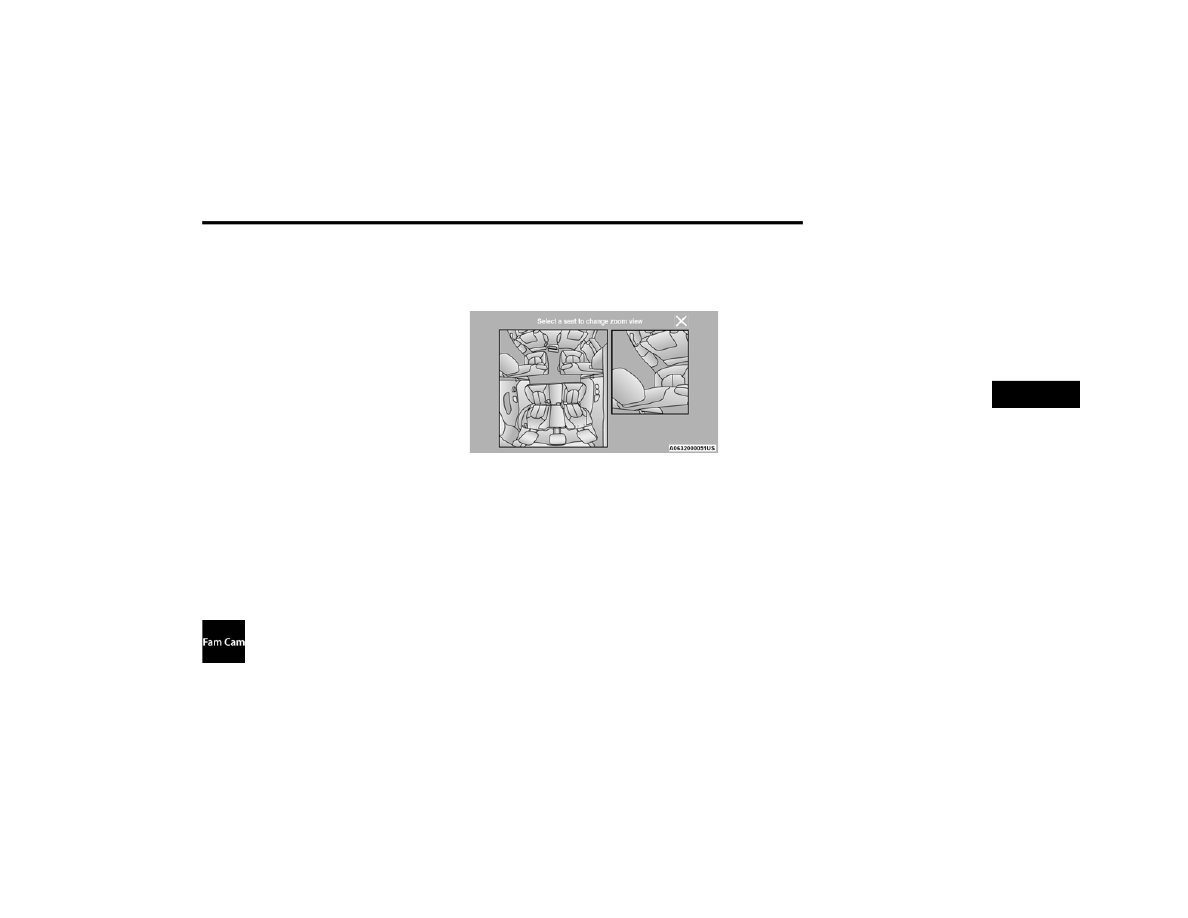

FamCam Display Example (7 Passenger Vehicle Shown)

To change the seat shown in the zoomed in view,

press a different seat location on the left side of

the display. The zoomed in view will then show the

new seat location. By default, the second row

driver’s side seat will be displayed in the zoomed in

view.
The display will appear in color in well-lit conditions

and will appear black and white in low light

conditions.
If the driver shifts into REVERSE or presses the X

on the screen, the view will close. Otherwise, the

FamCam view will remain on the display.

NOTE:

When FamCam is turned off, the selected seat in

the zoomed in view on the right side of the display

will be retained. The next time the feature is acti

vated, the same seat will be shown in the zoomed

in view.

NIGHT VISION CAMERA SYSTEM —

IF EQUIPPED

Your vehicle may be equipped with a Night Vision

Camera system which uses an infrared camera to

view the area ahead of the vehicle, beyond the

headlights, to detect people and large animals

when it is dark outside.
The system detects pedestrians or large animals

by measuring the temperature difference between

the object and the surrounding area.
The thermal objects detected by the camera can

be displayed in the instrument cluster display.

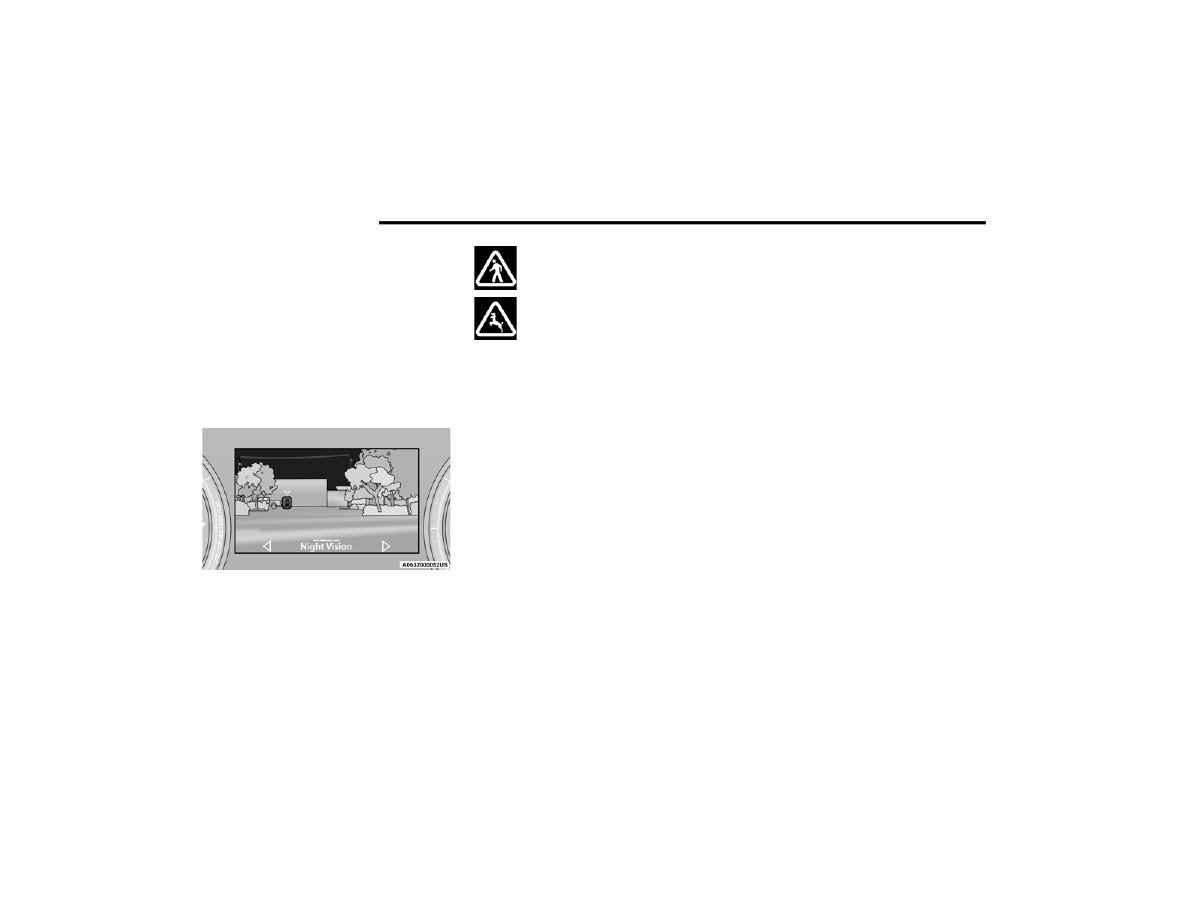

Scroll to the Night Vision page in the instrument

cluster display menu

page 103 to display the

Night Vision screen.
Warm objects (e.g. animals) will appear lighter on

the display while cold objects (e.g. traffic signs) will

appear darker.

178

STARTING AND OPERATING

NOTE:



Night Vision only shows objects of interest that

are warmer or colder than the surroundings.



Adjust the instrument cluster dimmer control

brightness to make the image appear brighter

or dimmer.

To exit out of the Night Vision screen, select a

different menu in the instrument cluster display.
A yellow or red border and box highlight will appear

around objects of interest. More than one object of

interest may be highlighted.

Highlight Around Objects Of Interest

The highlighting of the object(s) of interest will

update in real time based upon the current Night

Vision assessment.
The two categories of Night Vision warnings are

Pedestrian Warnings and Animal Warnings.

A Pedestrian or Animal Warning is considered

either Level 1 or Level 2. Level 1 warnings are

yellow, and Level 2 warnings are red. The colors

are not configurable.
Level 1 Warnings:



Yellow telltale in the instrument cluster display



Yellow highlights around the detected pedes

trian/animal



Occurs when the vehicle is moving at speeds

greater than 8 mph (13 km/h) and the target is

in or approaching the vehicle path

Level 2 Warnings:



Red telltale in the instrument cluster display



Red highlights around the detected pedestrian/

animal



Occurs when the vehicle is moving at speeds

greater than 8 mph (13 km/h) and a collision

with the detected pedestrian/animal is possible



The pedestrian/animal is directly in the vehicle

path, close to the headlight area



A video pop-up will display when there is a target

detected and the instrument cluster display is

not showing the Night Vision page



A chime will sound for a Level 2 Warning detec

tion event

Only one telltale can be displayed at a time based

upon priority.
The priority order of the warnings from highest to

lowest is:
1. Pedestrian Warning Level 2
2. Animal Warning Level 2
3. Pedestrian Warning Level 1
4. Animal Warning Level 1

Level 2 Warnings may display in the Head Up

Display (if equipped).
NOTE:

If the vehicle is stopped, or slowing down, all Level

2 warnings become Level 1 warnings.
You can enable or disable the warnings within the

Uconnect system

page 204.

If the warnings are off, the telltales, chimes, and

warning messages will all be off. Pedestrians and

animals can still be detected by the system, but

there will be no warnings.

Pedestrian Warning Telltale

Animal Warning Telltale

STARTING AND OPERATING

179

(Continued)

The Night Vision alert status telltale will

be gray when the warnings are

suppressed. The telltale will also turn

gray to indicate that the alerts are

suppressed due to environmental factors (e.g.

daylight hours, external temperature is greater

than 86°F (30°C)) or if the gear selector is in

REVERSE. When the Night Vision alerts are active,

the telltale will be green

page 108.

Camera Washers
When the front window washer is activated, the

Night Vision camera will also be washed

page 64.

ETECTION

ANGE

The system can detect people 4 ft (1.25 m) tall or

greater in the upright position. The system can also

detect animals that are four-legged and 3 ft (1 m)

tall or greater in the upright position.
The detection distance for the system is between

26 ft (8 m) and 328 ft (100 m) from the front of the

vehicle.
The system may not be able to detect pedestrians

or animals in the following situations:



Pedestrian/animal is outside of the detection

range



Pedestrian/animal is fully or partially covered



Pedestrian/animal does not reach the minimum

detection height

NOTE:

Other objects on the road that meet the height/

shape/temperature (e.g. sun exposure) of pedes

trians/animals may be detected and classified as

targets.

WARNING!



Do not jerk the steering wheel in response to

a warning.



Never attempt to swerve around animals if

doing so would endanger you or others.



Do not stare at the image while driving. You

could crash and you or others could be

injured.



The Night Vision system only provides alerts to

objects of interest and cannot serve as a

substitute for the driver’s personal judgment.

The warnings are meant to direct your atten

tion to the detected objects, but the Night

Vision system does not automatically brake

the vehicle and may not provide a warning

with enough time to help avoid a crash.



Warnings are only provided if a pedestrian or

large animal is detected by the system.



It is always the driver’s responsibility to be

attentive of road, traffic, and weather condi

tions, vehicle speed, distance to the vehicle

ahead, and most importantly, brake opera

tion, to ensure safe operation of the vehicle

under all road conditions. Your complete

attention is always required while driving to

maintain safe control of your vehicle.

WARNING!

180

STARTING AND OPERATING

ERVICE

IGHT

ISION

YSTEM

When service conditions are present, the following

fault messages may appear in the instrument

cluster display when the vehicle is placed in the ON

position.
If "Night Vision Unavailable Sensor Blocked"

appears in the instrument cluster display, make

sure the camera is clear of snow, ice, mud, dirt or

other debris. The camera is located in the upper

fascia/bumper, inside the driver side grille slot.

Clean the camera using a soft wet cloth or by

pressing the Clean Camera button in the Uconnect

system. If the message continues to appear after

cycling the ignition, see an authorized dealer.
If “Night Vision Temporarily Unavailable” or “Night

Vision Unavailable Service Required" appears in

the instrument cluster display after cycling the

ignition, see an authorized dealer.
The camera must be properly aligned to work

correctly. If the camera needs adjustment, see an

authorized dealer. Do not attempt to adjust the

camera yourself.
NOTE:

Alignment and performance of the Night Vision

may be affected by aftermarket modifications.

Mopar® parts should be used to get the optimal

performance of this system.

IGHT

ISION

YSTEM

IMITATIONS

The Night Vision display is deactivated under the

following conditions:



Vehicle is shifted into REVERSE



The ignition is not in the ON/RUN position



The headlights are off and the vehicle speed is

greater than 8 mph (13 km/h)

The Night Vision display warnings are suppressed

under the following conditions:



Daylight hours



Temperatures above 86°F (30°C)

The system may not be fully functional in the

following situations:



On steep hills



On tight curves of the road



If the camera/sensor is damaged or blocked by

dirt, snow, ice, or other debris



In poor visibility conditions such as heavy fog,

rain, snow, or other weather conditions



If the vehicle has been modified with after

market parts and/or accessories

NOTE:

If any of these conditions are present, the system

does not need service.

WARNING!



Night Vision can only detect pedestrians and

animals located within the range of the

infrared camera.



Night Vision may not detect pedestrians or

animals and highlight them if:



They are not in an upright position, for

example if they are sitting or lying down, or

if the pedestrian is riding a bicycle



The figure in the display appears incom

plete, for example because the pedes

trian or animal is partially behind a vehicle



The pedestrian/animal is not directly

ahead in the coverage area



The pedestrian/animal is part of a group



The pedestrian is wearing certain types of

clothing



The pedestrian/animal is moving too

quickly through the field of view



The sensor is blocked by dirt, rain, snow,

or ice

STARTING AND OPERATING

181

SURROUND VIEW CAMERA SYSTEM —

IF EQUIPPED

Your vehicle may be equipped with the Surround

View Camera system that allows you to see an

on-screen image of the surroundings and Top View

of your vehicle whenever the gear selector is put

into REVERSE or a different view is selected

through the touchscreen buttons. The Top View of

the vehicle will show which doors are open. The

image will be displayed on the Uconnect display

along with a caution note “Check Entire

Surroundings” across the top of the screen. After

five seconds, this note will disappear. The

Surround View Camera system is comprised of four

sequential cameras located in the front grille, rear

liftgate and side mirrors.
NOTE:

The Surround View Camera system has program

mable settings that may be selected through the

Uconnect system

page 204.

Press this button on the touchscreen to

enter the Surround View Camera menu in

the Uconnect system.

When the vehicle is shifted into REVERSE, the Rear

View or Top View is the default view of the system.

When the vehicle is shifted out of REVERSE with

camera delay turned on, the camera image will

continue to be displayed for up to 10 seconds

unless the vehicle speed exceeds 8 mph

(13 km/h), the vehicle is shifted into PARK or the

ignition is placed in the OFF position. There is a

touchscreen X button to disable the display of the

camera image.
When the vehicle is shifted out of REVERSE with

camera delay turned off, the Surround View

Camera mode is exited and the last known screen

appears again.
When enabled, active guidelines are overlaid on

the image to illustrate the width of the vehicle,

including the side view mirrors and its projected

backup path based on the steering wheel position.
Different colored zones indicate the distance to

the rear of the vehicle.
The following table shows the approximate

distances for each zone:

Modes Of Operation
Manual activation of the Surround View Camera is

selected by pressing the Surround View Camera

button located in the Controls menu within the

Uconnect system.
Top View
The Top View will show in the Uconnect system with

Rear View or Front View in a split screen display.

There are integrated ParkSense arcs in the image

at the front, rear, and if equipped, the sides of the

vehicle. The arcs will change color from yellow to

red corresponding to the distance zones to the

oncoming object.

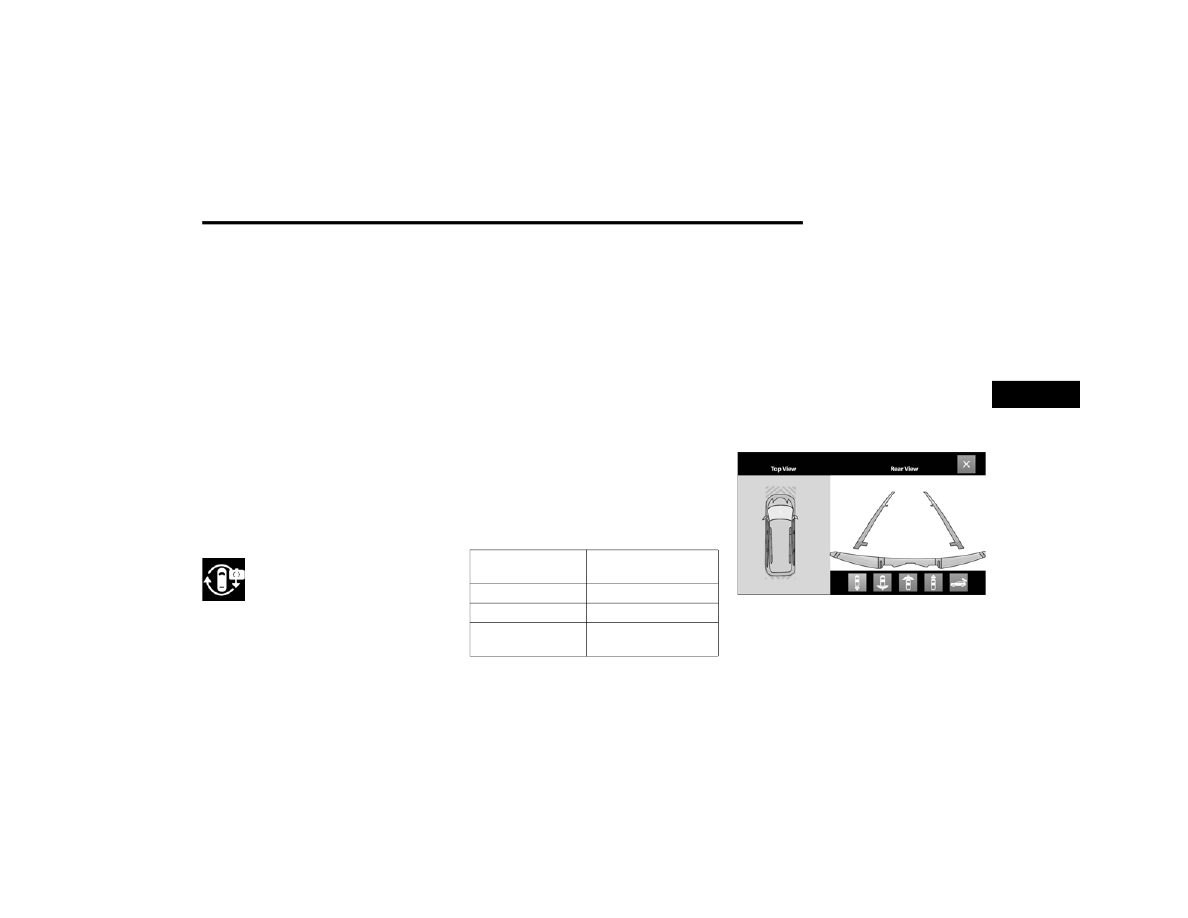

Surround View Camera View

Zone

Distance To The Rear Of

The Vehicle

Red

0 - 1 ft (0 - 30 cm)

Yellow

1 ft - 6.5 ft (30 cm - 2 m)

Green

6.5 ft or greater

(2 m or greater)

182

STARTING AND OPERATING

NOTE:



Front tires will be in image when the tires are

turned.



Due to wide angle cameras in the mirrors, the

image may appear distorted.



Top View will show which doors are open.



Open front doors and/or liftgate will cancel

outside image in Top View, but the standard

view remains unchanged.

Rear View Plus Top View

This is the default view of the system in

REVERSE and is always paired with the

Top View of the vehicle with optional

active guidelines for the projected path

when enabled.
Rear Cross Path View

Pressing the Rear Cross Path button will

give the driver a wider angle view of the

rear camera system. The Top View will be

disabled when this is selected.

Front View Plus Top View

The Front View will show you what is

immediately in front of the vehicle and is

always paired with the Top View of the

vehicle.

Front Cross Path View

Pressing the Front Cross Path button will

give the driver a wider angle view of the

front camera system. The Top View will

be disabled when this is selected.

Back Up Camera View

Pressing the Back Up Camera button will

provide a full screen rear view with Zoom

View.

NOTE:

If the Rear View Camera view was selected through

the Surround View Camera menu, exiting out of the

Rear View screen will return to the Surround View

Camera menu. If the Back Up Camera was

manually activated through the Controls menu of

the Uconnect system, exiting out of the display

screen will return to the Controls menu.
Deactivation
The system can be deactivated under the following

conditions:



The speed of the vehicle is greater than 8 mph

(13 km/h).



The vehicle is shifted into PARK.



The vehicle is in any gear other than REVERSE

and the touchscreen X button is pressed.



The camera delay system is turned off manually

through Uconnect Settings

page 204.

Front And Rear Camera Washers
When the front windshield washer is activated by

pulling the windshield wiper/washer lever

rearward, the front camera is also washed.
When the rear window washer is activated by

pushing the windshield wiper/washer lever

forward, the Rear Back Up camera and Digital

Rearview Mirror (if equipped) cameras are also

washed. For more information, see

page 66.

NOTE:



If snow, ice, mud, or any foreign substance

builds up on the camera lenses, clean the

lenses, rinse with water, and dry with a soft

cloth. Do not cover the lenses.



If a malfunction with the system has occurred,

see an authorized dealer.

WARNING!

Drivers must be careful when backing up even

when using the Surround View Camera. Always

check carefully behind your vehicle, and be sure

to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety of

your surroundings and must continue to pay

attention while backing up. Failure to do so can

result in serious injury or death.

STARTING AND OPERATING

183

OOM

IEW

When the Rear View Camera image is being

displayed, and the vehicle speed is below 8 mph

(13 km/h) while in any gear selector position,

Zoom View is available.

By pressing the “magnifying glass” icon

in the upper left of the display screen, the

image will zoom in to two times the

standard view.
Pressing the icon a second time will

return the view to the standard Back Up

Camera display.

When Zoom View is selected while the vehicle is in

REVERSE, then shifted to DRIVE, the camera delay

view will display the standard Back Up Camera

view. If the vehicle is then returned to REVERSE

gear from DRIVE, the Zoom View selection will

automatically resume.
Shifting to NEUTRAL from any gear will maintain

the selected view (Zoom or Standard) as long as

the vehicle speed is below 8 mph (13 km/h).
If the vehicle is in PARK, Zoom View is available

until the gear selector is placed in DRIVE or

REVERSE and speeds are at or above 8 mph

(13 km/h).
NOTE:



If the vehicle is in DRIVE, NEUTRAL, or REVERSE,

and speed is greater than or equal to 8 mph

(13 km/h), Zoom View is unavailable and the

icon will appear gray.



While in Zoom View, the guidelines will not be

visible.

REFUELING THE VEHICLE

1. Open the fuel filler door by pushing near the

rear outer edge of the fuel door near the

center to unlatch. Then use your hand to

rotate fuel door to full open.

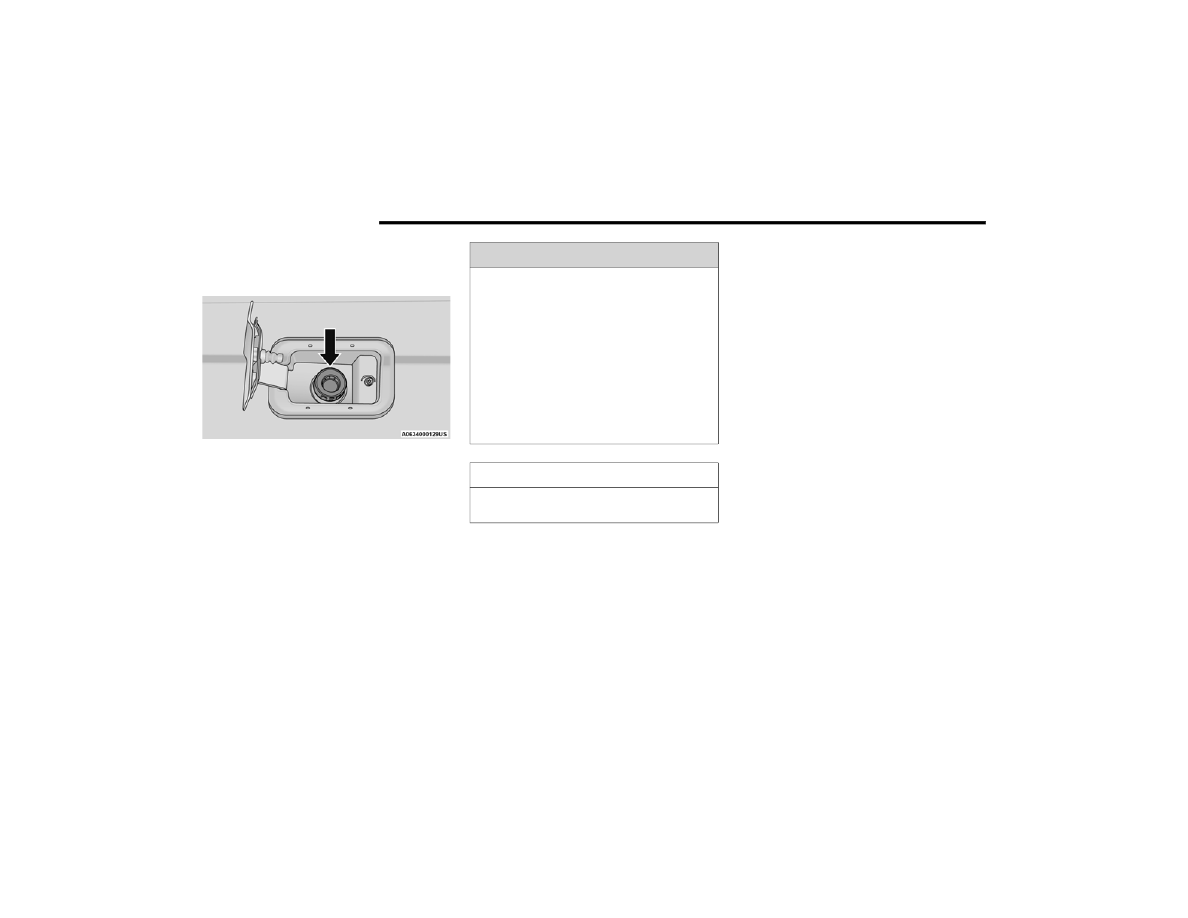

Fuel Filler Door

NOTE:



In certain cold conditions, ice may prevent

the fuel door from opening. If this occurs,

lightly push around the perimeter of the fuel

door to break the ice buildup.



There is no fuel filler cap. Two flapper doors

inside the pipe seal the system.

CAUTION!



To avoid vehicle damage, Surround View

should only be used as a parking aid. The

Surround View camera is unable to view every

obstacle or object in your drive path.



To avoid vehicle damage, the vehicle must be

driven slowly when using Surround View to be

able to stop in time when an obstacle is seen.

It is recommended that the driver look

frequently over his/her shoulder when using

Surround View.

184

STARTING AND OPERATING

2. Insert the fuel nozzle fully into the filler pipe –

the nozzle opens and holds the flapper doors

while refueling.

Fuel Filler

3. Fill the vehicle with fuel – when the fuel nozzle

“clicks” or shuts off the fuel tank is full.

4. Wait five seconds before removing the fuel

nozzle to allow fuel to drain from nozzle.

5. Remove the fuel nozzle and close the fuel

door. Engage the fuel door latch by pushing on

the rear outer edge near the center.

VEHICLE LOADING

ROSS

EHICLE

EIGHT

ATING

(GVWR)

The GVWR is the total permissible weight of your

vehicle including driver, passengers, vehicle,

options and cargo. The Vehicle Certification Label

specifies maximum capacities of front and rear

axle systems (GAWR). Total load must be limited so

GVWR and front and rear GAWR are not exceeded.

AYLOAD

The payload of a vehicle is defined as the allowable

load weight a truck can carry, including the weight

of the driver, all passengers and cargo.

ROSS

XLE

EIGHT

ATING

(GAWR)

The GAWR is the maximum permissible load on the

front and rear axles. The load must be distributed

in the cargo area so that the GAWR of each axle is

not exceeded.
Each axle GAWR is determined by the components

in the system with the lowest load carrying capacity

(axle, springs, tires or wheels). Heavier axles or

suspension components sometimes specified by

purchasers for increased durability do not

necessarily increase the vehicle's GVWR.

IRE

IZE

The tire size on the Vehicle Certification Label

represents the actual tire size on your vehicle.

Replacement tires must be equal to the load

capacity of this tire size.

IZE

This is the rim size that is appropriate for the tire

size listed.

WARNING!



Never have any smoking materials lit in or

near the vehicle when the fuel door is open or

the tank is being filled.



Never add fuel when the engine is running.

This is in violation of most state and federal

fire regulations and may cause the Malfunc

tion Indicator Light to turn on.



A fire may result if fuel is pumped into a

portable container that is inside of a vehicle.

You could be burned. Always place fuel

containers on the ground while filling.

CAUTION!

To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling.

STARTING AND OPERATING

185

NFLATION

RESSURE

This is the cold tire inflation pressure for your

vehicle for all loading conditions up to full GAWR.

URB

EIGHT

The curb weight of a vehicle is defined as the total

weight of the vehicle with all fluids, including

vehicle fuel, at full capacity conditions, and with no

occupants or cargo loaded into the vehicle. The

front and rear curb weight values are determined

by weighing your vehicle on a commercial scale

before any occupants or cargo are added.

OADING

The actual total weight and the weight of the front

and rear of your vehicle at the ground can best be

determined by weighing it when it is loaded and

ready for operation.
The entire vehicle should first be weighed on a

commercial scale to ensure that the GVWR has not

been exceeded. The weight on the front and rear of

the vehicle should then be determined separately

to be sure that the load is properly distributed over

the front and rear axle. Weighing the vehicle may

show that the GAWR of either the front or rear axles

has been exceeded but the total load is within the

specified GVWR. If so, weight must be shifted from

front to rear or rear to front as appropriate until the

specified weight limitations are met. Store the

heavier items down low and be sure that the

weight is distributed equally. Stow all loose items

securely before driving.
Improper weight distributions can have an adverse

effect on the way your vehicle steers and handles

and the way the brakes operate.

TRAILER TOWING

In this section you will find safety tips and

information on limits to the type of towing you can

reasonably do with your vehicle. Before towing a

trailer, carefully review this information to tow your

load as efficiently and safely as possible.
To maintain the New Vehicle Limited Warranty

coverage, follow the requirements and

recommendations in this manual concerning

vehicles used for trailer towing.

OMMON

OWING

EFINITIONS

The following trailer towing related definitions will

assist you in understanding the following

information:

Gross Vehicle Weight Rating (GVWR)

The GVWR is the total allowable weight of your

vehicle. This includes driver, passengers, cargo

and tongue weight. The total load must be limited

so that you do not exceed the GVWR

page 184.

Gross Trailer Weight (GTW)

The GTW is the weight of the trailer plus the weight

of all cargo, consumables and equipment

(permanent or temporary) loaded in or on the

trailer in its "loaded and ready for operation"

condition.
The recommended way to measure GTW is to put

your fully loaded trailer on a vehicle scale. The

entire weight of the trailer must be supported by

the scale.

WARNING!

Do not load your vehicle any heavier than the

GVWR or the maximum front and rear GAWR. If

you do, parts on your vehicle can break, or it can

change the way your vehicle handles. This could

cause you to lose control. Overloading can

shorten the life of your vehicle.

WARNING!

If the gross trailer weight is 5,000 lb (2,267 kg)

or more, it is recommended to use a

weight-distributing hitch to ensure stable

handling of your vehicle. If you use a standard

weight-carrying hitch, you could lose control of

your vehicle and cause a collision.

186

STARTING AND OPERATING

(Continued)

Gross Combination Weight Rating (GCWR)

The GCWR is the total allowable weight of your

vehicle and trailer when weighed in combination.

Gross Axle Weight Rating (GAWR)

The GAWR is the maximum capacity of the front

and rear axles. Distribute the load over the front

and rear axles evenly. Make sure that you do not

exceed either front or rear GAWR

page 184.

Tongue Weight (TW)

The TW is the downward force exerted on the hitch

ball by the trailer. You must consider this as part of

the load on your vehicle.

Trailer Frontal Area

The frontal area is the maximum height multiplied

by the maximum width of the front of a trailer.

Trailer Sway Control (TSC)

The TSC can be a mechanical telescoping link that

can be installed between the hitch receiver and the

trailer tongue that typically provides adjustable

friction associated with the telescoping motion to

dampen any unwanted trailer swaying motions

while traveling.
The electronic TSC (if equipped) recognizes a

swaying trailer and automatically applies individual

wheel brakes and/or reduces engine power to

attempt to eliminate the trailer sway.

Weight-Carrying Hitch

A weight-carrying hitch supports the trailer tongue

weight, just as if it were luggage located at a hitch

ball or some other connecting point of the vehicle.

These kinds of hitches are used to tow small and

medium sized trailers.

Weight-Distributing Hitch

A weight-distributing system works by applying

leverage through spring (load) bars. They are

typically used for heavier loads to distribute trailer

tongue weight to the tow vehicle's front axle and

the trailer axle(s). When used in accordance with

the manufacturer's directions, it provides for a

more level ride, offering more consistent steering

and brake control thereby enhancing towing

safety. The addition of a friction/hydraulic sway

control also dampens sway caused by traffic and

crosswinds and contributes positively to tow

vehicle and trailer stability. Trailer Sway Control

(TSC) and a weight-distributing (load equalizing)

hitch are recommended for heavier Tongue

Weights (TW) and may be required depending on

vehicle and trailer configuration/loading to comply

with Gross Axle Weight Rating (GAWR)

requirements.

WARNING!

It is important that you do not exceed the

maximum front or rear GAWR. A dangerous

driving condition can result if either rating is

exceeded. You could lose control of the vehicle

and have a collision.

WARNING!



If the gross trailer weight is 5,000 lb

(2,267 kg) or more, it is recommended to use

a weight-distributing hitch to ensure stable

handling of your vehicle. If you use a standard

weight-carrying hitch, you could lose control of

your vehicle and cause a collision.

STARTING AND OPERATING

187

RECOMMENDED DISTRIBUTION HITCH

ADJUSTMENT

1. Verify that the vehicle is at the Normal Ride

Height.

NOTE:

The vehicle must remain in the engine run position

with all doors closed while attaching a trailer for

proper leveling of the air suspension system.
2. Position the vehicle to be ready to connect to

the trailer (do not connect the trailer).

3. For vehicles equipped with Quadra-Lift air

suspension, use the touchscreen radio

settings to enable Tire/Jack mode. Tire/Jack

mode will be canceled and the procedure must

be restarted if the vehicle is driven at speeds

above 5mph (8 km/h).

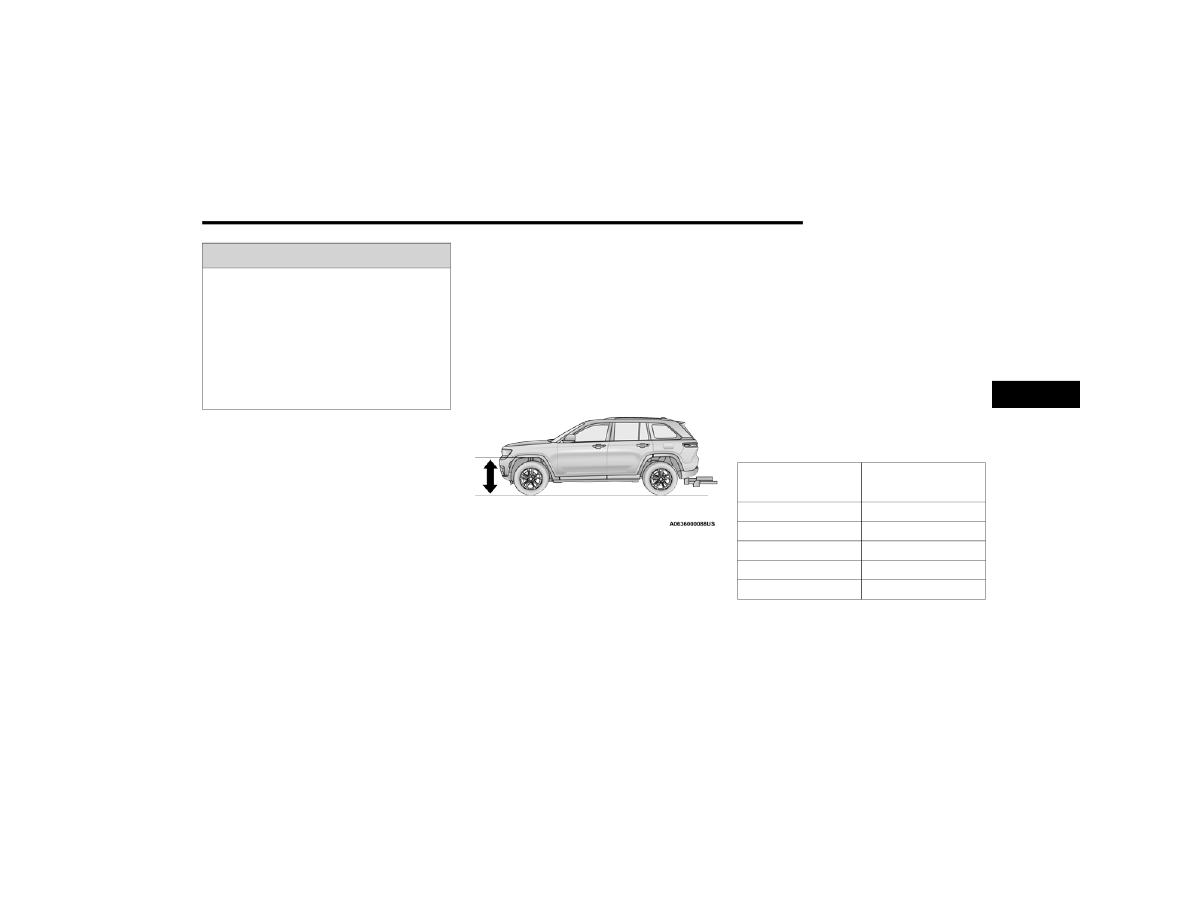

4. Measure the height from the top of the front

wheel opening on the fender to ground; this is

height H1.

Measuring Height (H)

5. Attach the trailer to the vehicle without the

weight distribution bars connected.

6. Measure the height from the top of the front

wheel opening on the fender to the ground;

this is height H2.

7. Install and adjust the tension in the weight

distributing bars per the manufacturer’s

recommendations so that the height of the

front fender is approximately (H2-H1)/2+H1

(about 1/2 the difference between H2 and H1

above Normal Ride Height [H1]).

8. Use the touchscreen radio settings and switch

off Tire/Jack mode. Make sure the truck

returns to Normal Ride Height. Perform a

visual inspection of the trailer and

weight-distributing hitch to confirm the

manufacturers’ recommendations have been

met.

9. The vehicle can now be driven.



An improperly adjusted weight-distributing

hitch system may reduce handling, stability,

braking performance, and could result in a

collision.



Weight-distributing systems may not be

compatible with surge brake couplers. Consult

with your hitch and trailer manufacturer or a

reputable Recreational Vehicle dealer for

additional information.

WARNING!

Measurement

Example

Example Height (mm)

925

946

H2-H1

(H2-H1)/2

10.5

(H2-H1)/2 + H1

935.5

Jeep Grand Cherokee (2023 year). Manual in english - page 11
