Jeep Grand Cherokee (2023 year). Manual in english

140

STARTING AND OPERATING

If the Steering icon is displayed and the “Power

Steering System Over Temp” message is displayed

on the instrument cluster screen, they indicate

that extreme steering maneuvers may have

occurred which caused an over temperature

condition in the electric power steering system.

Once driving conditions are safe, pull over and let

the vehicle idle for a few moments until the icon

and message turn off.

STOP/START SYSTEM — IF EQUIPPED

The Stop/Start function is designed to reduce fuel

consumption. The system will stop the engine

automatically during a vehicle stop if the required

conditions are met. Releasing the brake pedal or

pressing the accelerator pedal will automatically

re-start the engine.
This vehicle has been upgraded with a heavy-duty

starter, enhanced battery, and other upgraded

engine parts, to handle the additional engine

starts.

UTOSTOP

ODE

The Stop/Start feature is enabled after every

normal customer engine start. At that time, the

system will go into STOP/START READY and if all

other conditions are met, can go into a STOP/

START AUTOSTOP ACTIVE Autostop mode.

To Activate The Autostop Mode, The Following

Must Occur:



The system must be in STOP/START READY

state. A STOP/START READY message will be

displayed in the instrument cluster display

within the Stop/Start section

page 98.



The vehicle must be completely stopped.



The gear selector must be in a forward gear and

the brake pedal pressed.

The engine will shut down, the tachometer will

move to the zero position and the Stop/Start

telltale will illuminate indicating you are in

Autostop. Customer settings will be maintained

upon return to an engine running condition.

OSSIBLE

EASONS

NGINE

OES

UTOSTOP

Prior to engine shut down, the system will check

many safety and comfort conditions to see if they

are fulfilled. Detailed information about the

operation of the Stop/Start system may be viewed

in the instrument cluster display Stop/Start

screen. In the following situations, the engine will

not stop:



Driver’s seat belt is not buckled.



Driver’s door is not closed.



Battery temperature is too warm or cold.



Battery charge is low.



The vehicle is on a steep grade.



Cabin heating or cooling is in process and an

acceptable cabin temperature has not been

achieved.



HVAC is set to full defrost mode at a high blower

speed.



HVAC is set to MAX A/C.



Engine has not reached normal operating

temperature.



The transmission is not in a forward gear.



Hood is open.



Brake pedal is not pressed with sufficient pres

sure.



Accelerator pedal input.



Engine temperature is too high.



5 mph (8 km/h) threshold has not been

achieved from previous Autostop.



Steering angle is beyond threshold.

It may be possible for the vehicle to be driven

several times without the Stop/Start system going

into a STOP/START READY state under more

extreme conditions of the previously listed items.

STARTING AND OPERATING

141

TART

NGINE

HILE

UTOSTOP

ODE

While in a forward gear, the engine will start when

the brake pedal is released or the throttle pedal is

pressed. The transmission will automatically

re-engage upon engine restart.
Conditions That Will Cause The Engine To Start

Automatically While In Autostop Mode:



The transmission selector is moved out of

DRIVE.



To maintain cabin temperature comfort.



HVAC is set to full defrost mode.



HVAC system temperature or fan speed is

manually adjusted.



Battery voltage drops too low.



Stop/Start OFF switch is pushed.



A Stop/Start system error occurs.



Steering angle is beyond threshold.

ANUALLY

URN

TOP

TART

YSTEM

Stop/Start OFF Switch

Push the Stop/Start OFF switch (located on the

switch bank). The light on the switch will illuminate.

The “Stop/Start OFF” message will appear in the

instrument cluster display and the Autostop mode

will be disabled

page 98.

NOTE:

The Stop/Start system will reset itself back to the

ON mode every time the ignition is turned OFF and

back ON.

ANUALLY

URN

TOP

TART

YSTEM

Push the Stop/Start OFF switch (located on the

switch bank). The light on the switch will turn off.

YSTEM

ALFUNCTION

If there is a malfunction in the Stop/Start system,

the system will not shut down the engine. A

“Service Stop/Start System” message and a yellow

Stop/Start telltale will appear in the instrument

cluster display

page 98.

If the “Service Stop/Start System” message

appears in the instrument cluster display, have the

system checked by an authorized dealer.

142

STARTING AND OPERATING

(Continued)

CRUISE CONTROL SYSTEMS

Your vehicle is equipped with the Adaptive Cruise

Control (ACC) system which will adjust the vehicle

speed up to the preset speed to maintain a

distance with the vehicle ahead.

NOTE:

In vehicles NOT equipped with the Active Driving

Assist (ADA) system:



Fixed Speed Cruise Control can be used when

ACC is not enabled, and functions as normal

cruise control.



Fixed Speed Cruise Control will not detect vehi

cles directly ahead of you. Always be aware of

the feature selected.



Only one Cruise Control feature can operate at a

time. For example, if Fixed Speed Cruise Control

is enabled, Adaptive Cruise Control will be

unavailable, and vice versa.

DAPTIVE

RUISE

ONTROL

(ACC)

Adaptive Cruise Control (ACC) increases the driving

convenience provided by Cruise Control while

traveling on highways and major roadways.

However, it is not a safety system and not designed

to prevent collisions.

ACC will allow you to keep Cruise Control engaged

in light to moderate traffic conditions without the

constant need to reset your Cruise Control. ACC

utilizes a radar sensor and a forward facing

camera designed to detect a vehicle directly ahead

of you.

NOTE:



If the ACC sensor detects a vehicle ahead, ACC

will apply limited braking or acceleration (not to

exceed the original set speed) automatically to

maintain a preset following distance, while

matching the speed of the vehicle ahead.



Any chassis/suspension or tire size modifica

tions to the vehicle will affect the performance

of the Adaptive Cruise Control and Forward Colli

sion Warning system.



In vehicles NOT equipped with the Active Driving

Assist system, Fixed Speed Cruise Control (ACC

not enabled) will not detect vehicles directly

ahead of you. Always be aware of the feature

selected

page 408.

WARNING!



Adaptive Cruise Control (ACC) is a conve

nience system. It is not a substitute for active

driver involvement. It is always the driver’s

responsibility to be attentive of road, traffic,

and weather conditions, vehicle speed,

distance to the vehicle ahead and, most

importantly, brake operation to ensure safe

operation of the vehicle under all road condi

tions. Your complete attention is always

required while driving to maintain safe control

of your vehicle. Failure to follow these warn

ings can result in a collision and death or

serious personal injury.



The ACC system:



Does not react to pedestrians, oncoming

vehicles, and stationary objects (e.g., a

stationary vehicle in a traffic jam or a

disabled vehicle).



Cannot take street, traffic, and weather

conditions into account, and may be limited

upon adverse sight distance conditions.



Does not always fully recognize complex

driving conditions, which can result in

wrong or missing distance warnings.

STARTING AND OPERATING

143

Adaptive Cruise Control (ACC) Operation

The buttons on the right side of the steering wheel

operate the ACC system.

Adaptive Cruise Control Buttons

Driving Assist Menu

The instrument cluster display will show the

current system settings for Adaptive Cruise Control

(ACC), Active Lane Management (ALM), and the

Active Driving Assist (ADA) systems. The

information it displays depends on ACC, ALM, and

ADA system statuses.
Pushing the Adaptive Cruise Control (ACC) buttons

will display one of the following messages in the

instrument cluster display:
Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed

setting has not been selected, the display will read

“Adaptive Cruise Control Ready.”
Adaptive Cruise Control Set
When the SET (+) or the SET (-) button is pushed,

the display will read “ACC: XX mph (km/h)”.
When ACC is set, the set speed will show in the

instrument cluster display.
The ACC screen may display once again if any of

the following ACC activity occurs:



System Cancel



Driver Override



System Off



ACC Proximity Warning



ACC Unavailable Warning



Will bring the vehicle to a complete stop

and hold the vehicle in the stop position

for approximately 10 minutes when

following a vehicle ahead. If the vehicle

ahead does not start moving within

10 minutes, the parking brake will be acti

vated, and the ACC system will be

canceled.



You should not utilize the ACC system:



When driving in fog, heavy rain, heavy

snow, sleet, heavy traffic, and complex

driving situations (i.e., in highway

construction zones).



When entering a turn lane or highway

off-ramp; when driving on roads that are

winding, icy, snow-covered, slippery, or

have steep uphill or downhill slopes.



When towing a trailer up or down steep

slopes.



When circumstances do not allow safe

driving at a constant speed.

WARNING!

1 — Distance Increase Button
2 — Adaptive Cruise Control (ACC) On/Off
3 — CANC/Cancel
4 — Distance Decrease Button
5 — SET (+)/Accel
6 — Fixed Speed Cruise Control On/Off

(If Equipped)
7 — RES/Resume
8 — SET (-)/Decel

144

STARTING AND OPERATING

Adaptive Cruise Control Off
When ACC is deactivated, the display will read

“Adaptive Cruise Control Off”.
The instrument cluster display will return to the last

display selected after five seconds of no ACC

display activity.

Activating Adaptive Cruise Control (ACC)

The minimum set speed for the ACC system is

20 mph (32 km/h).
When the system is turned on and in the ready

state, the instrument cluster display will read “ACC

Ready.”
When the system is off, the instrument cluster

display will read “Adaptive Cruise Control (ACC)

Off.”

NOTE:

You cannot engage ACC under the following condi

tions:



When in 4WD Low



When the brakes are applied



When the parking brake is applied



When the transmission is in PARK, REVERSE or

NEUTRAL



When the brakes are overheated



When the driver’s door is open at low speeds



When the driver’s seat belt is unbuckled at low

speeds



When there is a stationary vehicle in front of

your vehicle in close proximity



When Electronic Stability Control (ESC) Full Off

mode is active

To Activate/Deactivate

Push and release the Adaptive Cruise Control

(ACC) on/off button. The ACC menu in the

instrument cluster displays “ACC Ready.”
To turn the system off, push and release the

Adaptive Cruise Control (ACC) on/off button again.

At this time, the system will turn off and the

instrument cluster displays “Adaptive Cruise

Control (ACC) Off.”

To Set A Desired Speed

When the vehicle reaches the speed desired, push

the SET (+) button or the SET (-) button and

release. The instrument cluster display will show

the set speed.

NOTE:

Fixed Speed Cruise Control (if equipped) is used

without ACC enabled. To change between Adaptive

Cruise Control (ACC) and Fixed Speed Cruise

Control features, first turn off ACC by pushing the

ACC on/off button. Then, turn on Fixed Speed

Cruise Control by pushing the Fixed Speed Cruise

Control on/off button.

If ACC is set when the vehicle speed is below

20 mph (32 km/h), the set speed will default to

20 mph (32 km/h).

NOTE:

Fixed Speed Cruise Control cannot be set below

20 mph (32 km/h).
If either system is set when the vehicle speed is

above 20 mph (32 km/h), the set speed shall be

the current speed of the vehicle.

WARNING!

Leaving the Adaptive Cruise Control (ACC)

system on when not in use is dangerous. You

could accidentally set the system or cause it to

go faster than you want. You could lose control

and have a collision. Always leave the system off

when you are not using it.

WARNING!

In Fixed Speed Cruise Control mode, the system

will not react to vehicles ahead. In addition, the

proximity warning does not activate and no

alarm will sound even if you are too close to the

vehicle ahead since neither the presence of the

vehicle ahead nor the vehicle-to-vehicle distance

is detected. Be sure to maintain a safe distance

between your vehicle and the vehicle ahead.

Always be aware which mode is selected.

STARTING AND OPERATING

145

NOTE:



Keeping your foot on the accelerator pedal can

cause the vehicle to continue to accelerate

beyond the set speed. If this occurs, the

message “DRIVER OVERRIDE” will display in the

instrument cluster display.



If you continue to accelerate beyond the set

speed while ACC is enabled, the system will not

be controlling the distance between your vehicle

and the vehicle ahead. The vehicle speed will

only be determined by the position of the accel

erator pedal.

To Cancel

The following conditions cancel the ACC or Fixed

Speed Cruise Control systems:



The brake pedal is applied



The CANC (cancel) button is pushed



The gear selector is removed from the DRIVE

position



The Electronic Stability Control/Traction Control

System (ESC/TCS) activates



The vehicle parking brake is applied



The Trailer Sway Control (TSC) activates



The braking temperature exceeds normal range

(overheated)

The following conditions will only cancel the ACC

system:



Driver seat belt is unbuckled at low speeds



Driver door is opened at low speeds

To Turn Off

The system will turn off and erase the set speed in

memory if:



The Adaptive Cruise Control (ACC) on/off button

is pushed



Fixed Speed Cruise Control on/off button is

pushed



The ignition is placed in the OFF position



4WD Low is engaged



The Active Driving Assist (ADA) system (if

equipped) is enabled/engaged and the ADA

button is pressed

NOTE:

If ADA is not enabled/engaged and the ADA button

is pressed, the ACC system will remain on or turn

on, depending on the state of ACC at the time of

the ADA button press.

To Resume

If there is a set speed in memory, push the RES

(resume) button and remove your foot from the

accelerator pedal. The instrument cluster display

will show the last set speed.

Resume can be used at any speed above 20 mph

(32 km/h) when only Fixed Speed Cruise Control is

being used.
Resume can be used at any speed above 0 mph

(0 km/h) when ACC is active.

NOTE:



While in ACC mode, when the vehicle comes to

a complete stop longer than two seconds, the

driver will either have to push the RES (resume)

button or press the accelerator pedal to reen

gage the ACC system.



ACC cannot be resumed if there is a stationary

vehicle in front of your vehicle in close proximity.

WARNING!

The Resume function should only be used if

traffic and road conditions permit. Resuming a

set speed that is too high or too low for

prevailing traffic and road conditions could

cause the vehicle to accelerate or decelerate too

sharply for safe operation. Failure to follow these

warnings can result in a collision and death or

serious personal injury.

146

STARTING AND OPERATING

To Vary The Speed Setting

To Increase Or Decrease The Set Speed
After setting a speed, you can increase the set

speed by pushing the SET (+) button, or decrease

speed by pushing the SET (-) button.
U.S. Speed (mph)



Pushing the SET (+), or SET (-) button once will

result in a 1 mph speed adjustment. Each

subsequent tap of the button results in an

adjustment of 1 mph.



If the button is continually pushed, the set

speed will continue to adjust in 5 mph incre

ments until the button is released. The new set

speed is reflected in the instrument cluster

display.

Metric Speed (km/h)



Pushing the SET (+), or SET (-) button once will

result in a 1 km/h speed adjustment. Each

subsequent tap of the button results in an

adjustment of 1 km/h.



If the button is continually pushed, the set

speed will continue to adjust in 10 km/h incre

ments until the button is released. The new set

speed is reflected in the instrument cluster

display.

NOTE:

When you override and push the SET (+) button or

SET (-) button, the new set speed will be the current

speed of the vehicle.
When ACC Is Active



When you use the SET (-) button to decelerate, if

the engine’s braking power does not slow the

vehicle sufficiently to reach the set speed, the

brake system will automatically slow the

vehicle.



The ACC system decelerates the vehicle to a full

stop when following the vehicle in front. If your

vehicle follows the vehicle in front to a standstill,

after two seconds the driver will either have to

push the RES (resume) button, or apply the

accelerator pedal to reengage the ACC to the

existing set speed.



The ACC system maintains set speed when

driving uphill and downhill. However, a slight

speed change on moderate hills is normal. In

addition, downshifting may occur while climbing

uphill or descending downhill. This is normal

operation and necessary to maintain set speed.

When driving uphill and downhill, the ACC

system will cancel if the braking temperature

exceeds normal range (overheated).

Setting The Following Distance In ACC

The specified following distance for ACC can be set

by varying the distance setting between four bars

(longest), three bars (long), two bars (medium) and

one bar (short). Using this distance setting and the

vehicle speed, ACC calculates and sets the

distance to the vehicle ahead. This distance

setting appears in the instrument cluster display.

Distance Settings

To increase the distance setting, push the

Distance Increase button and release. Each time

the button is pushed, the distance setting

increases by one bar (longer).

1 — Longest Distance Setting (Four Bars)
2 — Medium Distance Setting (Two Bars)
3 — Long Distance Setting (Three Bars)
4 — Short Distance Setting (One Bar)

STARTING AND OPERATING

147

To decrease the distance setting, push the

Distance Decrease button and release. Each time

the button is pushed, the distance setting

decreases by one bar (shorter).

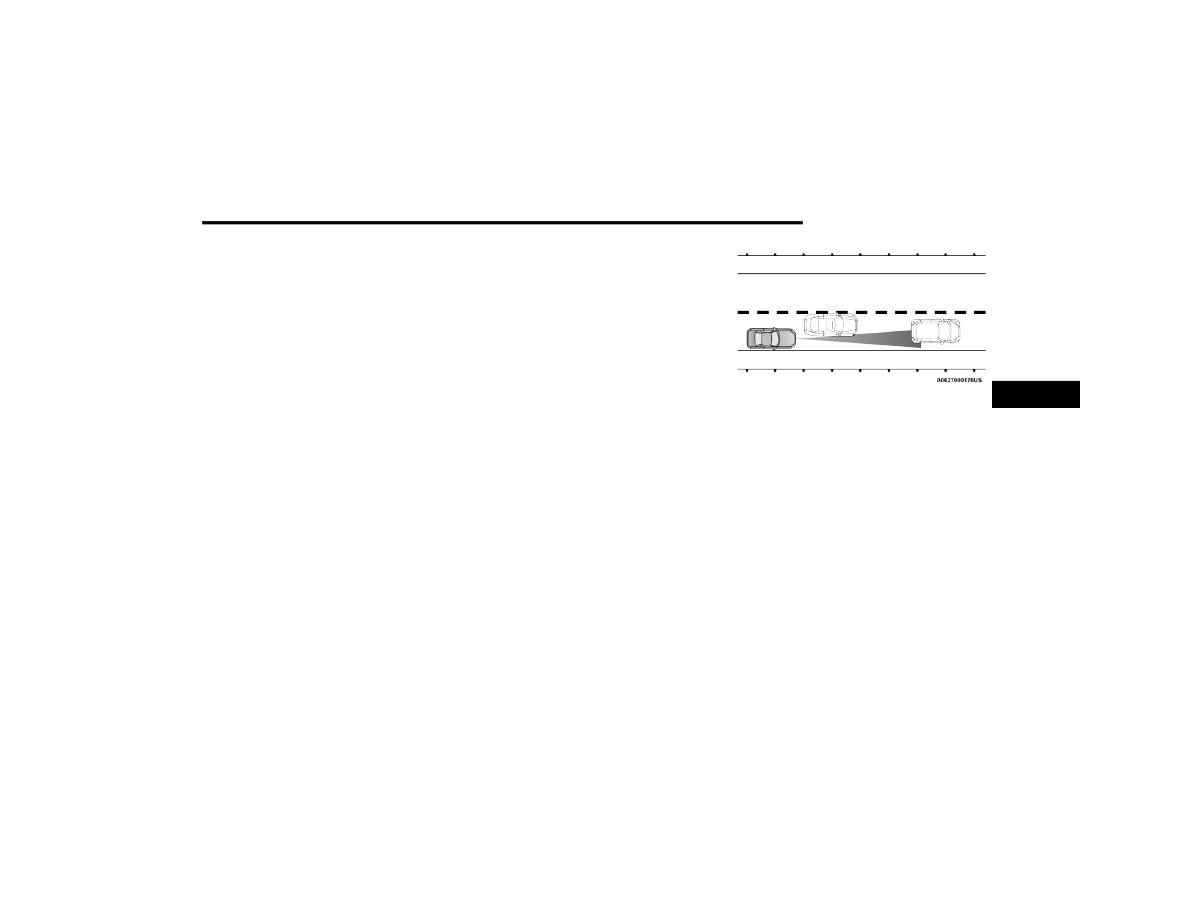

If there is no vehicle ahead, the vehicle will

maintain the set speed. If a slower moving vehicle

is detected in the same lane, the instrument

cluster display will show the ACC Set With Target

Detected Indicator Light, and the system will adjust

the vehicle speed automatically to maintain the

distance setting, regardless of the set speed.
The vehicle will then maintain the set distance

until:



The vehicle ahead accelerates to a speed above

the set speed.



The vehicle ahead moves out of your lane or

view of the sensor.



The distance setting is changed.



The system disengages

page 144.

The maximum braking applied by ACC is limited;

however, the driver can always apply the brakes

manually, if necessary.

NOTE:

The brake lights will illuminate whenever the ACC

system applies the brakes.

A Proximity Warning will alert the driver if ACC

predicts that its maximum braking level is not

sufficient to maintain the set distance. If this

occurs, a visual alert “BRAKE!” will flash in the

instrument cluster display and a chime will sound

while ACC continues to apply its maximum braking

capacity.

NOTE:

The “BRAKE!” screen in the instrument cluster

display is a warning for the driver to take action

and does not necessarily mean that the Forward

Collision Warning system is applying the brakes

autonomously.

Overtake Aid

When driving with Adaptive Cruise Control (ACC)

engaged and following a vehicle, the system will

provide an additional acceleration up to the ACC

set speed to assist in passing the vehicle. This

additional acceleration is triggered when the driver

utilizes the left turn signal and will only be active

when passing on the left hand side.

ACC Operation At Stop

If the ACC system brings your vehicle to a standstill

while following a vehicle ahead, your vehicle will

resume motion, without any driver interaction, if

the vehicle ahead starts moving within two

seconds of your vehicle coming to a standstill.

If the vehicle in front does not start moving within

two seconds of your vehicle coming to a standstill,

the driver will either have to push the RES (resume)

button, or apply the accelerator pedal to reengage

the ACC to the existing set speed.

NOTE:



If your vehicle is at a standstill for longer than

two seconds, the system will hold brake pres

sure for up to 10 minutes. If no driver action is

taken after the 10 minutes, the Electric Park

Brake will be applied and the ACC system will

cancel.



While ACC is holding your vehicle at a standstill

(or the vehicle is traveling below 3 mph

(5 km/h), and the driver seat belt is unbuckled

or the driver door is opened, the Electric Park

Brake will be applied and the ACC system will

cancel.

WARNING!

When the ACC system is resumed, the driver

must ensure that there are no pedestrians,

vehicles or objects in the path of the vehicle.

Failure to follow these warnings can result in a

collision and death or serious personal injury.

148

STARTING AND OPERATING

Display Warnings And Maintenance

“WIPE FRONT RADAR SENSOR IN FRONT OF

VEHICLE” WARNING

The “ACC Unavailable Wipe Front Radar Sensor”

warning will display and a chime will sound when

conditions temporarily limit system performance.
This most often occurs at times of poor visibility,

such as in snow or heavy rain. The ACC system may

also become temporarily blinded due to

obstructions, such as mud, dirt or ice. In these

cases, the instrument cluster display will display

the above message and the system will deactivate.
This message can sometimes be displayed while

driving in highly reflective areas (i.e. ice and snow,

or tunnels with reflective tiles). The ACC system will

recover after the vehicle has left these areas.

Under rare conditions, when the radar is not

tracking any vehicles or objects in its path, this

warning may temporarily occur.

NOTE:

If the “ACC Unavailable Wipe Front Radar Sensor”

warning is active, Fixed Speed Cruise Control is still

available.
If weather conditions are not a factor, the driver

should examine the sensor. It may require cleaning

or removal of an obstruction. The sensor is located

in the center of the vehicle behind the lower grille.

To keep the ACC System operating properly, it is

important to note the following maintenance

items:



Always keep the sensor clean. Carefully wipe the

sensor lens with a soft cloth. Be cautious not to

damage the sensor lens.



Do not remove any screws from the sensor.

Doing so could cause an ACC system malfunc

tion or failure and require a sensor realignment.



If the sensor or front end of the vehicle is

damaged due to a collision, see your authorized

dealer for service.



Do not attach or install any accessories near the

sensor, including transparent material or after

market grilles. Doing so could cause an ACC

system failure or malfunction.

When the condition that deactivated the system is

no longer present, the system will return to the

“Adaptive Cruise Control Off” state and will resume

function by simply reactivating it.

NOTE:



If the “ACC Unavailable Wipe Front Radar

Sensor” message occurs frequently (e.g. more

than once on every trip) without any snow, rain,

mud, or other obstruction, have the radar

sensor realigned at an authorized dealer.



Installing a snowplow, front-end protector, an

aftermarket grille or modifying the grille is not

recommended. Doing so may block the sensor

and inhibit ACC operation.

“CLEAN FRONT WINDSHIELD” WARNING

The “ACC Limited Functionality Clean Front

Windshield” warning will display, and a chime will

sound when conditions temporarily limit system

performance. This most often occurs at times of

poor visibility, such as in snow or heavy rain and

fog. The ACC system may also become temporarily

blinded due to obstructions, such as mud, dirt, or

ice on windshield and fog on the inside of glass. In

these cases, the instrument cluster display will

read “ACC Limited Functionality Clean Front

Windshield” and the system will have degraded

performance.
This message can sometimes be displayed while

driving in adverse weather conditions. The ACC

system will recover after the vehicle has left these

areas. Under rare conditions, when the camera is

not tracking any vehicles or objects in its path this

warning may temporarily occur.
If weather conditions are not a factor, the driver

should examine the windshield and the camera

located on the back side of the inside rearview

mirror. They may require cleaning or removal of an

obstruction.

STARTING AND OPERATING

149

When the condition that created limited

functionality is no longer present, the system will

return to full functionality.

NOTE:

If the “ACC Limited Functionality Clean Front Wind

shield” message occurs frequently (e.g. more than

once on every trip) without any snow, rain, mud, or

other obstruction, have the windshield and forward

facing camera inspected at an authorized dealer.

SERVICE ACC WARNING

If the system turns off, and the instrument cluster

display reads “ACC Unavailable Service Required”

or “Cruise Unavailable Service Required”, there

may be an internal system fault or a temporary

malfunction that limits ACC functionality. Although

the vehicle is still drivable under normal

conditions, ACC will be temporarily unavailable. If

this occurs, try activating ACC again later, following

an ignition cycle. If the problem persists, see an

authorized dealer.

Precautions While Driving With ACC

In certain driving situations, ACC may have

detection issues. In these cases, ACC may brake

late or unexpectedly. The driver needs to stay alert

and may need to intervene. The following are

examples of these types of situations:

TOWING A TRAILER

Towing a trailer is not recommended when using

ACC.

OFFSET DRIVING

ACC may not detect a vehicle in the same lane that

is offset from your direct line of travel, or a vehicle

merging in from a side lane. There may not be

sufficient distance to the vehicle ahead. The offset

vehicle may move in and out of the line of travel,

which can cause your vehicle to brake or

accelerate unexpectedly.

Offset Driving Condition Example

TURNS AND BENDS

When driving on a curve with ACC engaged, the

system may increase or decrease the vehicle

speed for stability, with no vehicle ahead detected.

Once the vehicle is out of the curve, the system will

resume your original set speed. This is a part of

normal ACC system functionality.

NOTE:

On tight turns ACC performance may be limited.

150

STARTING AND OPERATING

USING ACC ON HILLS

ACC performance may be limited when driving on

hills. ACC may not detect a vehicle in your lane

depending on the speed, vehicle load, traffic

conditions, and the steepness of the hill.

ACC Hill Example

LANE CHANGING

ACC may not detect a vehicle until it is completely

in the lane in which you are traveling. In the

following lane changing example, ACC has not yet

detected the vehicle changing lanes and it may not

detect the vehicle until it is too late for the ACC

system to take action. ACC may not detect a

vehicle until it is completely in the lane. There may

not be sufficient distance to the lane-changing

vehicle. Always be attentive and ready to apply the

brakes if necessary.

Lane Changing Example

NARROW VEHICLES

Some narrow vehicles traveling near the outer

edges of the lane or edging into the lane are not

detected until they have moved fully into the lane.

There may not be sufficient distance to the vehicle

ahead.

Narrow Vehicle Example

STATIONARY OBJECTS AND VEHICLES

ACC does not react to stationary objects or

vehicles. For example, ACC will not react in

situations where the vehicle you are following exits

your lane and the vehicle ahead is stopped in your

lane. It will consider this stopped vehicle a

stationary object as it did not previously detect

movement from it. Always be attentive and ready

to apply the brakes if necessary.

Stationary Object And Stationary Vehicle Example

STARTING AND OPERATING

151

TRAFFIC SIGN ASSIST SYSTEM —

IF EQUIPPED

The Traffic Sign Assist (TSA) system uses a camera

mounted on the windshield, as well as map data

when the vehicle is equipped with Navigation, to

detect recognizable road signs such as:



Speed limits



School zones



No passing zones

NOTE:



The TSA system will automatically display the

detected road sign using the unit of measure

ment (mph or km/h) selected within the instru

ment cluster display.



If no speed limit signs are detected, the system

will revert to the speed limit signs that are

stored in the Navigation system.



The system always checks the traffic signs indi

cating the current speed limit. The system is

able to recognize and display up to two different

road signs in the instrument cluster display.

These road signs can be found on the Driver

Assist page.

CTIVATION

EACTIVATION

The TSA System can be enabled/disabled within

the Uconnect system through the Safety/Driver

Assistance menu. System ON is signaled by road

signs shown on the instrument cluster display.

NOTE:

Even if the system is OFF, the speed limit sign will

be displayed when the driver selects it on the

HOME screen.

RAFFIC

IGN

SSIST

ODES

TSA has three selectable modes of operation that

are available through the Uconnect system

page 204.

Visual
When Visual is selected, the system will alert the

driver when the current speed of the vehicle

exceeds the detected speed limit by showing a

graphic in the instrument cluster display.

Visual + Chime
When Visual + Chime is selected, the system will

alert the driver when the current speed of the

vehicle exceeds the detected speed limit by

showing a graphic in the instrument cluster

display, and by sounding an audible alert. The

audible alert will last for 10 seconds, and the

visual alert will remain on as long as the vehicle is

exceeding the speed limit.
TSA Off
When the TSA system is turned off, the system will

not show any traffic signs (unless selected in the

HOME screen, which will show detected speed

limit signs), and no alerts will be issued to the

driver.

NDICATIONS

ISPLAY

Detected traffic signs are shown in the instrument

cluster display, and can display any combination of

signs at one time (e.g. speed limit, speed limit and

supplemental info, and “Do Not Pass” signs)

depending on what information is available.
When a newly detected speed limit is higher than

the current speed limit, the display will update

along with an up arrow.

152

STARTING AND OPERATING

(Continued)

When a newly detected speed limit is lower than

the current speed limit, the display will update

along with a down arrow.
NOTE:

Up or down arrows will be displayed for up to five

seconds.

Traffic Signs Recognized

Supplemental Information
Supplemental information may be displayed, along

with a newly detected speed limit, indicating

special circumstances of which the driver should

be aware. Available supplemental information

includes:



School



Construction



Rain



Snow



Fog

NOTE:

Supplemental information will not be displayed

when the vehicle is ONLY equipped with GPS.
Speed Limit Exceeded
When the vehicle’s speed exceeds the displayed

speed limit by 3 mph (5 km/h), the speed limit sign

on the instrument cluster display will show a red

outline to alert the driver.

ACTIVE DRIVING ASSIST SYSTEM —

IF EQUIPPED

PERATION

The Active Driving Assist (ADA) system is combined

with the Adaptive Cruise Control (ACC) system, and

centers the vehicle in the driving lane while

traveling at speeds up to 90 mph (145 km/h).
For ACC system operating instructions and system

limitations, see

page 142.

NOTE:



The driver should always obey traffic laws and

speed limits. Never drive above applicable

speed limit restrictions.

1 — Current Speed Limit With Supplemental Infor

mation (School Zone)
2 — Next Speed Limit Detected
3 — No Passing Zone Detected

CAUTION!



Traffic Sign Assist is designed to assist the

driver and not to substitute the driver. It is the

driver’s responsibility to continue to monitor

the vehicle speed.



Functionality may be limited or the system

may not work if the sensor is obstructed.



The system may have limited operation or not

work at all in weather conditions such as

heavy rain, hail, and thick fog. Strong light

contrasts can influence the recognition capa

bility of the sensor.



The area surrounding the sensor must not be

covered with stickers or any other object.



Do not tamper or perform any operations in

the area of the windshield glass directly

surrounding the sensor.



Clean foreign matters such as bird droppings,

insects, snow or ice on the windshield. For

glass cleaning recommendations, see

page 395.

CAUTION!

STARTING AND OPERATING

153



The driver can override ADA at any time by

braking, accelerating, or steering the vehicle.

Just like ACC, ADA will maintain a set speed as long

as the set distance between your vehicle and the

vehicle in front is maintained. ADA will also keep

your vehicle centered between the lane lines, and

monitor for other vehicles in adjacent lanes by

utilizing the Blind Spot Monitoring sensors.
Two types of Active Driving Assist systems are

available:



Base ADA system



Hands-Free ADA system

Base Active Driving Assist System — If Equipped
The Base ADA system uses sensors within the

steering wheel to measure driver attentiveness,

and requires that the driver have their hands on

the steering wheel at all times.
The system will generally aim to keep the vehicle

centered in the lane, but when the driver turns the

steering wheel (e.g. to move farther away from a

large vehicle in an adjacent lane) the system will

reduce its control and enter "co-steering" mode.

While in co-steering mode, the system will provide

reduced assistance and allow the driver to control

the path of the vehicle. Once the driver stops

providing input to the steering wheel, the system

will require a few seconds to fully resume lane

centering assistance, especially during curves.

Hands-Free Active Driving Assist System —

If Equipped
The Hands-Free ADA system uses sensors within

the steering wheel and a driver monitoring camera

located on top of the steering column to monitor

driver attentiveness. The Hands-Free ADA system

allows the driver to remove their hands from the

steering wheel when engaged, but requires that

the driver continue to pay attention to the road.
The Hands-Free ADA system will also change lanes

when a turn signal is activated if the adjacent lane

in the direction indicated is clear of another

vehicle, and lane markings are detected (noted by

a dashed line in the direction of the available lane

change). The system uses sensors, including Blind

Spot Monitoring (BSM) sensors, to determine if a

lane change is possible. If the assisted lane

change is in progress, a green arrow will appear. If

a lane change is requested but the direction

indicated is not possible, a yellow arrow will

appear. Once conditions are clear, the arrow will

turn green and the assisted lane change will begin.
Additionally, Hands-Free ADA will slow the vehicle

down when approaching and going through sharp

curves.

Assisted Lane Change (Green Left Arrow)

Extended Auto Resume
If equipped with Hands-Free ADA and the system

brings your vehicle to a stop while following the

vehicle ahead, your vehicle will automatically

resume driving without driver input when the path

in front of the vehicle is clear and the driver is

attentive. The path in front of the vehicle is

determined to be clear based on the forward facing

camera, front radars, and front ultrasonic sensors.

WARNING!

The driver is always responsible for determining

if a lane change is safe. Failure to follow this

warning can result in a collision and death or

serious personal injury.

154

STARTING AND OPERATING

(Continued)

If the vehicle in front does not start moving after

10 minutes, the Electric Park Brake (EPB) will be

applied and the system will cancel.
NOTE:



The Hands-Free Active Driving Assist system is

only available on approved compatible road

ways. Please consult the Jeep® website for

further details on compatible roadways.



The Hands-Free Active Driving Assist system

requires an active subscription through the

Jeep® Connect (Uconnect Connected Services)

package. If the ADA on/off button is pushed

without an active subscription, the instrument

cluster display will show the message “Active

Driving Assist Unavailable Update Subscrip

tion”. Refer to the Uconnect Owner’s Manual

Supplement for further information.



If previously disabled, activating the Hands-Free

Active Driving Assist system will also activate

the Forward Collision Warning and Pedestrian

Emergency Braking systems

page 261.



If the vehicle is equipped with the Jeep®

Connect (Uconnect Connected Services)

package, additional data may be collected

through the Jeep® Connect (Uconnect

Connected Services) system. This includes

information about the vehicle’s operation, a

collision involving the vehicle, the use of the

vehicle and its features, and in certain situa

tions, the location and approximate GPS speed

of the vehicle. Refer to the Uconnect Owner’s

Manual Supplement for Terms and Conditions

and Privacy Statements.



The driver monitoring camera may record

images of the driver during certain crash, or

near crash-like situations. To retrieve the

images recorded by the camera, special equip

ment is required and access to the vehicle or

the camera is needed.



Vehicle data may be read from the Hands-Free

ADA system with special equipment and access

to the vehicle or the Event Data Recorder (EDR).

WARNING!

The Active Driving Assist (ADA) system is a

convenience system. It is not a substitute for

active driver involvement. It is always the driver’s

responsibility to be attentive of road traffic,

weather conditions, vehicle speed, distance to

the vehicle ahead, position in the lane compared

to other vehicles, and brake operation to ensure

safe operation of the vehicle under all road

conditions. Your complete attention is always

required while driving to maintain safe control of

your vehicle. Failure to follow these warnings can

result in a collision and death or serious

personal injury.

Some states and local laws may require hands

to be kept on the steering wheel at all times. For

vehicles equipped with the Hands-Free ADA

system, ONLY remove your hands from the

steering wheel if the Hands-Free system is

engaged, it is safe to do so, and it is permitted by

state and local laws.
You should turn off the Active Driving Assist

systems:



When driving in complex driving situations

(e.g. urban environments, construction zones,

etc.), adverse weather or low visibility condi

tions (e.g. rain, snow, fog, sleet, dust), or

adverse road conditions (e.g. heavy traffic,

worn or missing lane markings, etc.).



When entering a highway on-ramp or exiting

an off-ramp.



When driving on roads that are icy, snow

covered, or slippery.



When driving during difficult or uncertain

conditions.

WARNING!

STARTING AND OPERATING

155

URNING

CTIVE

RIVING

SSIST

Active Driving Assist On/Off Button

To enable the Active Driving Assist system,

proceed as follows:
1. Push the Active Driving Assist on/off button

located on the right side of the steering

wheel. The steering wheel image will display

white in the instrument cluster display until

the system is engaged. If ACC was previously

disabled, pushing this button will activate

BOTH ACC and Active Driving Assist systems.

2. If ACC was engaged before pushing the ADA

on/off button, ACC will remain active and ADA

will also become engaged (once all other

conditions are met).

3. If ACC was not active before pushing the ADA

on/off button, push the SET (+) button or the

SET (-) button and release when the desired

driving speed is shown in the instrument

cluster display.

4. If desired, adjust the ACC distance setting by

pushing the Distance Increase or Distance

Decrease buttons.

When all system conditions are met as described

in “System Engagement Conditions” in the next

section, the system will engage and the steering

wheel image in the display will change to green.

Active Driving Assist Engaged (Steering Wheel Green)

NOTE:



Along with the color change of the steering

wheel image, the “glow” effect of the instrument

cluster display will also change to green when

ADA is engaged.



If equipped with Hands-Free ADA, the light strips

in the driver’s and front passenger’s door

panels will also change to green indicating ADA

is engaged.

System Engagement Conditions
The following conditions must be met before the

system will engage:



Active Driving Assist system is enabled



Driver seat belt is buckled



System detects visible lane markings



Vehicle is traveling below 90 mph (145 km/h)



Vehicle is centered in lane



Turn signal is not activated



Vehicle is not in a tight curve



Trailer is not connected



Driver has hands on steering wheel and is

paying attention to the road



If equipped with the Hands-Free system, vehicle

is driving on an approved roadway



If equipped with the Hands-Free system, a

subscription is active and the vehicle is

receiving a clear cellular signal

Jeep Grand Cherokee (2023 year). Manual in english - page 9
