GETTING TO KNOW YOUR VEHICLE

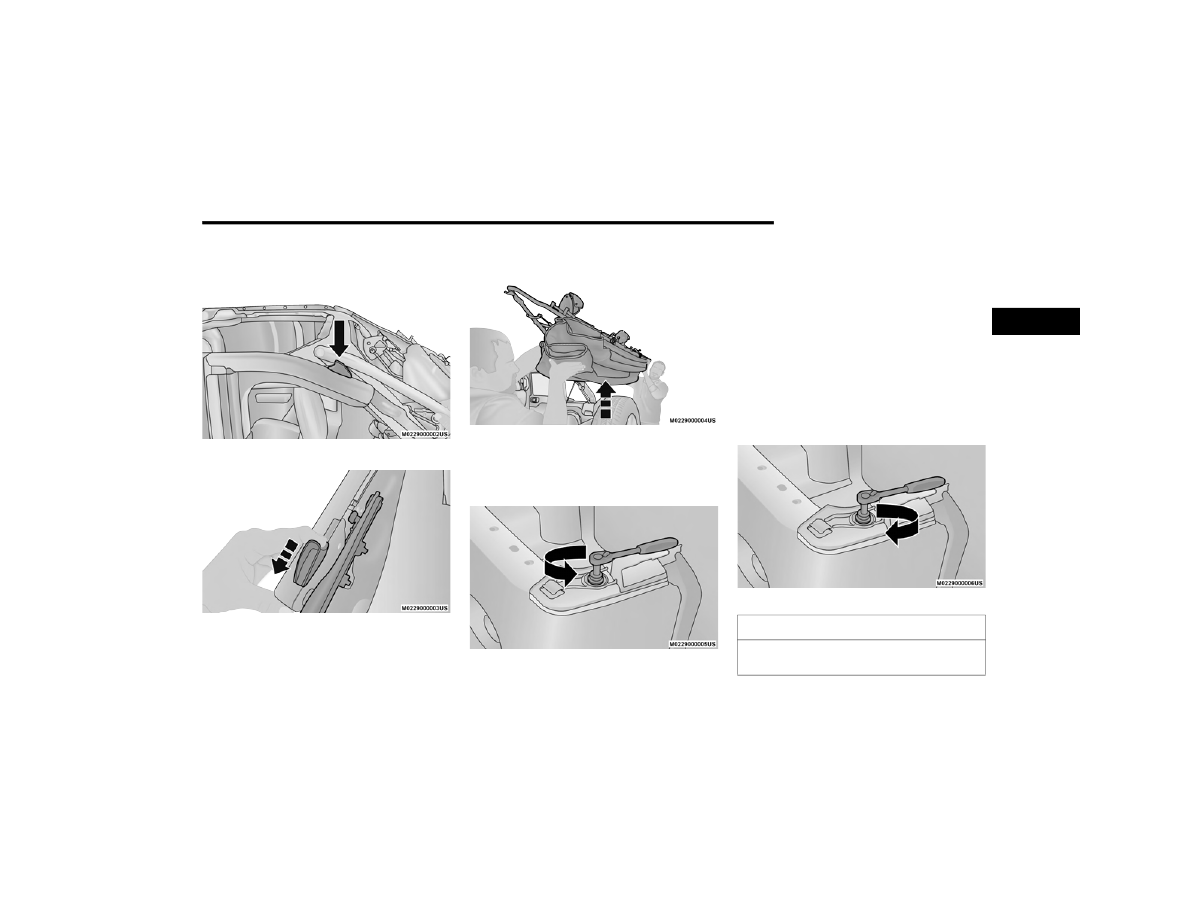

4. Pull the release lever on top of the rail

rearward to release the side link from the

track.

Step Four

5. Repeat on the opposite side.
6. Utilizing two people, lift the soft top up and

away from the vehicle, careful to avoid the

vehicle’s sport bar, trim, and tire carrier. Store

the soft top in a safe, clean, and dry location.

Step Six

7. Using the provided #50 Torx head driver and

ratchet, unscrew the Torx screw on both rear

corners of the vehicle, removing the retainers.

Step Seven

NSTALLING

OFT

1. If currently installed, remove the hard top

page 97.

2. Install the door rails, starting with the front,

followed by the rear on each side. For

instructions and appropriate torque specifi

cations for the door rail Torx screws

page 107.

3. Install the rear retainers on each side of the

rear of the vehicle using the provided #50 Torx

head driver and ratchet. Refer to the following

table for recommended torque specifications.

Step Three

CAUTION!

Do not overtighten Torx screws. Damage to the

retainers will occur.

GETTING TO KNOW YOUR VEHICLE

4. Making sure the lift assist mechanism is in the

“lock” position, lift the soft top into the rear of

the vehicle with the side links pointing toward

the front. Lower the lift assist mechanisms

onto its retainers on both sides (on the inside

of the sport bar).

Step Four

5. Using the provided #40 Torx head driver and

ratchet, tighten the Torx screws by turning

them clockwise. Secure them until they are

snug (refer to the following table for

recommended torque specifications), being

careful not to cross-thread the screws or

overtighten. Repeat on the opposite side.

Step Five

Torque

Specification

For Torx Screw

Maximum

Minimum

119.5 in-lb

150.5 in-lb

106.2 in-lb

13.5 N·m

17.0 N·m

12.0 N·m

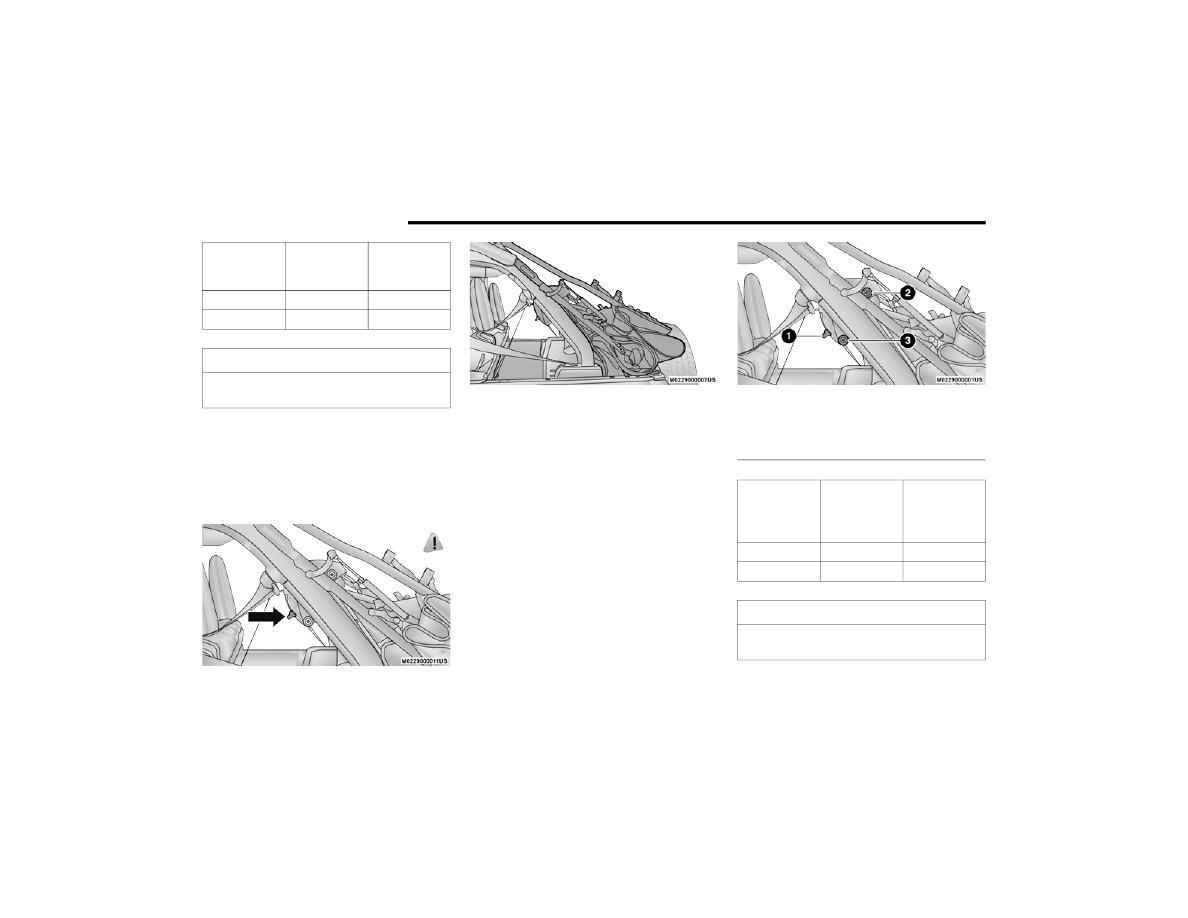

CAUTION!

Failure to follow the next steps could result in

damage to the Soft Top or vehicle.

1 — Lock Position
2 — Torx Head Screw
3 — Torx Head Screw

Torque

Specification

For Torx

Screws

Maximum

Minimum

119.5 in-lb

150.5 in-lb

106.2 in-lb

13.5 N·m

17.0 N·m

12.0 N·m

CAUTION!

Do not overtighten the screws. You can strip the

screws if they are overtightened.

GETTING TO KNOW YOUR VEHICLE

(Continued)

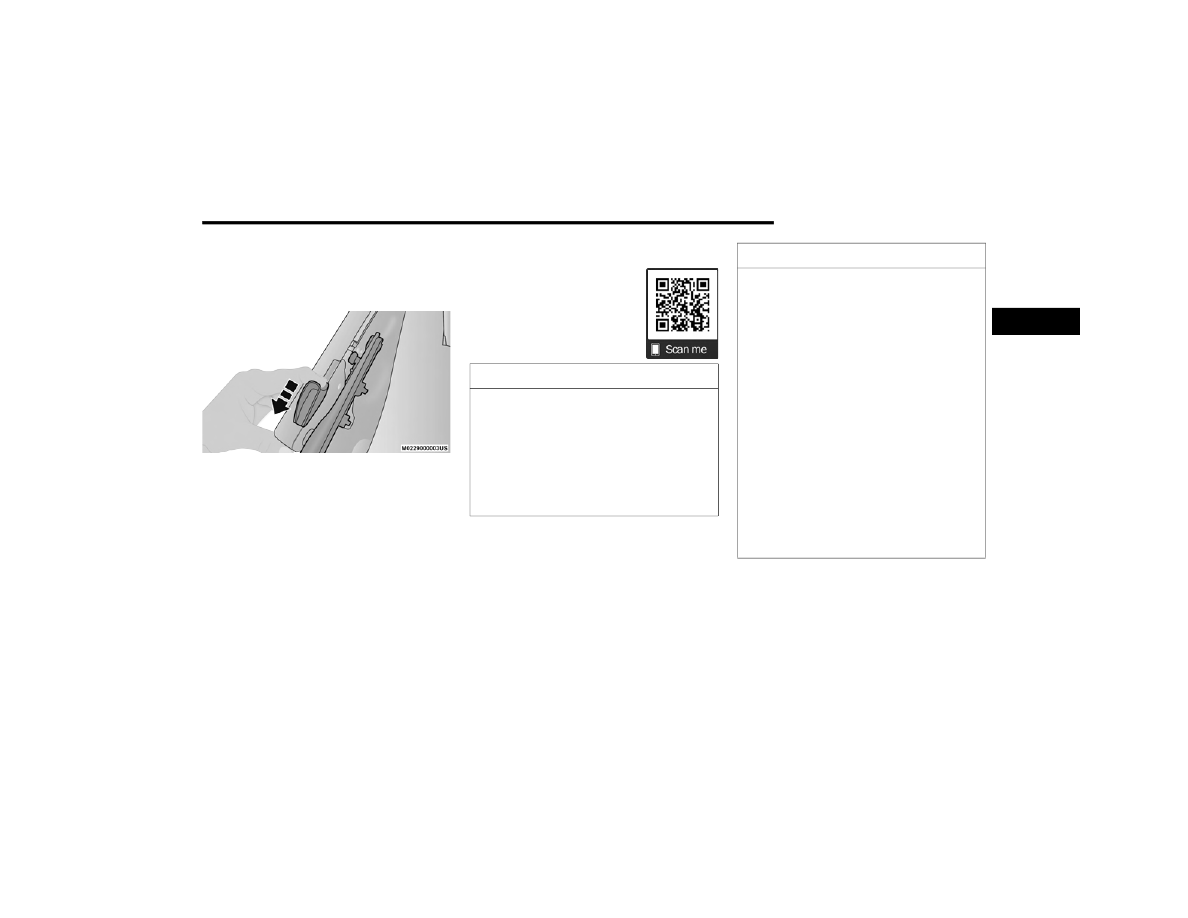

6. While pulling the release lever on the top of the

rail rearward, place the side link into the guide

track on the top of the rail then release the

lever.

Step Six

7. Unsnap and remove the black boot cover. This

cover should be discarded. It was intended as

a protective cover for shipping only.

8. Raise the soft top

page 87.

NOTE:

Be sure the wire harness in the left rear corner is

not tangled in the soft top bows before you lift the

top.

ARD

RONT

ANEL

(

) R

EMOVAL

Use this QR code to access your

digital experience.

CAUTION!



The hard top is not designed to carry any addi

tional loads, such as after-market roof racks,

spare tires, building materials, hunting or

camping supplies, etc. For optional Mopar®

accessory roof racks

page 114.



Do not move your vehicle until the top has

been either fully attached to the front header,

sport bar, and body side or fully removed.

Failure to follow these cautions may cause

interior water damage, stains or mildew:



It is recommended that the top be free of

water prior to panel removal. Removing the

top, opening a door or lowering a window while

the top is wet may allow water to drip into the

vehicle’s interior.



The hard top assembly must be positioned

properly to ensure sealing. Improper installa

tion can cause water to leak into the vehicle’s

interior.



Careless handling and storage of the remov

able roof panels may damage the seals,

causing water to leak into the vehicle’s inte

rior.



The front panel(s) must be positioned properly

to ensure sealing. Improper installation can

cause water to leak into the vehicle’s interior.

CAUTION!

GETTING TO KNOW YOUR VEHICLE

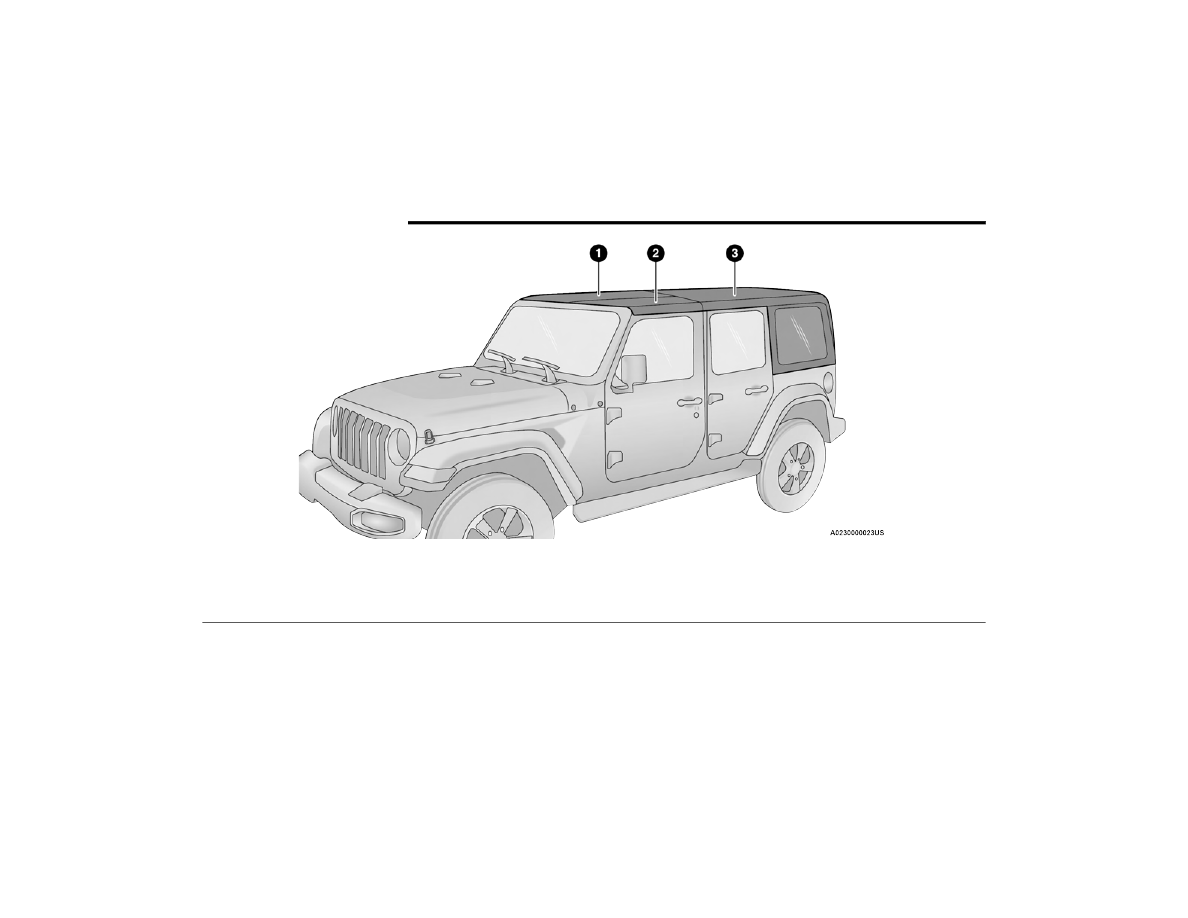

Four Door Hard Top Components

1 — Right Side Panel
2 — Left Side Panel
3 — Hard Top

GETTING TO KNOW YOUR VEHICLE

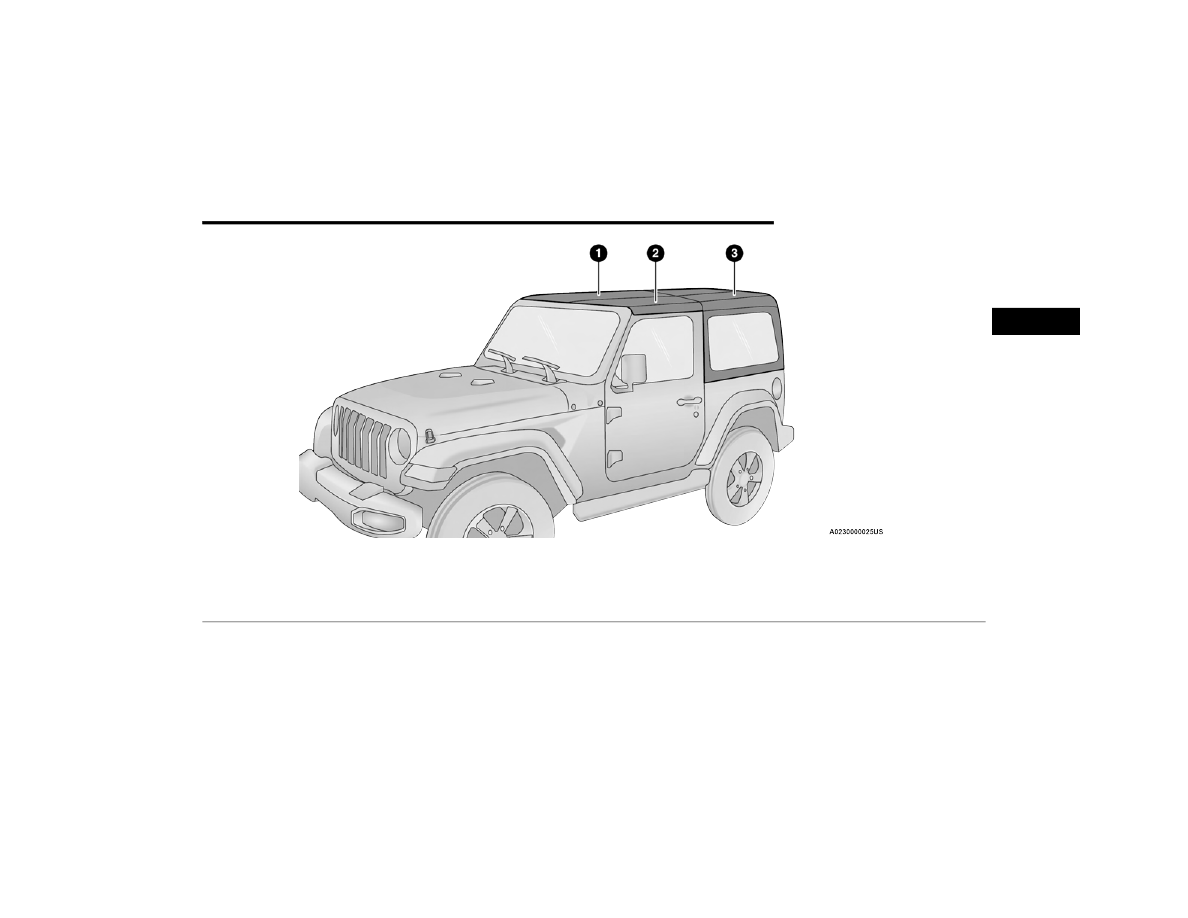

Two Door Hard Top Components

1 — Right Side Panel
2 — Left Side Panel
3 — Hard Top

GETTING TO KNOW YOUR VEHICLE

NOTE:



All hard top removal and installation instruc

tions are applicable to both two and four door

model vehicles.



Images shown are of four door models, and

appearance of two door model components

may differ.



The left side panel must be removed before

removing the right side panel.

To remove the hard top front panel(s), proceed as

follows:
1. Fold down the sun visor against the

windshield.

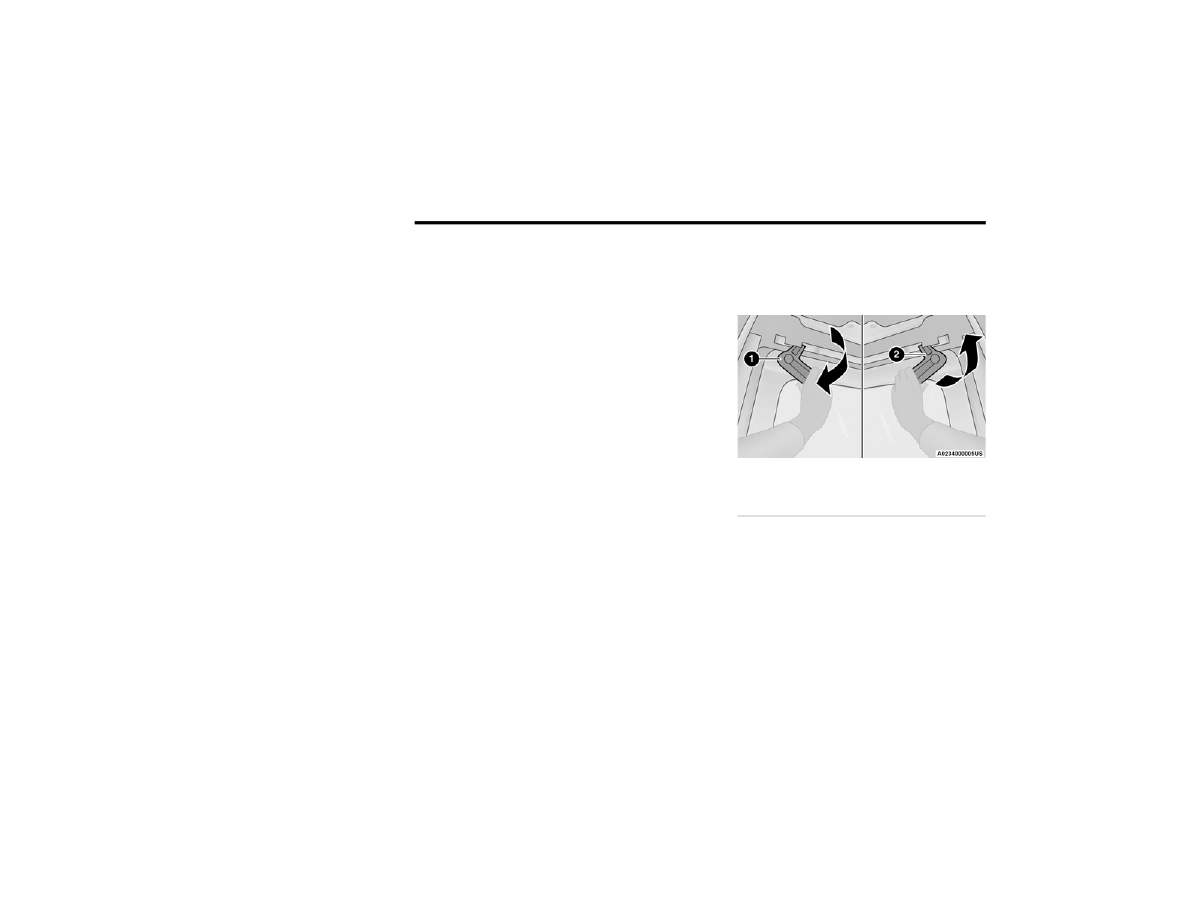

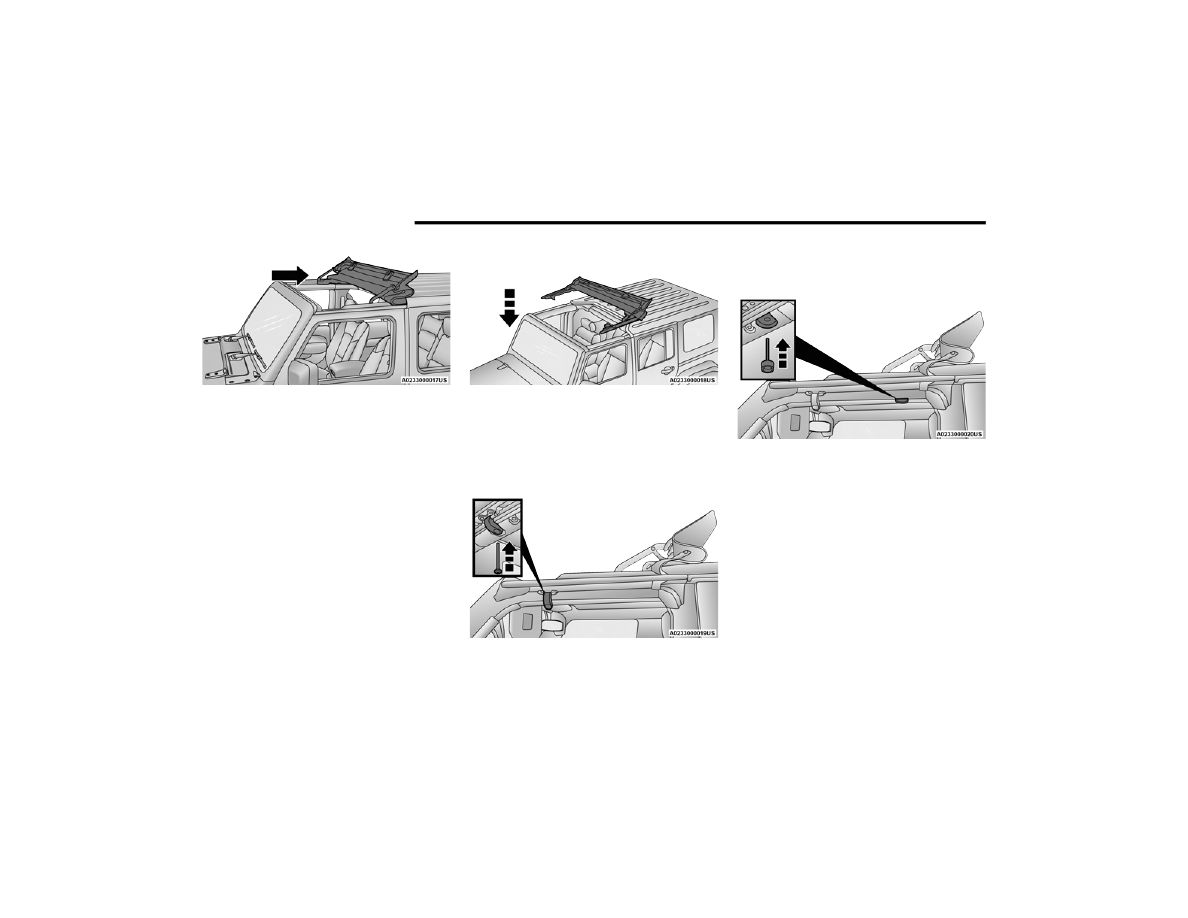

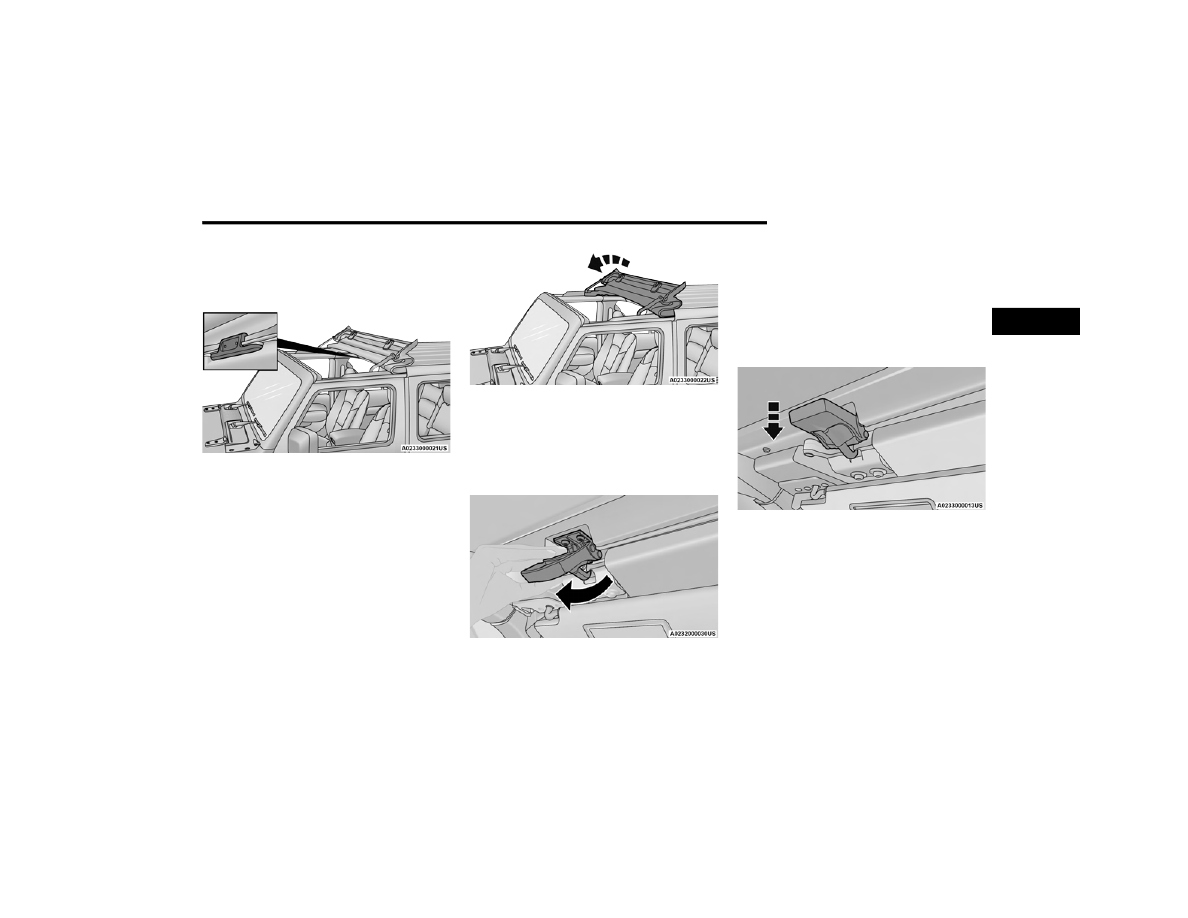

2. Turn the three L-shaped locks on the left side

panel (one at the front, the rear, and outside),

unlocking them from the roof.

Step Two

3. Unlatch the left side header panel latch

located at the top of the windshield.

Step Three

4. Remove the left side panel.
5. Repeat the previous steps to remove the right

side panel.

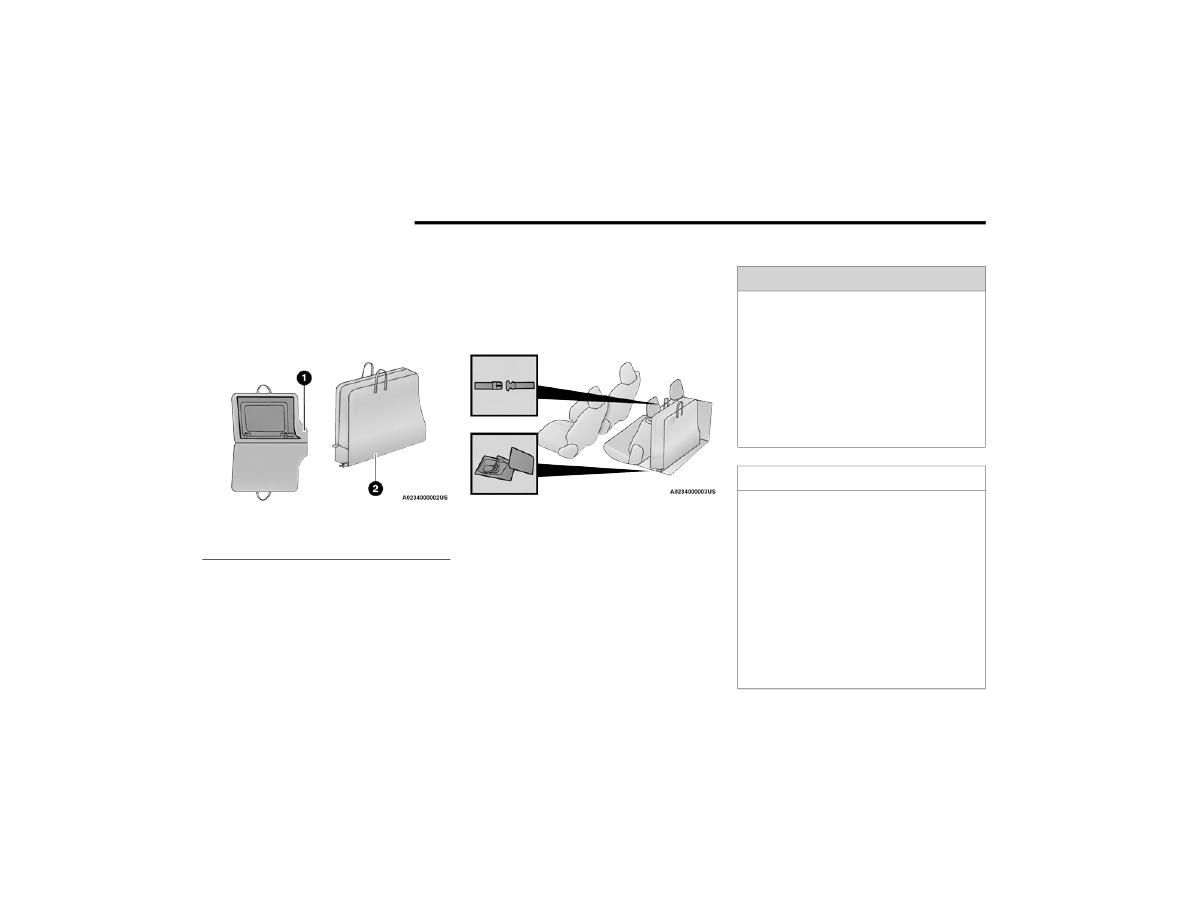

Hard Top Panel(s) Storage Bag — If

Equipped

The Freedom Top panels storage bag allows you to

store your hard top panels. The storage bag

contains two compartments.
Lay the bag for the Freedom Top panels down so

the loops and hooks are facing upward. Unzip the

bag and fold back the outer flap.

NOTE:

Ensure the front panel latch is closed prior to

inserting the panel into the panels bag.
1. Insert the left side hard top panel into the bag

with the latches facing upward.

2. Unfold the black panel divider (ensure the

divider is lying flat).

3. Insert the right side Freedom Top panel into

the bag with the latches facing downward.

NOTE:

Ensure the front panel latch is closed prior to

inserting the panel into the bag.
4. Unfold the outer flap and zip the hard top bag

closed.

Step Four

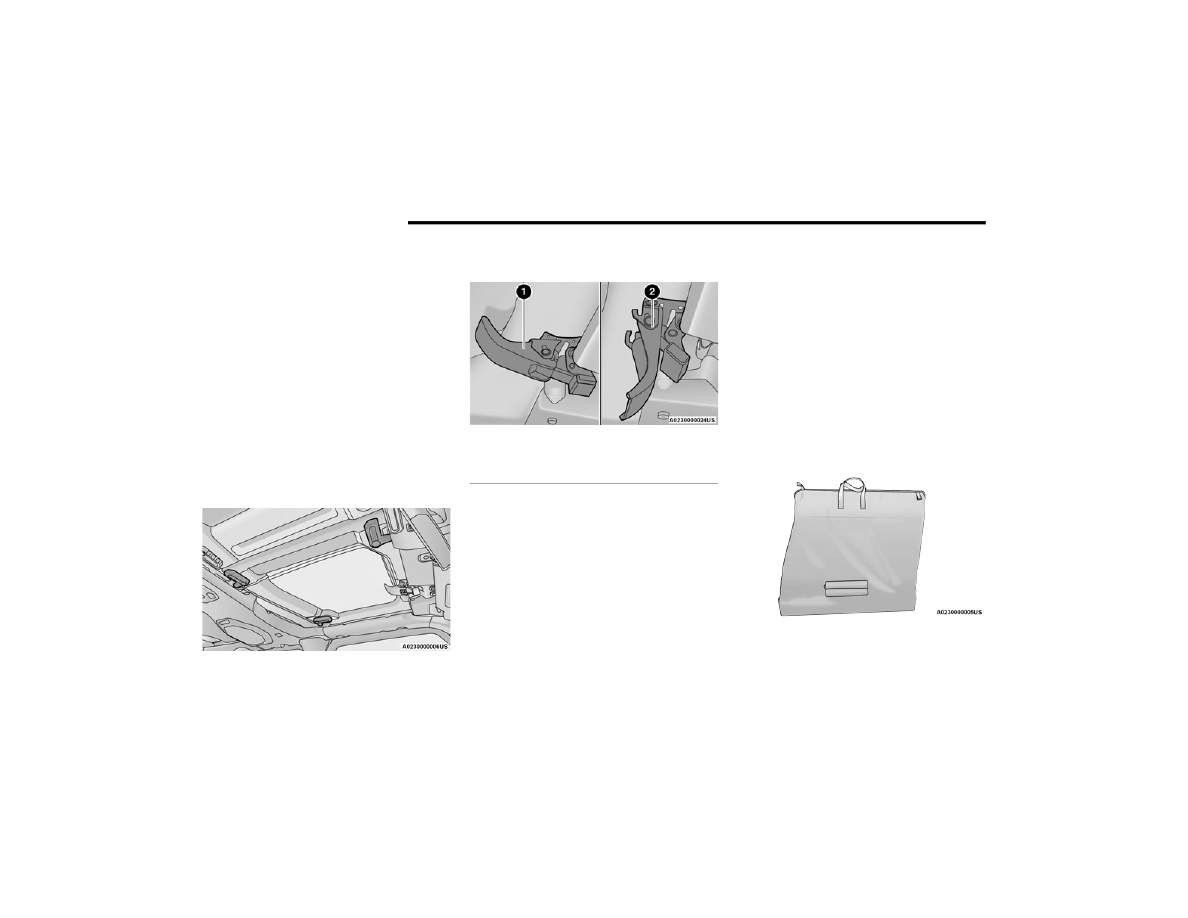

1 — Header Panel Latched
2 — Unlatched Position

GETTING TO KNOW YOUR VEHICLE

5. Lift the Freedom Top bag into the vehicle with

the hooks and straps facing the back of the

rear seat. Attach the clip at the bottom of the

bag to the child restraint anchorage, located at

the base of the rear seat.

6. Wrap the upper strap around the rear head

restraints and loop the strap through the

buckle. Pull on the strap to tighten the

Freedom Top bag securely against the rear

seat.

ARD

RONT

ANEL

(

)

NSTALLATION

1. Open the header latch inside the vehicle, and

the three L-shaped locks on each panel.

2. Set the right side panel on the windshield

frame with the locating pin in the front receiver

mounting hole followed by the left side panel,

making sure there is no overhang. Also, make

sure that the panels are sitting flush with the

body.

3. Reinstall the panel(s) using the same steps for

removal in reverse order.

NOTE:

To prevent water leaks, the seals and hard top

panels should be clear of any dust and debris prior

to reinstallation.

EMOVING

ARD

1. Remove both front panels

page 93.

2. Open both front doors.

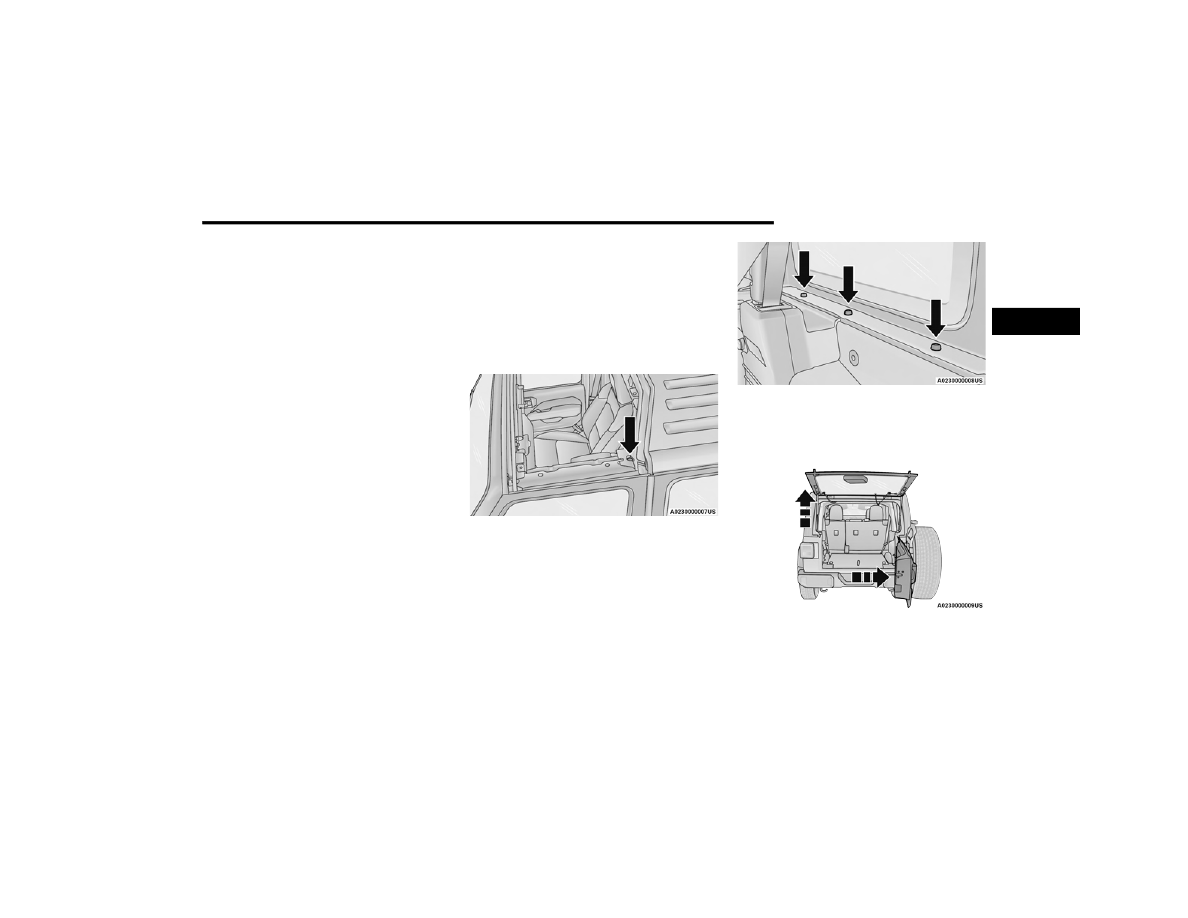

3. Using the provided #50 Torx head driver and

ratchet, remove the two Torx head screws that

secure the hard top at the B-pillar (near the top

of the front doors).

Step Three

4. Remove the six Torx head screws that secure

the hard top to the vehicle (along the interior

bodyside — three screws on each side) using

the #50 Torx head driver.

Step Four

5. Open the swing gate all the way to ensure

clearance of the rear window glass. Lift the

rear window glass.

Step Five

GETTING TO KNOW YOUR VEHICLE

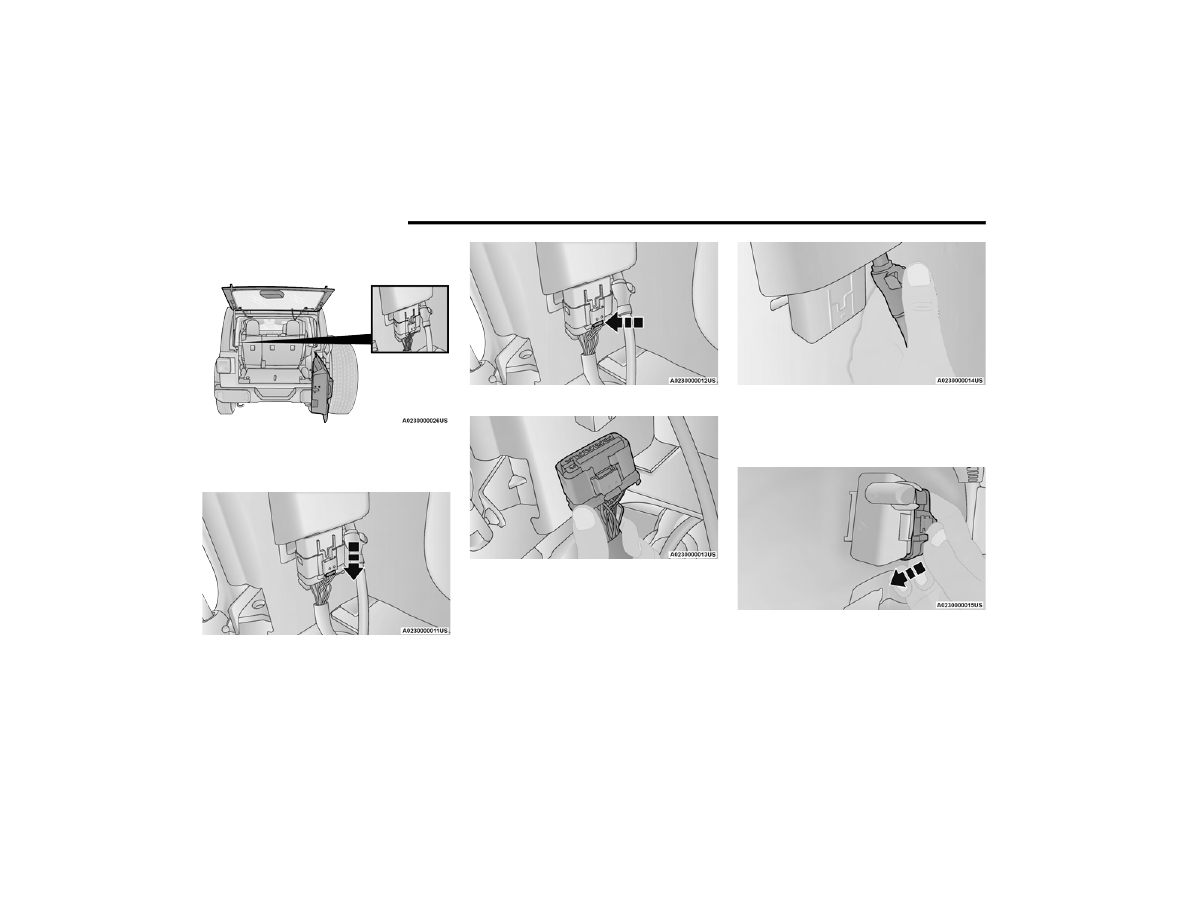

6. Locate the wire harness and washer hose on

the left rear inside corner of the vehicle.

Step Six

7. Release the locking tab by pushing it

downward.

Step Seven

8. To remove the wiring harness, push the tab

inward while pulling downward to disconnect.

Step Eight

9. To remove the washer hose, push the release

button on hose connector, and pull downward.

Step Nine

10. Secure the wire harness to the body side by

plugging it into the receptacle and reengaging

the locking tab.

Step Ten

GETTING TO KNOW YOUR VEHICLE

11. Secure the washer hose by snapping it into the

top of the body side receptacle.

Step Eleven

12. Lower the rear window, and close the swing

gate.

13. Remove the hard top from the vehicle. Place

the hard top on a soft surface to prevent

damage.

NSTALLING

ARD

If the door frames are installed from soft top

usage, they must be removed prior to installation

of the hard top. For removal procedures, see

page 106.

To install the hard top, place the hard top on the

vehicle while making sure that the top is sitting

flush with the body at the sides and check to

ensure that there is a uniform gap between the lift

glass and hard top. Then follow the removal steps

in reverse order.

NOTE:



Inspect the hard top seals for damage and

replace if necessary.



The Torx fasteners that attach the hard top to

the body should be torqued as follows using the

provided #50 Torx head driver and ratchet:



Hard top to B-pillar: 119 in-lb +/- 23 in-lb

(13.5 N·m +/- 2.7 N·m)



Hard top to J-rail: 154 in-lb +/- 30 in-lb

(17.5 N·m +/- 3.5 N·m)

UNRIDER

® F

ARD

The Sunrider® soft top can be used in place of the

Hard Top Freedom Panels for quick and easy

opening of the area above the driver and front

passenger seats.

CAUTION!

The removal of the rear Hard Top requires four

adults, one located on each corner. Failure to

follow this caution could damage the Hard Top.

WARNING!

Do not open or close the Sunrider® top while

driving. Operating the top while driving could

cause the driver to lose control of the vehicle.

Failure to follow this warning may result in

serious injury or death.

100

GETTING TO KNOW YOUR VEHICLE

Sunrider® For Hard Top

To install the Sunrider® soft top, proceed as

follows:
1. Remove both front Hard Top Freedom panels

page 93.

2. With the help of a second person, set the

Sunrider® top onto the top of the vehicle

making sure to align the holes at the front and

rear of the side rails.

Lower Sunrider® Onto The Vehicle

3. Swing the front frame bracket around the side

of the rail, and insert the door rail attachment

bolt (provided bolt without spacer) from

underneath. Tighten with a #40 Torx head

driver until snug.

Attach Front Door Rail Bolt

4. Insert the rear door rail attachment bolt

(provided bolt with spacer) from underneath.

Tighten with #40 Torx head driver until snug.

Attach Rear Door Rail Bolt

5. Repeat steps 3 and 4 on the other side of the

vehicle.

NOTE:

The recommended torque specification for the

front and rear door rail attachment bolts is 8.8 ft-lb

(12 N·m).

GETTING TO KNOW YOUR VEHICLE

101

6. Attach the rear clamp at the rear center of the

Sunrider® top using the two provided rear

clamp attachment bolts. Tighten with #40 Torx

head driver until snug.

Rear Clamp Location

NOTE:

The recommended torque specification for the rear

clamp attachment bolts is 3.7 ft-lb (5 N·m).
7. From inside the vehicle, lift and pull the

Sunrider® top forward using the integrated

handle on the front header of the top.

Manually guide the top into the closed

position.

Push Sunrider® Top Forward

8. From inside the vehicle, pull the handle on the

header latch downward to engage the hook

into its receiver. Pull the handle back upward

while squeezing the hook, locking the latch

into place. Repeat on the other side.

Engage Both Header Latches

To Open The Sunrider® Top
To open the Sunrider® top, proceed as follows:
1. Fold both sun visors forward against the

windshield.

2. Release the header latches from the crossbar

by pulling the handle downward. Make sure

the hook is disengaged from its receiver.

Release Both Header Latches

102

GETTING TO KNOW YOUR VEHICLE

3. From the front of the Sunrider® top, lift and

push the top rearward to the Sunrider®

position.

Sunrider® Position

4. Secure the top by using the two hook-and-loop

fasteners provided with the Sunrider® kit, and

wrap one around the side rails on each side of

the Sunrider® top to hold it in place.

Hook-And-Loop Fastener Placement

OWER

LIDING

— I

QUIPPED

If your vehicle is equipped with a Power Sliding

Top, the control switch can be found on the front

trim panel, to the right of the driver’s side sun visor.

Power Sliding Top Control Switch

NOTE:



The power top is non-removable. If desired, the

rear quarter windows can be removed and

stored in the provided storage bag

page 104.



The power top will not open in temperatures

below -4°F (-20°C). However, if it is opened at a

higher temperature, it can be closed at

temperatures above -40°F (-40°C).



The power top will not operate at vehicle speeds

above 60 mph (96 km/h).

CAUTION!

Lowering of the windshield is NOT

recommended in vehicles equipped with a

Power Sliding Top. Damage will occur to the top

as well as the header seal.

1 — Open Switch
2 — Close Switch

GETTING TO KNOW YOUR VEHICLE

103

NOTE:

A slight pause in audio may be heard when

opening and closing the Power Sliding Top as a

result of the Uconnect system switching between

power top Closed and power top Open audio

modes.

Opening And Closing The Power Top

Express Open/Close
Push the open switch and release it within one-half

second and the power top will open automatically

from any position. The power top will open fully and

stop automatically.
Push the close switch and release it within one-half

second and the power top will close automatically

from any position. The power top will close fully and

stop automatically.
During Express Open or Express Close operation,

any other movement of the power top switch will

stop the power top.
Manual Open/Close
To open the power top manually, push and hold the

open switch to the full open position, then release.
To close the power top manually, push and hold

the close switch to the fully closed position, then

release.
Any release of the switch during open or close

operation will stop the power top movement. The

top will remain in a partially opened position until

the switch is operated and held again.

Pinch Protect Feature

This feature will detect an obstruction in the

opening of the power top during Express Close

operation. If an obstruction in the path of the

power top is detected, the power top will

automatically retract. Remove the obstruction if

this occurs. Next, push the close switch and

release to Express Close.

NOTE:



The Power Sliding Top may reverse motion if

closing during a severe headwind. If this occurs,

push and hold the Power Sliding Top switch

again to close the top completely.



If three consecutive power top close attempts

result in Pinch Protect reversals, Pinch Protect

will disable and the power top must be closed in

Manual Mode.

Power Top Maintenance

Use only a non-abrasive cleaner and a soft cloth to

clean the quarter window glass panel. For

important information on cleaning and caring for

your vehicle

page 408.

WARNING!



Never leave children unattended in a vehicle,

or with access to an unlocked vehicle. Never

leave the key fob in or near the vehicle, or in a

location accessible to children. Do not leave

the Keyless Enter ‘n Go™ Ignition in the ACC or

ON/RUN position. Occupants, particularly

unattended children, can become entrapped

by the power top while operating the power

top switch. Such entrapment may result in

serious injury or death.



In a collision, there is a greater risk of being

thrown from a vehicle with an open power top.

You could also be seriously injured or killed.

Always fasten your seat belt properly and

make sure all passengers are also properly

secured.



Do not allow small children to operate the

power top. Never allow your fingers, other

body parts, or any object, to project through

the power top opening. Injury may result.

WARNING!

There is no anti-pinch protection when the power

top is almost closed. To avoid personal injury be

sure to clear your arms, hands, fingers and all

objects from the top’s path before closing.

104

GETTING TO KNOW YOUR VEHICLE

Ignition Off Operation

The power top switch can remain active in

Accessory Delay for up to approximately

10 minutes after the vehicle’s ignition is placed to

the OFF position. Opening either front door will

cancel this feature.

NOTE:

Ignition Off time is programmable through the

Uconnect system

page 207.

Relearn Procedure

For vehicles equipped with a power top, there is a

relearn procedure that allows you to calibrate the

power top when the “Express Mode” stops

working. To reset the power top, follow these steps:
1. Place the ignition in the RUN position, and

start the vehicle.

NOTE:

The engine must be running to perform the relearn

procedure.
2. Ensure the power top is in the fully closed

position.

3. Push and hold the Close switch for

10 seconds. This will put the power top

into calibration mode.

4. Continue holding down the close button while

the top goes fully open and then back to fully

close.

5. Once the power top has stopped in the fully

closed position, release the close button. The

power top is now reset and ready to use.

NOTE:

If the close button is released anytime during the

relearning process, the relearn may not be

complete, and the procedure must be repeated.

Rear Quarter Window Removal

On vehicles equipped with a Power Sliding Top, the

rear quarter windows can be removed. To remove

these windows, follow this procedure:
1. Open the swing gate, and lift the rear window.
2. Open both side doors nearest the quarter

windows.

3. Locate the rear quarter window latches (two on

each window) on the interior of the windows.

4. Rotate the left hand side latch clockwise to

release.

5. Rotate the right hand side latch counter

clockwise to release.

Step Five

1 — Rotate Left Handle Clockwise
2 — Rotate Right Handle Counterclockwise

GETTING TO KNOW YOUR VEHICLE

105

6. From the outside of the vehicle, lift each

window upward and away from the vehicle.

NOTE:

Do not pull down or apply any weight to the

windows after the latches are released. Damage

could result to the pins holding the windows in

place.

Step Six

7. Store the rear quarter windows in the provided

storage bag and keep in a safe location, or

securely fasten the bag to the rear seat.

Quarter Window Storage Bag
To use the storage bags for the rear quarter

windows, proceed as follows:

1. With the bag completely open and the fabric

divider raised, place the first quarter window

with the latches facing outward into the foam

insert. Fold divider over the window once

placed inside.

Step One

1 — Bag Open With Divider Raised
2 — Lower Divider Over Window

(Latches Facing Outward)

106

GETTING TO KNOW YOUR VEHICLE

2. Place the second window into the foam insert

with the latches facing outward. Fully close the

bag.

NOTE:

Once both windows are placed inside the bag, the

outside of the windows will be facing each other

with all latches facing the outside of the bag.

Step Two

3. Store the bag in a safe location, or in the cargo

area of the vehicle by securing the bag in the

vehicle’s cargo area. This is done by attaching

the straps at the top of the bag to the rear

head restraints, as well as attaching the clip at

the bottom of the bag to the forward most

cargo hook on the load floor.

Step Three

DOOR FRAME

1 — Second Window Placed Over Divider
2 — Fully Closed Bag

WARNING!



Do not drive your vehicle on public roads with

the door frame(s) removed as you will lose the

protection that they can provide. This proce

dure is furnished for use during off-road oper

ation only.



Do not drive your vehicle on public roads with

the doors removed as you will lose the protec

tion that they can provide. This procedure is

furnished for use during off-road operation

only.

CAUTION!

Failure to follow these cautions may cause

interior water damage, stains or mildew:



Opening a door or lowering a window while the

top is wet may allow water to drip into the

vehicle's interior.



Careless handling and storage of the remov

able door frame(s) may damage the seals,

causing water to leak into the vehicle's inte

rior.



The door frame(s) must be positioned properly

to ensure sealing. Improper installation can

cause water to leak into the vehicle's interior.

Content .. 4 5 6 7 ..
