GETTING TO KNOW YOUR VEHICLE

107

OOR

RAME

EMOVAL

NOTE:

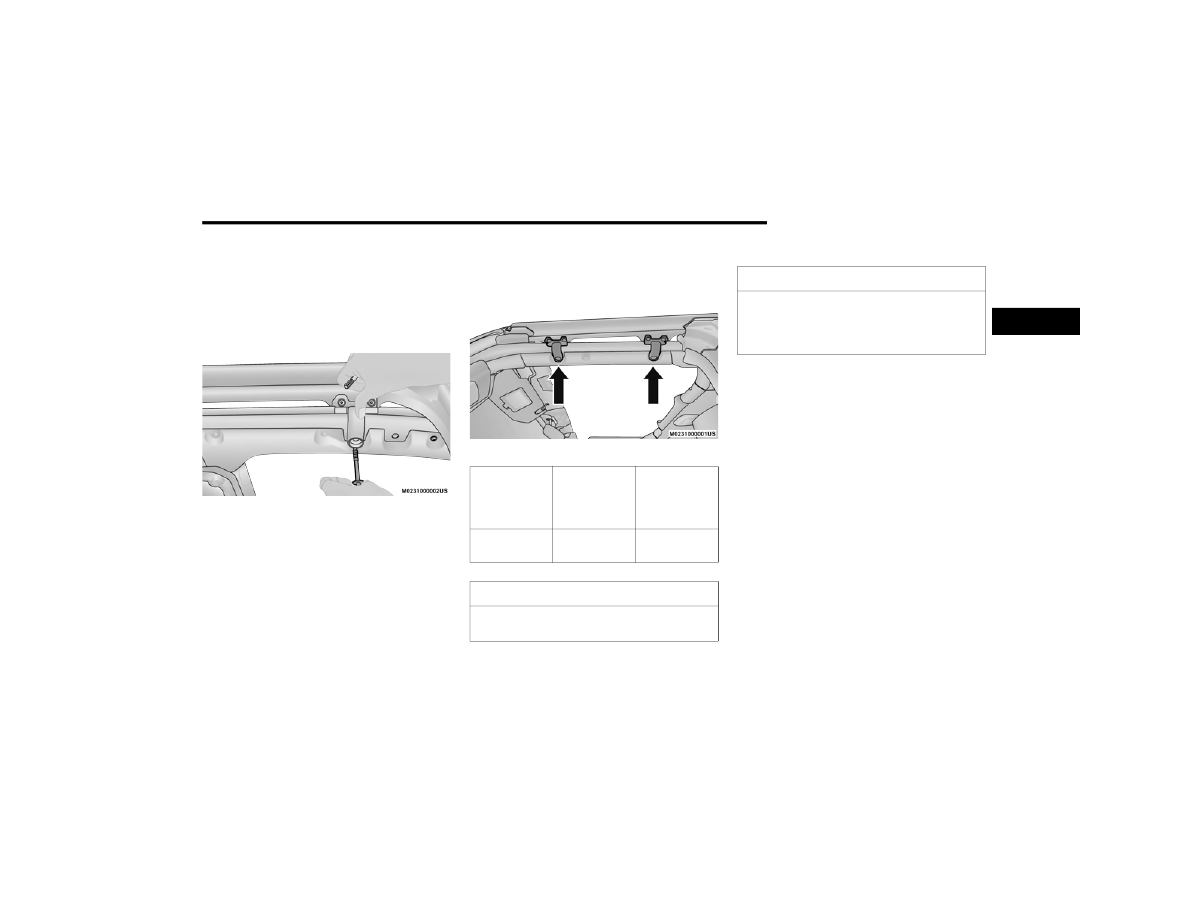

In four door models, the rear door frames must be

removed first, followed by the front door frames.
1. Using the provided #40 Torx head driver and

ratchet, loosen the Torx screws located on the

underside of each door frame (two per door).

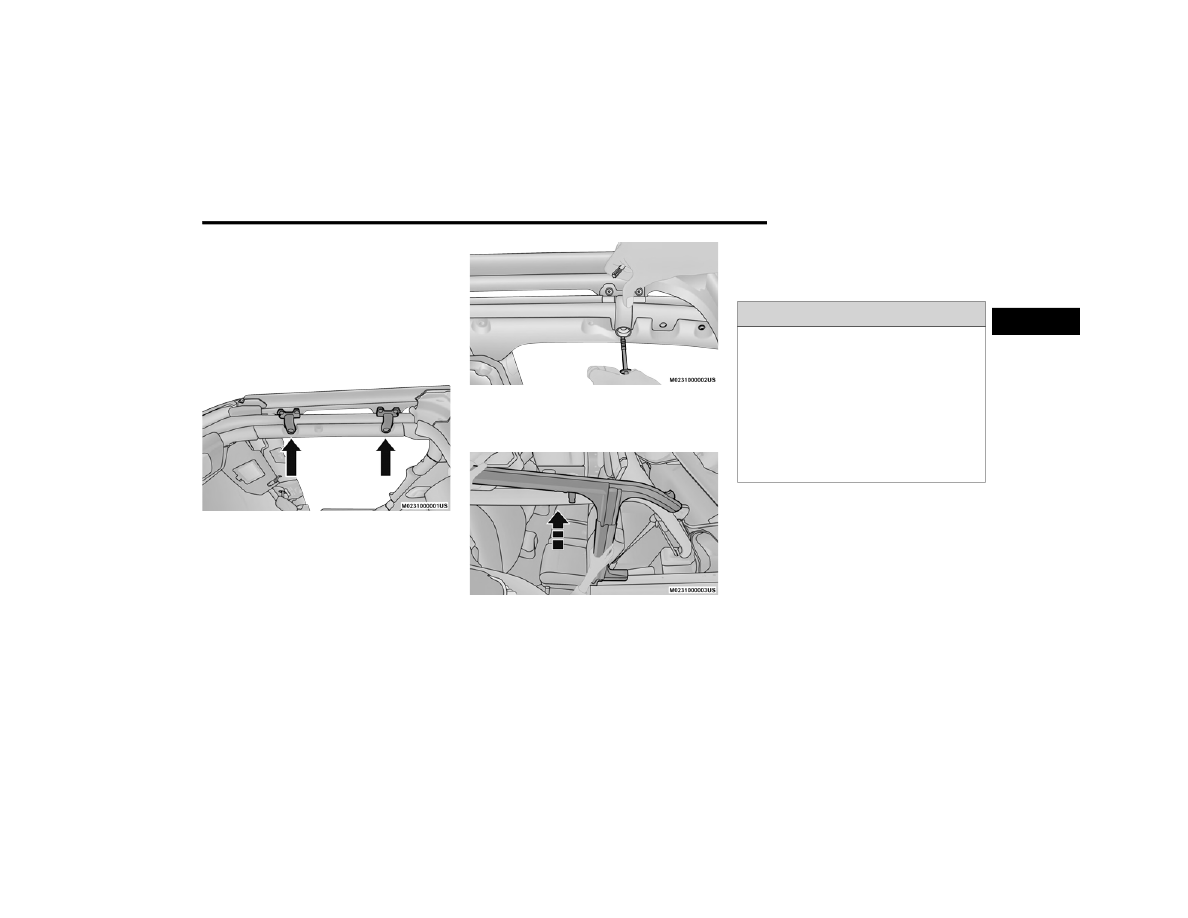

Door Frame Screw Locations

2. Once all the way loosened, remove the screws

by pulling downward.

NOTE:

Screws will not fall out once completely loose, as

they are held in place by an internal mechanism.

Remove Screws From Below Frame

3. Lift the frame upward, removing it from the

vehicle.

Step Three

4. Store screws in a secure location.
5. Repeat procedure on the front door frame

(four door models).

OOR

RAME

NSTALLATION

OUR

OOR

ODELS

— I

QUIPPED

1. Install the front door rail first.
2. Carefully place the front door rail in the rubber

seal at the top of the windshield, and line up

the holes for the Torx head screws (two for

each door).

WARNING!



Do not drive your vehicle on public roads with

the door frame(s) removed as you will lose the

protection that they can provide. This proce

dure is furnished for use during off-road oper

ation only.



Do not drive your vehicle on public roads with

the doors removed as you will lose the protec

tion that they can provide. This procedure is

furnished for use during off-road operation

only.

108

GETTING TO KNOW YOUR VEHICLE

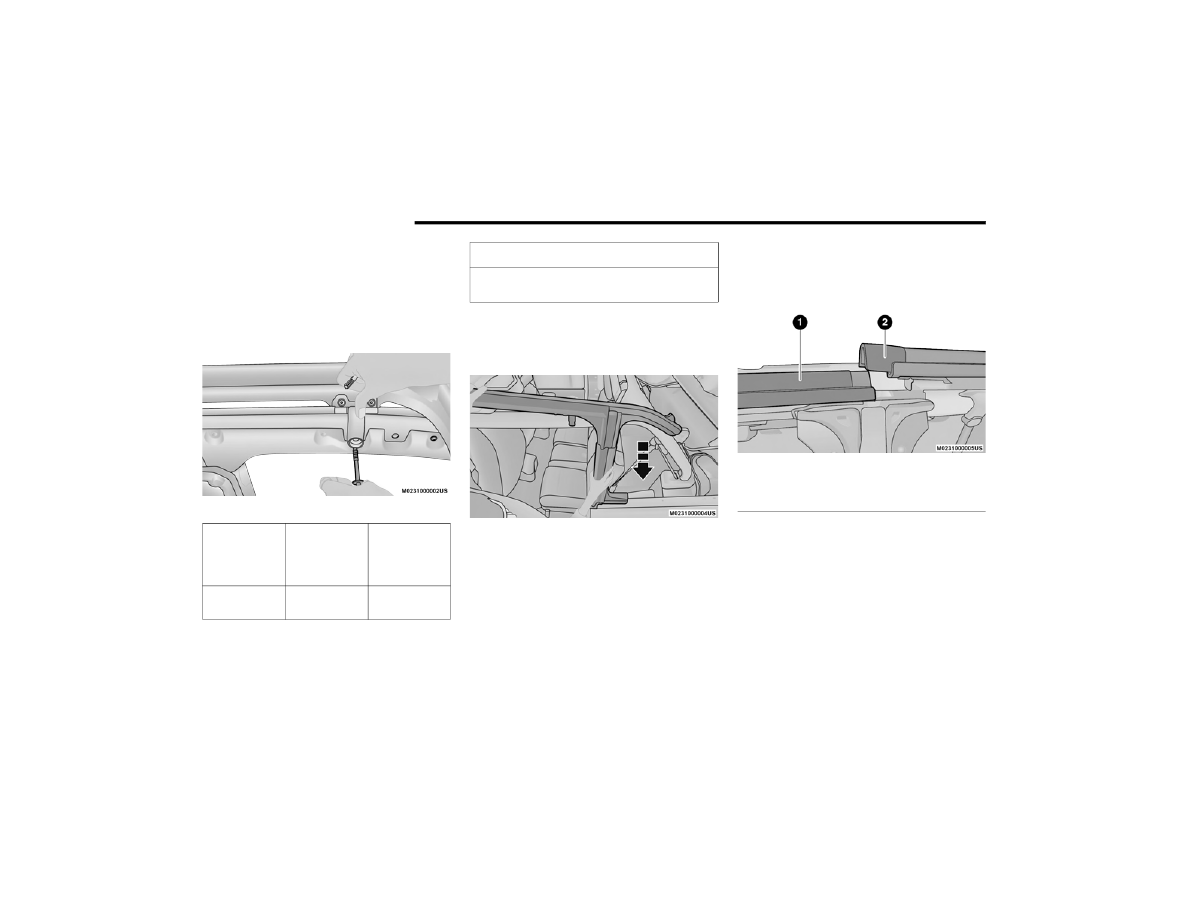

3. Swing the frame bracket around the side of the

rail, and insert the screws from underneath.

Tighten with #40 Torx head driver until they

are snug, being careful not to cross-thread the

screws or overtighten. Refer to the following

table for the appropriate torque specifications

for the door rail screws.

Step Three

4. Set the rear door frame pin into the hole on top

of the body side, just behind the rear door

opening.

Step Four

5. Carefully position the top of the door frame

onto the rear of the front door rail, making sure

rubber seals lie flat. Ensure the seals are

installed correctly to avoid water leaks.

Position Of Frame Above Door

Target Torque

Specification

For Torx

Fasteners

Maximum

Minimum

79.6 in-lb

(9 N·m)

87.6 in-lb

(9.9 N·m)

71.7 in-lb

(8.1 N·m)

CAUTION!

Do not overtighten the screws. You can strip the

screws if they are overtightened.

1 — Front Door Rail
2 — Rear Door Frame

GETTING TO KNOW YOUR VEHICLE

109

6. Swing the frame bracket around the side of the

rail, and insert the screws from underneath.

Tighten with #40 Torx head driver until they

are snug, being careful not to cross-thread the

screws or overtighten. Refer to the previous

table for the appropriate torque specifications

for the door rail screws.

Step Six

OOR

RAME

NSTALLATION

OOR

ODELS

— I

QUIPPED

1. Carefully place the front door rail in the rubber

seal at the top of the windshield, and line up

the holes for the Torx head screws (two for

each door).

2. Swing the frame bracket around the side of the

rail, and insert the screws from underneath.

Tighten with #40 Torx head driver until they

are snug, being careful not to cross-thread the

screws or overtighten. Refer to the following

table for the appropriate torque specifications

for the door rail screws.

Step Two

FOLDING WINDSHIELD

The fold-down windshield on your vehicle is a

structural element that can provide some

protection in some accidents. The windshield also

provides some protection against weather, road

debris and intrusion of small branches and other

objects.
Do not drive your vehicle on-road with the

windshield down, as you lose the protection this

structural element can provide.
If required for certain off-road uses, the windshield

can be folded down. However, the protection

afforded by the windshield is then lost. If you fold

down the windshield, drive slowly and cautiously. It

is recommended that the speed of the vehicle be

limited to 10 mph (16 km/h), with low range

operation preferred if you are driving off-road with

the windshield folded down.
Raise the windshield as soon as the task that

required its removal is completed and before you

return to on-road driving. Both you and your

Target Torque

Specification

For Torx

Fasteners

Maximum

Minimum

79.6 in-lb

(9 N·m)

87.6 in-lb

(9.9 N·m)

71.7 in-lb

(8.1 N·m)

CAUTION!

Do not overtighten the screws. You can strip the

screws if they are overtightened.

CAUTION!

Lowering of the windshield is NOT

recommended in vehicles equipped with a

Power Sliding Top. Damage will occur to the top

as well as the header seal.

110

GETTING TO KNOW YOUR VEHICLE

passengers should wear seat belts at all times,

on-road and off-road, regardless of whether the

windshield is raised or folded down.

OWERING

INDSHIELD

1. Before completing the following steps:



If your vehicle is equipped with a Soft Top,

the top MUST be lowered, and the door rails

must be removed prior to lowering the wind

shield.



If your vehicle is equipped with a Hard Top,

the Freedom Panels MUST be removed

prior to lowering the windshield.



Refer to the following instructions for more

information:
• Soft Top Lowering

page 85

• Door Frame

page 106

• Freedom Top Panels

page 93

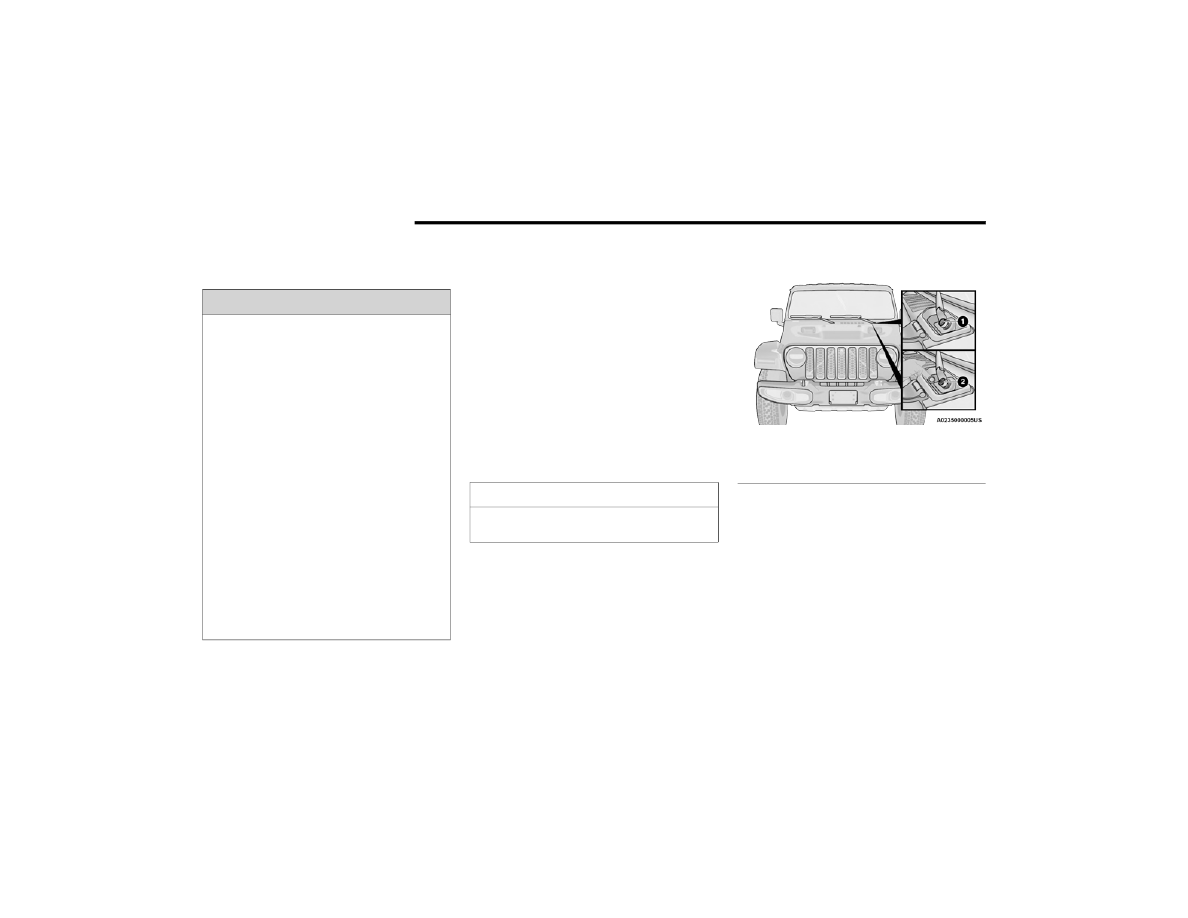

2. Manually remove the protective caps over the

windshield wiper hex bolts.

Step Two

3. Using the provided 15 mm socket, remove the

two hex bolts and remove the wiper arms.

4. Move to the inside of the vehicle and lower

both sun visors.

WARNING!

Carefully follow these warnings to help protect

against personal injury:



Do not drive your vehicle on-road with the

windshield down.



Do not drive your vehicle unless the wind

shield is securely fastened, either up or down.



Eye protection, such as goggles, should be

worn at all times when the windshield is down.



Be sure that you carefully follow the instruc

tions for raising the windshield. Make sure

that the folding windshield, windshield wipers,

side bars, and all associated hardware and

fasteners are correctly and tightly assembled

before driving your vehicle. Failure to follow

these instructions may prevent your vehicle

from providing you and your passengers’

protection in some accidents.



If you remove the doors, store them outside

the vehicle. In the event of an accident, a

loose door may cause personal injury.

CAUTION!

Failure to follow this step will cause damage to

the vehicle’s header seal.

1 — Hex Bolt Cover Installed
2 — Hex Bolt Cover Removed

GETTING TO KNOW YOUR VEHICLE

111

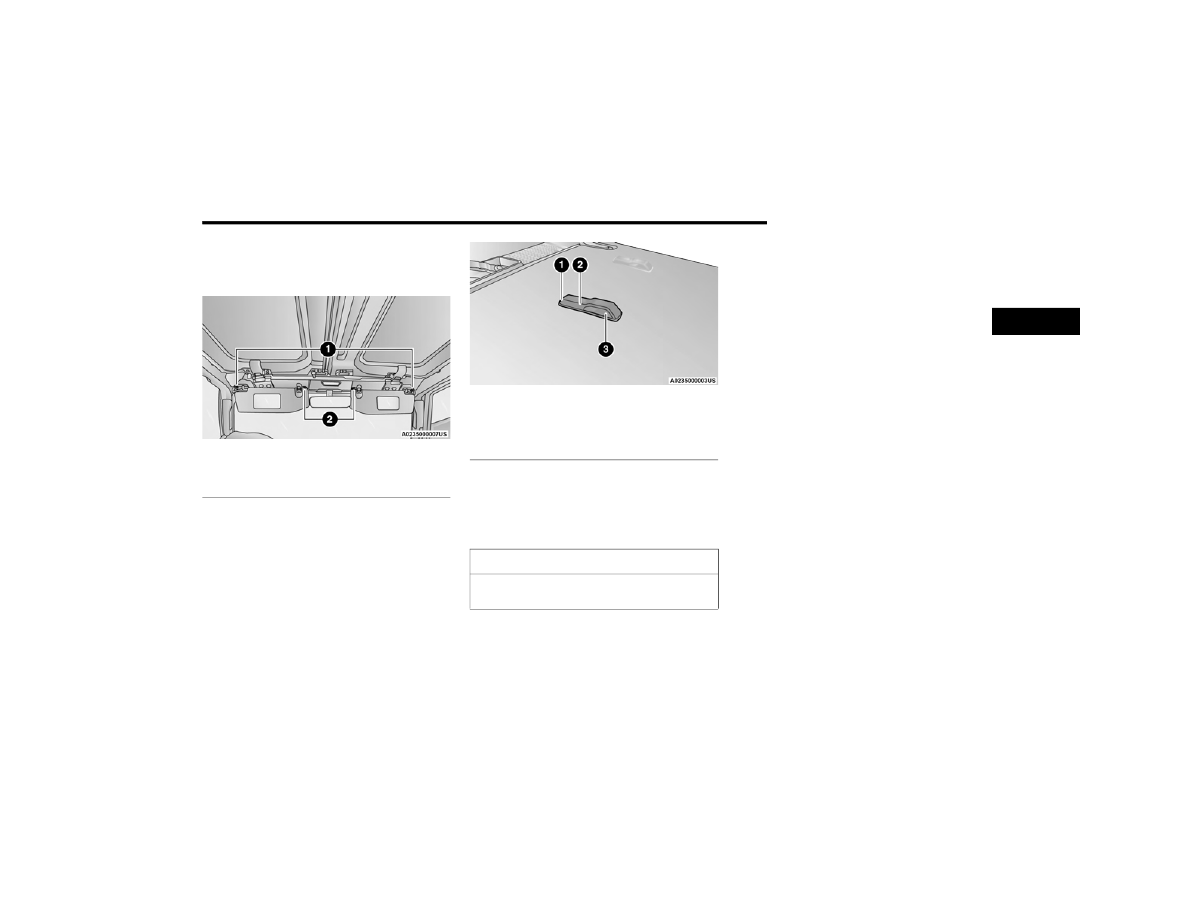

5. Using the provided #40 Torx head driver,

remove the four Torx screws located along the

interior of the windshield.

Step Five

NOTE:

Store all of the mounting bolts in their original

threaded holes and tighten for safekeeping.
6. Lower the windshield gently until it contacts

the tie-down bumpers (if equipped).

Step Six

7. Secure the windshield by passing a cinch strap

through the tie-down on either side of the hood

and on the windshield frame. Tighten the strap

to secure the windshield in place.

Adaptive Cruise Control (ACC)/Forward

Collision Warning (FCW) Sensor Protective

Cover — If Equipped

Your vehicle may be equipped with a protective

cover that is to be used whenever the windshield is

folded down in order to protect the Adaptive Cruise

Control (ACC)/Forward Collision Warning (FCW)

sensor. To install the cover, follow these

instructions:
1. Secure the top part of the cover so that it

hinges to the header.

2. Swing the cover down and push on it so that it

covers the opening.

3. Check to make sure the cover is secured

properly.

NOTE:

Be sure to remove the cover before returning the

windshield to the normal position. Store the cover

in the cargo area.
Cleaning Instructions
During windshield down applications, dust/dirt can

accumulate in the cover and block the camera

lens. Use a microfiber cloth to clean the camera

lens, module, and inside cover, being careful not to

damage or scratch the module.

1 — Outside Torx Screws
2 — Inside Torx Screws

1 — Washer Nozzle
2 — Bumper
3 — Tie-Down

CAUTION!

Do Not Overtighten! Damage to the windshield

could result.

112

GETTING TO KNOW YOUR VEHICLE

AISING

INDSHIELD

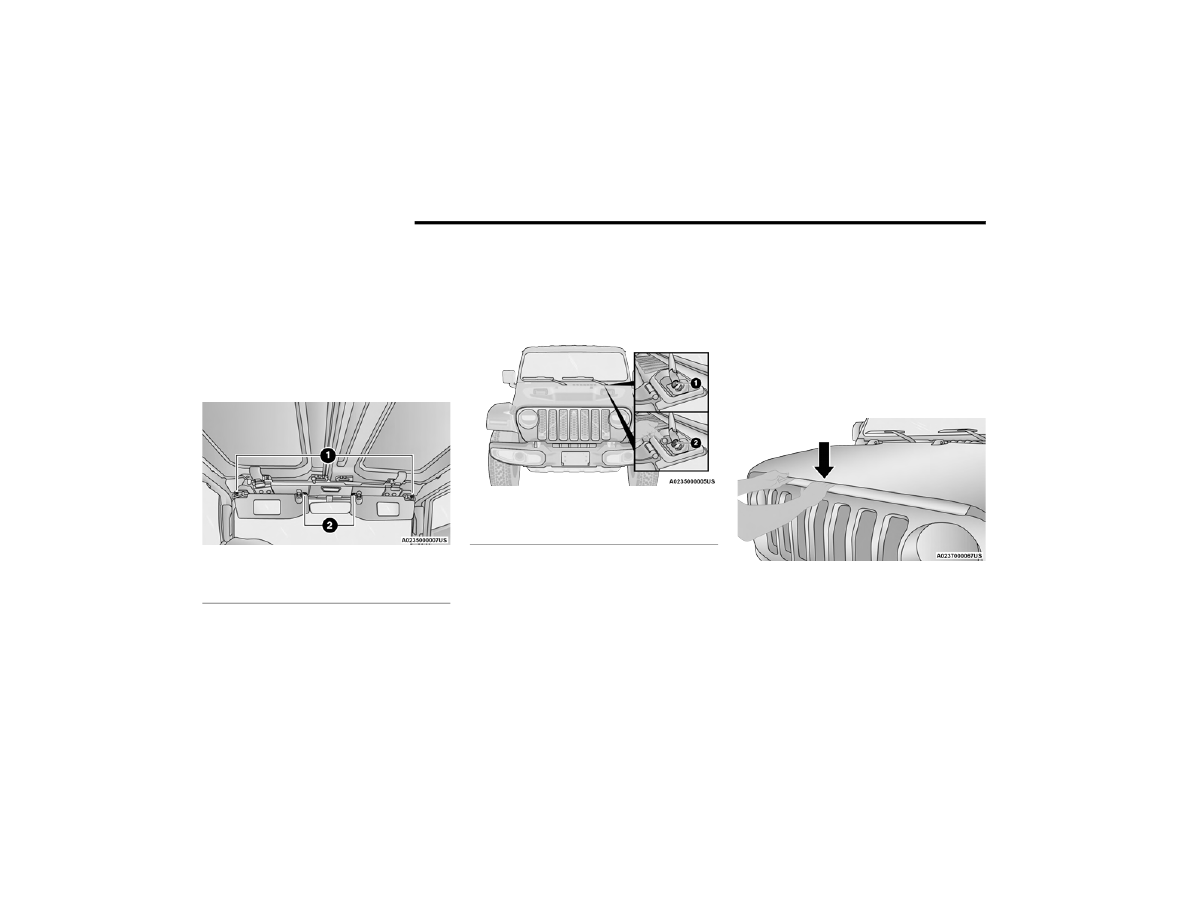

1. Release the strap that secured the windshield

in the lowered position.

2. Raise the windshield.
3. Using the provided #40 Torx head driver,

reinstall the four Torx screws located along the

interior of the windshield. Secure them until

they are snug, being careful not to

cross-thread the screws or overtighten.

Interior Torx Screw Locations

4. Reinstall the windshield wiper arms using the

provided 15 mm socket. First, align the tips of

the blade to the “T” mark in the glass. Then,

while holding the arm in that position, reinstall

the hex nut and tighten until snug. Be careful

not to overtighten. Repeat for the other arm.

5. Reinstall the protective caps over the wiper

arm hex bolts and push gently until they snap

into place.

Step Five

6. After completing the steps above:



If your vehicle is equipped with a Soft Top,

reinstall the Door Rails and raise the top.



If your vehicle is equipped with a Hard Top,

reinstall the Freedom Panels.

HOOD

PENING

OOD

If applicable, refer to the “Hybrid Supplement” for

additional information.
Release both of the outside hood latches.
Raise the hood slightly, and place a hand

palm-side down in the center of the hood opening.

Locate the safety latch in the middle, and push the

latch to the right to open.

Place Hand In Hood Opening

1 — Outside Torx Screws
2 — Inside Torx Screws

1 — Hex Bolt Cover Installed
2 — Hex Bolt Cover Removed

GETTING TO KNOW YOUR VEHICLE

113

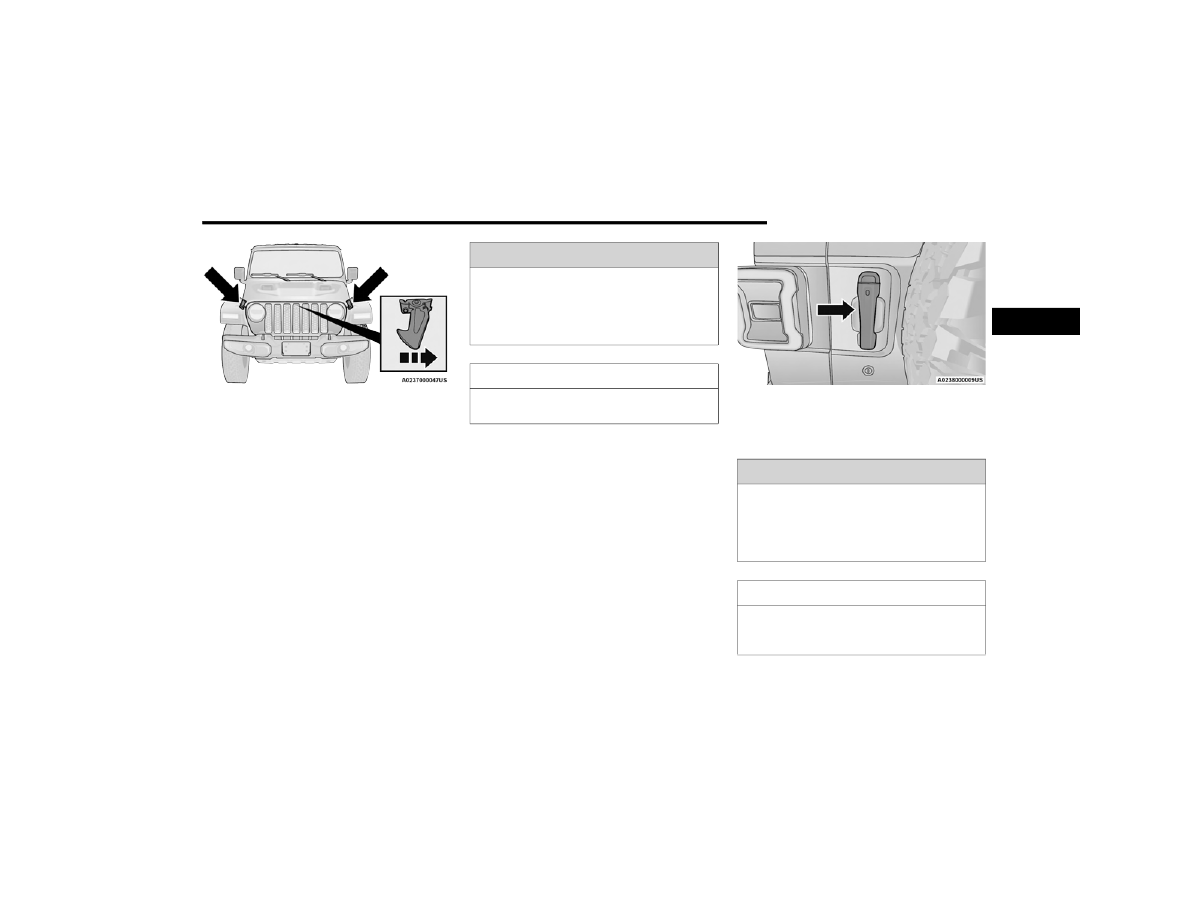

Hood Latch Locations

Remove the support rod from the hood, and insert

it into the radiator crossmember.

NOTE:

You may have to push down slightly on the hood

before pushing the safety latch.

LOSING

OOD

If applicable, refer to the “Hybrid Supplement” for

additional information.
To close the hood, remove the support rod from the

slot and replace it on the hood panel retaining clip.

Lower the hood slowly. Secure both of the hood

latches.

REAR SWING GATE

The rear swing gate can be unlocked by using one

of the following methods:



Mechanical key (with mechanical lock — if

equipped)



Remote Keyless Entry key fob (if equipped)



Power door unlock switch on the front doors (if

equipped)



Passive Entry swing gate handle (if equipped)

To open the swing gate, pull on the handle.

Swing Gate Handle

NOTE:

Close the rear flip-up window before attempting to

close the swing gate (hard top models only).

WARNING!

Be sure the hood is fully latched before driving

your vehicle. If the hood is not fully latched, it

could open when the vehicle is in motion and

block your vision. Failure to follow this warning

could result in serious injury or death.

CAUTION!

To prevent possible damage, do not slam the

hood to close it.

WARNING!

Driving with the flip-up window open can allow

poisonous exhaust gases into your vehicle. You

and your passengers could be injured by these

fumes. Keep the flip-up window closed when you

are operating the vehicle.

CAUTION!

Do not push on rear wiper blade when closing

the rear flip-up window, as damage to the blade

will result.

114

GETTING TO KNOW YOUR VEHICLE

NOTE:

The swing gate hinges and check strap may require

cleaning if a squeak can be heard when opening

the swing gate. Progressive accumulation of dirt or

debris on the check strap arm may cause failure of

the check strap, requiring replacement. For further

information on vehicle cleaning procedures, see

page 411.

ARGO

REA

EATURES

Trail Rail Cargo Organizer — If Equipped

If your vehicle is equipped with the Trail Rail

system, a rail will be found built into the floor on

either side of the cargo area. Each rail contains an

adjustable anchor loop that can be used to secure

cargo. The position of the adjustable anchor loop

can be adjusted by sliding the loop along the rail.
To adjust the anchor loop, push down on the center

button while sliding the loop along the rail to the

desired position. Release the button and move the

loop slightly to the next fixed position in the

notches of the rail.

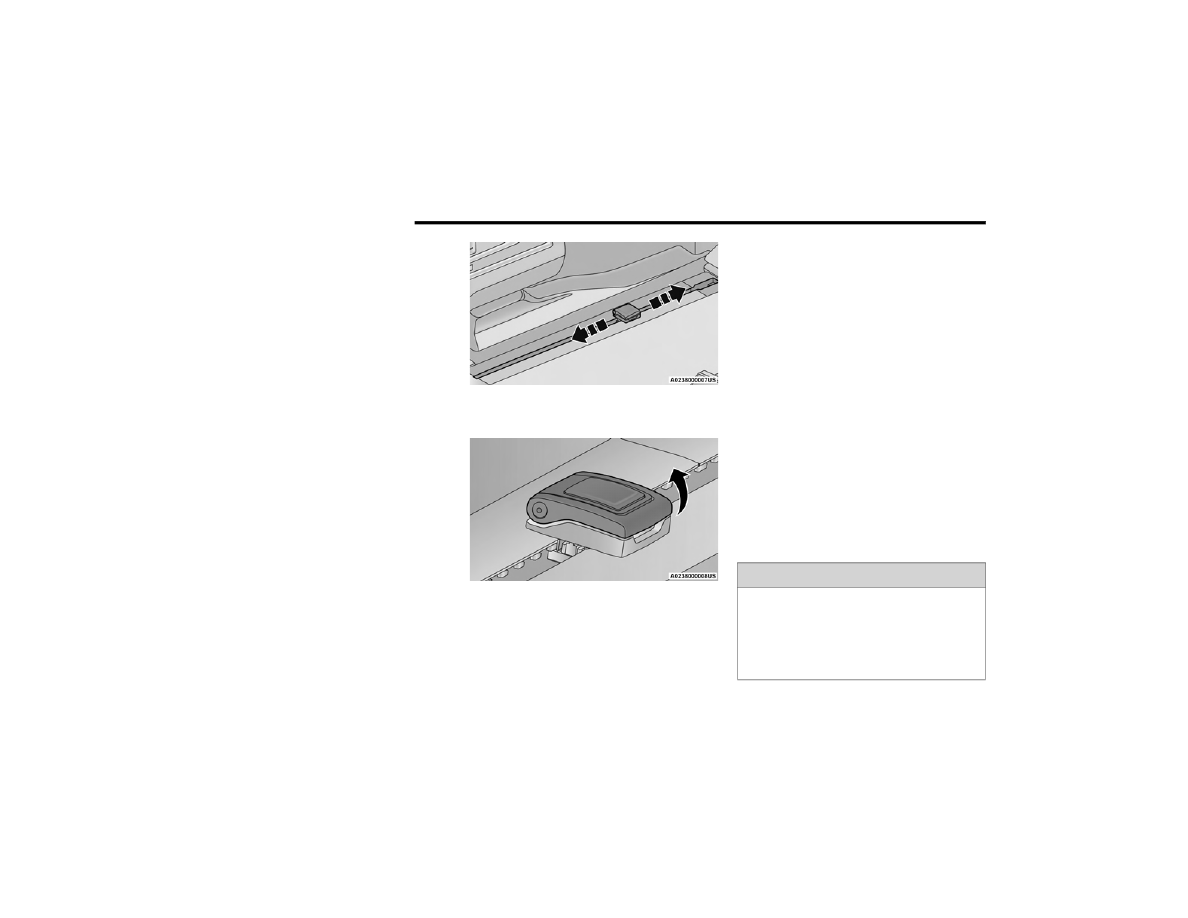

Adjustable Anchor Loop

Lift the loop to use.

Lift Adjustable Anchor Loop

ROOF LUGGAGE RACK — IF EQUIPPED

NOTE:

Roof rack applications are for Hard Top models

ONLY.
The load carried on the roof, when equipped with a

luggage rack, must not exceed 100 lb (45 kg), this

includes the weight of the crossbars, and it should

be uniformly distributed over the cargo area.
Crossbars should always be used whenever cargo

is placed on the roof rack. Check the straps

frequently to be sure that the load remains

securely attached.

NOTE:

Crossbars can be purchased at an authorized

dealer through Mopar® parts.
External racks do not increase the total load

carrying capacity of the vehicle. Be sure that the

total occupant and luggage load inside the vehicle,

plus the load on the luggage rack, do not exceed

the maximum vehicle load capacity.

WARNING!

Cargo must be securely tied down before driving

your vehicle. Improperly secured loads can fly off

the vehicle, particularly at high speeds, resulting

in personal injury or property damage. Follow

the roof rack cautions when carrying cargo on

your roof rack.

GETTING TO KNOW YOUR VEHICLE

115

CAUTION!



To avoid damage to the roof rack and vehicle, do not exceed the maximum roof rack load capacity. Always distribute heavy loads as evenly as possible and

secure the load appropriately.



Long loads, which extend over the windshield, should be secured to both the front and rear of the vehicle.



Place a blanket or other protection between the surface of the roof and the load.



Travel at reduced speeds and turn corners carefully when carrying large or heavy loads on the roof rack. Wind forces, due to natural causes or nearby truck

traffic, can add sudden upward lift. It is recommended to not carry large flat loads, such as wood panels or surfboards, which may result in damage to the

cargo or your vehicle.



Load should always be secured to crossbars first, with tie down loops used as additional securing points if needed. Tie loops are intended as supplementary

tie down points only. Do not use ratcheting mechanisms with the tie loops. Check the straps frequently to be sure that the load remains securely attached.

116

GETTING TO KNOW YOUR INSTRUMENT PANEL

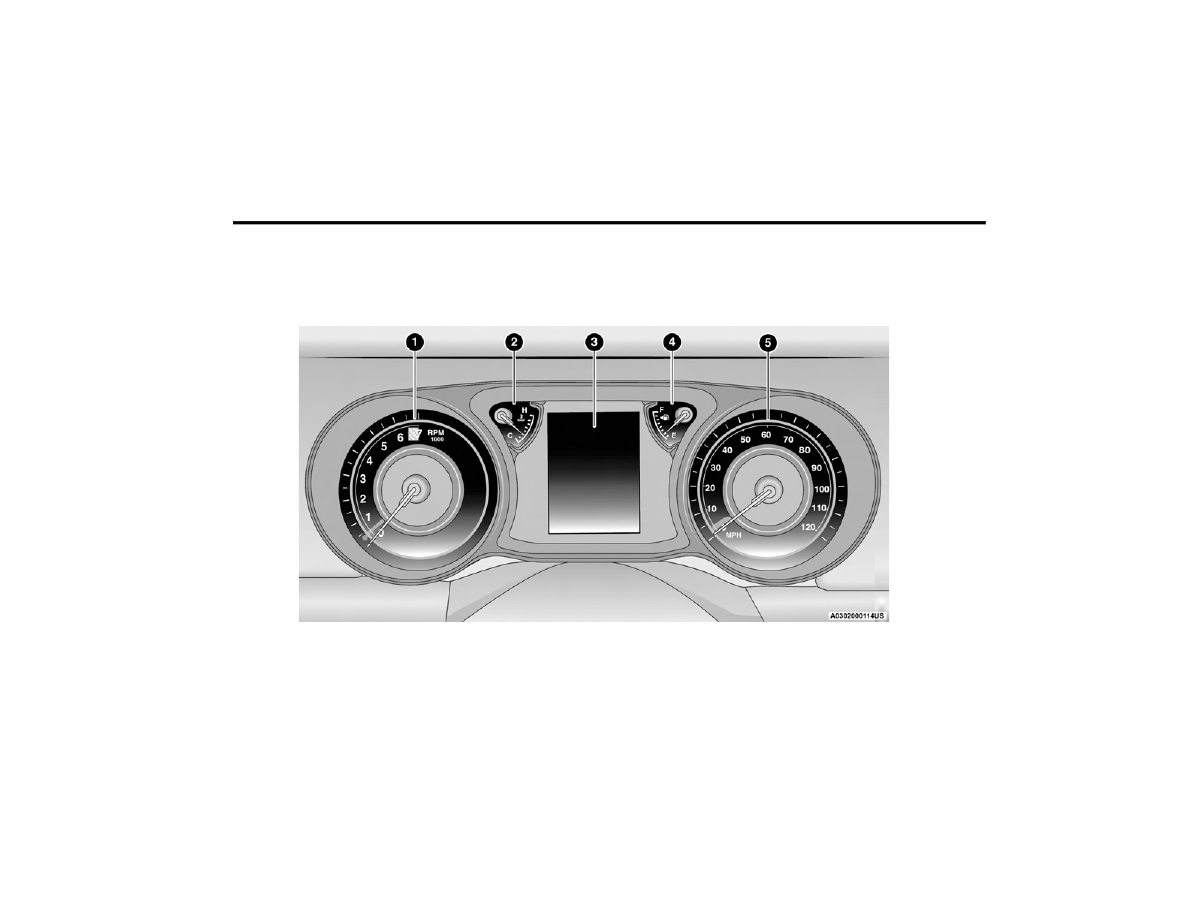

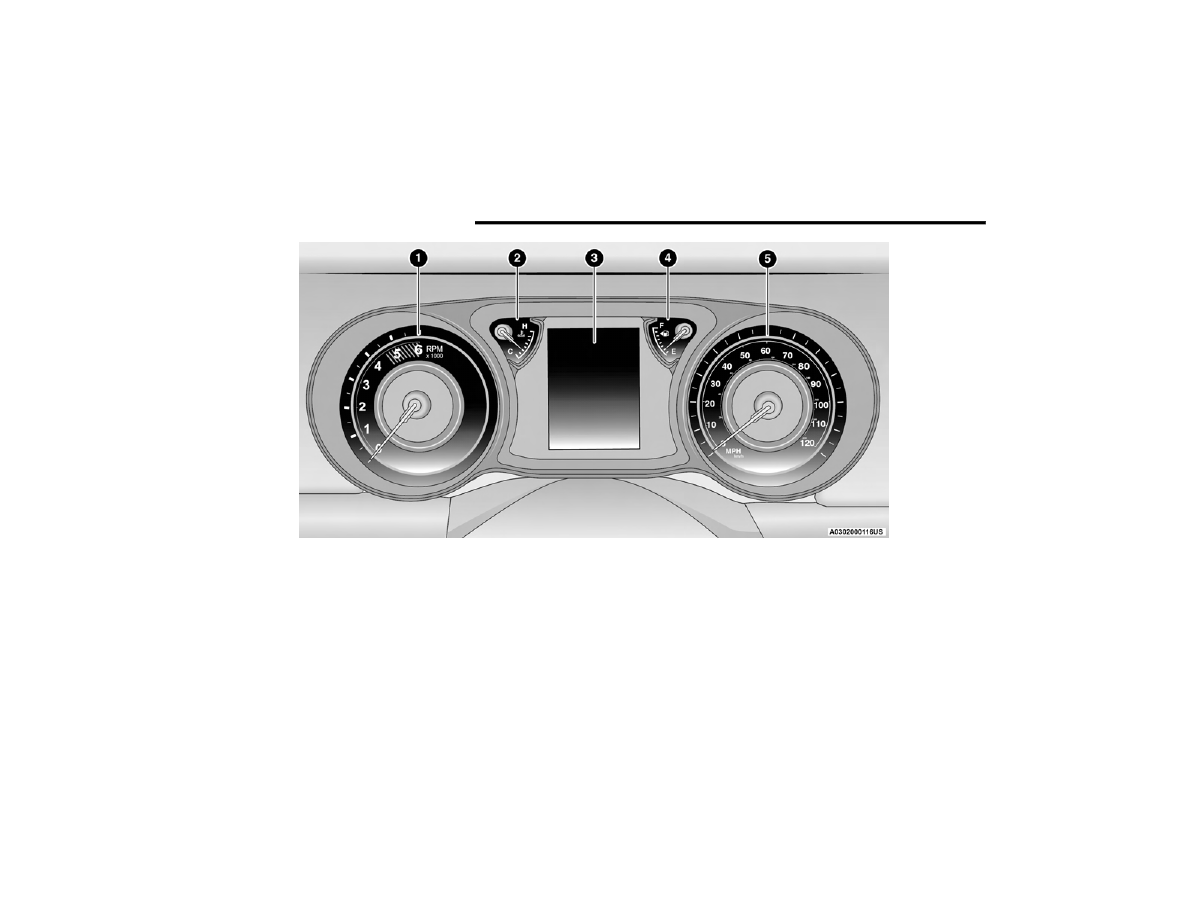

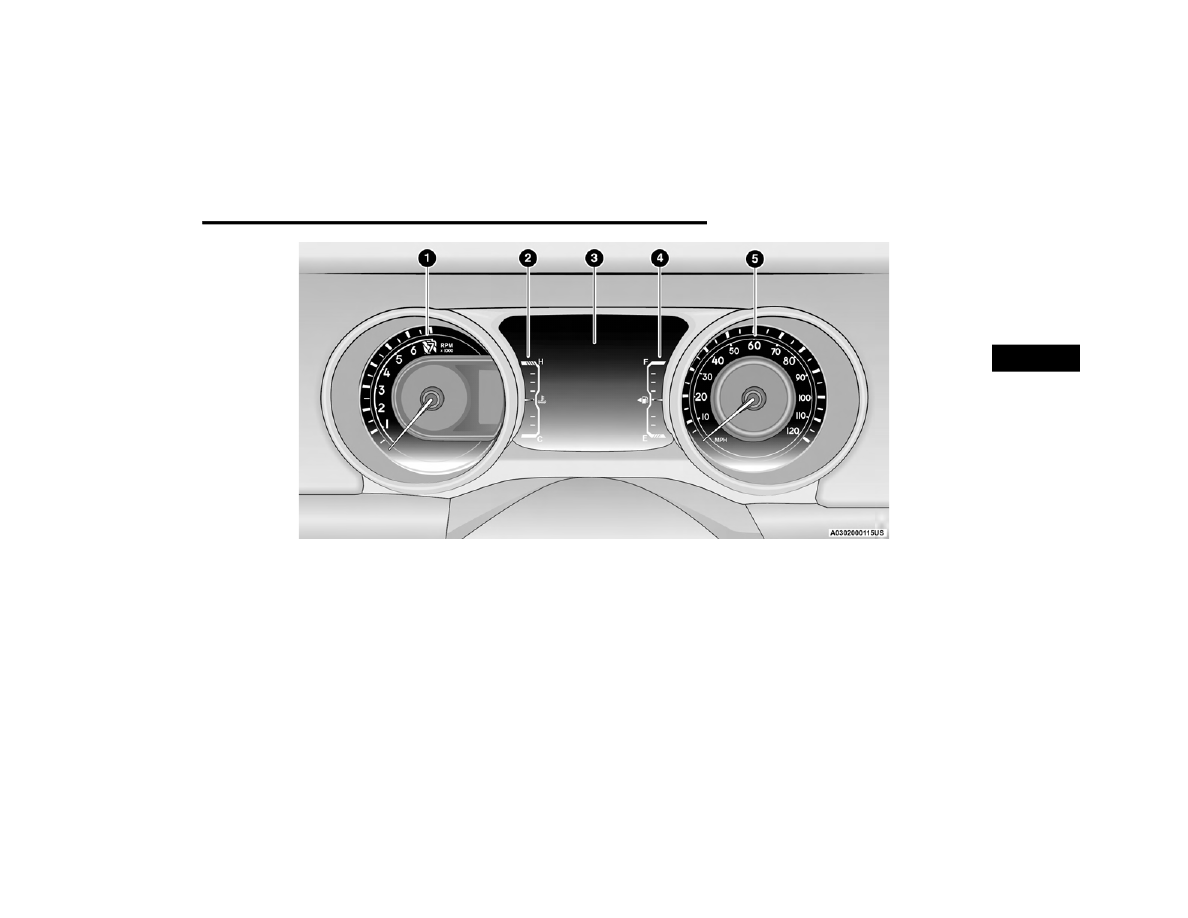

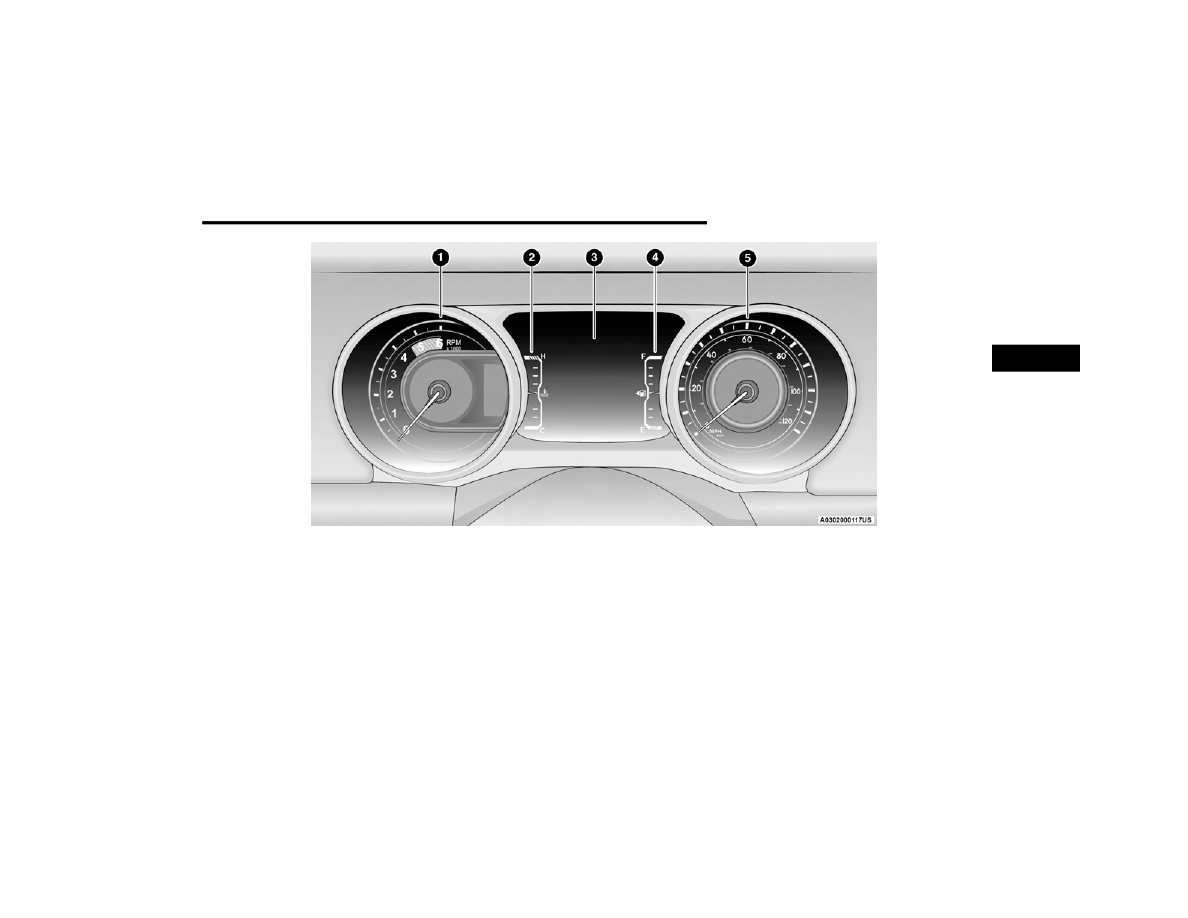

INSTRUMENT CLUSTER

GETTING TO KNOW YOUR INSTRUMENT PANEL

117

118

GETTING TO KNOW YOUR INSTRUMENT PANEL

GETTING TO KNOW YOUR INSTRUMENT PANEL

119

120

GETTING TO KNOW YOUR INSTRUMENT PANEL

NSTRUMENT

LUSTER

ESCRIPTIONS

1. Tachometer



Indicates the engine speed in revolutions

per minute (RPM x 1000).

2. Temperature Gauge



The temperature gauge shows engine

coolant temperature. Any reading within the

normal range indicates that the engine

cooling system is operating satisfactorily.



The pointer will likely indicate a higher

temperature when driving in hot weather,

up mountain grades, or when towing a

trailer. It should not be allowed to exceed

the upper limits of the normal operating

range.

3. Instrument Cluster Display



The instrument cluster display features a

driver interactive display

page 120.

4. Fuel Gauge



The pointer shows the level of fuel in the

fuel tank when the ignition switch is in the

ON/RUN position.



The fuel pump symbol points to the

side of the vehicle where the fuel

filler door is located.

5. Speedometer



Indicates vehicle speed.

INSTRUMENT CLUSTER DISPLAY

Your vehicle will be equipped with an instrument

cluster display, which offers useful information to

the driver. With the ignition in the OFF mode,

opening/closing of a door will activate the display

for viewing, and display the total miles, or

kilometers, in the odometer. Your instrument

cluster display is designed to display important

information about your vehicle’s systems and

features. Using a driver interactive display located

on the instrument panel, your instrument cluster

display can show you how systems are working and

give you warnings when they aren’t. The steering

wheel mounted controls allow you to scroll through

and enter the main menus and submenus. You can

access the specific information you want and

make selections and adjustments.

CAUTION!

Do not operate the engine with the tachometer

pointer in the red area. Engine damage will

occur.

WARNING!

A hot engine cooling system is dangerous. You or

others could be badly burned by steam or boiling

coolant. It is recommended to call an authorized

dealer for service if your vehicle overheats.

CAUTION!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reads “H” pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H”, turn the engine

off immediately and call an authorized dealer for

service.

GETTING TO KNOW YOUR INSTRUMENT PANEL

121

NSTRUMENT

LUSTER

ISPLAY

OCATION

ONTROLS

The instrument cluster display is located in the

center of the instrument cluster.

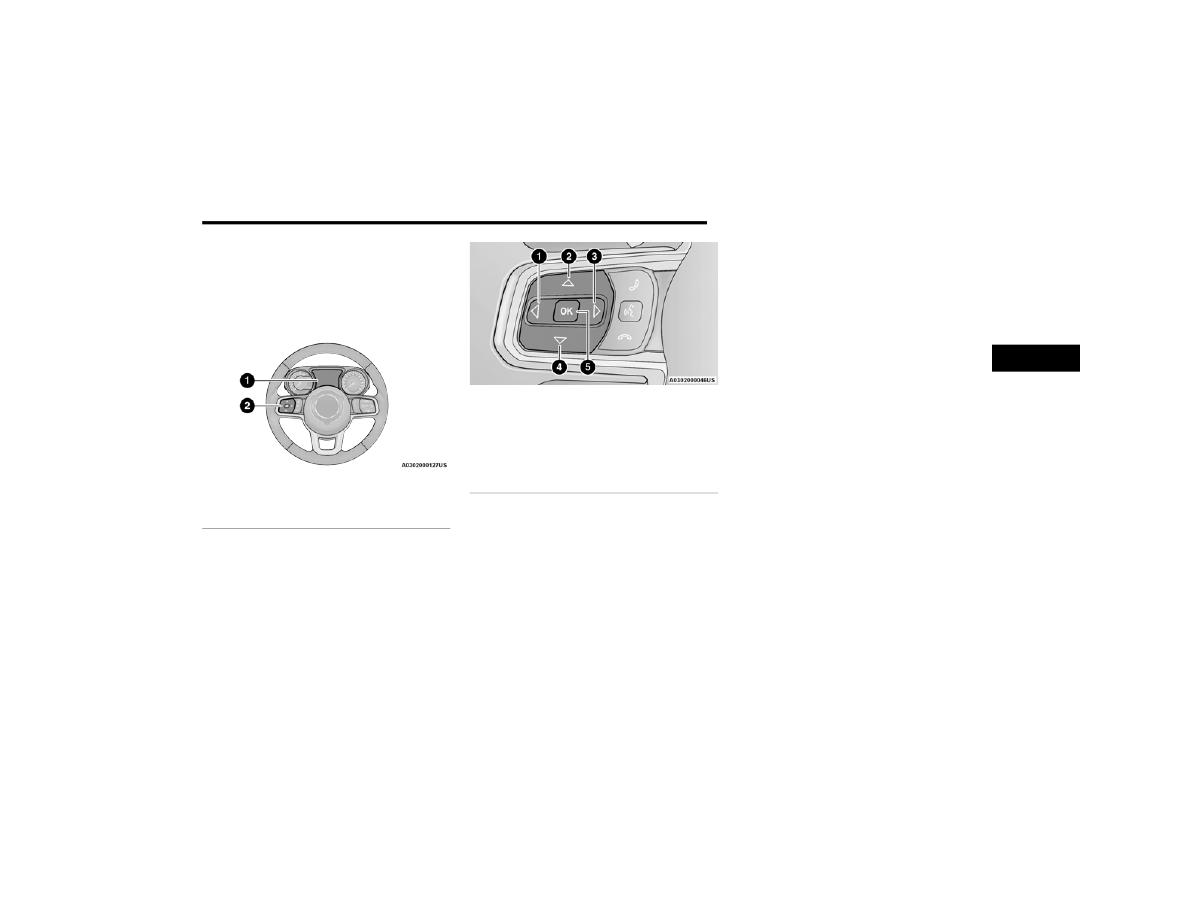

Instrument Cluster Display Location

The system allows the driver to select information

by pushing the following buttons mounted on the

steering wheel:

Instrument Cluster Display Control Buttons



Left Arrow Button
Push and release the left arrow button to access

the information screens or submenu screens of

a main menu item.



Up Arrow Button
Push and release the up arrow button to scroll

upward through the Main Menu items.



Right Arrow Button
Push and release the right arrow button to

access the information screens or submenu

screens of a main menu item.



Down Arrow Button
Push and release the down arrow button to

scroll downward through the Main Menu items.



OK Button
Push the OK button to access/select the infor

mation screens or submenu screens of a Main

Menu item. Push and hold the OK arrow button

for two seconds to reset displayed/selected

features that can be reset.

HANGE

ESET

— I

QUIPPED

Your vehicle may be equipped with an engine oil

change indicator system. The “Oil Change

Required” message will display in the instrument

cluster display for five seconds after a single chime

has sounded to indicate the next scheduled oil

change interval. The engine oil change indicator

system is duty cycle based, which means the

engine oil change interval may fluctuate,

dependent upon your personal driving style.
Unless reset, this message will continue to display

each time you place the ignition in the ON/RUN

position. To turn off the message temporarily, push

and release the OK button. To reset the oil change

indicator system (after performing the scheduled

maintenance), refer to the following procedure.

1 — Instrument Cluster Display Screen
2 — Instrument Cluster Display Controls

1 — Left Arrow Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — OK Button

122

GETTING TO KNOW YOUR INSTRUMENT PANEL

Oil Life Reset
1. Without pushing the brake pedal, place the

ignition in the ON/RUN mode (do not start the

engine).

2. Navigate to "Oil Life" submenu in "Vehicle Info"

in the instrument cluster display.

3. Push and hold the OK button until the gauge

resets to 100%.

Secondary Method For Oil Change Reset

Procedure
1. Without pushing the brake pedal, place the

ignition in the ON/RUN position (do not start

the engine).

2. Fully press the accelerator pedal, slowly, three

times within ten seconds.

3. Without pushing the brake pedal, place the

ignition in the OFF position.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.

NSTRUMENT

LUSTER

ISPLAY

ELECTABLE

TEMS

The instrument cluster display can be used to view

the following main menu items:

NOTE:

Depending on the vehicles options, feature

settings may vary.

Speedometer

Push and release the up or down arrow

button until the speedometer menu icon is

displayed in the instrument cluster display. Push

and release the OK button to toggle between MPH

and km/h.

Vehicle Info

Push and release the up or down arrow

button until the Vehicle Info menu icon is displayed

in the instrument cluster display. Push and release
the left or right arrow button to scroll

through the information submenus and push and

release the OK button to select or reset the

resettable submenus.

Speedometer

Driver Assist —

If Equipped

Stop/Start

Vehicle Info

Fuel Economy Audio

Off Road

Trip Info

Messages

Screen Setup

Settings

Phone Call

Status

Tire Pressure

Single Gauge

Submenu — If

Equipped

Critical Level

Logic — If

Equipped

Oil Life

Diesel Exhaust

Fluid Level — If

Equipped

Coolant

Temperature

Oil Pressure

Oil

Temperature

Transmission

Temperature —

Automatic

Transmission

Only

Battery

Voltage

Content .. 5 6 7 8 ..
