GETTING TO KNOW YOUR VEHICLE

IGHTS

-O

EMINDER

If the headlights, parking lights, or cargo lights are

left on after the ignition is placed in the OFF

position, a chime will sound when the driver’s door

is opened.

RONT

IGHTS

— I

QUIPPED

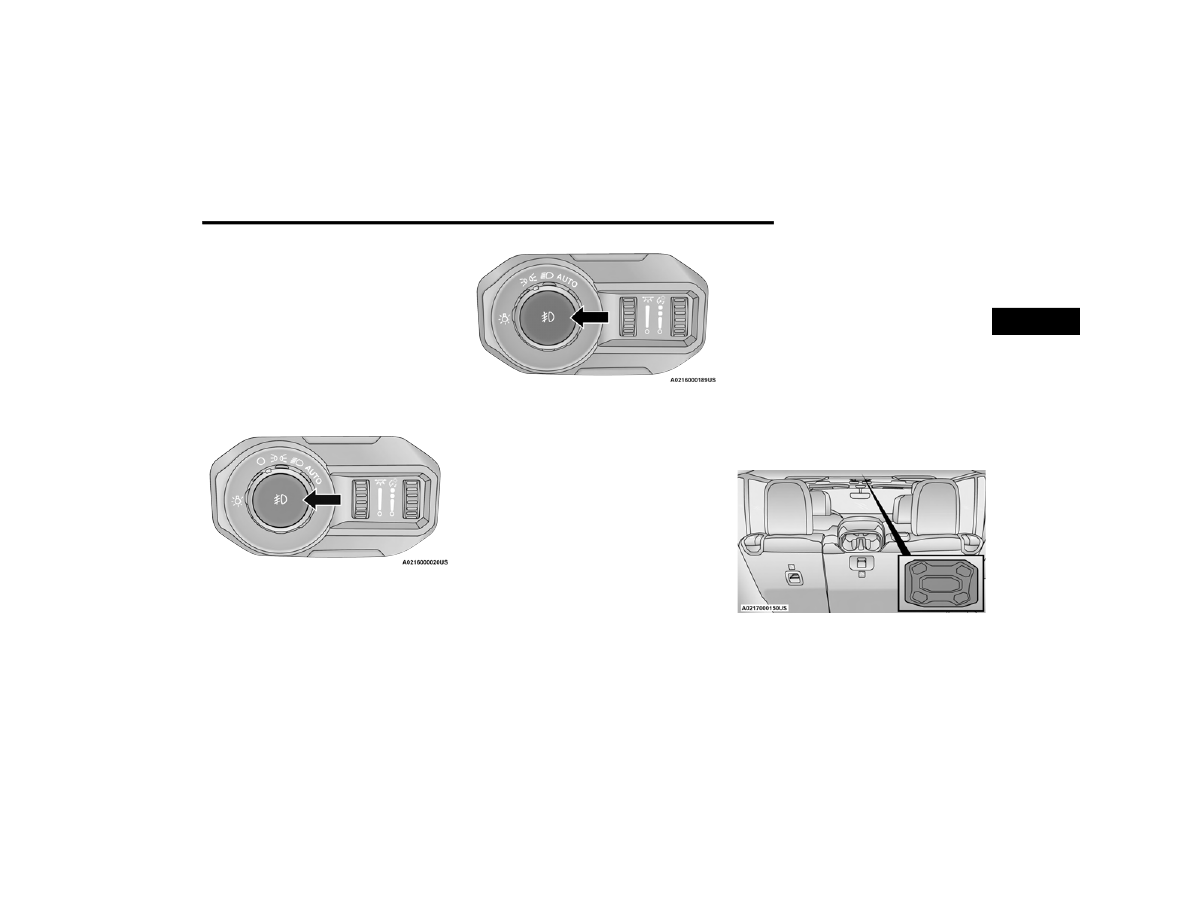

To activate the Front Fog Lights, turn on the

parking lights or low beam headlights and push the

fog light switch. Pushing the fog light switch a

second time will turn the front fog lights off.

Front Fog Light Switch

Front Fog Light Switch (Vehicles Sold In Canada)

URN

IGNALS

Move the multifunction lever up or down to

activate the turn signals. The arrows on each side

of the instrument cluster flash to show proper

operation.

NOTE:

If either light remains on and does not flash, or

there is a very fast flash rate, check for a defective

outside light bulb.

ANE

HANGE

SSIST

— I

QUIPPED

Lightly push the multifunction lever up or down,

without moving beyond the detent, and the turn

signal will flash three times then automatically turn

off.

INTERIOR LIGHTS

NTERIOR

OURTESY

IGHTS

The courtesy lights will turn on when the front

doors are opened, by rotating the dimmer controls

on the headlight switch fully upward, or, if

equipped, when the unlock button is pushed on

the key fob.
The interior courtesy lights are located in the

center of the vehicle’s sport bar, and consist of one

large center light and four smaller reading lights.

Each reading light can be turned on by pushing the

lens. Pushing the lens a second time will turn the

light off.

Dome Lights

When a door is open and the interior lights are on,

rotating the dimmer control to the extreme bottom

position will cause all the interior lights to turn off.

GETTING TO KNOW YOUR VEHICLE

This allows the doors to stay open for extended

periods of time without discharging the vehicle’s

battery.

IMMER

ONTROLS

The dimmer controls are part of the headlight

switch and are located on the left side of the

instrument panel.

Dimmer Controls

Dimmer Controls (Vehicles Sold In Canada)

With the parking lights or headlights on, rotating

the right dimmer control upward will increase the

brightness of the instrument panel lights. Rotating

the left dimmer control will adjust the interior and

ambient light levels (e.g. courtesy lights in the

footwell, illuminated cupholders, and front door

handles).

WINDSHIELD WIPERS AND WASHERS

The windshield wiper/washer control lever is

located on the right side of the steering column.

The front wipers are operated by rotating a switch,

located at the end of the lever.

INDSHIELD

IPER

PERATION

Windshield Wiper/Washer Operation

Rotate the end of the lever upward to the first

detent past the intermittent settings for low-speed

wiper operation. Rotate the end of the lever

upward to the second detent past the intermittent

settings for high-speed wiper operation.

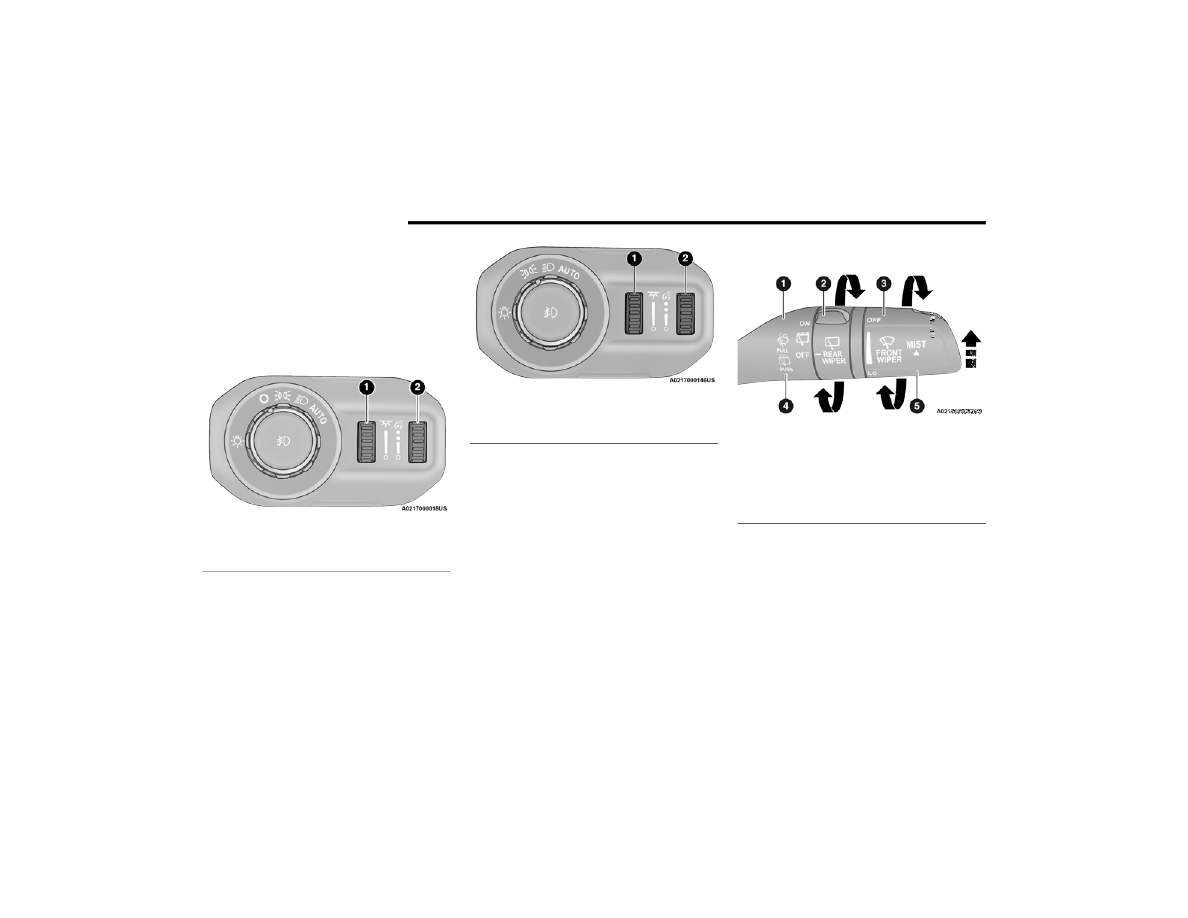

1 — Ambient Light Dimmer Control
2 — Instrument Panel Dimmer Control

1 — Pull For Front Washer
2 — Rotate For Rear Wiper Operation
3 — Rotate For Front Wiper Operation
4 — Push Forward For Rear Washer
5 — Push Up For Mist

GETTING TO KNOW YOUR VEHICLE

Intermittent Wipers
Use the intermittent wiper when weather

conditions make a single wiping cycle, with a

variable pause between cycles, desirable. Rotate

the end of the lever to the first detent position for

one of four intermittent settings. The delay cycle

can be set anywhere between 1 to 18 seconds.

NOTE:

The wiper delay times depend on vehicle speed. If

the vehicle is moving less than 10 mph (16 km/h),

delay times will be doubled.
Windshield Washers
To use the washer, pull the lever toward you and

hold while spray is desired. If the lever is pulled

while in the delay range, the wiper will start and

continue to operate for two or three wipe cycles

after the lever is released. Then, the intermittent

interval previously selected will resume.

If the lever is pulled while in the off position, the

wipers will operate for two or three wipe cycles.

Then, the wipers will turn off.

NOTE:

As a protective measure, the washer will stop if the

switch is held for more than 20 seconds. Once the

switch is released the washer will resume normal

operation.

Mist
Push upward on the wiper lever to activate a single

wipe to clear off-road mist or spray from a passing

vehicle. As long as the lever is held up, the wipers

will continue to operate.

NOTE:

The mist feature does not activate the washer

pump; therefore, no washer fluid will be sprayed on

the windshield. The wash function must be used in

order to spray the windshield with washer fluid.
For information on wiper care and replacement,

see

page 368.

EAR

INDOW

IPER

ASHER

— I

QUIPPED

A rotary switch on the center portion of the

windshield wiper/washer lever controls the

operation of the rear wiper/washer function.

Rotate the switch upward to the first

detent position for intermittent operation

and to the second detent for continuous

rear wiper operation.
Push the wiper lever toward the

instrument panel to activate the rear

washer. The washer pump and wiper will

continue to operate as long as the lever is

held.

NOTE:

As a protective measure, the washer will stop if the

switch is held for more than 20 seconds. Once the

switch is released the washer will resume normal

operation.
If the rear wiper is operating when the ignition is

placed in the OFF position, the wiper will

automatically return to the “park” position. When

the vehicle is restarted, the wiper will resume

function at whichever position the switch is set at.

CAUTION!

In cold weather, always turn off the wiper switch

and allow the wipers to return to the park

position before turning off the engine. If the

wiper switch is left on and the wipers freeze to

the windshield, damage to the wiper motor may

occur when the vehicle is restarted.

WARNING!

Sudden loss of visibility through the windshield

could lead to a collision. You might not see other

vehicles or other obstacles. To avoid sudden

icing of the windshield during freezing weather,

warm the windshield with the defroster before

and during windshield washer use.

GETTING TO KNOW YOUR VEHICLE

CLIMATE CONTROLS

The Climate Control system allows you to regulate

the temperature, air flow, and direction of air

circulating throughout the vehicle. The controls are

located on the touchscreen (if equipped) and on

the instrument panel below the radio.

UTOMATIC

LIMATE

ONTROL

ESCRIPTIONS

UNCTIONS

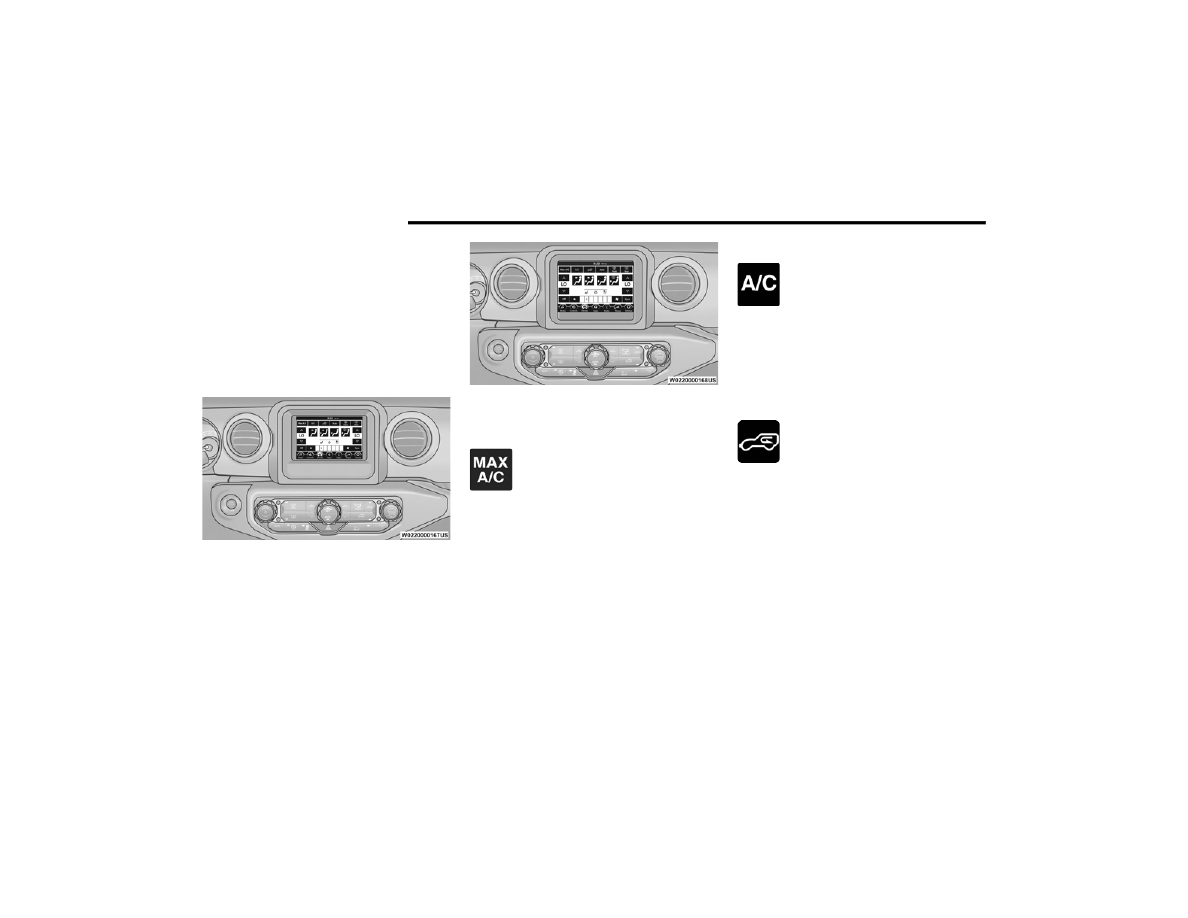

Uconnect 4 With 7-inch Display Automatic Climate

Controls

Uconnect 4C/4C NAV With 8.4-inch Display Automatic

Climate Controls

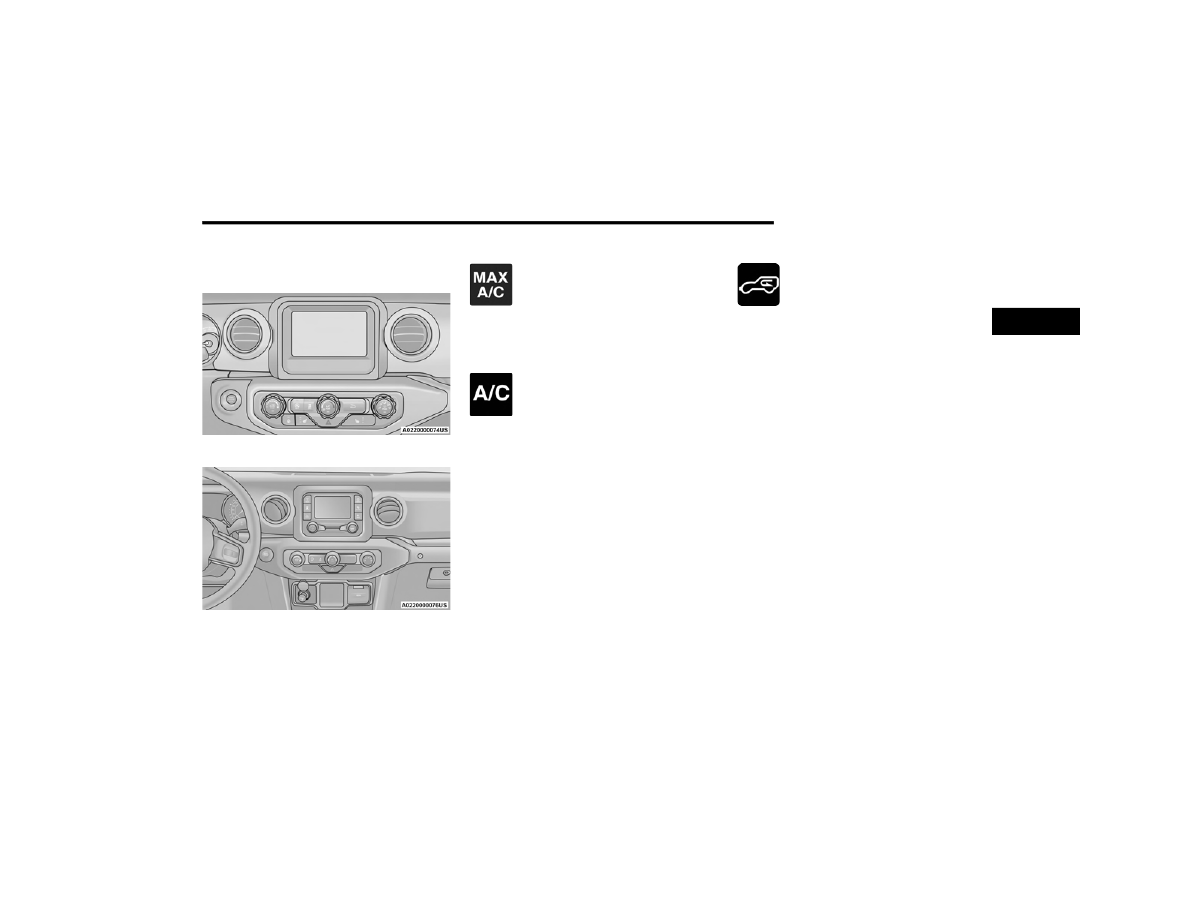

MAX A/C Button

Press and release the MAX A/C button on

the touchscreen to change the current

setting to the coldest output of air. The

MAX A/C indicator illuminates when MAX

A/C is on. Pressing the button again will cause the

MAX A/C operation to exit.

NOTE:

The MAX A/C button is only available on the touch

screen.
MAX A/C sets the control for maximum cooling

performance. The button illuminates when MAX

A/C is on. In MAX A/C, the blower level and mode

position can be adjusted to desired user settings.

Pressing other settings will cause the MAX A/C to

turn off.

A/C Button

Press and release this button on the

touchscreen, or push the button on the

faceplate to change the current setting.

The A/C indicator illuminates when A/C is

on.

The A/C button allows the operator to manually

activate or deactivate the A/C system. When the

A/C system is turned on, cool dehumidified air will

flow through the outlets into the cabin.

Recirculation Button

Press and release this button on the

touchscreen, or push the button on the

faceplate, to change the system between

recirculation mode and outside air mode.

The Recirculation indicator and the A/C indicator

illuminate when the Recirculation button is

pressed. Recirculation can be used when outside

conditions, such as smoke, odors, dust, or high

humidity are present. Recirculation can be used in

all modes. Recirculation may be unavailable

(button on the touchscreen greyed out) if

conditions exist that could create fogging on the

inside of the windshield. The A/C can be

deselected manually without disturbing the mode

control selection. Continuous use of the

Recirculation mode may make the inside air stuffy

and window fogging may occur. Extended use of

GETTING TO KNOW YOUR VEHICLE

(Continued)

this mode is not recommended. Recirculation

mode may automatically adjust to optimize

customer experience for warming, cooling,

dehumidification, etc.
In cold weather, use of Recirculation mode may

lead to excessive window fogging.

AUTO Button

Set your desired temperature and press

and release the AUTO button on the

touchscreen, or push the button on the

faceplate. AUTO will achieve and

maintain your desired temperature by

automatically adjusting the blower speed and air

distribution. Air Conditioning (A/C) may be active

during AUTO operation to improve performance.

AUTO mode is highly recommended for efficiency.

You can press and release this button on the

touchscreen, or push the button on the faceplate,

to turn AUTO on. The AUTO indicator illuminates

when AUTO is on. Toggling this function will cause

the system to switch between manual mode and

automatic mode

page 67.

Front Defrost Button

Press and release this button on the

touchscreen, or push and release the

button on the faceplate, to change the

current airflow setting to Defrost mode.

The Front Defrost indicator illuminates when Front

Defrost is on. Air comes from the windshield and

side window demist outlets. When the defrost

button is selected, the blower level may increase.

Use Defrost mode with maximum temperature

settings for best windshield and side window

defrosting and defogging. When toggling the front

defrost mode button, the climate system returns to

the previous setting.

Rear Defrost Button

Press and release the Rear Defrost

button on the touchscreen, or push and

release the button on the faceplate, to

turn on the rear window defroster and the

heated outside mirrors (if equipped). The Rear

Defrost indicator illuminates when the rear window

defroster is on. The rear window defroster

automatically turns off after 10 minutes.

Driver And Passenger Temperature Up And

Down Buttons

Provides the driver and passenger with

independent temperature control.

Push the red button on the faceplate or

touchscreen or press and slide the

temperature bar towards the red arrow

button on the touchscreen for warmer

temperature settings.

Push the blue button on the faceplate or

touchscreen or press and slide the

temperature bar towards the blue arrow

button on the touchscreen for cooler

temperature settings.

NOTE:

The numbers within the temperature display will

only appear if your vehicle is equipped with an

Automatic Climate Control system.

CAUTION!

Failure to follow these cautions can cause

damage to the heating elements:



Use care when washing the inside of the rear

window. Do not use abrasive window cleaners

on the interior surface of the window. Use a

soft cloth and a mild washing solution, wiping

parallel to the heating elements. Labels can

be peeled off after soaking with warm water.



Do not use scrapers, sharp instruments, or

abrasive window cleaners on the interior

surface of the window.



Keep all objects a safe distance from the

window.

CAUTION!

GETTING TO KNOW YOUR VEHICLE

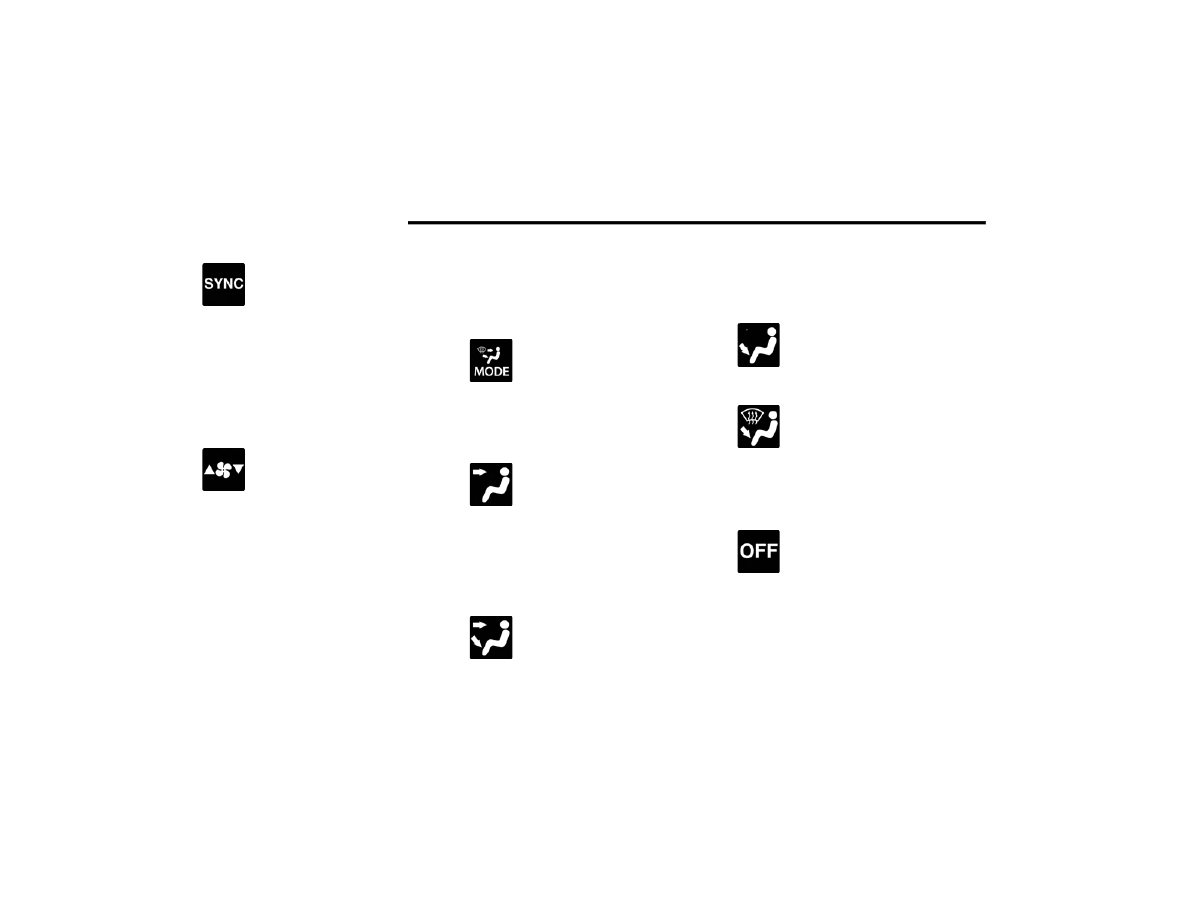

SYNC Button

Press the SYNC button on the

touchscreen to toggle the SYNC feature

on/off. The SYNC indicator illuminates

when SYNC is on. SYNC synchronizes the

passenger temperature setting with the driver

temperature setting. Changing the passenger’s

temperature setting while in SYNC will

automatically exit this feature.

NOTE:

The SYNC button is only available on the touch

screen.

Blower Control

Blower Control regulates the amount of

air forced through the Climate Control

system. Adjusting the blower will cause

automatic mode to switch to manual

operation. There are seven blower speeds

available. The speeds can be selected using either

the blower control knob on the faceplate or the

buttons on the touchscreen.



Faceplate: The blower speed increases as you

turn the blower control knob clockwise from the

lowest blower setting. The blower speed

decreases as you turn the blower control knob

counterclockwise.



Touchscreen: Use the small blower icon to

reduce the blower setting and the large blower

icon to increase the blower setting. The blower

can also be selected by pressing the blower bar

area between the icons.

Mode Control

Select one of the Mode buttons on the

touchscreen or press the Mode button on

the faceplate to adjust the airflow

distribution. The airflow distribution can

be adjusted so air comes from the instrument

panel outlets, floor outlets, defrost outlets, and

demist outlets.

Panel Mode

Air comes from the outlets in the

instrument panel. Each of these outlets

can be individually adjusted to direct the

flow of air. The air vanes of the center

outlets and outboard outlets can be moved up and

down or side to side to regulate airflow direction.

There is a shut-off wheel located below the air

vanes to shut off or adjust the amount of airflow

from these outlets.

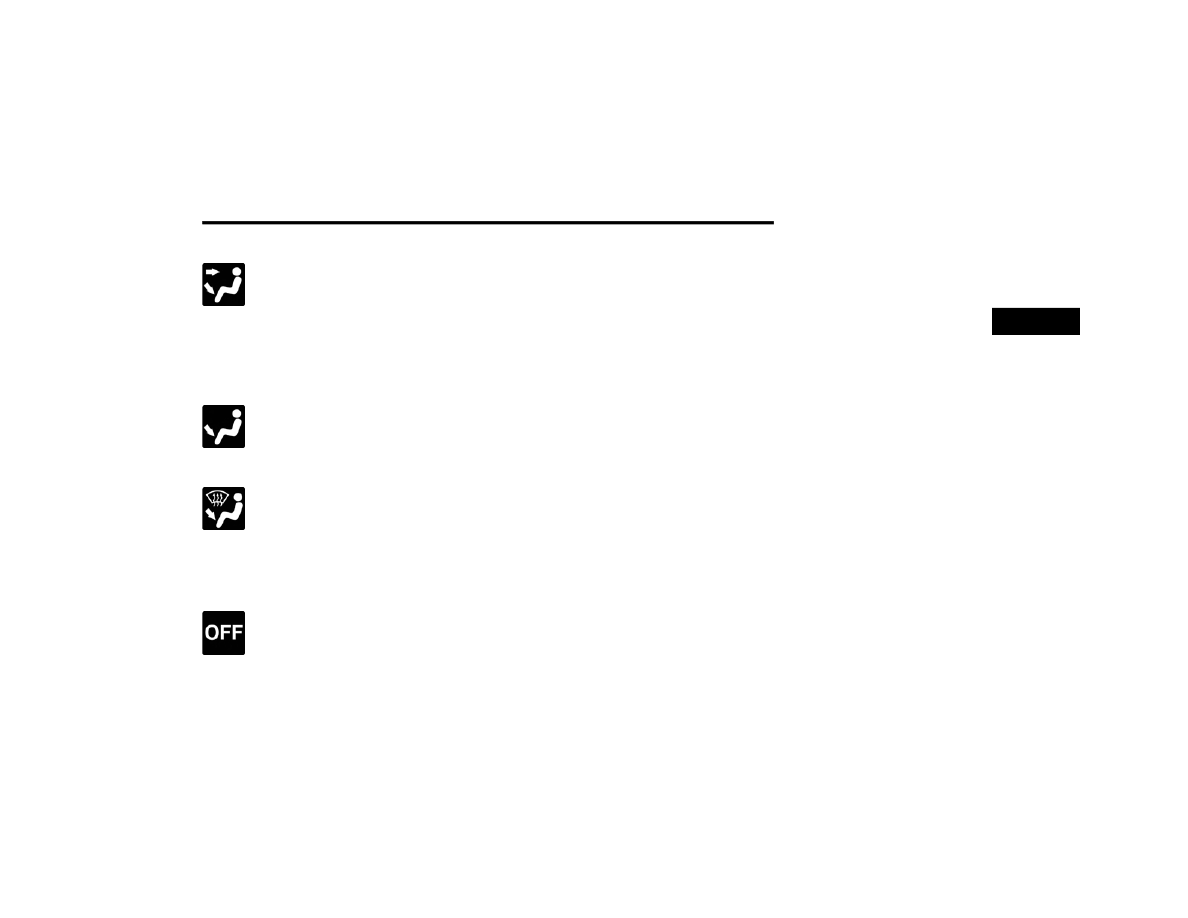

Bi-Level Mode

Air comes from the instrument panel

outlets and floor outlets. A slight amount

of air is directed through the defrost and

side window demister outlets.

NOTE:

Bi-Level mode is designed under comfort condi

tions to provide cooler air out of the panel outlets

and warmer air from the floor outlets.

Floor Mode

Air comes from the floor outlets. A slight

amount of air is directed through the

defrost and side window demister

outlets.

Mix Mode

Air is directed through the floor, defrost,

and side window demister outlets. This

setting works best in cold or snowy

conditions that require extra heat to the

windshield. This setting is good for maintaining

comfort while reducing moisture on the

windshield.

Climate Control OFF Button

Press and release the OFF button on the

touchscreen, or push the OFF button on

the faceplate to turn the Climate Control

ON/OFF.

GETTING TO KNOW YOUR VEHICLE

ANUAL

LIMATE

ONTROL

ESCRIPTIONS

UNCTIONS

Uconnect 4 With 7-inch Display Manual Climate Controls

Uconnect 3 With 5-inch Display Manual Climate Controls

MAX A/C Setting — If Equipped

Set the temperature control knob to the

MAX A/C setting to change the current

setting to the coldest output of air.

Moving the temperature control knob

away from the MAX A/C setting causes the MAX

A/C operation to exit.

A/C Button

Push the A/C button to engage the Air

Conditioning (A/C). The A/C indicator

illuminates when A/C is on.

NOTE:



For Manual Climate Controls, if the system is in

Mix, Floor or Defrost Mode, the A/C can be

turned off, but the A/C system shall remain

active to prevent fogging of the windows.



If fog or mist appears on the windshield or side

glass, select Defrost mode, and increase blower

speed if needed.



If your air conditioning performance seems

lower than expected, check the front of the A/C

condenser (located in front of the radiator), for

an accumulation of dirt or insects. Clean with a

gentle water spray from the front of the radiator

and through the condenser.

Recirculation Button

Push the recirculation button on the

faceplate to change the system between

recirculation mode and outside air mode.

The Recirculation indicator and the A/C

indicator (if equipped) illuminate when the

Recirculation button is pressed. Recirculation can

be used when outside conditions such as smoke,

odors, dust, or high humidity are present.

Recirculation can be used in all modes except for

Defrost. Recirculation may be unavailable if

conditions exist that could create fogging on the

inside of the windshield. The A/C can be

deselected manually without disturbing the mode

control selection. Continuous use of the

Recirculation mode may make the inside air stuffy

and window fogging may occur. Extended use of

this mode is not recommended.
On systems with Manual Climate Controls (if

equipped), the Recirculation mode is not allowed

in Defrost mode to improve window clearing

operation. Recirculation is disabled automatically

if this mode is selected. Attempting to use

Recirculation while in this mode causes the LED in

the control button to blink and then turns off.

GETTING TO KNOW YOUR VEHICLE

(Continued)

Front Defrost Setting

Turn the Mode Control knob to the Front

Defrost mode setting. Air comes from the

windshield and side window demist

outlets. When the Defrost button is

selected, the blower level may increase. Use

Defrost mode with maximum temperature settings

for best windshield and side window defrosting

and defogging.

Rear Defrost Button

Push and release the Rear Defrost

Control button to turn on the rear window

defroster and the heated outside mirrors

(if equipped). The Rear Defrost indicator

illuminates when the rear window defroster is on.

The rear window defroster automatically turns off

after 10 minutes.

Temperature Control

Temperature Control regulates the temperature of

the air forced through the climate system.

The temperature increases as you turn

the temperature control knob clockwise.

The temperature decreases as you turn

the temperature control knob

counterclockwise.

Heater Only
Turning the temperature control knob clockwise

increases the heating temperature and turning the

temperature control knob counterclockwise

decreases the heating temperature.

NOTE:

The numbers within the temperature display will

only appear if your vehicle is equipped with an

Automatic Climate Control system.

Blower Control

Blower Control regulates the amount of

air forced through the climate system.

There are seven blower speeds available.

The blower speeds increase as you turn

the blower control knob clockwise from the lowest

blower setting. The blower speed decreases as you

turn the blower control knob counterclockwise.

Mode Control

Turn the mode control knob to adjust

airflow distribution. The airflow

distribution mode can be adjusted so air

comes from the instrument panel

outlets, floor outlets, defrost outlets and demist

outlets.

Panel Mode

Air comes from the outlets in the

instrument panel. Each of these outlets

can be individually adjusted to direct the

flow of air. The air vanes of the center

outlets and outboard outlets can be moved up and

down or side to side to regulate airflow direction.

There is a shut-off wheel located below the air

vanes to shut off or adjust the amount of airflow

from these outlets.

CAUTION!

Failure to follow these cautions can cause

damage to the heating elements:



Use care when washing the inside of the rear

window. Do not use abrasive window cleaners

on the interior surface of the window. Use a

soft cloth and a mild washing solution, wiping

parallel to the heating elements. Labels can

be peeled off after soaking with warm water.



Do not use scrapers, sharp instruments, or

abrasive window cleaners on the interior

surface of the window.



Keep all objects a safe distance from the

window.

CAUTION!

GETTING TO KNOW YOUR VEHICLE

Bi-Level Mode

Air comes from the instrument panel

outlets and floor outlets. A slight amount

of air is directed through the defrost and

side window demister outlets.

NOTE:

Bi-Level mode is designed under comfort condi

tions to provide cooler air out of the panel outlets

and warmer air from the floor outlets.

Floor Mode

Air comes from the floor outlets. A slight

amount of air is directed through the

defrost and side window demister

outlets.

Mix Mode

Air is directed through the floor, defrost,

and side window demister outlets. This

setting works best in cold or snowy

conditions that require extra heat to the

windshield. This setting is good for maintaining

comfort while reducing moisture on the

windshield.

Climate Control OFF

To turn the Climate Controls off, turn the

blower control knob to the OFF (O)

position.

UTOMATIC

EMPERATURE

ONTROL

(ATC) — I

QUIPPED

Automatic Operation

1. Push the AUTO button on the faceplate, or the

AUTO button on the touchscreen on the

Automatic Temperature Control (ATC) Panel.

2. Next, adjust the temperature that you would

like the system to maintain by adjusting the

driver and passenger temperature control

buttons. Once the desired temperature is

displayed, the system will achieve and

automatically maintain that comfort level.

3. When the system is set up for your comfort

level, it is not necessary to change the

settings. You will experience the greatest

efficiency by simply allowing the system to

function automatically.

NOTE:



It is not necessary to move the temperature

settings for cold or hot vehicles. The system

automatically adjusts the temperature, mode,

and blower speed to provide comfort as quickly

as possible.



The temperature can be displayed in US or

Metric units by selecting the US/Metric

customer-programmable feature within

Uconnect Settings

page 207.

To provide you with maximum comfort in the

Automatic mode during cold start-ups, the blower

fan will remain on low until the engine warms up.

The blower will increase in speed and transition

into Auto mode.

Manual Operation Override

This system offers a full complement of manual

override features. The AUTO symbol in the front

ATC display will be turned off when the system is

being used in the manual mode.

LIMATE

OICE

OMMANDS

Adjust vehicle temperatures hands-free and keep

everyone comfortable while you keep moving

ahead.
Push the VR button on the steering wheel. After the

beep, say one of the following commands:



“Set the driver temperature to 70 degrees”



“Set the passenger temperature to 70 degrees”

Did You Know: Voice Command for Climate may

only be used to adjust the interior temperature of

your vehicle. Voice Command will not work to

adjust the heated seats or steering wheel if

equipped.

GETTING TO KNOW YOUR VEHICLE

PERATING

IPS

Refer to the chart at the end of this section for

suggested control settings for various weather

conditions.

Summer Operation

The engine cooling system must be protected with

a high-quality antifreeze coolant to provide proper

corrosion protection and to protect against engine

overheating. OAT coolant (conforming to

MS.90032) is recommended.

Winter Operation

To ensure the best possible heater and defroster

performance, make sure the engine cooling

system is functioning properly and the proper

amount, type, and concentration of coolant is

used. Use of the Air Recirculation mode during

Winter months is not recommended, because it

may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control

system when the vehicle is being stored for an

extended period of time, see

page 407.

Window Fogging

Vehicle windows tend to fog on the inside in mild,

rainy, and/or humid weather. To clear the

windows, select Defrost or Mix mode and increase

the front blower speed. Do not use the

Recirculation mode without A/C for long periods,

as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of

the windshield, is free of obstructions, such as

leaves. Leaves collected in the air intake may

reduce airflow, and if they enter the plenum, they

could plug the water drains. In Winter months,

make sure the air intake is clear of ice, slush, and

snow.

Cabin Air Filter

The climate control system filters out dust and

pollen from the air. Contact an authorized dealer to

service your cabin air filter, and to have it replaced

when needed.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system

may automatically adjust airflow to maintain cabin

comfort. Customer settings will be maintained

upon return to an engine running condition.

Operating Tips Chart

The following chart is for Manual Override

Operation:

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is Very

Hot

Set the mode control to

(Panel Mode),

(A/C) on, and blower

on high. Roll down the

windows for a minute

to flush out the hot air.

Adjust the controls as

needed to achieve

comfort.

Warm Weather

Turn (A/C) on and

set the mode control to

(Panel Mode).

Cool Sunny

Operate in (Bi-Level

Mode).

Cool & Humid

Conditions

Set the mode control to

(Floor Mode) and

turn (A/C) on to

keep windows clear.

Cold Weather

Set the mode control to

(Floor Mode). If

windshield fogging

starts to occur, move

the control to (Mix

Mode).

GETTING TO KNOW YOUR VEHICLE

INTERIOR STORAGE AND EQUIPMENT

TORAGE

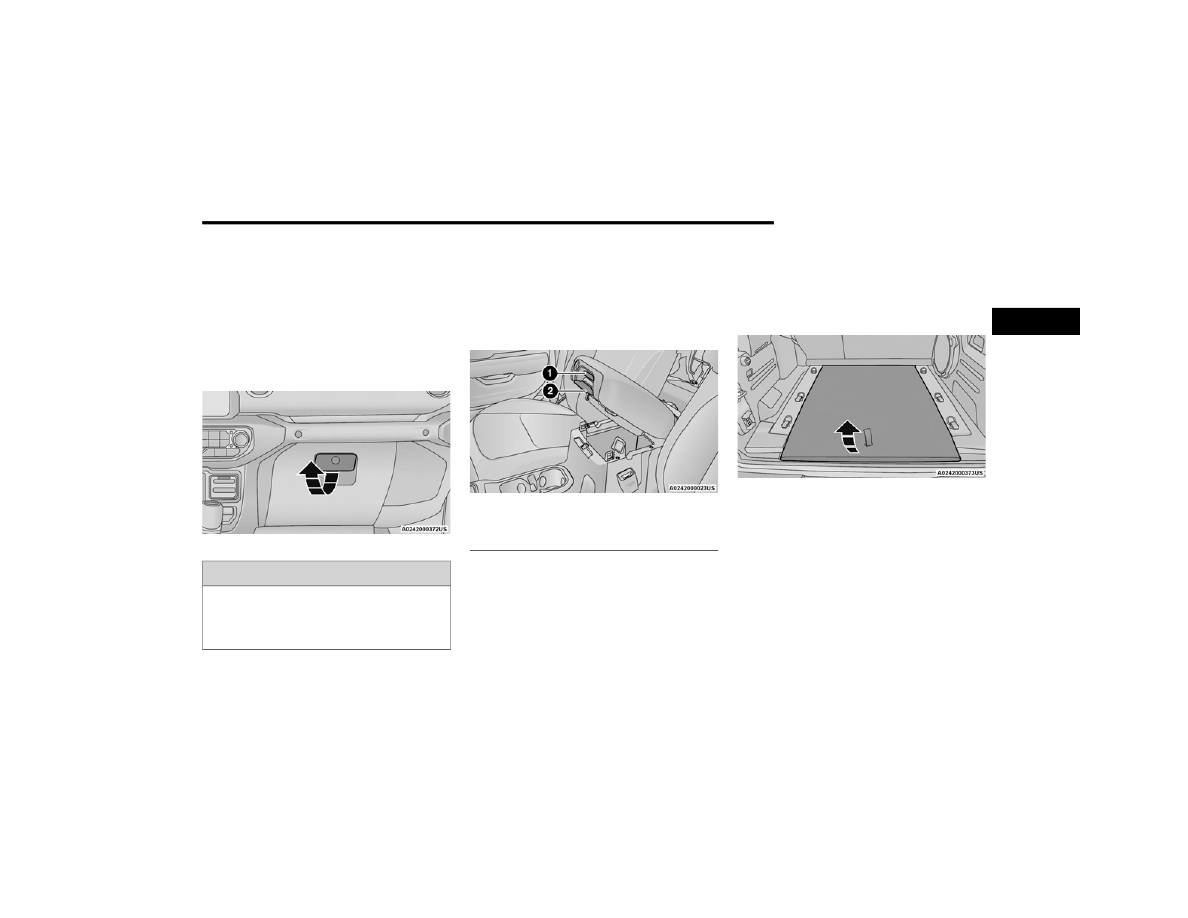

Glove Compartment

The glove compartment is located on the

passenger side of the instrument panel.
To open the glove compartment, pull the release

handle.

Glove Compartment

Console Storage Compartment

The center console has both an upper and lower

storage compartment.
To open the upper storage compartment, lift the

top latch. To access the lower storage

compartment, lift the bottom latch.

Console Storage Latches

Rear Storage Compartment — If Equipped

The rear cargo area storage compartment is

located underneath the load floor.
To access the storage compartment, lift up on the

cargo strap at the rear of the cargo area.

Rear Storage Cover

USB/AUX C

ONTROL

The Media Hub is located on the instrument panel,

below the climate controls. Behind the media hub

access door, the Media Hub contains one AUX port,

a Type C USB port and one standard USB port. Both

USB ports allow you to play music from MP3

players, smartphones or USB devices through the

vehicle’s sound system.

WARNING!

Do not operate this vehicle with a glove

compartment in the open position. Driving with

the glove compartment open may result in injury

in a collision.

1 — Upper Compartment Latch
2 — Lower Compartment Latch

GETTING TO KNOW YOUR VEHICLE

Plugging in a smartphone device to a USB port may

activate Android Auto™ or Apple CarPlay®

features, if equipped. For further information, refer

to Android Auto™ or Apple Carplay®

page 250

or in the Owner's Manual Supplement.
The Smart Charging USB ports provide power to

your device up to an hour after the vehicle is turned

off.

NOTE:



Once a device is connected to the USB port, it

will begin charging and is ready for use with the

system. Type C and Type A charge-only USB

ports can be used at the same time but cannot

be used simultaneously while playing media.

When both Type C and Type A charge-only USB

ports are in use they will be charged at a

reduced rate.



Both ports share a single data connection. The

user cannot switch between Type A or Type C.

For example, if a device is plugged into the Type A

USB port and another device is plugged into the

Type C USB port, a message will appear and allow

you to select which device to use.

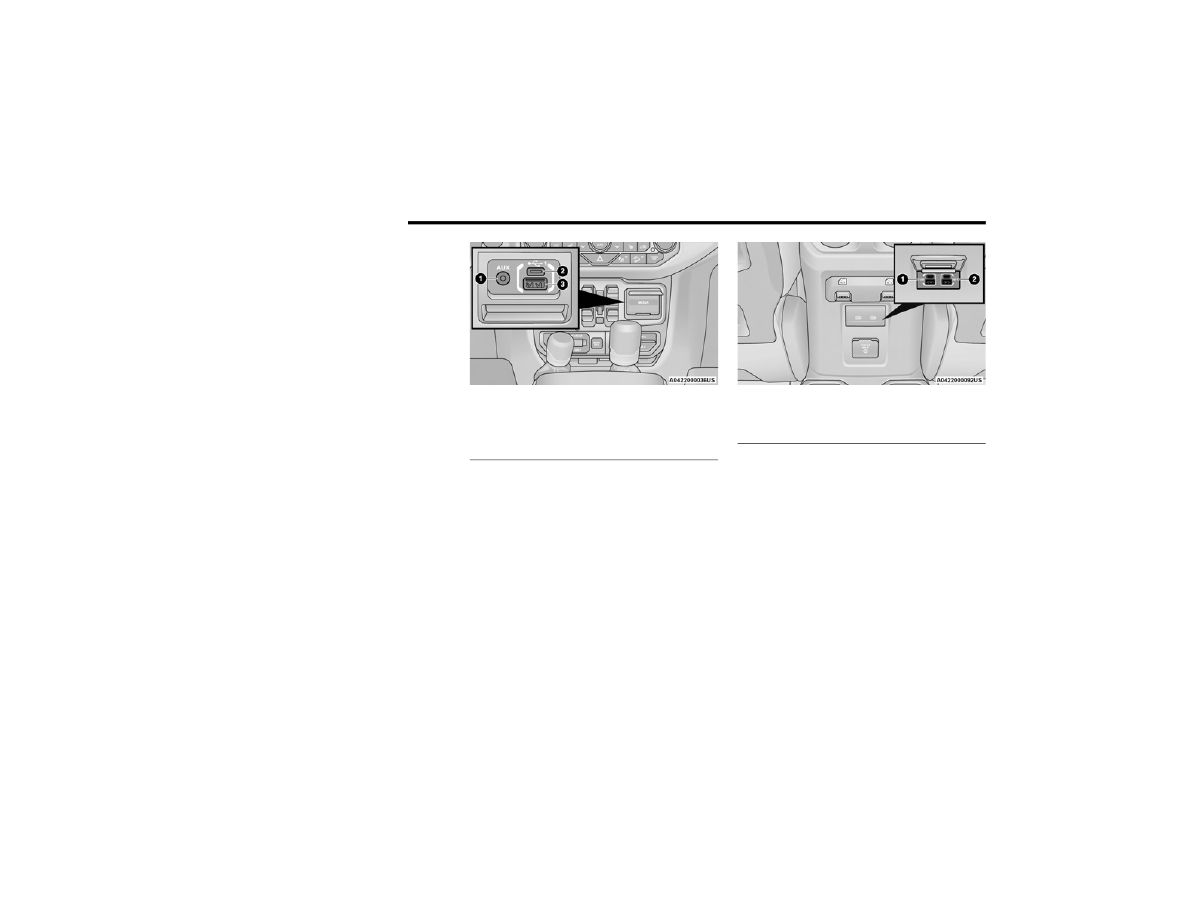

Media Hub

Located inside the center console, a second USB

port allows you to play music from USB devices

through your vehicle’s sound system.
Third and fourth USB ports (if equipped) are

located behind the center console, above the

power inverter. Both ports are charge only.

USB On The Back Of The Center Console

When a new device or smartphone is plugged into

the USB ports, the following message may display

depending on the device being utilized:



“A new device is now connected. Previous

connection was lost”.



“(Phone Name) now connected. Previous

connection was lost”.



“Another device is in use through the same USB

port. Please disconnect the first device to use

the second device”.

1 — AUX Port
2 — Type C USB Port
3 — Type A USB Port

1 — Type C And Standard Charge Only USB Ports
2 — Type C And Standard Charge Only USB Ports

GETTING TO KNOW YOUR VEHICLE

NOTE:

Charge unsupported devices with the Charge Only

USB ports. If an unsupported device is plugged into

a Media USB port, a message will display on the

touchscreen that the device is not supported by

the system.

OWER

UTLETS

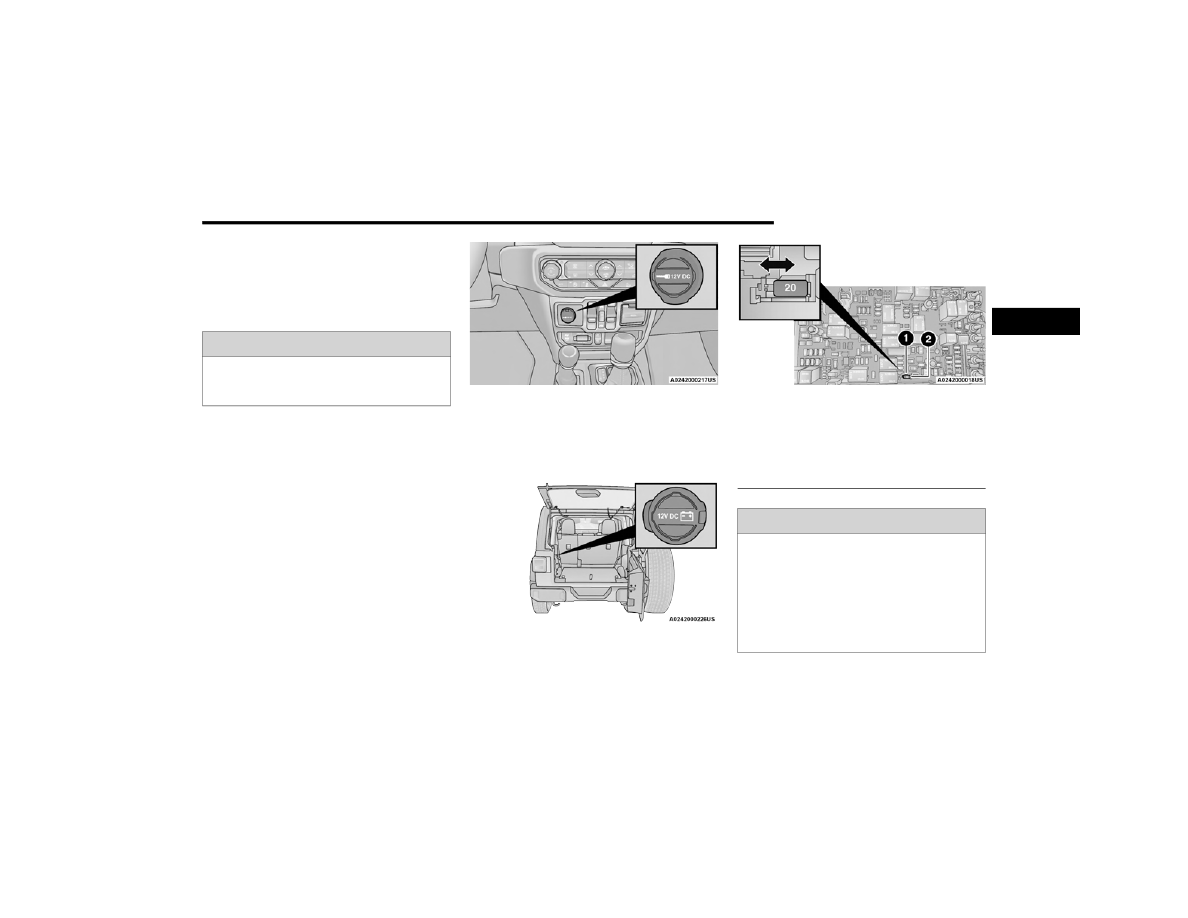

There are two 12 Volt (13 Amp) auxiliary power

outlets that can provide power for accessories

designed for use with the standard power outlet

adapters.
The front power outlet is located in the center of

the instrument panel below the climate controls,

and is powered from the ignition switch. Power is

available when the ignition switch is in the ON/

RUN or ACC position.

Front Power Outlet

On vehicles equipped with a rear subwoofer, there

is a second power outlet located in the rear cargo

area and is powered directly from the vehicle’s

battery.

Rear Cargo Power Outlet

Power Outlets Fuse Locations

WARNING!

Do not plug in or remove the external device

while driving. Failure to follow this warning could

result in a collision.

1 — F43 Fuse 20A Yellow Rear Power Outlet

(battery powered at all times)
2 — F45 Fuse 20A Yellow Rear Power Outlet

(powered when the ignition switch is in the ON/

RUN or ACC position)

WARNING!

To avoid serious injury or death:



Do not insert any objects into the receptacles.



Do not touch with wet hands.



Close the lid when not in use.



If this outlet is mishandled, it may cause an

electric shock and failure.

GETTING TO KNOW YOUR VEHICLE

(Continued)

OWER

NVERTER

— I

QUIPPED

There is a 115 Volt, 150 Watt inverter outlet

located on the back of the center console to

convert DC current to AC current.
This outlet can power cellular phones, electronics

and other low power devices requiring power up to

150 Watts. Certain video game consoles exceed

this power limit, as will most power tools.

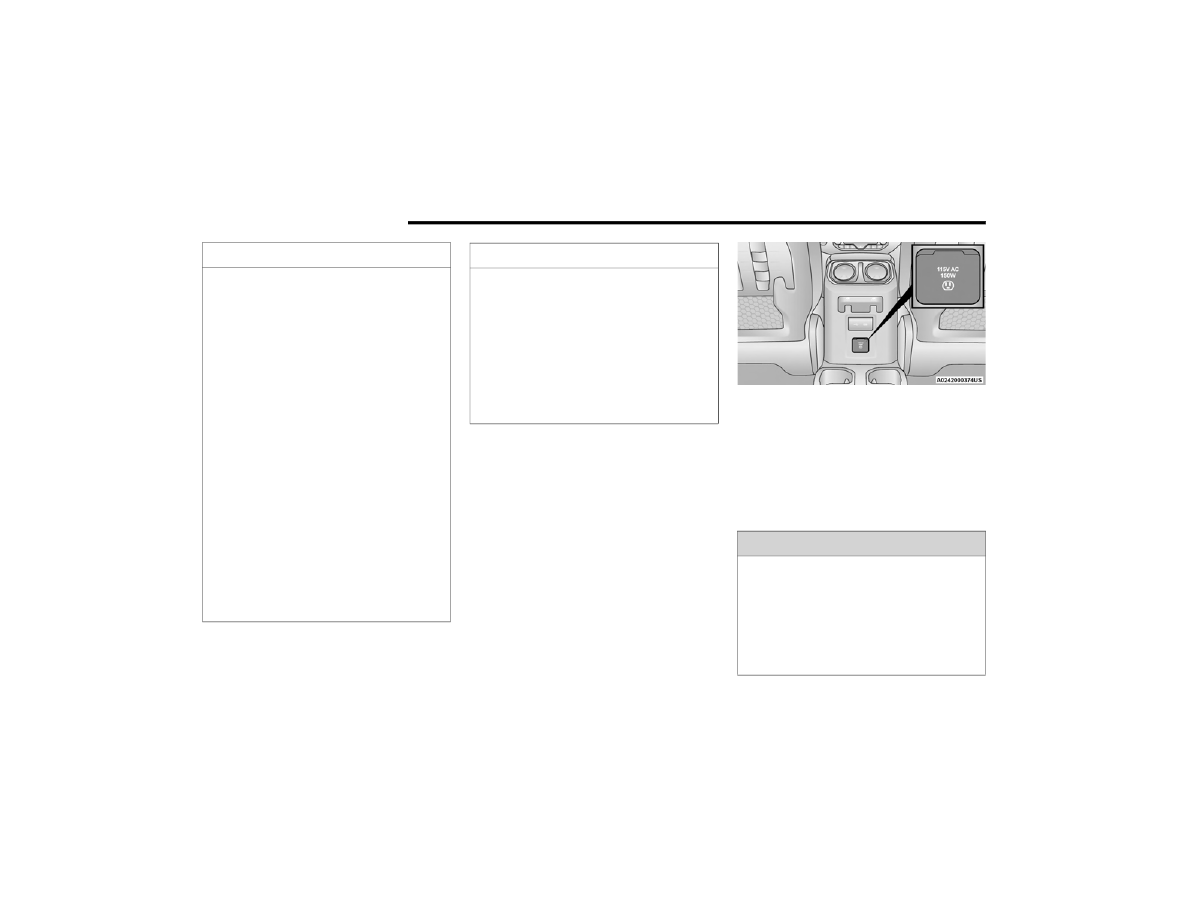

Power Inverter

The power inverter is designed with built-in

overload protection. If the power rating of

150 Watts is exceeded, the power inverter

automatically shuts down. Once the electrical

device has been removed from the outlet, the

inverter should automatically reset. If the power

rating exceeds approximately 170 Watts, the

power inverter may have to be reset manually.

CAUTION!



Do not exceed the maximum power of

160 Watts (13 Amps) at 12 Volts. If the

160 Watt (13 Amp) power rating is exceeded,

the fuse protecting the system will need to be

replaced.



Power outlets are designed for accessory

plugs only. Do not insert any other object in

the power outlets as this will damage the

outlet and blow the fuse. Improper use of the

power outlet can cause damage not covered

by your New Vehicle Limited Warranty.



Many accessories that can be plugged in draw

power from the vehicle's battery, even when

not in use (i.e., cellular phones, etc.). Eventu

ally, if plugged in long enough, the vehicle's

battery will discharge sufficiently to degrade

battery life and/or prevent the engine from

starting.



Accessories that draw higher power (i.e.,

coolers, vacuum cleaners, lights, etc.), will

degrade the battery even more quickly. Only

use these intermittently and with greater

caution.



After the use of high power draw accessories,

or long periods of the vehicle not being started

(with accessories still plugged in), the vehicle

must be driven a sufficient length of time to

allow the alternator to recharge the vehicle's

battery.



Power outlets are designed for accessory

plugs only. Do not hang any type of accessory

or accessory bracket from the plug. Improper

use of the power outlet can cause damage.

CAUTION!

WARNING!

To avoid serious injury or death:



Do not insert any objects into the receptacles.



Do not touch with wet hands.



Close the lid when not in use.



If this outlet is mishandled, it may cause an

electric shock and failure.

GETTING TO KNOW YOUR VEHICLE

UXILIARY

WITCHES

— I

QUIPPED

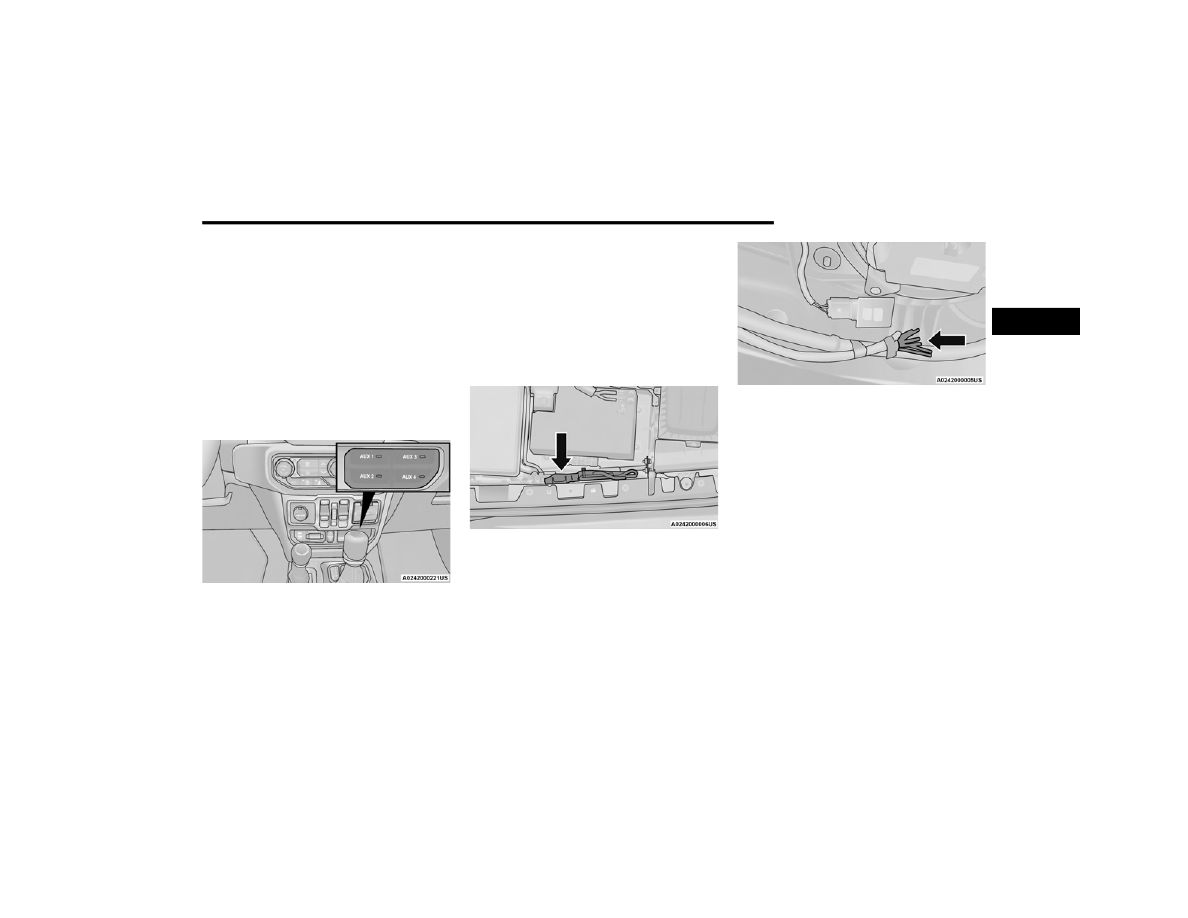

Four auxiliary switches located in the lower switch

bank of the instrument panel can be used to power

various electrical devices. You have the ability to

configure the functionality of the auxiliary switches

via the Uconnect Settings

page 207.

All switches can be configured as follows:



Switch type operation: Latching or Momentary



Power source: Battery or Ignition



Ability to hold last state across key cycles: On or

Off

Auxiliary Switches

NOTE:

Holding last state conditions are met when switch

type is set to latching and power source is set to

ignition.
The auxiliary switches manage the relays that

power four blunt cut wires. These wires are located

under the instrument panel in the passenger

compartment and under the hood to the right, near

the battery.

Auxiliary Switch Connections – Under Hood

Auxiliary Switch Connections – Under Instrument Panel

In addition to the four auxiliary switch wires, a

fused battery wire and ignition wire are also

located in the interior, in the passenger side under

the instrument panel.
A kit of splices and heat shrink tubing are provided

with the auxiliary switches to aid in the connection/

installation of your electrical devices.

GETTING TO KNOW YOUR VEHICLE

Wire Color Chart

Circuit Function

Fuse

Wire Color

Locations

Aux Switch 1

F93 – 40 Amp

Beige/Pink
