GETTING TO KNOW YOUR VEHICLE

Push and hold the switch forward and the

sunshade will close and stop at full closed position.
Releasing the switch while the sunshade is in

motion will stop the sunshade in a partially open

position.

Pinch Protect Feature

This feature will detect an obstruction in the

opening of the sunroof during Express Close

operation. If an obstruction in the path of the

sunroof is detected, the sunroof will automatically

retract. Remove the obstruction if this occurs.

NOTE:

If three consecutive sunroof close attempts result

in Pinch Protect reversals, Pinch Protect will

disable and the sunroof must be closed in Manual

Mode.

Ignition Off Operation

The power sunroof switch will remain active for up

to approximately 10 minutes after the ignition

switch is placed in the OFF position. Opening either

front door will cancel this feature.

NOTE:

Ignition Off timing is programmable through the

Uconnect system

page 216.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to

clean the glass panel. Periodically check for and

clear out any debris that may have collected in the

tracks.

HOOD

PENING

OOD

To open the hood, two latches must be released.

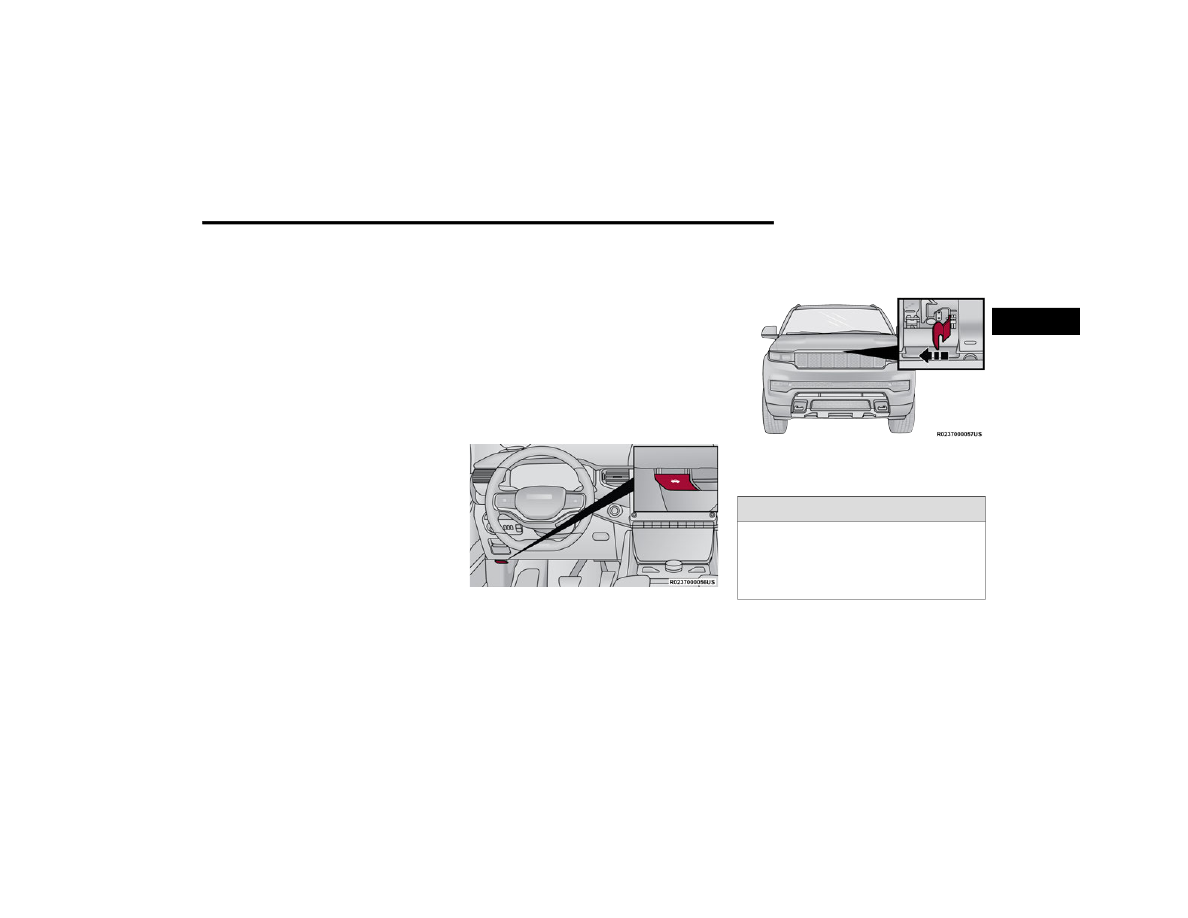

1. Pull the release lever located underneath the

driver’s side of the instrument panel.

Hood Release

2. Reach under the hood from outside the

vehicle, move the safety latch to the left and

lift the hood.

Safety Latch Location

LOSING

OOD

WARNING!

Be sure the hood is fully latched before driving

your vehicle. If the hood is not fully latched, it

could open when the vehicle is in motion and

block your vision. Failure to follow this warning

could result in serious injury or death.

GETTING TO KNOW YOUR VEHICLE

LIFTGATE

NLOCK

PEN

IFTGATE

The power liftgate may be opened by pushing the

liftgate button on the key fob or by pushing the

electronic liftgate release handle

page 31.

Push the liftgate button on the key fob twice within

five seconds to open the power liftgate. Once the

liftgate is open, pushing the button twice within

five seconds a second time will close the liftgate.

Liftgate Entry

NOTE:

If all doors are programmed to unlock on first press

within Uconnect Settings

page 216, all doors

will unlock when you push the electronic liftgate

release. If only the driver’s door is programmed,

only the liftgate will unlock when you push the elec

tronic liftgate release.

NOTE:



Use the power door lock switch on either front

door trim panel or the key fob to lock and unlock

the liftgate.



The driver's door lock cylinder will not lock and

unlock the liftgate.

NOTE:

The liftgate can also be opened manually by

pushing the electronic liftgate release handle and

pulling upward in one fluid motion.

OCK

LOSE

IFTGATE

There are several different ways to close the

liftgate:



Manually (grab the liftgate closing handle and

pull downward)



Key fob



Hands-free (if equipped)



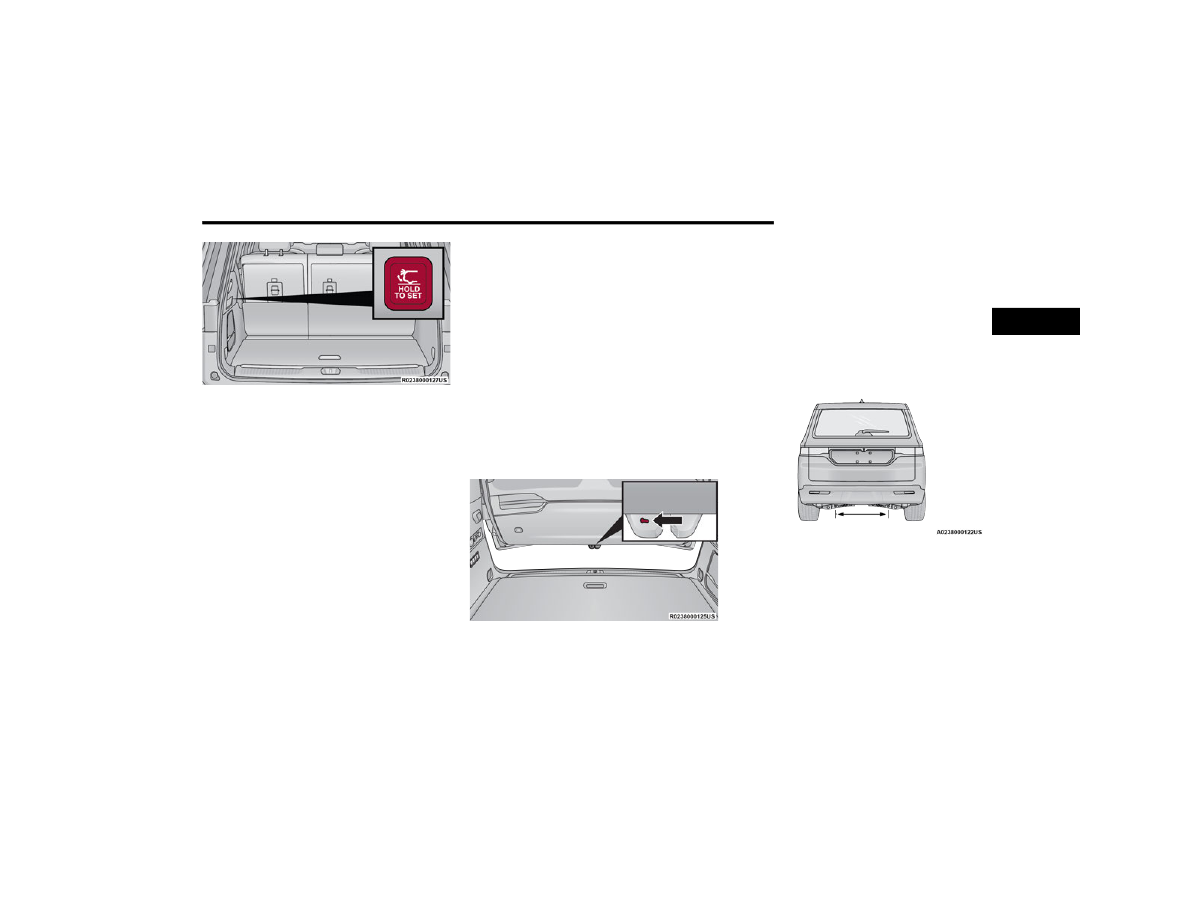

Liftgate close button in the cargo area

With a valid Passive Entry key fob within 5 ft

(1.5 m) of the liftgate, pushing the Passive Entry

button, located to the left of the electronic liftgate

release handle, will lock the vehicle only.
If the liftgate is fully open, the liftgate can be closed

by pushing the liftgate close button located in the

cargo area on the left rear trim panel, near the

liftgate opening. If the liftgate is in motion, pushing

the liftgate close button a second time will reverse

the liftgate operation.

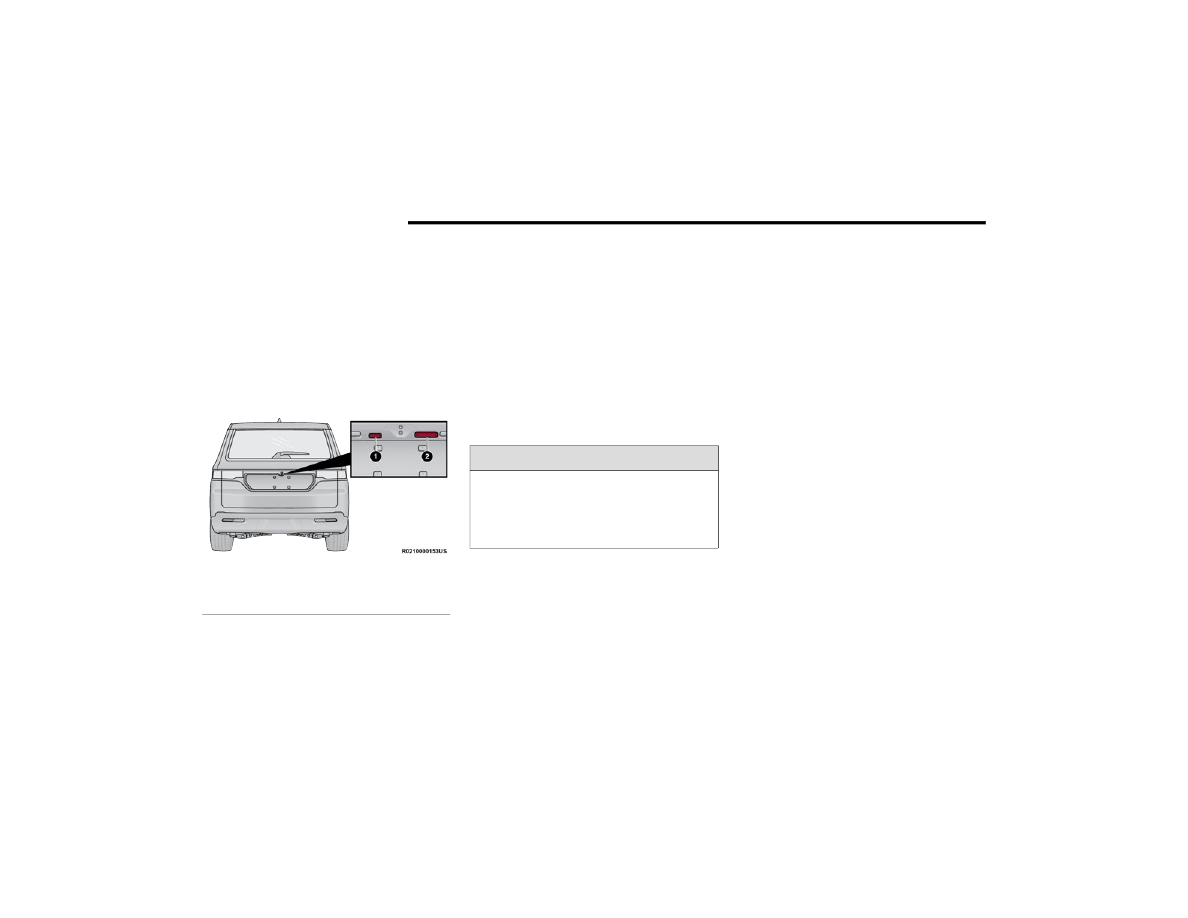

1 — Passive Entry Button
2 — Electronic Liftgate Release Button

WARNING!

Driving with the liftgate open can allow

poisonous exhaust gases into your vehicle. You

and your passengers could be injured by these

fumes. Keep the liftgate closed when you are

operating the vehicle.

GETTING TO KNOW YOUR VEHICLE

Liftgate Close Button

DJUSTABLE

OWER

IFTGATE

EIGHT

The maximum height that the liftgate will open can

be adjusted and saved so that the liftgate will only

open to the desired height. To set a desired height,

proceed as follows:
1. Open the liftgate fully, then manually pull

down on the liftgate to the desired height.

2. Push and hold the liftgate close button,

located on the left side trim panel inside the

cargo area, for three seconds. An audible

chime will be heard to let you know the height

has been saved.

To reset the saved height setting to a new setting,

proceed as follows:
1. Open the liftgate, then manually push the

liftgate upward to its full open position.

2. Manually pull the liftgate down to the new

desired height and hold the liftgate close

button for three seconds until the audible

chime is heard.

Power Liftgate Malfunction Procedure:
1. In the event of a power malfunction to the

liftgate, the liftgate can be released by

accessing the service release feature in the

latch. This can be done using a 3 mm

diameter screwdriver.

Liftgate Service Release

2. From inside the gate, an eyelet can be seen.

Place the screwdriver in the eyelet.

3. Rotate the screwdriver handle to actuate the

lever and release the latch.

4. If liftgate is left open for an extended period of

time, the liftgate may need to be closed

manually to reset power liftgate functionality.

ANDS

-F

REE

IFTGATE

Hands-Free Liftgate Activation Zone

To open or close the liftgate using hands-free

activation, use a straight in and out kicking motion

under the vehicle activation zone in the general

location between the park sensors. The activation

zone is about 1 ft (0.3 m) on each side from the

centerline of the vehicle. A sweeping motion under

the activation zone can also be used for hands-free

activation to open or close the liftgate.

GETTING TO KNOW YOUR VEHICLE

NOTE:

The activation zone is the same for vehicles

equipped with or without a trailer tow package.
When a valid kicking motion is completed, the

liftgate will chime, the hazard lights will flash and

the liftgate will open after approximately one

second, or close after approximately three

seconds. These settings can be enabled or

disabled through Uconnect Settings

page 216.

NOTE:



Opening or closing the Hands-Free Liftgate

requires a valid Passive Entry key fob within 5 ft

(1.5 m) of the liftgate handle. If a valid Passive

Entry key fob is not within 5 ft (1.5 m), the lift

gate will not respond to any kicks.



The Hands-Free Liftgate feature may be turned

on or off through the Uconnect system

page 216.



The Hands-Free Liftgate feature should be

turned off during jacking, tire changing, manual

car wash, and vehicle service.



The Hands-Free Liftgate feature can be acti

vated by any metallic object making a similar

in-and-out motion under the rear fascia/

bumper, such as cleaning using a metal broom.



The Hands-Free Liftgate will only operate when

the transmission is in PARK.



If anything obstructs the Hands-Free Liftgate

while it is opening or closing, the liftgate will

automatically reverse to the closed/open posi

tion, provided it meets sufficient resistance.



There are pinch sensors attached to the side of

the liftgate opening. Light pressure anywhere

along these strips will cause the liftgate to

return to the open position.



If the power liftgate encounters multiple

obstructions within the same cycle, the system

will automatically stop. If this occurs, the liftgate

must be operated manually.



The power liftgate will release, but not power

open, in temperatures below −12°F (−24°C).

Be sure to remove any buildup of snow or ice

from the liftgate before opening the liftgate.



If the liftgate is left open for an extended period

of time (approximately one hour), the liftgate

may need to be closed manually to reset power

liftgate functionality.

NOTE:

Allow the power system to open the liftgate.

Manually pushing or pulling the liftgate may

activate the liftgate obstacle detection feature and

stop the power operation or reverse its direction.

WARNING!



Driving with the liftgate open can allow

poisonous exhaust gases into your vehicle.

You and your passengers could be injured by

these fumes. Keep the liftgate closed when

you are operating the vehicle.



If you are required to drive with the liftgate

open, make sure that all windows are closed,

and the climate control blower switch is set at

high speed. Do not use the recirculation

mode.

WARNING!

During power operation, personal injury or cargo

damage may occur. Ensure the liftgate travel

path is clear. Make sure the liftgate is closed

and latched before driving away.

GETTING TO KNOW YOUR VEHICLE

(Continued)

ARGO

REA

EATURES

Cargo Storage

The load floor is designed for a maximum load of

300 lb (136 kg).
There is a removable storage bin located on the

left side of the rear cargo area.

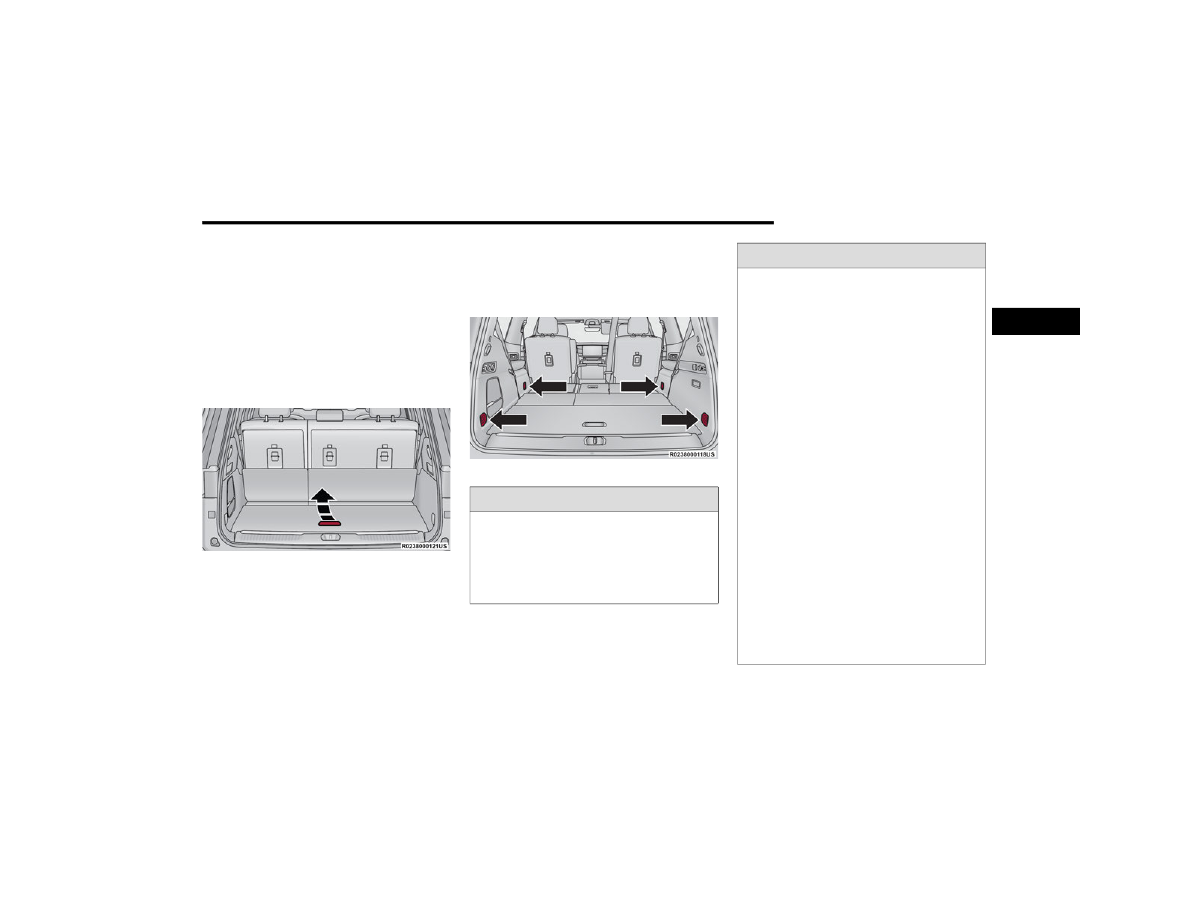

Additional storage can be found under the storage

lid. To access the lower storage, lift the handle and

raise the storage lid.

Lift Load Floor Handle

Cargo Tie-Down Hooks

The cargo tie-downs, located on the cargo area

sides, should be used to safely secure loads when

the vehicle is moving.

Tie-Down Hooks

WARNING!



Cargo tie-downs are not safe anchors for a

child seat tether strap. In a sudden stop or

accident, a tie-down could pull loose and allow

the child seat to come loose. A child could be

badly injured. Use only the anchors provided

for child seat tethers.



To help protect against personal injury,

passengers should not be seated in the rear

cargo area. The rear cargo space is intended

for load carrying purposes only, not for

passengers, who should sit in seats and use

seat belts.

The weight and position of cargo and

passengers can change the vehicle center of

gravity and vehicle handling. To avoid loss of

control resulting in personal injury, follow these

guidelines for loading your vehicle:



Do not carry loads that exceed the load limits

described on the label attached to the left

door or left door center pillar.



Always place cargo evenly on the cargo floor.

Put heavier objects as low and as far forward

as possible.



Place as much cargo as possible in front of the

rear axle. Too much weight or improperly

placed weight over or behind the rear axle can

cause the vehicle to sway.



Do not pile luggage or cargo higher than the

top of the seatback. This could impair visibility

or become a dangerous projectile in a sudden

stop or accident.

WARNING!

GETTING TO KNOW YOUR VEHICLE

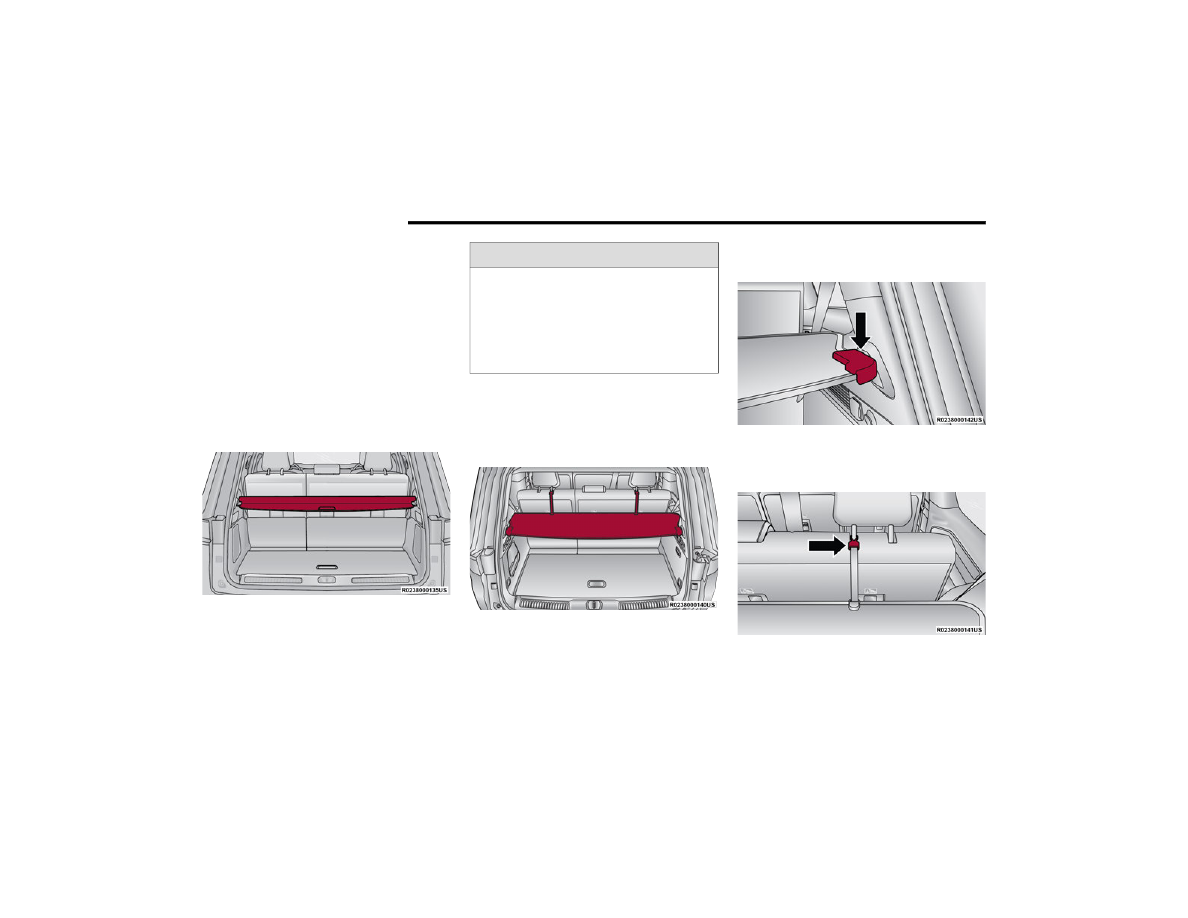

Retractable Cargo Area Cover —

If Equipped

The purpose of this cover is for privacy, not to

secure loads. It will not prevent cargo from shifting

or protect passengers from loose cargo.
To cover the cargo area:
1. Grab the cover at the center handle and pull

over the cargo area.

2. Insert the pins on the ends of the cover into the

slots in the pillar trim cover.

3. The liftgate may be opened with the cargo

cover in place.

Rear Cargo Cover

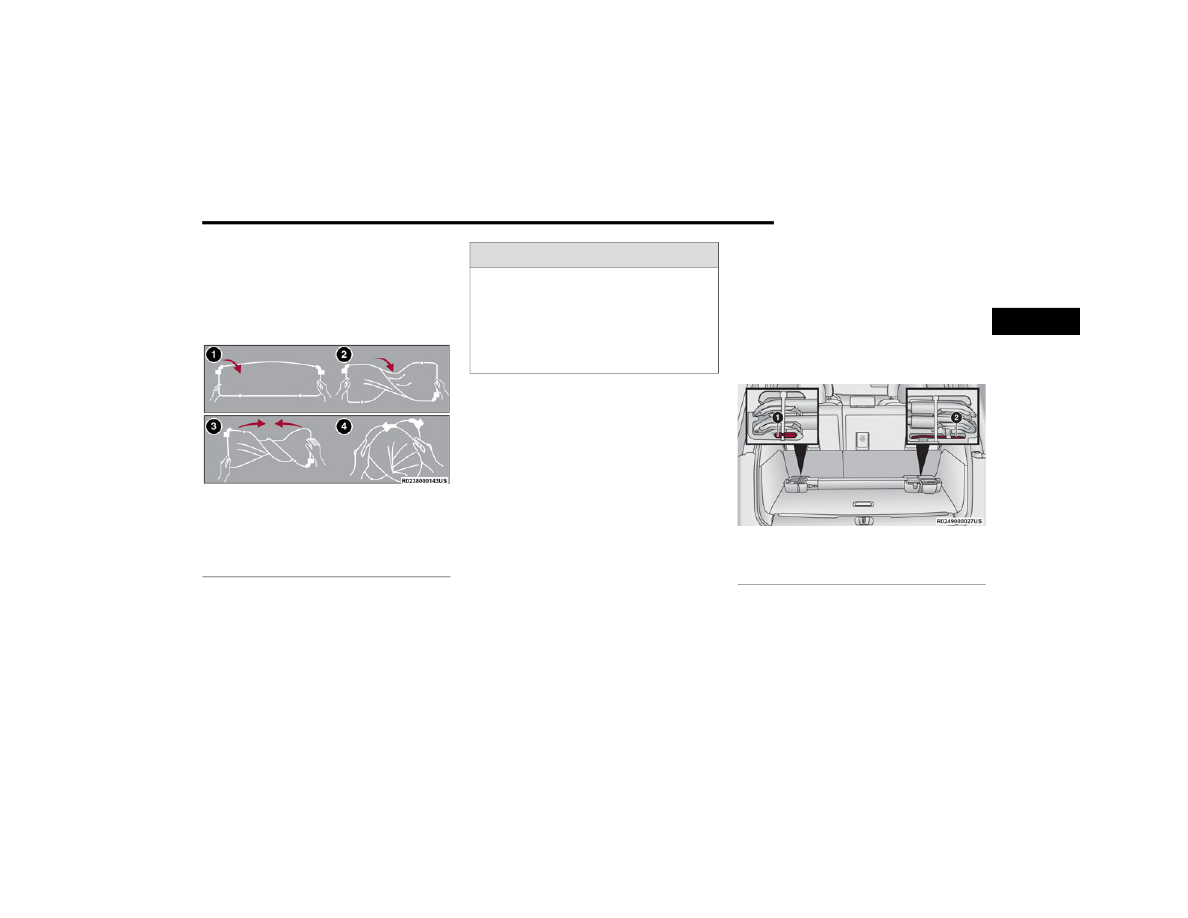

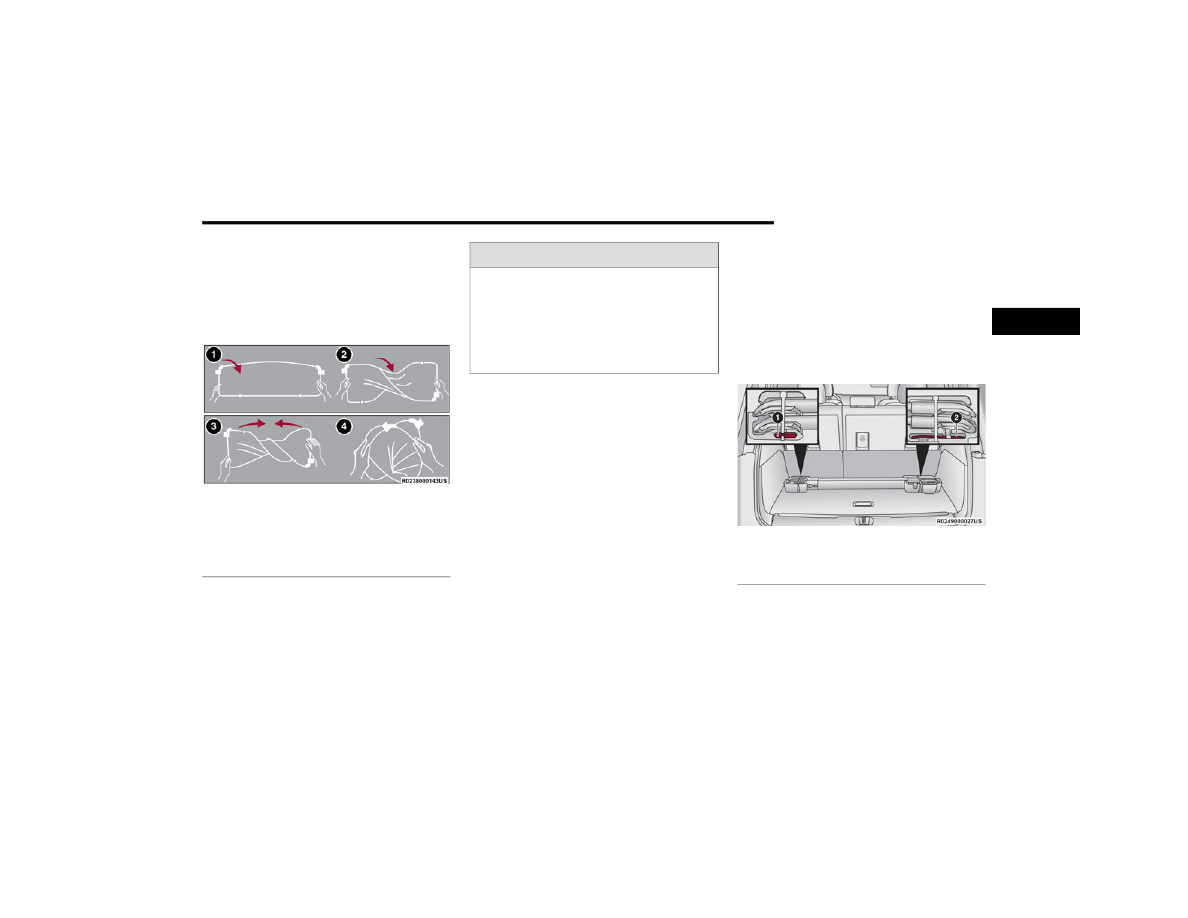

Foldable Cargo Area Cover — If Equipped

The purpose of this cover is for privacy, not to

secure loads. It will not prevent cargo from shifting

or protect passengers from loose cargo.

Foldable Cargo Area Cover

To cover the cargo area:
1. Remove the folded cover from the storage

pouch, and unfold using a twisting motion.

2. Insert the pins on the ends of the cover into the

slots on each side of the pillar trim.

Step 2

3. Hook the straps to the inside post of the rear

head restraint on each side.

Step 3

WARNING!

In a collision, a loose cargo cover in the vehicle

could cause injury. It could fly around in a

sudden stop and strike someone in the vehicle.

Do not store the cargo cover on the cargo floor

or in the passenger compartment. Remove the

cover from the vehicle when taken from its

mounting. Do not store it in the vehicle.

GETTING TO KNOW YOUR VEHICLE

NOTE:

The liftgate may be opened with the cargo cover in

place.
To store the foldable cargo area cover, reverse the

installation steps and replace the cover into its

storage pouch.

Folding The Cargo Cover

ROOF LUGGAGE RACK — IF EQUIPPED

The crossbars and side rails are designed to carry

weight on vehicles equipped with a luggage rack.

The load must not exceed 150 lb (68 kg), and

should be uniformly distributed over the luggage

rack crossbars.
The crossbars on your vehicle are delivered stowed

in the rear cargo bin. Crossbars should always be

used whenever cargo is placed on the roof rack.

Check the straps frequently to be sure that the

load remains securely attached.
The roof rack does not increase the total load

carrying capacity of the vehicle. Be sure the total

load of cargo inside the vehicle plus that on the

external rack does not exceed the maximum

vehicle load capacity.

NSTALLING

ROSSBARS

There are two crossbars equipped with your

vehicle. They are located in the rear cargo bin,

stored in foam blocks.
There is also a packet of fastener screws and a

Torx wrench provided in the foam blocks. You can

find the packet of fastener screws in the left foam

block and the Torx wrench in the right foam block.

Stowed Crossbars

1 — Remove Cover From Vehicle
2 — Twist Cover
3 — Push Twisted Cover Inward
4 — Place Folded Cover In Pouch

WARNING!

In a collision, a loose cargo cover in the vehicle

could cause injury. It could fly around in a

sudden stop and strike someone in the vehicle.

Do not store the cargo cover on the cargo floor

or in the passenger compartment. Remove the

cover from the vehicle when taken from its

mounting. Do not store it in the vehicle.

1 — Fastener Screws
2 — Torx Wrench

100

GETTING TO KNOW YOUR VEHICLE

There are three positions that the crossbars can be

installed in. There are also tie-down loops next to

each crossbar location on both sides of the roof.

Crossbar Locations

NOTE:

The crossbars should only be used in positions 1

and 2 or positions 1 and 3. They are not designed

to be used in positions 2 and 3.

Crossbar and Tie Down Loop Locations

Crossbar Directional Arrow

NOTE:

There are arrows on top of the crossbars that

indicate the direction that they should be installed.

The arrows should point forward toward the front

of the vehicle.
To install the crossbars, follow the procedure

below:
1. Remove the crossbars from the foam blocks.
2. Swivel the outboard stanchion on the crossbar

and rotate it 180 degrees around the bolt to

the open position. Open the outboard

stanchion on the opposite end of the crossbar

as well.

Step 2

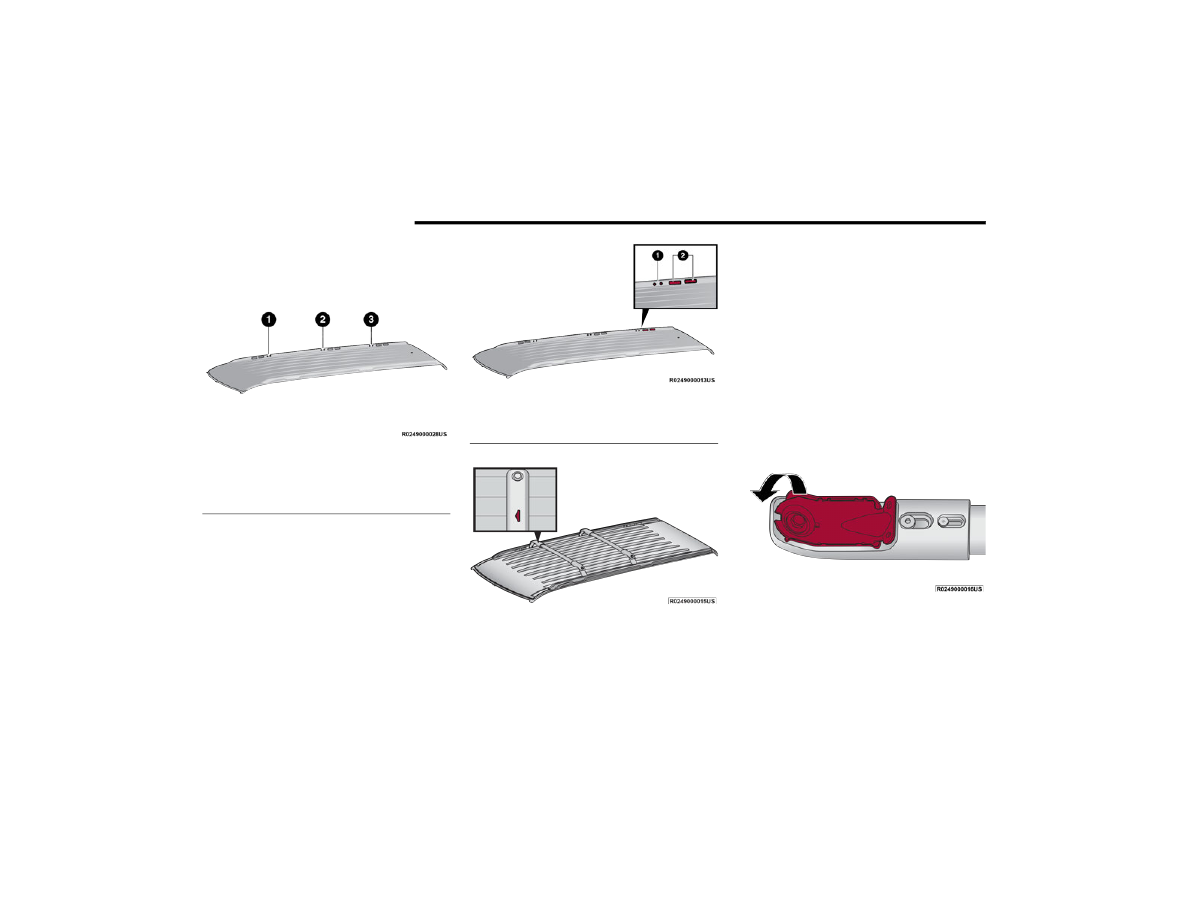

1 — Position 1
2 — Position 2
3 — Position 3

1 — Crossbar Installation Location
2 — Tie-Down Loop Locations

GETTING TO KNOW YOUR VEHICLE

101

Open Outboard Stanchion (Underside Shown)

3. Using the provided torx wrench, loosen the torx

bolts on both ends of the crossbar.

Step 3

4. Using the provided wrench and fasteners, bolt

the fasteners to the side rail.

Torque Wrench Indicator

NOTE:

An indicator on the wrench will show when the

fastener is tightened to the indicated torque spec

ification. The slanted line will line up with arrow

when torquing.

Step 4

5. Tighten down the torx head bolts on the

inboard stanchion.

Step 5

102

GETTING TO KNOW YOUR VEHICLE

(Continued)

NOTE:

It is important that the screws are left loose until

both sides of the crossbar are secured to the rail.
6. Repeat steps 2-5 for the second crossbar in

the desired position.

Installed Crossbars

WARNING!

Cargo must be securely tied down before driving

your vehicle. Improperly secured loads can fly off

the vehicle, particularly at high speeds, resulting

in personal injury or property damage. Follow

the roof rack cautions when carrying cargo on

your roof rack.

CAUTION!



To prevent damage to the roof of your vehicle,

DO NOT carry any loads on the roof rack

without the crossbars installed. The load

should be secured and placed on top of the

crossbars, not directly on the roof. If it is

necessary to place the load on the roof, place

a blanket or other protective layer between

the load and the roof surface.



To avoid damage to the roof rack and vehicle,

do not exceed the maximum roof rack load

capacity of 150 lb (68 kg). Always distribute

heavy loads as evenly as possible and secure

the load appropriately.



Load should always be secured to crossbars

first, with tie down loops used as additional

securing points if needed. Tie loops are

intended as supplementary tie down points

only. Do not use ratcheting mechanisms with

the tie loops. Check the straps and thumb

wheels frequently to be sure that the load

remains securely attached.



Long loads that extend over the windshield,

such as wood panels or surfboards, or loads

with large frontal area should be secured to

both the front and rear of the vehicle.



Travel at reduced speeds and turn corners

carefully when carrying large or heavy loads

on the roof rack. Wind forces, due to natural

causes or nearby truck traffic, can add sudden

upward lift to a load. This is especially true on

large flat loads and may result in damage to

the cargo or your vehicle.

CAUTION!

GETTING TO KNOW YOUR VEHICLE

103

EMOVING

ROSSBARS

To remove the crossbars, follow the procedure

below:
1. Using the provided torx wrench, loosen the

torx head bolts on the stanchion. Do this on

both ends of the crossbar.

Step 1

2. Using the provided wrench, remove the bolts

that secure the crossbar to the roof rail.

Repeat this on the other end of the crossbar.

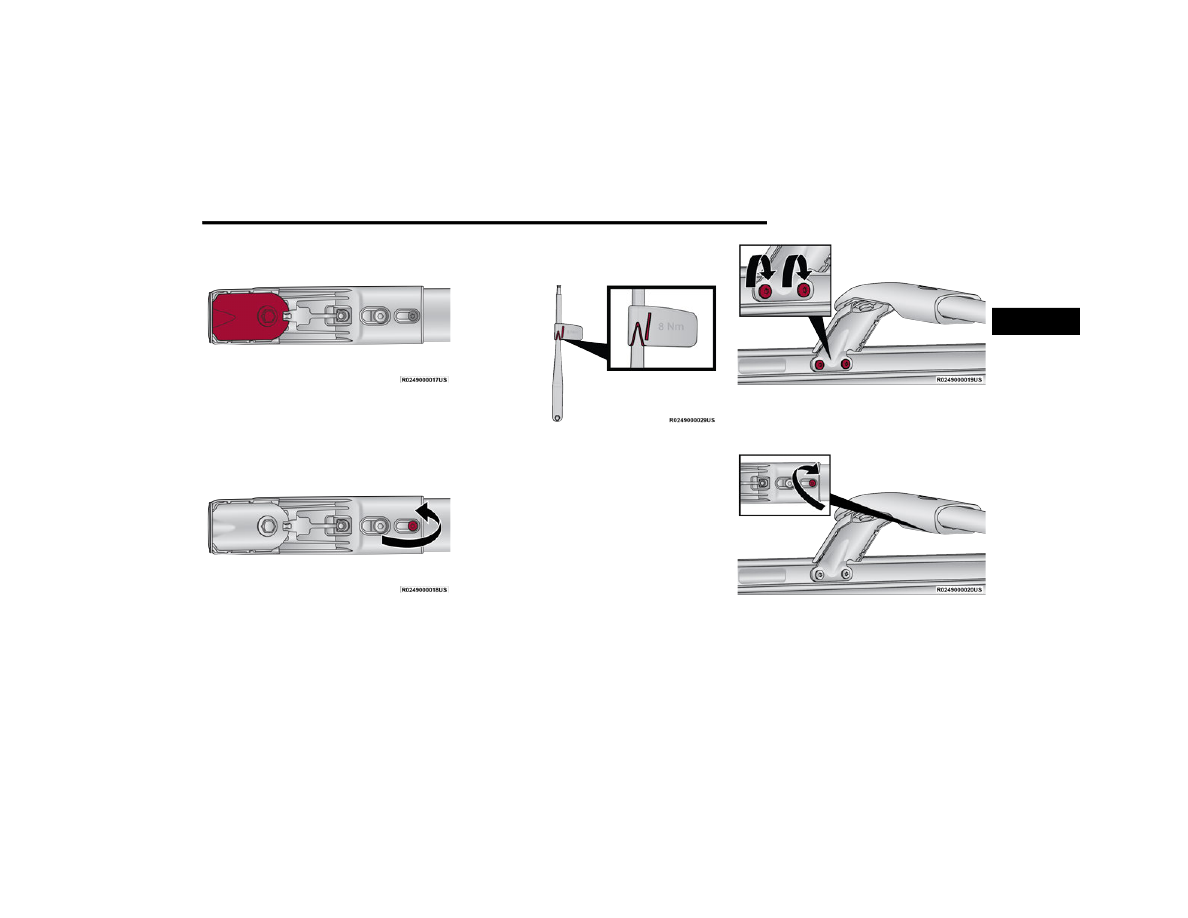

Bolt Location

3. Depress the swing key, and swivel the

outboard stanchion 180 degrees back to the

stowed position.

Depress The Swing Key

Step 3

4. Repeat steps 1-3 for the second crossbar.
5. Place the crossbars back into the foam blocks

in the rear cargo storage bin.

104

GETTING TO KNOW YOUR INSTRUMENT PANEL

BASE INSTRUMENT CLUSTER

Holding the OK button on the Instrument Cluster Display controls located on the steering wheel will allow you to change your display from Digital to Analog.

GETTING TO KNOW YOUR INSTRUMENT PANEL

105

NSTRUMENT

LUSTER

ESCRIPTIONS

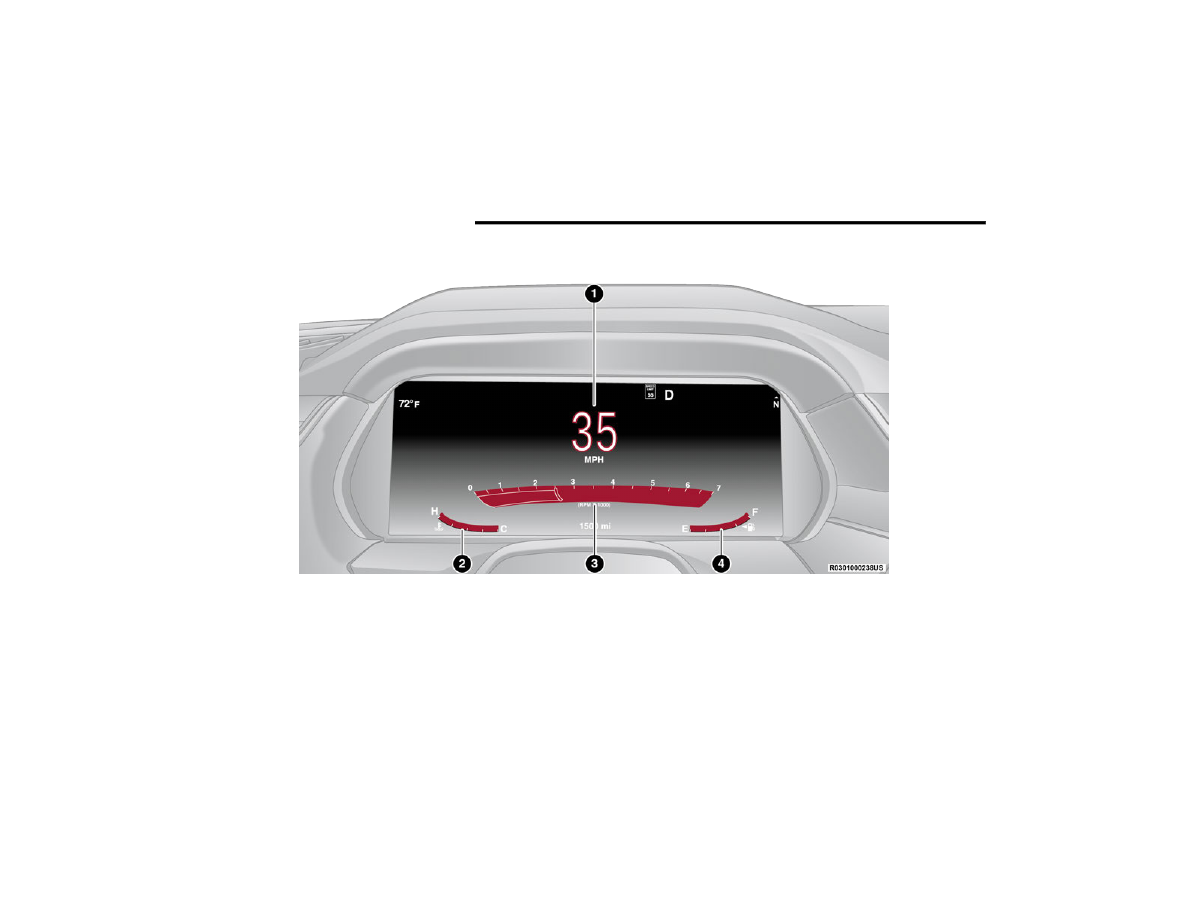

1. Speedometer



Indicates vehicle speed.

2. Temperature Gauge



The temperature gauge shows engine

coolant temperature. Any reading within the

normal range indicates that the engine

cooling system is operating satisfactorily.



The pointer will likely indicate a higher

temperature when driving in hot weather,

up mountain grades, or when towing a

trailer. It should not be allowed to exceed

the upper limits of the normal operating

range.

3. Tachometer



Indicates the engine speed in revolutions

per minute (RPM x 1000).

4. Fuel Gauge



The pointer shows the level of fuel in the

fuel tank when the Keyless Push Button

Ignition is in the ON/RUN position.



The fuel pump symbol points to

the side of the vehicle where the

fuel door is located.

NOTE:

The Instrument Cluster Warning Indicators will illu

minate briefly for a bulb check when the ignition is

first cycled.

WARNING!

A hot engine cooling system is dangerous. You or

others could be badly burned by steam or boiling

coolant. It is recommended to call an authorized

dealer for service if your vehicle overheats

page 356.

CAUTION!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reads “H” pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H”, turn the engine

off immediately and call an authorized dealer for

service.

106

GETTING TO KNOW YOUR INSTRUMENT PANEL

PREMIUM INSTRUMENT CLUSTER

Holding the OK button on the Instrument Cluster Display controls located on the steering wheel will allow you to change your display from Digital to Analog.

GETTING TO KNOW YOUR INSTRUMENT PANEL

107

NSTRUMENT

LUSTER

ESCRIPTIONS

1. Speedometer



Indicates vehicle speed.

2. Temperature Gauge



The temperature gauge shows engine

coolant temperature. Any reading within the

normal range indicates that the engine

cooling system is operating satisfactorily.



The pointer will likely indicate a higher

temperature when driving in hot weather,

up mountain grades, or when towing a

trailer. It should not be allowed to exceed

the upper limits of the normal operating

range.

3. Tachometer



Indicates the engine speed in revolutions

per minute (RPM x 1000).

4. Fuel Gauge



The pointer shows the level of fuel in the

fuel tank when the Keyless Push Button

Ignition is in the ON/RUN position.



The fuel pump symbol points to

the side of the vehicle where the

fuel door is located.

NOTE:

The Instrument Cluster Warning Indicators will illu

minate briefly for a bulb check when the ignition is

first cycled.

INSTRUMENT CLUSTER DISPLAY

Your vehicle is equipped with an instrument cluster

display, which offers useful information to the

driver. With the ignition in the OFF mode, opening/

closing of a door will activate the display for

viewing, and display the total miles, or kilometers,

in the odometer. Your instrument cluster display is

designed to display important information about

your vehicle’s systems and features. Using a driver

interactive display located on the instrument

panel, your instrument cluster display can show

how systems are working and give you warnings

when they are not. The steering wheel mounted

controls allow you to scroll through the main

menus and submenus. You can access the specific

information you want and make selections and

adjustments.

WARNING!

A hot engine cooling system is dangerous. You or

others could be badly burned by steam or boiling

coolant. It is recommended to call an authorized

dealer for service if your vehicle overheats

page 356.

CAUTION!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reads “H” pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H”, turn the engine

off immediately and call an authorized dealer for

service.

108

GETTING TO KNOW YOUR INSTRUMENT PANEL

OCATION

ONTROLS

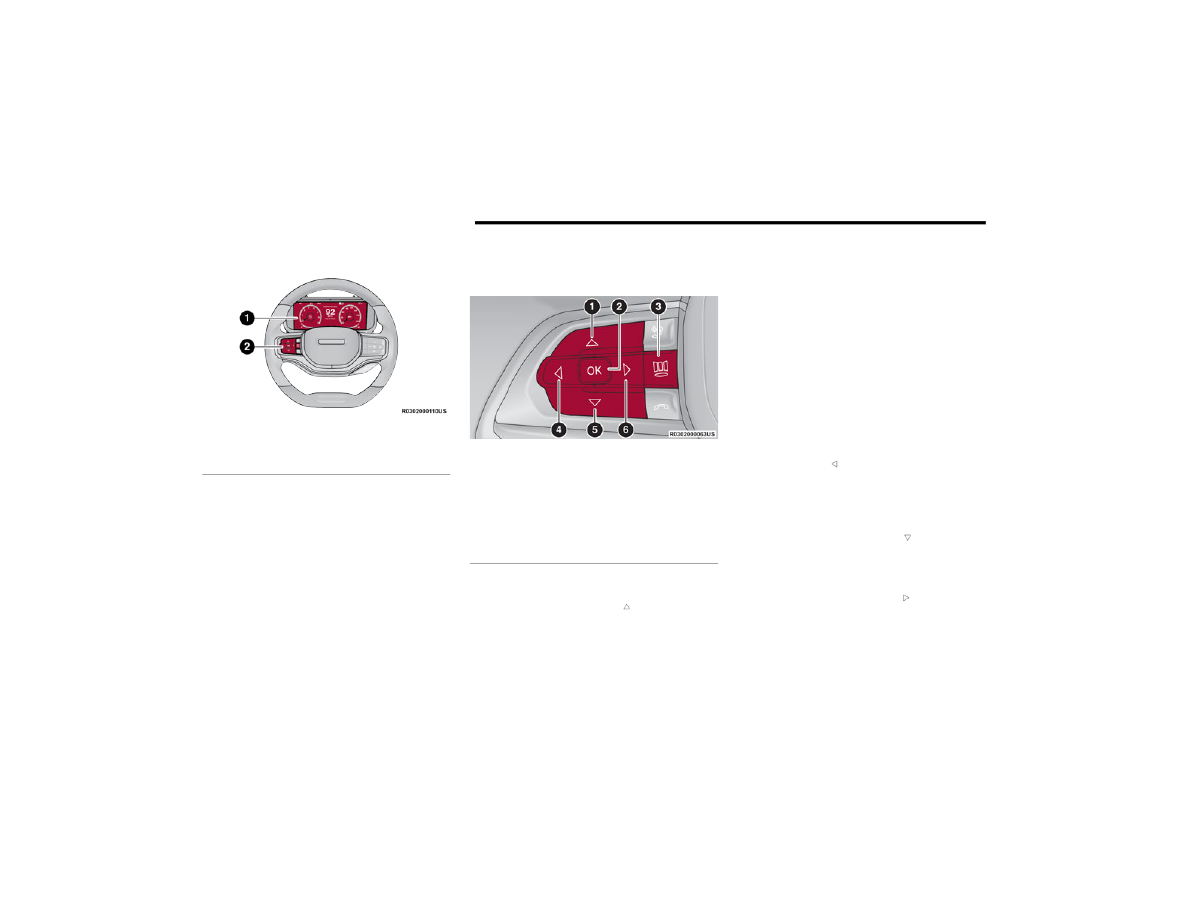

Instrument Cluster Display/Controls Location

The Main Menu items consists of the following:



Main Menu



Vehicle Info



Trip



Navigation



Off Road



Trailer Tow



Audio



Stored Messages



Settings

The system allows the driver to select information

by pushing the following buttons mounted on the

steering wheel:

Instrument Cluster Display Control Buttons

1. Up Arrow Button

Push and release the up arrow button to

scroll upward through the main menu.

2. OK Button

Push the OK button to access/select the in

formation screens or submenu screens of a

main menu item. Push and hold the OK but

ton for one second to reset displayed/se

lected features that can be reset.

3. MENU Button

Push the MENU button to access/select the

information screens or submenu screens of

the Home Screen display. Push and hold the

OK button to enter edit mode.

4. Left Arrow Button

Push the left arrow button to return to

the main menu from an info screen or sub

menu item.

5. Down Arrow Button

Push and release the down arrow button

to scroll downward through the main menu.

6. Right Arrow Button

Push and release the right arrow button

to access the information screens or sub

menu screens of a main menu item.

1 – Instrument Cluster Display Screen
2 – Instrument Cluster Display Controls

1 — Up Arrow Button
2 — OK Button
3 — Menu Button
4 — Left Arrow Button
5 — Down Arrow Button
6 — Right Arrow Button

Content .. 4 5 6 7 ..
