GETTING TO KNOW YOUR INSTRUMENT PANEL

109

Display Options
Holding OK will also allow you to change your

display to Digital or Analog.



Digital theme will be the default theme



Menu screen times out after 10 seconds. Press

OK to reactivate



Speedometer must always be present



Relevant warning notifications and other pop-up

info will still be displayed in the main screen

area (In this case the speed moves to the top)

Custom Tile Configuration
To customize the instrument cluster further, you

are able to select up to five tiles to display

information based on your needs.



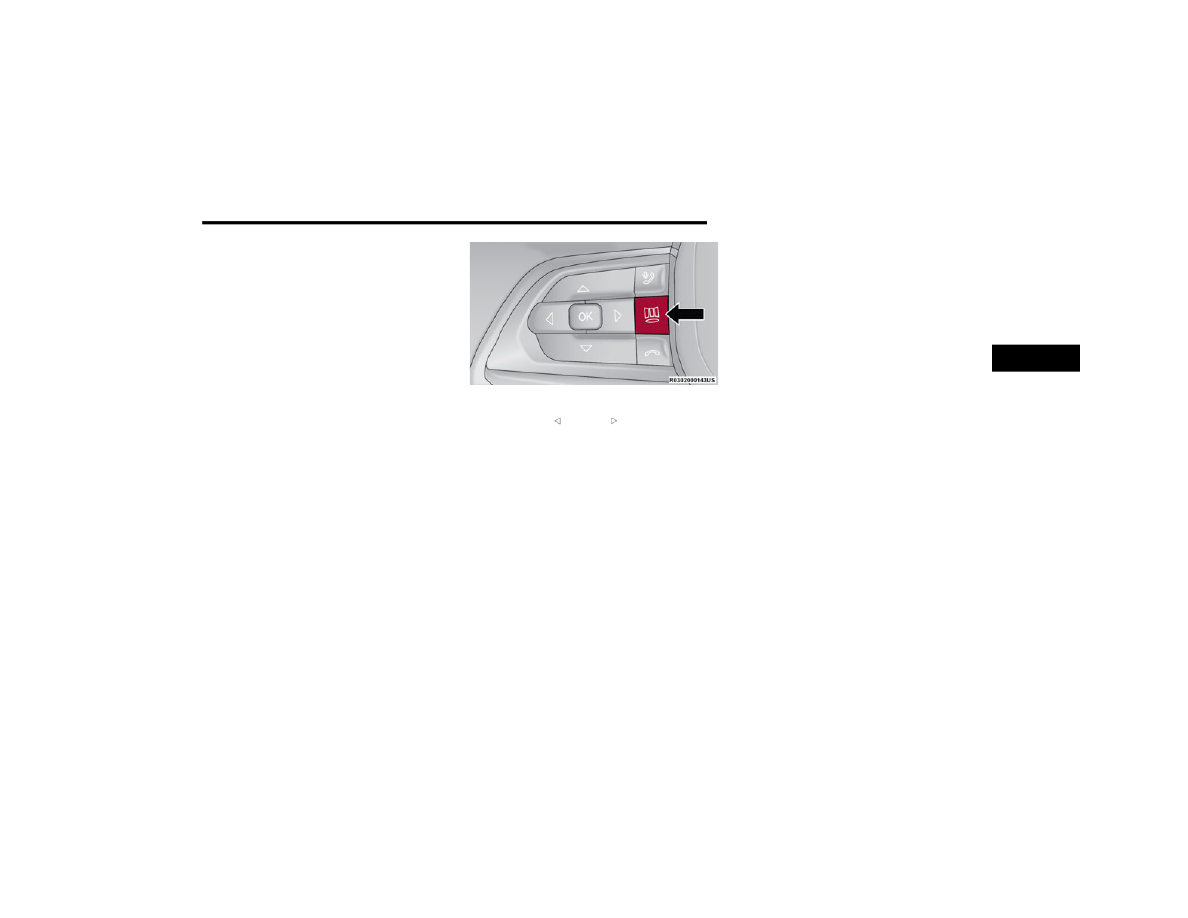

Press the MENU button for the Home Screen

display

Menu Button



Navigate Left or Right to highlight desired

Tile



Press OK to select the tile and navigate to the

selected submenu and press OK again to add

your selection to your tile view



The main menu options are Main Menu, Vehicle

Info, Navigation, Audio, and Off Road



To edit, press menu button, then Hold OK to edit

The instrument cluster display is located in the

center portion of the cluster and consist of multiple

sections:



Main Screen — The inner ring of the display will

illuminate in gray under normal conditions,

yellow for non critical warnings, red for critical

warnings, and white for on demand information



Submenu Dots — Whenever there are

submenus available, the position within the

submenus is shown here



Reconfigurable Telltales/Information



Gear Selector Status (PRND)



Driver Interactive Display (Compass, Temp,

Range to Empty, Trip A, Trip B, Average Fuel

Economy, Current Fuel Economy and Time)



Air Suspension Status — If Equipped



Four Wheel Drive (4WD) Status — If Equipped

The instrument cluster display will normally display

the main menu or the screens of a selected feature

of the main menu. The main display area also

displays pop-up messages that consist of

approximately 60 possible warning or information

messages. These pop-up messages fall into

several categories:



Five Second Stored Messages
When the appropriate conditions occur, this

type of message takes control of the main

display area for five seconds and then returns to

the previous screen. Most of the messages of

this type are then stored (as long as the condi

tion that activated it remains active) and can be

reviewed from the “Messages” main menu item.

Examples of this message type are “Right Front

Turn Signal Lamp Out” and “Low Tire Pressure.”

110

GETTING TO KNOW YOUR INSTRUMENT PANEL



Unstored Messages
This message type is displayed indefinitely or

until the condition that activated the message is

cleared. Examples of this message type are

“Turn Signal On” (if a turn signal is left on) and

“Lights On” (if driver leaves the vehicle with the

lights on).



Unstored Messages Until RUN
These messages deal primarily with the Remote

Start feature. This message type is displayed

until the ignition is in the RUN state. Examples of

this message type are “Remote Start Canceled -

Door Ajar” and “Press Brake Pedal and Push

Button to Start.”



Five Second Unstored Messages
When the appropriate conditions occur, this

type of message takes control of the main

display area for five seconds and then returns to

the previous screen. An example of this

message type is “Automatic High Beams On.”

NGINE

IFE

ESET

Oil Change Required
Your vehicle is equipped with an engine oil change

indicator system. The “Oil Change Required”

message will display in the instrument cluster

display for five seconds after a single chime has

sounded, to indicate the next scheduled oil change

interval. The engine oil change indicator system is

duty cycle based, which means the engine oil

change interval may fluctuate, dependent upon

your personal driving style and environmental

conditions.
Unless reset, this message will continue to display

each time the ignition is placed in the ON/RUN

position. To turn off the message temporarily, push

and release the OK or arrow buttons. To reset the

oil change indicator system (after performing the

scheduled maintenance), refer to the following

procedure.
Vehicles Equipped With Keyless Enter ‘N Go™ —

Ignition
Use the steering wheel instrument cluster display

controls for the following procedure(s):
1. Without pressing the brake pedal, push the

ENGINE START/STOP button and place the

ignition in the ON/RUN position (do not start

the engine).

2. Push and release the down arrow button to

scroll downward through the main menu to

“Vehicle Info.”

3. Push and release the right arrow button to

access the “Oil Life” screen.

4. Push and hold the OK button to reset oil life. If

conditions are met, the gauge and numeric

display will update to show 100%. If conditions

are not met a pop-up message of “To reset oil

life engine must be off with ignition in run” will

be displayed (for five seconds), and the user

will remain at the Oil Life screen.

5. Push and release the up or down arrow

button to exit the submenu screen.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.
Secondary Method Of Resetting Engine Oil Life
1. Without pressing the brake pedal, push the

ENGINE START/STOP button and place the

ignition to the ON/RUN position (do not start

the engine).

2. Fully press the accelerator pedal, slowly, three

times within 10 seconds.

3. Without pushing the brake pedal, push the

ENGINE START/STOP button once to return the

ignition to the OFF position.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.

GETTING TO KNOW YOUR INSTRUMENT PANEL

111

ISPLAY

ESSAGES

Includes the following, but not limited to:

The Reconfigurable Telltales section is divided into the white or yellow telltales area on the left, and the green or red telltales area on the right.

Front Seat Belts Unbuckled

Oil Change Due

ACC Override

Driver Seat Belt Unbuckled

Fuel Low

Cruise Set To XXX mph or km/h

Passenger Seat Belt Unbuckled

Service Anti-lock Brake System

Cruise Set To XXX km/h

Traction Control Off

Service Electronic Throttle Control

Tire Pressure Screen With Low Tire(s)

Washer Fluid Low

Service Power Steering

Service Tire Pressure System

Oil Pressure Low

Cruise Off

Park Brake Engaged

Oil Level Low – If Equipped

Cruise Ready

Brake Fluid Low

Engine Temperature Hot

Lights On

Right Front Turn Signal Light Out

Right Rear Turn Signal Light Out

Left Front Turn Signal Light Out

Left Rear Turn Signal Light Out

Ignition or Accessory On

Vehicle Not In Park

Remote Start Active Push Start Button

Remote Start Canceled Fuel Low

Remote Start Canceled Hood Open

Remote Start Canceled Liftgate Open

Remote Start Canceled Door Open

Remote Start Canceled Time Expired

Remote Start Disabled Start To Reset

Service Air Bag System

Service Air Bag Warning Light

Door Open

Doors Open

Hood Open

Vehicle Speed Too High To Shift to D

Liftgate Open

Shift Not Allowed

Vehicle Speed is Too High to Shift to R

Vehicle Speed is Too High to Shift to P

Service Transmission

Service Shifter

112

GETTING TO KNOW YOUR INSTRUMENT PANEL

NSTRUMENT

LUSTER

ISPLAY

ENU

TEMS

The instrument cluster display can be used to view

the main menu items for several features. Use the
up and down arrow buttons to scroll through

the driver interactive display menu options until

the desired menu is reached.

NOTE:

Depending on the vehicle’s options, feature

settings may vary.

Home Screen

Press the Menu button to display the Home

Screen.
Push and release the left or right arrow

button to highlight the desired selection. Push and
release the OK button to select. Press the up or
down arrow button to select a different screen

within the selected category. If the Menu button is

pressed in this view, the instrument cluster will

return to the previously displayed screen.
Home Screen Options



Navigation



Map Display



Trip Trip A/Trip B



Vehicle Info



Coolant Temp



Stop/Start Status — If Equipped



Trans Temp



Oil Temp



Oil Pressure



Battery Voltage



Oil Life



Oil Level – If Equipped



Tire Pressure



Fuel Economy



Main Menu — If Equipped



Posted Speed Limit Sign



Driver Assist



Night Vision



Audio



Audio Info



Off Road



Selec-Terrain/Air Suspension Status



Steering Angle



Pitch



Roll

Main Menu — If Equipped

Speedometer
While viewing the Speedometer menu title, push
and release the left or right arrow button

until the Night Vision menu title is displayed in the

instrument cluster display. Push and release the

OK button to toggle units (mph or km/h) of the

speedometer. Hold the OK button to toggle

between Analog and Digital speedometer.
Night Vision

While viewing the Speedometer menu
title, push and release the left or
right arrow button until the Night

Vision menu title is displayed in the

instrument cluster display. Arrow buttons and

submenu indicators disappear after five seconds

of menu navigation inactivity. Pedestrian/Animal

icons will be displayed in the top left location

page 188.

Driver Assist
While viewing the Speedometer menu title, push
and release the left or right arrow button

until the Driver Assist menu title is displayed in the

instrument cluster display. The Driver Assist

screen indicates the current status of ACC, Active

Lane Management and Active Driving Assist/

Assist+/Pilot

page 271.

GETTING TO KNOW YOUR INSTRUMENT PANEL

113

Vehicle Info

Push and release the up or down arrow

button until the Vehicle Info icon/title is highlighted
in the instrument cluster display. Push the left
or right arrow button to scroll through the

information submenus.
Fuel Economy



Average Fuel Economy



Current Fuel Economy



Range To Empty



Press the OK button to reset the average fuel

economy

NOTE:

The Range feature is not able to be reset through

the instrument cluster display controls.
Gauge Summary



Coolant Temperature — If Equipped
Displays the current temperature of the coolant.



Transmission Temperature
Displays the actual transmission temperature.



Oil Temperature
Displays the actual oil temperature.



Oil Pressure
Displays the actual oil pressure.



Battery Voltage
Displays the current voltage level of the battery.

Oil Life



Displays the current oil life of the vehicle.

Tire Pressure Monitoring System



If tire pressure is OK for all tires a vehicle icon is

displayed with tire pressure values in each

corner of the icon.



If one or more tires have low pressure, “Inflate

Tire To XX” is displayed with the vehicle icon and

the tire pressure values in each corner of the

icon with the pressure value of the low tire are

displayed in a different color than the other tire

pressure value.



If the Tire Pressure system requires service,

“Service Tire Pressure System” is displayed.

Tire Pressure is an information only function, and

cannot be reset

page 278.

Stop/Start Status — If Equipped



Display current status of Stop/Start system.

Trip

Push and release the up or down arrow

button until the Trip menu title is displayed in the
instrument cluster display. Toggle the left or
right arrow button to select Trip A or Trip B. The

Trip information will display the following:



Distance – Shows the total distance (mi or km)

traveled for Trip A or Trip B since the last reset.



Average Fuel Economy – Shows the average

fuel economy (MPG or L/100 km or km/L) of

Trip A or Trip B since the last reset.



Elapsed Time – Shows the total elapsed time of

travel since Trip A or Trip B has been reset.

Hold the OK button to reset feature information.

Navigation

Push and release the left or right arrow

button until the Navigation display icon/title is

highlighted in the instrument cluster display. Hold

OK to Start Route will display when no active route

is set. Hold OK to Cancel Route will display when

an active route is set.

Off Road

Push and release the up or down arrow

button until the Off Road Menu icon/title is
highlighted. Push the left or right arrow

button to scroll the submenus.



Terrain Status



Selec-Terrain Status



Air Suspension Status

114

GETTING TO KNOW YOUR INSTRUMENT PANEL



Vehicle Dynamics



Wheel Articulation



Transfer Case Status



Steering Angle



Pitch And Roll



Vehicle Pitch



Vehicle Roll

Trailer Tow — If Equipped

Push and release the up or down arrow

button until the Trailer Tow Menu icon/title is

highlighted in the instrument cluster display. Push
and release the left or right arrow button to

select Trailer Trip or Trailer Brake.
Trailer Trip will display the following:



Distance

NOTE:

Press and hold the OK button to reset all the infor

mation.
Trailer Brake will display the following:



Output



Type



Gain

Audio

Push and release the up or down arrow

button until the Audio Menu icon/title is

highlighted in the instrument cluster display. This

menu will display the audio source information,

including the Song name, Artist name, and audio

source with an accompanying graphic.

Messages

Push and release the up or down arrow

button until the Messages Menu item is

highlighted. This feature shows the number of
stored warning messages. Pushing the left or
right arrow button will allow you to see what the

stored messages are.
When no messages are present, main menu icon

will be a closed envelope.

Settings

NOTE:

If current theme is set to Digital, tachometer will

not display while in the Settings menu.

NOTE:

If your vehicle is equipped with Head-Up Display

(HUD), feature settings are available at any vehicle

speed

page 115.

Screen Setup
Push and release the up or down arrow

button until the Settings Menu icon/title is

highlighted in the instrument cluster display. Push

and release the OK button to enter the submenus

and follow the prompts on the screen as needed.

The Settings feature allows you to change what

information is displayed in the instrument cluster

as well as the location that information is

displayed.

Current Gear



Off

Tachometer



Show with Digital Theme



Hide with Digital Theme

Upper Left

None

Compass

Outside Temp

Time

Range To Empty (RTE) Fuel Economy Current
Fuel Economy Average Trip A Distance
Trip B Distance

Upper Right

None

Outside Temp

Compass

Time

Range To Empty (RTE) Fuel Economy Average
Fuel Economy Current Trip A Distance
Trip B Distance

GETTING TO KNOW YOUR INSTRUMENT PANEL

115

Odometer



Show



Hide

NOTE:

Menus with (show/hide) can push the OK button to

choose whether to show or hide this menu on the

instrument cluster display.
Defaults (Restores All Settings To Default Settings)



Restore



Cancel

Speed Warning — If Equipped
Push and release the up or down arrow

button until the Speed Warning Menu icon/title is

highlighted in the instrument cluster display. Push

and release the OK button to enter speed warning.
Use the up or down arrow button to select a

desired speed, then push and release the OK

button to set the speed. When the set speed is

exceeded, the indication will light up yellow and

flash along with a pop-up message of “Speed

Warning Exceeded” with a continuous chime (until

the speed is no longer exceeded).



ON/OFF

EAD

-U

ISPLAY

— I

QUIPPED

NOTE:

If current theme is set to Digital, tachometer will

not display while in the Settings menu.
Head Up Display (HUD) – If Equipped
Push and release the up or down arrow

button until the Settings Menu icon/title is

highlighted in the instrument cluster display. Push
and release the left or right arrow button

until the HUD Menu icon/title is highlighted in the

instrument cluster display. Push and release the
OK button to enter HUD. Use the up or down

arrow button to select a setting, then push and

release the OK button to adjust the setting.



ON/OFF



Content and Layout



Standard



Simple



Advanced



Custom



Display Height



Brightness

Push and release the up or down arrow

button until the Settings menu icon is displayed in

the instrument cluster display. Push and release

the OK button to select.

ATTERY

AVER

ATTERY

AVER

ODE

ESSAGE

— E

LECTRICAL

OAD

EDUCTION

CTIONS

QUIPPED

)

This vehicle is equipped with an Intelligent Battery

Sensor (IBS) to perform additional monitoring of

the electrical system and status of the vehicle

battery.
In cases when the IBS detects charging system

failure, or the vehicle battery conditions are

deteriorating, electrical load reduction actions will

take place to extend the driving time and distance

of the vehicle. This is done by reducing power to or

turning off non-essential electrical loads.
Load reduction is only active when the engine is

running. It will display a message if there is a risk

of battery depletion to the point where the vehicle

may stall due to lack of electrical supply, or will not

restart after the current drive cycle.
When load reduction is activated, the message

“Battery Saver On” or “Battery Saver Mode” will

appear in the instrument cluster.

Favorite Menus

Drive

Vehicle Info

Trip (Show/Hide)

Navigation

(Show/Hide)

Off Road (Show/Hide) Audio (Show/Hide)
Stored Messages

Trailer Tow

116

GETTING TO KNOW YOUR INSTRUMENT PANEL

These messages indicate the vehicle battery has a

low state of charge and continues to lose electrical

charge at a rate that the charging system cannot

sustain.

NOTE:



The charging system is independent from load

reduction. The charging system performs a diag

nostic on the charging system continuously.



If the Battery Charge Warning Light is on it may

indicate a problem with the charging system

page 118.

The electrical loads that may be switched off

(if equipped), and vehicle functions which can be

affected by load reduction:



Heated Seat/Vented Seats/Heated Wheel



Rear Defroster And Heated Mirrors



HVAC System



115 Volt AC Power Inverter System



Audio and Telematics System

Loss of the battery charge may indicate one or

more of the following conditions:



The charging system cannot deliver enough

electrical power to the vehicle system because

the electrical loads are larger than the capability

of the charging system. The charging system is

still functioning properly.



Turning on all possible vehicle electrical loads (e.g.

HVAC to max settings, exterior and interior lights,

overloaded power outlets +12 Volt, 115 Volt AC,

USB ports) during certain driving conditions (city

driving, towing, frequent stopping, etc.).



Installing options like additional lights, upfitter

electrical accessories, audio systems, alarms

and similar devices.



Unusual driving cycles (short trips separated by

long parking periods).



The vehicle was parked for an extended period

of time (weeks, months).



The battery was recently replaced and was not

charged completely.



The battery was discharged by an electrical load

left on when the vehicle was parked.



The battery was used for an extended period

with the engine not running to supply radio,

lights, chargers, +12 Volt portable appliances

like vacuum cleaners, game consoles and

similar devices.

What to do when an electrical load reduction

action message is present (“Battery Saver On” or

“Battery Saver Mode”)
During a trip:



Reduce power to unnecessary loads if possible:



Turn off redundant lights (interior or

exterior)



Check what may be plugged in to power

outlets +12 Volt, 115 Volt AC, USB ports



Check HVAC settings (blower, temperature)



Check the audio settings (volume)

After a trip:



Check if any aftermarket equipment was

installed (additional lights, upfitter electrical

accessories, audio systems, alarms) and review

specifications if any (load and Ignition Off Draw

currents).



Evaluate the latest driving cycles (distance,

driving time and parking time).



The vehicle should have service performed if

the message is still present during consecutive

trips, and if the evaluation and driving pattern of

the vehicle did not help to identify the cause.

GETTING TO KNOW YOUR INSTRUMENT PANEL

117

WARNING LIGHTS AND MESSAGES

The warning/indicator lights will illuminate in the

instrument panel together with a dedicated

message and/or acoustic signal when applicable.

These indications are indicative and precautionary

and as such must not be considered as exhaustive

and/or alternative to the information contained in

the Owner’s Manual, which you are advised to read

carefully in all cases. Always refer to the

information in this chapter in the event of a failure

indication. All active telltales will display first if

applicable. The system check menu may appear

different based upon equipment options and

current vehicle status. Some telltales are optional

and may not appear.

ARNING

IGHTS

Air Bag Warning Light

This warning light will illuminate to

indicate a fault with the air bag, and will

turn on for four to eight seconds as a

bulb check when the ignition is placed in

the ON/RUN position. This light will illuminate with

a single chime when a fault with the air bag has

been detected, it will stay on until the fault is

cleared. If the light is either not on during startup,

stays on, or turns on while driving, have the system

inspected at an authorized dealer as soon as

possible.

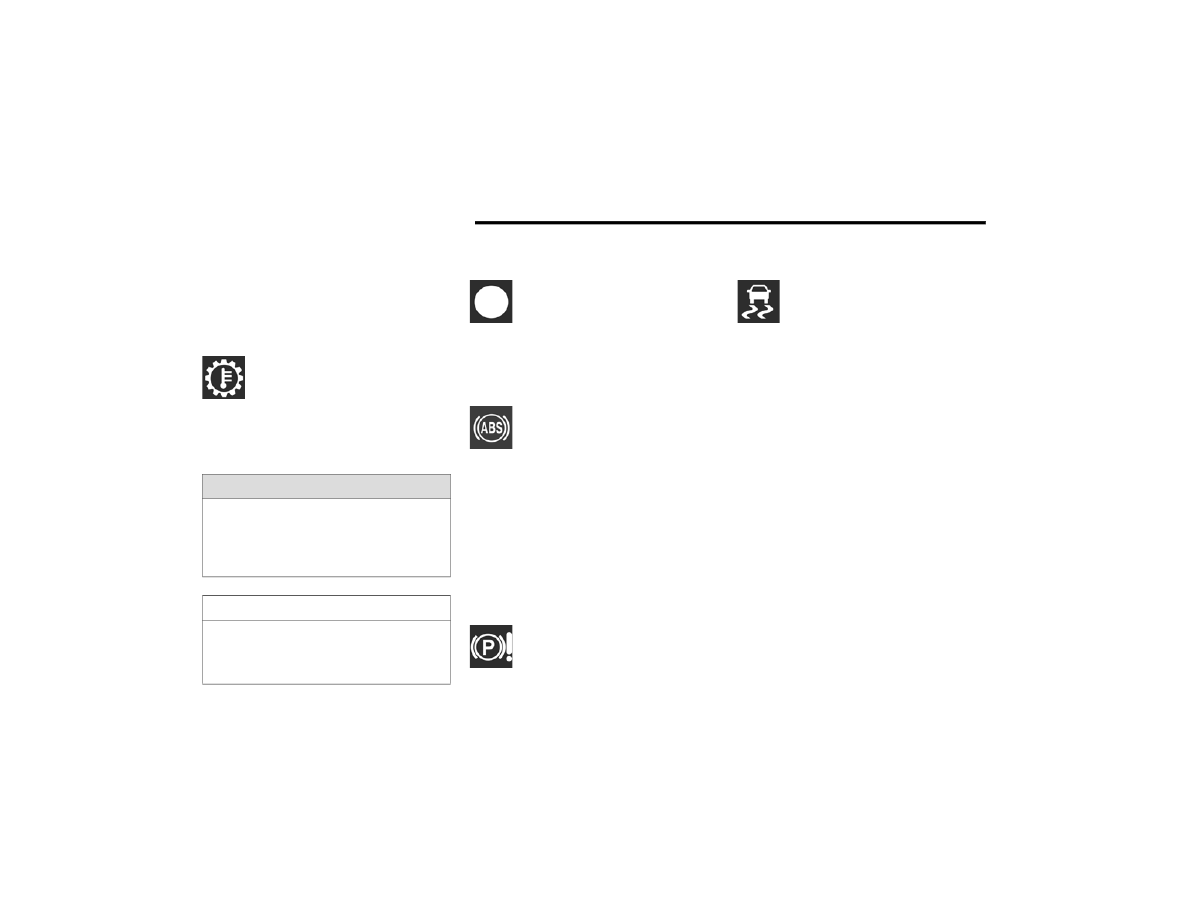

Brake Warning Light

This warning light monitors various

brake functions, including brake fluid

level and parking brake application. If

the brake light turns on it may indicate

that the parking brake is applied, that the brake

fluid level is low, or that there is a problem with the

Anti-Lock Brake System reservoir.
If the light remains on when the parking brake has

been disengaged, and the fluid level is at the full

mark on the master cylinder reservoir, it indicates

a possible brake hydraulic system malfunction or

that a problem with the Brake Booster has been

detected by the Anti-Lock Brake System (ABS) /

Electronic Stability Control (ESC) system. In this

case, the light will remain on until the condition has

been corrected. If the problem is related to the

brake booster, the ABS pump will run when

applying the brake, and a brake pedal pulsation

may be felt during each stop.
The dual brake system provides a reserve braking

capacity in the event of a failure to a portion of the

hydraulic system. A leak in either half of the dual

brake system is indicated by the Brake Warning

Light, which will turn on when the brake fluid level

in the master cylinder has dropped below a

specified level.
The light will remain on until the cause is corrected.

NOTE:

The light may flash momentarily during sharp

cornering maneuvers, which change fluid level

conditions. The vehicle should have service

performed, and the brake fluid level checked.
If brake failure is indicated, immediate repair is

necessary.

Vehicles equipped with the Anti-Lock Brake System

(ABS) are also equipped with Electronic Brake

Force Distribution (EBD). In the event of an EBD

failure, the Brake Warning Light will turn on along

with the ABS Light. Immediate repair to the ABS

system is required.
Operation of the Brake Warning Light can be

checked by turning the ignition switch from the OFF

position to the ON/RUN position. The light should

illuminate for approximately two seconds. The light

should then turn off unless the parking brake is

applied or a brake fault is detected. If the light does

not illuminate, have the light inspected by an

authorized dealer.

WARNING!

Driving a vehicle with the red brake light on is

dangerous. Part of the brake system may have

failed. It will take longer to stop the vehicle. You

could have a collision. Have the vehicle checked

immediately.

118

GETTING TO KNOW YOUR INSTRUMENT PANEL

The light also will turn on when the parking brake

is applied with the ignition switch in the ON/RUN

position.

NOTE:

This light shows only that the parking brake is

applied. It does not show the degree of brake appli

cation.

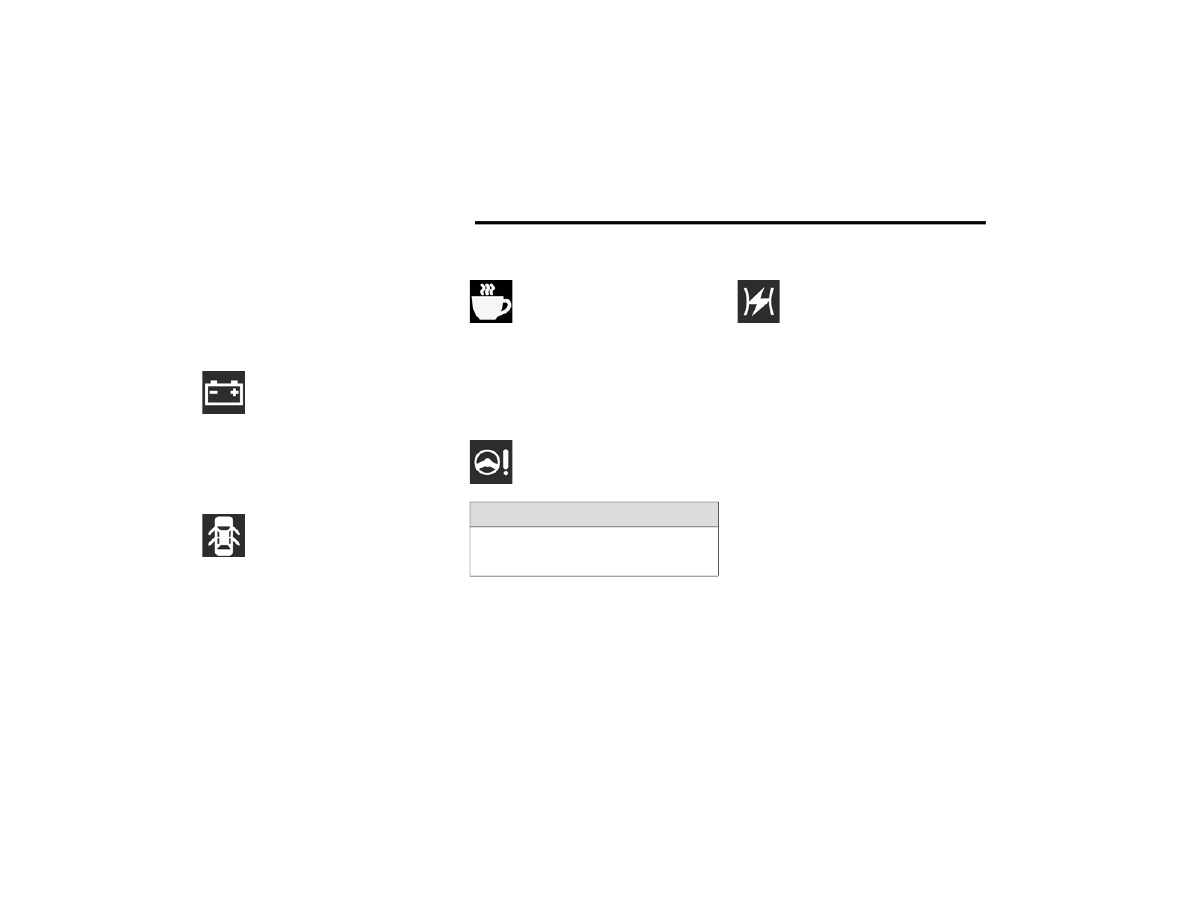

Battery Charge Warning Light

This warning light will illuminate when

the battery is not charging properly. If it

stays on while the engine is running,

there may be a malfunction with the

charging system. Contact an authorized dealer as

soon as possible.
This indicates a possible problem with the

electrical system or a related component.

Door Open Warning Light

This indicator will illuminate when a

door is ajar/open and not fully closed.

NOTE:

If the vehicle is moving, there will also be a single

chime.

Drowsiness Detected Warning —

If Equipped

Driver drowsiness detection helps to

avoid crashes caused by fatigue by

advising drivers to take a break in time.

Once Drowsy Driver is detected, A

pop-up will display continuously until the driver

presses the OK button to clear.
Once the popup message is cleared, it is stored

until the condition is no longer true.

Electric Power Steering (EPS) Fault

Warning Light

This warning light will turn on when

there's a fault with the EPS system

page 147.

Electronic Throttle Control (ETC) Warning

Light

This warning light will illuminate to

indicate a problem with the ETC system.

If a problem is detected while the

vehicle is running, the light will either

stay on or flash depending on the nature of the

problem. Cycle the ignition when the vehicle is

safely and completely stopped and the

transmission is placed in the PARK position. The

light should turn off. If the light remains on with the

vehicle running, your vehicle will usually be

drivable; however, see an authorized dealer for

service as soon as possible.

NOTE:

This light may turn on if the accelerator and brake

pedals are pressed at the same time.
If the light continues to flash when the vehicle is

running, immediate service is required and you

may experience reduced performance, an

elevated/rough idle, or engine stall and your

vehicle may require towing. The light will come on

when the ignition is placed in the ON/RUN position

and remain on briefly as a bulb check. If the light

does not come on during starting, have the system

checked by an authorized dealer.

WARNING!

Continued operation with reduced assist could

pose a safety risk to yourself and others. Service

should be obtained as soon as possible.

GETTING TO KNOW YOUR INSTRUMENT PANEL

119

Engine Coolant Temperature Warning

Light

This warning light warns of an

overheated engine condition. If the

engine coolant temperature is too high,

this indicator will illuminate and a single

chime will sound. If the temperature reaches the

upper limit, a continuous chime will sound for four

minutes or until the engine is able to cool;

whichever comes first.
If the light turns on while driving, safely pull over

and stop the vehicle. If the Air Conditioning (A/C)

system is on, turn it off. Also, shift the transmission

into NEUTRAL (N) and idle the vehicle. If the

temperature reading does not return to normal,

turn the engine off immediately and call for service

page 333.

Hood Open Warning Light

This warning light will illuminate when

the hood is left open and not fully

closed.

NOTE:

If the vehicle is moving, there will also be a single

chime.

Liftgate Open Warning Light

This warning light will illuminate when

the liftgate is open.

NOTE:

If the vehicle is moving, there will also be a single

chime.

Night Vision Animal Detected Warning

Indicator Light — If Equipped

The Night Vision Animal Warning Light

will illuminate in red when an animal is

detected directly in the vehicle’s path,

near the headlights, and a collision is

possible.
If enabled, a chime will sound and a video pop-up

may display when a detection occurs.

Night Vision Pedestrian Detected Warning

Indicator Light — If Equipped

The Night Vision Pedestrian Warning

Light will illuminate in red when a

pedestrian is detected directly in the

vehicle’s path, near the headlights, and

a collision is possible.
If enabled, a chime will sound and a video pop-up

may display when a detection occurs.

Oil Pressure Warning Light

This warning light will illuminate to

indicate low engine oil pressure. If the

light turns on while driving, stop the

vehicle, shut off the engine as soon as

possible, and contact an authorized dealer. A

chime will sound when this light turns on.

Do not operate the vehicle until the cause is

corrected. This light does not indicate how much oil

is in the engine.

Oil Temperature Warning Light

This warning light will illuminate to

indicate the engine oil temperature is

high. If the light turns on while driving,

safely pull over and stop the vehicle

(keep engine running). If the temperature does not

return to normal after a few minutes, turn off the

engine and call for service.

Rear Seat Belt Reminder Indicator Light

This light indicates when a rear seat belt

is unbuckled in the second row. When the

ignition is first placed in the ON/RUN

position, and if a seat belt in the second

row is unbuckled, a light corresponding to the

specific seat will turn on in the upper right portion of

the instrument cluster display, momentarily

replacing the configurable corner information. If a

second row seat belt that was buckled at the start of

the trip is unbuckled, the Rear Seat Belt Reminder

Light will change from the buckled to the unbuckled

symbol, and a chime will sound

page 282.

Seat Belt Reminder Warning Light

This warning light indicates when the

driver or passenger seat belt is

unbuckled. When the ignition is first

placed in the ON/RUN position and if the

120

GETTING TO KNOW YOUR INSTRUMENT PANEL

driver’s seat belt is unbuckled, a chime will sound

and the light will turn on. When driving, if the driver

or front passenger seat belt remains unbuckled,

the Seat Belt Reminder Light will flash or remain on

continuously and a chime will sound

page 282.

Transmission Temperature Warning Light —

If Equipped

This warning light will illuminate to warn

of a high transmission fluid temperature.

This may occur with strenuous usage

such as trailer towing. If this light turns

on, stop the vehicle and run the engine at idle or

slightly faster, with the transmission in PARK (P) or

NEUTRAL (N), until the light turns off. Once the light

turns off, you may continue to drive normally.

Vehicle Security Warning Light —

If Equipped

This light will flash at a fast rate for

approximately 15 seconds when the vehicle

security system is arming, and then will

flash slowly until the vehicle is disarmed.

ELLOW

ARNING

IGHTS

Anti-Lock Brake System (ABS) Warning

Light

This warning light monitors the ABS. The

light will turn on when the ignition is

placed in the ON/RUN position and may

stay on for as long as four seconds.

If the ABS light remains on or turns on while

driving, then the Anti-Lock portion of the brake

system is not functioning and service is required as

soon as possible. However, the conventional brake

system will continue to operate normally,

assuming the Brake Warning Light is not also on.
If the ABS light does not turn on when the ignition

is placed in the ON/RUN position, have the brake

system inspected by an authorized dealer.

Electronic Park Brake Warning Light

This warning light will illuminate to

indicate the Electronic Park Brake is not

functioning properly and service is

required. Contact an authorized dealer.

Electronic Stability Control (ESC) Active

Warning Light

This warning light will indicate when the

ESC system is Active. The ESC Indicator

Light in the instrument cluster will come

on when the ignition is placed in the ON/

RUN position, and when ESC is activated. It should

go out with the engine running. If the ESC Indicator

Light comes on continuously with the engine

running, a malfunction has been detected in the

ESC system. If this warning light remains on after

several ignition cycles, and the vehicle has been

driven several miles (kilometers) at speeds greater

than 30 mph (48 km/h), see an authorized dealer

as soon as possible to have the problem

diagnosed and corrected.



The ESC OFF Indicator Light and the ESC Indi

cator Light come on momentarily each time the

ignition is placed in the ON/RUN position.



The ESC system will make buzzing or clicking

sounds when it is active. This is normal; the

sounds will stop when ESC becomes inactive.



This light will come on when the vehicle is in an

ESC event.

WARNING!

If you continue operating the vehicle when the

Transmission Temperature Warning Light is

illuminated you could cause the fluid to boil over,

come in contact with hot engine or exhaust

components and cause a fire.

CAUTION!

Continuous driving with the Transmission

Temperature Warning Light illuminated will

eventually cause severe transmission damage

or transmission failure.

GETTING TO KNOW YOUR INSTRUMENT PANEL

121

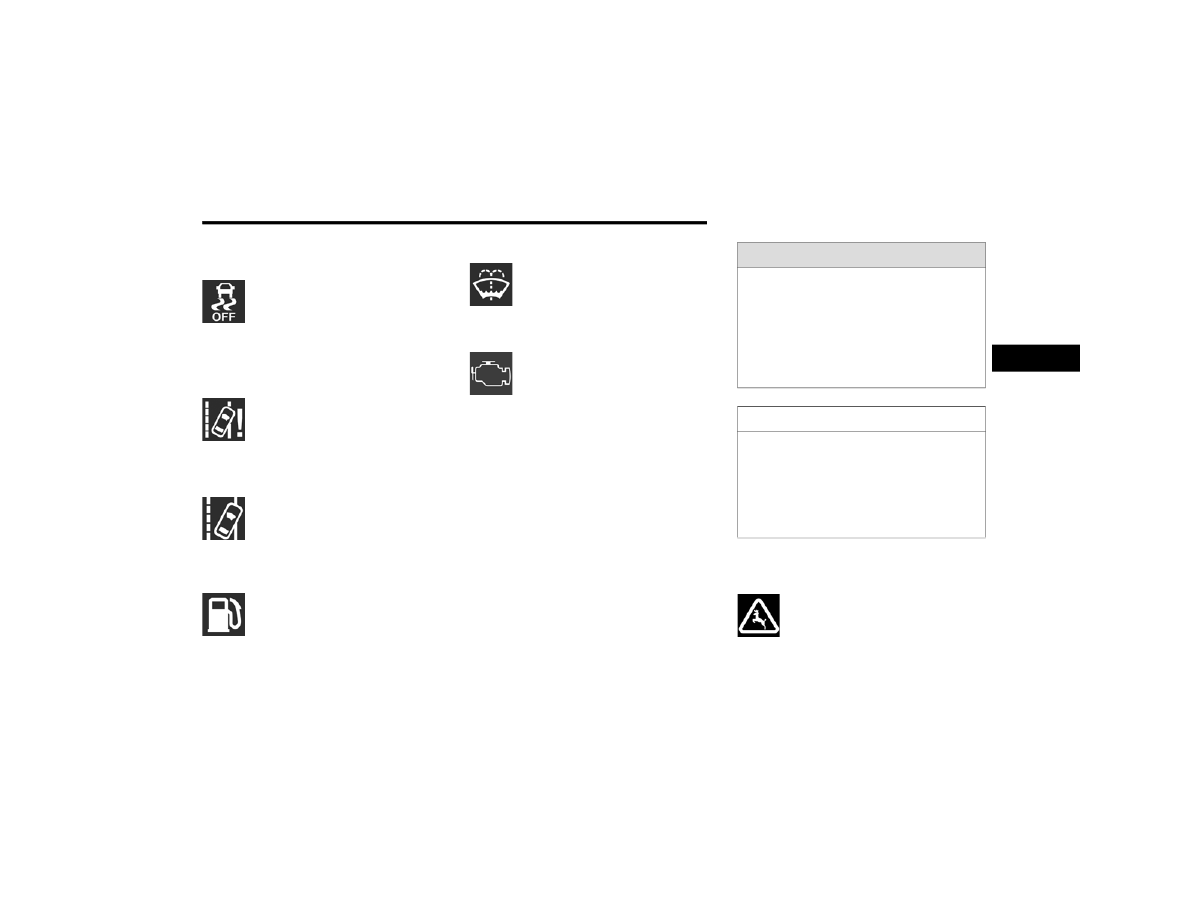

Electronic Stability Control (ESC) OFF

Warning Light

This warning light indicates the ESC is

off.
Each time the ignition is turned to ON/

RUN, the ESC system will be on, even if

it was turned off previously.

Service Active Lane Management Warning

Light — If Equipped

This warning light will illuminate when

the Active Lane Management system is

not operating and requires service.

Please see an authorized dealer.

Active Lane Management Warning Light —

If Equipped

The Active Lane Management Warning

Light will be solid yellow when the

vehicle is approaching a lane marker.

The warning light will flash when the

vehicle is crossing the lane marker

page 183.

Low Fuel Warning Light

When the fuel level reaches

approximately 2 gal (7.5 L), this light will

turn on and a chime will sound. The light

will remain on until fuel is added.

Low Washer Fluid Warning Light

This warning light will illuminate when

the windshield washer fluid is low

page 347.

Engine Check/Malfunction Indicator

Warning Light (MIL)

The Engine Check/Malfunction

Indicator Light (MIL) is a part of an

Onboard Diagnostic System called OBD

II that monitors engine and automatic

transmission control systems. This warning light

will illuminate when the ignition is in the ON/RUN

position before engine start. If the bulb does not

come on when turning the ignition switch from OFF

to ON/RUN, have the condition checked promptly.
Certain conditions, such as a loose or missing gas

cap, poor quality fuel, etc., may illuminate the light

after engine start. The vehicle should be serviced if

the light stays on through several typical driving

styles. In most situations, the vehicle will drive

normally and will not require towing.
When the engine is running, the MIL may flash to

alert serious conditions that could lead to

immediate loss of power or severe catalytic

converter damage. The vehicle should be serviced

by an authorized dealer as soon as possible if this

occurs.

Night Vision Animal Detected Indicator

Light — If Equipped

This light alerts the driver that the Night

Vision Warning System has detected an

animal approaching in the vehicle’s

path.

WARNING!

A malfunctioning catalytic converter, as

referenced above, can reach higher

temperatures than in normal operating

conditions. This can cause a fire if you drive

slowly or park over flammable substances such

as dry plants, wood, cardboard, etc. This could

result in death or serious injury to the driver,

occupants or others.

CAUTION!

Prolonged driving with the Malfunction Indicator

Light (MIL) on could cause damage to the

vehicle control system. It also could affect fuel

economy and driveability. If the MIL is flashing,

severe catalytic converter damage and power

loss will soon occur. Immediate service is

required.

122

GETTING TO KNOW YOUR INSTRUMENT PANEL

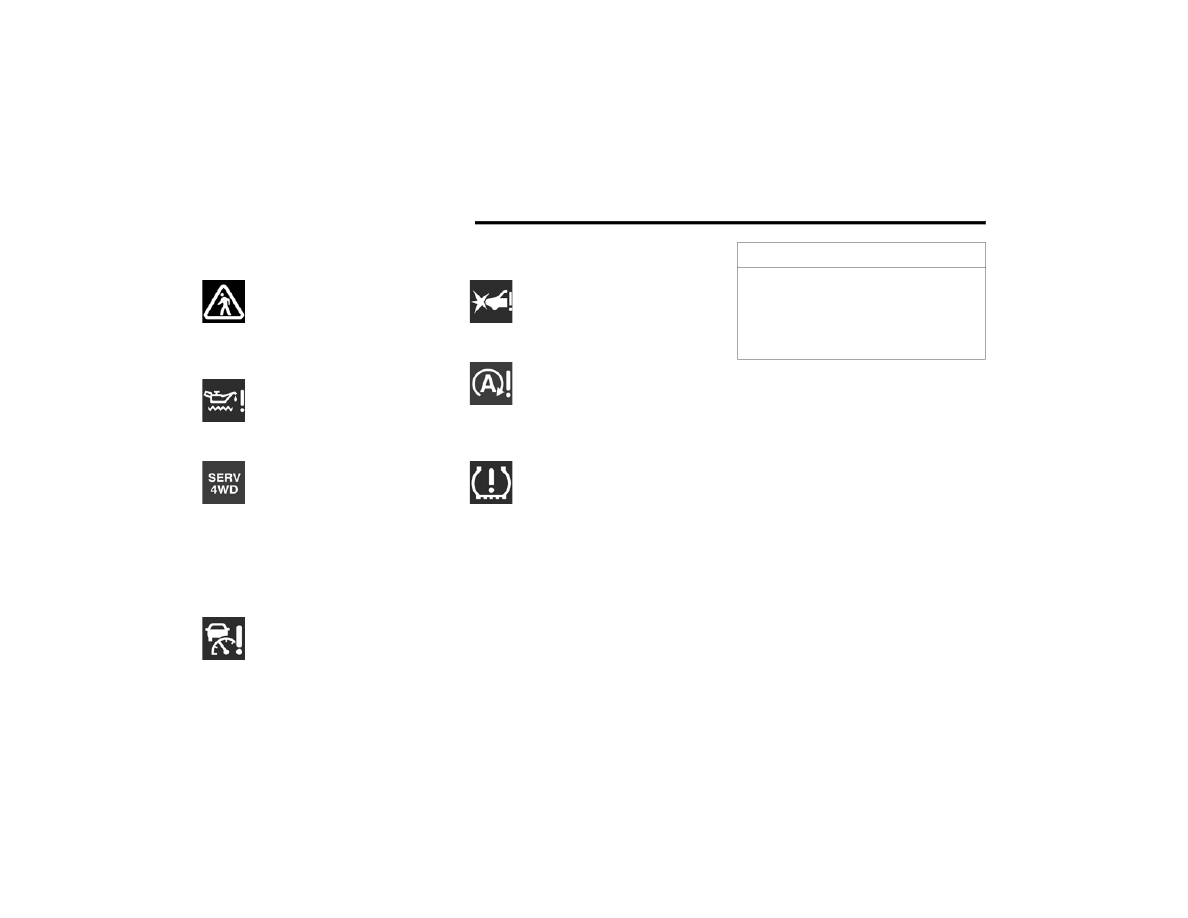

Night Vision Pedestrian Detected Indicator

Light — If Equipped

This indicator light alerts the driver that

the Night Vision System has detected a

pedestrian approaching in the vehicle’s

path.

Oil Level Sensor Fault Warning Light —

If Equipped

This warning light will illuminate to

indicate a fault with the engine oil level

sensor. Contact an authorized dealer for

service.

Service 4WD Warning Light — If Equipped

This warning light will illuminate to

signal a fault with the 4WD system. If the

light stays on or comes on during

driving, it means that the 4WD system is

not functioning properly and that service is

required. We recommend you drive to the nearest

service center and have the vehicle serviced

immediately.

Service Adaptive Cruise Control (ACC)

Warning Light

This light will turn on when the ACC is not

operating and needs service

page 151.

Service Forward Collision Warning (FCW)

Light

This warning light will illuminate to

indicate a fault in the Forward Collision

Warning System. Contact an authorized

dealer for service

page 275.

Service Stop/Start System Warning Light

This warning light will illuminate when

the Stop/Start system is not functioning

properly and service is required. Contact

an authorized dealer for service.

Tire Pressure Monitoring System (TPMS)

Warning Light

The warning light switches on and a

message is displayed to indicate that

the tire pressure is lower than the

recommended value and/or that slow

pressure loss is occurring. In these cases, optimal

tire duration and fuel consumption may not be

guaranteed.
Should one or more tires be in the condition

mentioned above, the display will show the

indications corresponding to each tire.

Each tire, including the spare (if provided), should

be checked monthly when cold and inflated to the

inflation pressure recommended by the vehicle

manufacturer on the vehicle placard or tire

inflation pressure label. If your vehicle has tires of

a different size than the size indicated on the

vehicle placard or tire inflation pressure label, you

should determine the proper tire inflation pressure

for those tires.
As an added safety feature, your vehicle has been

equipped with a TPMS that illuminates a low tire

pressure telltale when one or more of your tires is

significantly underinflated. Accordingly, when the

low tire pressure telltale illuminates, you should

stop and check your tires as soon as possible, and

inflate them to the proper pressure. Driving on a

significantly underinflated tire causes the tire to

overheat and can lead to tire failure. Underinflation

also reduces fuel efficiency and tire tread life, and

may affect the vehicle’s handling and stopping

ability.

CAUTION!

Do not continue driving with one or more flat

tires as handling may be compromised. Stop the

vehicle, avoiding sharp braking and steering. If a

tire puncture occurs, repair immediately using

the dedicated tire repair kit and contact an

authorized dealer as soon as possible.

GETTING TO KNOW YOUR INSTRUMENT PANEL

123

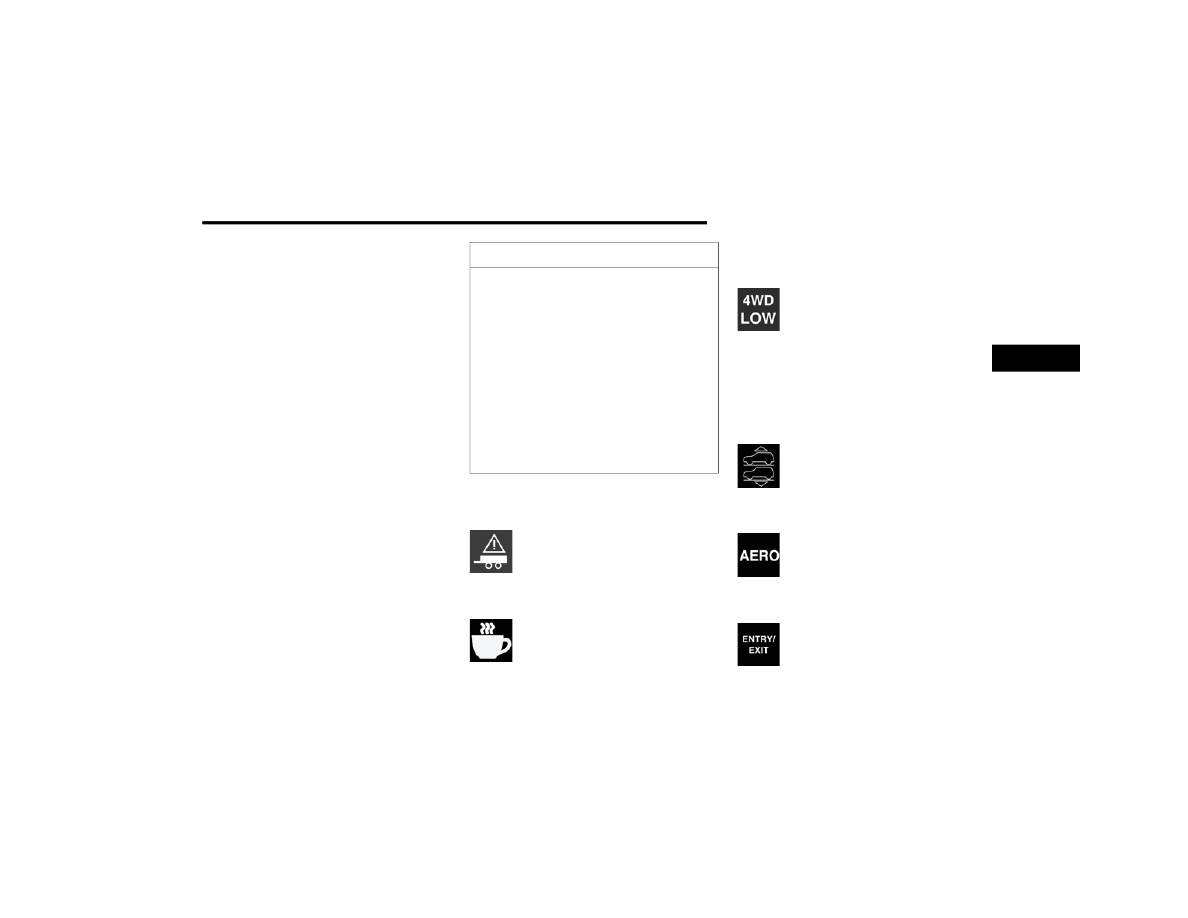

Please note that the TPMS is not a substitute for

proper tire maintenance, and it is the driver’s

responsibility to maintain correct tire pressure,

even if underinflation has not reached the level to

trigger illumination of the TPMS low tire pressure

telltale.
Your vehicle has also been equipped with a TPMS

malfunction indicator to indicate when the system

is not operating properly. The TPMS malfunction

indicator is combined with the low tire pressure

telltale. When the system detects a malfunction,

the telltale will flash for approximately one minute

and then remain continuously illuminated. This

sequence will continue upon subsequent vehicle

start-ups as long as the malfunction exists. When

the malfunction indicator is illuminated, the

system may not be able to detect or signal low tire

pressure as intended. TPMS malfunctions may

occur for a variety of reasons, including the

installation of replacement or alternate tires or

wheels on the vehicle that prevent the TPMS from

functioning properly. Always check the TPMS

malfunction telltale after replacing one or more

tires or wheels on your vehicle to ensure that the

replacement or alternate tires and wheels allow

the TPMS to continue to function properly.

Towing Hook Breakdown Warning Light —

If Equipped

This light illuminates when there is a

failure with the tow hook. Contact an

authorized dealer for service.

Drowsiness Detected System Fault

Warning — If Equipped

This warning light will illuminate when

the Drowsiness Detected System is not

operating correctly and requires service.

Please see an authorized dealer.

ELLOW

NDICATOR

IGHTS

4WD Low Indicator Light — If Equipped

This light alerts the driver that the

vehicle is in the 4WD Low mode. The

front and rear driveshafts are

mechanically locked together forcing

the front and rear wheels to rotate at the same

speed. Low range provides a greater gear

reduction ratio to provide increased torque at the

wheels

page 140.

Air Suspension Active Indicator Light —

If Equipped

This light will illuminate when the air

suspension system is actively adjusting

the ride height

page 143.

Air Suspension Aerodynamic Height

Indicator Light— If Equipped

This light will illuminate when the air

suspension system is set to the

Aerodynamic setting

page 143.

Air Suspension Entry/Exit Indicator Light—

If Equipped

This light will illuminate when the vehicle is

manually or automatically lowered from

ride height position downward for easy

entry and exit of the vehicle

page 143.

CAUTION!

The TPMS has been optimized for the original

equipment tires and wheels. TPMS pressures

and warning have been established for the tire

size equipped on your vehicle. Undesirable

system operation or sensor damage may result

when using replacement equipment that is not

of the same size, type, and/or style. Aftermarket

wheels can cause sensor damage. Using

aftermarket tire sealants may cause the Tire

Pressure Monitoring System (TPMS) sensor to

become inoperable. After using an aftermarket

tire sealant it is recommended that you take

your vehicle to an authorized dealer to have your

sensor function checked.

124

GETTING TO KNOW YOUR INSTRUMENT PANEL

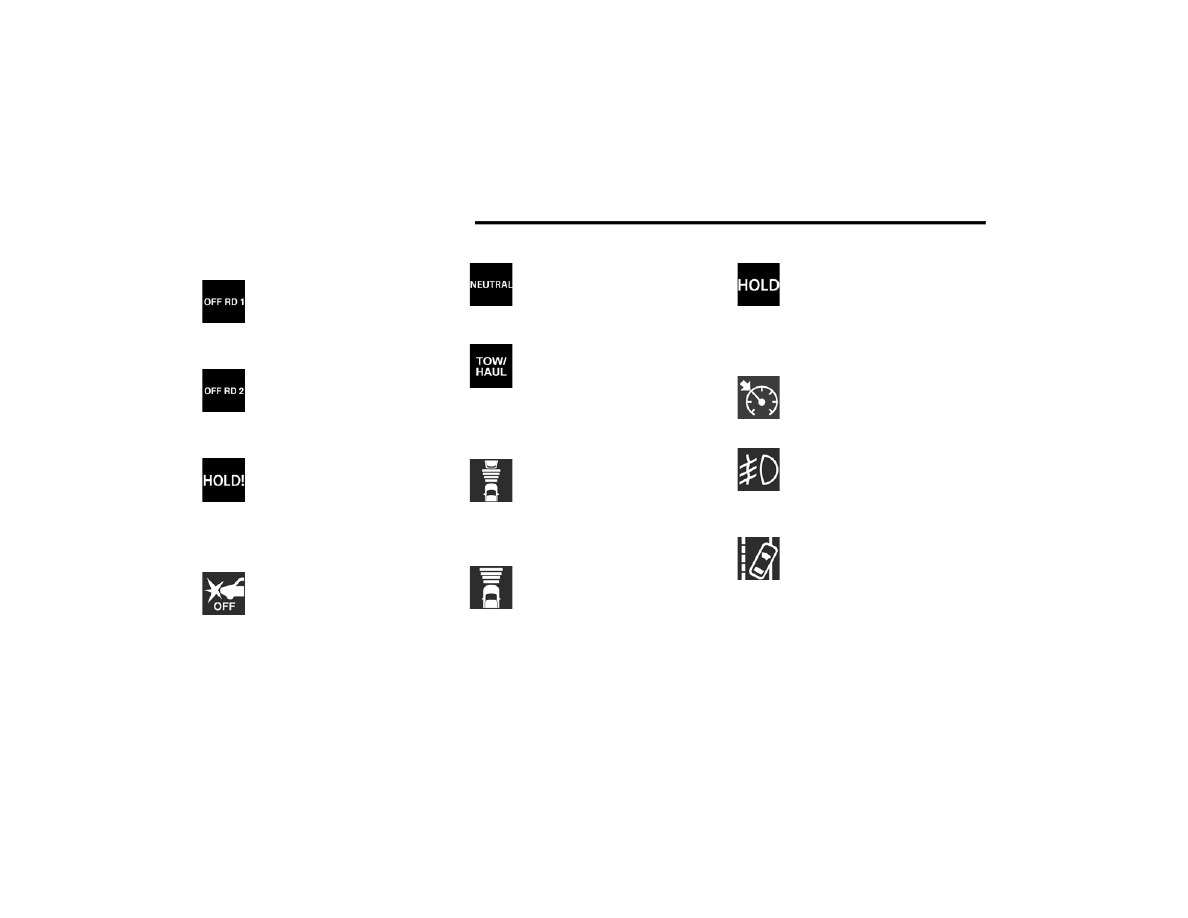

Air Suspension Off-Road 1 Indicator Light —

If Equipped

This light will illuminate when the air

suspension system is set to the

Off-Road 1 setting

page 143.

Air Suspension Off-Road 2 Indicator Light —

If Equipped

This light will illuminate when the air

suspension system is set to the

Off-Road 2 setting

page 143.

Auto HOLD! Fault Indicator Light —

If Equipped

The Auto HOLD! Fault Indicator light will

illuminate If a fault is detected, it will be

indicated by a yellow ‘HOLD!’ indicator

light that will stay on as long as the fault

condition exists.

Forward Collision Warning (FCW) Off

Indicator Light

This indicator light illuminates to

indicate that FCW is off

page 275.

NEUTRAL Indicator Light — If Equipped

This light alerts the driver that the 4WD

power transfer case is in the NEUTRAL

mode and the front and rear driveshafts

are disengaged from the powertrain.

TOW/HAUL Indicator Light

This indicator light will illuminate when

TOW/HAUL mode is selected.

REEN

NDICATOR

IGHTS

Adaptive Cruise Control (ACC) Set With

Target Light — If Equipped

This will display when the ACC is set and

the vehicle in front is detected

page 151.

Adaptive Cruise Control (ACC) Set With No

Target Detected Indicator Light —

If Equipped

This will display when the ACC is set and

the vehicle in front is not detected

page 151.

Auto HOLD Indicator Light — If Equipped

Auto HOLD keeps your vehicle at a

complete stop without you having to

keep your foot on the brake pedal. Once

engaged a green “HOLD” indicator will

appear in the Instrument Cluster Display.

Cruise Control SET Indicator Light —

If Equipped

This indicator light will illuminate when

the cruise control is set to the desired

speed

page 151.

Front Fog Indicator Light

This indicator light will illuminate when

the front fog lights are on

page 63.

Active Lane Management Indicator Light —

If Equipped

The Active Lane Management indicator

light illuminates solid green when both

lane markings have been detected and

the system is “armed” and ready to

provide visual and torque warnings if an

unintentional lane departure occurs

page 183.

Jeep Wagoneer (2022 year). Manual in english - page 7
