GETTING TO KNOW YOUR VEHICLE

77

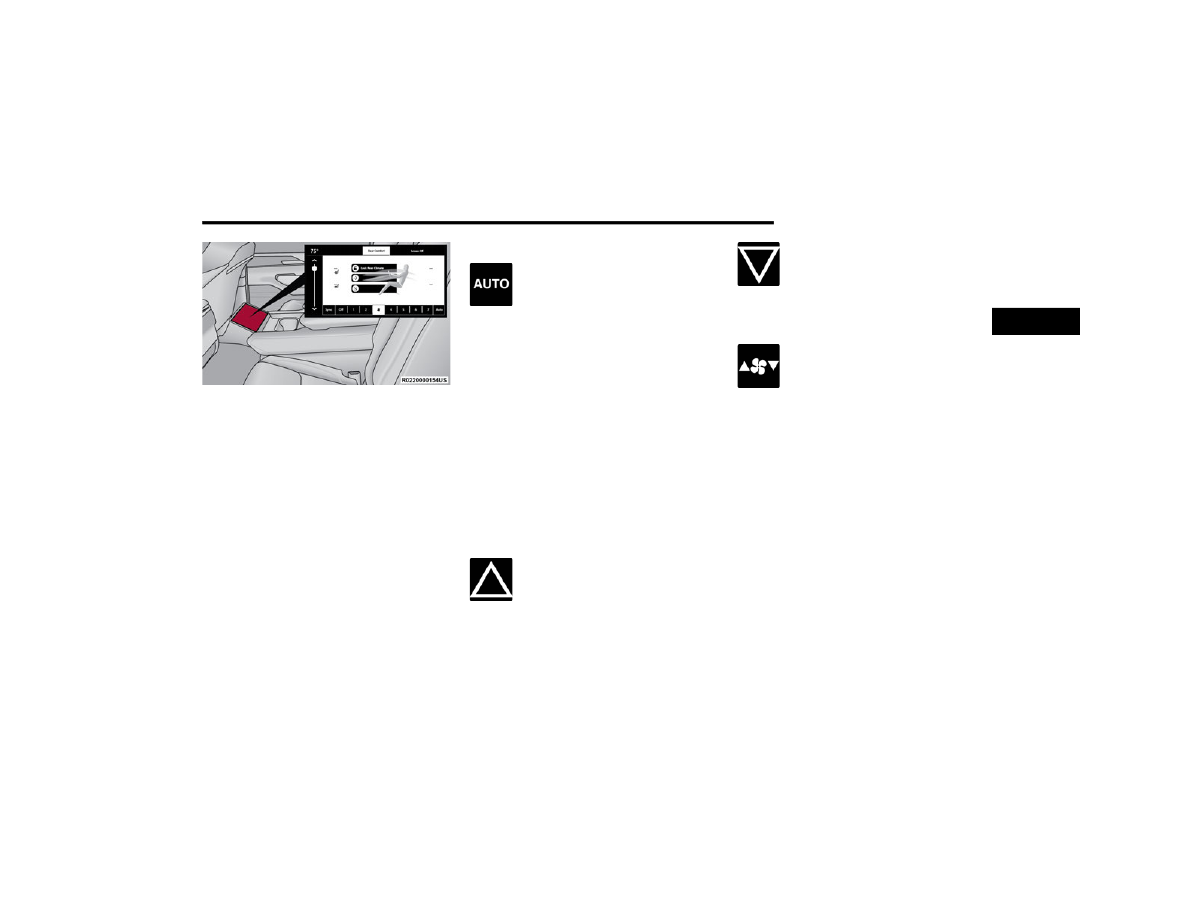

Rear Comfort And Convenience Display Screen

(If Equipped)

The rear climate controls are located on rear of the

front center console, or if equipped, on the Rear

Comfort And Convenience display screen located

at the front of the rear center console.
The rear Climate Control system has floor air

outlets at the right and left sides of the second and

third row seats. There are also airflow outlets on

the B-pillars in the second row seating area, as well

as the side trim panels in the third row seating

area. The system provides heated air through the

floor outlets or cool, dehumidified air through the

B-pillar and side trim panel outlets.

NOTE:

If equipped with a Four-Zone ATC system, the left

and right sides of the rear passenger zones can be

adjusted separately from the front or rear climate

control displays.

AUTO BUTTON

Push the AUTO button below the rear

climate control display, or if equipped,

press and release the AUTO button on

the Rear Comfort And Convenience

Display touchscreen to control the rear passenger

area’s temperature by automatically adjusting

distribution and amount of airflow. Performing this

function will cause the system to switch between

manual mode and automatic modes

Ú

page 78.

REAR TEMPERATURE CONTROL

Push the Up or Down buttons near the rear climate

control display, or if equipped, press the Up or

Down arrow buttons on the Rear Comfort And

Convenience Display touchscreen to control the

rear passenger’s temperature.

NOTE:

If equipped with a Four-Zone ATC system, the left

and right sides of the rear passenger zones can be

adjusted separately.

Push the Up arrow hard button, or press

and release, or slide the temperature

bar on the touchscreen towards the red

arrow button on the touchscreen for

warmer temperature settings.

Push the Down arrow hard button, or

press and release, or slide the

temperature bar on the touchscreen

towards the blue arrow button on the

touchscreen for cooler temperature settings.

REAR BLOWER CONTROL

Blower Control is used to regulate the

amount of air forced through the

Climate Control system. There are

several blower speeds available. The

speeds can be selected using the blower control

buttons near the rear climate control display, or if

equipped, on the Rear Comfort And Convenience

Display touchscreen.
Use the blower button with the “down” arrow, or

small blower icon on the touchscreen to reduce the

blower setting. Use the blower button with the “up”

arrow, or the large blower icon on the touchscreen

to increase the blower setting.

NOTE:

Blower speed can also be selected by pressing the

numbered blower speed on the touchscreen bar

area between the blower icons.

2

78

GETTING TO KNOW YOUR VEHICLE



REAR MODE CONTROL

Pushing the Mode button below the rear

climate control display, located on the

rear of the center console, will cycle

through the three rear mode control

options for airflow distribution. These options are:

Face, Face/Feet, and Feet.
Mode Control From The Rear Comfort And

Convenience Display
If equipped with the Rear Comfort And

Convenience display, two airflow distribution

modes can be selected on/off from the display by

individually by pressing the icons on the

touchscreen for up to three combinations of

airflow. The icons on the screen will illuminate

when selected, and turn off when deselected.
The two airflow modes are:

NOTE:

If Auto is selected, these icons will no longer be

available and the current mode selection will be

overwritten.

REAR CLIMATE LOCK

When the rear climate controls are

locked from the front climate controls,

“Unlock Rear Climate” will illuminate on

the rear climate screen. No adjustments

to the rear climate system can be made from the

rear climate controls while the system is locked.
When the controls are then unlocked from the

front climate controls, the text on the rear screen

will update to “Lock Rear Climate”, and no longer

be illuminated. Temperature, blower speed, and

mode settings can now be made from the rear

climate controls.

REAR CLIMATE CONTROL OFF

To turn the rear climate controls off,

push the OFF button below the rear

climate control display, or if equipped,

press and release the OFF button on the

Rear Comfort And Convenience Display

touchscreen, near the blower buttons.

A

UTOMATIC

 T

EMPERATURE

 C

ONTROL



(ATC)

Automatic Operation

1. Push the AUTO button on the front climate

control display, and the word “AUTO” will

illuminate along with two temperatures for

the driver and front passenger. The system

will then automatically regulate the amount of

airflow.

2. Adjust the temperature you would like the

system to maintain, by adjusting the driver,

passenger, and rear temperatures. Once the

desired temperature is displayed, the system

will achieve, and automatically maintain, that

comfort level.

3. When the system is set up for your comfort

level, it is not necessary to change the

settings. You will experience the greatest

efficiency by simply allowing the system to

function automatically.

NOTE:

It is not necessary to move the temperature

settings. The system automatically adjusts the

temperature, mode, and fan speed to provide

comfort as quickly as possible.

Face (panel outlets)

Feet (floor outlets)

GETTING TO KNOW YOUR VEHICLE

79

To provide you with maximum comfort in the

automatic mode during cold start-ups, the blower

fan will remain on low until the engine warms up.

The fan will engage immediately if the Defrost

mode is selected, or by changing the front blower

setting.

Manual Operation Override

This system offers a full complement of manual

override features. The AUTO symbol in the front

climate control display will no longer be illuminated

when the system is being used in the manual

mode.

NOTE:

The system will not automatically sense the

presence of fog, mist or ice on the windshield.

Defrost mode must be manually selected to clear

the windshield and side glass.

C

LIMATE

 V

OICE

 R

ECOGNITION

Adjust vehicle temperatures hands-free and keep

everyone comfortable while you keep moving

ahead. (If vehicle is equipped with climate control.)
Push the VR button  . After the beep, say one of

the following commands:

“Set the driver temperature to 70 degrees”

“Set the passenger temperature to 70 degrees”

Did You Know: Voice Command for Climate may

only be used to adjust the interior temperature of

your vehicle. Voice Command will not work to

adjust the heated seats or steering wheel if

equipped.

O

PERATING

 T

IPS



NOTE:

Refer to the chart at the end of this section for

suggested control settings for various weather

conditions.

Summer Operation

The engine cooling system must be protected with

a high-quality antifreeze coolant to provide proper

corrosion protection and to protect against engine

overheating. OAT coolant (conforming to

MS.90032) is recommended.

Winter Operation

To ensure the best possible heater and defroster

performance, make sure the engine cooling

system is functioning properly and the proper

amount, type, and concentration of coolant is

used. Use of the Air Recirculation mode during

Winter months is not recommended, because it

may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control

system when the vehicle is being stored for an

extended period of time, see

Ú

page 399.

Window Fogging

Vehicle windows tend to fog on the inside in mild,

rainy, and/or humid weather. To clear the

windows, select Defrost or Mix mode and increase

the front blower speed. Do not use the

Recirculation mode without A/C for long periods,

as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of

the windshield, is free of obstructions, such as

leaves. Leaves collected in the air intake may

reduce airflow, and if they enter the air distribution

box, they could plug the water drains. In Winter

months, make sure the air intake is clear of ice,

slush, and snow.

CAUTION!

Interior air enters the Rear Climate Control

system through an intake grille, located in the

right side trim panel behind the third row seats.

The heater outlets are located in the right side

trim panel, just behind the rear doors. Do not

block or place objects directly in front of the

inlet grille or heater outlets. The electrical

system cold overload causing damage to the

blower motor.

2

80

GETTING TO KNOW YOUR VEHICLE



Cabin Air Filter

The Climate Control system filters out dust and

pollen from the air. Contact an authorized dealer to

service your cabin air filter, and to have it replaced

when needed.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system

may automatically adjust airflow to maintain cabin

comfort. Customer settings will be maintained

upon return to an engine running condition.

Windshield Wiper De-Icer — If Equipped

The Windshield Wiper De-icer is a heating element

located at the base of the windshield.
It operates automatically once the following

conditions are met:

Activation By Front Defrost
The Windshield Wiper De-icer activates auto

-

matically during a cold weather manual start

with full defrost, and when the ambient

temperature is below 33°F (0.6°C).

Activation By Rear Defrost
The Windshield Wiper De-icer activates auto

-

matically when the Rear Defrost is operating

and the ambient temperature is below 33°F

(0.6°C).

Activation By Remote Start Operation
When Remote Start is activated and the outside

ambient temperature is less than 33°F (0.6°C)

the Windshield Wiper De-icerwill activate.

Exiting Remote Start will resume its previous

operation. If the Windshield Wiper De-Icer was

active, the timer and operation will continue.

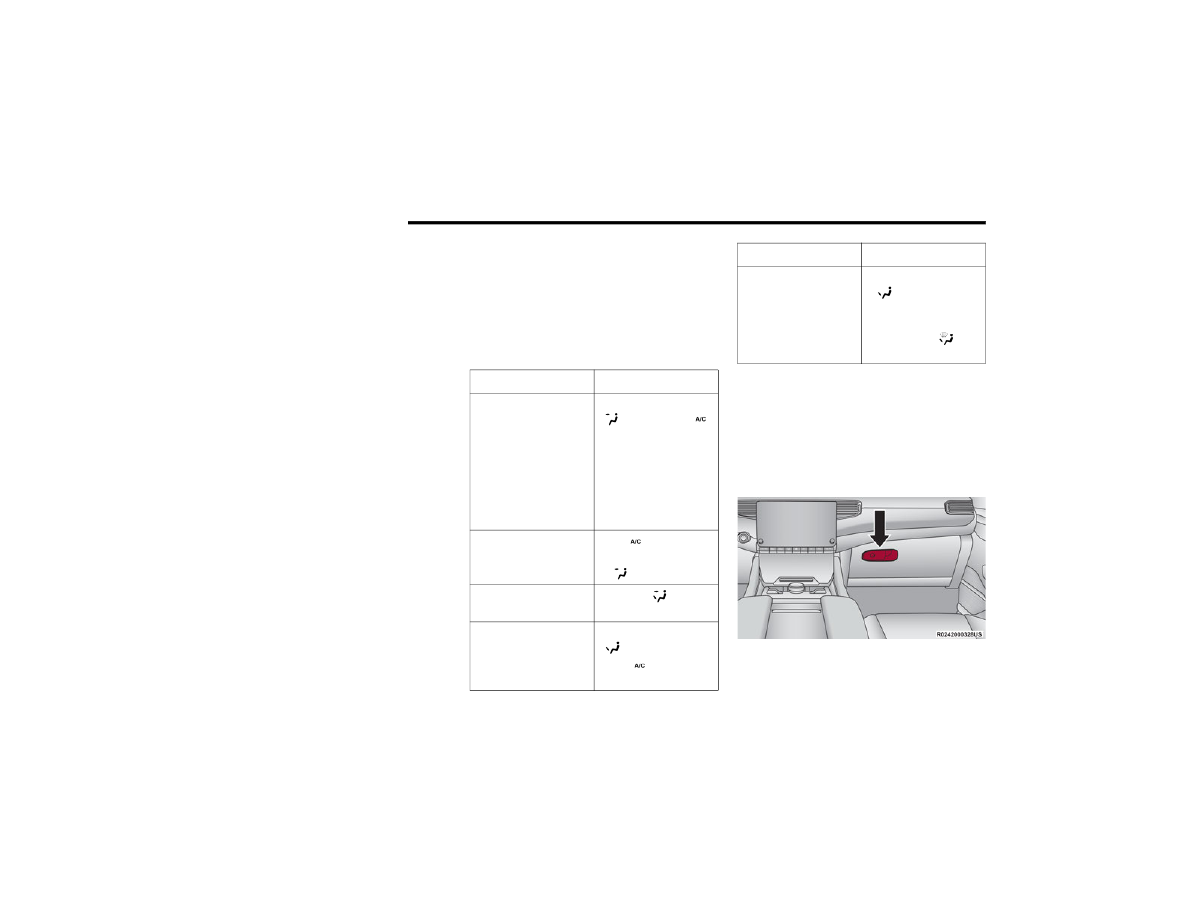

Operating Tips Chart

INTERIOR STORAGE AND EQUIPMENT

S

TORAGE

Glove Compartment

The glove compartment is located on the

passenger side of the instrument panel.

Glove Compartment Release Handle

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is Very

Hot

Set the mode control to

 (Panel Mode),

(A/C) on, and blower

on high. Roll down the

windows for a minute

to flush out the hot air.

Adjust the controls as

needed to achieve

comfort.

Warm Weather

Turn   (A/C) on and

set the mode control to

 (Panel Mode).

Cool Sunny

Operate in   (Bi-Level

Mode).

Cool & Humid

Conditions

Set the mode control to

 (Floor Mode) and

turn   (A/C) on to

keep windows clear.

Cold Weather

Set the mode control to

 (Floor Mode). If

windshield fogging

starts to occur, move

the control to   (Mix

Mode).

WEATHER

CONTROL SETTINGS

GETTING TO KNOW YOUR VEHICLE

81

To open the glove compartment, pull the release

handle.
The glove compartment also has a lock cylinder

that can be locked/unlocked with the emergency

key (located inside the key fob)

Ú

page 20.

NOTE:

When valet parking your vehicle, remove the emer

-

gency key from the key fob, as it will open the safe.

Front Center Console

The front center console contains both an upper

and a lower storage area.
To open the lower storage compartment, push the

release button and lift up.

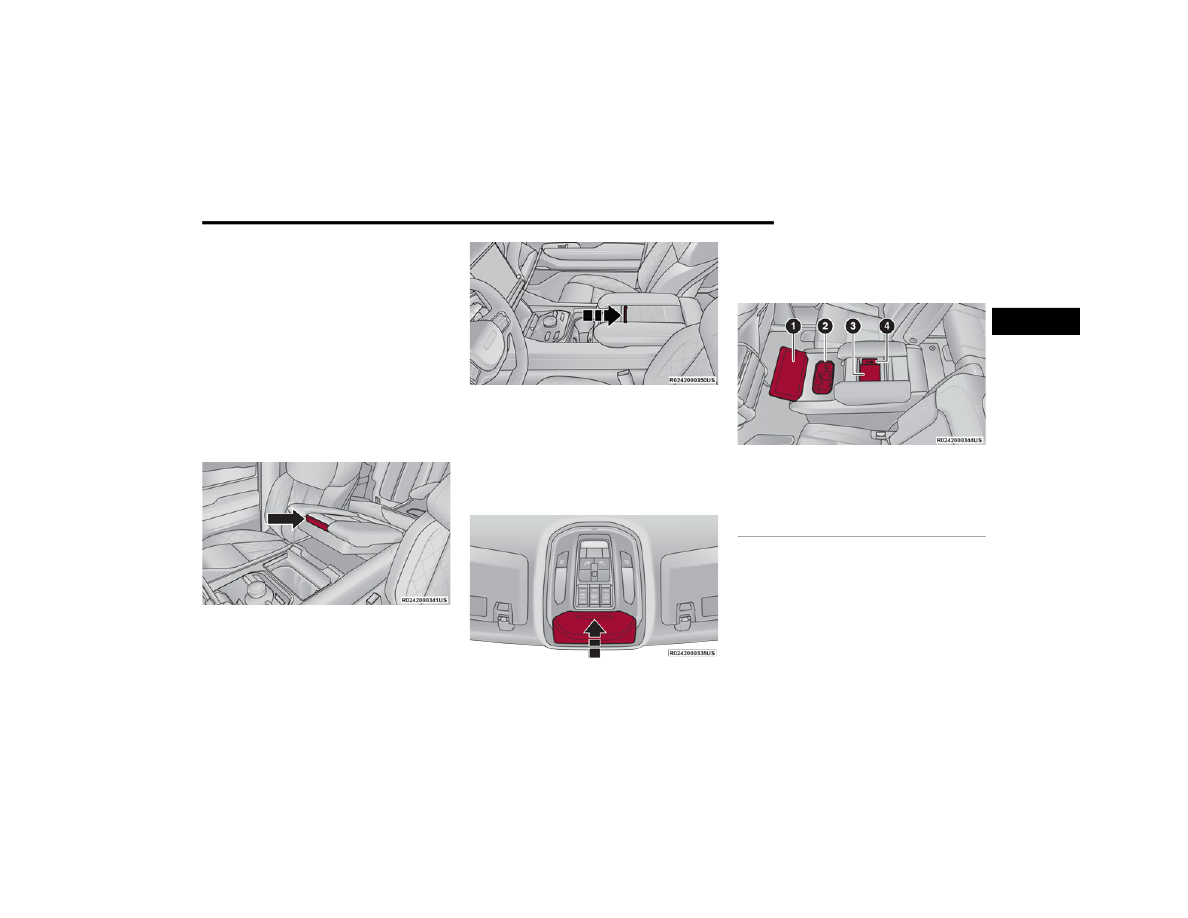

Lower Storage Compartment Release Button

To open the upper storage compartment, pull the

sliding tab backwards to slide the door open.

Upper Storage Compartment Sliding Tab

Sunglasses Bin Door

At the front of the console a compartment is

provided for the storage of a pair of sunglasses.

The storage compartment access is a “push/push”

design. Push the chrome pad on the door to open.

Push the chrome pad on the door to close.

Sunglasses Bin Door

Rear Full Center Console — If Equipped

The rear full center console contains both an upper

and a lower storage area.

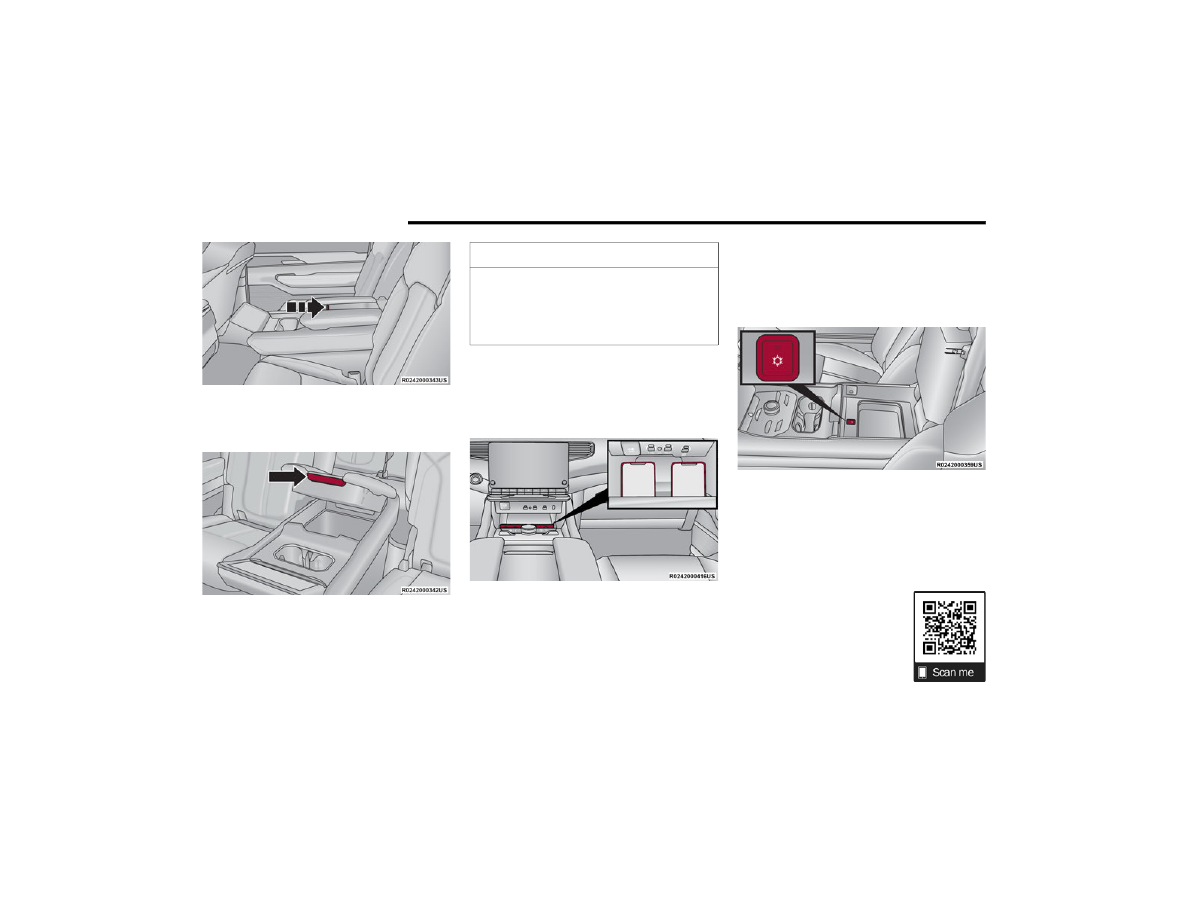

Rear Center Console

To open the upper storage compartment, pull the

sliding tab rearward to slide the compartment door

open.

1 — Rear Comfort And Convenience Display
2 — Console Cupholders
3 — Upper Storage Compartment
4 — USB Ports

2

82

GETTING TO KNOW YOUR VEHICLE



Upper Storage Sliding Tab

To open the lower storage compartment, pull the

release handle and lift upward.

Lower Storage Release Handle

Phone Storage — If Equipped

Your vehicle may be equipped with two pockets,

located at the front edge of the media bin, that can

hold mobile phones.

Phone Holder Location

C

ENTER

 C

ONSOLE

 C

OOLER

 —

I

F

 E

QUIPPED

Your vehicle may be equipped with a console

cooler located in the front center console.

Center Console Cooler Button

Press the cooler button once to turn on the cooler.

The LED will illuminate.
Press the button a second time to turn the cooler

off. The LED will turn off.

C

ENTER

 C

ONSOLE

 S

AFE

 — I

F

 E

QUIPPED

Use this QR code to access your

digital experience.

Your vehicle may be equipped

with a safe to store your

valuables. The safe is located

inside of the front center console.

CAUTION!

Remove any items stored in the console

cupholders or devices with cords routing through

upper storage area. Damage may occur to upper

console lid and device cables when upper

storage compartment is lifted forward.

GETTING TO KNOW YOUR VEHICLE

83

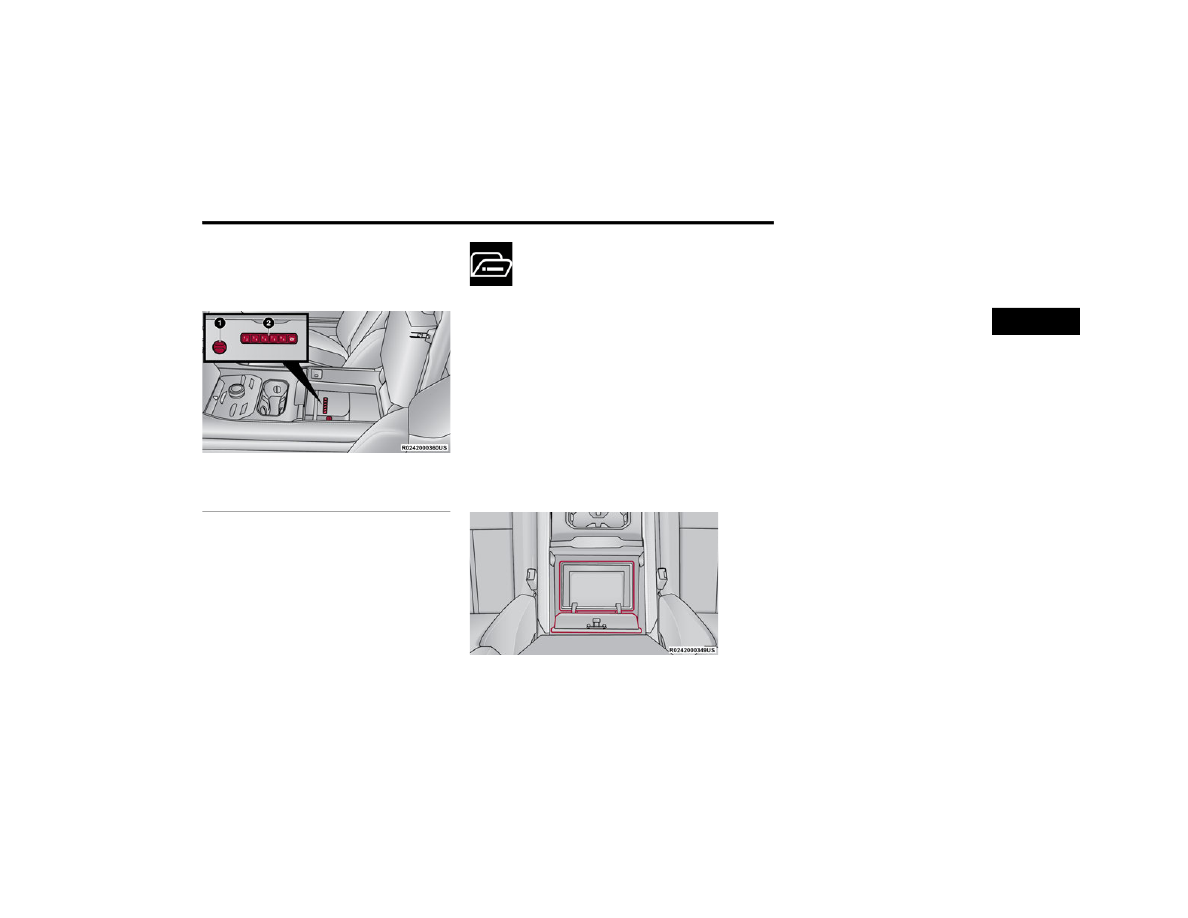

There is a keypad on the safe that consists of six

buttons. The first five buttons have numbers you

can select to create the lock code, while the sixth

button is the Door Open button.

Center Console Safe

The safe can be used as locked or unlocked

storage.
The color of the keypad indicates the lock mode of

the safe:

White: Unlocked

Red: Locked

Pink: Lock code programming mode

To open the safe while it is in the

unlocked mode, simply press the Door

Open button on the keypad.
You can program a lock code by

performing the following procedure:
1. Press and hold the Door Open button for two

seconds. The keypad will flash pink, and then

turn solid pink.

2. Using the keypad, enter a 6-digit code. The

keypad will flash red, and then turn solid red.

3. Close the lid of the safe, and the safe will lock.

To open the locked safe, use the keypad to enter

the previously programmed 6-digit code, and then

press the Door Open button. After pressing the

Door Open button, the keypad turns white briefly to

open the safe door.

Open Center Console Safe

The keypad will then turn red again, and return to

the locked mode when the safe lid is closed.

NOTE:

The keypad will flash red if an incorrect lock code

is entered. If the incorrect code is entered ten

times in a row, the user will be locked out from

further attempts for approximately 30 minutes.
To revert the safe back to the unlocked mode:
1. Enter the programmed 6-digit code.
2. Press and hold the Door Open button for two

seconds. The keypad will flash red and change

to pink.

3. Enter the 6-digit code and press the Door Open

button. The keypad will flash white.

Once this procedure is completed, the safe will no

longer lock when the lid is closed.
Lock Code Override
If you forget the 6-digit code, there is a way to

override the code, using the emergency key stored

inside your key fob:
1. Remove the emergency key from the key fob

Ú

page 20.

2. Use the emergency key to open the safe door.
3. Press and hold the reset button, located under

the lid, for two seconds.

1 — Emergency Override Location
2 — Keypad

2

84

GETTING TO KNOW YOUR VEHICLE



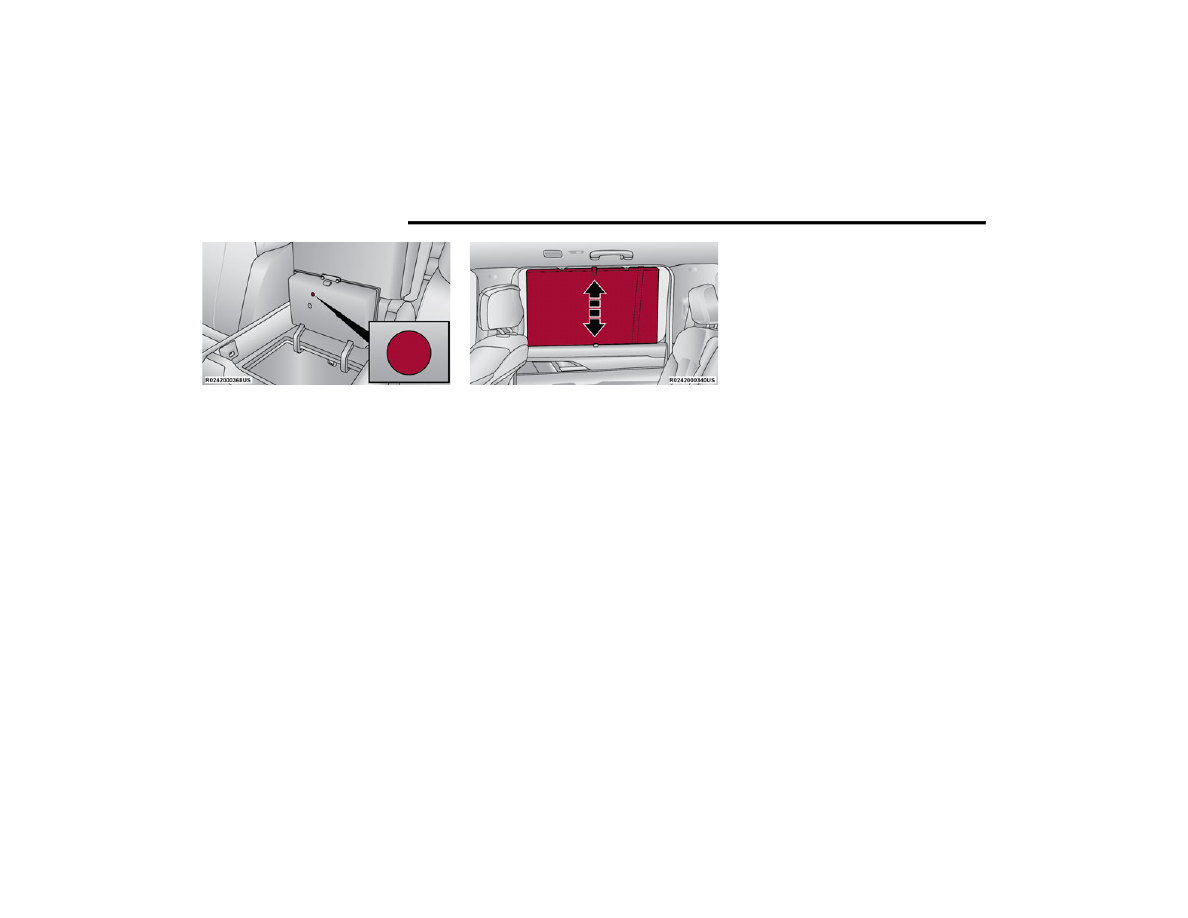

Reset Button Location

The safe will return to the unlocked mode.

NOTE:

When valet parking your vehicle, remove the emer

-

gency key from the key fob, as it will open the safe.

S

UN

 S

CREENS

 — I

F

 E

QUIPPED

Sun screens are available for the second row

seating windows. The screens store in the sill trim

panels, and the tops of the windows are equipped

with hooks that the sun screens attach to when

pulled up.
Gently pull up on the tab to raise the sun screen.

Continue pulling the sun screen until the tab is

near the top of the window.
Once the screen is completely to the top of the

window, extend the top bar of the sun screen over

the two hooks attached to the top of the window.

Sun Screen Extended

To lower the sun screen, gently lift the tab upward

to disengage the hooks, and feed the screen back

into the base sill.

USB/AUX C

ONTROL



This feature allows an external USB device to be

plugged into one of the USB ports, located in the

center stack of the instrument panel.
Plugging in a smartphone device to a USB port will

activate Android Auto™ or Apple CarPlay®

features, if equipped. Android Auto™ and Apple

CarPlay® can also be activated wirelessly. For

further information, refer to “Android Auto™” or

“Apple CarPlay®” in the Owner’s Manual

Supplement.

NOTE:

Two devices can be plugged in at the same time,

and both ports will provide charging capabilities.

Only one port can transfer data to the system at a

time.
For example, if a device is plugged into the Type A

USB port and another device is plugged into the

Type C USB port, a message will appear and allow

you to select which device to use.
Different scenarios are listed below when a

non-phone device is plugged into the smaller and

larger USB ports, and when a phone device is

plugged into the smaller and larger USB ports:

“A new device is now connected. Previous

connection was lost”.

“(Phone Name) now connected. Previous

connection was lost”.

“Another device is in use through the same USB

port. Please disconnect the first device to use

the second device”.

Plugging in a phone or another USB device may

cause the connection to a previous device to be

lost.

GETTING TO KNOW YOUR VEHICLE

85

Connecting AUX Or The External USB

Device

Use a connection cable to connect an external USB

device to the vehicle’s USB port, or use an auxiliary

cable to connect a device to the vehicle’s AUX port.

These ports are located below the climate controls.

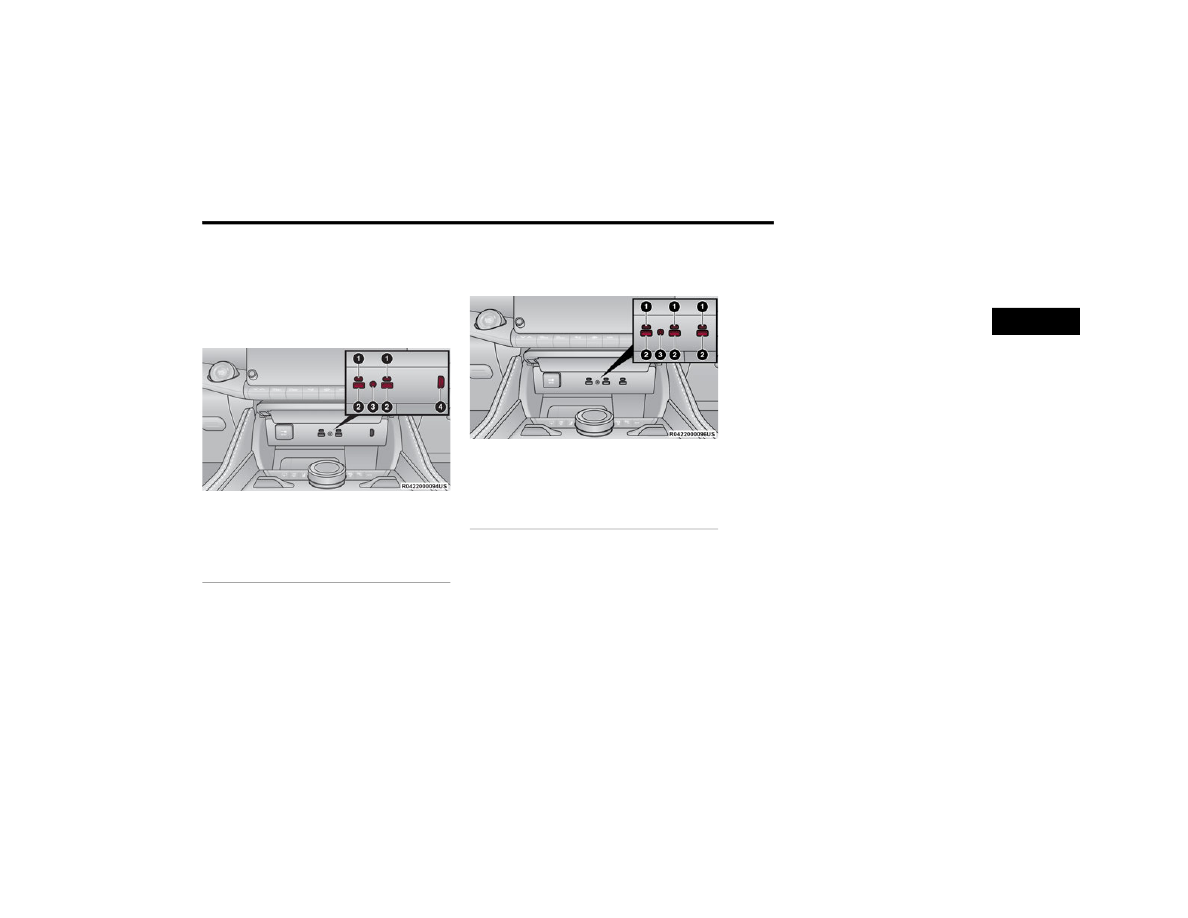

Front Media Hub USB/AUX Ports

To the right of the front media hub is an HDMI port

used for the Passenger Display feature

Ú

page 242.

For vehicles not equipped with the Passenger

Display feature, the front media hub configuration

will appear different.

Front Media Hub USB/AUX Ports —

Without Passenger Display

Once a device is connected to the USB port, it will

begin charging and is ready for use with the

system. Type C and Type A charge-only USB ports

can be used at the same time but cannot be used

simultaneously while playing media. When both

Type C and Type A charge-only USB ports are in use

they will be charged at a reduced rate.

NOTE:

If the device’s battery completely discharges, it

may not communicate with the Uconnect system

until a minimum charge is attained. Leaving the

device connected to the USB port may charge it to

the required level.

Using This Feature

By using a USB cable to connect an external

device:

The device can be played on the vehicle’s sound

system, providing the artist, track title, and

album information on the radio display.

The device can be controlled using the radio buttons

to play, and browse the contents of the device.

The audio device battery charges when plugged

into the USB port.

By using an auxiliary cable to connect an external

device:

The audio device can be played on the vehicle’s

sound system. The Uconnect system will not

display information related to the artist, track

title, and album information.

NOTE:

When using the AUX port, the external device

cannot be controlled using the radio buttons. The

device will not charge.
For further information, refer to the Uconnect

Owner’s Manual Supplement.

1 — USB C Port
2 — USB A Port
3 — AUX Port
4 — HDMI Port (If Equipped)

1 — USB C Port
2 — USB A Port
3 — AUX Port

2

86

GETTING TO KNOW YOUR VEHICLE



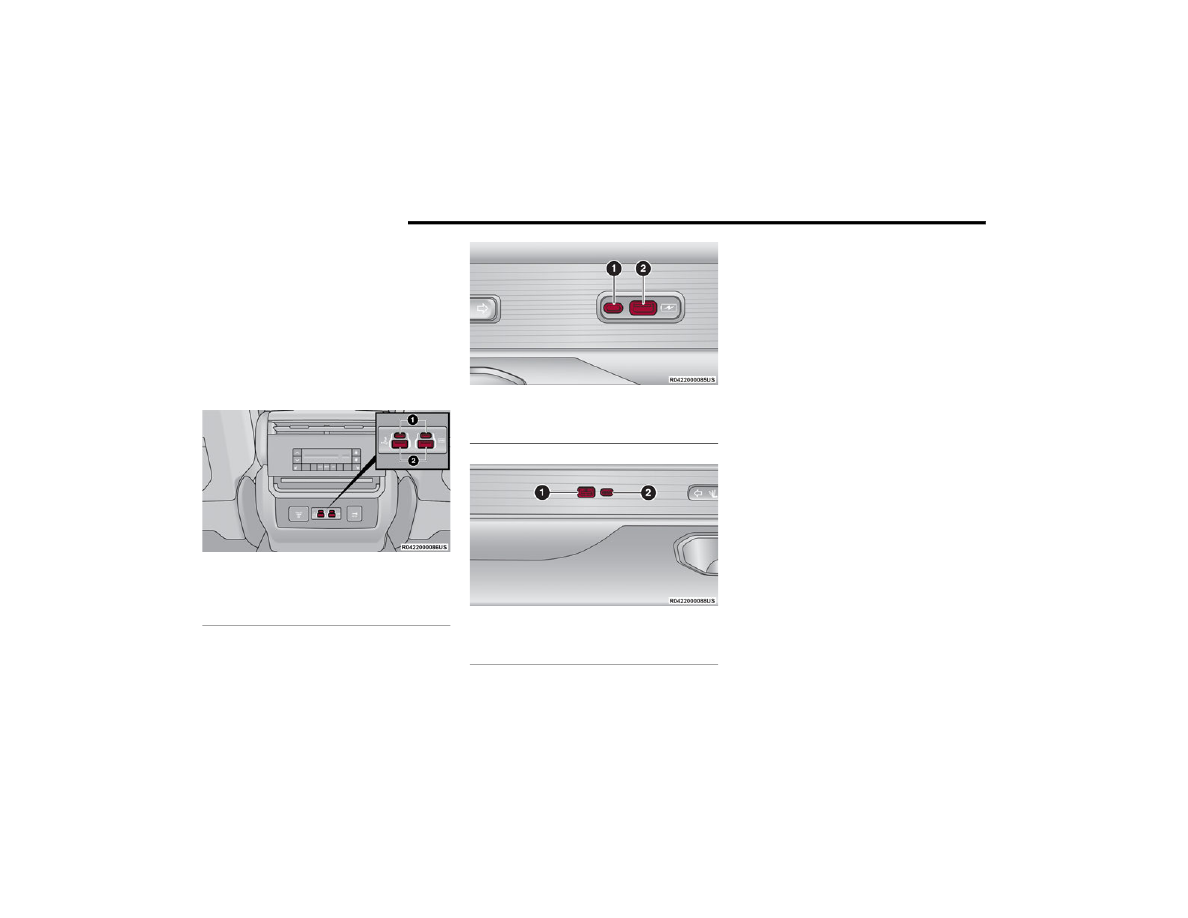

Second And Third Row USB Ports —

If Equipped

If equipped, the second row USB ports can be used

to connect to the Uconnect system. Using the

media USB ports (left ports), connect an external

device. You will be able to control your device from

the Uconnect system and play audio from the

vehicle’s sound system.
The charge only USB ports (right ports) can be used

to charge an external device.

Center Console Rear USB Ports

If equipped, in the third rows, a set of two USB

ports can be used to charge a device. These ports

are charge only.

Third Row USB Ports

Third Row USB Ports

NOTE:

Charge unsupported devices with the charge only

USB ports. If an unsupported device is plugged into

a Media USB port, a message will display on the

touchscreen that the device is not supported by

the system.

E

LECTRICAL

 P

OWER

 O

UTLETS



Your vehicle is equipped with 12 Volt (13 Amp)

power outlets that can be used to power cellular

phones, small electronics and other low powered

electrical accessories. The power outlets are

labeled with either a “key” or a “battery” symbol to

indicate how the outlet is powered. Power outlets

labeled with a key symbol are powered when the

ignition switch is in the ON position, while the

outlets labeled with a battery symbol are

connected directly to the battery and powered at

all times.

NOTE:

All accessories connected to the battery

powered outlets should be removed or turned

off when the vehicle is not in use to protect the

battery against discharge.

Do not exceed the maximum power of 160 Watts

(13 Amps) at 12 Volts. If the 160 Watt (13 Amp)

power rating is exceeded the fuse protecting the

system needs to be replaced.

1 — Type C Mini USB Ports (Media And Charge Only)
2 — Type A Standard USB Ports (Media And

Charge Only)

1 — Type C USB Port
2 — Type A USB Port

1 — Type A USB Port
2 — Type C USB Port

GETTING TO KNOW YOUR VEHICLE

87

Power outlets are designed for accessory plugs

only. Do not insert any other object in the power

outlets as this will damage the outlet and blow

the fuse. Improper use of the power outlet can

cause damage not covered by your New Vehicle

Limited Warranty.

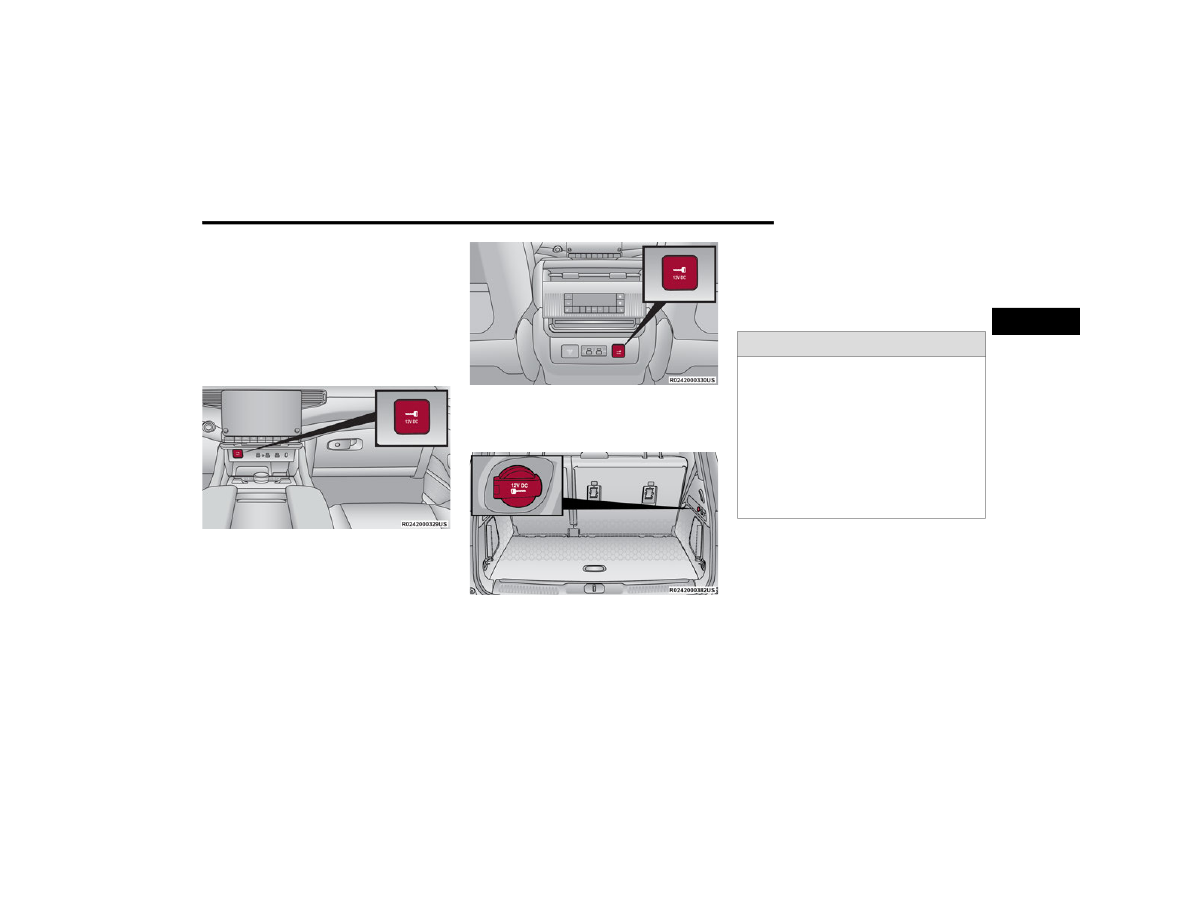

The front power outlet is located inside the storage

area on the center stack of the instrument panel,

below the climate controls.

Front Power Outlet

In addition to the front power outlet, there is also a

power outlet located on the rear of the front center

console.

Front Center Console Power Outlet

The rear cargo power outlet is located in the right

rear cargo area.

Rear Cargo Power Outlet

NOTE:

The rear cargo power outlet can be changed to

battery (powered at all times) by switching the

power outlet right rear quarter panel fuse in the

fuse panel from fuse location F90 to F91

Ú

page 361.

WARNING!

To avoid serious injury or death:

Only devices designed for use in this type of

outlet should be inserted into any 12 Volt

outlet.

Do not touch with wet hands.

Close the lid when not in use and while driving

the vehicle.

If this outlet is mishandled, it may cause an

electric shock and failure.

2

88

GETTING TO KNOW YOUR VEHICLE



P

OWER

 I

NVERTER



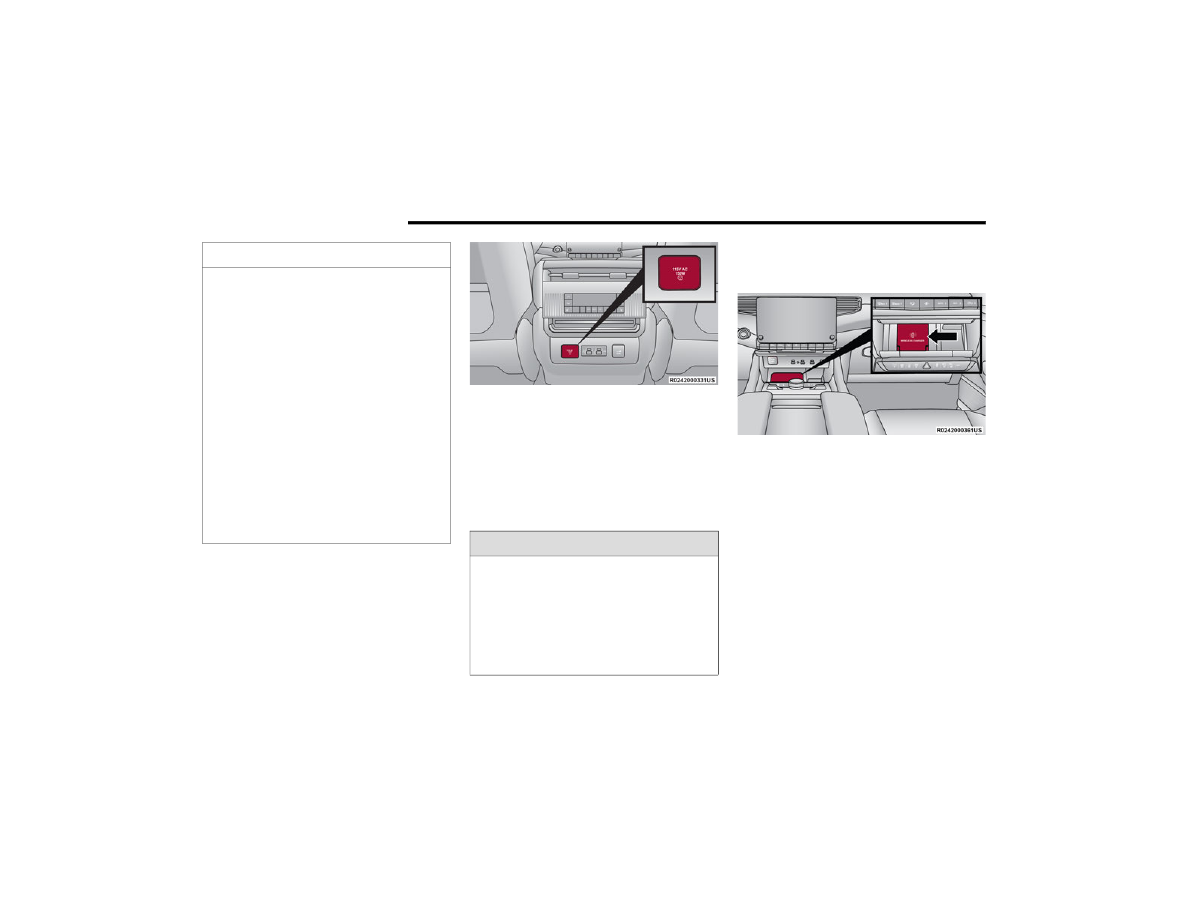

There is a 115 Volt, 150 Watt inverter outlet

located on the back of the center console to

convert DC current to AC current. This outlet can

power cellular phones, electronics and other low

power devices requiring power up to 150 Watts.

Certain video game consoles exceed this power

limit, as will most power tools.

Power Inverter

The power inverter is designed with built-in overload

protection. If the power rating of 150 Watts is

exceeded, the power inverter automatically shuts

down. Once the electrical device has been removed

from the outlet the inverter should automatically

reset. To avoid overloading the circuit, check the

power ratings on electrical devices prior to using the

inverter.

W

IRELESS

 C

HARGING

 P

AD

 —

I

F

 E

QUIPPED

Wireless Charging Pad

Your vehicle may be equipped with a 15W 3A Qi

wireless charging pad located inside of the storage

area below the climate controls. This charging pad

is designed to wirelessly charge your Qi enabled

mobile phone. Qi is a standard that allows wireless

charging of your mobile phone.
Your mobile phone must be designed for Qi

wireless charging. If the phone is not equipped

with Qi wireless charging functionality, an

aftermarket sleeve or a specialized back plate can

be purchased from your mobile phone provider or

a local electronics retailer. Please see your

phone’s owner’s manual for further information.

CAUTION!

Many accessories that can be plugged in

draw power from the vehicle's battery, even

when not in use (i.e., cellular phones, etc.).

Eventually, if plugged in long enough, the

vehicle's battery will discharge sufficiently to

degrade battery life and/or prevent the

engine from starting.

Accessories that draw higher power (i.e.,

coolers, vacuum cleaners, lights, etc.) will

degrade the battery even more quickly. Only

use these intermittently and with greater

caution.

After the use of high power draw accessories,

or long periods of the vehicle not being started

(with accessories still plugged in), the vehicle

must be driven a sufficient length of time to

allow the generator to recharge the vehicle's

battery.

WARNING!

To avoid serious injury or death:

Do not insert any objects into the receptacles.

Do not touch with wet hands.

Close the lid when not in use.

If this outlet is mishandled, it may cause an

electric shock and failure.

GETTING TO KNOW YOUR VEHICLE

89

The wireless charging pad is equipped with an

anti-slip mat to hold your mobile phone in place,

and an LED indicator light.
LED Indicator Status:

No Light: Charging pad is idle or searching for a

device.

Blue Light: Device is detected and is charging.

Red Light/Flashing: Internal error or foreign

object is detected.

NOTE:

Using a phone case may interfere with wireless

charging.

WINDOWS

P

OWER

 W

INDOW

 C

ONTROLS

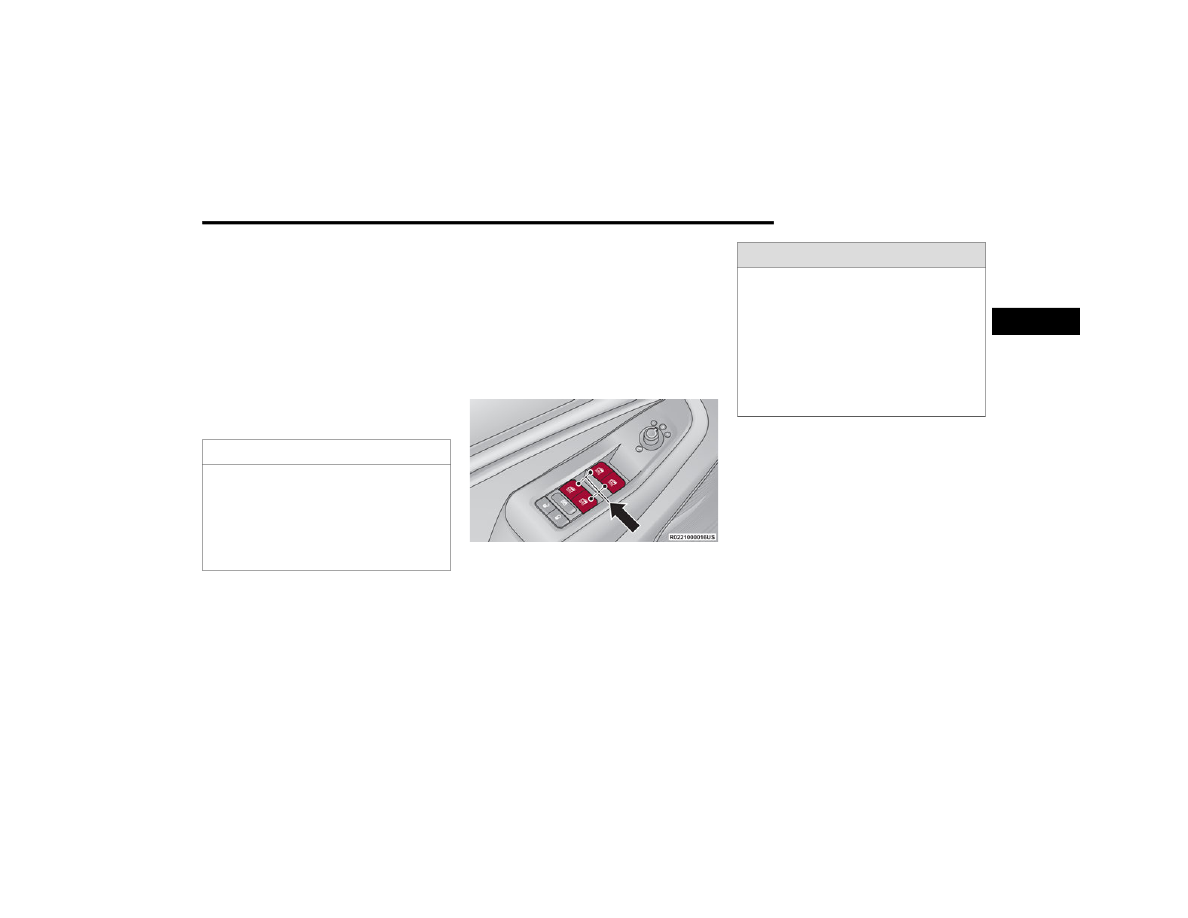

The power window controls, located on the driver's

door trim panel, operate the window movement for

all four power windows.
There is a single switch on the front passenger

door and rear passenger doors which operate the

windows for only that door.

Driver’s Door Power Window Switches

NOTE:

The power window switches remain active for up

to 10 minutes after the ignition has been placed

in the OFF position. Opening a vehicle front door

will cancel this feature.

The window controls will operate only when the

vehicle’s ignition is placed in the ON/RUN position.

Automatic Window Features

Both the driver and front passenger windows, and

if equipped, both rear windows, may have

Auto-Down and Auto-Up operations.
Auto-Down Feature
For windows equipped with the AUTO feature, push

the window switch down to the second detent,

release, and the window will go down

automatically.
To stop the window from going all the way down

during the Auto-Down operation, pull up or push

down on the switch briefly.

CAUTION!

The key fob should not be placed on the

charging pad or within 6 inches (15 cm) of it.

Doing so can cause excessive heat buildup and

damage to the fob. Placing the fob in close

proximity of the charging pad blocks the fob from

being detected by the vehicle and prevents the

vehicle from starting.

WARNING!

Never leave children unattended in a vehicle,

and do not let children play with power windows.

Do not leave the key fob in or near the vehicle, or

in a location accessible to children, and do not

leave the Keyless Enter ‘n Go™ Ignition in the

ON/RUN position. Occupants, particularly

unattended children, can become entrapped by

the windows while operating the power window

switches. Such entrapment may result in serious

injury or death.

2

90

GETTING TO KNOW YOUR VEHICLE



Auto-Up Feature With Anti-Pinch Protection
For windows equipped with the AUTO feature, lift

the window switch up to the second detent, and

release; the window will go up automatically.
To stop the window from going all the way up

during the Auto-Up operation, push down on the

switch briefly.
To close the window part way, lift the window

switch briefly and release it when you want the

window to stop.
If the window runs into any obstacle during

auto-closure, it will reverse direction and then go

back down. Remove the obstacle and use the

window switch again to close the window.

NOTE:

Any impact due to rough road conditions may

trigger the auto-reverse function unexpectedly

during auto-closure. If this happens, pull the switch

lightly and hold to close the window manually.

Reset Auto-Up

Should the Auto-Up feature stop working, the

window may need to be reset. To reset Auto-Up:
Front Doors
1. Pull the window switch up to close the window

completely and continue to hold the switch up

for an additional two seconds after the

window is closed.

Rear Doors
1. Pull the window switch up to close the window

completely and continue to hold the switch up

for an additional two seconds after the

window is closed.

2. Release the window switch, and within five

seconds, pull the window switch up again for

an additional two seconds.

Window Lockout Switch

The window lockout switch on the driver's door trim

panel allows you to disable the window controls on

the rear passenger doors. To disable the window

controls, push and release the window lockout

button (the indicator light on the button will turn

on). To enable the window controls, push and

release the window lockout button again (the

indicator light on the button will turn off).

Power Window Lockout Switch

W

IND

 B

UFFETING



Wind buffeting can be described as the perception

of pressure on the ears or a helicopter-type sound

in the ears. Your vehicle may exhibit wind buffeting

with the windows down, or the sunroof (if

equipped) in certain open or partially open

positions. This is a normal occurrence and can be

minimized. If the buffeting occurs with the rear

windows open, open the front and rear windows

together to minimize the buffeting. If the buffeting

occurs with the sunroof open, adjust the sunroof

opening to minimize the buffeting or open any

window.

WARNING!

There is no anti-pinch protection when the

window is almost closed. To avoid personal

injury be sure to clear your arms, hands, fingers

and all objects from the window path before

closing.

GETTING TO KNOW YOUR VEHICLE

91

R

ADIO

 S

IGNAL

 D

EVICES

 O

N



W

INDSHIELD

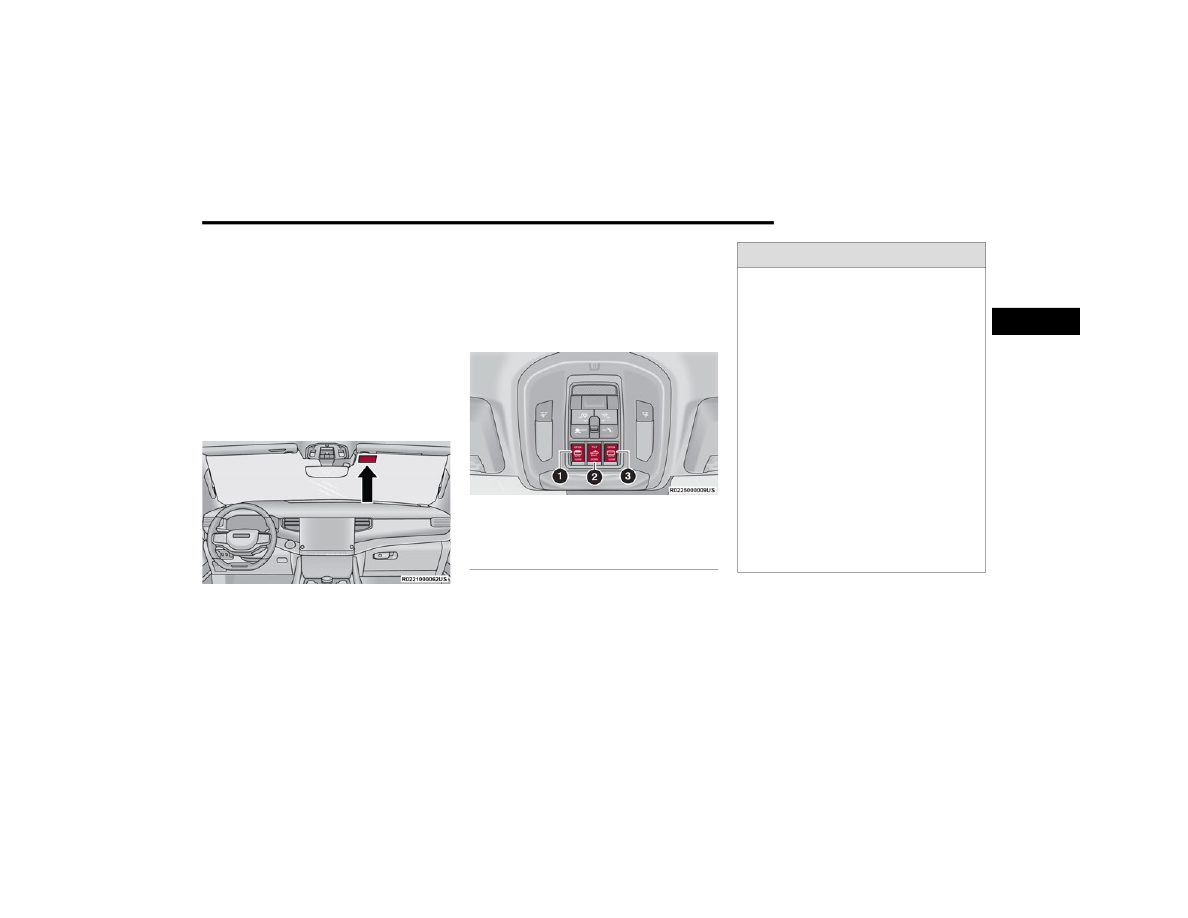

Your vehicle may be equipped with premium tint

infrared reflective glass (IRR). In the necessity of

mounting devices such as transponders, garage

door openers, radar detectors, or any other device

that sends out a radio signal, please refer to the

allocated area on the windshield. There is a small

box located near the passenger side of the mirror

cover. The location is identifiable by a slight

discoloration in the glass due to the removal of the

IRR coating.

Radio Signal Device Mounting Location

POWER SUNROOF — IF EQUIPPED

T

RI

-P

ANE

 P

OWER

 S

UNROOF

The power sunroof switches are located on the

overhead console between the courtesy/reading

lights.

Power Sunroof Switches

1 — Opening/Closing Sunroof
2 — Venting Sunroof
3 — Opening/Closing Sunshade

WARNING!

Never leave children unattended in a vehicle,

or with access to an unlocked vehicle. Never

leave the key fob in or near the vehicle, or in a

location accessible to children. Do not leave

the Keyless Enter ‘n Go™ Ignition in the ON/

RUN position. Occupants, particularly unat

-

tended children, can become entrapped by

the power sunroof while operating the power

sunroof switch. Such entrapment may result

in serious injury or death.

In a collision, there is a greater risk of being

thrown from a vehicle with an open sunroof.

You could also be seriously injured or killed.

Always fasten your seat belt properly and

make sure all passengers are also properly

secured.

Do not allow small children to operate the

sunroof. Never allow your fingers, other body

parts, or any object, to project through the

sunroof opening. Injury may result.

2

92

GETTING TO KNOW YOUR VEHICLE



Opening And Closing The Sunroof

The sunroof has two programmed automatic stops

for the sunroof open position; a comfort stop

position and a full open position. The comfort stop

position will minimize wind buffeting within the

interior cabin.
Express Open/Close
Push the switch rearward and release it within

one-half second and the sunroof will open

automatically from any position. The sunroof will

open to the comfort stop position and stop

automatically. Push the switch rearward and

release again to continue to the full open position.
Push the switch forward and release it within

one-half second and the sunroof will close

automatically from any position. The sunroof will

close fully and stop automatically.
During Express Open or Express Close operation,

any other movement of the sunroof switch will stop

the sunroof.
Manual Open/Close
To open the sunroof, push and hold the switch

rearward to open.
To close the sunroof, push and hold the switch in

the forward position.

Any release of the switch during open or close

operation will stop the sunroof movement. The

sunroof will remain in a partially opened position

until the switch is operated and held again.

NOTE:

If the sunshade is in the closed position when

Express or Manual Open operation is initiated the

sunshade will automatically open to the half open

position prior to the sunroof opening.
Venting Sunroof
Push and release the Vent button within one half

second and the sunroof will open to the vent

position. This is called “Express Vent” and it will

occur regardless of sunroof position. During

Express Vent operation, any movement of the

switch will stop the sunroof.

NOTE:

If the sunshade was not already open, it will auto

-

matically open prior to the roof opening to the vent

position.

Opening And Closing The Power Sunshade

The sunshade has two programmed positions: half

open and full open positions. When operating the

sunshade from the closed position, the sunshade

will always stop at the half open position

regardless of express or manual open operation.

The switch must be pressed again to continue on

to full open position.
If the sunroof is open or vented, the sunshade

cannot be closed beyond the half open position.

Pushing the sunshade close switch when the

sunroof is open/vented with the sunshade at half

open position will first automatically close the

sunroof prior to the sunshade closing.
Express Open/Close
Push the sunshade switch rearward and release it

within one-half second, the sunshade will open to

the half open position and stop automatically.

Push and release the switch again from the half

open position and the sunshade will open to the

full open position and stop automatically.
Push the sunshade switch forward and release it

within one-half second and the sunshade will close

automatically.
During Express Open or Express Close operation,

any other actuation of the sunroof switches will

stop the sunshade in a partially open position.
Manual Open/Close
Push and hold the sunshade switch rearward, the

sunshade will open to the half open position and

stop automatically. Push and hold the sunshade

switch again and the sunshade will open to the full

open position.















Content      ..     3      4      5      6     ..
