Jeep Wagoneer (2022 year). Manual in english - page 3





GETTING TO KNOW YOUR VEHICLE

45

(Continued)

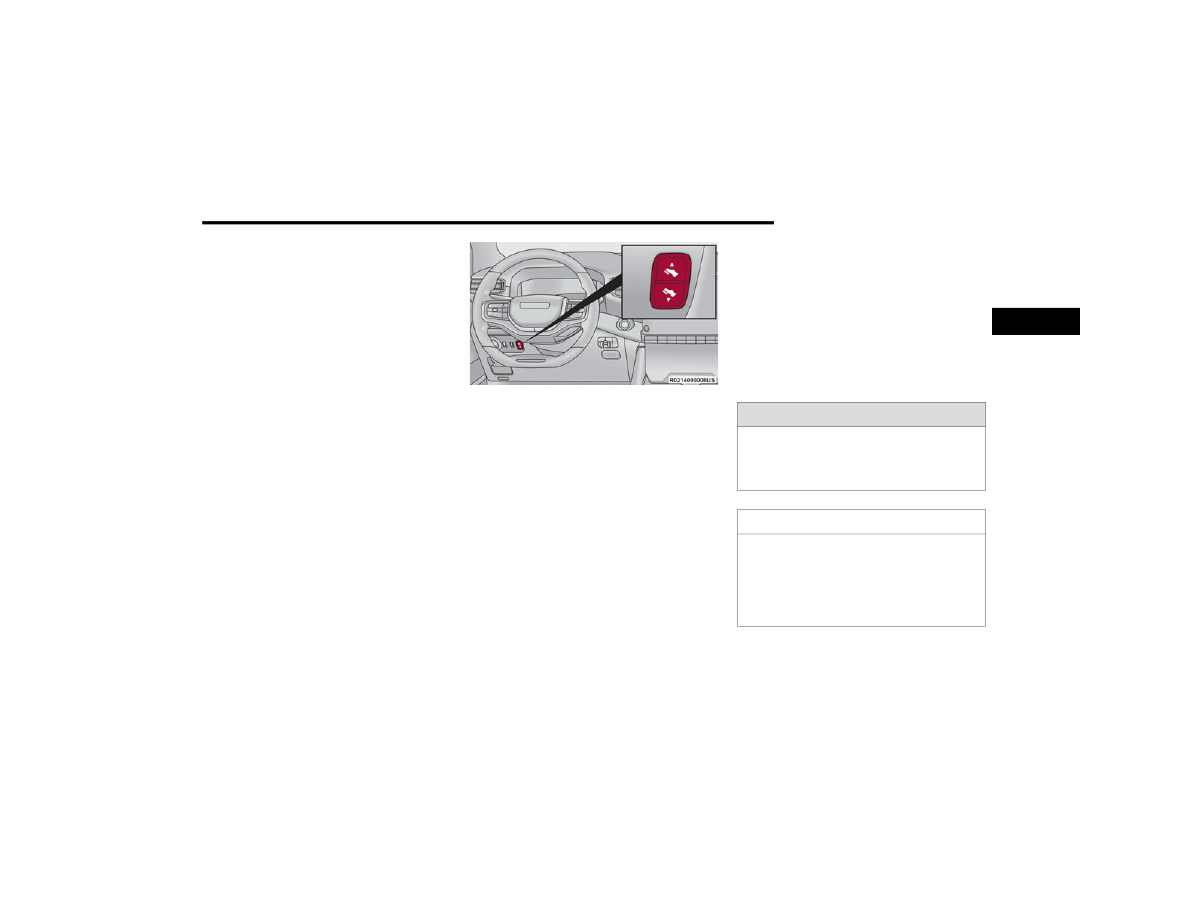

When either the (+) or the (–) switch is pushed, the

Front Comfort And Convenience Display

Ú

page 72 will change to the Seat menu. The last

selected seat item of lumbar in/out, lumbar up/

down, back bolster, or thigh bolster will be

retained. Select the desired adjustment type, and

then press the (+) or (–) switch to adjust.

NOTE:

If the Front Comfort And Convenience Display is in

the stowed position, the Seat menu will display on

the main Uconnect screen.

Easy Entry/Exit Seat — If Equipped

This feature provides automatic driver seat

positioning to enhance driver mobility when

entering and exiting the vehicle.
The distance the driver seat moves depends on

where you have the driver seat positioned when

you place the vehicle’s ignition in the OFF position.

When you place the vehicle’s ignition in the OFF

position, the driver seat will move about

2.4 inches (6 cm) rearward if the driver seat posi

-

tion is greater than or equal to 2.7 inches (7 cm)

forward of the rear stop. The seat will return to its

previously set position when you place the

vehicle’s ignition in the ON/RUN position.

The Easy Entry/Easy Exit feature is disabled

when the driver seat position is less than 0.9 of

an inch (2.3 cm) forward of the rear stop. At this

position, there is no benefit to the driver by

moving the seat for Easy Exit or Easy Entry.

When enabled in Uconnect Settings, Easy Entry

and Easy Exit positions are stored in each memory

setting profile

Ú

page 35.

NOTE:

The Easy Entry/Exit feature is not enabled when

the vehicle is delivered from the factory. The Easy

Entry/Exit feature is enabled or disabled through

the programmable features in the Uconnect

system

Ú

page 216.

P

OWER

 A

DJUSTMENT

 (R

EAR

 S

EATS

) —

I

F

 E

QUIPPED

Third Row Power Recline — If Equipped

If equipped, the power recline switch for the third

row seats is located on the trim panel next to the

seat. This switch adjusts the seatback angle

forward/rearward for occupant comfort.

WARNING!

Adjusting a seat while driving may be

dangerous. Moving a seat while driving could

result in loss of control which could cause a

collision and serious injury or death.

Seats should be adjusted before fastening the

seat belts and while the vehicle is parked.

Serious injury or death could result from a

poorly adjusted seat belt.

Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt, which could result in serious

injury or death.

Do not place the seat belt webbing behind the

third row stow clip when using the seat belt to

restrain an occupant. The seat belt will not be

positioned properly on the occupant and they

could be more seriously injured in an accident

as a result.

CAUTION!

Do not place any article under a power seat or

impede its ability to move as it may cause

damage to the seat controls. Seat travel may

become limited if movement is stopped by an

obstruction in the seat's path.

WARNING!

2

46

GETTING TO KNOW YOUR VEHICLE



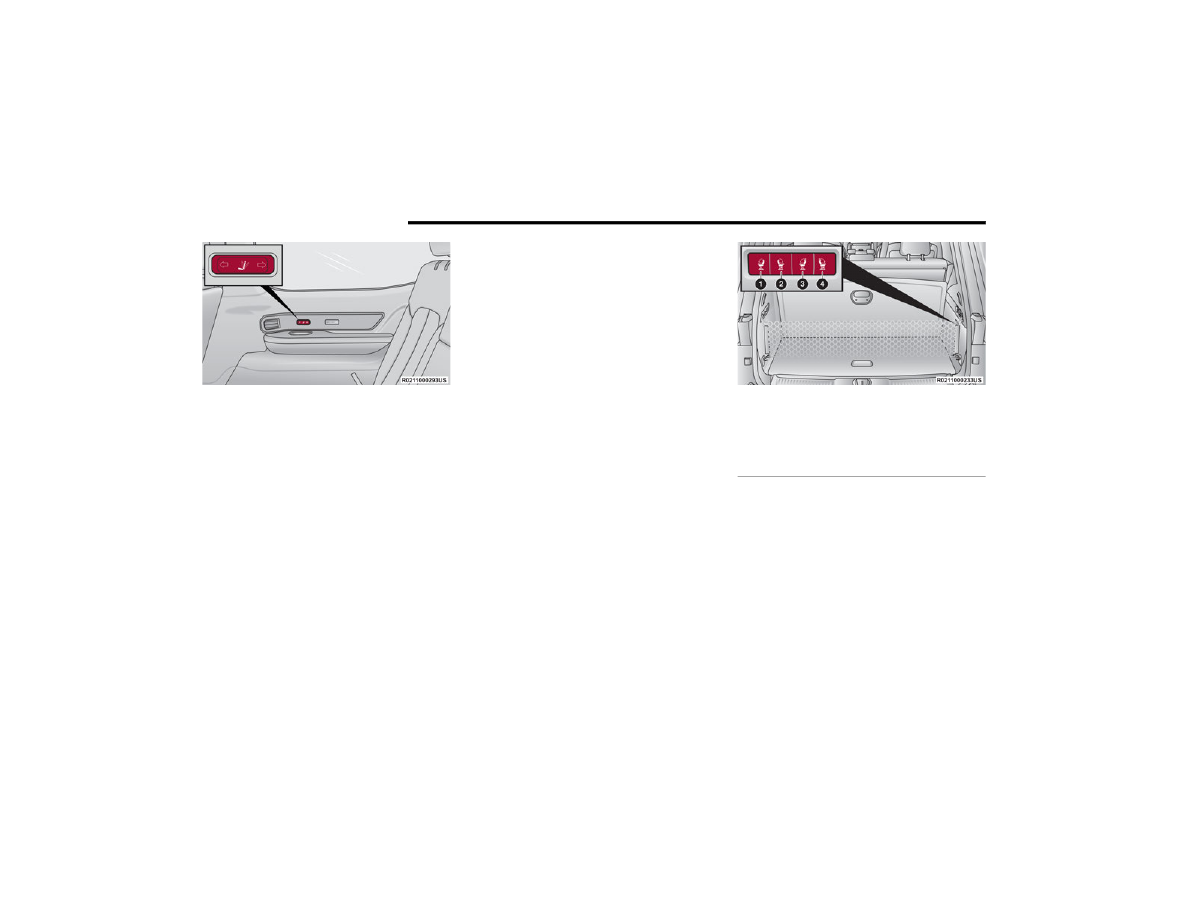

Third Row Power Recline Switch

The angle of the seatback can be adjusted forward

or rearward. Push and hold the forward or rearward

button. The seat will move in the direction of the

button push. Release the button when the desired

position is released.

Rear Seat Power Folding Seatbacks —

If Equipped

A one-touch power folding seat switch is located in

the right rear trim panel inside the cargo area, as

part of a switch bank.
The switch bank allows multiple power folding

positions for the second and third row seats.

The second row seats can be folded using these

switches, while the third row can be folded or

unfolded.

NOTE:

The third row seat belts may interfere with the

power folding of the seat. Place the seat belt

webbing behind the stow clip before stowing or

opening the seat. When the seat is in the desired

position, remove the webbing from the stow clip so

that it is ready for use. Never leave the seat belt in

the stow clip when it is used to restrain an

occupant.

NOTE:

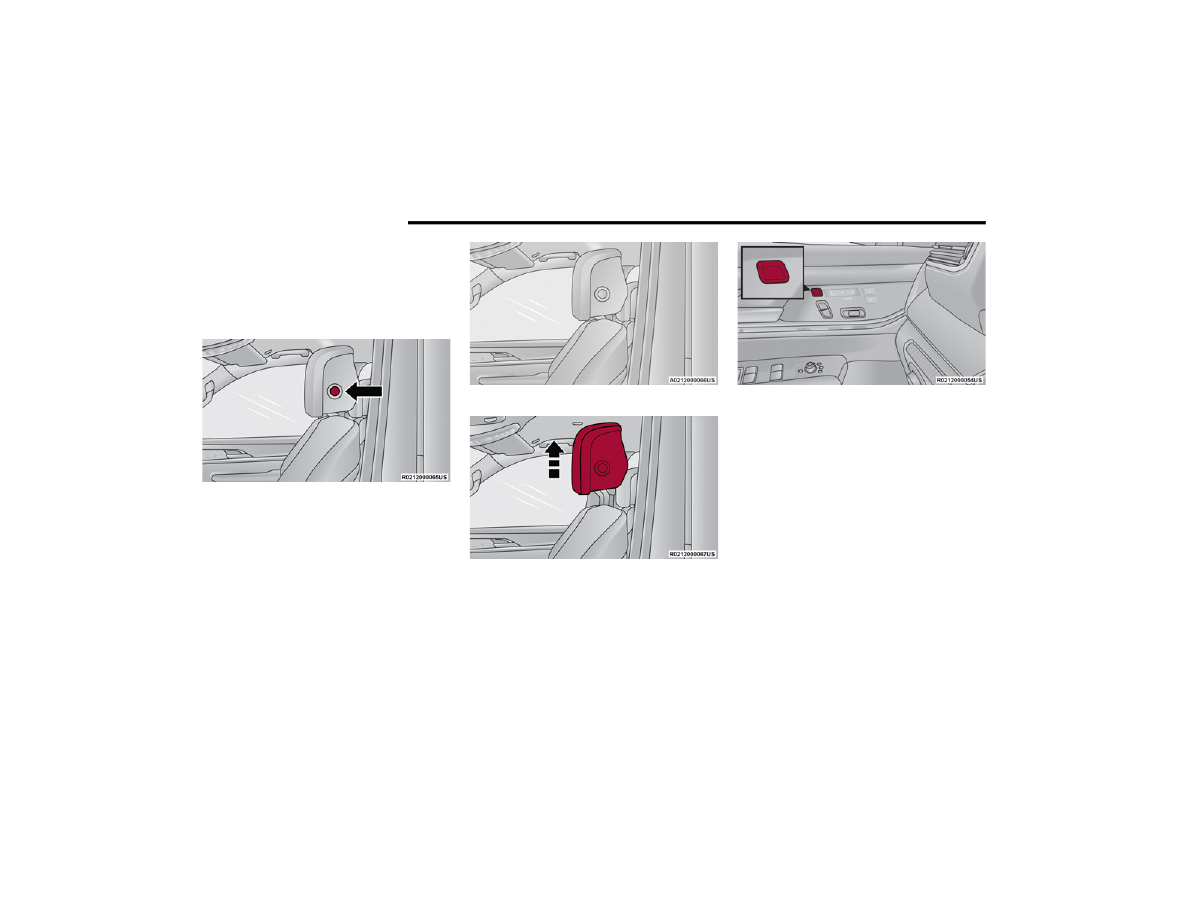

The head restraints will lower automatically as

necessary when the power seat begins to move

Ú

page 49.

The head restraint can also be lowered manu

-

ally using the pull strap located at the back of

the seat.

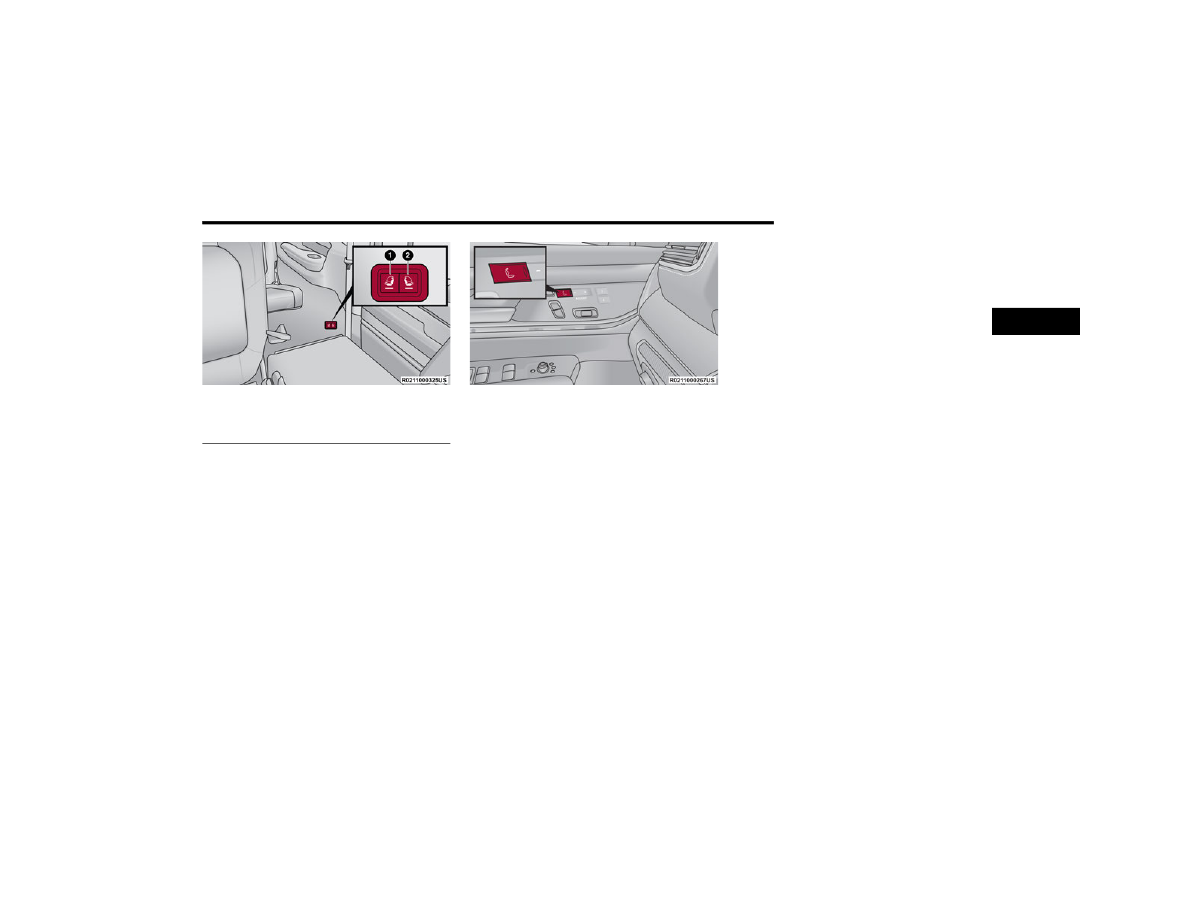

Rear Panel Power Switch Bank

There are also power folding switches for the third

row seats located on the C-pillar (just behind the

rear doors on the trim panels).

1 — Second Row Left Side Fold
2 — Second Row Right Side Fold
3 — Third Row Left Side Fold/Unfold
4 — Third Row Right Side Fold/Unfold

GETTING TO KNOW YOUR VEHICLE

47

C-Pillar Power Folding Switches (Left Side Shown)

P

OWER

 S

EAT

 M

ASSAGE

 — I

F

 E

QUIPPED

In Grand Wagoneer models, the driver’s and front

passenger’s seats may be equipped with power

massage.
The seat massage feature can be turned on/off

through the massage button located on the door

panel near the handle, or through the Controls

menu on the radio screen.

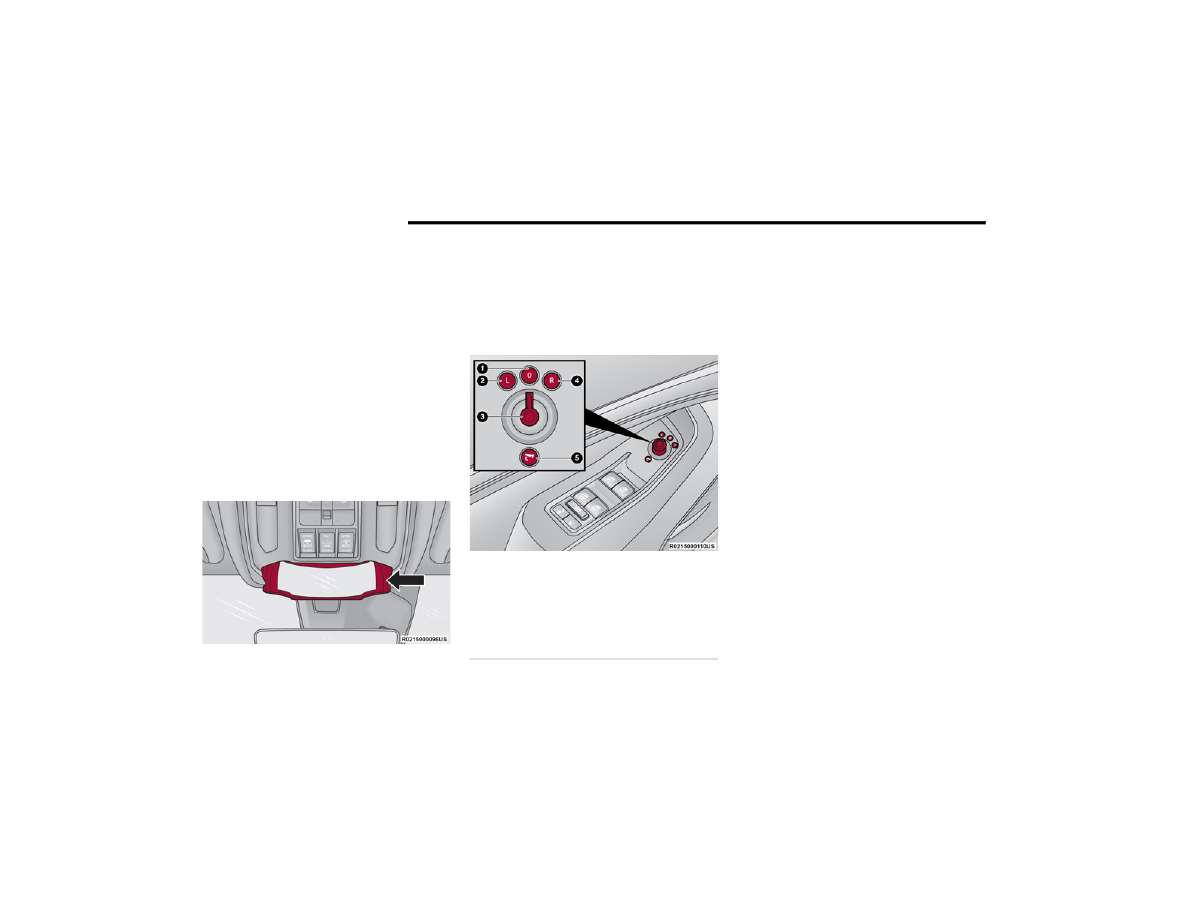

Door Panel Massage Button

Once activated by either method, the massage

controls screen will display on the Front Comfort

And Convenience Display

Ú

page 72, or on the

standard Uconnect display if the Front Comfort And

Convenience Display is stowed. “Massage Type”

and “Intensity Level” can be selected for the

activated seat.
There are four intensity levels and five massage

types that can be selected.
Intensity Levels:

High

Med

Low

Off

Massage Types:

Waterfall

Lower Back

Extend

Low Extend

Rock Climb

The massage type and intensity level status will be

synchronized between the main Uconnect display

and the Front Comfort and Convenience Display.
The selected settings will save in the system’s

memory when turned off, and will resume the next

time the system is turned on.

NOTE:

For vehicles equipped with a selectable back/

cushion feature for massage seats, the

massage feature can be deselected for either

the seatback or seat cushion. If both options are

deselected, massage will turn off.

Power seat massage is only available with the

ignition in the ON/RUN position.

The massage feature will turn off after

20 minutes of use. However, if the massage

type or intensity level is changed, the timer then

resets.

1 — Third Row Left Side Fold/Unfold
2 — Third Row Right Side Fold/Unfold

2

48

GETTING TO KNOW YOUR VEHICLE



H

EATED

 S

EATS

 — I

F

 E

QUIPPED



Front Heated Seats

The front heated seats control buttons

are located on the sides of the radio or

within the Uconnect system. You can

access the controls through the Climate

screen.

Press the heated seat button once to turn the HI

setting on.

Press the heated seat button a second time to

turn the MED setting on.

Press the heated seat button a third time to turn

the LO setting on.

Press the heated seat button a fourth time to

turn the heating elements off.

The heating elements can be turned on in the

seatback only, seat cushion only, or both. Press the

seat image on the touchscreen or push the seat

zone button on the side of the radio to cycle

through these seat zones. An LED will illuminate

next to the selected zone(s). If equipped with

touchscreen buttons, the selected zones will be

highlighted on the seat image.

NOTE:

Once a heat setting is selected, heat will be felt

within two to five minutes.

The engine must be running for the heated

seats to operate.

The level of heat selected will stay on until the

operator changes it.

For information on use with the Remote Start

system, see

Ú

page 26.

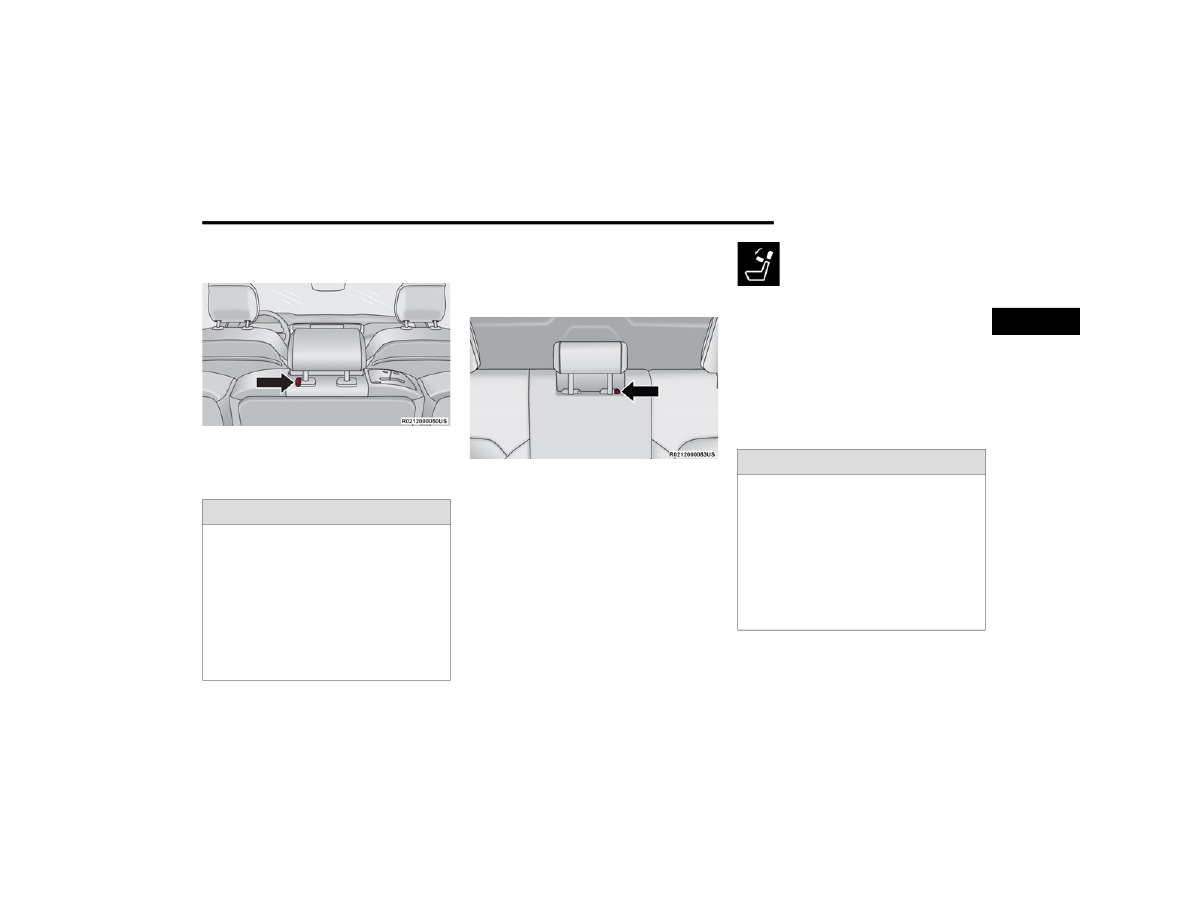

Rear Heated Seats — If Equipped

The two second row outboard seats may

be equipped with heated seats. There are

two heated seat switches that allow the

rear passengers to operate the seats

independently. The heated seat switches for each

heater are located on the rear of the center console.

If equipped with a Rear Comfort And Convenience

Display, heated seat settings can be selected

within the display

Ú

page 76.

You can choose from HI, MED, LO, or OFF heat

settings. Indicator lights in each switch illuminate

indicating the level of heat in use.

Push the heated seat switch once to turn the HI

setting on.

Push the heated seat switch a second time to

turn the MED setting on.

Push the heated seat switch a third time to turn

the LO setting on.

Push the heated seat switch a fourth time to

turn the heating elements off.

The level of heat selected will stay on until the

operator changes it.

NOTE:

The engine must be running for the heated seats to

operate.

V

ENTILATED

 S

EATS

 — I

F

 E

QUIPPED

Located in the seat cushion and seatback are fans

that draw the air from the passenger compartment

and move air through fine perforations in the seat

cover to help keep the occupant cooler in higher

ambient temperatures.

WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion or other physical

condition must exercise care when using the

seat heater. It may cause burns even at low

temperatures, especially if used for long

periods of time.

Do not place anything on the seat or seatback

that insulates against heat, such as a blanket

or cushion. This may cause the seat heater to

overheat. Sitting in a seat that has been over

-

heated could cause serious burns due to the

increased surface temperature of the seat.

GETTING TO KNOW YOUR VEHICLE

49

Front Ventilated Seats

The ventilated seats control buttons are

located on the sides of the radio or within

the Uconnect system. The fans operate at

three speeds, HI, MED and LO.

Press the ventilated seat button once to choose HI.

Press the ventilated seat button a second time

to choose MED.

Press the ventilated seat button a third time to

choose LO.

Press the ventilated seat button a fourth time to

turn the ventilation off.

The fans can be turned on in the seatback only,

seat cushion only, or both. Press the seat image on

the touchscreen or push the seat zone button on

the side of the radio to cycle through these seat

zones. An LED will illuminate next to the selected

zone(s). If equipped with touchscreen buttons, the

selected zones will be highlighted on the seat

image.

NOTE:

The engine must be running for the ventilated

seats to operate.
For information on use with the Remote Start

system, see

Ú

page 26.

Rear Ventilated Seats — If Equipped

The two second row outboard seats may

be equipped with ventilated seats. The

rear ventilated seat control switches are

located on the rear of the center console

and allow the rear passengers to operate the seats

independently.
If equipped with a Rear Comfort And Convenience

Display, ventilated seat settings can be selected

within the display

Ú

page 76.

You can choose from HI, MED, LO, or OFF fan

speed. Indicator lights in each switch illuminate

indicating the level of fan speed in use.

Press the ventilated seat switch once to choose

HI.

Press the ventilated seat switch a second time

to choose MED.

Press the ventilated seat switch a third time to

choose LO.

Press the ventilated seat switch a fourth time to

turn the ventilation off.

NOTE:

The engine must be running for the ventilated

seats to operate.

H

EAD

 R

ESTRAINTS



Head restraints are designed to reduce the risk of

injury by restricting head movement in the event of

a rear impact. Head restraints should be adjusted

so that the top of the head restraint is located

above the top of your ear.

Front Head Restraints

Your vehicle is equipped with front four-way driver

and passenger head restraints.
The Wagoneer is equipped with manual four-way

head restraints, and the Grand Wagoneer is

equipped with power four-way head restraints with

adjustable wings.

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

2

50

GETTING TO KNOW YOUR VEHICLE



If your vehicle is equipped with manual front head

restraints, to raise the head restraint, pull upward

on the head restraint. To lower the head restraint,

push the adjustment button, located on the left

side of the head restraint, and push downward on

the head restraint.

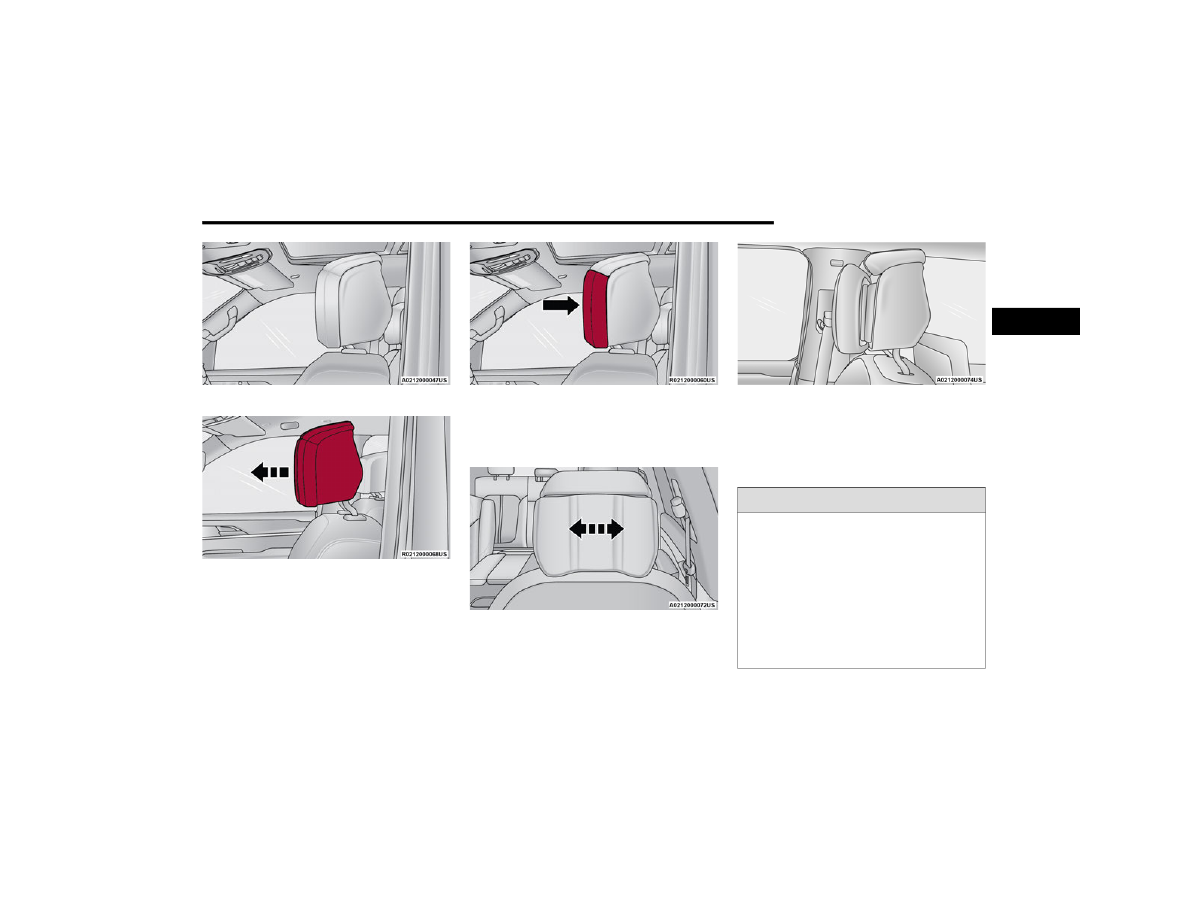

Wagoneer Head Restraint Adjustment Button

To adjust the head restraint forward, press the

adjustment button on the left side of the head

restraint, and pull the top of the head restraint

toward the front of the vehicle as desired and

release. To adjust the head restraint rearward,

press the adjustment button, and push the top of

the head restraint toward the rear of the vehicle as

desired and release.

Upright Position (Manual Head Restraint)

Upward Adjustment (Manual Head Restraint)

Grand Wagoneer Head Restraint Adjustment Switch

If your vehicle is equipped with power front head

restraints, pull upward or push downward on the

head restraint adjustment switch, located on the

door trim panel, to raise or lower the head

restraint. The head restraint will move in the

direction of the switch. Release the switch when

the desired position has been reached.
The head restraint can also be adjusted both

forward and rearward. Push the head restraint

switch forward or rearward. The head restraint will

move in the direction of the switch. Release the

switch when the desired position has been

reached.

GETTING TO KNOW YOUR VEHICLE

51

Upright Position (Power Head Restraint)

Forward Adjustment (Power Head Restraint)

Grand Wagoneer front power head restraints are

also equipped with adjustable wings, located on

the outer left-hand and right-hand front face of the

head restraint.

Adjustable Wing (Left-Hand Side Shown)

To adjust the wings for additional comfort and

support, pull forward on the wings. To return the

wings, push the wings rearward to the flat position.

Wing Adjustment

Wing Extended (Left-Hand Side Shown)

NOTE:

The head restraints should only be removed by

qualified technicians, for service purposes only. If

either of the head restraints require removal, see

an authorized dealer.

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

2

52

GETTING TO KNOW YOUR VEHICLE



Head Restraints — Second Row Captain’s

Chairs

If the second row is equipped with captain’s chairs,

the head restraints are not adjustable or

removable. They automatically fold forward when

the seatback is folded, and do not return to their

normal position when the seatback is raised. After

returning the seatback to its upright position after

a folding operation, raise the head restraint until it

locks in place.
The driver can also fold the second row outboard

head restraints through the radio, for improved

visibility when the vehicle is in REVERSE and there

are no occupants in the seats.

Press the “Headrest Fold” button within

the Controls menu of the Uconnect

system to power fold the second row

outboard head restraints.

NOTE:

The head restraints must be raised manually

when occupying the second row.

Do not fold if there are passengers seated in the

second row seats.

Head Restraints — Second Row Bench

If the second row is equipped with a bench seat,

the head restraints on the outboard seats are not

adjustable or removable. They automatically fold

forward when the seatback is folded, and do not

return to their normal position when the seatback

is raised. After returning the seatback to its upright

position after a folding operation, raise the head

restraint until it locks in place.

The driver can also fold the second row outboard

head restraints through the radio, for improved

visibility when the vehicle is in REVERSE, and there

are no occupants in the seats.

Press the “Headrest Fold” button within

the Controls menu of the Uconnect

system to power fold the second row

outboard head restraints.

NOTE:

The head restraints must be raised manually

when occupying the second row.

Do not fold if there are passengers seated in the

second row seats.

The center head restraint has one adjustment

position, and can be adjusted up, when the seat is

occupied, or down for storage. To adjust this head

restraint, push the adjustment button, located on

the base of the head restraint, while pulling

upward or pushing downward until it locks into

place.

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

GETTING TO KNOW YOUR VEHICLE

53

NOTE:

The center head restraint is not removable.

Center Seat Head Restraint Adjustment Button

NOTE:

For information on child restraint tethering, see

Ú

page 282.

Third Row Head Restraints

The head restraint in the center position can be

raised and lowered for tether routing or height

adjustment

Ú

page 282.

Center Head Restraint Adjustment Button

NOTE:

The center head restraint should only be removed

by qualified technicians, for service purposes only.

If the head restraint requires removal, see an

authorized dealer.
The third row outboard head restraints are not

adjustable or removable, but can be folded for

improved visibility when the vehicle is in REVERSE,

and there are no occupants in the seats.

Press the “Headrest Fold” button within

the Controls menu of the Uconnect

system to power fold the third row head

restraints.

The head restraints will also automatically fold

when the seatbacks are folded forward using the

release handles on the backs of the seats from the

cargo area.

NOTE:

The head restraints must be raised manually

when occupying the third row.

Do not fold if there are passengers seated in the

third row seats.

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

2

54

GETTING TO KNOW YOUR VEHICLE



UCONNECT VOICE RECOGNITION QUICK TIPS —

IF EQUIPPED

I

NTRODUCING

 V

OICE

 R

ECOGNITION

Start using Uconnect Voice Recognition with these

helpful quick tips. It provides the key Voice

Commands and tips you need to know to control

your vehicle’s Voice Recognition (VR) system.

B

ASIC

 V

OICE

 C

OMMANDS

The basic Voice Commands below can be given at

any point while using your Uconnect system.
Push the VR button  , and after the beep, say a

command. You can also say the system “Wake Up”

word and then say a command:

“Cancel” to stop a current voice session.

“Help” to hear a list of suggested Voice

Commands.

“Repeat” to listen to the system prompts again.

Notice the visual cues that inform you of your Voice

Recognition system’s status.

G

ET

 S

TARTED

The VR button   is used to activate/deactivate

your Voice Recognition system. You can also use

the system’s “Wake Up” word to activate voice

recognition. The “Wake Up” word can be set

through the Uconnect Settings

Ú

page 216.

Helpful hints for using Voice Recognition:

Reduce background noise. Wind noise and

passenger conversations are examples of noise

that may impact recognition.

Speak clearly at a normal pace and volume

while facing straight ahead.

Each time you give a Voice Command, first push
the VR button   or say the “Wake Up” word,

wait until after the beep, then say your Voice

Command.

You can interrupt the help message or system

prompts by pushing the VR button and saying a

Voice Command from the current category.

You can also interrupt the help message or

system prompts by speaking. This feature is

called “barge-in” and can be set through the

Uconnect Settings

Ú

page 216.

Uconnect Voice Command Buttons

1 — Push The Voice Recognition Button To Begin

Radio, Media, Navigation (If Equipped), Climate,

Start Or Answer A Phone Call, And Send Or

Receive A Text
2 — Push To Access The Tile Feature
3 — Push The Hang Up Button To End A Call

Currently In Progress

GETTING TO KNOW YOUR VEHICLE

55

A

DDITIONAL

 I

NFORMATION

Uconnect are registered trademarks and Mopar

Owner Connect is a trademark of FCA US LLC.

Android™ is a trademark of Google Inc. SiriusXM®

and all related marks and logos are trademarks of

SiriusXM® Radio Inc.

Ú

page 413.

For Uconnect system support, call

1-877-855-8400 (24 hours a day 7 days a week)

or visit

DriveUconnect.com

 (US) or

DriveUconnect.ca

 (Canada).

DRIVER ADJUSTABLE PEDALS

The adjustable pedals system is designed to allow

a greater range of driver comfort for steering wheel

tilt and seat position. This feature allows the brake

and accelerator pedals to move toward or away

from the driver to provide improved position with

the steering wheel.
The adjustable pedal switch is located on the

instrument panel, next to the headlight switch.

Adjustable Pedals Switch

The pedals can be adjusted with the ignition in

the OFF position.

The pedals cannot be adjusted when the vehicle

is in REVERSE or when the Cruise Control

system or Adaptive Cruise Control system is on.

If there is an attempt to adjust the pedals when

the system is locked out, the following

messages will appear:

Adjustable Pedal Disabled — Cruise Control

Engaged

Adjustable Pedal Disabled — Vehicle In

Reverse

NOTE:

Always adjust the pedals to a position that

allows full movement of the pedal.

Further small adjustments may be necessary to

find the best possible seat/pedal position.

For vehicles equipped with Driver Memory

Settings

Ú

page 35, you can use your key fob or

the memory switch on the driver’s door trim

panel to return the adjustable pedals to saved

positions.

WARNING!

Do not adjust the pedals while the vehicle is

moving. You could lose control and have an

accident. Always adjust the pedals while the

vehicle is parked.

CAUTION!

Do not place any article under the adjustable

pedals or impede its ability to move, as it may

cause damage to the pedal controls. Pedal

travel may become limited if movement is

stopped by an obstruction in the adjustable

pedal's path.

2

56

GETTING TO KNOW YOUR VEHICLE



MIRRORS

I

NSIDE

 R

EARVIEW

 M

IRROR

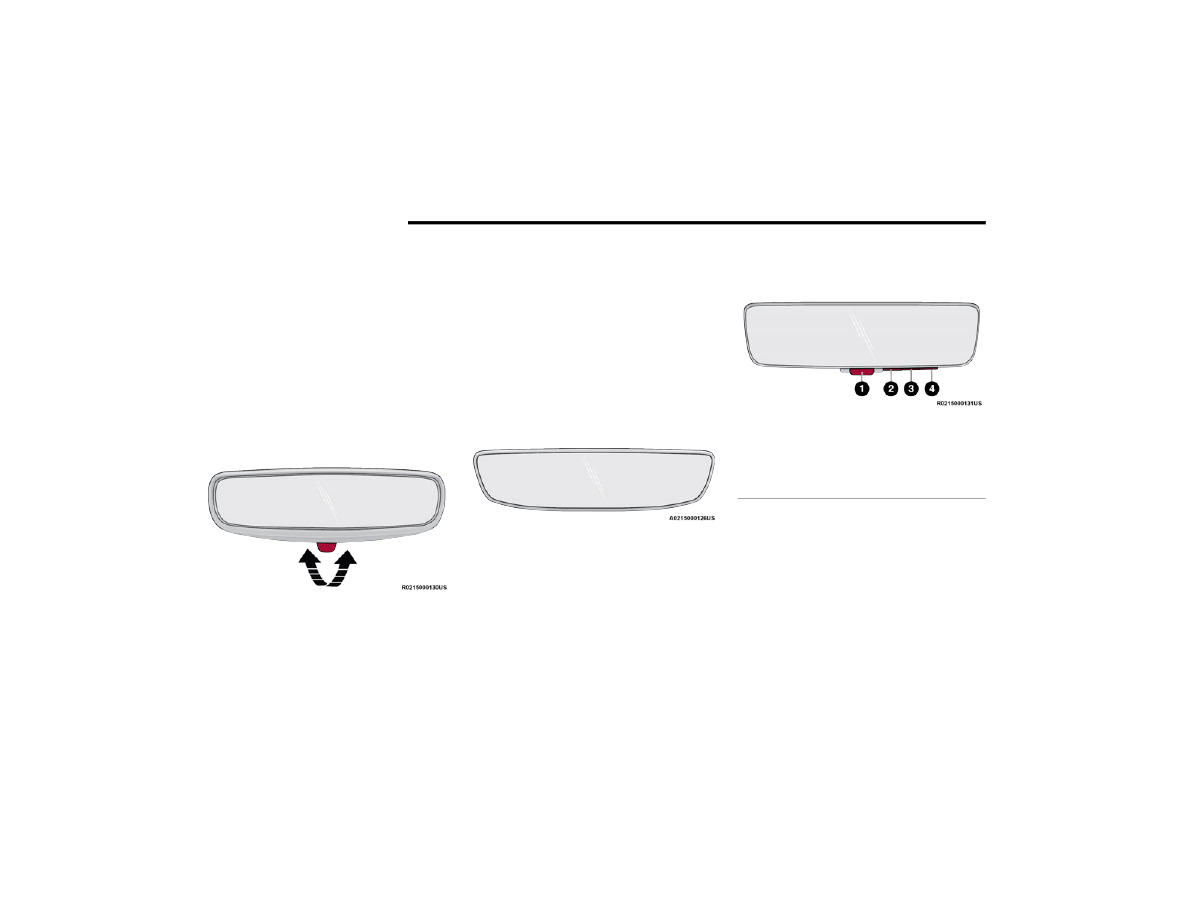

Manual Mirror — If Equipped

The mirror head can be adjusted up, down, left,

and right. The mirror should be adjusted to center

on the view through the rear window.
Headlight glare from vehicles behind you can be

reduced by moving the small control under the

mirror to the night position (toward the rear of the

vehicle). The mirror should be adjusted while set in

the day position (small control forward toward the

windshield).

Adjusting Rearview Mirror

Automatic Dimming Mirror — If Equipped

The mirror head can be adjusted up, down, left,

and right. The mirror should be adjusted to center

on the view through the rear window.
This mirror automatically adjusts for headlight

glare from vehicles behind you.

NOTE:

The Automatic Dimming Mirror feature is disabled

when the vehicle is in REVERSE to improve the

driver’s view.
You can turn the feature on or off through the

Uconnect system

Ú

page 216.

Automatic Dimming Mirror

Digital Rearview Mirror — If Equipped

The Digital Rearview Mirror provides a high

definition, wide and unobstructed view of the road

behind while driving.
Position the mirror in the regular Automatic

Dimming Mirror mode, then activate the Digital

Rearview Mirror mode.

To activate the Digital Rearview Mirror, pull the on/

off control lever on the bottom of the mirror

rearward toward the driver.

Digital Rearview Mirror

Push the menu button next to the on/off control/

toggle to access the following mirror options:

Brightness

Tilt

Use the left and right buttons to scroll through

menu options.

1 — On/Off Control/Toggle
2 — Menu Button
3 — Left Scroll Button
4 — Right Scroll Button

GETTING TO KNOW YOUR VEHICLE

57

When not in use, push the on/off forward toward

the windshield to return the mirror to the regular

Automatic Dimming Mirror.

NOTE:

The Digital Rearview Mirror is not as effective

during nighttime driving in low light applications

due to low ambient light levels. In the event that

it provides the user with less than expected

vision, the mirror can be reverted to a normal

reflective Automatic Dimming Mirror by pushing

the control/toggle forward in the vehicle and

putting the mirror into Automatic Dimming

Mirror mode.

When the rear window washer is activated by

pushing the windshield wiper/washer lever

forward, the rear backup and digital rearview

mirror (if equipped) cameras are also washed.

For more information, see

Ú

page 71.

I

LLUMINATED

 V

ANITY

 M

IRRORS



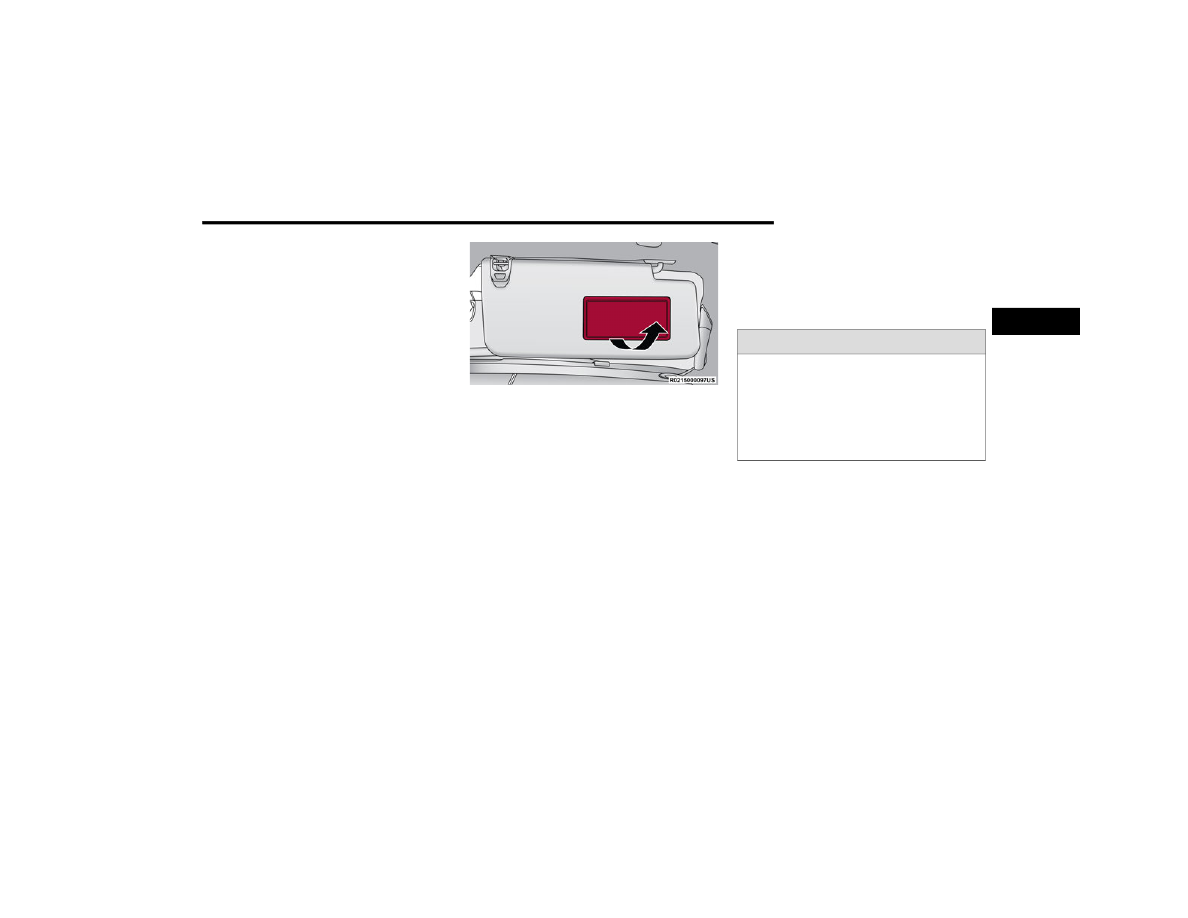

To access an illuminated vanity mirror, flip down

one of the visors.
Lift the cover to reveal the mirror. The light will turn

on automatically.

Lift Cover On Vanity Mirror

Sun Visor “Slide-On-Rod” Feature —

If Equipped

The sun visor “Slide-On-Rod” feature allows for

additional flexibility in positioning the sun visor to

block out the sun.
1. Fold down the sun visor.
2. Unclip the visor from the center clip.
3. Pivot the sun visor toward the side window.
4. Extend the sun visor blade for additional sun

blockage.

NOTE:

The sun visor blade can also be extended while the

sun visor is against the windshield for additional

sun blockage through the front of the vehicle.

O

UTSIDE

 M

IRRORS



To receive maximum benefit, adjust the outside

mirror(s) to center on the adjacent lane of traffic

with a slight overlap of the view obtained on the

inside mirror.

Outside Mirrors Folding Feature

All outside mirrors are hinged and may be moved

either forward or rearward to resist damage. The

hinges have three detent positions:

Full forward position

Full rearward position

Normal position

WARNING!

Vehicles and other objects seen in an outside

convex mirror will look smaller and farther away

than they really are. Relying too much on side

convex mirrors could cause you to collide with

another vehicle or other object. Use your inside

mirror when judging the size or distance of a

vehicle seen in a side convex mirror.

2

58

GETTING TO KNOW YOUR VEHICLE



O

UTSIDE

 A

UTOMATIC

 D

IMMING



M

IRRORS

 — I

F

 E

QUIPPED

The outside mirrors will automatically adjust for

glare from vehicles behind you. This feature is

controlled by the inside automatic dimming mirror.

The mirrors will automatically adjust for headlight

glare when the inside mirror adjusts.

C

ONVERSATION

 M

IRROR

Located in the overhead console there is a

conversation mirror to view all of the passengers in

the vehicle. Push the panel to release the drop

down mirror, raise it back up to 3/4th of the way

and let go, a latch will hold the mirror in place.

Raise the mirror all the way and push to latch it

back in the stowed position.

Conversation Mirror

P

OWER

 M

IRRORS



The power mirror control switch is located on the

driver's side door trim panel.
To adjust a mirror, rotate the control switch to the

desired mirror: (L) or (R). Then push the switch in

the direction that you want the mirror to move.

Power Mirror Switch

NOTE:

Once adjustment is complete, rotate the knob to

the neutral position to prevent accidental move

-

ments.
Power Folding — If Equipped
To fold the door mirrors in using the Power Folding

Mirror function, rotate the control switch to the

power folding position. Rotating the control to the

left, right, or neutral position will return the mirrors

to the driving position.
If the power mirror control switch is moved again

during door mirror folding (from closed to open

position and vice versa), the movement direction is

reversed.
Resetting The Power Folding Outside Mirrors
You may need to reset the power folding mirrors if

the following occurs:

The mirrors are accidentally blocked while

folding.

The mirrors are accidentally manually folded/

unfolded (by hand or by pushing the power

folding mirror switch).

The mirrors come out of the unfolded position.

The mirrors shake and vibrate at normal driving

speeds.

1 — Neutral Position
2 — Left Mirror
3 — Control Switch
4 — Right Mirror
5 — Power Folding Position (If Equipped)

GETTING TO KNOW YOUR VEHICLE

59

To reset the power folding mirrors: Fold and unfold

them by turning the switch (this may require

multiple switch activations to synchronize the

driver and passenger mirror). This resets them to

their normal position.
Power mirror position can be saved as part of the

Driver Memory Settings (if equipped)

Ú

page 35.

A

UTOMATIC

 P

OWER

 F

OLDING

 M

IRRORS

 —

I

F

 E

QUIPPED

When enabled within Uconnect Settings

Ú

page 216, the exterior mirrors will automatically

fold when the ignition is placed in the OFF position

while all doors are still closed and locked.
If the exterior mirrors were folded automatically,

they will unfold when the unlock button on the key

fob is pushed.

NOTE:

If the mirrors were folded manually, by using the

power folding mirror switch on the driver’s door

panel, they will not automatically unfold.

H

EATED

 M

IRRORS



These mirrors are heated to melt frost or

ice. This feature will be activated

whenever you turn on the rear window

defroster (if equipped)

Ú

page 72.

T

ILT

 S

IDE

 M

IRRORS

 I

N

 R

EVERSE

Tilt Side Mirrors In Reverse provides automatic outside

mirror positioning which will aid the driver’s view of the

ground rearward of the front doors. Outside mirrors will

move slightly downward from the present position

when the vehicle is shifted into REVERSE. Outside

mirrors will then return to the original position when the

vehicle is shifted out of REVERSE position. Each stored

memory setting will have an associated Tilt Side Mirrors

In Reverse position.

NOTE:

The Tilt Side Mirrors In Reverse feature can be

turned on and off using the Uconnect system

Ú

page 216.

UNIVERSAL GARAGE DOOR OPENER

(HOMELINK®)

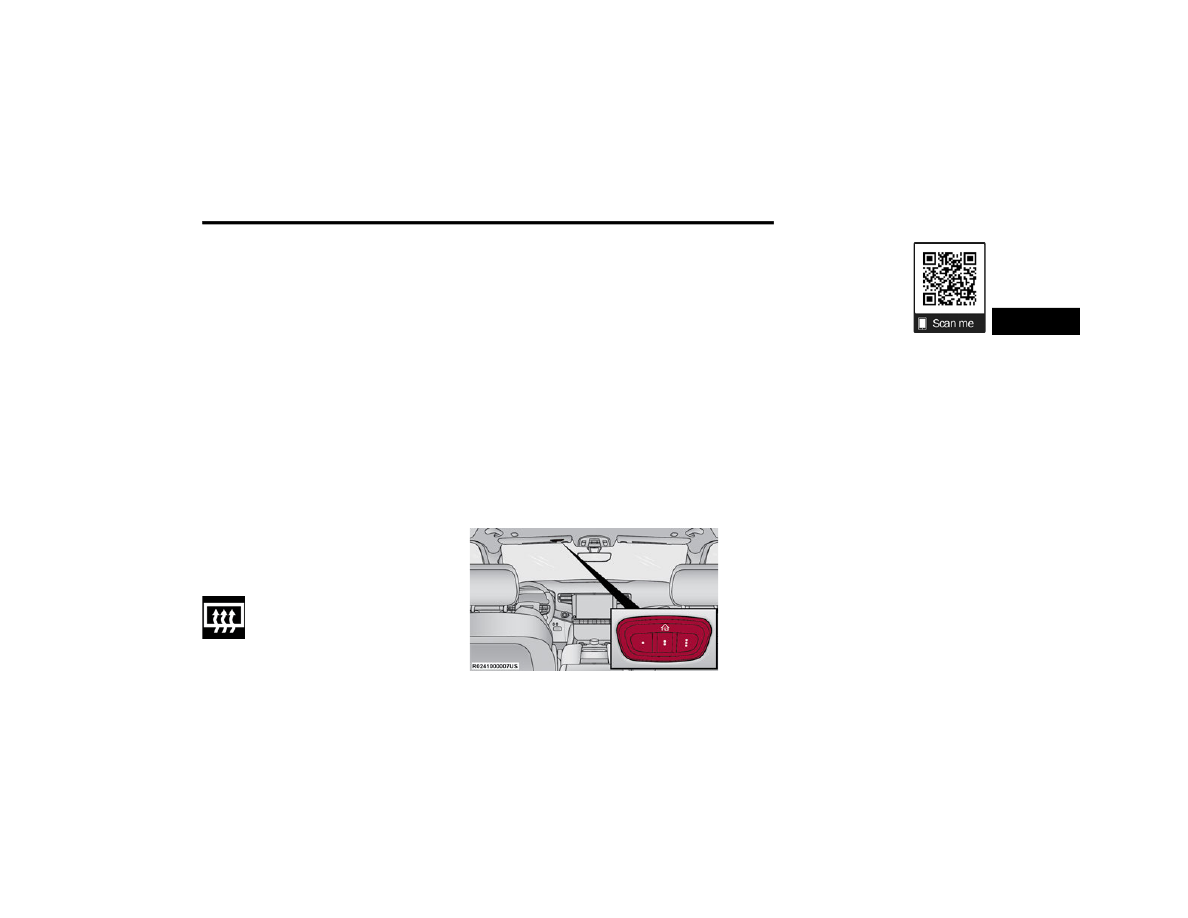

HomeLink® Buttons And Indicator Light

Use this QR code to access your

digital experience.

HomeLink® replaces up to

three hand-held transmitters

that operate devices such as

garage door openers, motor

-

ized gates, lighting or home

security systems. The HomeLink® unit is

powered by your vehicle’s 12 Volt battery.

The HomeLink® buttons that are located in the

overhead console or sunvisor designate the

three different HomeLink® channels.

To operate HomeLink®, push and release any

of the programmed HomeLink® buttons. These

buttons will activate the devices they are

programmed to with each press of the corre

-

sponding HomeLink® button.

The HomeLink® indicator light is located above

the center button.

NOTE:

HomeLink® is disabled when the Vehicle Security

system is active

Ú

page 413.

B

EFORE

 Y

OU

 B

EGIN

 P

ROGRAMMING



H

OME

L

INK

®

For efficient programming and accurate

transmission of the Radio Frequency (RF) signal, it

is recommended that a new battery be placed in

the hand-held transmitter of the device that is

2

60

GETTING TO KNOW YOUR VEHICLE



being programmed to the HomeLink® system.

Make sure your hand-held transmitter is

programmed to activate the device you are trying

to program your HomeLink® button to.
Ensure that your vehicle is parked outside of the

garage before you begin programming.
It is recommended that you erase all the channels

of your HomeLink® before you use it for the first

time.

E

RASING

 A

LL

 T

HE

 H

OME

L

INK

®

C

HANNELS

To erase the channels, follow this procedure:
1. Place the ignition switch into the ON/RUN

position.

2. Push and hold the two outside HomeLink®

buttons (I and III) for up to 20 seconds, or until

the HomeLink® indicator light flashes.

NOTE:

Erasing all channels should only be performed

when programming HomeLink® for the first time.

Do not erase channels when programming addi

-

tional buttons.

I

DENTIFYING

 W

HETHER

 Y

OU

 H

AVE

 A

R

OLLING

 C

ODE

 O

R

 N

ON

-R

OLLING

 C

ODE



D

EVICE

Before programming a device to one of your

HomeLink® buttons, you must determine whether

the device has a rolling code or non-rolling code.
Rolling Code Devices
To determine if your device has a rolling code, a

good indicator is its manufacturing date. Typically,

devices manufactured after 1995 have rolling

codes. A device with a rolling code will also have a

“LEARN” or “TRAIN” button located where the

antenna is attached to the device. The button may

not be immediately visible when looking at the

device. The name and color of the button may vary

slightly by manufacturer.

NOTE:

The “LEARN” or “TRAIN” button is not the button

you normally use to operate the device.
Non-rolling Code Devices
Most devices manufactured before 1995 will not

have a rolling code. These devices will also not

have a “LEARN” or “TRAIN” button.

P

ROGRAMMING

 H

OME

L

INK

® T

O

 A

G

ARAGE

 D

OOR

 O

PENER

To program any of the HomeLink® buttons to

activate your garage door opener motor, follow the

steps below:

NOTE:

All HomeLink® buttons are programmed using this

procedure. You do not need to erase all channels

when programming additional buttons.
1. Place the ignition switch into the ON/RUN

position.

2. Place the garage door opener transmitter 1 to

3 inches (3 to 8 cm) away from the

HomeLink® button you wish to program, while

keeping the HomeLink® indicator light in view.

3. Push and hold the HomeLink® button you

want to program while you push and hold the

garage door opener transmitter button you are

trying to replicate.

4. Continue to hold both buttons and observe the

HomeLink® indicator light. The HomeLink®

indicator light will flash slowly and then rapidly.

Once this happens, release both buttons.

NOTE:

Make sure the garage door opener motor is

plugged in before moving on to the rolling code/

non-rolling code final steps.

















Content      ..     1      2      3      4      ..
