Jeep Compass (2022 year). Manual in english

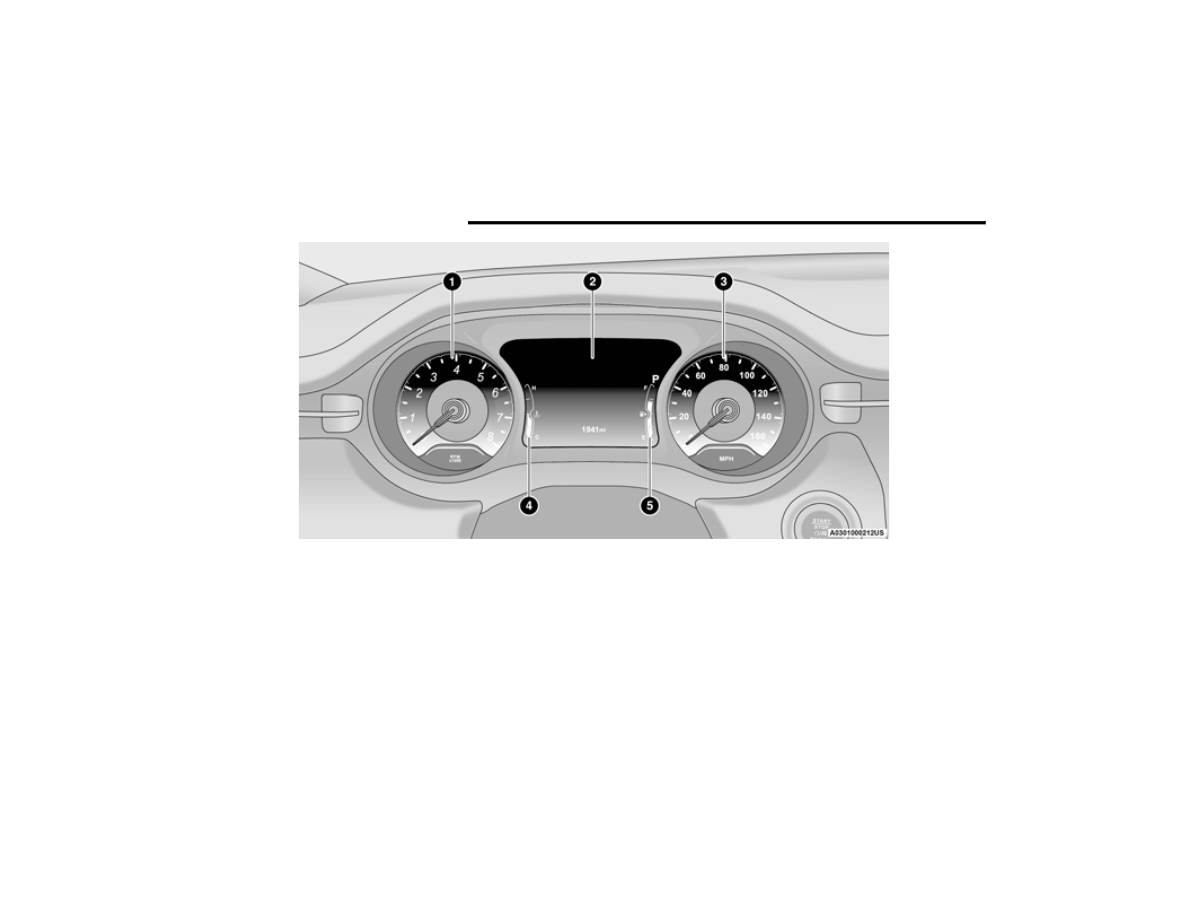

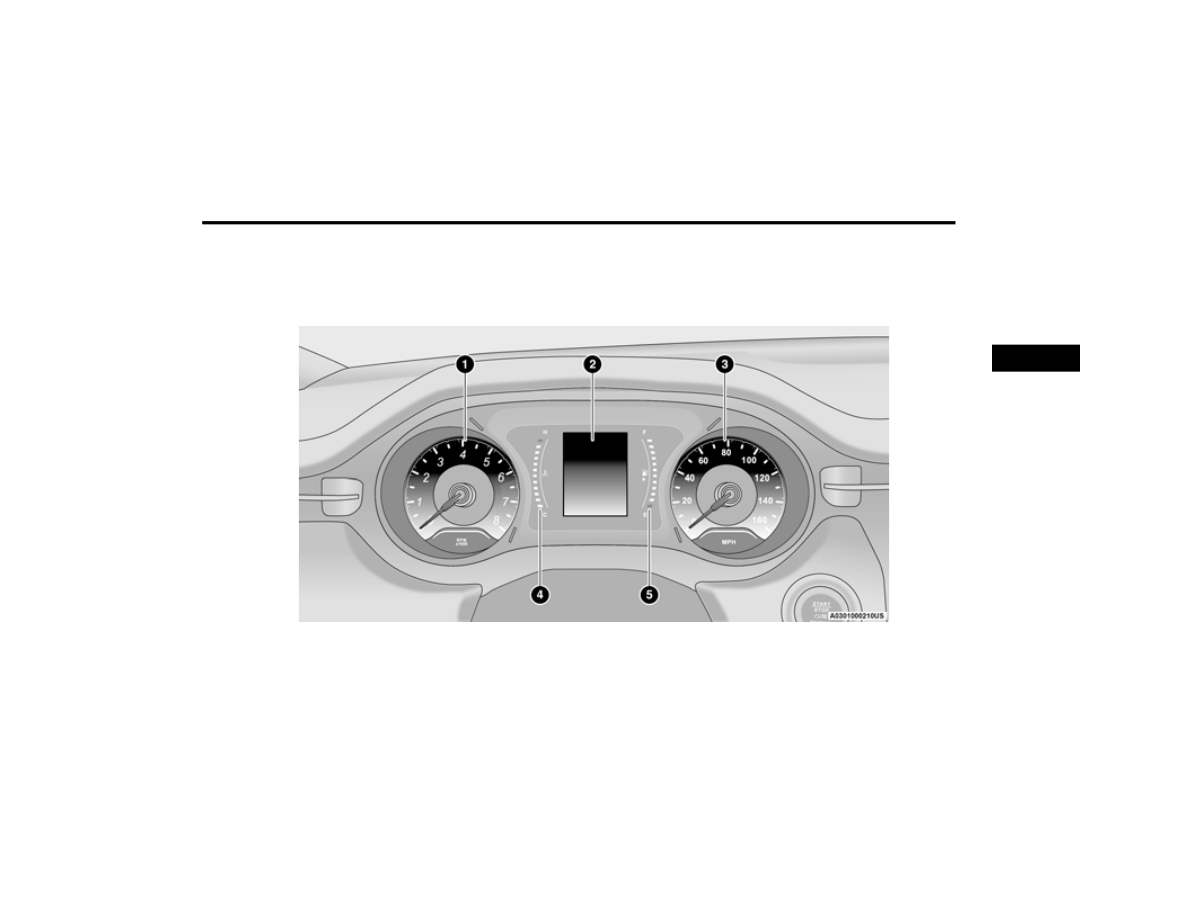

GETTING TO KNOW YOUR INSTRUMENT PANEL

ASE

/ M

IDLINE

NSTRUMENT

LUSTER

ESCRIPTIONS

1. Tachometer



Indicates the engine speed in revolutions

per minute (RPM x 1000).

2. Instrument Cluster Display



The instrument cluster display features a

driver interactive display

page 77.

3. Speedometer



Indicates vehicle speed.

4. Temperature Gauge



The temperature gauge shows engine

coolant temperature. Any reading within the

normal range indicates that the engine

cooling system is operating satisfactorily.



The gauge pointer will likely indicate a

higher temperature when driving in hot

weather or up mountain grades. It should

not be allowed to exceed the upper limits of

the normal operating range.

5. Fuel Gauge



The gauge shows the level of fuel in the fuel

tank when the ignition switch is in the ON/

RUN position.



The fuel pump symbol points to

the side of the vehicle where the

fuel door is located.

NOTE:

The hard telltales will illuminate for a bulb check

when the ignition is first cycled.

WARNING!

A hot engine cooling system is dangerous. You or

others could be badly burned by steam or boiling

coolant. It is recommended to call an authorized

dealer for service if your vehicle overheats

page 279.

CAUTION!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reads “H”, pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H”, turn the engine

off immediately and call an authorized dealer

for service.

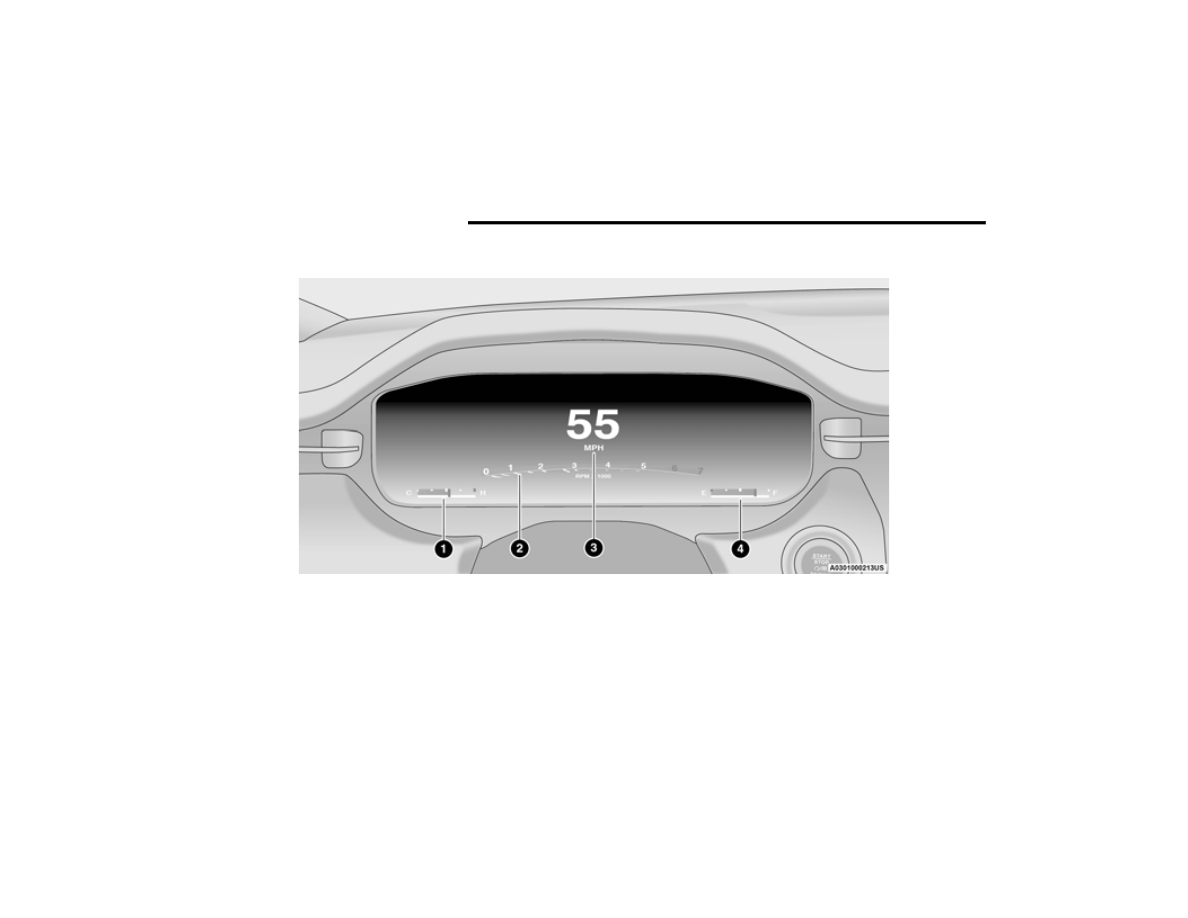

GETTING TO KNOW YOUR INSTRUMENT PANEL

REMIUM

NSTRUMENT

LUSTER

ESCRIPTIONS

1. Temperature Gauge



The temperature gauge shows engine

coolant temperature. Any reading within the

normal range indicates that the engine

cooling system is operating satisfactorily.



The pointer will likely indicate a higher

temperature when driving in hot weather,

up mountain grades, or when towing a

trailer. It should not be allowed to exceed

the upper limits of the normal operating

range.

2. Tachometer



Indicates the engine speed in revolutions

per minute (RPM x 1000).

3. Speedometer



Indicates vehicle speed.

4. Fuel Gauge



The pointer shows the level of fuel in the

fuel tank when the Keyless Push Button

Ignition is in the ON/RUN position.



The fuel pump symbol points to

the side of the vehicle where the

fuel door is located.

NOTE:

The Instrument Cluster Warning Indicators will illu

minate briefly for a bulb check when the ignition is

first cycled.

INSTRUMENT CLUSTER DISPLAY

Your vehicle may be equipped with an instrument

cluster display, which offers useful information to

the driver. With the ignition in the OFF mode,

opening/closing of a door will activate the display

for viewing, and display the total miles, or

kilometers, in the odometer. Your instrument

cluster display is designed to display important

information about your vehicle’s systems and

features. Using the driver interactive display

located on the instrument panel, your instrument

cluster display can show you how systems are

working and give you warnings when they aren’t.

The steering wheel mounted controls allow you to

scroll through and enter the main menus and

submenus. You can access the specific

information you want and make selections and

adjustments.

WARNING!

A hot engine cooling system is dangerous. You or

others could be badly burned by steam or boiling

coolant. It is recommended to call an authorized

dealer for service if your vehicle overheats

page 279.

CAUTION!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reads “H”, pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H”, turn the engine

off immediately and call an authorized dealer for

service.

GETTING TO KNOW YOUR INSTRUMENT PANEL

NSTRUMENT

LUSTER

ISPLAY

OCATION

ONTROLS

The instrument cluster display features a driver

interactive display that is located in the instrument

cluster.
NOTE:

Depending on your vehicle trim, your instrument

cluster display may vary.

Instrument Cluster Display Location and Controls

The systems allow the driver to select information

by pushing the following buttons mounted on the

steering wheel:

Premium Instrument Cluster Display Control Buttons



Up Arrow Button
Push and release the up arrow button to

scroll upward through the main menu and

submenus.



OK Button
Push the OK button to access/select the infor

mation screens or submenu screens of a main

menu item. Push and hold the OK button for one

second to reset displayed/selected features

that can be reset.



Menu Button — If Equipped
Push the Menu button to access/select the

information screens or submenu screens of

the Home Screen display. Push and hold the

OK button to enter edit mode.



Left Arrow Button
Push and release the left arrow button to

access the information screens or submenu

screens of a main menu item.



Down Arrow Button
Push and release the down arrow button to

scroll downward through the main menu and

submenus.



Right Arrow Button
Push and release the right arrow button to

access the information screens or submenu

screens of a main menu item.

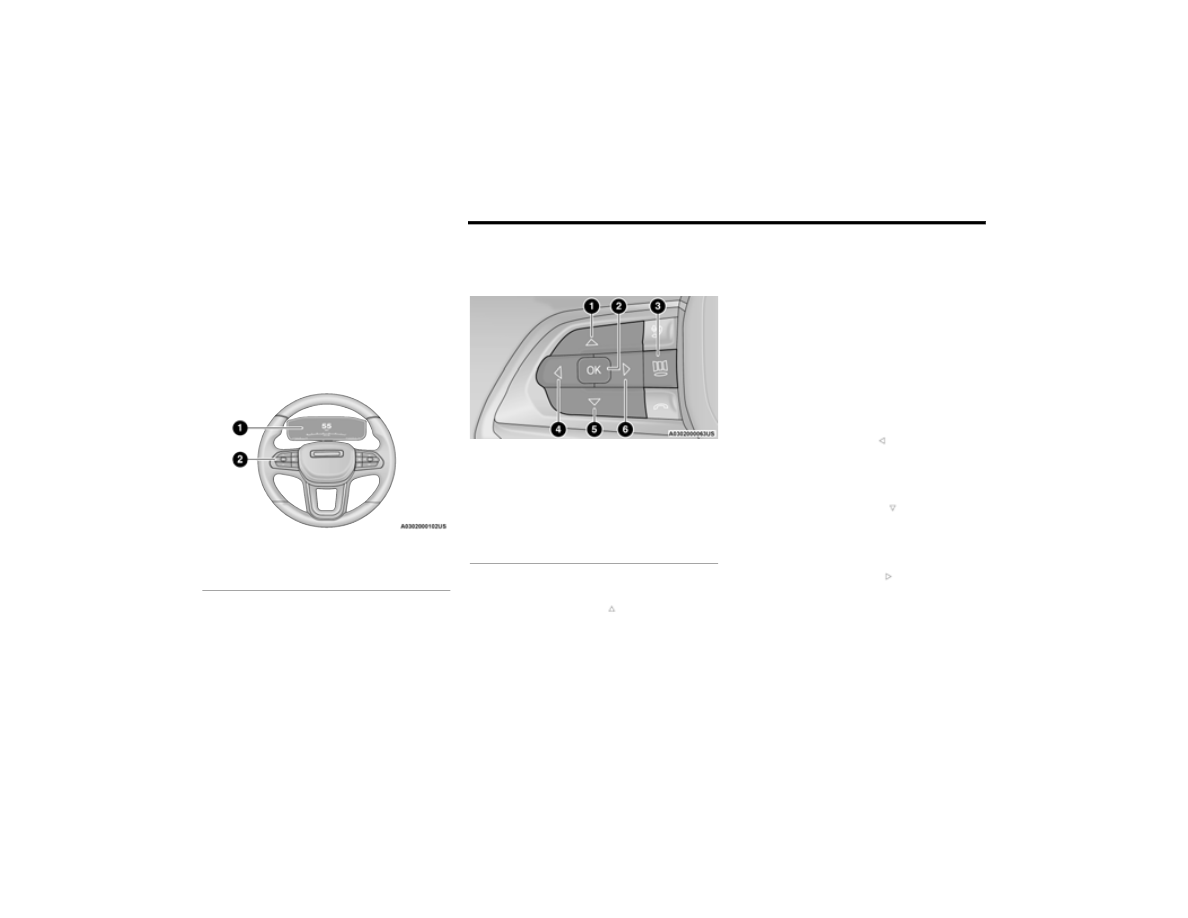

1 – Instrument Cluster Display Screen
2 – Instrument Cluster Display Controls

1 — Up Arrow Button
2 — OK Button
3 — Menu Button
4 — Left Arrow Button
5 — Down Arrow Button
6 — Right Arrow Button

GETTING TO KNOW YOUR INSTRUMENT PANEL

Display Options — If Equipped
Holding OK will also allow you to change your

display to Digital or Analog.



Digital theme will be the default theme



Menu screen times out after 10 seconds. Press

OKto reactivate



Speedometer must always be present



Relevant warning notifications and other pop-up

info will still be displayed in the main screen

area (In this case the speed moves to the top)

Custom Tile Configuration — If Equipped
To customize the instrument cluster further, you

are able to select up to five tiles to display

information based on your needs.



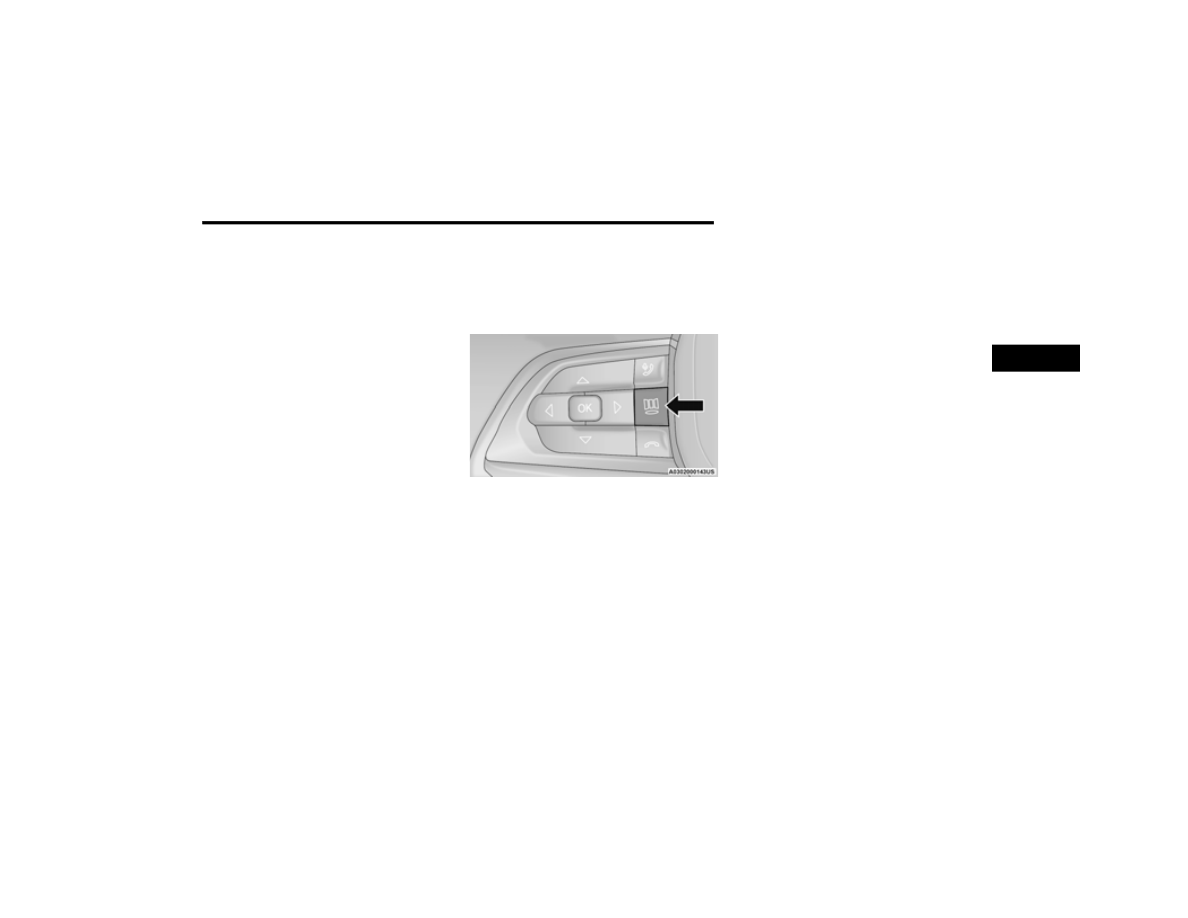

Press the Menu button for the Home Screen display

Menu Button



Navigate Left or Right to highlight desired Tile



Press OK to select the tile and navigate to the

selected submenu and press OK again to add

your selection to your tile view



The main menu options are Main Menu, Vehicle

Info, Navigation, Audio, and Off Road

The instrument cluster display is located in the

center portion of the cluster and consist of multiple

sections:



Main Screen — The inner ring of the display will

illuminate in gray under normal conditions,

yellow for non critical warnings, red for critical

warnings, and white for on demand information.



Submenu Dots — Whenever there are

submenus available, the position within the

submenus is shown here.



Reconfigurable Telltales/Information



Gear Selector Status (PRND)



Driver Interactive Display (Compass, Temp,

Range to Empty, Trip A, Trip B, Average Fuel

Economy, Current Fuel Economy and Time)



Air Suspension Status — If Equipped



Four Wheel Drive (4WD) Status — If Equipped

GETTING TO KNOW YOUR INSTRUMENT PANEL

The instrument cluster display will normally display

the main menu or the screens of a selected feature

of the main menu. The main display area also

displays pop-up messages that consist of

approximately 60 possible warning or information

messages. These pop-up messages fall into

several categories:



Five Second Stored Messages
When the appropriate conditions occur, this

type of message takes control of the main

display area for five seconds and then returns to

the previous screen. Most of the messages of

this type are then stored (as long as the condi

tion that activated it remains active) and can be

reviewed from the “Messages” main menu item.

Examples of this message type are “Right Front

Turn Signal Lamp Out” and “Low Tire Pressure.”



Unstored Messages
This message type is displayed indefinitely or

until the condition that activated the message is

cleared. Examples of this message type are

“Turn Signal On” (if a turn signal is left on) and

“Lights On” (if driver leaves the vehicle with the

lights on).



Unstored Messages Until RUN
These messages deal primarily with the Remote

Start feature. This message type is displayed

until the ignition is in the RUN state. Examples of

this message type are “Remote Start Canceled -

Door Ajar” and “Press Brake Pedal and Push

Button to Start.”



Five Second Unstored Messages
When the appropriate conditions occur, this

type of message takes control of the main

display area for five seconds and then returns to

the previous screen. An example of this

message type is “Automatic High Beams On.”

HANGE

ESET



Your vehicle is equipped with an engine oil

change indicator system. The “Oil Change Due”

message will display in the instrument cluster

display for five seconds after a single chime has

sounded, to indicate the next scheduled oil

change interval. The engine oil change indicator

system is duty cycle based, which means the

engine oil change interval may fluctuate, depen

dent upon your personal driving style.



Unless reset, this message will continue to

display each time the ignition is cycled to the

ON/RUN position.

To reset the oil change indicator after performing

the scheduled maintenance, refer to the following

procedure:
1. Without pressing the brake pedal, push the

ENGINE START/STOP button and cycle the

ignition to the ON/RUN position (do not start

the engine).

2. Fully press the accelerator pedal, slowly, three

times within ten seconds.

3. Cycle the ignition to the OFF position.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.

GETTING TO KNOW YOUR INSTRUMENT PANEL

ISPLAY

ESSAGES

— I

QUIPPED

Includes the following, but not limited to:

The Reconfigurable Telltales section is divided into the white or yellow telltales area on the left, and the green or red telltales area on the right.

Front Seat Belts Unbuckled

Driver Seat Belt Unbuckled

Passenger Seat Belt Unbuckled

Traction Control Off

Washer Fluid Low

Oil Pressure Low

Oil Change Due

Fuel Low

Service Anti-lock Brake System

Service Electronic Throttle Control

Service Power Steering

Cruise Off

Cruise Ready

ACC Override

Cruise Set To XXX mph or km/h

Cruise Set To XXX km/h

Tire Pressure Screen With Low Tire(s)

Service Tire Pressure System

Park Brake Engaged

Brake Fluid Low

Engine Temperature Hot

Lights On

Right Front Turn Signal Light Out

Right Rear Turn Signal Light Out

Left Front Turn Signal Light Out

Left Rear Turn Signal Light Out

Ignition or Accessory On

Vehicle Not In Park

Remote Start Active Push Start Button

Remote Start Canceled Fuel Low

Remote Start Canceled Door Open

Remote Start Canceled Hood Open

Remote Start Canceled Liftgate Open

Remote Start Canceled Time Expired

Remote Start Disabled Start To Reset

Service Air Bag System

Service Air Bag Warning Light

Door Open

Doors Open

Liftgate Open

Hood Open

Shift Not Allowed

Vehicle Speed Too High To Shift to D

Vehicle Speed is Too High to Shift to R

Vehicle Speed is Too High to Shift to P

Service Transmission

Service Shifter

GETTING TO KNOW YOUR INSTRUMENT PANEL

NSTRUMENT

LUSTER

ISPLAY

ENU

TEMS

The instrument cluster display can be used to view

the main menu items for several features. Use the
up and down arrow buttons to scroll through

the driver interactive display menu options until

the desired menu is reached.
NOTE:

The instrument cluster display menu items display

in the center of the instrument cluster. Menu items

may vary depending on your vehicle features.

Home Screen — If Equipped

Press the Menu button to display the Home

Screen.
Push and release the left or right arrow

button to highlight the desired selection. Push and
release the OK button to select. Press the up or
down arrow button to select a different screen

within the selected category. If the Menu button is

pressed in this view, the instrument cluster will

return to the previously displayed screen.

Home Screen Options



Navigation — If Equipped



Route Set



Trip

• Trip A
• Trip B



Vehicle Info



Coolant Temp



Trans Temp



Oil Temp



Oil Pressure — If Equipped



Battery Voltage



DEF — If Equipped



Tire Pressure



Fuel Economy



Driver Info



Posted Speed Limit Sign



Driver Assist



Audio



Audio Info



Off Road — If Equipped



Selec-Terrain Status



Stored Messages



Messages



Settings



Screen Setup



Speed Warning



Screen Setup



Stop/Start

DRIVER INFO— IF EQUIPPED

Speedometer
Push and release the up or down arrow button

until the Speedometer Menu item is displayed in the

instrument cluster display. Push and release the

OK button to change the speedometer scale from

MPH to km/h (or vice versa).
Driver Assist
Push and release the up or down arrow

button until the Driver Assist menu icon is

displayed in the instrument cluster display. Push

and release the OK button to select. The Driver

Assist screen indicates the current status of ACC,

Active Lane Management and Highway Assist/

Assist+/Pilot. Push and release the OK button to

again to change between Zoomed In and Zoomed

Out view (“Press OK to Zoom In” will display when

in Zoomed Out view/“Press OK to Zoom Out” will

display when in Zoomed In view).

GETTING TO KNOW YOUR INSTRUMENT PANEL

VEHICLE INFO (CUSTOMER INFORMATION

FEATURES)

Push and release the up or down arrow

button until the Vehicle Info Menu item is displayed

in the instrument cluster display. Push and release
the left or right arrow button to cycle through

the Vehicle Info submenus and follow the prompts

on each screen as needed.
1. Tire Pressure



If tire pressure is OK for all tires a vehicle

ICON is displayed with tire pressure values

in each corner of the ICON.



If one or more tires have low pressure,

“Inflate Tire To XX” is displayed with the

vehicle ICON and the tire pressure values in

each corner of the ICON with the pressure

value of the low tire displayed in a different

color than the other tire pressure value.



If the Tire Pressure system requires service,

“Service Tire Pressure System” is displayed.



Tire PSI is an information only function and

cannot be reset

page 201.

2. Coolant Temperature

Displays the actual coolant temperature.

3. Transmission Temperature — Automatic

Transmission Only
Displays the actual transmission tempera

ture.

4. Oil Temperature

Displays the level of oil temperature.

5. Battery Voltage

Displays the actual battery voltage.

6. Clutch Message — If Equipped

“Drive in First Gear” message will be shown

in manual transmission vehicle during initial

launch and any time the vehicle speed fluc

tuates below 5mph (8 km/h).

DRIVER ASSIST

Push and release the up or down arrow

button until the Driver Assist menu title is

highlighted in the instrument cluster display.
The instrument cluster display displays the current

ACC system settings. The information displayed

depends on ACC system status.

Push the Adaptive Cruise Control (ACC) ON/OFF

button (located on the steering wheel) until one of

the following displays in the instrument cluster

display:
Adaptive Cruise Control Off
When ACC is deactivated, the display will read

“Adaptive Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed

setting has not been selected, the display will read

“Adaptive Cruise Control Ready.”
Push and release the SET + or the SET- button

(located on the steering wheel) and the following

will display in the instrument cluster display:
ACC SET
When ACC is set, the set speed will display in the

instrument cluster.
The ACC screen may display once again if any ACC

activity occurs, which may include any of the

following:



Distance Setting Change



System Cancel



Driver Override



System Off



ACC Proximity Warning



ACC Unavailable Warning

GETTING TO KNOW YOUR INSTRUMENT PANEL

NOTE:

The instrument cluster display will return to the last

display selected after five seconds of no ACC

display activity

page 118.

The instrument cluster display displays the current

Active Lane Management system settings. The

information displayed depends on Active Lane

Management system status and the conditions

that need to be met

page 145.

FUEL ECONOMY

Push and release the up or down arrow

button until the Fuel Economy menu title is

displayed in the instrument cluster display. Push

and hold the OK button to reset average fuel

economy feature.



Range – The display shows the estimated

distance (mi or km) that can be traveled with the

fuel remaining in the tank. When the Range

value is less than 30 miles (48 km) estimated

driving distance, the Range display will change

to a “LOW FUEL” message. Adding a significant

amount of fuel to the vehicle will turn off the

“LOW FUEL” message and a new Range value

will display. Range cannot be reset through the

OK button.

NOTE:

Significant changes in driving style or vehicle

loading will greatly affect the actual drivable

distance of the vehicle, regardless of the Range

displayed value.



Average – The display shows the average fuel

economy (MPG, or L/100 km, or km/L) since

the last reset.



Current – This display shows the current fuel

economy (MPG, or L/100 km, or km/L) while

driving.

TRIP INFO

Push and release the up or down arrow

button until the Trip menu title is displayed in the
instrument cluster display. Toggle the left or
right arrow button to select Trip A or Trip B. The

Trip information will display the following:



Distance – Shows the total distance (mi or km)

traveled for Trip A or Trip B since the last reset.



Average Fuel Economy – Shows the average

fuel economy (MPG or L/100 km or km/L) of

Trip A or Trip B since the last reset.



Elapsed Time – Shows the total elapsed time of

travel since Trip A or Trip B has been reset.

Hold the OK button to reset feature information.

NAVIGATION — IF EQUIPPED

Push and release the left or right arrow

button until the Navigation display icon/title is

highlighted in the instrument cluster display. Start

Route will display when no active route is set.

Cancel Route will display when an active route

is set.

OFF ROAD — IF EQUIPPED

Push and release the up or down arrow

button until the Off Road Menu icon/title is
highlighted. Push the left or right arrow

button to scroll the submenus.



Terrain Status



Selec-Terrain Status



Air Suspension Status



Vehicle Dynamics



Wheel Articulation



Transfer Case Status



Steering Angle



Sway Bar Status



Axle Lock Status



Pitch And Roll



Vehicle Pitch



Vehicle Roll

GETTING TO KNOW YOUR INSTRUMENT PANEL

STOP/START – IF EQUIPPED

Push and release the up or down arrow

button until the Stop/Start menu title is displayed

in the instrument cluster display.

AUDIO

Push and release the up or down arrow

button until the Audio menu title is displayed in the

instrument cluster display.

STORED MESSAGES

Push and release the up or down arrow

button until the Messages Menu Icon is highlighted

in the instrument cluster display. This feature

shows the number of stored warning messages.
Pushing the left or right arrow button will

allow you to scroll through the stored messages.

SCREEN SETUP

Push and release the up or down arrow

button until the Screen Setup Menu Icon/Title is

highlighted in the instrument cluster display. Push

and release the OK button to enter the submenus

and follow the prompts on the screen as needed.

The Screen Setup feature allows you to change

what information is displayed in the instrument

cluster as well as the location that information is

displayed.

Screen Setup Driver Selectable Items

Restore Defaults (Restores All Settings To Default

Settings)



Yes



Current Gear — If Equipped



Off

Upper Left

None

Range To

Empty

Date

Outside Temp Current

Economy

Ignition State

Time

Compass

Average

Economy

Upper Right

None

Range To

Empty

Date

Outside Temp Current

Economy

Ignition State

Time

Compass

Average

Economy

Upper Center

None

Range to

Empty

Date

Average

Economy

Current

Economy

Outside Temp

Compass

Menu Title

Audio Info

Time

Trip A Distance Speedometer

Trip B Distance

GETTING TO KNOW YOUR INSTRUMENT PANEL

VEHICLE SETTINGS — IF EQUIPPED

Push and release the up or down arrow

button until the Vehicle Setup Menu item is

displayed in the instrument cluster display. This

menu item allows you to change the settings for

the following:



Display



Navigation Repetition



Security



Passenger Airbag



Seat Belt Reminder



Safety and Assistance



Speed Warning



Hill Start Assist

NOTE:

Most vehicle settings will be moved into the radio

if a touchscreen radio is present

page 165.

Display
By selecting Display, the following settings can be

selected:



Language: select the language in which to

display the information/warnings.



Phone Repetition: displays information relating

to the phone mode.

Units
By selecting Units, the unit of measurement to use

for displaying various values can be set. Possible

options are:



Metric



Custom: allows individual changes of units for

temperature, distance, consumption, and tire

pressure.

Clock And Date
By selecting Clock and Date, the time and date can

be set. Possible options are:



Set Time: adjust hours/minutes



Set Format: adjust the time format “12h”

(12 hours) or “24h” (24 hours)



Set Date: adjust day/month/year

Security
Passenger Air Bag Disable (PAD): a selection of

Passenger Air Bag Disable (ON/OFF) may be made

if a child restraint must be installed in the front

seat.

Safety And Assistance
By selecting the item Safety and Assistance, the

following adjustments can be made:



ParkSense (If Equipped): a selection of the type

of information provided by ParkSense



Front ParkSense Volume (If Equipped): selec

tion of the volume of the beeps provided by the

front ParkSense



Rear ParkSense Volume (If Equipped): selection

of the volume of the beeps provided by the rear

ParkSense



Forward Collision Warning (FCW) (If Equipped): a

selection of operating modes of the system

Forward Collision Warning Plus



FCW Sensitivity (If Equipped): a selection of the

“readiness” of intervention of the Forward Colli

sion Warning Plus system, based on the

distance to the obstacle



Rain Sensing Wipers (If Equipped): enabling/

disabling the automatic operation of wipers in

the event of rain



Active Lane Management Force (If Equipped):

selection of the force to be applied to the

steering wheel to put the car in the roadway

through the system of electrical drive, in case of

operation of the system Active Lane Manage

ment

GETTING TO KNOW YOUR INSTRUMENT PANEL



Active Lane Management Warning (If

Equipped): a selection of the “readiness” of

intervention of Active Lane Management



Buzzer Volume: There are 4 options: Off, Low,

Medium, Loud



Brake Service (If Equipped): activation of the

procedure to carry out braking system mainte

nance



Auto Park Brake (If Equipped): enable/disable

auto insertion of the Electric Park Brake



Hill Start Assist: Activation/Deactivation of the

Hill Start Assist system

Lights — If Equipped
By selecting Lights, the following adjustments can

be made:



Ambient Lights (If Equipped): adjust the sensi

tivity of lighting in the doors and overhead

console



Lights Off Delay: set the delay for headlight

shutoff after engine shutoff



Headlight Sensitivity: adjust the sensitivity of

headlight brightness



Greeting Lights: activate the direction indicators

when unlocking the doors



Daytime Lights (If Equipped): activate/deacti

vate the daytime running lights



Cornering Lights (If Equipped): activate/deacti

vate the cornering lights



Auto High Beam (If Equipped): activate/deacti

vate the automatic high beam headlights

Doors And Locks
By selecting Doors and Locks, the following

adjustments can be made:



Auto Unlock Doors: automatic unlocking of the

doors when exiting the vehicle



Lights with Lock: activate the direction indica

tors when locking the doors



Horn With Remote Lock: activate/deactivate the

horn when pressing the lock button on the key.

The options are “Off”, “First Press”, and

“Second Press”



Horn With Remote Start (If Equipped): activate/

deactivate the horn at the Remote Starting of

the engine with the key



Door Unlock: allow you to choose whether to

unlock all the doors or only the driver’s side door

on the first push of the unlock button on the key



Auto Driver Comfort (If Equipped): activate/

deactivate automatic climate control during

vehicle starts



Key in Memory (If Equipped): activate/deacti

vate memory linked to a key

Compass
By selecting Compass, the following settings can

be changed:
Calibration (If Equipped)
This compass is self-calibrating, which eliminates

the need to set the compass manually. When the

vehicle is new, the compass may appear erratic,

and the cluster will display dashes (- -) until the

compass is calibrated. You may also calibrate the

compass by completing one or more 360 degree

turns (in an area free from large metal or metallic

objects) until the dashes (- -) displayed in the

instrument cluster display turns off. The compass

will now function normally.

GETTING TO KNOW YOUR INSTRUMENT PANEL

Variance (If Equipped)
Compass Variance is the difference between

Magnetic North and Geographic North. To

compensate for the differences, the variance

should be set for the zone where the vehicle is

driven, per the zone map. Once properly set, the

compass will automatically compensate for the

differences and provide the most accurate

compass heading.

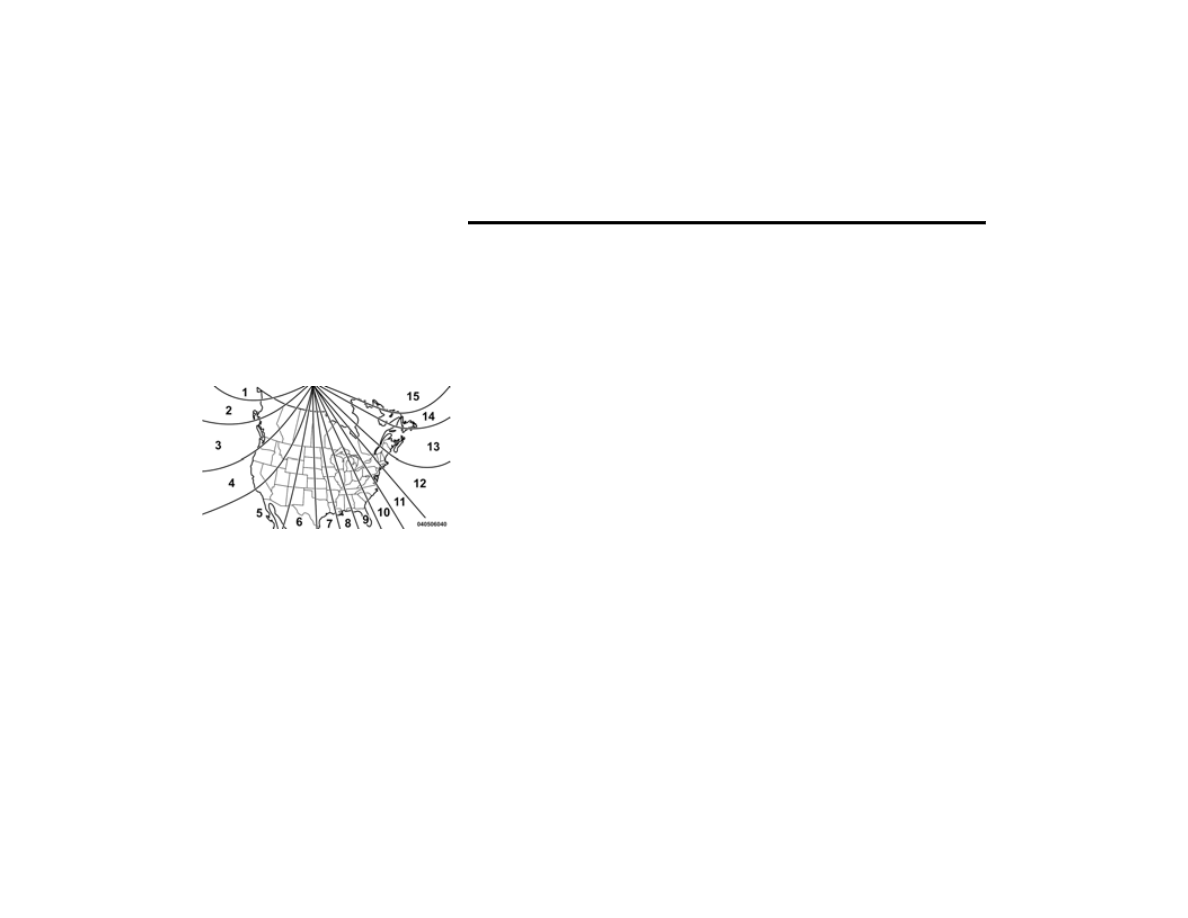

Compass Variance Map

ATTERY

AVER

ATTERY

AVER

ODE

ESSAGE

— E

LECTRICAL

OAD

EDUCTION

CTIONS

— I

QUIPPED

This vehicle is equipped with an Intelligent Battery

Sensor (IBS) to perform additional monitoring of

the electrical system and status of the vehicle

battery.
In cases when the IBS detects charging system

failure, or the vehicle battery conditions are

deteriorating, electrical load reduction actions will

take place to extend the driving time and distance

of the vehicle. This is done by reducing power to or

turning off non-essential electrical loads.
Load reduction is only active when the engine is

running. It will display a message if there is a risk

of battery depletion to the point where the vehicle

may stall due to lack of electrical supply, or will not

restart after the current drive cycle.
When load reduction is activated, the message

“Battery Saver On” or “Battery Saver Mode” will

appear in the instrument cluster display.

These messages indicate the vehicle battery has a

low state of charge and continues to lose electrical

charge at a rate that the charging system cannot

sustain.
NOTE:



The charging system is independent from load

reduction. The charging system performs a diag

nostic on the charging system continuously.



If the Battery Charge Warning Light is on it may

indicate a problem with the charging system

page 90.

The electrical loads that may be switched off

(if equipped), and vehicle functions which can be

effected by load reduction:



Heated Seat/Vented Seats/Heated Wheel



Heated/Cooled Cup Holders — If Equipped



Rear Defroster And Heated Mirrors



HVAC System



150W Power Inverter System



Audio and Telematics System

Jeep Compass (2022 year). Manual in english - page 5
