GETTING TO KNOW YOUR VEHICLE

Window Fogging

Vehicle windows tend to fog on the inside in mild,

rainy, and/or humid weather. To clear the

windows, select Defrost or Mix mode and increase

the front blower speed. Do not use the

Recirculation mode without A/C for long periods,

as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of

the windshield, is free of obstructions, such as

leaves. Leaves collected in the air intake may

reduce airflow, and if they enter the air distribution

box, they could plug the water drains. In Winter

months, make sure the air intake is clear of ice,

slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and

pollen from the air. Contact an authorized dealer to

service your cabin air filter, and to have it replaced

when needed.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system

may automatically adjust airflow to maintain cabin

comfort. Customer settings will be maintained

upon return to an engine running condition.

Windshield Wiper De-Icer — If Equipped

The windshield wiper De-Icer is a heating element

located at the base of the windshield.
It operates automatically once the following

conditions are met:



Activation By Front Defrost

The wiper De-Icer activates automatically during

a cold weather manual start with full defrost,

and when the ambient temperature is below

33°F (6°C).



Activation By Rear Defrost

The wiper De-Icer activates automatically when

the Rear Defrost is operating and the ambient

temperature is below 33°F (6°C).



Activation By Remote Start Operation

When Remote Start is activated and the outside

ambient temperature is less than 33°F (6°C)

the windshield wiper De-Icer is activated. Exiting

Remote Start will resume its previous operation.

If the Windshield Wiper De-Icer was active, the

timer and operation will continue.

Operating Tips Chart

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is

Very Hot

Set the mode control to

(Panel Mode),

(MAX A/C) on, and

blower on high. Roll

down the windows for a

minute to flush out the

hot air. Adjust the

controls as needed to

achieve comfort.

Warm Weather

Turn (A/C) on and

set the mode control to

(Panel Mode).

Cool Sunny

Operate in (Bi-Level

Mode).

Cool & Humid

Conditions

Set the mode control to

(Mix Mode) and

turn (A/C) on to

keep windows clear.

Cold Weather

Set the mode control to

(Floor Mode). If

windshield fogging

starts to occur, move

the control to (Mix

Mode).

GETTING TO KNOW YOUR VEHICLE

INTERIOR STORAGE AND EQUIPMENT

TORAGE

Glove Compartment

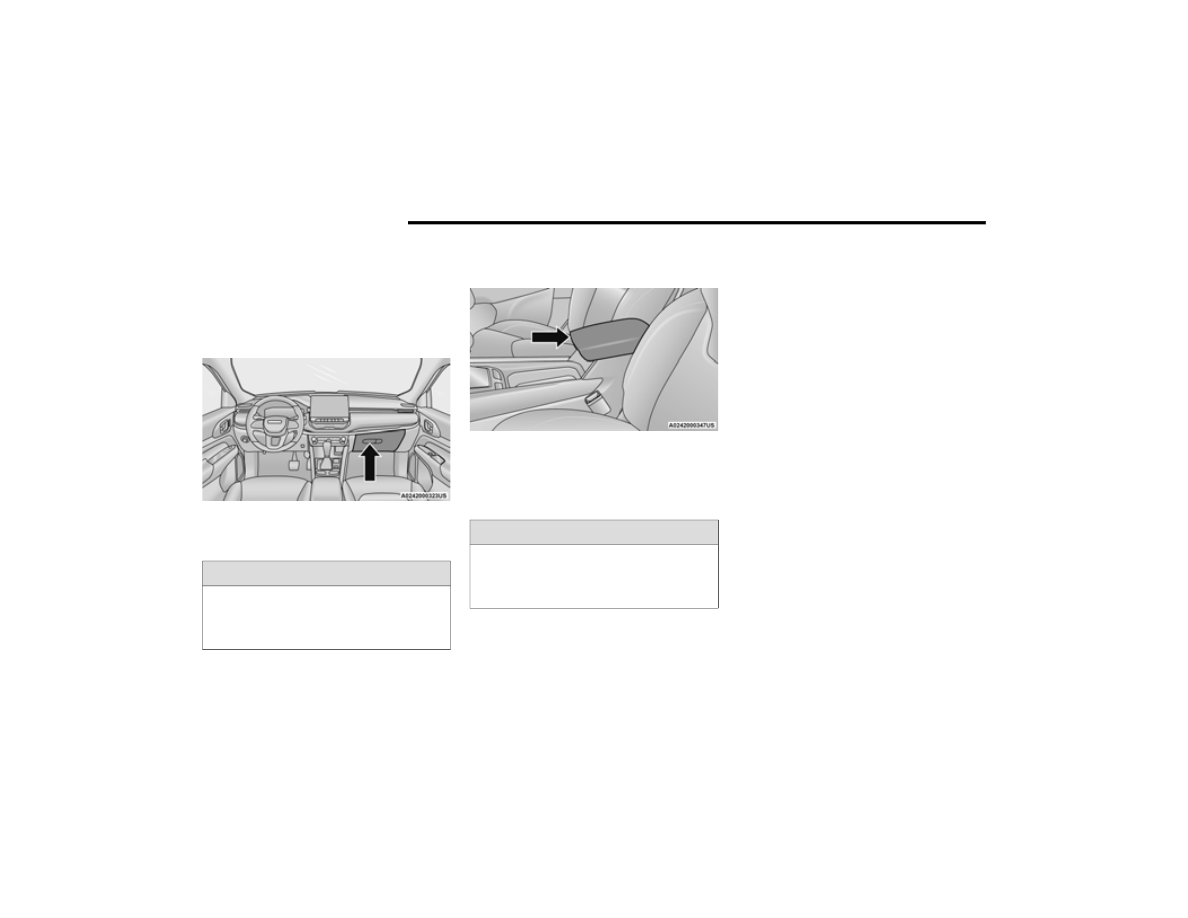

The glove compartment is located on the

passenger side of the instrument panel.

Glove Compartment

To open the glove compartment, pull the release

handle.

Console Storage Compartment

To open, pull up on the latch and lift the cover.

Center Console

The center console has a storage area which can

hold cell phones, PDAs, and other small items. The

center console can slide forward and rearward for

comfort.

USB C

ONTROL

This feature allows an external USB device to be

plugged into one of the USB ports, located in the

center stack of the instrument panel.

Plugging in a smartphone device to a USB port will

activate Android Auto™ or Apple CarPlay®

features, if equipped. For further information, refer

to “Android Auto™” or “Apple CarPlay®” in the

Owner’s Manual Supplement.
NOTE:

Two devices can be plugged in at the same time,

and both ports will provide charging capabilities.

Only one port can transfer data to the system at a

time.
For example, if a device is plugged into the Type A

USB port and another device is plugged into the

Type C USB port, a message will appear and allow

you to select which device to use.
Different scenarios are listed below when a

non-phone device is plugged into the smaller and

larger USB ports, and when a phone device is

plugged into the smaller and larger USB ports:



“A new device is now connected.

Previous connection was lost”.



“(Phone Name) now connected.

Previous connection was lost”.



“Another device is in use through the same

USB port. Please disconnect the first device to

use the second device”.

WARNING!

Do not operate this vehicle with a glove

compartment in the open position. Driving with

the glove compartment open may result in injury

in a collision.

WARNING!

Do not operate this vehicle with a console

compartment lid in the open position. Driving

with the console compartment lid open may

result in injury in a collision.

GETTING TO KNOW YOUR VEHICLE

Plugging in a phone or another USB device may

cause the connection to a previous device to be

lost.

Front USB Ports

By using a USB cable to connect an external

device:



The device can be played on the vehicle’s sound

system, providing the artist, track title, and

album information on the radio display.

NOTE:

Depending on track configuration, track infor

mation may not be present on the radio display.



The device can be controlled using the radio

buttons to play, and browse the contents of the

device.



The audio device battery charges when plugged

into the USB port.

The second row USB ports can be used to charge

an external device.

Charge Only Rear USB Ports

NOTE:

Charge unsupported devices with the Charge Only

USB ports. If an unsupported device is plugged into

a Media USB port, a message will display on the

touchscreen that the device is not supported by

the system.

OWER

UTLETS

— I

QUIPPED

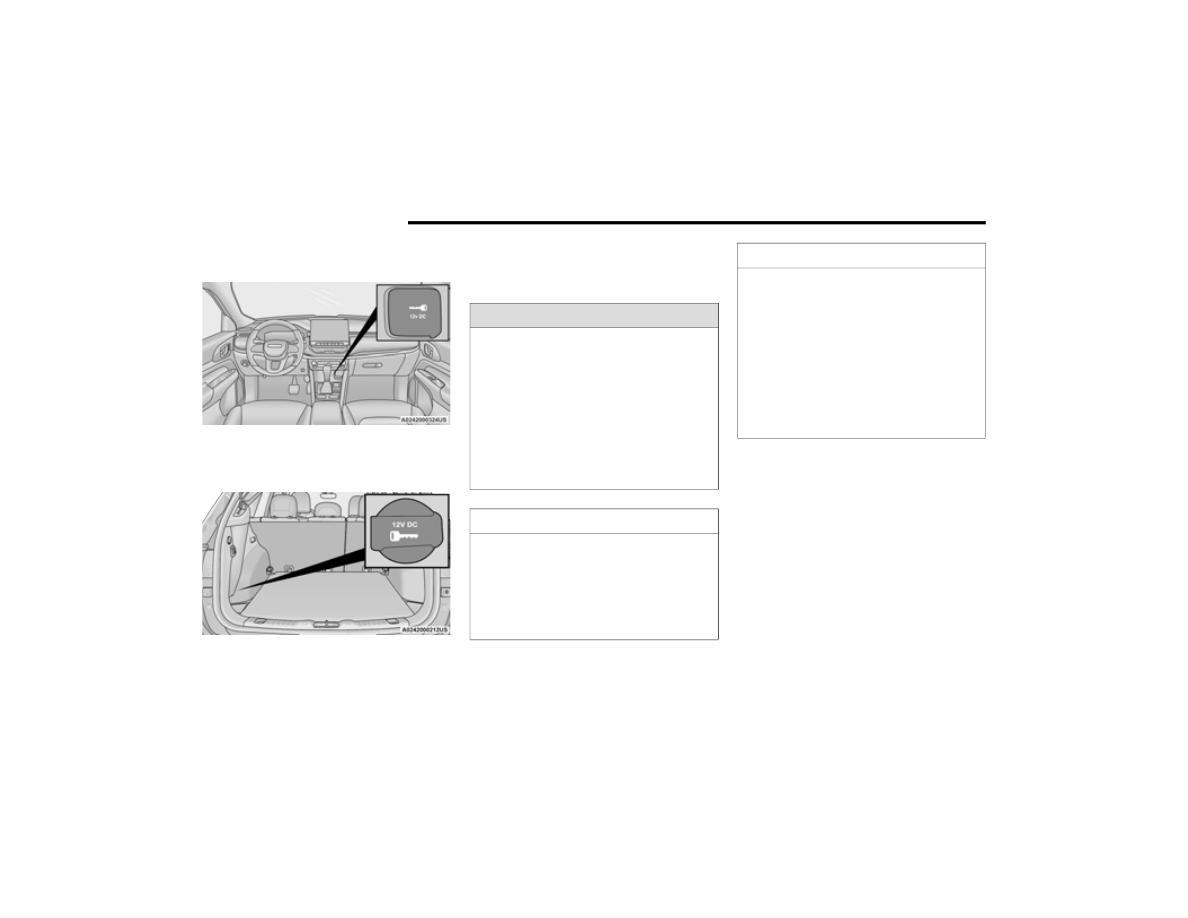

Your vehicle may be equipped with 12 Volt

(13 Amp) power outlets that can be used to power

cellular phones, small electronics and other low

powered electrical accessories. The power outlets

are labeled with either a key or a battery symbol to

indicate how the outlet is powered. Power outlets

labeled with a key are powered when the ignition is

in the ON/RUN position, while the outlets labeled

with a battery are connected directly to the battery

and powered at all times.
NOTE:

All accessories connected to the battery powered

outlets should be removed or turned off when the

vehicle is not in use to protect the battery against

discharge.

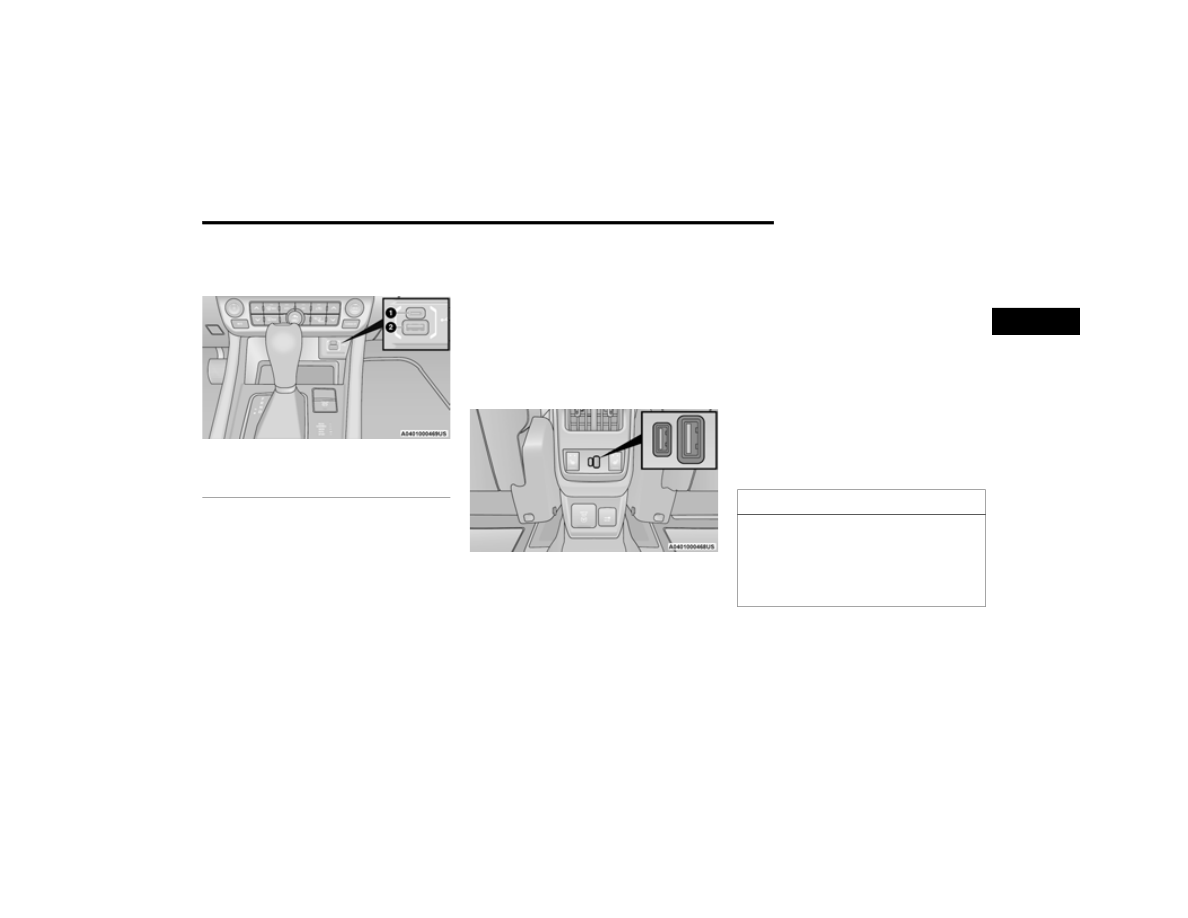

1 — Type C USB Port
2 — Type A USB Port

CAUTION!

Power outlets are designed for accessory plugs

only. Do not insert any other object in the power

outlets as this will damage the outlet and blow

the fuse. Improper use of the power outlet can

cause damage not covered by your New Vehicle

Limited Warranty.

GETTING TO KNOW YOUR VEHICLE

(Continued)

If equipped, the front power outlet is located on the

center stack of the instrument panel.

Front Power Outlet

If equipped, a power outlet is located in the rear

cargo area.

Rear Cargo Area Power Outlet — If Equipped

NOTE:

The rear cargo area power outlet can be switched

from ignition-only to constant battery powered all

the time. See an authorized dealer for details.

OWER

NVERTER

— I

QUIPPED

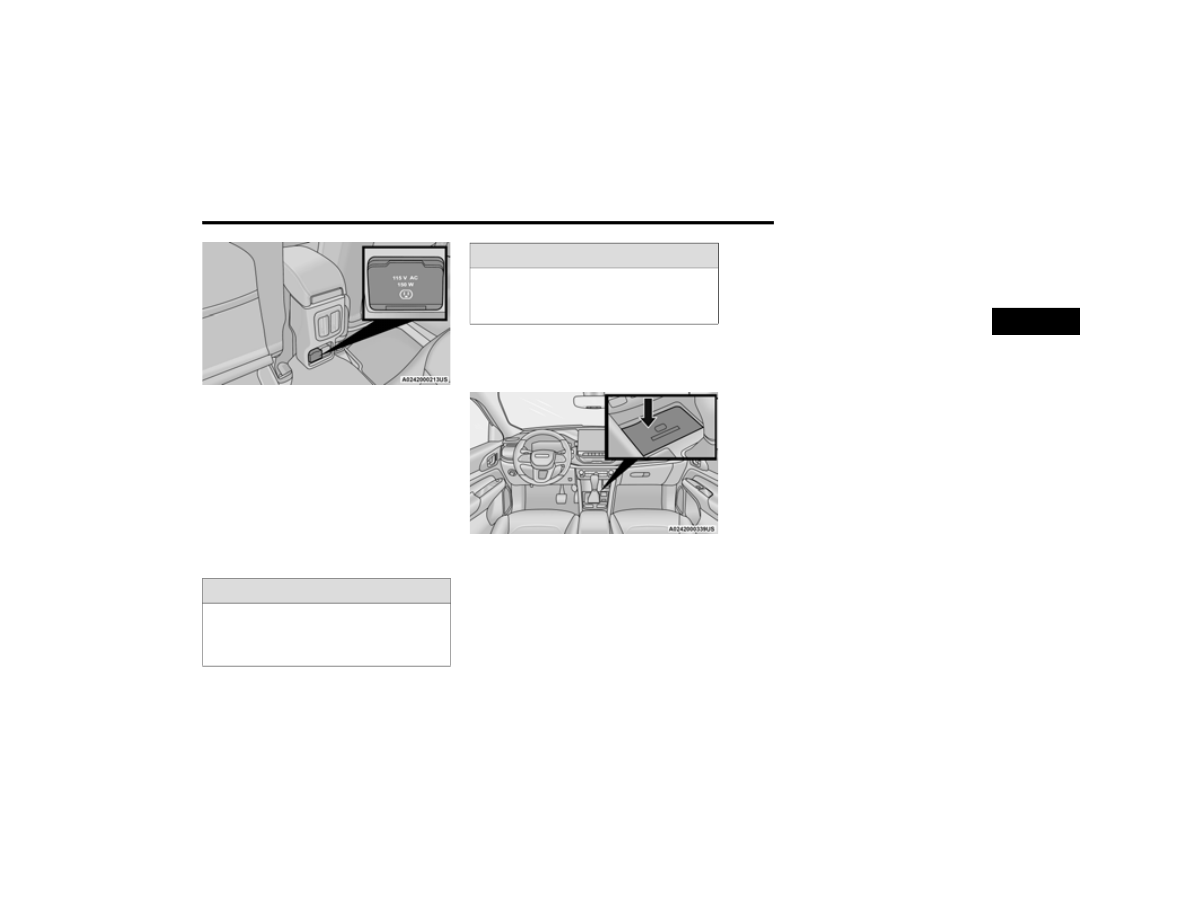

There is a 115 Volt, 150 Watt inverter outlet

located on the back of the center console to

convert DC current to AC current. This outlet can

power cellular phones, electronics and other low

power devices requiring power up to 150 Watts.

Certain game consoles will exceed this power limit,

as will most power tools.

WARNING!

To avoid serious injury or death:



Only devices designed for use in this type of

outlet should be inserted into any 12 Volt

outlet.



Do not touch with wet hands.



Close the lid when not in use and while driving

the vehicle.



If this outlet is mishandled, it may cause an

electric shock and failure.

CAUTION!



Many accessories that can be plugged in draw

power from the vehicle's battery, even when

not in use (i.e., cellular phones, etc.). Eventu

ally, if plugged in long enough, the vehicle's

battery will discharge sufficiently to degrade

battery life and/or prevent the engine from

starting.



Accessories that draw higher power

(i.e., coolers, vacuum cleaners, lights, etc.)

will degrade the battery even more quickly.

Only use these intermittently and with greater

caution.



After the use of high power draw accessories,

or long periods of the vehicle not being started

(with accessories still plugged in), the vehicle

must be driven a sufficient length of time to

allow the generator to recharge the vehicle's

battery.

CAUTION!

GETTING TO KNOW YOUR VEHICLE

(Continued)

Power Inverter Location

To turn on the power inverter outlet, simply plug in

a device. The outlet automatically turns off when

the device is unplugged.
The power inverter is designed with built-in

overload protection. If the power rating of

150 Watts is exceeded, the power inverter will

automatically shut down. Once the electrical

device has been removed from the outlet the

inverter should automatically reset. To avoid

overloading the circuit, check the power ratings on

electrical devices prior to using the inverter.

IRELESS

HARGING

—

QUIPPED

Wireless Charging Pad

Your vehicle may be equipped with a 15W 3A Qi

wireless charging pad located below the center

stack by the cupholders. This charging pad is

designed to wirelessly charge your Qi enabled

mobile phone. Qi is a standard that allows wireless

charging of your mobile phone.

Your mobile phone must be designed for Qi

wireless charging. If the phone is not equipped

with Qi wireless charging functionality, an

aftermarket sleeve or a specialized back plate can

be purchased from your mobile phone provider or

a local electronics retailer. Please see your

phone’s owner’s manual for further information.
The wireless charging pad is equipped with an

anti-slip mat to hold your mobile phone in place,

and an LED indicator light.
LED Indicator Status:



No Light: Charging pad is idle or searching for a

device.



Blue Light: Device is detected and is charging.



Red Light/Flashing: Internal error, or foreign

object is detected.

NOTE:



The wireless charging pad will not work if any of

the four doors are open, even if the engine is

running. Opening the liftgate will not interfere

with charging pad operation.



Using a phone case may interfere with wireless

charging.

WARNING!

To avoid serious injury or death:



Do not insert any objects into the receptacles.



Do not touch with wet hands.



Close the lid when not in use.



If this outlet is mishandled, it may cause an

electric shock and failure.

WARNING!

GETTING TO KNOW YOUR VEHICLE

WINDOWS

OWER

INDOW

ONTROLS

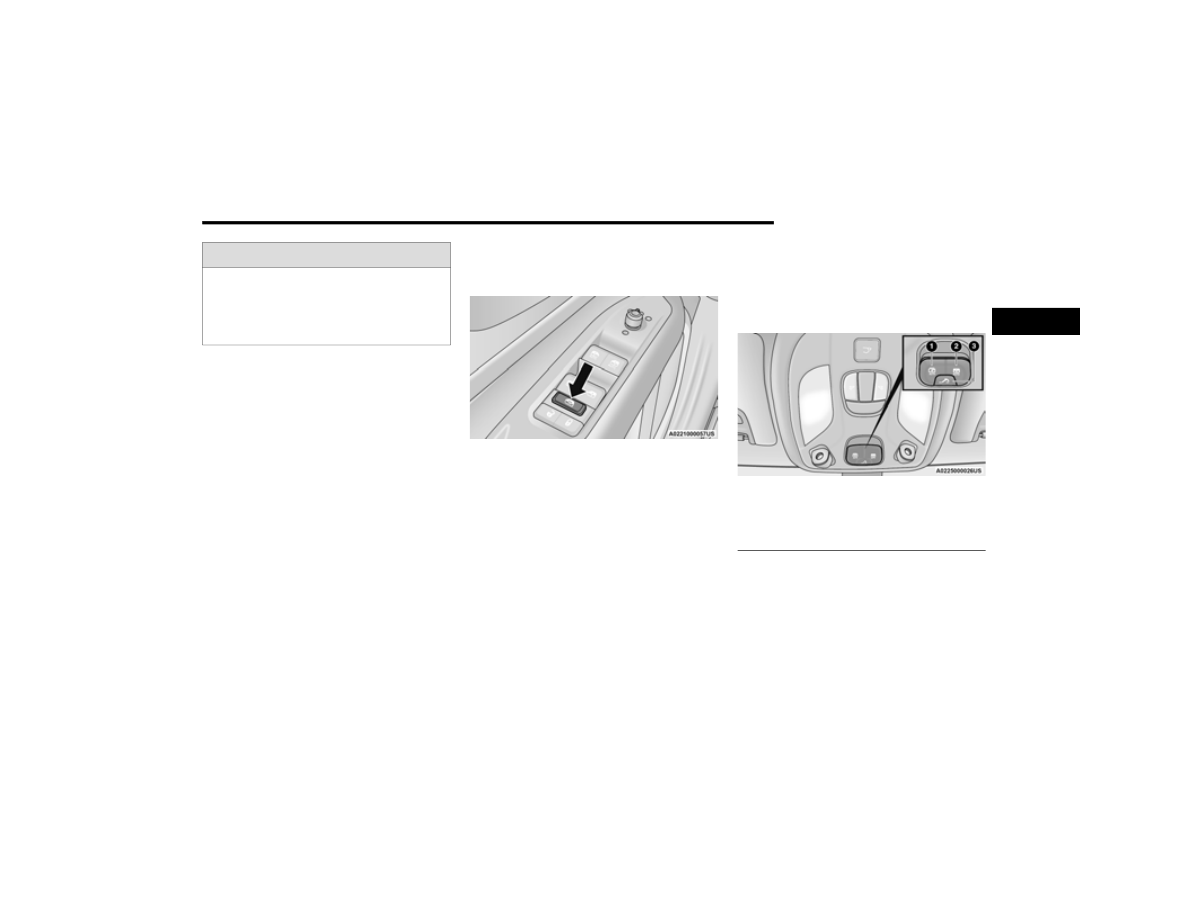

The window controls on the driver's door control all

the door windows.

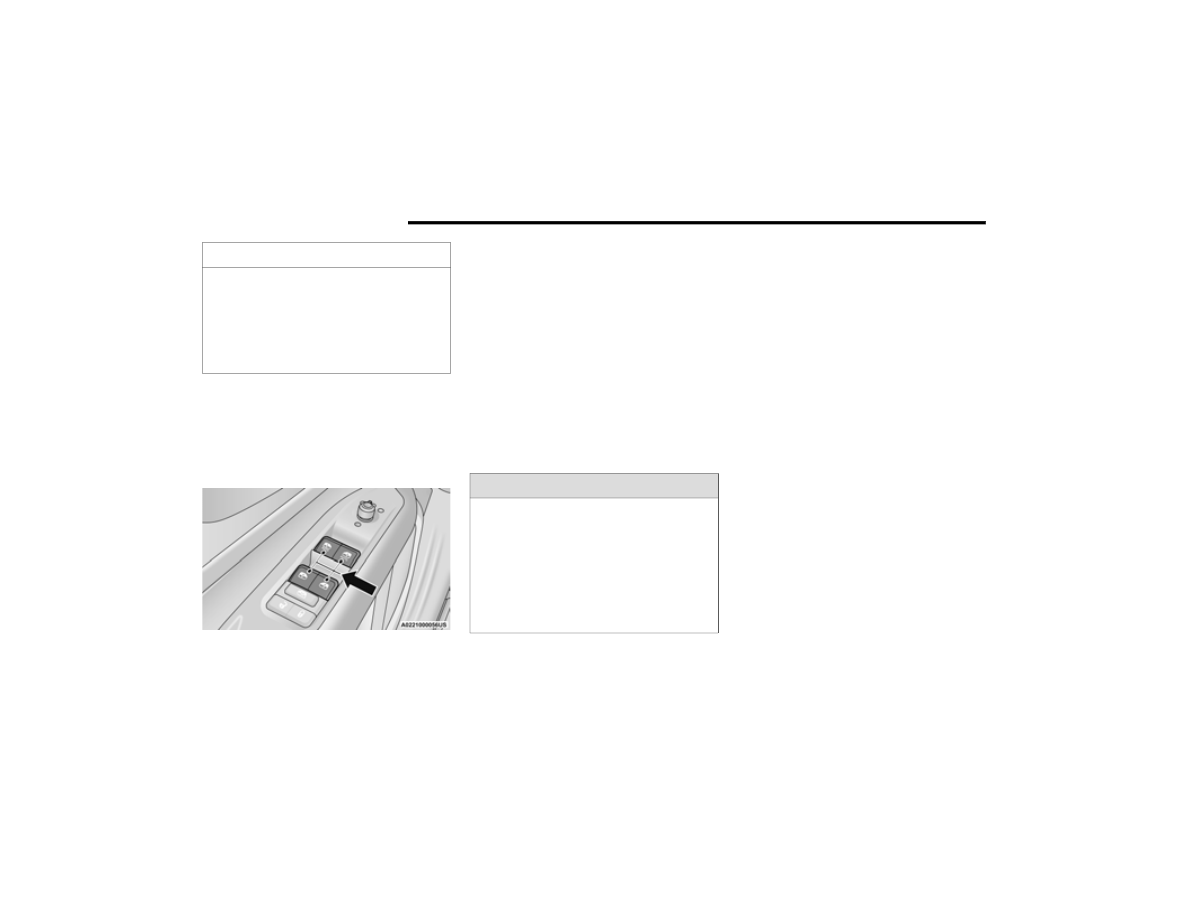

Power Window Controls

The passenger door windows can also be operated

by using the single window controls on each

passenger door trim panel. The window controls

will operate only when the ignition is in the

ON/RUN position.
To open the window part way, push the window

switch down briefly and release it when you want

the window to stop.
NOTE:

The power window switches will remain active for

up to 10 minutes after the ignition is placed in the

OFF position. Opening either front door will cancel

this feature.
The timing is programmable within Uconnect

Settings

page 165.

UTOMATIC

INDOW

EATURES

Auto-Down Feature
The driver and front passenger door power window

switches have an Auto-Down feature. Push the

window switch down for a short period of time,

then release, and the window will go down

automatically.
To stop the window from going all the way down

during the Auto-Down operation, pull up or push

the switch briefly.
Auto-Up Feature With Anti-Pinch Protection
Lift the window switch up for a short period of time

and release; the window will go up automatically.
To stop the window from going all the way up

during the Auto-Up operation, push down or pull

the switch briefly.
To close the window part way, lift the window

switch briefly and release it when you want the

window to stop.
If the window runs into any obstacle during

auto-closure, it will reverse direction and then go

back down. Remove the obstacle and use the

window switch again to close the window.
NOTE:

Any impact due to rough road conditions may

trigger the auto-reverse function unexpectedly

during auto-closure. If this happens, pull the switch

lightly and hold to close the window manually.

CAUTION!

The key fob should not be placed on the

charging pad or within 6 inches (15 cm) of it.

Doing so can cause excessive heat buildup and

damage to the fob. Placing the fob in close

proximity of the charging pad blocks the fob from

being detected by the vehicle and prevents the

vehicle from starting.

WARNING!

Never leave children unattended in a vehicle.

Do not leave the key fob in or near the vehicle or

in a location accessible to children, and do not

leave the ignition of a vehicle equipped with

Keyless ‘n Go™ in the ON/RUN position.

Occupants, particularly unattended children,

can become entrapped by the windows while

operating the power window switches. Such

entrapment may result in serious injury or death.

GETTING TO KNOW YOUR VEHICLE

ESET

UTO

-U

Should the Auto-Up feature stop working, the

window probably needs to be reset. To reset

Auto-Up:
1. Pull the window switch up to close the window

completely and continue to hold the switch up

for an additional two seconds after the

window is closed.

2. Push the window switch down firmly to open

the window completely and continue to hold

the switch down for an additional two seconds

after the window is fully open.

INDOW

OCKOUT

WITCH

The window lockout switch on the driver's door trim

panel allows you to disable the window controls on

the rear passenger doors. To disable the window

controls, push and release the window lockout

switch (the indicator light on the switch will turn

on). To enable the window controls, push and

release the window lockout switch again (the

indicator light on the switch will turn off).

Window Lockout Switch

IND

UFFETING

Wind buffeting can be described as the perception

of pressure on the ears or a helicopter-type sound

in the ears. Your vehicle may exhibit wind buffeting

with the windows down, or the sunroof (if equipped)

in certain open or partially open positions. This is a

normal occurrence and can be minimized. If the

buffeting occurs with the rear windows open, open

the front and rear windows together to minimize

the buffeting. If the buffeting occurs with the

sunroof open, adjust the sunroof opening to

minimize the buffeting or open any window.

POWER SUNROOF WITH POWER SHADE —

IF EQUIPPED

The power sunroof switches are located between

the sun visors on the overhead console.

Power Sunroof Switches

WARNING!

There is no anti-pinch protection when the

window is almost closed. To avoid personal

injury be sure to clear your arms, hands, fingers

and all objects from the window path before

closing.

1 — Power Shade Switch
2 — Front Panel Open/Close Switch
3 — Front Panel Vent Switch

GETTING TO KNOW YOUR VEHICLE

PENING

LOSING

UNROOF

The sunroof has two programmed open positions,

comfort stop position and full open position. The

comfort stop position has been optimized to

minimize wind buffeting when driving with side

windows closed and sunroof open. If the sunshade

is in the closed position when initiating a sunroof

open or vent command the sunshade will

automatically open to the half open position prior

to the sunroof opening.
Express Open/Close
Push the switch to open and release it within

one-half second and the sunroof will open to the

comfort stop (partially opened) position and

automatically stop. Push the switch and release it

again, and the sunroof will open to the full open

position then automatically stop.
Pull the switch to close and release it within

one-half second and the sunroof will completely

close automatically from any position.
During Express Open or Express Close operation,

any movement of the sunroof switch will stop the

sunroof.

Manual Open/Close
Push and hold the switch to open. The sunroof will

open to the comfort stop (partially opened)

position and automatically stop. Push the switch

and hold it again, and the sunroof will open to the

full open position then automatically stop.
Pull and hold the switch to completely close the

sunroof from any position.
Any release of the switch during open or close

operation will stop the sunroof movement. The

sunroof will remain in a partially opened position

until the switch is operated and held again.

ENTING

UNROOF

Push and release the vent switch within one-half

second and the sunroof will move from the closed

position to the vent position. This is called “Express

Vent.” During Express Vent operation, any

movement of the switch will stop the sunroof.
NOTE:

When the sunroof is in a full open or a partial open

position, Express Vent operation is not available.

You must push and hold the vent switch to cycle

the sunroof from a slide open position to the vent

position. Sunroof movement will stop if the switch

is released prior to the sunroof reaching the vent

position.

WARNING!



Never leave children unattended in a vehicle,

or with access to an unlocked vehicle. Never

leave the key fob in or near the vehicle, or in a

location accessible to children. Do not leave

the ignition of a vehicle equipped with Keyless

Enter ‘n Go™ in the ON/RUN position. Occu

pants, particularly unattended children, can

become entrapped by the power sunroof while

operating the power sunroof switch. Such

entrapment may result in serious injury or

death.



In a collision, there is a greater risk of being

thrown from a vehicle with an open sunroof.

You could also be seriously injured or killed.

Always fasten your seat belt properly and

make sure all passengers are also properly

secured.



Do not allow small children to operate the

sunroof. Never allow your fingers, other body

parts, or any object, to project through the

sunroof opening. Injury may result.



Do not use the sunroof and its related parts

for supporting and/or grabbing purposes.

Serious personal injury may result to fingers

and other body parts as well as damage to the

sunroof.

GETTING TO KNOW YOUR VEHICLE

PENING

LOSING

OWER

UNSHADE

The sunshade has two programmed open

positions: half open and full open. When opening

the sunshade from the closed position, the

sunshade will always stop at the half open position

regardless of express or manual operation. The

switch must be pushed again to continue on to full

open position.
Express Open/Close
Push the sunshade switch to open and release it

within one-half second and the sunshade will open

to the half open position and stop automatically.

Push the switch and release it again, and the

sunshade will open to the full open position and

stop automatically.
Pull the sunshade switch to close and release it

within one-half second. If the sunroof is in closed

position, the sunshade will full close automatically

from any position. If the sunroof is open or vented,

the sunshade cannot be closed beyond the half

open position. Pulling the sunshade switch when

the sunshade is in the half open position will

automatically close sunroof prior to the sunshade

closing.

During Express Open or Express Close operation,

any movement of the sunshade switch will stop the

shade.
Manual Open/Close
Push and hold the sunshade switch to open. The

sunshade will open to the half open position and

stop automatically. Push and hold the switch

again, and the sunshade will open to the full open

position.
Pull and hold the sunshade switch to close. If the

sunroof is in closed position, the sunshade will fully

close from any position. If the sunroof is open or

vented, the sunshade will close to the half open

position and stop. Pulling and holding the switch

again will close both the sunroof and sunshade

completely.
Any release of the switch will stop the movement

and the sunshade will remain in a partially opened

position until the switch is pushed again.

INCH

ROTECT

EATURE

This feature will detect an obstruction in the

opening of the sunroof during Express Close

operation. If an obstruction in the path of the

sunroof is detected, the sunroof will automatically

retract. Remove the obstruction if this occurs.

Next, pull the sunroof close switch and release to

Express Close.
NOTE:

If three consecutive sunroof close attempts result

in Pinch Protect reversals, Pinch Protect will

disable and the sunroof must be closed in Manual

Mode.

UNROOF

AINTENANCE

Use only a non-abrasive cleaner and a soft cloth to

clean the glass panel. Periodically check for and

clear out any debris that may have collected in the

tracks.

GETTING TO KNOW YOUR VEHICLE

HOOD

PENING

OOD

Two latches must be released to open the hood.
1. Pull the hood release lever located

underneath the driver’s side of the

instrument panel.

Hood Release Location (Underneath Instrument Panel)

2. Move to the outside of the vehicle. The safety

latch release lever is located behind the front

edge of the hood at the center. Reach in at the

center of the hood with a palm facing the

ground. Once contact is made with the safety

latch release lever, push it toward the

passenger side of the vehicle to fully release

the hood.

Hood Safety Latch Release Lever Location

LOSING

OOD

Hoods equipped with gas props are closed from

the point where the props no longer hold the hood

open.

LIFTGATE

NLOCK

PEN

IFTGATE

The liftgate may be released in one of several

ways:



Key fob (if equipped with power liftgate)



Outside handle



Button on overhead console (if equipped with

power liftgate)



Hands-Free Liftgate (if equipped)

The overhead console switch and key fob

(if equipped) will release the liftgate when the

liftgate is unlocked or locked. The outside handle

requires the liftgate to be unlocked.

WARNING!

Be sure the hood is fully latched before driving

your vehicle. If the hood is not fully latched, it

could open when the vehicle is in motion and

block your vision. Failure to follow this warning

could result in serious injury or death.

CAUTION!

To prevent possible damage, do not slam the

hood to close it. Lower hood to approximately

12 inches (30 cm) and drop the hood to close.

Make sure hood is fully closed for both latches.

Never drive vehicle unless hood is fully closed,

with both latches engaged.

GETTING TO KNOW YOUR VEHICLE

Liftgate Entry

To Unlock The Liftgate
Use the key fob or the interior door unlock button

on the door panel to unlock the liftgate. The

manual door locks on the doors will not unlock the

liftgate.

OCK

LOSE

IFTGATE

To manually close the liftgate, grab the liftgate

closing handle and pull in a downward motion to

close the liftgate.

Liftgate Pull Handle/Closing Liftgate

NOTE:

Before closing the liftgate, make sure to be in

possession of the key because the liftgate may be

locked.
To Lock The Liftgate
Use the key fob or the interior door lock button on

the door panel to lock the liftgate. The manual door

locks on the doors will not lock the liftgate.

OWER

IFTGATE

— I

QUIPPED

The power liftgate may be opened by

pushing the liftgate button on the key

fob. Push the liftgate button on the key

fob twice within five seconds to open or

close the power liftgate. You can also open the

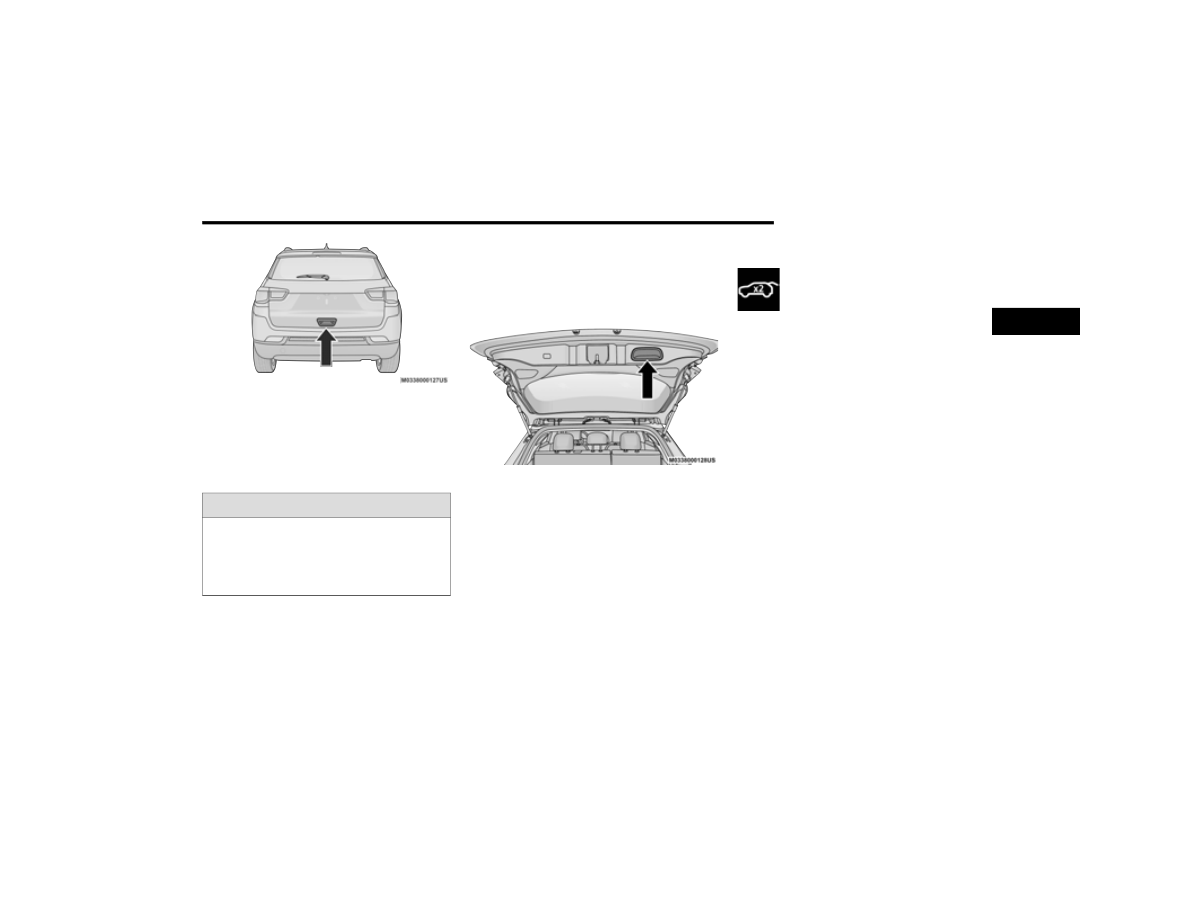

liftgate by pushing the electronic liftgate release

handle

page 23.

Using any of the above ways:



When the liftgate is fully closed, the liftgate will

open.



When the liftgate is fully open, the liftgate will

close.



When the liftgate is moving, the liftgate will

reverse.

The power liftgate may also be opened or closed by

pushing the liftgate button located on the front

overhead console. If the liftgate is fully open, the

liftgate can be closed by pushing the liftgate button

located on the left rear trim panel. If the liftgate is

in motion, pushing the button again will reverse the

liftgate.
When the liftgate button on the key fob is pushed

two times, the turn signals will flash twice to signal

that the liftgate is opening or closing, and an

audible chime can be heard (if enabled in the

Uconnect Settings

page 165).

WARNING!

Driving with the liftgate open can allow

poisonous exhaust gases into your vehicle. You

and your passengers could be injured by these

fumes. Keep the liftgate closed when you are

operating the vehicle.

GETTING TO KNOW YOUR VEHICLE

The key fob and the overhead console switch will

open the liftgate when the liftgate is locked. The

outside handle requires the liftgate to be unlocked.

If the vehicle is equipped with Passive Entry, and a

valid Passive Entry key fob is within 5 ft (1.5 m) of

the liftgate, pulling the outside handle will unlock

and open the liftgate.
NOTE:



Before closing the liftgate, make sure to be in

possession of the key because the liftgate may

be locked.



Use the interior door lock/unlock button on the

door panel or the key fob to lock and unlock the

liftgate. The manual door locks on the doors and

the exterior door lock cylinder will not lock and

unlock the liftgate.



The liftgate will either unlock along with the

vehicle doors, or it will need to be unlocked by

pushing the electronic liftgate release,

depending on the selected setting in the

Uconnect system

page 165.



The power liftgate buttons will not operate if the

vehicle is in gear or the vehicle speed is above

0 mph (0 km/h).



The power liftgate will not operate in tempera

tures below −22°F (−30°C) or temperatures

above 150°F (65°C). Be sure to remove any

buildup of snow or ice from the liftgate before

pushing any of the power liftgate switches.



If anything obstructs the power liftgate while it is

closing or opening, the liftgate will automatically

reverse to the closed or open position. After

multiple obstructions in the same cycle, the lift

gate will automatically stop and must be opened

or closed manually.



There are pinch sensors attached to the side of

the liftgate. Light pressure anywhere along

these strips will cause the liftgate to return to

the open position.



The power liftgate must be in the full open posi

tion in order for the rear liftgate close button, on

the left rear trim near the liftgate opening, to

operate. If the liftgate is not fully open, push the

liftgate button on the key fob to fully open the

liftgate and then push it again to close.



If the electronic liftgate release handle is

pushed a second time while the power liftgate is

opening, the liftgate motor will disengage to

allow manual operation.



If your liftgate is power closing and you put the

vehicle in gear, the liftgate will continue to

power close. However, vehicle movement may

result in the detection of an obstruction.



Allow the power system to open the liftgate.

Manually pushing or pulling the liftgate may acti

vate the liftgate obstacle detection feature and

stop the power operation or reverse its direc

tion.

Lock The Vehicle
With a valid Passive Entry key fob within 5 ft

(1.5 m) of the liftgate, pushing the Passive Entry

lock button located to the right of the electronic

liftgate release handle will lock the vehicle.

WARNING!



Driving with the liftgate open can allow

poisonous exhaust gases into your vehicle.

You and your passengers could be injured by

these fumes. Keep the liftgate closed when

you are operating the vehicle.



If you are required to drive with the liftgate

open, make sure that all windows are closed,

and the climate control blower switch is set at

high speed. Do not use the recirculation

mode.



During power operation, personal injury or

cargo damage may occur. Ensure the liftgate

travel path is clear. Make sure the liftgate is

closed and latched before driving away.



Personal injury or cargo damage may occur if

caught in the path of the liftgate. Make sure

the liftgate path is clear before activating the

liftgate.

GETTING TO KNOW YOUR VEHICLE

(Continued)

ANDS

-F

REE

IFTGATE

— I

QUIPPED

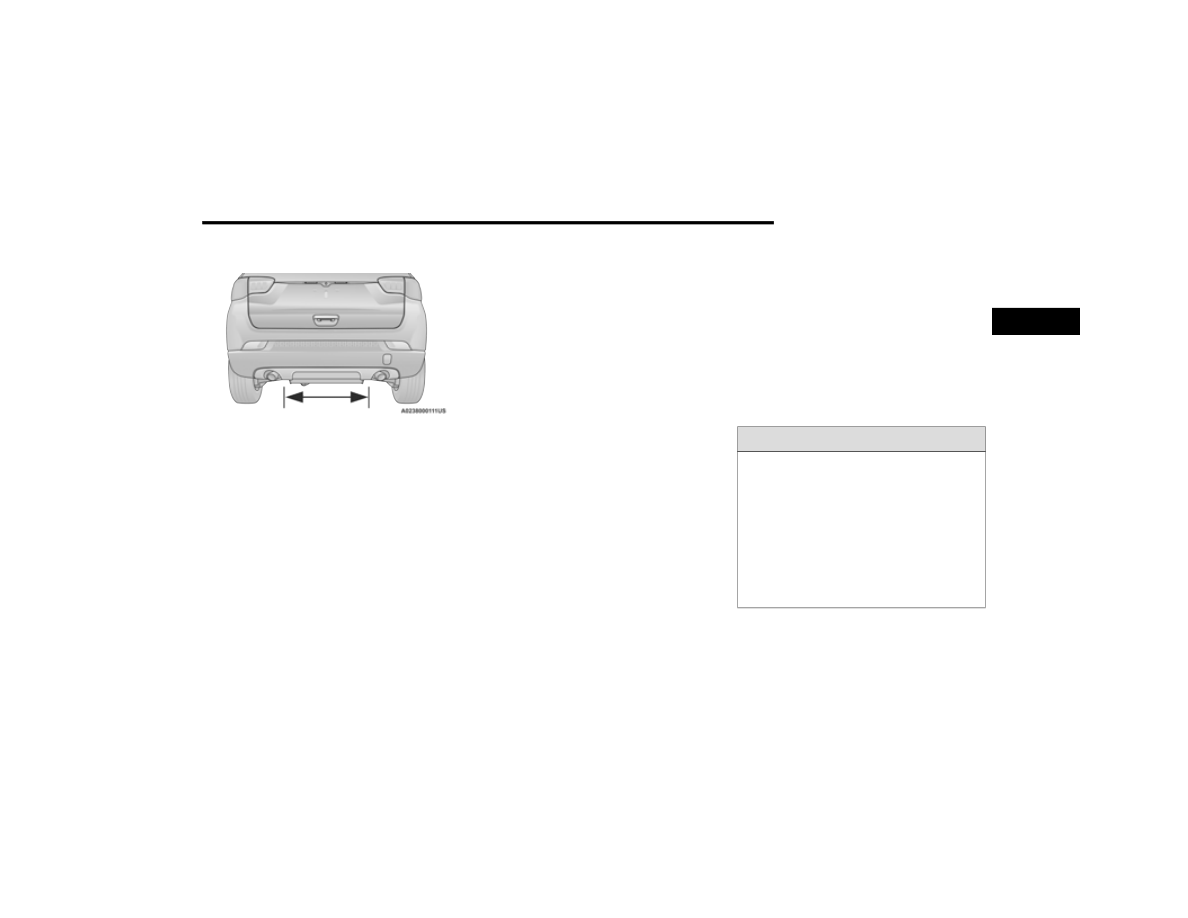

Hands-Free Liftgate Activation Zone

To open or close the liftgate using hands-free

activation, use a straight in and out kicking motion

under the vehicle activation zone in the general

location below the rear license plate. The activation

zone is about 1.8 ft (0.5 m) from side to side. Do not

move your foot sideways or in a sweeping motion or

the sensors may not detect the motion.
NOTE:

Activation zone is the same for vehicles equipped

with or without a trailer tow package.
When a valid kicking motion is completed, the

liftgate will chime, the hazard lights will flash and

the liftgate will open after approximately one

second, or close after approximately three

seconds. These settings can be enabled or

disabled through Uconnect Settings

page 165.

NOTE:



Opening or closing the Hands-Free Liftgate

requires a valid Passive Entry key fob within 5 ft

(1.5 m) of the door handle. If a valid Passive

Entry key fob is not within 5 ft (1.5 m), the lift

gate will not respond to any kicks.



The Hands-Free Liftgate feature may be turned

on or off through the Uconnect system

page 165.



The Hands-Free Liftgate feature should be

turned off during jacking, tire changing, manual

car wash, and vehicle service.



The Hands-Free Liftgate feature can be acti

vated by any metallic object making a similar

in-and-out motion under the rear fascia/

bumper, such as cleaning using a metal broom.



The Hands-Free Liftgate will only operate when

the transmission is in PARK.



If anything obstructs the Hands-Free Liftgate

while it is opening or closing, the liftgate will

automatically reverse to the closed/open posi

tion, provided it meets sufficient resistance.



There are pinch sensors attached to the side of

the liftgate opening. Light pressure anywhere

along these strips will cause the liftgate to

return to the open position.



If the power liftgate encounters multiple

obstructions within the same cycle, the system

will automatically stop. If this occurs, the liftgate

must be operated manually.



The power liftgate will release, but not power

open, in temperatures below −12°F (−24°C).

Be sure to remove any buildup of snow or ice

from the liftgate before opening the liftgate.



If the liftgate is left open for an extended period

of time (approximately one hour), the liftgate

may need to be closed manually to reset power

liftgate functionality.

WARNING!



Driving with the liftgate open can allow

poisonous exhaust gases into your vehicle.

You and your passengers could be injured by

these fumes. Keep the liftgate closed when

you are operating the vehicle.



If you are required to drive with the liftgate

open, make sure that all windows are closed,

and the climate control blower switch is set at

high speed. Do not use the recirculation

mode.

GETTING TO KNOW YOUR VEHICLE

Gas props support the liftgate in the open position.

However, because the gas pressure drops with

temperature, it may be necessary to assist the

props when opening the liftgate in cold weather.
NOTE:

Allow the power system to open the liftgate.

Manually pushing or pulling the liftgate may

activate the liftgate obstacle detection feature and

stop the power operation or reverse its direction.

ARGO

REA

EATURES

Cargo Load Floor

The cargo load floor system has a load capacity of

400 lb (181 kg).

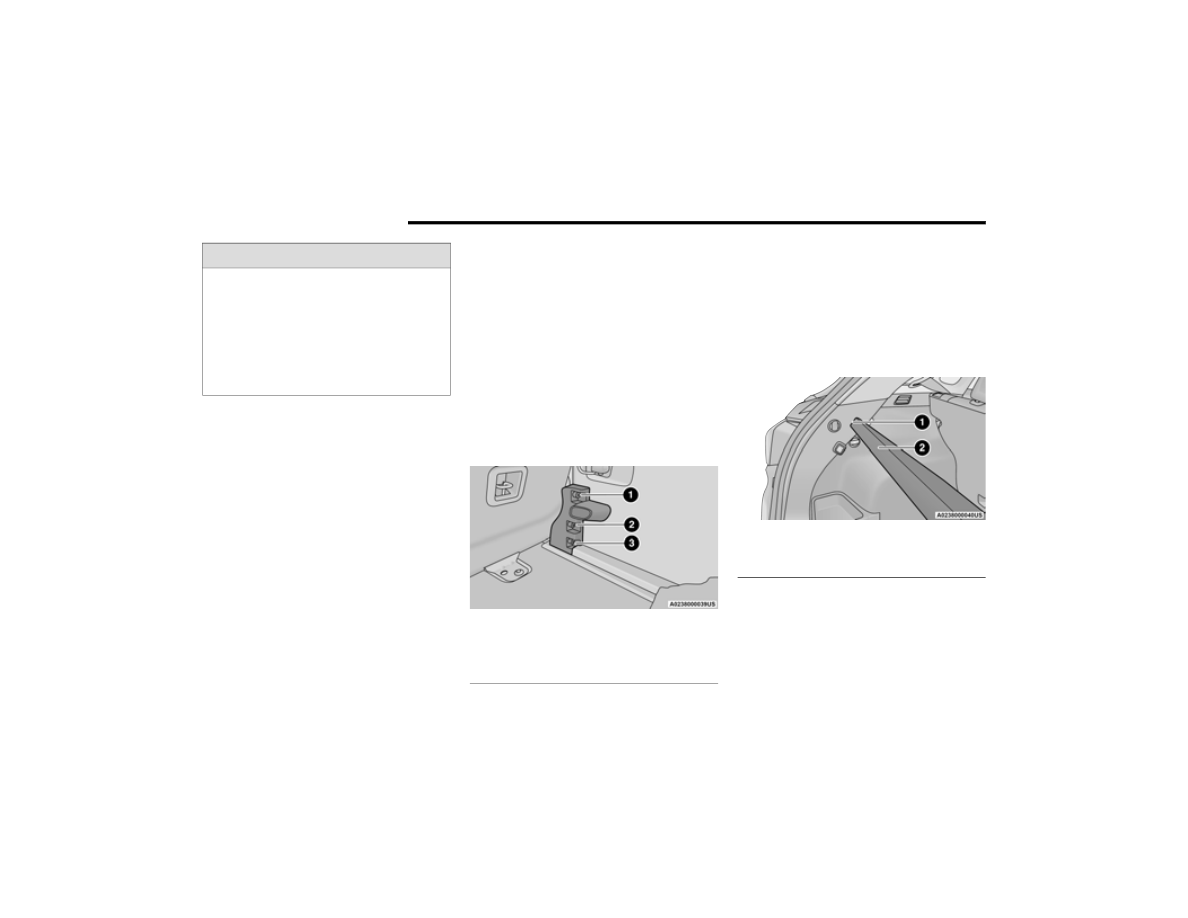

Cargo Load Floor Positions
The cargo load floor can be adjusted to three

different levels to create more space in the cargo

area. These positions are: upper, center, and

lower.
NOTE:

The lower position is not available in vehicles

equipped with either a compact spare tire, or a full

size spare tire. The center position is not available

in vehicles equipped with a full size spare tire.
To change the level of the load floor, pull upward

on the load floor handle, pull the floor outward, and

place the back of the floor into the desired

position. Lower the front of the floor into place.

Cargo Load Floor Positions

Raising The Load Floor
To raise the load floor for access to the Tire Service

Kit, or spare tire (if equipped), pull upward on the

load floor handle.
Do not raise the floor beyond the point of

resistance. In vehicles equipped with a power

liftgate, forcing the floor upward can damage the

floor and vehicle’s trim panel.

Raised Load Floor — (Power Liftgate)



During power operation, personal injury or

cargo damage may occur. Ensure the liftgate

travel path is clear. Make sure the liftgate is

closed and latched before driving away.



Personal injury or cargo damage may occur if

caught in the path of the liftgate. Make sure

the liftgate path is clear before activating the

liftgate.

WARNING!

1 — Upper Position
2 — Center Position
3 — Lower Position

1 — Raised Floor Maximum Height
2 — Raised Load Floor

GETTING TO KNOW YOUR VEHICLE

(Continued)

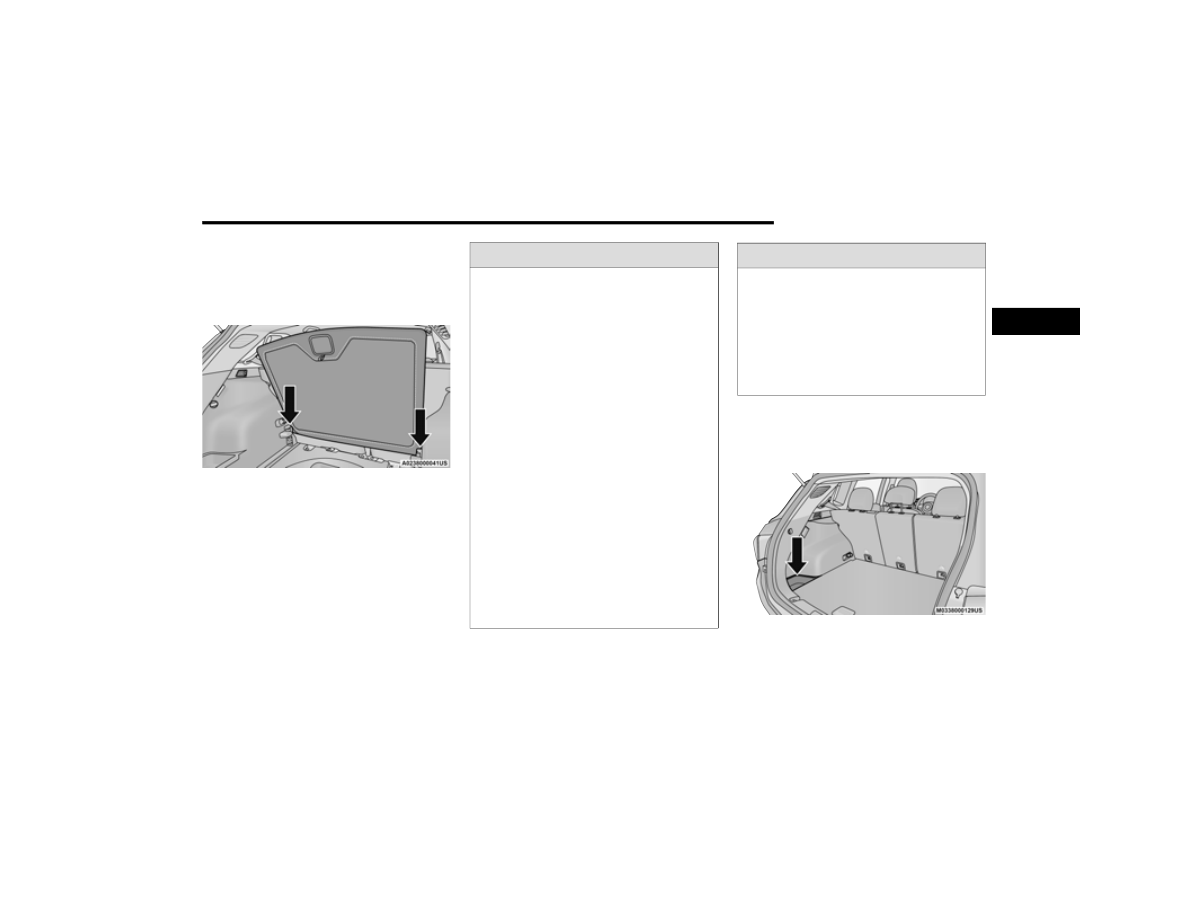

To fully raise the load floor, pull upward on the floor

handle, pull the floor outward, then position the

floor upright with the bottom fitting on top of the

floor positioning brackets. Push the top of the floor

down firmly to secure it in this position.

Fully Raised Load Floor Position

To provide additional storage area, each rear seat

can be folded flat. This allows for extended cargo

space and still maintains some rear seating room

page 28.

Cargo Tie-Down Hooks And Loops

The tie-downs located on the cargo area floor

should be used to secure loads safely when the

vehicle is moving.
Cargo tie-down loops are located on the trim

panels.

Rear Storage Bins

The rear storage bins are located in the rear of the

vehicle on the sides of the load floor.

Rear Storage Bin

WARNING!



Cargo tie-downs are not safe anchors for a

child seat tether strap. In a sudden stop or

accident, a tie-down could pull loose and allow

the child seat to come loose. A child could be

badly injured. Use only the anchors provided

for child seat tethers.



To help protect against personal injury,

passengers should not be seated in the rear

cargo area. The rear cargo space is intended

for load carrying purposes only, not for

passengers, who should sit in seats and use

seat belts.

The weight and position of cargo and

passengers can change the vehicle center of

gravity and vehicle handling. To avoid loss of

control resulting in personal injury, follow these

guidelines for loading your vehicle:



Do not carry loads that exceed the load limits

described on the label attached to the left

door or left door center pillar.



Always place cargo evenly on the cargo floor.

Put heavier objects as low and as far forward

as possible.



Place as much cargo as possible in front of the

rear axle. Too much weight or improperly

placed weight over or behind the rear axle can

cause the vehicle to sway.



Do not pile luggage or cargo higher than the

top of the seatback. This could impair visibility

or become a dangerous projectile in a sudden

stop or accident.

WARNING!

GETTING TO KNOW YOUR VEHICLE

(Continued)

ROOF LUGGAGE RACK — IF EQUIPPED

The load carried on the roof, when equipped with a

luggage rack, must not exceed 150 lb (68 kg), and

it should be uniformly distributed over the cargo

area.
Crossbars should always be used whenever cargo

is placed on the roof rack. Check the straps

frequently to be sure that the load remains

securely attached.
NOTE:

Crossbars can be purchased at your authorized

dealer through Mopar® parts.
External racks do not increase the total load

carrying capacity of the vehicle. Be sure that the

total occupant and luggage load inside the vehicle,

plus the load on the luggage rack, do not exceed

the maximum vehicle load capacity.

WARNING!

Cargo must be securely tied down before driving

your vehicle. Improperly secured loads can fly off

the vehicle, particularly at high speeds, resulting

in personal injury or property damage. Follow

the roof rack cautions when carrying cargo on

your roof rack.

CAUTION!



To avoid damage to the roof rack and vehicle,

do not exceed the maximum roof rack load

capacity. Always distribute heavy loads as

evenly as possible and secure the load appro

priately.



Long loads, which extend over the windshield,

should be secured to both the front and rear of

the vehicle.



Place a blanket or other protection between

the surface of the roof and the load.



Travel at reduced speeds and turn corners

carefully when carrying large or heavy loads

on the roof rack. Wind forces, due to natural

causes or nearby truck traffic, can add sudden

upward lift. It is recommended to not carry

large flat loads, such as wood panels or surf

boards, which may result in damage to the

cargo or your vehicle.



Load should always be secured to crossbars

first, with tie down loops used as additional

securing points if needed. Tie loops are

intended as supplementary tie down points

only. Do not use ratcheting mechanisms with

the tie loops. Check the straps frequently to be

sure that the load remains securely attached.

CAUTION!

Jeep Compass (2022 year). Manual in english - page 4
