GETTING TO KNOW YOUR VEHICLE

25

NOTE:

DO NOT grab the door handle when pushing the door

handle lock button. This could unlock the door(s).

DO NOT Grab The Door Handle When Locking

NOTE:

After pushing the door handle button, you must

wait two seconds before you can lock or unlock

the doors, using either Passive Entry door

handle. This is done to allow you to check if the

vehicle is locked by pulling the door handle

without the vehicle unlocking.

If Passive Entry is disabled using the Uconnect

settings, the key protection described in

"Frequency Operated Button Integrated Key

(FOBIK-Safe)" remains active/functional.

The Passive Entry system will not operate if the

key fob battery is depleted.

To Unlock/Enter The Liftgate
The liftgate Passive Entry unlock feature is built

into the electronic liftgate release handle. With a

valid Passive Entry key fob within 5 ft (1.5 m) of the

liftgate, push the electronic liftgate release handle

to open.

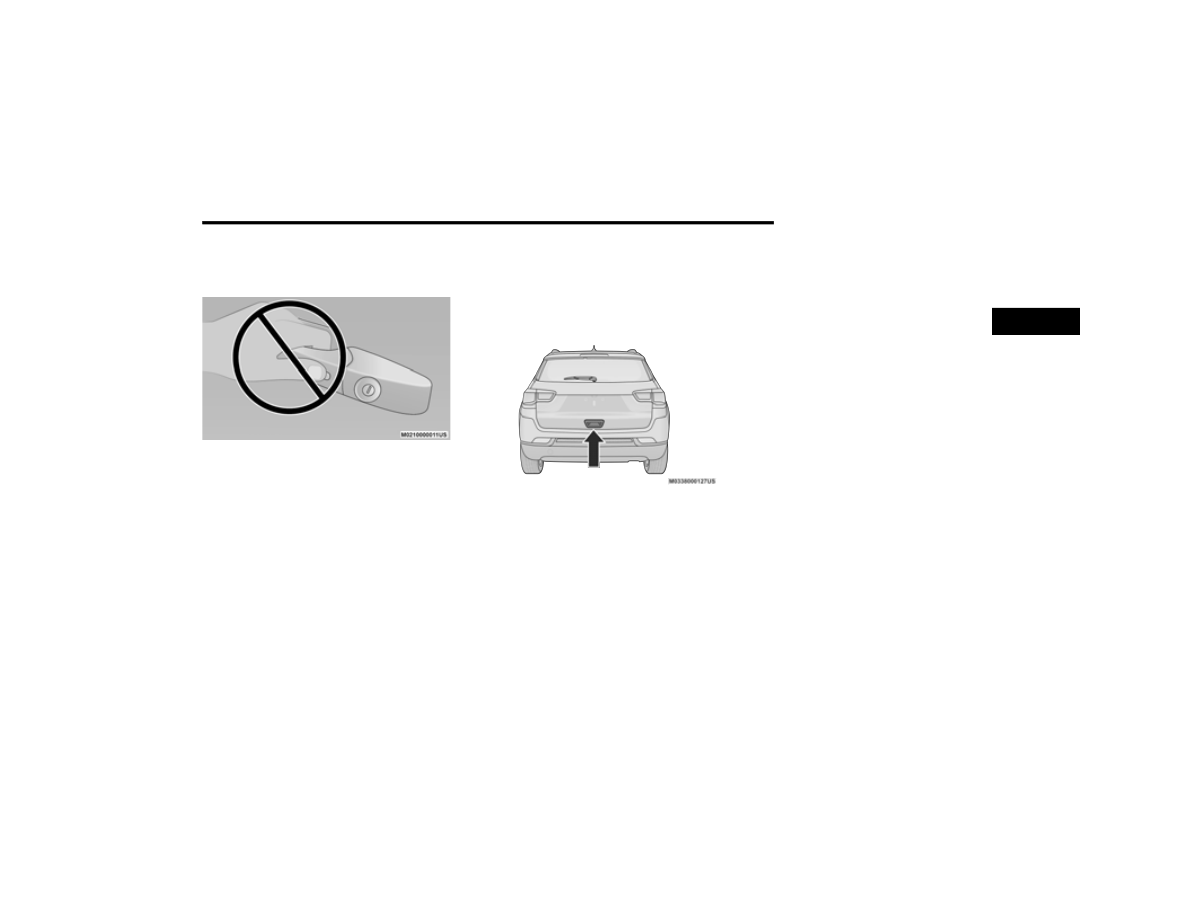

Electronic Liftgate Release/Liftgate Passive

Entry Location

To Lock The Liftgate
With a valid Passive Entry key fob within 5 ft

(1.5 m) of the liftgate, push the Passive Entry lock

button located to the right of the electronic liftgate

release handle.
NOTE:

The liftgate Passive Entry lock button will lock all

doors and the liftgate

Ú

page 328.

A

UTOMATIC

 U

NLOCK

 D

OORS

 O

N

 E

XIT



The doors will unlock automatically on vehicles

with power door locks if:
1. The Automatic Unlock Doors On Exit feature is

enabled.

2. All doors are closed.
3. The gear selector was not in PARK, then is

placed in PARK.

4. Any door is opened.

C

HILD

-P

ROTECTION

 D

OOR

 L

OCK



S

YSTEM

 — R

EAR

 D

OORS

To provide a safer environment for small children

riding in the rear seats, the rear doors are

equipped with a Child-Protection Door Lock

system.
To use the system, open each rear door, use a flat

blade screwdriver (or emergency key) and rotate

the dial to the lock or unlock position. When the

system on a door is engaged, that door can only be

opened by using the outside door handle even if

the inside door lock is in the unlocked position.

2

26

GETTING TO KNOW YOUR VEHICLE



Child-Protection Door Lock Function

NOTE:

When the Child-Protection Door Lock system is

engaged, the door can be opened only by using

the outside door handle even though the inside

door lock is in the unlocked position.

After disengaging the Child-Protection Door

Lock system, always test the door from the

inside to make certain it is in the desired posi

-

tion.

After engaging the Child-Protection Door Lock

system, always test the door from the inside to

make certain it is in the desired position.

For emergency exit with the system engaged,

rotate the door lock button until the lock indi

-

cator is hidden (unlocked position), roll down

the window, and open the door with the outside

door handle.

NOTE:

Always use this device when carrying children.

After engaging the child lock on both rear doors,

check for effective engagement by trying to open a

door with the internal handle. Once the

Child-Protection Door Lock system is engaged, it is

impossible to open the doors from inside the

vehicle. Before getting out of the vehicle, be sure to

check that there is no one left inside.

STEERING WHEEL

T

ILT

/T

ELESCOPING

 S

TEERING

 C

OLUMN



This feature allows you to tilt the steering column

upward or downward. It also allows you to lengthen

or shorten the steering column. The tilt/

telescoping lever is located below the steering

wheel at the end of the steering column.

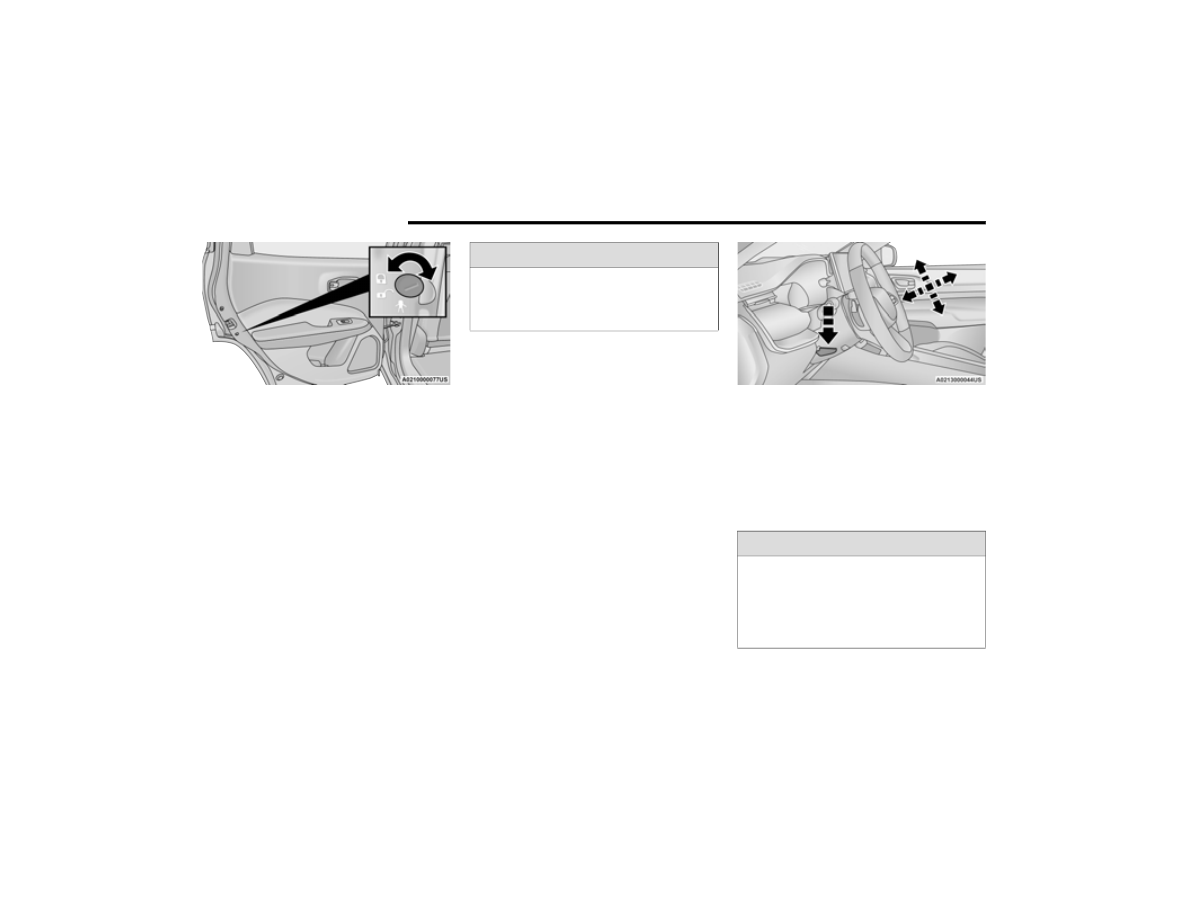

Tilt/Telescoping Lever

To unlock the steering column, push the control

handle downward (toward the floor). To tilt the

steering column, move the steering wheel upward

or downward as desired. To lengthen or shorten

the steering column, pull the steering wheel

outward or push it inward as desired. To lock the

steering column in position, push the control

handle upward until fully engaged.

WARNING!

Avoid trapping anyone in a vehicle in a collision.

Remember that the rear doors can only be

opened from the outside when the

Child-Protection locks are engaged (locked).

WARNING!

Do not adjust the steering column while driving.

Adjusting the steering column while driving or

driving with the steering column unlocked, could

cause the driver to lose control of the vehicle.

Failure to follow this warning may result in

serious injury or death.

GETTING TO KNOW YOUR VEHICLE

27

H

EATED

 S

TEERING

 W

HEEL

 —

I

F

 E

QUIPPED



The steering wheel contains a heating

element that helps warm your hands in

cold weather. The heated steering wheel

has only one temperature setting. Once

the heated steering wheel has been turned on, it

will stay on until the operator turns it off. The

heated steering wheel may not turn on when it is

already warm.
The heated steering wheel control button is

located within the Uconnect system. You can gain

access to the control button through the climate

screen or the controls screen.

Push the heated steering wheel button once to

turn the heating element on.

Push the heated steering wheel button a second

time to turn the heating element off.

NOTE:

The engine must be running for the heated

steering wheel to operate.
For information on use with the Remote Start

system, see

Ú

page 20.

DRIVER MEMORY SETTINGS — IF EQUIPPED

This feature allows the driver to save up to two

different memory profiles for easy recall through a

memory switch. Each memory profile saves

desired position settings for the following features:

Driver seat position

Easy Entry/Exit seat (if equipped)

A set of desired radio station presets

NOTE:

Your vehicle is equipped with two key fobs, each

can be linked to either memory position 1 or 2.

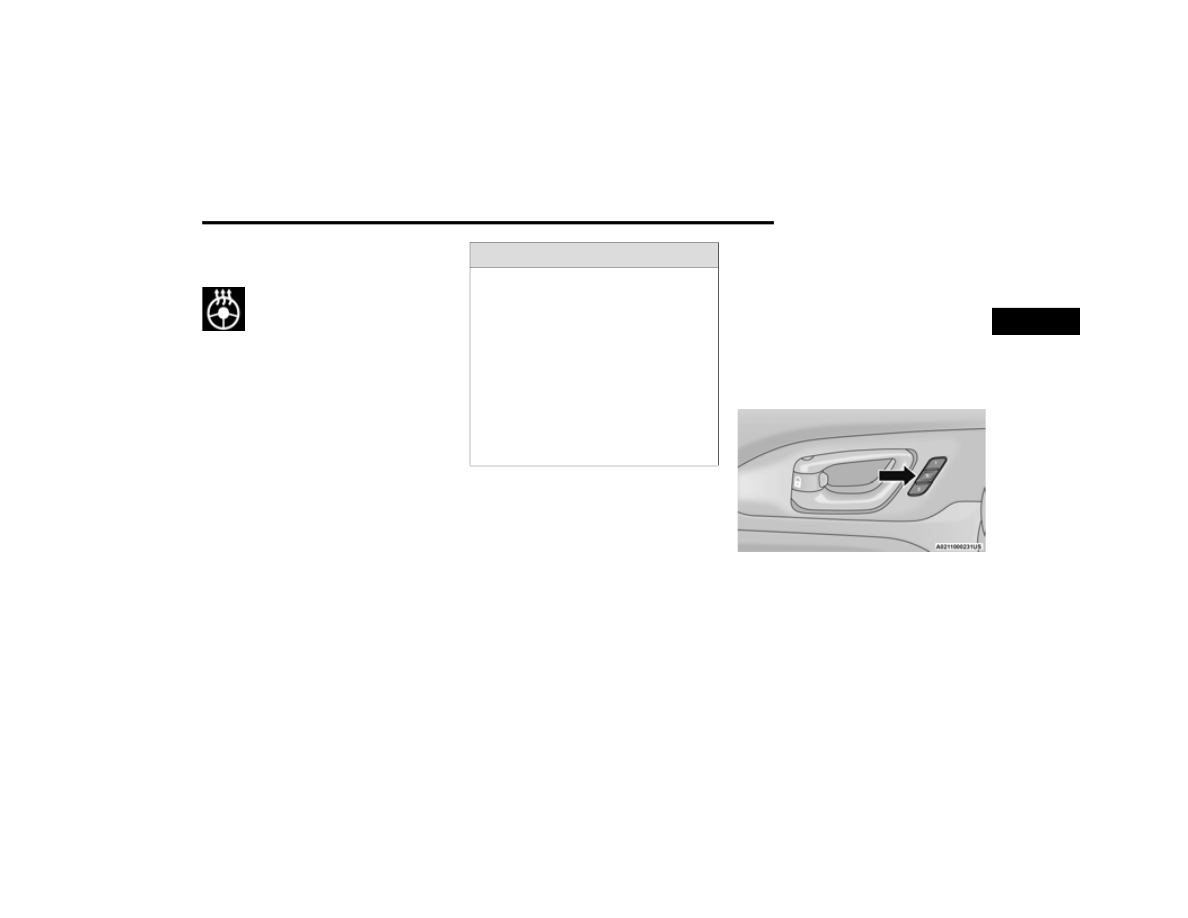

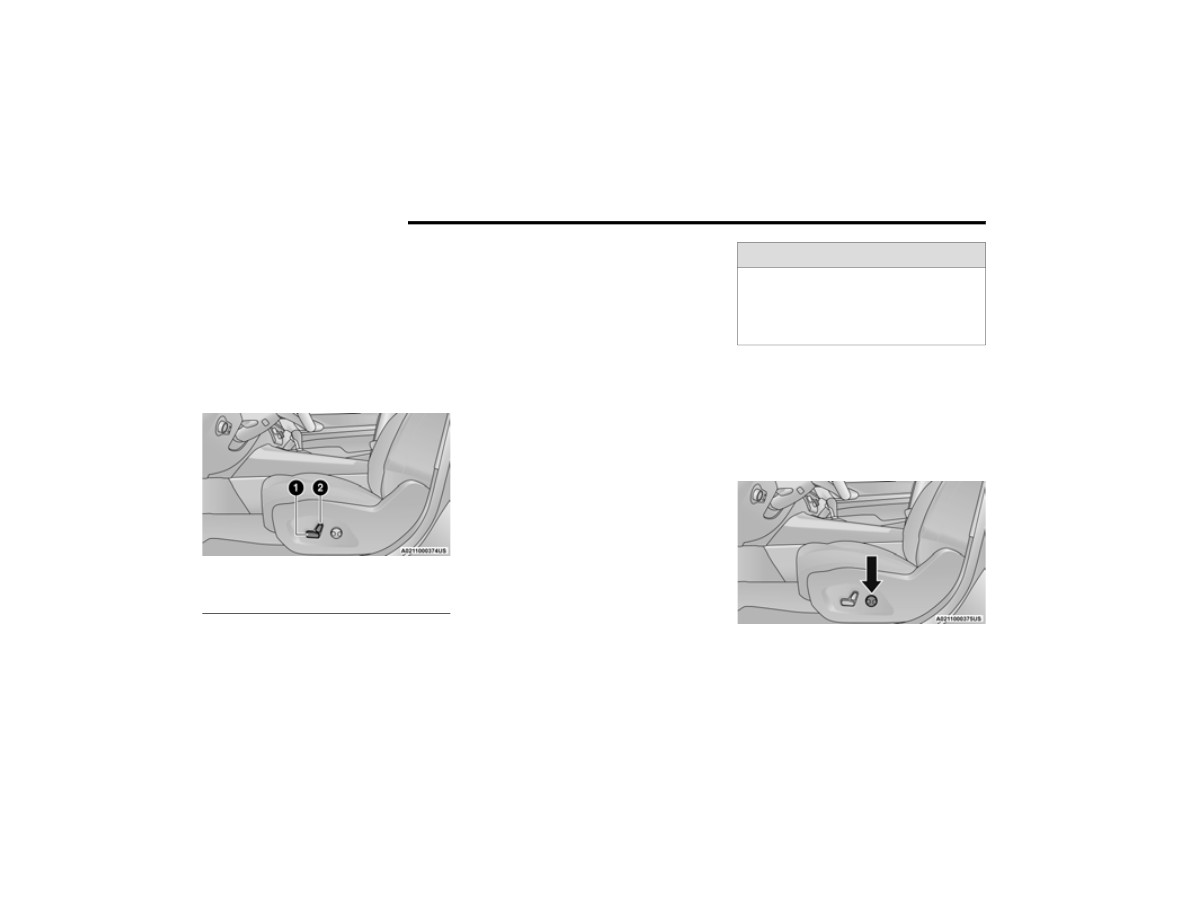

The memory setting switch is located on the

driver’s door trim panel. The switch consists of

three buttons:

The set (S) button, which is used to activate the

memory save function.

The (1) and (2) buttons which are used to recall

either of two saved memory profiles.

Memory Switches

WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion, or other physical

conditions must exercise care when using the

steering wheel heater. It may cause burns

even at low temperatures, especially if used

for long periods.

Do not place anything on the steering wheel

that insulates against heat, such as a blanket

or steering wheel covers of any type and mate

-

rial. This may cause the steering wheel heater

to overheat.

2

28

GETTING TO KNOW YOUR VEHICLE



P

ROGRAMMING

 T

HE

 M

EMORY

 F

EATURE

To create a new memory profile, perform the

following:
NOTE:

Saving a new memory profile will erase an existing

profile from memory.
1. Place the vehicle’s ignition in the ON position.
2. Adjust all memory profile settings to desired

preferences (i.e., seat and radio station

presets).

3. Push the set (S) button on the memory switch,

and then push the desired memory button

(1 or 2) within five seconds. The instrument

cluster display will display which memory

position is being set.

NOTE:

Memory profiles can be set without the vehicle in

PARK, but the vehicle must be in PARK to recall a

memory profile.

L

INKING

 A

ND

 U

NLINKING

 T

HE

 R

EMOTE



K

EYLESS

 E

NTRY

 K

EY

 F

OB

 T

O

 M

EMORY

Your remote keyless entry key fob can be

programmed to recall one of two saved memory

profiles.

NOTE:

Before programming your key fob you must select

the “Memory Linked To FOB” feature through the

Uconnect Settings

Ú

page 165.

To program your key fob, perform the following:
1. Place the vehicle’s ignition in the OFF

position.

2. Select the desired memory profile (1) or (2).
3. Push and release the set (S) button on the

memory switch, then within five seconds push

and release the button labeled (1) or (2)

accordingly. “Memory Profile Set” (1 or 2) will

display in the instrument cluster display.

4. Push and release the lock button on the key

fob within 10 seconds.

NOTE:

Your key fob can be unlinked from your memory

settings by pushing the set (S) button, followed by

pushing the unlock button on the key fob within

10 seconds.

M

EMORY

 P

OSITION

 R

ECALL

NOTE:

The vehicle must be in PARK to recall memory posi

-

tions. If a recall is attempted when the vehicle is

not in PARK, a message will display in the

instrument cluster display.

To recall the memory settings for driver one or two,

push the desired memory button number (1 or 2)

or the unlock button on the key fob linked to the

desired memory position.
A recall can be canceled by pushing any of the

memory buttons (S, 1, or 2) during a recall. When

a recall is canceled, the driver seat will stop

moving. A delay of one second will occur before

another recall can be selected.

SEATS

Seats are a part of the Occupant Restraint system

of the vehicle.

WARNING!

It is dangerous to ride in a cargo area, inside

or outside of a vehicle. In a collision, people

riding in these areas are more likely to be seri

-

ously injured or killed.

Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts. In a collision, people riding in these

areas are more likely to be seriously injured or

killed.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

GETTING TO KNOW YOUR VEHICLE

29

M

ANUAL

 A

DJUSTMENT

 (F

RONT

 S

EATS

) —

I

F

 E

QUIPPED

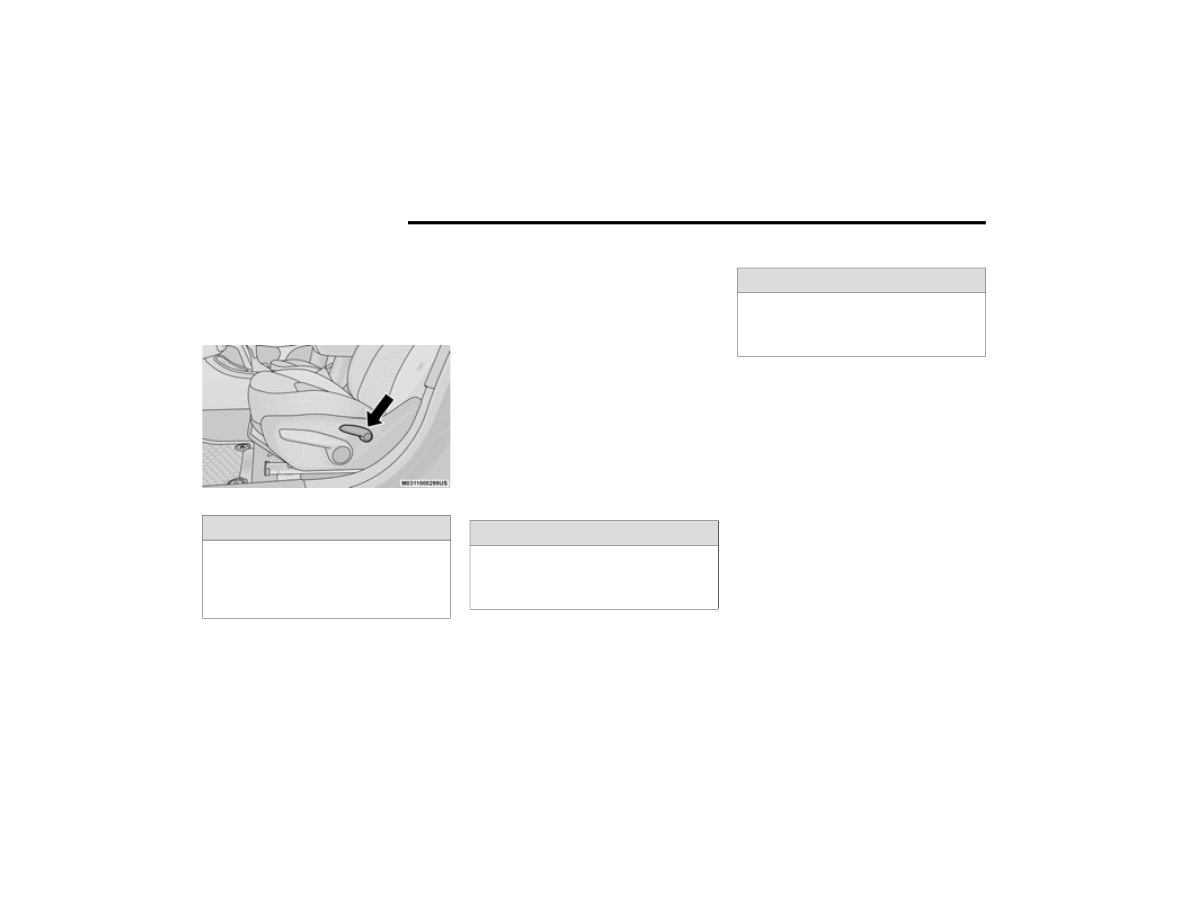

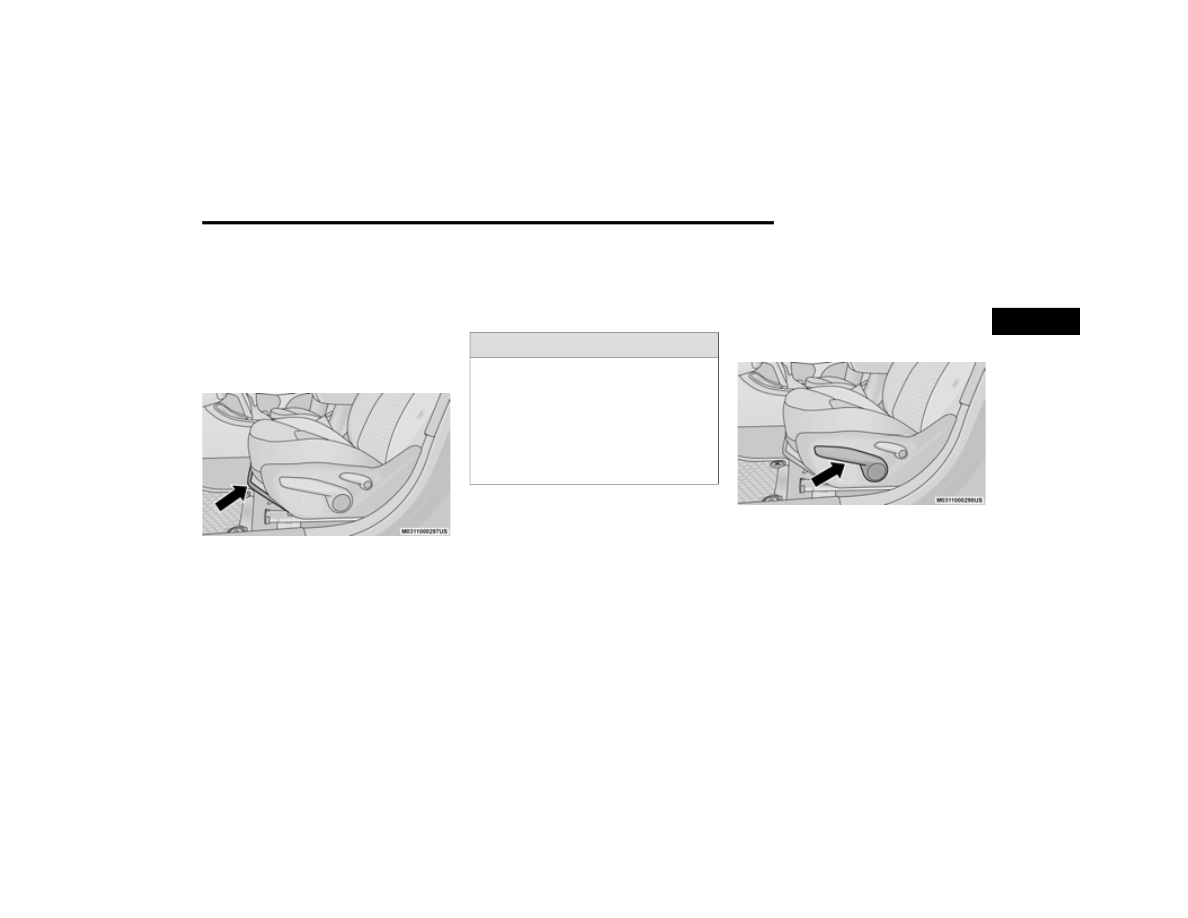

Manual Front Seat Forward/Rearward

Adjustment

Some models may be equipped with manual front

seats. The seats can be adjusted forward or

rearward by using a bar located by the front of the

seat cushion, near the floor.

Front Seat Adjustment

While sitting in the seat, lift up on the bar and move

the seat forward or rearward. Release the bar once

you have reached the desired position. Then, using

body pressure, move forward and rearward on the

seat to be sure that the seat adjusters have

latched.

Manual Seat Height Adjustment —

If Equipped

The driver’s seat height can be raised or lowered

by using a lever, located on the outboard side of

the seat. Pull upward on the lever to raise the seat

height or push downward on the lever to lower the

seat height.

Seat Height Adjustment

WARNING!

Adjusting a seat while driving may be

dangerous. Moving a seat while driving could

result in loss of control which could cause a

collision and serious injury or death.

Seats should be adjusted before fastening the

seat belts and while the vehicle is parked.

Serious injury or death could result from a

poorly adjusted seat belt.

2

30

GETTING TO KNOW YOUR VEHICLE



Manual Front Seat Recline Adjustment

To adjust the seatback, lift the lever located on the

outboard side of the seat, lean back to the desired

position and release the lever. To return the

seatback, lift the lever, lean forward and release

the lever.

Recline Lever

Fold-Forward Front Passenger Seat —

If Equipped

This feature allows for extended cargo space.

When the seat is folded flat, it is an extension of

the load floor surface (allowing long cargo to fit

from the rear hatch up to the instrument panel).

The fold-forward seatback has a softback surface

that you can use as a work surface when the seat

is folded forward and the vehicle is not in motion.
Pull upward on the recline lever to fold or unfold

the seat.
NOTE:

You may experience deformation in the seat

cushion from the seat belt buckles if the seats are

left folded for an extended period of time. This is

normal and by simply unfolding the seats to the

open position, over time the seat cushion will

return to its normal shape.

M

ANUAL

 A

DJUSTMENT

 (R

EAR

 S

EATS

)

60/40 Split Folding Rear Seat With

Fold-Flat Feature

To provide additional storage area, each rear seat

can be folded flat. This allows for extended cargo

space and still maintains some rear seating room.
NOTE:

Prior to folding the rear seat, it may be necessary

to position the front seat to its mid-track position.

Also, be sure that the front seats are fully upright

and positioned forward. This will allow the rear seat

to fold down easily.

WARNING!

Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt, which could result in serious injury

or death.

WARNING!

Adjusting a seat while the vehicle is moving is

dangerous. The sudden movement of the seat

could cause you to lose control. Adjust any seat

only while the vehicle is parked.

WARNING!

Do not pile luggage or cargo higher than the top

of the seatback. This could impair visibility or

become a dangerous projectile in a sudden stop

or collision.

GETTING TO KNOW YOUR VEHICLE

31

TO LOWER THE REAR SEAT

1. Pull the seatback release lever located on

either side of the upper outer edge of the

seat.

Rear Seat Release Lever

2. Fold that side of the rear seatback completely

forward.

TO RAISE THE REAR SEAT

NOTE:

If interference from the cargo area prevents the

seatback from fully locking, you will have difficulty

returning the seat to its proper position.
Raise the seatback and lock it into place.
The release lever will show a red indicator while in

the unlocked position. Once the seat is locked in,

the red indicator will no longer be visible.

WARNING!

It is extremely dangerous to ride in a cargo

area, inside or outside of a vehicle. In a colli

-

sion, people riding in these areas are more

likely to be seriously injured or killed.

Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

1 — Seat Belt Guide
2 — Seatback Release Lever

WARNING!

Be certain that the seatback is securely locked

into position. If the seatback is not securely

locked into position the seat will not provide the

proper stability for child seats and/or

passengers. An improperly latched seat could

cause serious injury.

2

32

GETTING TO KNOW YOUR VEHICLE



P

OWER

 A

DJUSTMENT

 (F

RONT

 S

EATS

) —

I

F

 E

QUIPPED

Some models may be equipped with a power

driver's seat and/or power passenger seat. The

power seat switch and power seat recliner switch

are located on the outboard side of the seat near

the floor. Use the power seat switch to adjust seat

height, angle, or forward/rearward position. Use

the power seat recline switch to adjust the angle of

the seatback.

Power Seat Switches

Forward Or Rearward Adjustment
The seat can be adjusted both forward and

rearward. Push the seat switch forward or

rearward, the seat will move in the direction of the

switch. Release the switch when the desired

position has been reached.
Height Adjustment
The height of the seats can be adjusted up or

down. Pull upward or push downward on the seat

switch, the seat will move in the direction of the

switch. Release the switch when the desired

position is reached.
Tilt Adjustment
The angle of the seat cushion can be adjusted up

or down. Pull upward or push downward on the

front of the seat switch and the front of the seat

cushion will move in the direction of the switch.

Reclining The Seatback Forward Or

Rearward

The seatback can be reclined both forward and

rearward. Push the seat recliner switch forward or

rearward. The seatback will move in the direction

of the switch. Release the switch when the desired

position has been reached.

Power Lumbar — If Equipped

Vehicles equipped with power driver or passenger

seats may be equipped with power lumbar. The

power lumbar switch is located on the outboard

side of the power seat. Push the switch forward to

increase the lumbar support. Push the switch

rearward to decrease the lumbar support.

Power Lumbar Switch

1 — Power Seat Switch
2 — Power Recline Switch

WARNING!

Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt, which could result in serious injury

or death.

GETTING TO KNOW YOUR VEHICLE

33

Easy Entry/Exit Seat — If Equipped

This feature provides automatic driver seat

positioning to enhance driver mobility when

entering and exiting the vehicle.
The distance the driver seat moves depends on

where you have the driver seat positioned when

you place the vehicle’s ignition in the OFF position.

When you place the vehicle’s ignition in the OFF

position, the driver seat will move about

2.4 inches (60 mm) rearward if the driver seat

position is greater than or equal to 2.7 inches

(67.7 mm) forward of the rear stop. The seat will

return to its previously set position when you

place the vehicle’s ignition in the RUN position.

The Easy Entry/Easy Exit feature is disabled

when the driver seat position is less than 0.9 of

an inch (22.7 mm) forward of the rear stop. At

this position, there is no benefit to the driver by

moving the seat for Easy Exit or Easy Entry.

When enabled in Uconnect Settings, Easy Entry

and Easy Exit positions are stored in each memory

setting profile of the Driver Memory Settings

Ú

page 27.

NOTE:

The Easy Entry/Exit feature is not enabled when

the vehicle is delivered from the factory. The Easy

Entry/Exit feature is enabled (or later disabled)

through the programmable features in the

Uconnect Settings

Ú

page 165.

H

EATED

 S

EATS

 — I

F

 E

QUIPPED

Front Heated Seats — If Equipped

The front heated seats control buttons

are located within the Uconnect system.

You can gain access to the control

buttons through the climate screen or the

controls screen.

Press the heated seat button once to turn the

HI setting on.

Press the heated seat button a second time to

turn the LO setting on.

Press the heated seat button a third time to turn

the heating elements off.

If the HI level setting is selected, the system will

automatically switch to LO level after

approximately 60 minutes of continuous

operation. At that time, the display will change

from HI to LO, indicating the change. The LO level

setting will turn off automatically after

approximately 45 minutes.
NOTE:

The engine must be running for the heated seats to

operate.
For information on use with the Remote Start

system, see

Ú

page 20.

WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion or other physical

condition must exercise care when using the

seat heater. It may cause burns even at low

temperatures, especially if used for long

periods of time.

Do not place anything on the seat or seatback

that insulates against heat, such as a blanket

or cushion. This may cause the seat heater to

overheat. Sitting in a seat that has been over

-

heated could cause serious burns due to the

increased surface temperature of the seat.

2

34

GETTING TO KNOW YOUR VEHICLE



Rear Heated Seats

On some models, the two outboard

rear seats are equipped with heated

seats. The heated seat switches for these

seats are located on the rear of the

center console.
There are two heated seat switches that allow

the rear passengers to operate the seats

independently. Indicator lights in each switch

indicate the level of heat in use. Two indicator

lights will illuminate for HI, one for LO and none

for off.

Push the heated seat button once to turn the

HI setting on.

Push the heated seat button a second time to

turn the LO setting on.

Push the heated seat button a third time to turn

the heating elements off.

NOTE:

The level of heat selected will stay on until the

operator changes it.

F

RONT

 V

ENTILATED

 S

EATS

 —

I

F

 E

QUIPPED



Located in the seat cushion and seat

back are fans that draw the air from the

passenger compartment and move air

through fine perforations in the seat

cover to help keep the driver and front passenger

cooler in higher ambient temperatures. The fans

operate at two speeds, HI and LO.
The front ventilated seats control buttons are

located within the Uconnect system. You can gain

access to the control buttons through the climate

screen or the controls screen.

Press the ventilated seat button once to

choose HI.

Press the ventilated seat button a second time

to choose LO.

Press the ventilated seat button a third time to

turn the ventilated seat off.

NOTE:

The engine must be running for the ventilated

seats to operate.
For information on use with the Remote Start

system, see

Ú

page 20.

H

EAD

 R

ESTRAINTS



Head restraints are designed to reduce the risk of

injury by restricting head movement in the event of

a rear impact. Head restraints should be adjusted

so that the top of the head restraint is located

above the top of your ear.

NOTE:

Do not reverse the head restraints (making the

rear of the head restraint face forward) in an

attempt to gain additional clearance to the back of

your head.

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

GETTING TO KNOW YOUR VEHICLE

35

Front Head Restraint Adjustment

Your vehicle is equipped with front four way driver

and passenger head restraints.
To raise the head restraint, pull upward on the

head restraint. To lower the head restraint, push

the adjustment button, located at the base of the

head restraint, and push downward on the head

restraint.

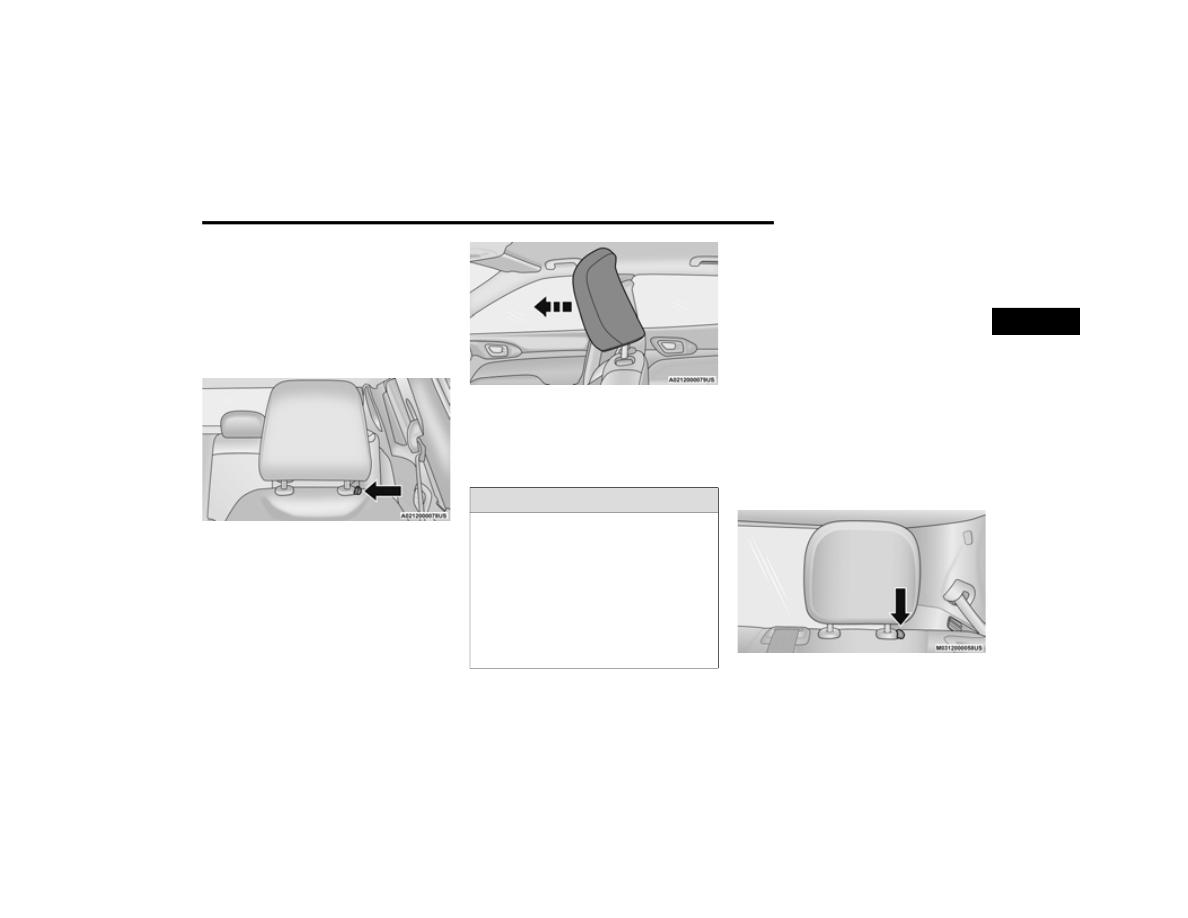

Head Restraint Adjustment Button

To tilt the head restraint forward, pull the top of the

head restraint toward the front of the vehicle as

desired and release. To tilt the head restraint

rearward, pull the top of the head restraint to the

forward most position and release. The head

restraint will return to the rear most position.

Forward Adjustment

NOTE:

Four-way head restraints have seven tilt/locking

positions. When pulling fully forward, the head

restraint will spring back to the untilted, rearward

most position when released.

NOTE:

The head restraints should only be removed by

qualified technicians, for service purposes only. If

either of the head restraints require removal, see

an authorized dealer.

Rear Head Restraints

The rear head restraints have two positions: up or

down. When the center seat is being occupied, the

head restraint should be in the raised position.

When there is no occupant in the center seat, the

head restraint can be lowered for maximum

visibility for the driver.
To raise the head restraint, pull upward on the

head restraint. To lower the head restraint, push

the adjustment button, located at the base of the

head restraint, and push downward on the head

restraint.

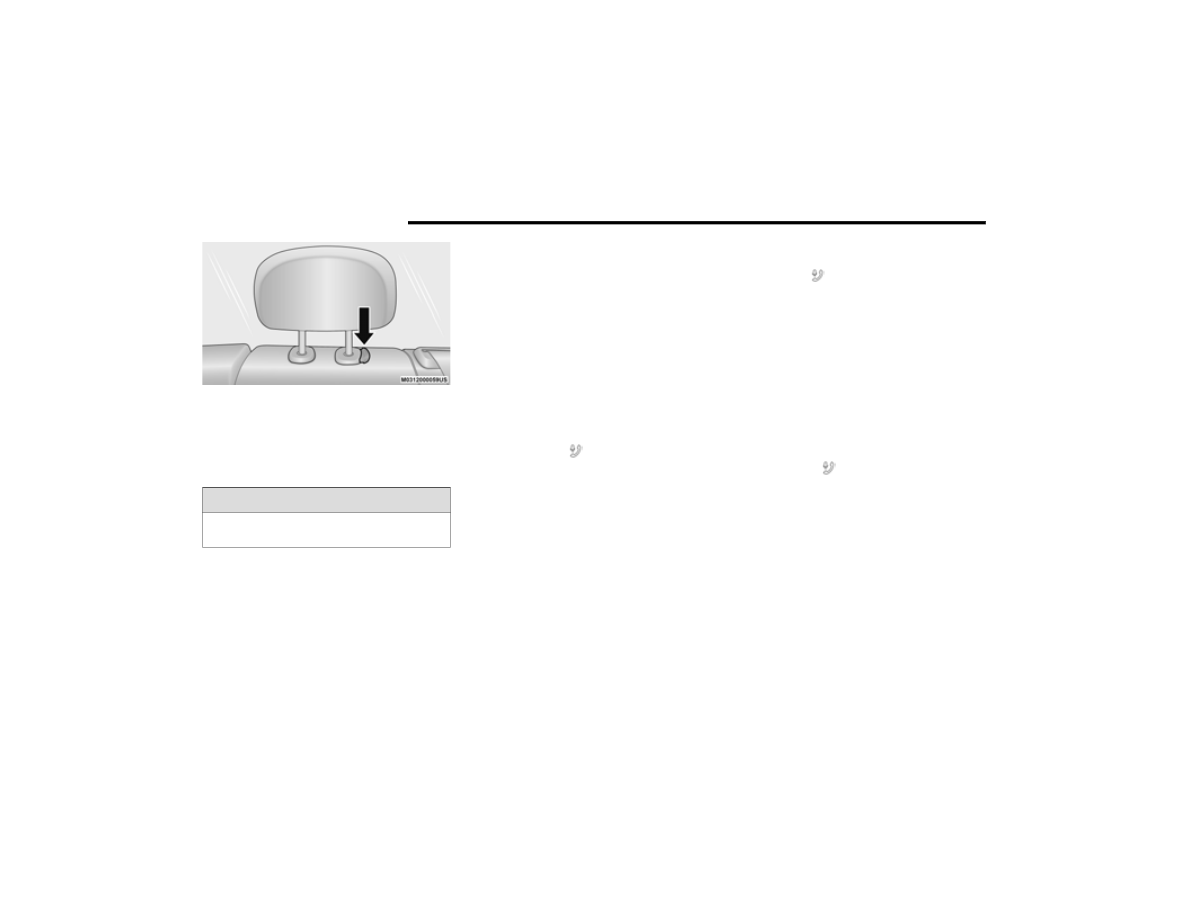

Outboard Head Restraint Adjustment Button

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

2

36

GETTING TO KNOW YOUR VEHICLE



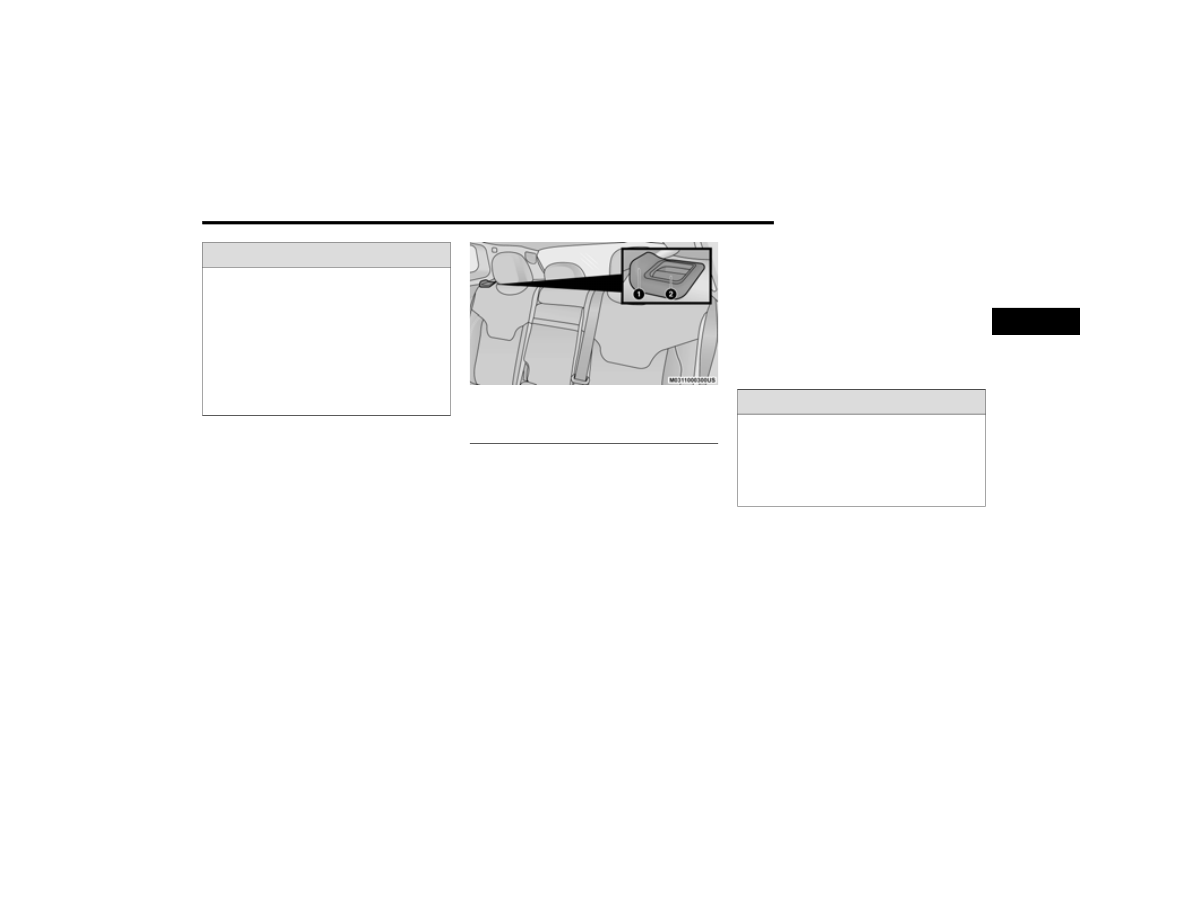

Center Head Restraint Adjustment Button

NOTE:

The head restraints should only be removed by

qualified technicians, for service purposes only. If

either of the head restraints require removal, see

an authorized dealer.

UCONNECT VOICE RECOGNITION QUICK TIPS —

IF EQUIPPED

I

NTRODUCING

 V

OICE

 R

ECOGNITION

Start using Uconnect Voice Recognition with these

helpful quick tips. It provides the key Voice

Commands and tips you need to know to control

your vehicle’s Voice Recognition (VR) system.

B

ASIC

 V

OICE

 C

OMMANDS

The basic Voice Commands below can be given at

any point while using your Uconnect system.
Push the VR button   or say the vehicle’s Wake

Up word, “Hey Uconnect” or “Hey Jeep®”. The

factory default Wake Up word is set to “Hey

Uconnect” and can be reprogrammed through the

Uconnect Settings. After the beep, say:

“Cancel” to stop a current voice session.

“Help” to hear a list of suggested Voice

Commands.

“Repeat” to listen to the system prompts again.

Notice the visual cues that inform you of your Voice

Recognition system’s status.

G

ET

 S

TARTED

The VR button   is used to activate/deactivate

your Voice Recognition system. You can also use

the system’s “Wake Up” word to activate voice

recognition. The Wake Up word can be set through

the Uconnect Settings

Ú

page 165.

Helpful hints for using Voice Recognition:

Reduce background noise. Wind noise and

passenger conversations are examples of noise

that may impact recognition.

Speak clearly at a normal pace and volume

while facing straight ahead.

Each time you give a Voice Command, first push
the VR button   or say the “Wake Up” word,

wait until after the beep, then say your Voice

Command.

You can interrupt the help message or system

prompts by pushing the VR button and saying a

Voice Command from the current category.

You can also interrupt the help message or

system prompts by speaking. This feature is

called “barge-in” and can be set through the

Uconnect Settings

Ú

page 165.

WARNING!

ALL the head restraints MUST be reinstalled in

the vehicle to properly protect the occupants.

GETTING TO KNOW YOUR VEHICLE

37

Uconnect Voice Command Buttons

A

DDITIONAL

 I

NFORMATION

Uconnect are registered trademarks and Mopar

Owner Connect is a trademark of FCA US LLC.

Android™ is a trademark of Google Inc. SiriusXM®

and all related marks and logos are trademarks of

SiriusXM® Radio Inc.

Ú

page 328.

For Uconnect system support, call

1-877-855-8400 (24 hours a day 7 days a week)

or visit

DriveUconnect.com (US) or

DriveUconnect.ca (Canada).

MIRRORS

I

NSIDE

 R

EARVIEW

 M

IRROR

Manual Mirror — If Equipped

This is a single ball joint mirror that fixes to the

windshield with a counter clockwise rotation. No

tools are needed for mounting. The rearview mirror

can be adjusted left and right, or tilted up and

down. The mirror should be adjusted to center on

the view through the rear window.

Headlight glare from vehicles behind you can be

reduced by moving the small control under the

mirror to the night position (toward the rear of the

vehicle). The mirror should be adjusted while set in

the day position (toward the windshield).

Adjusting Rearview Mirror

Automatic Dimming Mirror — If Equipped

This is a single ball joint mirror that fixes to the

windshield button with a counter clockwise

rotation. No tools are needed for mounting. The

rearview mirror can be adjusted left and right, or

tilted up and down. The mirror should be adjusted

to center on the view through the rear window.
This mirror automatically adjusts for headlight

glare from vehicles behind you.

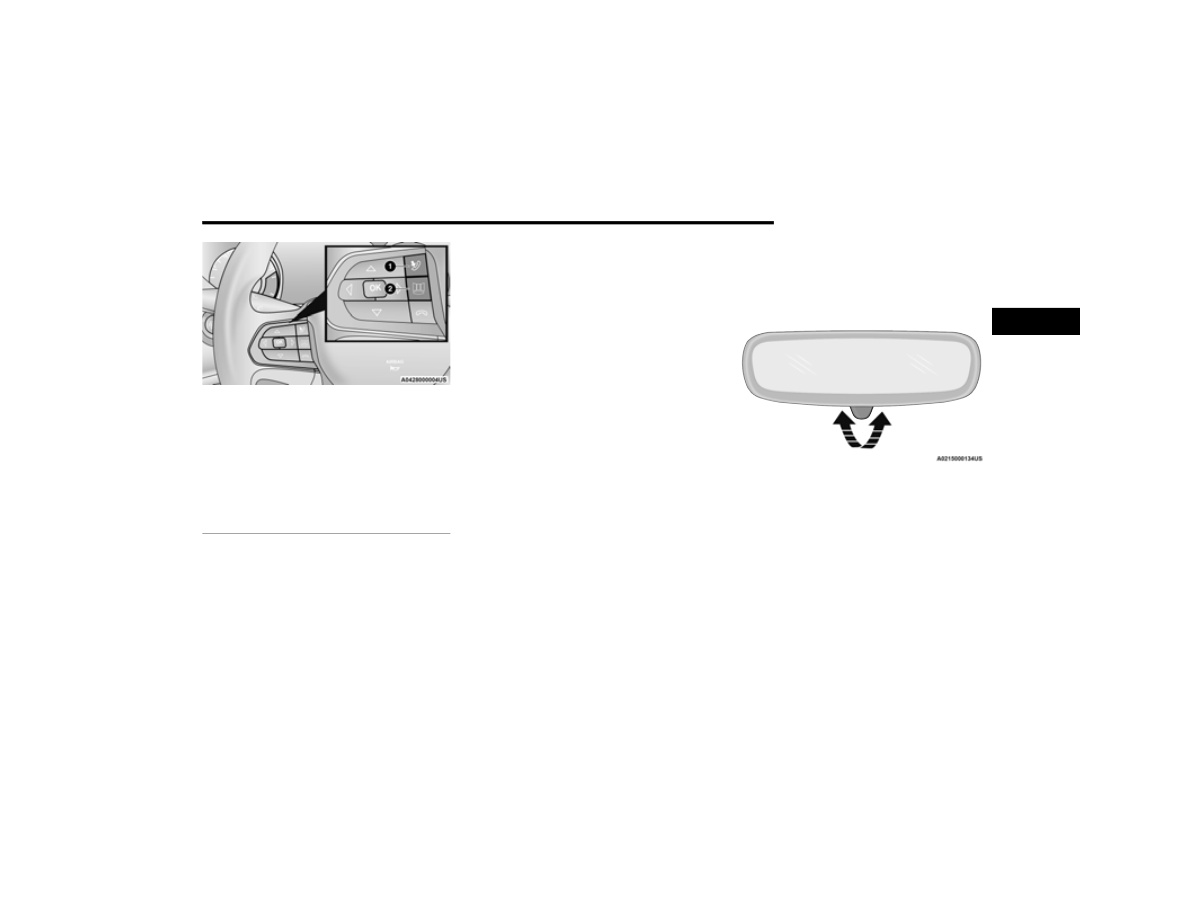

1 — For Vehicles Equipped With Navigation:

Push The Voice Recognition Button To Begin

Radio, Media, Navigation, Climate, Start Or

Answer A Phone Call, And Send Or Receive A Text

1 — For Vehicles Not Equipped With Navigation:

Push The Phone Button To Answer An Incoming

Phone Call
2 — Push To Access The Tile Feature

2

38

GETTING TO KNOW YOUR VEHICLE



NOTE:

The Automatic Dimming Mirror feature is disabled

when the vehicle is in REVERSE to improve the

driver’s rear view. If your vehicle is equipped with

an on/off button on the mirror, the mirror will

default to on and can be turned on/off through the

touchscreen.
You can turn the Automatic Dimming Mirror

feature on or off by pushing the button at the base

of the mirror (if equipped). If your vehicle is not

equipped with an on/off button, the auto dimming

feature is always on.

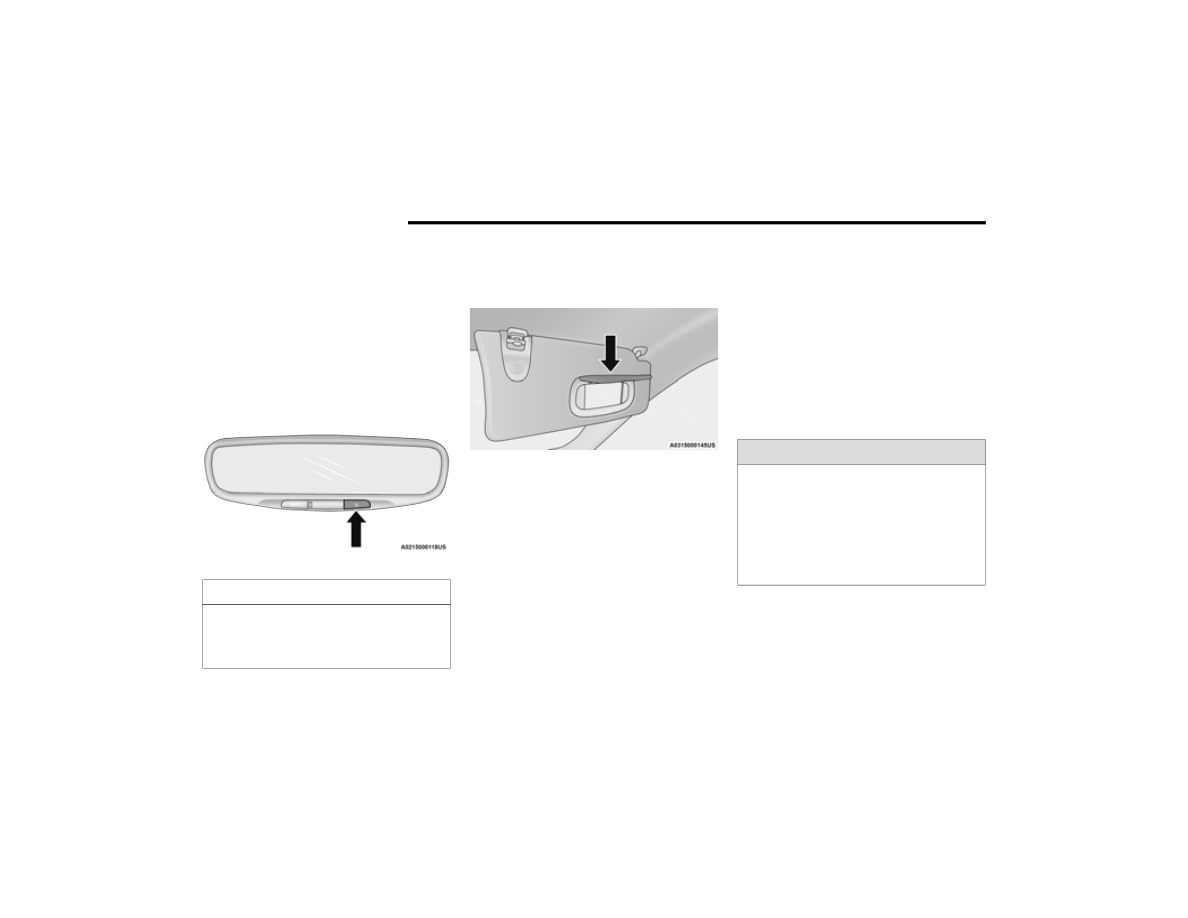

Automatic Dimming Button

I

LLUMINATED

 V

ANITY

 M

IRRORS

To access an illuminated vanity mirror, flip down

one of the visors and lift the mirror cover.

Illuminated Vanity Mirror Cover

Sun Visor “Slide-On-Rod” Feature —

If Equipped

The sun visor “Slide-On-Rod” feature allows for

additional flexibility in positioning the sun visor to

block out the sun.
1. Fold down the sun visor.
2. Unclip the visor from the center clip.
3. Pivot the sun visor toward the side window.
4. Extend the sun visor for additional sun

blockage.

NOTE:

The sun visor can also be extended while the sun

visor is against the windshield for additional sun

blockage through the front of the vehicle.

O

UTSIDE

 M

IRRORS



The outside mirror(s) can be adjusted to the center

of the adjacent lane of traffic to achieve the

optimal view.
NOTE:

The passenger side convex outside mirror will give

a much wider view to the rear, and especially of the

lane next to your vehicle.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

WARNING!

Vehicles and other objects seen in the

passenger side convex mirror will look smaller

and farther away than they really are. Relying too

much on your passenger side convex mirror

could cause you to collide with another vehicle

or other object. Use your inside mirror when

judging the size or distance of a vehicle seen in

the passenger side convex mirror.

GETTING TO KNOW YOUR VEHICLE

39

P

OWER

 A

DJUSTMENT

 M

IRRORS

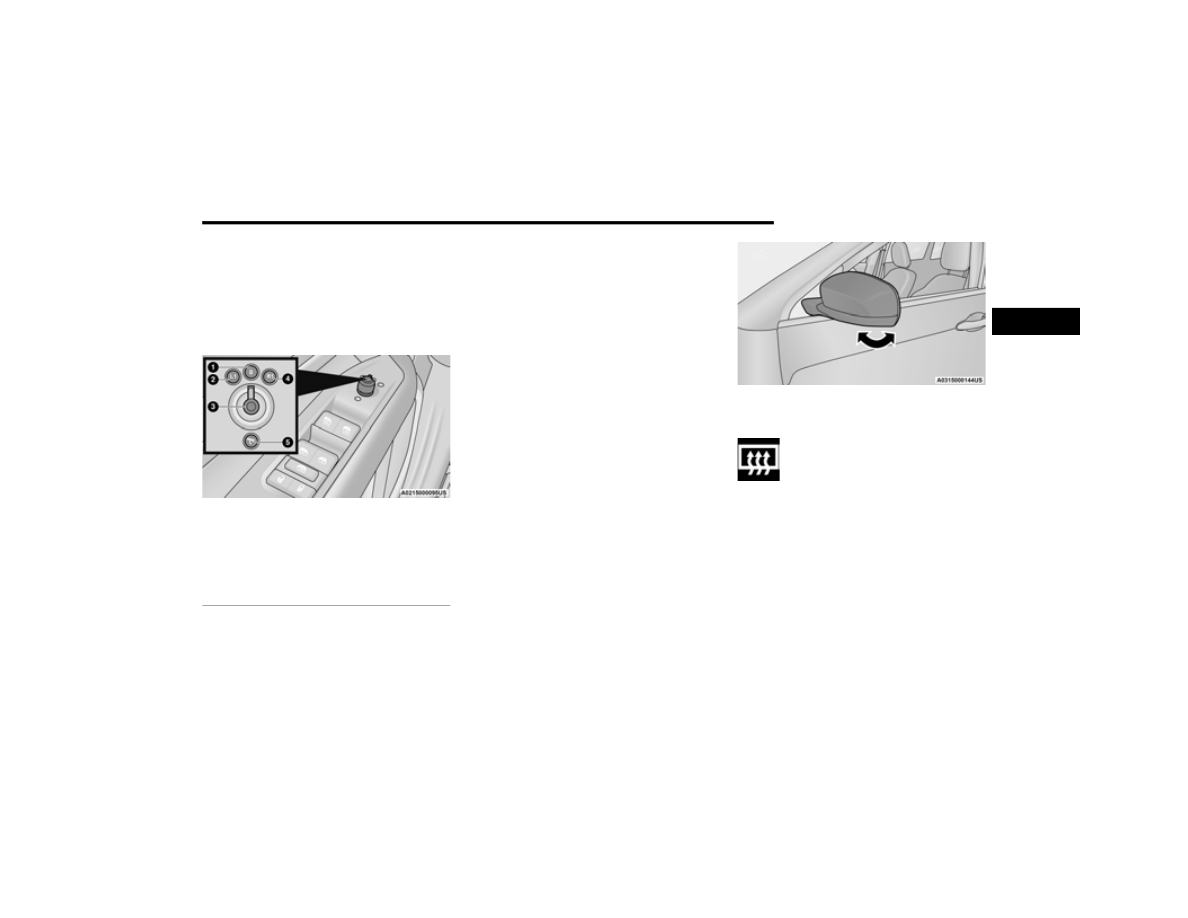

The power mirror control switch is located on the

driver's side door trim panel.
To adjust a mirror, rotate the control switch to the

desired mirror: (L) or (R). Then push the switch in

the direction that you want the mirror to move.

Power Mirror Switch

NOTE:

Once adjustment is complete, rotate the knob to

the neutral position to prevent accidental move

-

ments.
Power Folding — If Equipped
To fold the door mirrors in using the Power Folding

Mirror function, rotate the control switch to the

power folding position. Rotating the control to the

left, right, or neutral position will return the mirrors

to the driving position.
If the power mirror control switch is moved again

during door mirror folding (from closed to open

position and vice versa), the movement direction is

reversed.
Power mirror position can be saved as part of the

Driver Memory Settings (if equipped)

Ú

page 27.

F

OLDING

 M

IRRORS

The exterior mirrors are hinged to allow the mirror

to pivot forward or rearward to help avoid damage.

The mirror has three detent positions: full forward,

normal and full rearward.

Folding Exterior Mirror

H

EATED

 M

IRRORS

 — I

F

 E

QUIPPED



These mirrors are heated to melt frost or

ice. This feature will be activated

whenever you turn on the rear window

defroster (if equipped)

Ú

page 50.

1 — Neutral Position
2 — Left Mirror
3 — Control Switch
4 — Right Mirror
5 — Power Folding Position (If Equipped)

2

40

GETTING TO KNOW YOUR VEHICLE



UNIVERSAL GARAGE DOOR OPENER

(HOMELINK®) — IF EQUIPPED

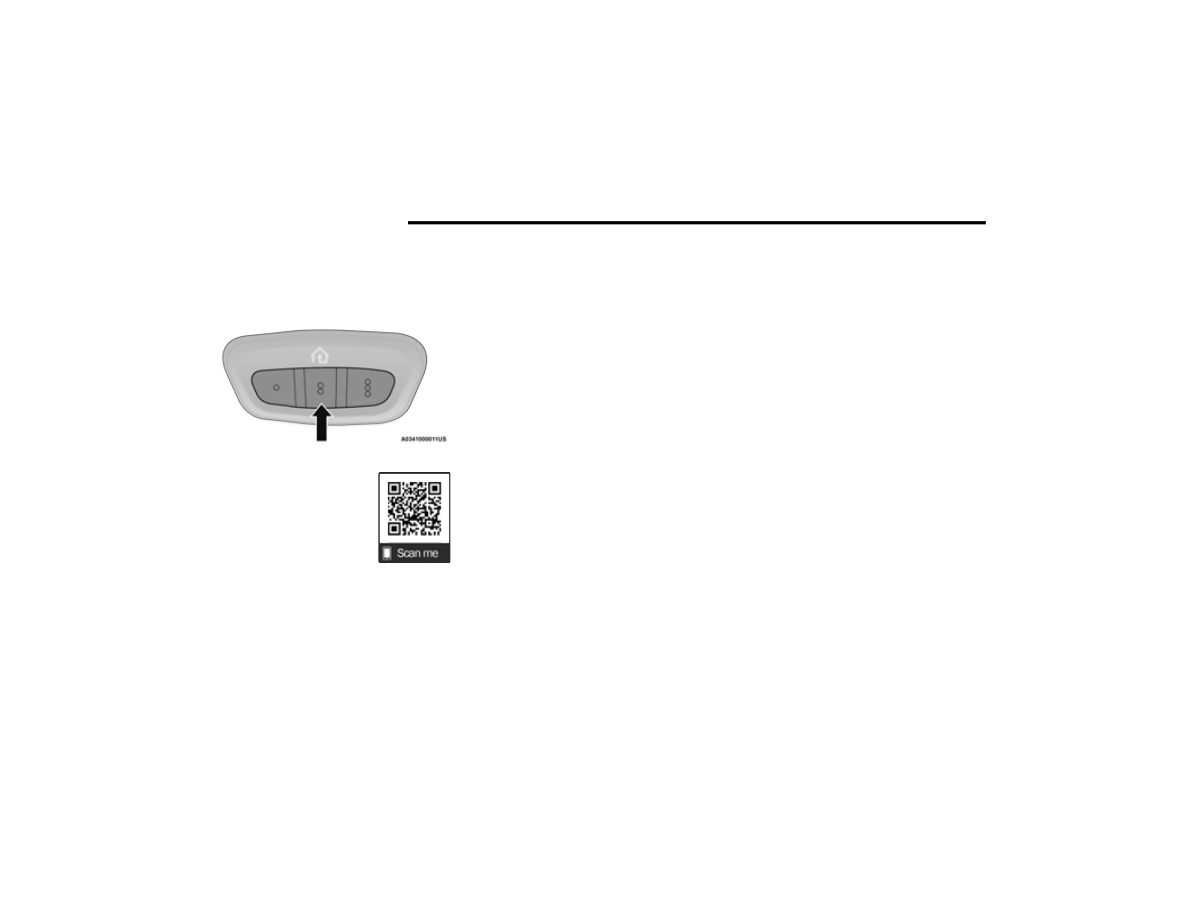

HomeLink® Buttons On Sun Visor

Use this QR code to access your

digital experience.

HomeLink® replaces up to

three hand-held transmitters

that operate devices such as

garage door openers, motor

-

ized gates, lighting, or home

security systems. The HomeLink® unit is

powered by your vehicle’s 12 Volt battery.

The HomeLink® buttons that are located in the

overhead console or sunvisor designate the

three different HomeLink® channels.

To operate HomeLink®, push and release any

of the programmed HomeLink® buttons. These

buttons will activate the devices they are

programmed to with each press of the corre

-

sponding HomeLink® button.

The HomeLink® indicator light is located above

the center button.

The HomeLink® buttons, located on the driver’s

side sun visor, designate the three different

HomeLink® channels. The HomeLink® indicator is

located above the center button.
NOTE:

HomeLink® is disabled when the Vehicle Security

system is active

Ú

page 328.

B

EFORE

 Y

OU

 B

EGIN

 P

ROGRAMMING



H

OME

L

INK

®

For efficient programming and accurate

transmission of the radio-frequency signal, it is

recommended that a new battery be placed in the

hand-held transmitter of the device that is being

programmed to the HomeLink® system. Make

sure your hand-held transmitter is programmed to

activate the device you are trying to program your

HomeLink® button to.

Ensure that your vehicle is parked outside of the

garage before you begin programming.
It is recommended that you erase all the channels

of your HomeLink® before you use it for the first

time.

E

RASING

 A

LL

 T

HE

 H

OME

L

INK

®

C

HANNELS

To erase the channels, follow this procedure:
1. Place the ignition switch into the ON/RUN

position.

2. Push and hold the two outside HomeLink®

buttons (I and III) for up to 20 seconds, or until

the HomeLink® indicator light flashes.

NOTE:

Erasing all channels should only be performed

when programming HomeLink® for the first time.

Do not erase channels when programming addi

-

tional buttons.















Content      ..      1      2      3      ..
