GETTING TO KNOW YOUR INSTRUMENT PANEL

NSTRUMENT

LUSTER

ESCRIPTIONS

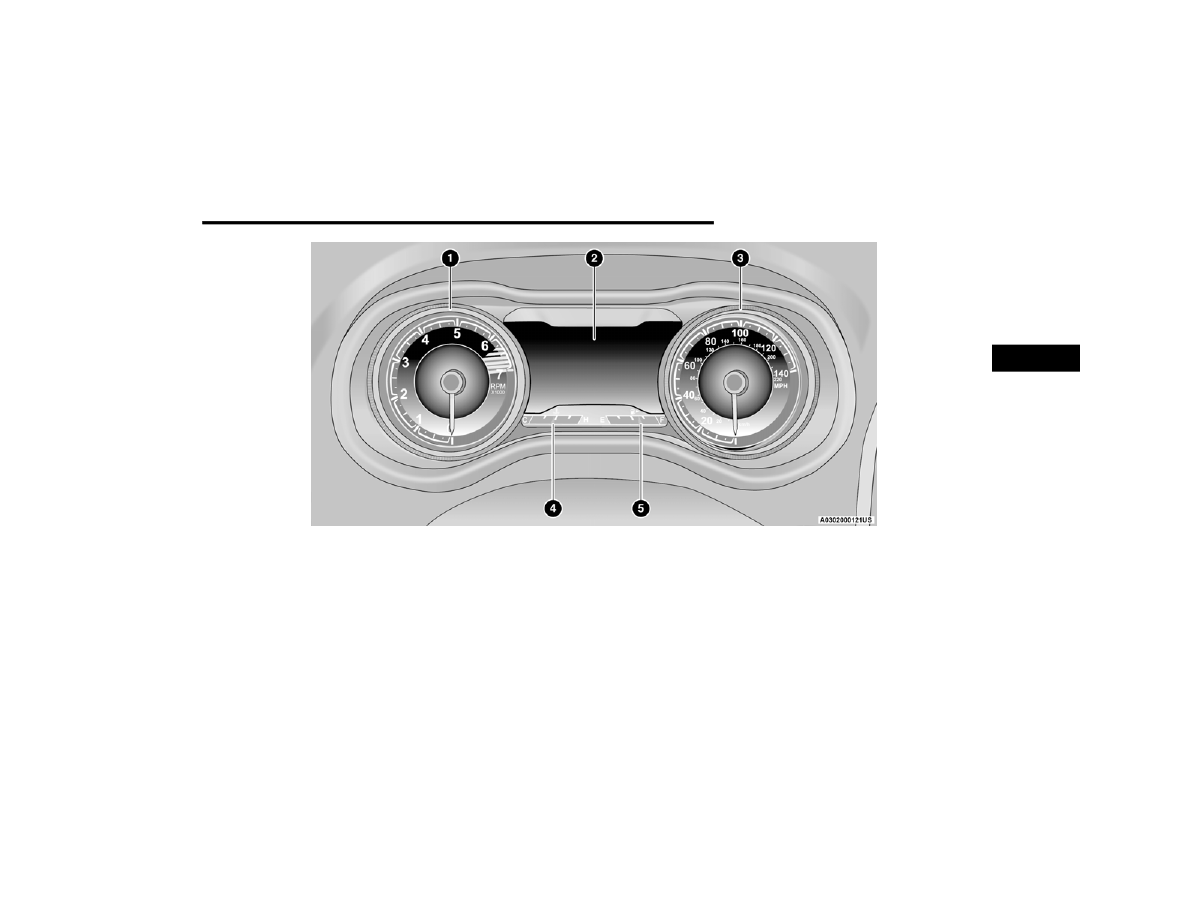

1. Tachometer



Indicates the engine speed in revolutions

per minute (RPM x 1000).

2. Instrument Cluster Display



The instrument cluster display features a

driver interactive display

page 74.

3. Speedometer



Indicates vehicle speed.

4. Temperature Gauge



The temperature gauge shows engine

coolant temperature. Any reading within the

normal range indicates that the engine

cooling system is operating satisfactorily.



The gauge will likely indicate a higher

temperature when driving in hot weather or

up mountain grades. It should not be

allowed to exceed the upper limits of the

normal operating range.

5. Fuel Gauge



The fuel gauge shows the level of fuel in the

fuel tank when the ignition is in the ON/RUN

mode.



The fuel pump symbol points to the

side of the vehicle where the fuel

door is located

page 134.

NOTE:

The hard telltales will illuminate for a bulb check

when the ignition is first cycled.

INSTRUMENT CLUSTER DISPLAY

Your vehicle may be equipped with an instrument

cluster display, which offers useful information to

the driver. With the ignition in the OFF mode,

opening/closing of a door will activate the display

for viewing, and display the total miles or

kilometers in the odometer. The steering wheel

mounted controls allow you to scroll through and

enter the main menus and submenus.

NSTRUMENT

LUSTER

ISPLAY

OCATION

ONTROLS

The instrument cluster display features a driver

interactive display that is located in the instrument

cluster.

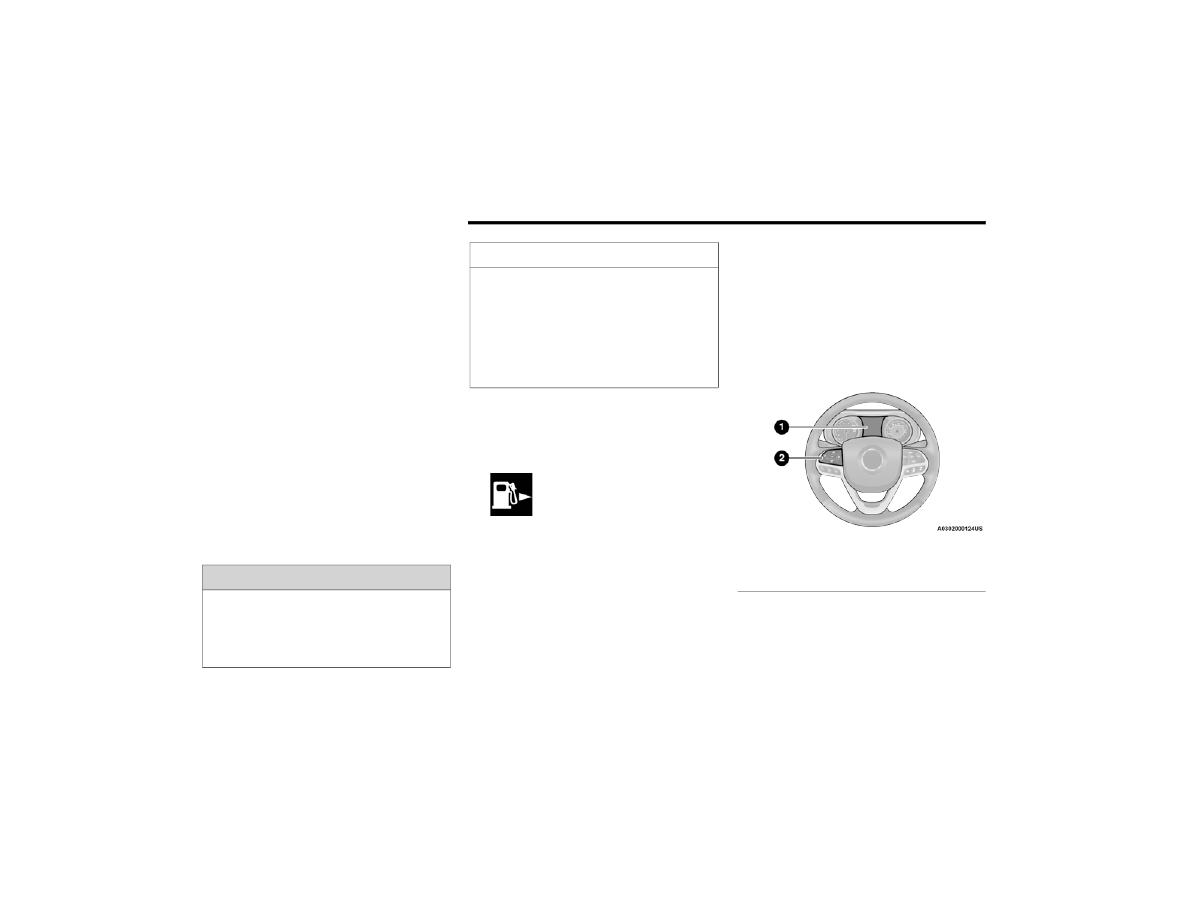

Instrument Cluster Display Location

WARNING!

A hot engine cooling system is dangerous. You or

others could be badly burned by steam or boiling

coolant. You may want to call an authorized

dealer for service if your vehicle overheats

page 264.

CAUTION!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reads “H” pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H”, turn the engine

off immediately and call an authorized dealer for

service.

1 – Instrument Cluster Display Screen
2 – Instrument Cluster Display Controls

GETTING TO KNOW YOUR INSTRUMENT PANEL

The instrument cluster display menu items may

consist of the following:

The system allows the driver to select information

by pushing the following buttons mounted on the

steering wheel:

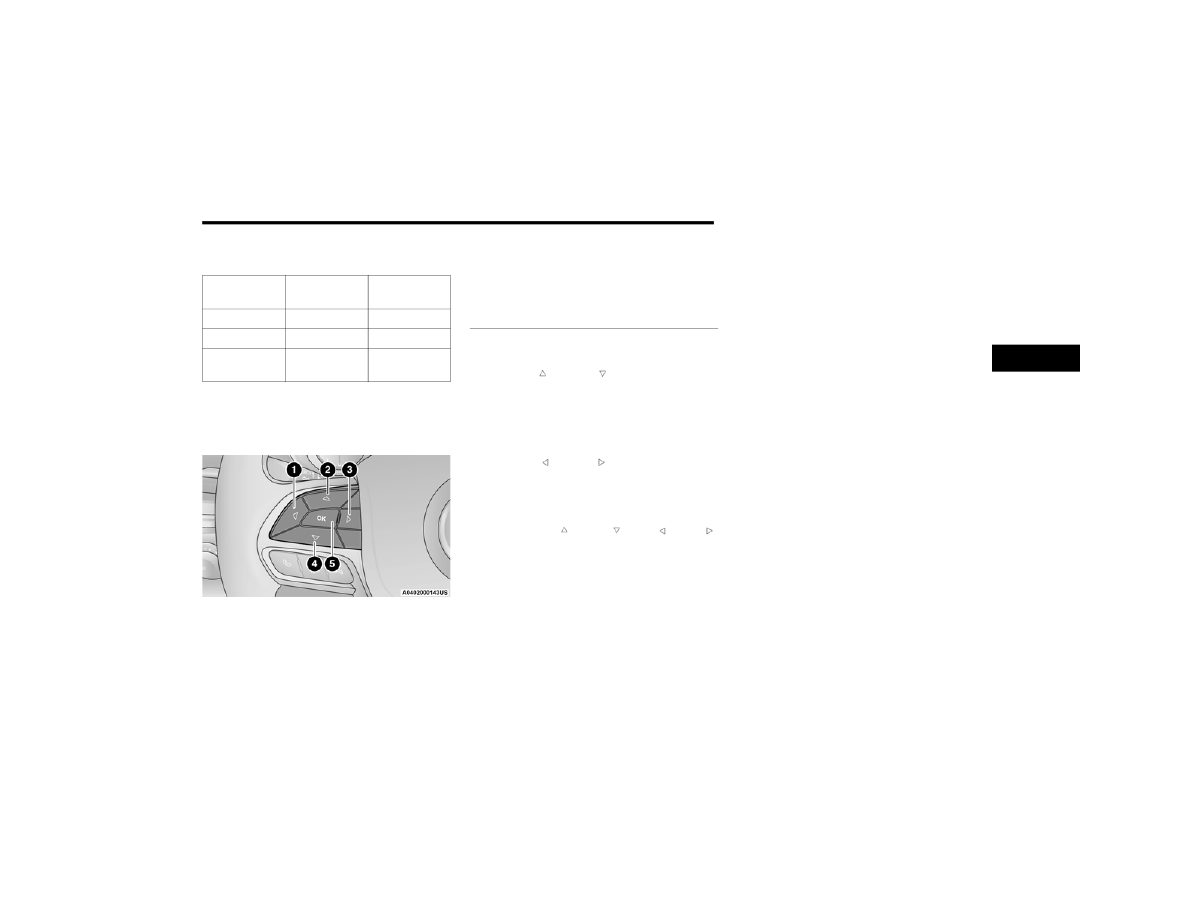

Instrument Cluster Display Control Buttons

Up And Down Arrow Buttons:
Using the up or down arrow buttons allow

you to cycle through the Main Menu Items.
Changes the Main Screen area and Menu Title

area.
Left And Right Arrow Buttons:
Using the left or right arrow buttons allow

you to cycle through the submenu items of the

Main menu item.

NOTE:



Holding the up / down or left /right

arrow button will loop the user through the

currently selected menu or options presented

on the screen.



Upon returning to a main menu, the last

submenu screen viewed within that main menu

will be displayed.



OK Button
Push the OK button to access/select the infor

mation screens or submenu screens of a main

menu item. To reset displayed/selected

features push and hold the OK button for two

seconds.

IFE

ESET

— I

QUIPPED

Your vehicle may be equipped with an engine oil

change indicator system. The “Oil Change

Required” message will display in the instrument

cluster display for five seconds after a single chime

has sounded to indicate the next scheduled oil

change interval. The engine oil change indicator

system is duty cycle based, which means the

engine oil change interval may fluctuate,

dependent upon your personal driving style.
Unless reset, this message will continue to display

each time you place the ignition in the ON/RUN

position. To turn off the message temporarily, push

and release the OK button. To reset the oil change

indicator system (after performing the scheduled

maintenance), refer to the following procedure.
Oil Life Reset
1. Without pushing the brake pedal, place the

ignition in the ON/RUN mode (do not start the

engine).

2. Navigate to “Oil Life” submenu in “Vehicle

Info” in the instrument cluster display.

3. Push and hold the OK button until the gauge

resets to 100%.

Speedometer

Vehicle Info

Driver Assist —

If Equipped

Fuel Economy

Trip Info

Stop/Start

Audio

Messages

Screen Setup

Speed

Warning

1 — Left Arrow Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — OK Button

GETTING TO KNOW YOUR INSTRUMENT PANEL

Secondary Method For Oil Change Reset

Procedure
1. Without pushing the brake pedal, place the

ignition in the ON/RUN position (do not start

the engine).

2. Fully press the accelerator pedal, slowly, three

times within ten seconds.

3. Without pushing the brake pedal, place the

ignition in the OFF position.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not

reset. If necessary, repeat this procedure.

NSTRUMENT

LUSTER

ISPLAY

ENU

TEMS

NOTE:

The instrument cluster display menu items display

in the center of the instrument cluster. Menu items

may vary depending on your vehicle features.

Speedometer

Push and release the up or down arrow

button until the speedometer menu icon is

displayed in the instrument cluster display. Push

and release the OK button to toggle units, mph or

km/h (If Equipped), of the speedometer.

Vehicle Info

Push and release the up or down arrow

button until the Vehicle Info menu icon is displayed

in the instrument cluster display. Push and release
the left or right arrow button to scroll

through the information submenus and push and

release the OK button to select or reset the

submenus.



Tire Pressure: This menu option will display the

current tire pressure. A low tire will be high

lighted in red for the 7 inch cluster and it will be

highlighted in white text for the 3.5 inch cluster.



Coolant Temperature: This menu option will

display the current coolant temperature of the

vehicle.



Transmission Temperature: This menu will

display the current transmission temperature of

the vehicle.



Oil Life: This menu option will display the current

oil life of the vehicle.



Oil Temperature: This menu option will display

the current oil temperature level of the vehicle.



Battery Voltage: This menu option will display

the current voltage level of the battery.

Driver Assist

Push and release the up or down arrow

button until the Driver Assist menu title is

highlighted in the instrument cluster display.
Adaptive Cruise Control (ACC) Menu — If Equipped
The instrument cluster display displays the current

ACC and LaneSense system settings. The

information displayed depends on the status of

ACC and LaneSense.
Push the ACC on/off button (located on the

steering wheel) until one of the following displays

in the instrument cluster display:
Adaptive Cruise Control Off
When ACC is deactivated, and LaneSense is OFF,

the display will read “Adaptive Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed

setting has not been selected, the display will read

“Adaptive Cruise Control Ready.”
Push and release the SET + or the SET- button

(located on the steering wheel) and the following

will display in the instrument cluster display:

GETTING TO KNOW YOUR INSTRUMENT PANEL

ACC SET
When ACC is set, the set speed will display in the

instrument cluster.
The ACC screen may display once again if any ACC

activity occurs, which may include any of the

following:



Distance Setting Change



System Cancel



Driver Override



System Off



ACC Proximity Warning



ACC Unavailable Warning

NOTE:

The instrument cluster display will return to the last

display selected after five seconds of no ACC

display activity

page 109.

LaneSense — If Equipped
The instrument cluster display displays the current

LaneSense system settings. The information

displayed depends on LaneSense system status

and the conditions that need to be met

page 129.

Fuel Economy

Push and release the up or down arrow

button until the Fuel Economy menu title is

displayed in the instrument cluster display. Toggle

the left or right arrow button to select the

screen with or without current fuel economy

display. Push and hold the OK button to reset

average fuel economy feature.



Range – The display shows the estimated

distance (mi or km) that can be traveled with the

fuel remaining in the tank. When the Range

value is less than 10 miles (16 km) estimated

driving distance, the Range display will change

to a “LOW FUEL” message. Adding a significant

amount of fuel to the vehicle will turn off the

“LOW FUEL” message and a new Range value

will display. Range cannot be reset through the

OK button.

NOTE:

Significant changes in driving style or vehicle

loading will greatly affect the actual drivable

distance of the vehicle, regardless of the Range

displayed value.



Average – The display shows the average fuel

economy (MPG, L/100 km, or km/L) since the

last reset.



Current – This display shows the current fuel

economy (MPG, L/100 km, or km/L) form while

driving.

Trip Info

Push and release the up or down arrow

button until the Trip menu title is displayed in the

instrument cluster display. Toggle the left or
right arrow button to select Trip A or Trip B. The

Trip information will display the following:



Distance – Shows the total distance (mi or km)

traveled for Trip A or Trip B since the last reset.



Average Fuel Economy – Shows the average

fuel economy (MPG or L/100 km or km/L) of

Trip A or Trip B since the last reset.



Elapsed Time – Shows the total elapsed time of

travel since Trip A or Trip B has been reset.

Hold the OK button to reset feature information.

Stop/Start – If Equipped

Push and release the up or down arrow

button until the Stop/Start menu title is displayed

in the instrument cluster display.

Audio

Push and release the up or down arrow

button until the Audio menu title is displayed in the

instrument cluster display.

Messages

Push and release the up or down arrow

button until the Messages Menu Icon is highlighted

in the instrument cluster display. This feature

shows the number of stored warning messages.
Pushing the left or right arrow button will

allow you to scroll through the stored messages.

GETTING TO KNOW YOUR INSTRUMENT PANEL

Screen Setup

Push and release the up or down arrow

button until the Screen Setup Menu Icon/Title is

highlighted in the instrument cluster display. Push

and release the OK button to enter the submenus

and follow the prompts on the screen as needed.

The Screen Setup feature allows you to change

what information is displayed in the instrument

cluster as well as the location where that

information is displayed.
Screen Setup Driver Selectable Items

Gear Display — If Equipped



Full



Single

Odometer — If Equipped



Off

Speed Warning

Push and release the up or down arrow

button until the Speed Warning Menu icon/title is

highlighted in the instrument cluster display. Push

and release the OK button to enter speed warning.
Use the up or down arrow button to select a

desired speed, then push and release the OK

button to set the speed. When the set speed is just

exceeded, a single chime will sound along with a

pop-up message of speed warning exceeded.

When the set speed is exceeded by 2 mph (3 km/

h) or more, the indicator will light up yellow and

flash along with a continuous chime (until the

speed is no longer exceeded).

NSTRUMENT

LUSTER

ISPLAY

ELECTABLE

TEMS

The instrument cluster display can be used to view

the following main menu items:

NOTE:

Depending on the vehicles options, feature

settings may vary

page 74.

Upper Left or Right

None

Compass

Outside Temp.

Time

Range to

Empty

Average Econ

(MPG, km/L or

L/100km)

Current Econ

(MPG, km/L or

L/100km)

Trip A Distance Trip B Distance

Favorite Menus

Speedometer

Vehicle Info

Driver Assist

(show/hide)

Fuel Economy

(show/hide)

Trip Info

(show/hide)

Stop/Start

Audio

(show/hide)

(Stored)

Messages

Screen Setup

Speed

Warning —

If Equipped

Center

None

Compass

Outside Temp.

Time

Range to

Empty

Average Econ

(MPG, km/L or

L/100km)

Current Econ

(MPG, km/L or

L/100km)

Trip A Distance Trip B Distance

Audio

Speedometer

Menu Title

Favorite Menus

Speedometer

Vehicle Info

Stop/Start

Audio

Driver Assist

Fuel Economy

Messages

Screen Setup

Trip

GETTING TO KNOW YOUR INSTRUMENT PANEL

ATTERY

AVER

ATTERY

AVER

ODE

ESSAGE

— E

LECTRICAL

OAD

EDUCTION

CTIONS

— I

QUIPPED

This vehicle is equipped with an Intelligent Battery

Sensor (IBS) to perform additional monitoring of

the electrical system and status of the vehicle

battery.
In cases when the IBS detects charging system

failure, or the vehicle battery conditions are

deteriorating, electrical load reduction actions will

take place to extend the driving time and distance

of the vehicle. This is done by reducing power to or

turning off non-essential electrical loads.
Load reduction is only active when the engine is

running. It will display a message if there is a risk

of battery depletion to the point where the vehicle

may stall due to lack of electrical supply, or will not

restart after the current drive cycle.
When load reduction is activated, the message

“Battery Saver On” or “Battery Saver Mode” will

appear in the instrument cluster display.
These messages indicate the vehicle battery has a

low state of charge and continues to lose electrical

charge at a rate that the charging system cannot

sustain.

NOTE:



The charging system is independent from load

reduction. The charging system performs a diag

nostic on the charging system continuously.



If the Battery Charge Warning Light is on it may

indicate a problem with the charging system

page 81.

The electrical loads that may be switched off (if

equipped), and vehicle functions which can be

effected by load reduction:



Heated Seats / Vented Seats / Heated Wheel



Heated / Cooled Cup Holders — If Equipped



Rear Defroster And Heated Mirrors



HVAC System



150W Power Inverter System



Audio and Telematics System

Loss of the battery charge may indicate one or

more of the following conditions:



The charging system cannot deliver enough

electrical power to the vehicle system because

the electrical loads are larger than the capability

of charging system. The charging system is still

functioning properly.



Turning on all possible vehicle electrical loads

(e.g. HVAC to max settings, exterior and interior

lights, overloaded power outlets +12 Volts,

150W, USB ports) during certain driving condi

tions (city driving, towing, frequent stopping).



Installing options like additional lights, upfitter

electrical accessories, audio systems, alarms

and similar devices.



Unusual driving cycles (short trips separated by

long parking periods).



The vehicle was parked for an extended period

of time (weeks, months).



The battery was recently replaced and was not

charged completely.



The battery was discharged by an electrical load

left on when the vehicle was parked.



The battery was used for an extended period

with the engine not running to supply radio,

lights, chargers, +12 Volts portable appliances

like vacuum cleaner’s, game consoles and

similar devices.

GETTING TO KNOW YOUR INSTRUMENT PANEL

What to do when an electrical load reduction

action message is present (“Battery Saver On” or

“Battery Saver Mode”)
During a trip:



Reduce power to unnecessary loads if possible:



Turn off redundant lights (interior or exte

rior).



Check what may be plugged in to power

outlets +12 Volts, 150W, USB ports.



Check HVAC settings (blower, temperature).



Check the audio settings (volume).

After a trip:



Check if any aftermarket equipment was

installed (additional lights, upfitter electrical

accessories, audio systems, alarms) and review

specifications if any (load and Ignition Off Draw

currents).



Evaluate the latest driving cycles (distance,

driving time and parking time).



The vehicle should have service performed if

the message is still present during consecutive

trips and the evaluation of the vehicle and

driving pattern did not help to identify the cause.

WARNING LIGHTS AND MESSAGES

The warning/indicator lights will illuminate in the

instrument panel together with a dedicated

message and/or acoustic signal when applicable.

These indications are indicative and precautionary

and as such must not be considered as exhaustive.

Always refer to the information in this chapter in

the event of a failure indication. All active telltales

will display first if applicable. The system check

menu may appear different based upon

equipment options and current vehicle status.

Some telltales are optional and may not appear.

ARNING

IGHTS

Seat Belt Reminder Warning Light

This warning light indicates when the

driver or passenger seat belt is

unbuckled. When the ignition is first

placed in the ON/RUN or ACC/ON/RUN

position and if the driver’s seat belt is unbuckled,

a chime will sound and the light will turn on. When

driving, if the driver or front passenger seat belt

remains unbuckled, the Seat Belt Reminder Light

will flash or remain on continuously and a chime

will sound

page 188.

Air Bag Warning Light

This warning light will illuminate to

indicate a fault with the air bag, and will

turn on for four to eight seconds as a bulb

check when the ignition is placed in the

ON/RUN or ACC/ON/RUN position. This light will

illuminate with a single chime when a fault with the

air bag has been detected, it will stay on until the

fault is cleared. If the light is either not on during

startup, stays on, or turns on while driving, have

the system inspected at an authorized dealer as

soon as possible.

Brake Warning Light

This warning light monitors various brake

functions, including brake fluid level and

parking brake application. If the brake

light turns on it may indicate that the

parking brake is applied, that the brake fluid level

is low, or that there is a problem with the Anti-Lock

Brake System reservoir.
If the light remains on when the parking brake has

been disengaged, and the fluid level is at the full

mark on the master cylinder reservoir, it indicates

a possible brake hydraulic system malfunction or

that a problem with the Brake Booster has been

detected by the Anti-Lock Brake System (ABS) /

Electronic Stability Control (ESC) system. In this

case, the light will remain on until the condition has

GETTING TO KNOW YOUR INSTRUMENT PANEL

been corrected. If the problem is related to the

brake booster, the ABS pump will run when

applying the brake, and a brake pedal pulsation

may be felt during each stop.
The dual brake system provides a reserve braking

capacity in the event of a failure to a portion of the

hydraulic system. A leak in either half of the dual

brake system is indicated by the Brake Warning

Light, which will turn on when the brake fluid level

in the master cylinder has dropped below a

specified level.
The light will remain on until the cause is corrected.

NOTE:

The light may flash momentarily during sharp

cornering maneuvers, which change fluid level

conditions. The vehicle should have service

performed, and the brake fluid level checked.
If brake failure is indicated, immediate repair is

necessary.

Vehicles equipped with the Anti-Lock Brake System

(ABS) are also equipped with Electronic Brake

Force Distribution (EBD). In the event of an EBD

failure, the Brake Warning Light will turn on along

with the ABS Light. Immediate repair to the ABS

system is required.
Operation of the Brake Warning Light can be

checked by turning the ignition switch from the OFF

position to the ON/RUN position. The light should

illuminate for approximately two seconds. The light

should then turn off unless the parking brake is

applied or a brake fault is detected. If the light does

not illuminate, have the light inspected by an

authorized dealer.
The light will also turn on when the parking brake

is applied with the ignition switch in the ON/RUN

position.

NOTE:

This light only shows that the parking brake is

applied. It does not show the degree of brake appli

cation.

Battery Charge Warning Light

This warning light will illuminate when the

battery is not charging properly. If it stays

on while the engine is running, there may

be a malfunction with the charging

system. Contact an authorized dealer as soon as

possible.

This indicates a possible problem with the

electrical system or a related component.
This warning light will illuminate when the battery

is not charging properly. If it stays on while the

engine is running, there may be a malfunction with

the charging system. Contact an authorized dealer

as soon as possible.

Door Open Warning Light

This indicator will illuminate when a door

is ajar/open and not fully closed.

NOTE:

If the vehicle is moving, there will also be a single

chime.

Electric Power Steering (EPS) Fault

Warning Light

This warning light will turn on when

there's a fault with the EPS system

page 104.

WARNING!

Driving a vehicle with the red brake light on is

dangerous. Part of the brake system may have

failed. It will take longer to stop the vehicle. You

could have a collision. Have the vehicle checked

immediately.

WARNING!

Continued operation with reduced assist could

pose a safety risk to yourself and others. Service

should be obtained as soon as possible.

GETTING TO KNOW YOUR INSTRUMENT PANEL

Electronic Throttle Control (ETC) Warning

Light

This warning light will illuminate to

indicate a problem with the ETC system.

If a problem is detected while the vehicle

is running, the light will either stay on or

flash depending on the nature of the problem.

Cycle the ignition when the vehicle is safely and

completely stopped and the transmission is placed

in the PARK (P) position. The light should turn off.

If the light remains on with the vehicle running,

your vehicle will usually be drivable; however, see

an authorized dealer for service as soon as

possible.

NOTE:

This light may turn on if the accelerator and brake

pedals are pressed at the same time.
If the light continues to flash when the vehicle is

running, immediate service is required and you

may experience reduced performance, an

elevated/rough idle, or engine stall and your

vehicle may require towing. The light will come on

when the ignition is placed in the ON/RUN or ACC/

ON/RUN position and remain on briefly as a bulb

check. If the light does not come on during starting,

have the system checked by an authorized dealer.

Engine Coolant Temperature Warning

Light

This light warns of an overheated engine

condition. If the engine coolant

temperature is too high, this indicator will

illuminate and a single chime will sound.

If the light turns on while driving, safely pull over

and stop the vehicle. If the Air Conditioning (A/C)

system is on, turn it off. Also, shift the transmission

into NEUTRAL and idle the vehicle. If the

temperature reading does not return to normal,

turn the engine off immediately and call for service

page 240.

Hood Open Warning Light

This warning light will illuminate when the

hood is left open and not fully closed.

NOTE:

If the vehicle is moving, there will also be a single

chime.

Liftgate Open Warning Light

This warning light will illuminate when the

liftgate is open.

NOTE:

If the vehicle is moving, there will also be a single

chime.

Oil Pressure Warning Light

This warning light will illuminate to

indicate low engine oil pressure. A chime

will sound when this light turns on and a

message “Oil Pressure Low” will display

in the message screen. If the light turns on while

driving, pull the vehicle to the side of the road at a

safe location, stop the vehicle, shut off the engine

as soon as possible, check the oil level and correct

the oil level if it is low. Contact an authorized

dealer.
Do not operate the vehicle until the cause is

corrected. This light may or may not indicate how

much oil is in the engine. If the oil level is low and

corrected, the engine can be restarted. Otherwise

the vehicle should be serviced by an authorized

dealer

page 247.

NOTE:

The light may flash, a message in the center of the

dash may display momentarily “low oil pressure”

and a chime may occur during sharp cornering

maneuvers. If this happen it may indicate a low oil

level. The oil level should be checked and dealer

service performed if this occurs.

CAUTION!

If the vehicle is driven with low oil levels severe

engine damage can occur. Have the vehicle

checked immediately.

GETTING TO KNOW YOUR INSTRUMENT PANEL

Oil Temperature Warning Light

This warning light will illuminate to

indicate the engine oil temperature is

high. If the light turns on while driving,

stop the vehicle and shut off the engine

as soon as possible. Wait for oil temperature to

return to normal levels.

Transmission Temperature Warning

Light — If Equipped

This warning light will illuminate to warn

of a high transmission fluid temperature.

This may occur with strenuous usage

such as trailer towing. If this light turns

on, stop the vehicle and run the engine at idle or

slightly faster, with the transmission in PARK (P) or

NEUTRAL (N), until the light turns off. Once the light

turns off, you may continue to drive normally.

Vehicle Security Warning Light —

If Equipped

This light will flash at a fast rate for

approximately 15 seconds when the

Vehicle Security System is arming, and

then will flash slowly until the vehicle is

disarmed.

ELLOW

ARNING

IGHTS

Adaptive Cruise Control (ACC) Fault

Warning Light — If Equipped

This warning light will illuminate to

indicate a fault in the ACC system.

Contact a local authorized dealer for

service

page 109.

Electronic Park Brake Warning Light

This warning light will illuminate to

indicate the Electronic Park Brake is not

functioning properly and service is

required. Contact an authorized dealer.

Anti-Lock Brake System (ABS) Warning

Light

This warning light monitors the ABS. The

light will turn on when the ignition is

placed in the ON/RUN or ACC/ON/RUN

position and may stay on for as long as

four seconds.
If the ABS light remains on or turns on while

driving, then the Anti-Lock portion of the brake

system is not functioning and service is required as

soon as possible. However, the conventional brake

system will continue to operate normally,

assuming the Brake Warning Light is also not on.
If the ABS light does not turn on when the ignition

is placed in the ON/RUN or ACC/ON/RUN position,

have the brake system inspected by an authorized

dealer.

Electronic Stability Control (ESC) Active

Warning Light — If Equipped

This warning light will indicate when the

Electronic Stability Control system is

Active. The ESC Indicator Light in the

instrument cluster will come on when the

ignition is placed in the ON/RUN or ACC/ON/RUN

position, and when ESC is activated. It should go

out with the engine running. If the ESC Indicator

Light comes on continuously with the engine

running, a malfunction has been detected in the

ESC system. If this warning light remains on after

WARNING!

If you continue operating the vehicle when the

Transmission Temperature Warning Light is

illuminated you could cause the fluid to boil over,

come in contact with hot engine or exhaust

components and cause a fire.

CAUTION!

Continuous driving with the Transmission

Temperature Warning Light illuminated will

eventually cause severe transmission damage

or transmission failure.

GETTING TO KNOW YOUR INSTRUMENT PANEL

several ignition cycles, and the vehicle has been

driven several miles (kilometers) at speeds greater

than 30 mph (48 km/h), see an authorized dealer

as soon as possible to have the problem

diagnosed and corrected.



The ESC OFF Indicator Light and the ESC Indi

cator Light come on momentarily each time the

ignition is placed in the ON/RUN or ACC/ON/

RUN position.



The ESC system will make buzzing or clicking

sounds when it is active. This is normal; the

sounds will stop when ESC becomes inactive.



This light will come on when the vehicle is in an

ESC event.

Electronic Stability Control (ESC) OFF

Warning Light — If Equipped

Each time the ignition is turned to ON/RUN or ACC/

ON/RUN, the ESC system will be on, even if it was

turned off previously.

Low Fuel Warning Light

When the fuel level reaches

approximately 2 gal (7.5 L) this light will

turn on, and remain on until fuel is

added. A single warning chime will sound

with Low Fuel Warning.

Low Washer Fluid Warning Light —

If Equipped

This warning light will illuminate when the

windshield washer fluid is low

page 251.

Service LaneSense Warning Light —

If Equipped

This warning light will illuminate when the

LaneSense system is not operating and

requires service. Please see an

authorized dealer.

LaneSense Warning Light — If Equipped

The LaneSense Warning Light will be

solid yellow when the vehicle is

approaching a lane marker. The warning

light will flash when the vehicle is

crossing the lane marker

page 129.

Engine Check/Malfunction Indicator

Warning Light

The Engine Check/Malfunction Indicator

Light (MIL) is a part of an Onboard

Diagnostic System called OBD II that

monitors engine and automatic

transmission control systems. This warning light

will illuminate when the ignition is in the ON/RUN

position before engine start. If the bulb does not

come on when turning the ignition switch from OFF

to ON/RUN, have the condition checked promptly.

Certain conditions, such as a loose or missing gas

cap, poor quality fuel, etc., may illuminate the light

after engine start. The vehicle should be serviced if

the light stays on through several typical driving

styles. In most situations, the vehicle will drive

normally and will not require towing.
When the engine is running, the MIL may flash to

alert serious conditions that could lead to immediate

loss of power or severe catalytic converter damage.

The vehicle should be serviced by an authorized

dealer as soon as possible if this occurs.

This warning light indicates the ESC is

off.

WARNING!

A malfunctioning catalytic converter, as

referenced above, can reach higher temperatures

than in normal operating conditions. This can

cause a fire if you drive slowly or park over

flammable substances such as dry plants, wood,

cardboard, etc. This could result in death or

serious injury to the driver, occupants or others.

CAUTION!

Prolonged driving with the Malfunction Indicator

Light (MIL) on could cause damage to the

vehicle control system. It also could affect fuel

economy and driveability. If the MIL is flashing,

severe catalytic converter damage and power

loss will soon occur. Immediate service is

required.

GETTING TO KNOW YOUR INSTRUMENT PANEL

Service 4WD Warning Light — If Equipped

This warning light will illuminate to signal

a fault with the Four-Wheel Drive system.

If the light stays on or comes on during

driving, it means that the Four-Wheel

Drive system is not functioning properly and that

service is required. We recommend you drive to the

nearest service center and have the vehicle

serviced immediately.

Service Forward Collision Warning (FCW)

Light — If Equipped

This telltale will turn on to indicate a fault

in the Forward Collision Warning System.

Contact an local authorized dealer for

service

page 182.

Service Stop / Start System Warning Light

This telltale will turn on to indicate the

Stop/Start system is not functioning

properly and service is required. Contact

an authorized dealer for service.

Cruise Control Fault Warning Light

This warning light will illuminate to

indicate the Cruise Control System is not

functioning properly and service is

required. Contact an authorized dealer.

Tire Pressure Monitoring System (TPMS)

Warning Light

The warning light switches on and a

message is displayed to indicate that the

tire pressure is lower than the

recommended value and/or that slow

pressure loss is occurring. In these cases, optimal

tire duration and fuel consumption may not be

guaranteed.
Should one or more tires be in the condition

mentioned above, the display will show the

indications corresponding to each tire.

Each tire, including the spare (if provided), should

be checked monthly when cold and inflated to the

inflation pressure recommended by the vehicle

manufacturer on the vehicle placard or tire

inflation pressure label. If your vehicle has tires of

a different size than the size indicated on the

vehicle placard or tire inflation pressure label, you

should determine the proper tire inflation pressure

for those tires.
As an added safety feature, your vehicle has been

equipped with a TPMS that illuminates a low tire

pressure warning light when one or more of your

tires is significantly underinflated. Accordingly,

when the low tire pressure warning light

illuminates, you should stop and check your tires

as soon as possible, and inflate them to the proper

pressure. Driving on a significantly underinflated

tire causes the tire to overheat and can lead to tire

failure. Underinflation also reduces fuel efficiency

and tire tread life, and may affect the vehicle’s

handling and stopping ability.
Please note that the TPMS is not a substitute for

proper tire maintenance, and it is the driver’s

responsibility to maintain correct tire pressure,

even if underinflation has not reached the level to

trigger illumination of the TPMS low tire pressure

telltale.
Your vehicle has also been equipped with a TPMS

malfunction indicator to indicate when the system

is not operating properly. The TPMS malfunction

indicator is combined with the low tire pressure

telltale. When the system detects a malfunction,

the telltale will flash for approximately one minute

and then remain continuously illuminated. This

sequence will continue upon subsequent vehicle

start-ups as long as the malfunction exists. When

WARNING!

Do not continue driving with one or more flat

tires as handling may be compromised. Stop the

vehicle, avoiding sharp braking and steering. If a

tire puncture occurs, repair immediately using

the dedicated tire repair kit and contact an

authorized dealer as soon as possible.

GETTING TO KNOW YOUR INSTRUMENT PANEL

the malfunction indicator is illuminated, the

system may not be able to detect or signal low tire

pressure as intended. TPMS malfunctions may

occur for a variety of reasons, including the

installation of replacement or alternate tires or

wheels on the vehicle that prevent the TPMS from

functioning properly. Always check the TPMS

malfunction telltale after replacing one or more

tires or wheels on your vehicle to ensure that the

replacement or alternate tires and wheels allow

the TPMS to continue to function properly.

ELLOW

NDICATOR

IGHTS

Active Speed Limiter Fault Indicator

Light — If Equipped

This light will illuminate to signal when

there is a fault detected with the Active

Speed Limiter.

Forward Collision Warning (FCW) Off

Indicator Light — If Equipped

This light indicates that Forward Collision

Warning is off

page 182.

4WD Low Indicator Light — If Equipped

This light alerts the driver that the vehicle

is in the 4WD Low mode. The front and

rear driveshafts are mechanically locked

together forcing the front and rear

wheels to rotate at the same speed. Low range

provides a greater gear reduction ratio to provide

increased torque at the wheels

page 100.

Rear Axle Lock Indicator Light

This light indicates when the rear axle

lock has been activated.

Wait To Start Light — If Equipped

This indicator light will illuminate for

approximately two seconds when the

ignition is turned to the RUN position. Its

duration may be longer based on colder

operating conditions. Vehicle will not initiate start

until telltale is no longer displayed.

NOTE:

The Wait To Start telltale may not illuminate if the

intake manifold temperature is warm enough.

Water In Fuel Indicator Light — If Equipped

The Water In Fuel Indicator Light will

illuminate when there is water detected

in the fuel filter. If this light remains on,

DO NOT start the vehicle before you drain

the water from the fuel filter to prevent engine

damage, and please see an authorized dealer.

CAUTION!

The TPMS has been optimized for the original

equipment tires and wheels. TPMS pressures

and warning have been established for the tire

size equipped on your vehicle. Undesirable

system operation or sensor damage may result

when using replacement equipment that is not

of the same size, type, and/or style. Aftermarket

wheels can cause sensor damage. Using

aftermarket tire sealants may cause the Tire

Pressure Monitoring System (TPMS) sensor to

become inoperable. After using an aftermarket

tire sealant it is recommended that you take

your vehicle to an authorized dealer to have your

sensor function checked.

CAUTION!

The presence of water in the fuel system circuit

may cause severe damage to the injection

system and irregular engine operation. If the

indicator light is illuminated, contact an

authorized dealer as soon as possible to bleed

the system. If the above indications come on

immediately after refuelling, water has probably

been poured into the tank: switch the engine off

immediately and contact an authorized dealer.

GETTING TO KNOW YOUR INSTRUMENT PANEL

REEN

NDICATOR

IGHTS

Active Speed Limiter SET Indicator Light

This light will turn on when the Active

Speed Limiter is on and set to a specific

speed.

Adaptive Cruise Control (ACC) Set With

Target Vehicle Light — If Equipped

This will display when the ACC is set and

a vehicle in front is detected

page 109.

Adaptive Cruise Control (ACC) Set Without

Target Vehicle Light — If Equipped

This will display the distance setting for

the ACC system when the system is

engaged

page 109.

Cruise Control Set Indicator Light —

If Equipped

This indicator light will illuminate when

the cruise control is set to the desired

speed

page 107.

Front Fog Indicator Light — If Equipped

This indicator light will illuminate when

the front fog lights are on

page 43.

LaneSense Indicator Light — If Equipped

The LaneSense indicator light illuminates

solid green when both lane markings

have been detected and the system is

“armed” and ready to provide visual and

torque warnings if an unintentional lane departure

occurs

page 129.

Parking/Headlights On Indicator Light

This indicator light will illuminate when

the parking lights or headlights are

turned on

page 43.

Stop/Start Active Indicator Light

This telltale will illuminate when the

Stop/Start function is in “Autostop”

mode.

Turn Signal Indicator Lights

When the left or right turn signal is

activated, the turn signal indicator will

flash independently and the

corresponding exterior turn signal lamps

will flash. Turn signals can be activated when the

multifunction lever is moved down (left) or up

(right).

NOTE:



A continuous chime will sound if the vehicle is

driven more than 1 mile (1.6 km) with either

turn signal on.



Check for an inoperative outside light bulb if

either indicator flashes at a rapid rate.

HITE

NDICATOR

IGHTS

Active Speed Limiter Ready Indicator

Light — If Equipped

This light will turn on when the Active

Speed Limiter is on, but not set.

Hill Descent Control Indicator Light —

If Equipped

This indicator shows when the Hill

Descent Control (HDC) feature is turned

on. The lamp will be on solid when HDC is

armed. HDC can only be armed when the

transfer case is in the 4WD Low position and the

vehicle speed is less then 30 mph (48 km/h). If

these conditions are not met while attempting to

use the HDC feature, the HDC indicator light will

flash on/off.

GETTING TO KNOW YOUR INSTRUMENT PANEL

LaneSense Indicator Light — If Equipped

When the LaneSense system is ON, but

not armed, the LaneSense indicator light

illuminates solid white. This occurs when

only left, right, or neither lane line has

been detected. If a single lane line is detected, the

system is ready to provide only visual warnings if

an unintentional lane departure occurs on the

detected lane line

page 129.

Speed Warning Indicator Light

The white indicator will illuminate along

with a text message (Speed Warning Set

to XX followed by unit), once the feature

is enabled. When the set speed is

exceeded, a continuous chime (up to 10 seconds

or until the speed is no longer exceeded) will sound

along with a Speed Warning Exceeded pop-up

message and the indicator light will turn yellow and

flash.

NOTE:

The number “31” is only an example of a speed

that can be selected.

Selec-Speed Control Indicator Light —

If Equipped

This light will turn on when “Selec-Speed

Control” is activated.

To activate “Selec-Speed Control”, ensure the

vehicle is in Four - Wheel Drive (4WD) Low and

push the button on the Instrument Panel.

NOTE:

If the vehicle is not in 4WD Low, “To Enter

Selec-Speed Shift to 4WD Low” will appear in the

instrument cluster display.

Cruise Control Ready Indicator Light

This light will turn on when the Cruise

Control has been turned on, but not set

page 107.

LUE

NDICATOR

IGHTS

High Beam Indicator Light

This indicator light will illuminate to

indicate that the high beam headlights

are on. With the low beams activated,

push the multifunction lever forward

(toward the front of the vehicle) to turn on the high

beams. Pull the multifunction lever rearward

(toward the rear of the vehicle) to turn off the high

beams. If the high beams are off, pull the lever

toward you for a temporary high beam on, “flash to

pass” scenario.

ONBOARD DIAGNOSTIC SYSTEM — OBD II

Your vehicle is equipped with a sophisticated

Onboard Diagnostic system called OBD II. This

system monitors the performance of the

emissions, engine, and transmission control

systems. When these systems are operating

properly, your vehicle will provide excellent

performance and fuel economy, as well as engine

emissions well within current government

regulations.
If any of these systems require service, the OBD II

system will turn on the Malfunction Indicator Light

(MIL). It will also store diagnostic codes and other

information to assist your service technician in

making repairs. Although your vehicle will usually

be drivable and not need towing, see an authorized

dealer for service as soon as possible.

CAUTION!



Prolonged driving with the MIL on could cause

further damage to the emission control

system. It could also affect fuel economy and

driveability. The vehicle must be serviced

before any emissions tests can be performed.



If the MIL is flashing while the vehicle is

running, severe catalytic converter damage

and power loss will soon occur. Immediate

service is required.

Jeep Cherokee (2022 year). Manual in english - page 5
