Jeep Cherokee (2022 year). Manual in english - page 4

GETTING TO KNOW YOUR VEHICLE

LIMATE

OICE

OMMANDS

Adjust vehicle temperatures hands-free and keep

everyone comfortable while you keep moving

ahead.
Push the VR button on the steering wheel. After the

beep, say one of the following commands:



“Set the driver temperature to 70 degrees”



“Set the passenger temperature to 70 degrees”

Did You Know: Voice Command for Climate may

only be used to adjust the interior temperature of

your vehicle. Voice Command will not work to

adjust the heated seats or steering wheel if

equipped.

PERATING

IPS

NOTE:

Refer to the chart at the end of this section for

suggested control settings for various weather

conditions.

Summer Operation

The engine cooling system must be protected with

a high-quality antifreeze coolant to provide proper

corrosion protection and to protect against engine

overheating. OAT coolant (conforming to

MS.90032) is recommended.

Winter Operation

To ensure the best possible heater and defroster

performance, make sure the engine cooling

system is functioning properly and the proper

amount, type, and concentration of coolant is

used. Use of the Air Recirculation mode during

Winter months is not recommended, because it

may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control

system when the vehicle is being stored for an

extended period of time, see

page 296.

Window Fogging

Vehicle windows tend to fog on the inside in mild,

rainy, and/or humid weather. To clear the

windows, select Defrost or Mix mode and increase

the front blower speed. Do not use the

Recirculation mode without A/C for long periods,

as fogging may occur.

Outside Air Intake

Make sure the air intake, located directly in front of

the windshield, is free of obstructions, such as

leaves. Leaves collected in the air intake may

reduce airflow, and if they enter the air distribution

box, they could plug the water drains. In Winter

months, make sure the air intake is clear of ice,

slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and

pollen from the air. Contact an authorized dealer to

service your cabin air filter, and to have it replaced

when needed.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system

may automatically adjust airflow to maintain cabin

comfort. Customer settings will be maintained

upon return to an engine running condition.

Windshield Wiper De-Icer — If Equipped

The windshield wiper de-icer is a heating element

located at the base of the windshield.
It operates automatically once the following

conditions are met:



Activation By Front Defrost

The wiper de-icer activates automatically during

a cold weather manual start with full defrost,

and when the ambient temperature is below

33°F (0.6°C).



Activation By Rear Defrost

The wiper de-icer activates automatically when

the Rear Defrost is operating and the ambient

temperature is below 33°F (0.6°C).

GETTING TO KNOW YOUR VEHICLE



Activation By Remote Start Operation

When the Remote Start is activated and the

outside ambient temperature is less than 33°F

(0.6°C) the windshield wiper de-icer will acti

vate. Exiting Remote Start will resume its

previous operation. If the windshield wiper

de-icer was active, the timer and operation will

continue.

Operating Tips Chart

INTERIOR STORAGE AND EQUIPMENT

TORAGE

Glove Compartment

The glove compartment is located on the

passenger side of the instrument panel.
To open the glove compartment, pull the release

handle.

Glove Compartment

There is also an additional storage bin located

above the instrument panel in the center of the

dash.

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is Very

Hot

Set the mode control to

(Panel Mode),

(MAX A/C) on, and

blower on high. Roll

down the windows for a

minute to flush out the

hot air. Adjust the

controls as needed to

achieve comfort.

Warm Weather

Turn (A/C)
on, and set the mode

control to (Panel

Mode).

Cool Sunny

Operate in (Bi-Level

Mode).

Cool & Humid

Conditions

Set the mode control to

(Floor Mode) and

turn on (A/C) on to

keep windows clear.

Cold Weather

Set the mode control to

(Floor Mode). If

windshield fogging

starts to occur, move

the control to (Mix

Mode).

WEATHER

CONTROL SETTINGS

WARNING!

Do not operate this vehicle with a glove

compartment in the open position. Driving with

the glove compartment open may result in injury

in a collision.

GETTING TO KNOW YOUR VEHICLE

Console Storage Compartment

The center console has both an upper and lower

storage area which can hold cell phones, PDAs,

and other small items.

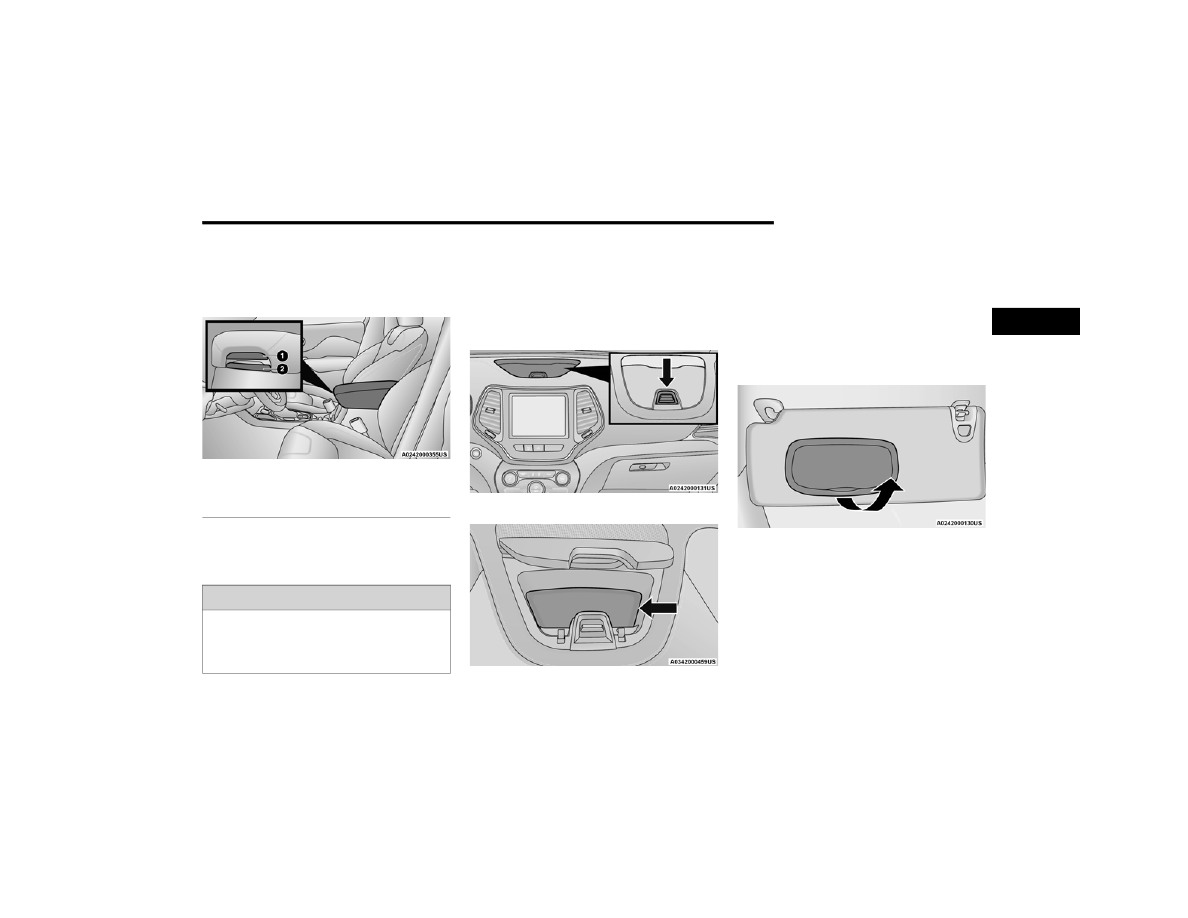

Front Center Console

To access the upper storage compartment, lift the

top latch. To access the lower storage

compartment, lift the bottom latch.

Instrument Panel Cubby

Your vehicle may be equipped with an instrument

panel cubby. The cubby is located on the top of the

instrument panel, above the radio.
To open the instrument panel cubby, pull the latch

toward you and the cubby door will pop open.

Instrument Panel Cubby Latch

Instrument Panel Cubby Opened

To close the instrument panel cubby, push down

on the door until it latches.

ISORS

An illuminated vanity mirror is on each sun visor. To

use the mirror, rotate the sun visor down and swing

the mirror cover upward. The lights will turn on

automatically. Closing the mirror cover will turn off

the light.

Illuminated Vanity Mirror

1 — Upper Storage Latch
2 — Lower Storage Latch

WARNING!

Do not operate this vehicle with a console

compartment lid in the open position. Driving

with the console compartment lid open may

result in injury in a collision.

GETTING TO KNOW YOUR VEHICLE

AUX/USB C

ONTROL

Instrument Panel Media Hub

Located in the front storage area, this feature

allows an external USB device or AUX electronic

device to be plugged into the port or jack.
If equipped, there may also be a USB port in the

center console located to the left of the power

outlet.
Third and fourth USB ports are located behind the

center console, by the power inverter (if equipped).

Both are charge only USB ports.

Charge Only USB Ports

If equipped with a Uconnect 4C/4C NAV with

8.4-inch Display, refer to “Android Auto™” or

“Apple CarPlay®” in the Owner’s Manual

Supplement.

NOTE:

Charge unsupported devices with the Charge Only

USB ports. If an unsupported device is plugged into

a Media USB port, a message will display on the

touchscreen that the device is not supported by

the system.

OWER

UTLETS

Your vehicle is equipped with 12 Volt (13 Amp)

power outlets that can be used to power cellular

phones, small electronics, and other low powered

electrical accessories. The power outlets are

labeled with either a “key” or a “battery” symbol to

indicate how the outlet is powered. Power outlets

labeled with a key are powered when the ignition

switch is in the ON or ACC position, while the

outlets labeled with a battery are connected

directly to the battery and powered at all times.

NOTE:

All accessories connected to the battery powered

outlets should be removed or turned off when the

vehicle is not in use to protect the battery against

discharge.
The front power outlet is located in front of the gear

selector.

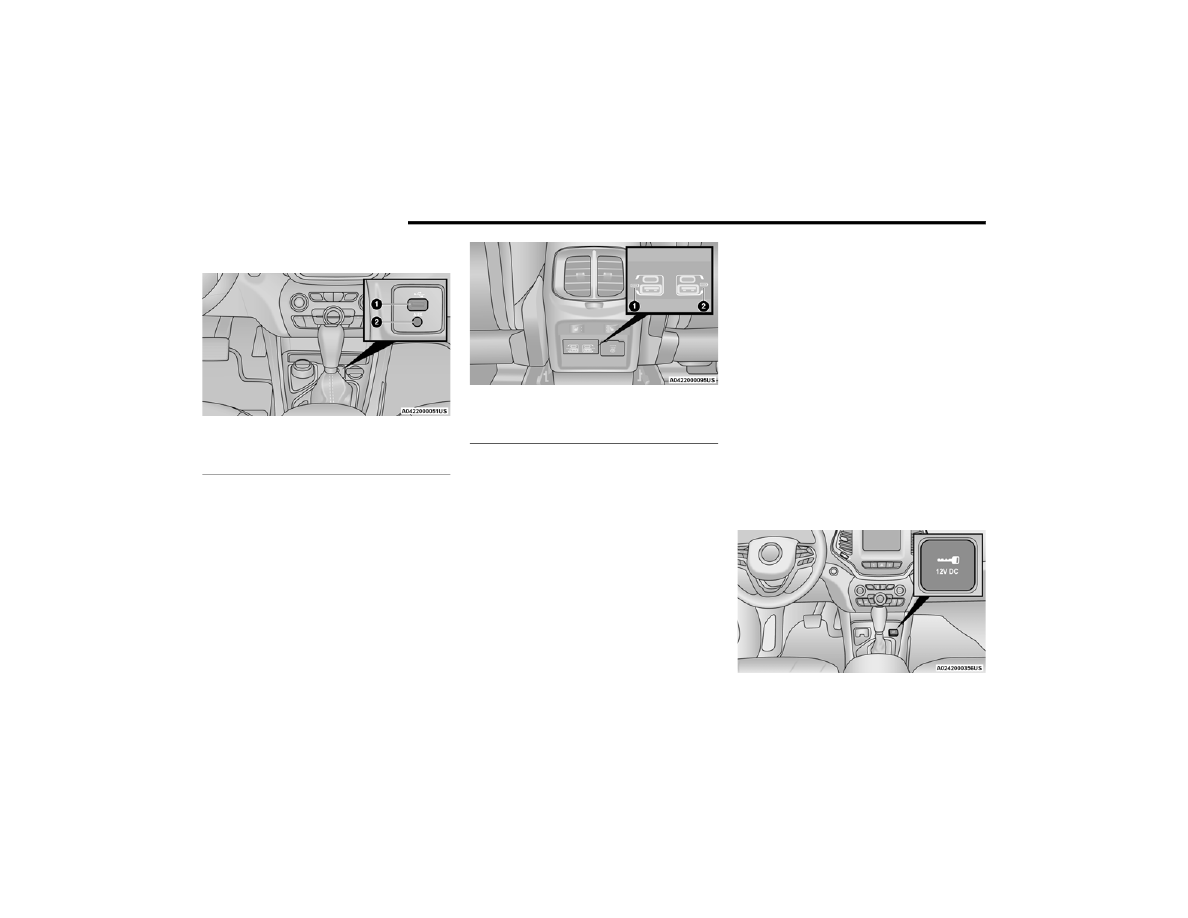

Front Power Outlet

1 — USB Port
2 — AUX Port

1 — Charge Only Type C USB And Type A USB Port
2 — Charge Only Type C USB And Type A USB Port

GETTING TO KNOW YOUR VEHICLE

(Continued)

A second fused 12 Volt power outlet is located on

the left quarter trim panel in the cargo area. This

power outlet has power available when the ignition

switch is in the ON or ACC position.

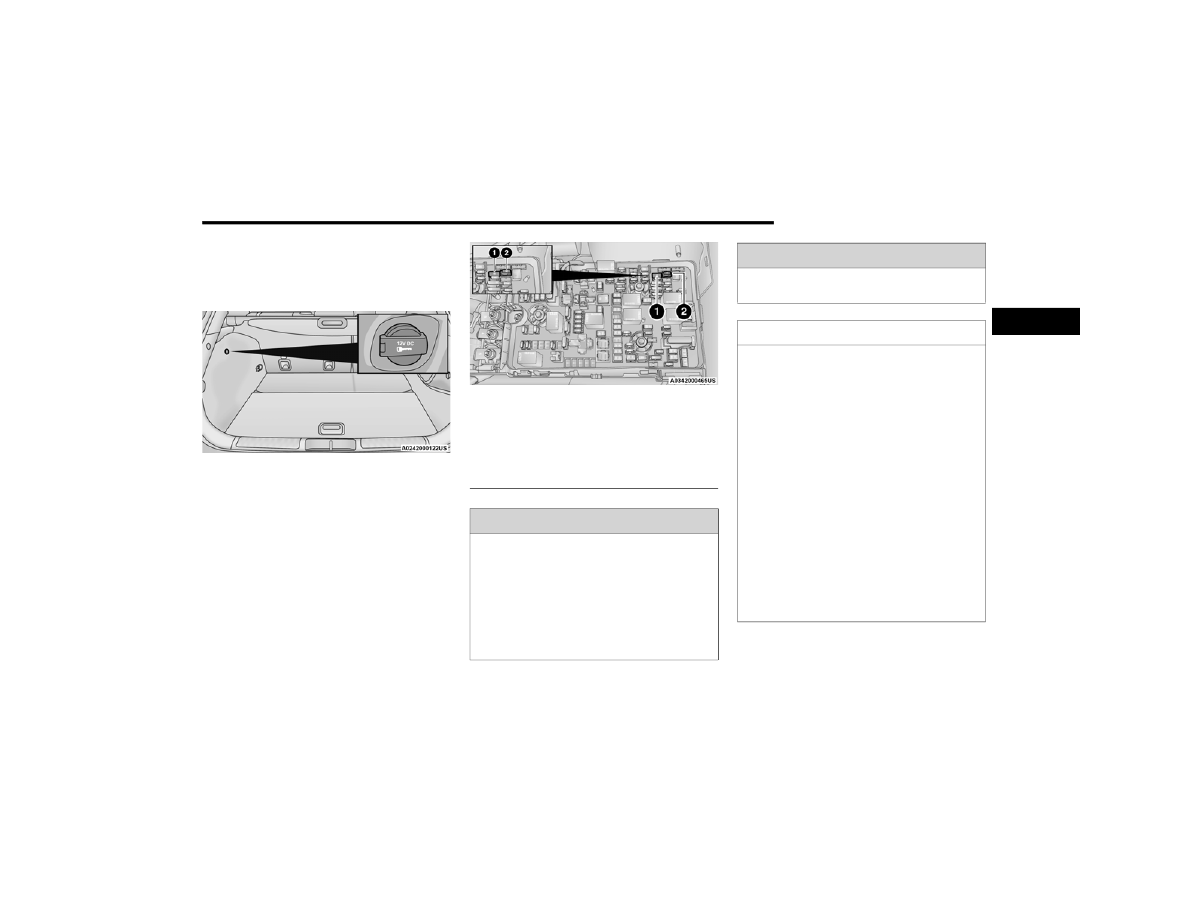

Rear Power Outlet

NOTE:

The rear cargo power outlet can be changed to

battery (powered at all times) by switching the rear

power outlet fuse in the Power Distribution Center

panel from fuse location F91 to F81.

Rear Cargo Power Outlet Fuse Locations

1 — F81 Fuse 20A Yellow Rear Power Outlet

(battery powered at all times)
2 — F91 Fuse 20A Yellow Rear Power Outlet

(powered when the ignition switch is in the ON or

ACC position)

WARNING!

To avoid serious injury or death:



Only devices designed for use in this type of

outlet should be inserted into any 12 Volt

outlet.



Do not touch with wet hands.



Close the lid when not in use and while driving

the vehicle.



If this outlet is mishandled, it may cause an

electric shock and failure.

CAUTION!



Many accessories that can be plugged in draw

power from the vehicle's battery, even when

not in use (i.e., cellular phones, etc.). Eventu

ally, if plugged in long enough, the vehicle's

battery will discharge sufficiently to degrade

battery life and/or prevent the engine from

starting.



Accessories that draw higher power (i.e.,

coolers, vacuum cleaners, lights, etc.) will

degrade the battery even more quickly. Only

use these intermittently and with greater

caution.



After the use of high power draw accessories,

or long periods of the vehicle not being started

(with accessories still plugged in), the vehicle

must be driven a sufficient length of time to

allow the generator to recharge the vehicle's

battery.

WARNING!

GETTING TO KNOW YOUR VEHICLE

OWER

NVERTER

— I

QUIPPED

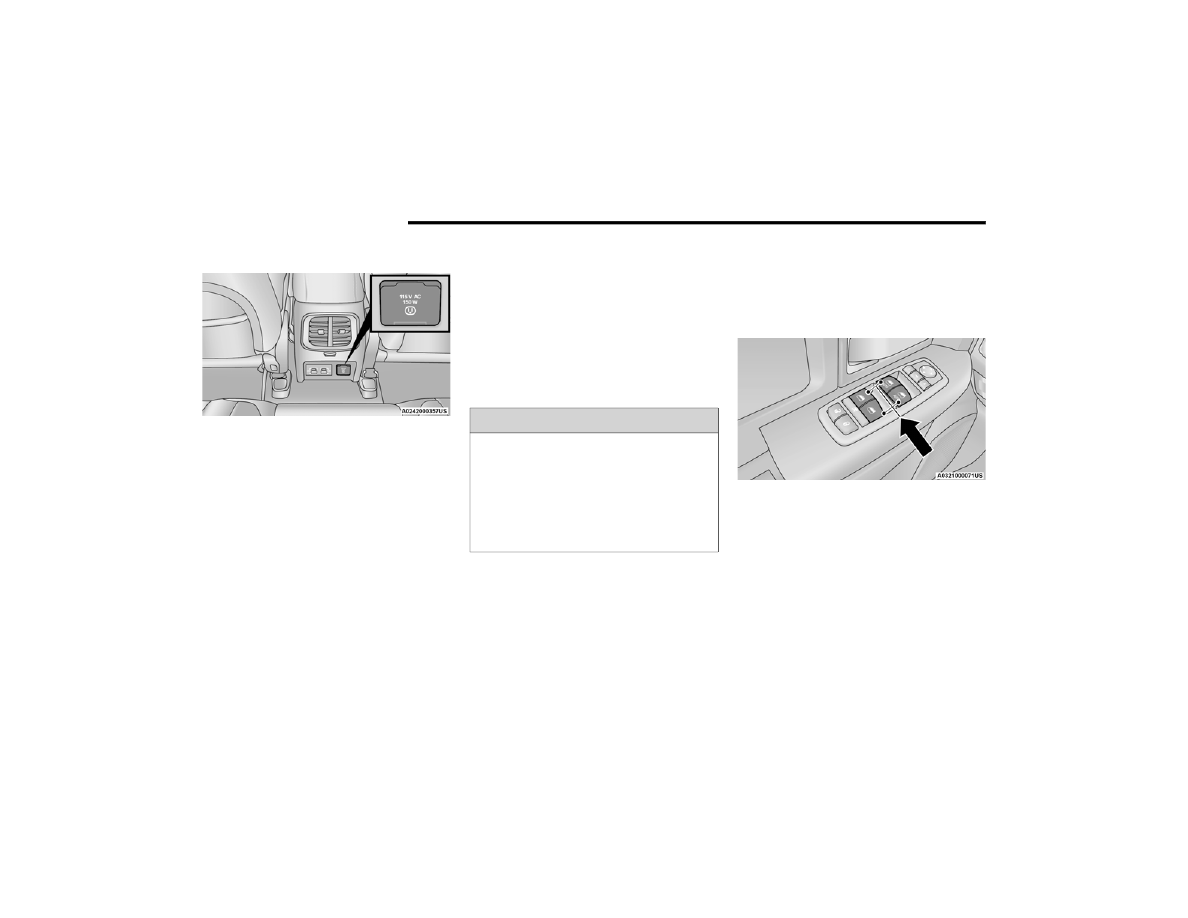

Rear Center Console Power Inverter

There is a 115 Volt, 150 Watt inverter outlet

located on the back of the center console to

convert DC current to AC current. This outlet can

power cellular phones, electronics and other low

power devices requiring power up to 150 Watts.

Certain game consoles exceed this power limit, as

will most power tools.

To turn on the power inverter outlet, simply plug in

the device. The outlet automatically turns off when

the device is unplugged.
The power inverter is designed with built-in

overload protection. If the power rating of

150 Watts is exceeded, the power inverter

automatically shuts down. Once the electrical

device has been removed from the outlet the

inverter should automatically reset. To avoid

overloading the circuit, check the power ratings on

electrical devices prior to using the inverter.

WINDOWS

OWER

INDOW

ONTROLS

The power window switches on the driver's door

control all the door windows.

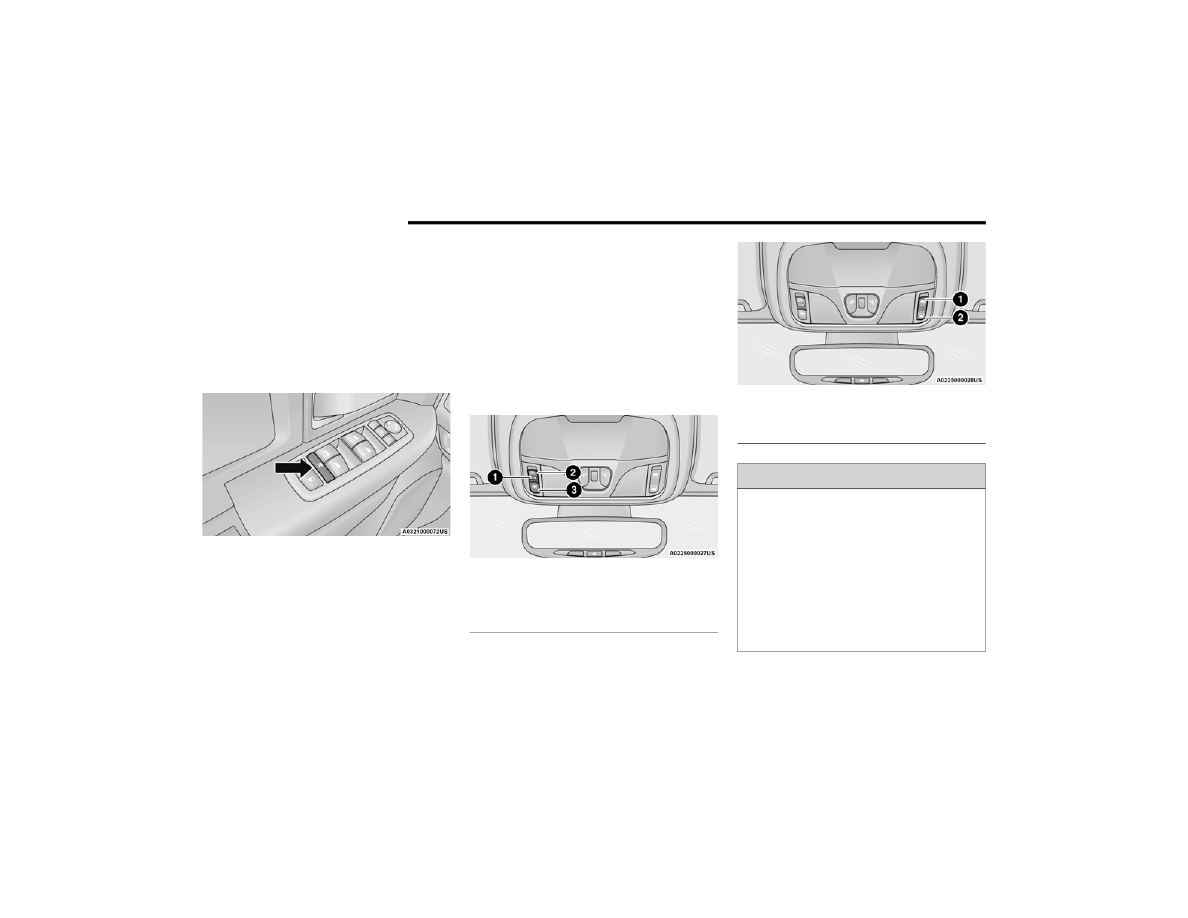

Power Window Switches

The passenger door windows can also be operated

by using the single window switch on each

passenger door trim panel. The window switches

will operate only when the ignition is in the ACC or

ON/RUN position.

WARNING!

To avoid serious injury or death:



Do not insert any objects into the receptacles.



Do not touch with wet hands.



Close the lid when not in use.



If this outlet is mishandled, it may cause an

electric shock and failure.

GETTING TO KNOW YOUR VEHICLE

To open the window part way (manually), push the

window switch down briefly and release.

NOTE:

The power window switches will remain active for

up to 10 minutes after the ignition is placed in the

OFF position. Opening either front door will cancel

this feature. The timing is programmable in the

Uconnect system

page 150.

UTOMATIC

INDOW

EATURES

Auto-Down Feature
The driver door power window switch and the front

and rear passenger doors window switches have

an Auto-Down feature.
Push the window switch down for half a second

and release. The window will go down

automatically.
To stop the window from going all the way down

during the Auto-Down operation, pull up or push

down on the switch briefly.
Auto-Up Feature With Anti-Pinch Protection
Lift the window switch up, for a short period of

time, and release and the window will go up

automatically.
To stop the window from going all the way up

during the Auto-Up operation, push down on the

switch briefly.
If the window runs into any obstacle during

auto-closure, it will reverse direction and then go

back down. Remove the obstacle and use the

window switch again to close the window.

NOTE:

Any impact due to rough road conditions may

trigger the auto-reverse function unexpectedly

during auto-closure. If this happens, pull the switch

lightly and hold to close the window manually.

ESET

UTO

-U

Should the Auto-Up feature stop working, the

window probably needs to be reset. To reset

Auto-Up:
1. Pull the window switch up to close the window

completely and continue to hold the switch up

for an additional two seconds after the

window is closed.

2. Push the window switch down firmly to open

the window completely and continue to hold

the switch down for an additional two seconds

after the window is fully open.

WARNING!

Never leave children unattended in a vehicle,

and do not let children play with power windows.

Do not leave the key fob in or near the vehicle, or

in a location accessible to children, and do not

leave the ignition of a vehicle equipped with

Keyless Enter ‘n Go™ in the ACC or ON/RUN

position. Occupants, particularly unattended

children, can become entrapped by the windows

while operating the power window switches.

Such entrapment may result in serious injury or

death.

WARNING!

There is no anti-pinch protection when the

window is almost closed. To avoid personal

injury be sure to clear your arms, hands, fingers

and all objects from the window path before

closing.

GETTING TO KNOW YOUR VEHICLE

(Continued)

INDOW

OCKOUT

WITCH

The window lockout switch on the driver's door trim

panel allows you to disable the window controls on

the rear passenger doors. To disable the window

controls, push and release the window lockout

button (the indicator light on the button will turn

on). To enable the window controls, push and

release the window lockout button again (the

indicator light on the button will turn off).

Power Window Lockout Switch

IND

UFFETING

Wind buffeting can be described as the perception

of pressure on the ears or a helicopter-type sound

in the ears. Your vehicle may exhibit wind buffeting

with the windows down, or the sunroof (if

equipped) in certain open or partially open

positions. This is a normal occurrence and can be

minimized. If the buffeting occurs with the rear

windows open, open the front and rear windows

together to minimize the buffeting. If the buffeting

occurs with the sunroof open, adjust the sunroof

opening to minimize the buffeting or open any

window.

POWER SUNROOF WITH POWER SHADE —

IF EQUIPPED

The power sunroof switches are located to the left

between the sun visors on the overhead console.

Power Sunroof Switches

The power shade switches are located to the right

between the sun visors on the overhead console.

Power Shade Switches

1 — Vent Sunroof Switch
2 — Open Sunroof Switch
3 — Close Sunroof Switch

1 — Open Sunshade
2 — Close Sunshade

WARNING!



Never leave children unattended in a vehicle,

or with access to an unlocked vehicle. Never

leave the key fob in or near the vehicle, or in a

location accessible to children. Do not leave

the ignition of a vehicle equipped with Keyless

Enter ‘n Go™ in the ACC or ON/RUN position.

Occupants, particularly unattended children,

can become entrapped by the power sunroof

while operating the power sunroof switch.

Such entrapment may result in serious injury

or death.

GETTING TO KNOW YOUR VEHICLE

PENING

LOSING

UNROOF

The sunroof has two programmed open positions:

comfort stop position and full open position. The

comfort stop position is set to minimize wind

buffeting when driving with side windows closed

and sunroof open. If the sunshade is closed when

initiating a sunroof open or vent command, the

sunshade will automatically open to the half open

position prior to the sunroof opening.
Express Open/Close
Push the switch rearward to open and release it

within one-half second, the sunroof will open to the

comfort stop position and automatically stop. Push

the switch rearward and release it again, the

sunroof will open to the full open position and

automatically stop. This is called Express Open.

Push the switch forward to close and release it

within one-half second and the sunroof will close

automatically from any position. The sunroof will

close fully and stop automatically. This is called

Express Close.
During Express Open or Express Close operation,

any movement of the sunshade switch will stop the

shade.
Manual Open/Close
Push and hold the switch rearward to open. The

sunroof will open to the comfort stop position and

automatically stop. Push the switch rearward and

hold it again, the sunroof will open to the full open

position and automatically stop.
To close the sunroof, push and hold the switch in

the forward position.
Any release of the switch during open or close

operation will stop the sunroof movement. The

sunroof will remain in a partially opened position

until the switch is operated and held again.

PENING

LOSING

OWER

HADE

The sunshade has two programmed open

positions: half open and full open. When opening

the sunshade from the closed position the

sunshade will always stop at the half open position

regardless of express or manual open operation.

The switch must be actuated again to continue on

to full open position.
If the sunroof is open or vented the sunshade

cannot be closed beyond the half open position.

Pushing the sunshade close switch when the

sunroof is open/vented and the sunshade is at half

open position will first automatically close sunroof

prior to the sunshade closing.
Express Open/Close
Push the sunshade switch rearward to open and

release it within one-half second, the sunshade will

open to the half open position and stop

automatically. Push and release the switch again

from the half open position and the sunshade will

open to the full open position and stop

automatically. This is called Express Open.
Push the sunshade switch forward to close and

release it within one-half second. If the sunroof is

in closed position the sunshade will full close

automatically from any position. If the sunroof is

open or vented the sunshade will close to the half

open position and stop; push and release the

sunshade switch forward again to automatically

close both the sunroof and sunshade completely.

This is called Express Close.
During Express Open or Express Close operation,

any movement of the sunshade switch will stop the

shade.



In a collision, there is a greater risk of being

thrown from a vehicle with an open sunroof.

You could also be seriously injured or killed.

Always fasten your seat belt properly and

make sure all passengers are also properly

secured.



Do not allow small children to operate the

sunroof. Never allow your fingers, other body

parts, or any object, to project through the

sunroof opening. Injury may result.

WARNING!

GETTING TO KNOW YOUR VEHICLE

Manual Open/Close
Push and hold the sunshade switch rearward to

open. The shade will open to the half open position

and stop automatically. Push and hold the

sunshade switch rearward again and the shade

will open automatically to the full open position.
Push and hold the sunshade switch forward to

close. If the sunroof is in closed position the

sunshade will full close from any position. If the

sunroof is open or vented the sunshade will close

to the half open position and stop; pushing and

holding the sunshade switch forward again will

close both the sunroof and sunshade completely.
Any release of the switch will stop the movement

and the sunshade will remain in a partially opened

position until the switch is pushed again.

INCH

ROTECT

EATURE

This feature will detect an obstruction in the

closing of the sunroof during the Express Close

operation. If an obstruction in the path of the

sunroof is detected, the sunroof will automatically

retract. Remove the obstruction if this occurs.

NOTE:

If three consecutive sunroof close attempts result

in Pinch Protect reversals, Pinch Protect will

disable and the sunroof must be closed in Manual

Mode.

ENTING

UNROOF

Push and release the Vent switch within one-half

second and the sunroof will open to the vent

position. This is called “Express Vent”, and it will

occur regardless of sunroof position. During

Express Vent operation, any movement of the

switch will stop the sunroof.

GNITION

PERATION

The power sunroof switch will remain active for up

to approximately 10 minutes after the ignition

switch is placed in the OFF position. Opening either

front door will cancel this feature.
NOTE:

Ignition Off timing is programmable through the

Uconnect system

page 150.

UNROOF

AINTENANCE

Use only a non-abrasive cleaner and a soft cloth to

clean the glass panel. Periodically check for and

clear out any debris that may have collected in the

tracks.

HOOD

PENING

OOD

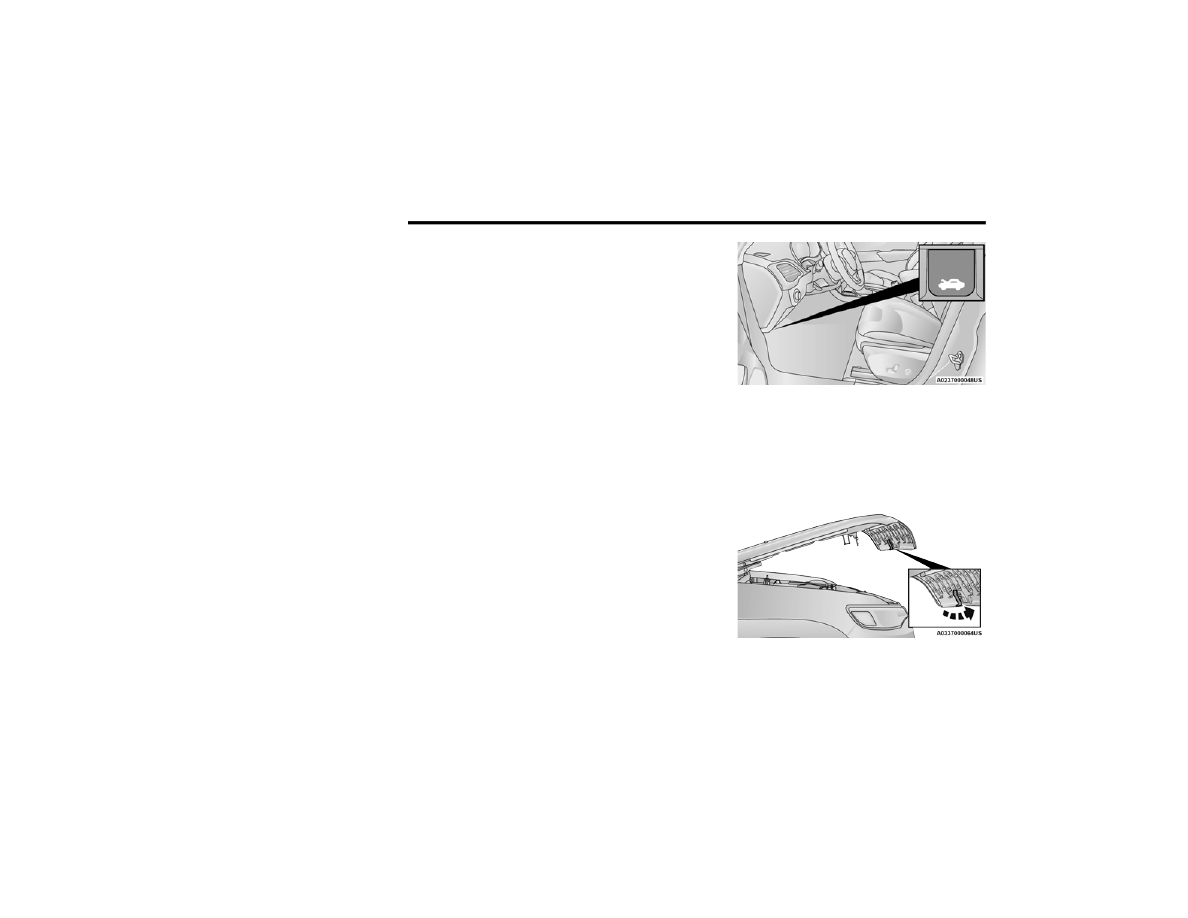

Two latches must be released to open the hood.
1. Pull the hood release lever located under the

driver’s side of the instrument panel.

Hood Release

2. Move to the outside of the vehicle and pull the

safety latch release lever forward (toward you).

The safety latch release lever is located behind

the front edge of the hood, slightly off-center to

the right.

Hood Safety Latch Release Lever Location

GETTING TO KNOW YOUR VEHICLE

LOSING

OOD

In one continuous motion, pull down on the front

edge of the hood with moderate force until the

angle is below the point where the gas props are no

longer resisting. Then let the hood continue to fall

into the closed position on its own.

LIFTGATE

NLOCK

PEN

IFTGATE

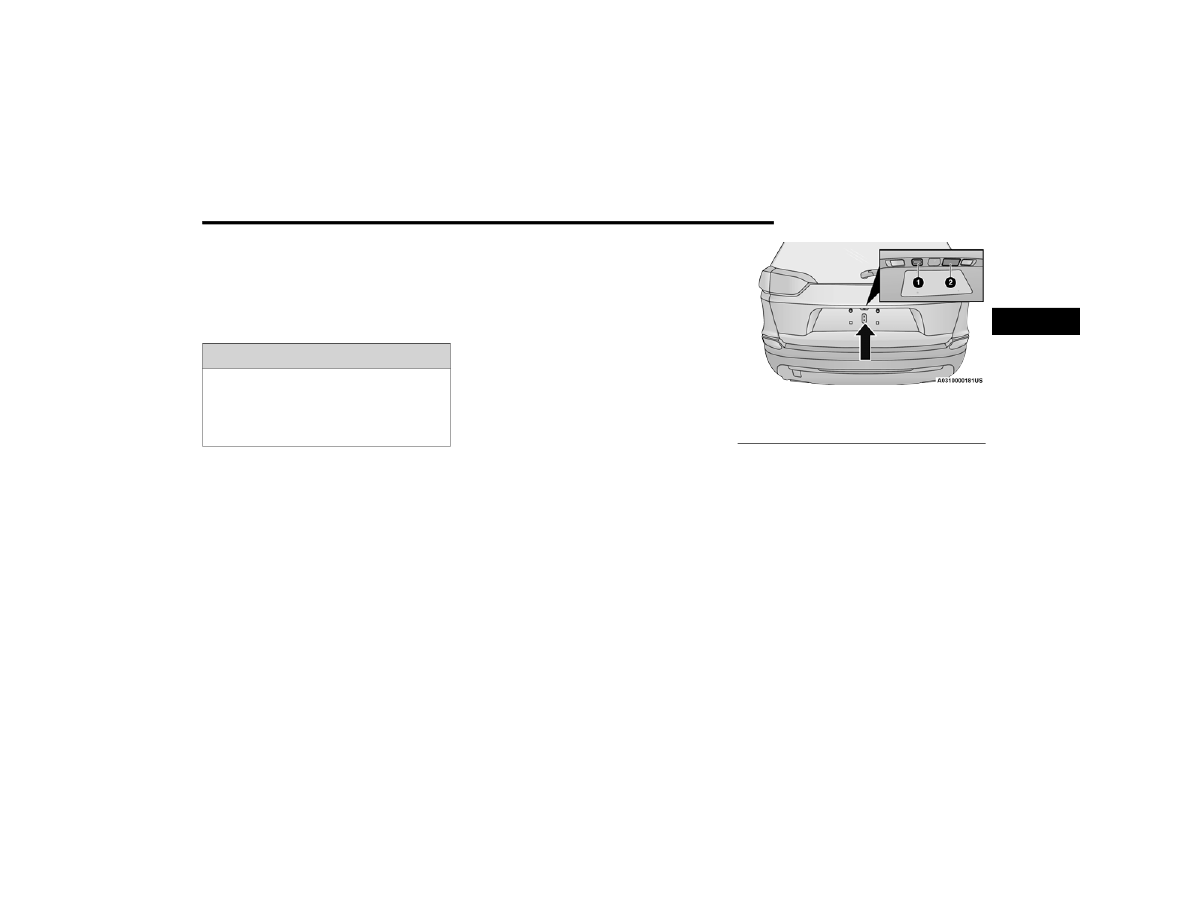

The power liftgate may be opened by pushing the

key fob liftgate button (if equipped) or by pushing

the electronic liftgate release handle

page 24.

Push the liftgate button on the key fob twice within

five seconds to open the power liftgate. Once the

liftgate is open, pushing the button twice within

five seconds a second time will close the liftgate.

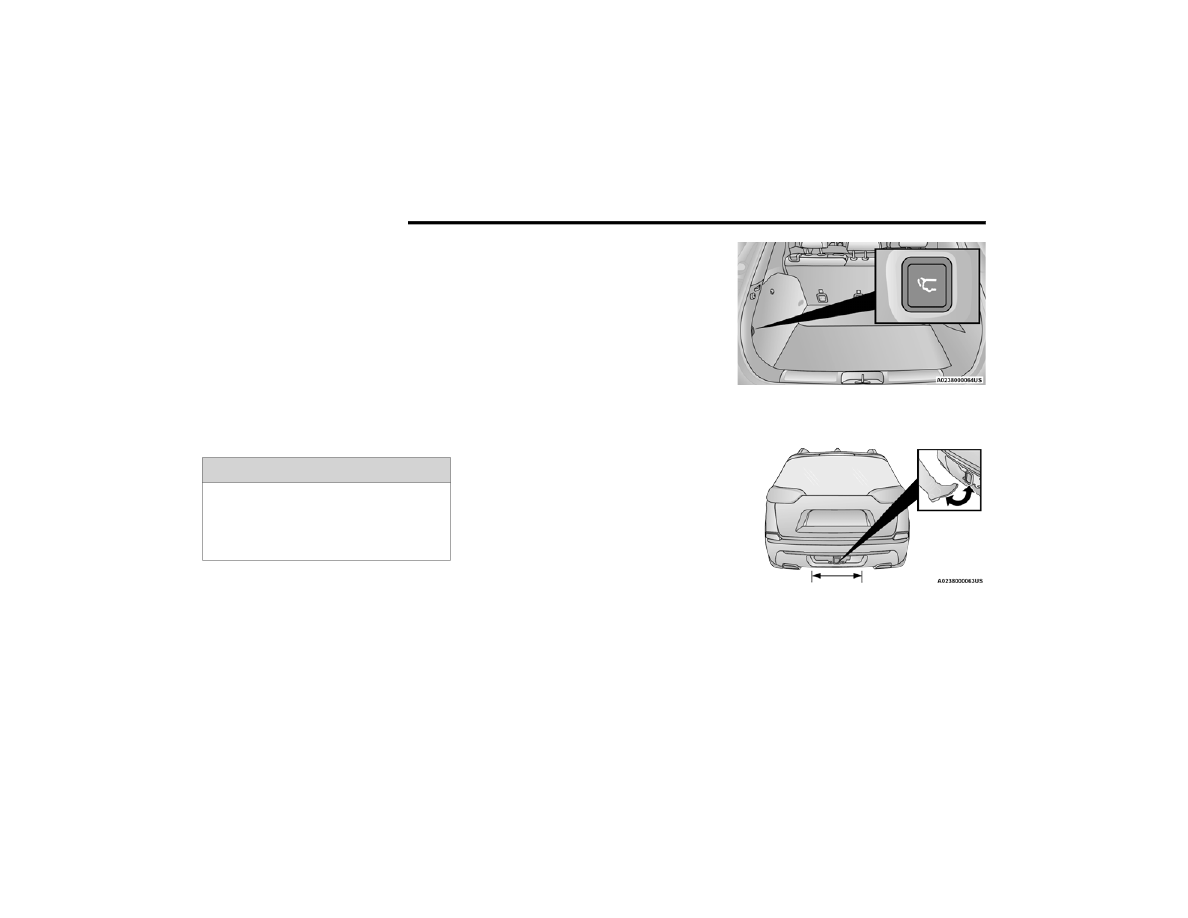

The power liftgate may also be opened or closed by

pushing the liftgate button located on the

instrument panel to right of the headlight switch. If

the liftgate is fully open, the liftgate can be closed

by pushing the liftgate button located on the left

rear trim panel, near the liftgate opening. If the

liftgate is in motion, pushing the liftgate button

located on the left rear trim panel will reverse the

liftgate.
With a valid Passive Entry key fob within 5 ft

(1.5 m) of the liftgate, push the Passive Entry

button located to the left of liftgate release handle

to lock the liftgate and doors.

NOTE:

If all doors are programmed within Uconnect

Settings to unlock on first press, all doors will

unlock when you push the liftgate release handle.

If the driver door is programmed to unlock on first

press within Uconnect Settings

page 150, the

liftgate will unlock when you push the liftgate

release handle.

Liftgate Entry

NOTE:



Use the power door lock switch on either front

door trim panel or the key fob to lock and unlock

the liftgate.



The manual door locks on the doors and the

driver's door lock cylinder will not lock and

unlock the liftgate.

WARNING!

Be sure the hood is fully latched before driving

your vehicle. If the hood is not fully latched, it

could open when the vehicle is in motion and

block your vision. Failure to follow this warning

could result in serious injury or death.

1 — Passive Entry Button
2 — Liftgate Release Handle

GETTING TO KNOW YOUR VEHICLE

Power Liftgate Malfunction Procedure:
1. In the event of a power malfunction to the

liftgate, the liftgate can be released by

accessing the service release feature in the

latch. This can be done using a 3 mm

diameter screwdriver.

2. From inside the gate, an eyelet can be seen.

Place the screwdriver in the eyelet.

3. Rotate the screwdriver handle to actuate the

lever and release the latch.

4. If liftgate is left open for an extended period of

time, the liftgate may need to be closed

manually to reset power liftgate functionality.

NOTE:

The liftgate can also be opened manually by

pushing the electronic liftgate release handle and

pulling upward in one fluid motion.

OCK

LOSE

IFTGATE

There are several different ways to close the

liftgate:



Manually by grabbing the liftgate closing handle

and pulling in a downward motion to close the

liftgate. Release the handle when the liftgate

takes over the closing effort.



Key fob liftgate button (if equipped)



Hands-Free (if equipped)



Liftgate instrument panel button (if equipped)



Power Liftgate button on the pillar in the cargo

area (if equipped)

With a valid Passive Entry key fob within 5 ft

(1.5 m) of the liftgate, pushing the Keyless

Enter ‘n Go™ — Passive Entry lock/push button

located to the left of the back-up camera will lock

the vehicle only.
The power liftgate may be closed by pushing the

rear power liftgate button, located in the upper left

trim in the liftgate opening. Pushing the button will

only close the liftgate. This button cannot be used

to open the liftgate.

Rear Power Liftgate Button

ANDS

-F

REE

IFTGATE

— I

QUIPPED

Hands-Free Liftgate Activation Zone

WARNING!

Driving with the liftgate open can allow

poisonous exhaust gases into your vehicle. You

and your passengers could be injured by these

fumes. Keep the liftgate closed when you are

operating the vehicle.

GETTING TO KNOW YOUR VEHICLE

To open or close the liftgate using hands-free

activation, use a straight in and out kicking motion

under the vehicle activation zone in the general

location below the rear license plate. Do not move

your foot sideways or in a sweeping motion or the

sensors may not detect the motion.

NOTE:

The activation zone is the same for vehicles

equipped with or without a trailer tow package.
When a valid kicking motion is completed, the

liftgate will chime, the hazard lights will flash and

the liftgate will open after approximately one

second, or close after approximately three

seconds. These settings can be enabled or

disabled through the Uconnect Settings

page 150.

NOTE:



Opening or closing the Hands-Free Liftgate

requires a valid Passive Entry key fob within 5 ft

(1.5 m) of the door handle. If a valid Passive

Entry key fob is not within 5 ft (1.5 m), the lift

gate will not respond to any kicks.



The Hands-Free Liftgate feature may be turned

on or off through the Uconnect system

page 150.



The Hands-Free Liftgate feature should be

turned off during jacking, tire changing, manual

car wash, and vehicle service.



The Hands-Free Liftgate feature can be acti

vated by any metallic object making a similar

in-and-out motion under the rear fascia/

bumper, such as cleaning using a metal broom.



The Hands-Free Liftgate will only operate when

the transmission is in PARK.



If anything obstructs the Hands-Free Liftgate

while it is opening or closing, the liftgate will

automatically reverse to the closed/open posi

tion, provided it meets sufficient resistance.



There are pinch sensors attached to the side of

the liftgate opening. Light pressure anywhere

along these strips will cause the liftgate to

return to the open position.



If the power liftgate encounters multiple

obstructions within the same cycle, the system

will automatically stop. If this occurs, the liftgate

must be operated manually.



The power liftgate will release, but not power

open, in temperatures below −12°F (−24°C).

Be sure to remove any buildup of snow or ice

from the liftgate before opening the liftgate.



If the liftgate is left open for an extended period

of time, the liftgate may need to be closed

manually to reset power liftgate functionality.

Gas props support the liftgate in the open position.

However, because the gas pressure drops with

temperature, it may be necessary to assist the

props when opening the liftgate in cold weather.

NOTE:

Allow the power system to open the liftgate.

Manually pushing or pulling the liftgate may

activate the liftgate obstacle detection feature and

stop the power operation or reverse its direction.

WARNING!



Driving with the liftgate open can allow

poisonous exhaust gases into your vehicle.

You and your passengers could be injured by

these fumes. Keep the liftgate closed when

you are operating the vehicle.



If you are required to drive with the liftgate

open, make sure that all windows are closed,

and the climate control blower switch is set at

high speed. Do not use the recirculation

mode.

WARNING!

During power operation, personal injury or cargo

damage may occur. Ensure the liftgate travel

path is clear. Make sure the liftgate is closed

and latched before driving away.

GETTING TO KNOW YOUR VEHICLE

(Continued)

ARGO

REA

EATURES

Cargo Load Floor

The cargo load floor system has a load capacity of

300 lb (136 kg).
To provide additional storage area, each rear seat

can be folded flat. This allows for extended cargo

space and still maintains some rear seating room

page 30.

Cargo Extension Panels (Only With Sliding

Rear Seat) — If Equipped

Cargo extension panels can be folded and

unfolded. When the rear seats are moved to the

more forward positions and the rear seatbacks are

folded down, the extension panels (2) can be

unfolded manually by hand. The extension panels

can be used to extend the load floor to the rear

seats and/or hide the gap between the load floor

and rear seats or to assist in loading large items

into the cargo area.

NOTE:

If equipped with a cargo area floor mat, the mat

must be removed before unfolding the extension

panels.

Cargo Tie-Down Hooks And Loops

The tie-downs located on the cargo area floor

should be used to secure loads safely when the

vehicle is moving.
Cargo tie-down loops are located on the trim

panels.

WARNING!



Cargo tie-downs are not safe anchors for a

child seat tether strap. In a sudden stop or

accident, a tie-down could pull loose and allow

the child seat to come loose. A child could be

badly injured. Use only the anchors provided

for child seat tethers.



To help protect against personal injury,

passengers should not be seated in the rear

cargo area. The rear cargo space is intended

for load carrying purposes only, not for

passengers, who should sit in seats and use

seat belts.

The weight and position of cargo and

passengers can change the vehicle center of

gravity and vehicle handling. To avoid loss of

control resulting in personal injury, follow these

guidelines for loading your vehicle:



Do not carry loads that exceed the load limits

described on the label attached to the left

door or left door center pillar.



Always place cargo evenly on the cargo floor.

Put heavier objects as low and as far forward

as possible.



Place as much cargo as possible in front of the

rear axle. Too much weight or improperly

placed weight over or behind the rear axle can

cause the vehicle to sway.



Do not pile luggage or cargo higher than the

top of the seatback. This could impair visibility

or become a dangerous projectile in a sudden

stop or accident.

WARNING!

GETTING TO KNOW YOUR VEHICLE

(Continued)

Rear Storage Bins

The rear storage bins are located in the rear of the

vehicle on the sides of the load floor.

ROOF LUGGAGE RACK — IF EQUIPPED

The load carried on the roof, when equipped with a

luggage rack, must not exceed 150 lb (68 kg), and

it should be uniformly distributed over the cargo

area.
Crossbars should always be used whenever cargo

is placed on the roof rack. Check the straps

frequently to be sure that the load remains

securely attached.

NOTE:

Crossbars can be purchased at an authorized

dealer through Mopar® parts.
External racks do not increase the total load

carrying capacity of the vehicle. Be sure that the

total occupant and luggage load inside the vehicle,

plus the load on the luggage rack, do not exceed

the maximum vehicle load capacity.

WARNING!

Cargo must be securely tied down before driving

your vehicle. Improperly secured loads can fly off

the vehicle, particularly at high speeds, resulting

in personal injury or property damage. Follow

the roof rack cautions when carrying cargo on

your roof rack.

CAUTION!



To avoid damage to the roof rack and vehicle,

do not exceed the maximum roof rack load

capacity. Always distribute heavy loads as

evenly as possible and secure the load appro

priately.



Long loads, which extend over the windshield,

should be secured to both the front and rear of

the vehicle.



Place a blanket or other protection between

the surface of the roof and the load.



Travel at reduced speeds and turn corners

carefully when carrying large or heavy loads

on the roof rack. Wind forces, due to natural

causes or nearby truck traffic, can add sudden

upward lift to a load. It is recommended to not

carry large flat loads, such as wood panels or

surfboards, which may result in damage to the

cargo or your vehicle.



Loads should always be secured to crossbars

first, with tie down loops used as additional

securing points if needed. Tie loops are

intended as supplementary tie down points

only. Do not use ratcheting mechanisms with

the tie loops. Check the straps frequently to be

sure that the load remains securely attached.

CAUTION!

GETTING TO KNOW YOUR INSTRUMENT PANEL

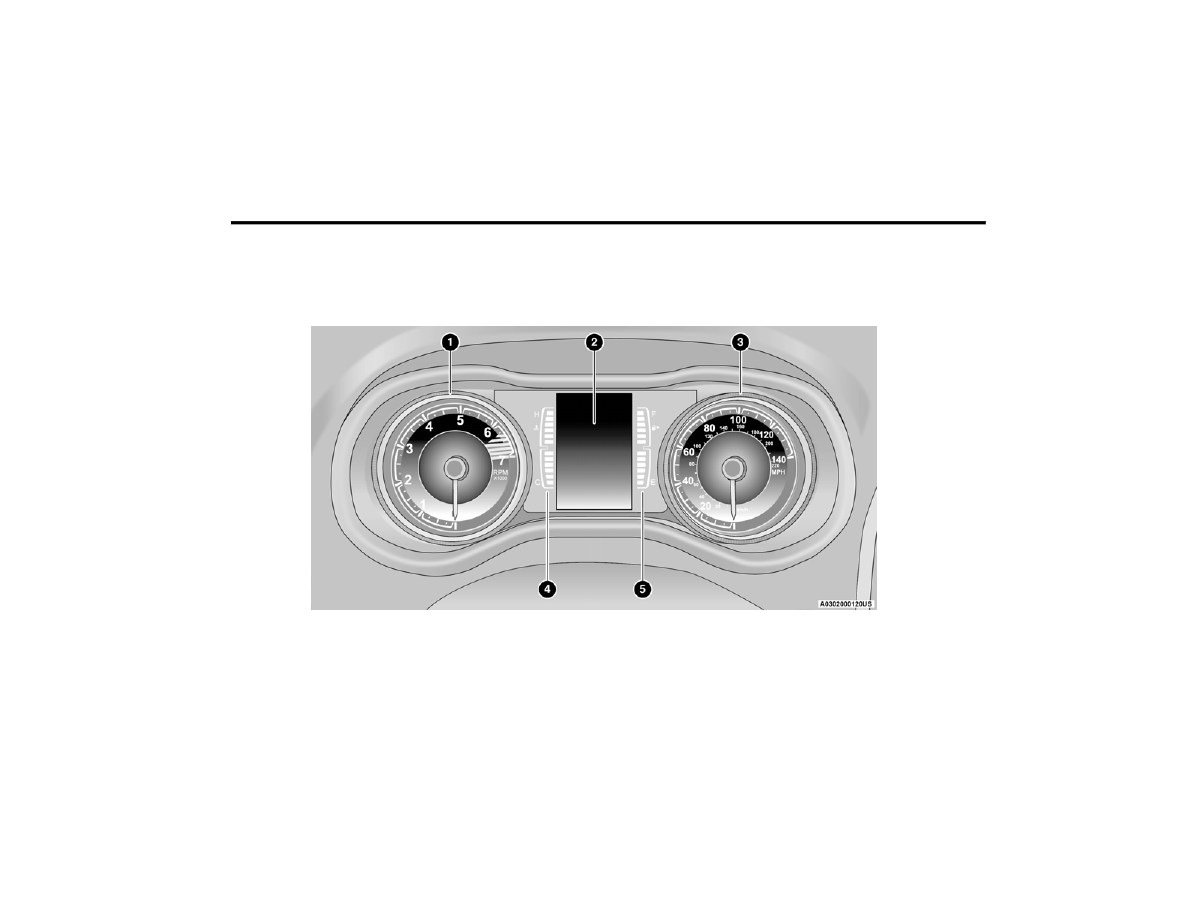

INSTRUMENT CLUSTER

Content .. 2 3 4 5 ..
