Jeep Renegade (2018 year). Instruction

(*)

4255 /

4259

(**)

892

2570

793 /

797

(**)

1667 /

1697

(***)

1551 /

1541

(**)

2023

1553 /

1541

(**)

1805

(*) Trailhawk versions: 1697 / 1727 (with roof bars)
(**) Trailhawk versions
(***) With roof rack bars

270

TECHNICAL

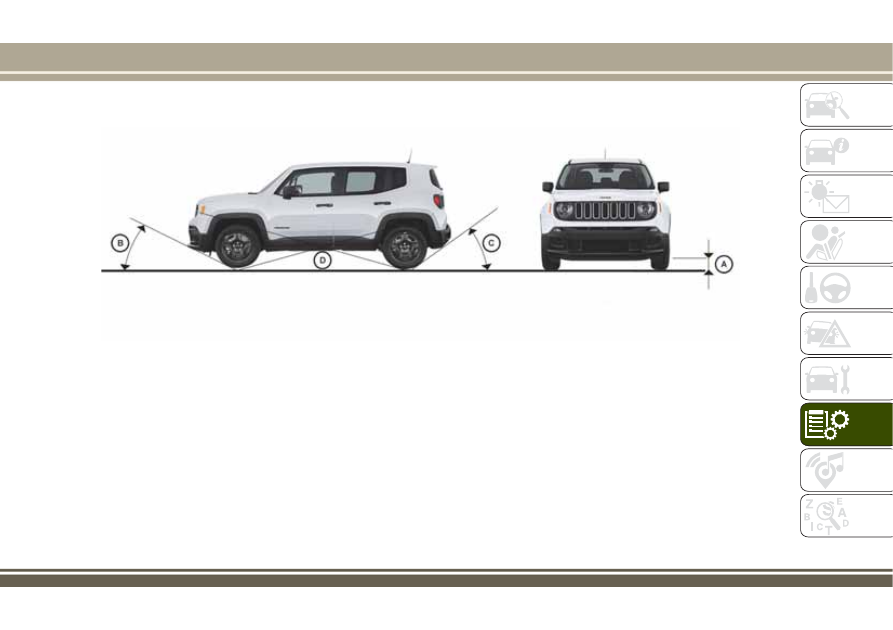

MINIMUM GROUND CLEARANCE/TYPICAL ANGLES

"Minimum ground clearance" (reference A)

The clearance value is measured next to the lower edge of the differential. This value also defines those for the "Approach angle" the
"Departure angle" and the "Breakover angle".
Dimensions are expressed in mm and refer to the car equipped with its original tyres.
Front wheel drive (FWD) versions: 171 mm
Four-wheel drive (4WD) versions: 201 mm
Trailhawk versions with four wheel drive (4WD LOW): 225 mm

"Approach angle" (reference B )

The approach angle is determined by the horizontal line of the road surface and by the tangent line passing between the front wheel
and the most projecting low point of the car.

210

J0A0242C

271

The wider the angle, the lower the chance to hit an obstacle with the body or chassis, climbing a steep slope or overcoming an
obstacle.
Front wheel drive (FWD) versions: 17.9°
Four-wheel drive (4WD) versions: 21°
Trailhawk versions with four wheel drive (4WD LOW): 30.5°

"Departure angle" (reference C)

The departure angle is determined by the same lines of the "Approach angle", and refers to the rear part of the car.
Front wheel drive (FWD) versions: 29.7°
Four-wheel drive (4WD) versions: 32.1°
Trailhawk versions with four wheel drive (4WD LOW): 34.3°

"Breakover angle" (reference D)

The value of the "Breakover angle" is linked to the ground clearance of the car and indicates the attitude of the car to overcome a
wedge, more or less steep, preventing the car from resting on the ground with the body or chassis after touching the wedge with its
lowest and most projecting parts (usually the underbody), because this would highly reduce wheel grip.
The wheels, without a suitable grip to the ground, will not have sufficient hold to move the car, and will surge.
The higher the ground clearance, the wider the breakover angle. Always bear in mind that the higher the ground clearance, the lower
the stability, due to a higher centre of gravity which reduces the side rollover angle.
Front wheel drive (FWD) versions: 21.2°
Four-wheel drive (4WD) versions: 24°
Trailhawk versions with four wheel drive (4WD LOW): 25.7°

272

TECHNICAL

WEIGHTS

Weights (kg)

1.4 T-jet 120 HP Petrol/LPG

1.4 Turbo Multi Air

136/140 HP

1.4 Turbo MultiAir

170 HP

(***)

Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)

1430

1320

1430

Payload including the driver

(****)

555

545 /

560

(**)

580

Maximum permitted loads

(*****)

1150

1050

1150

– front axle

– rear axle

1000

900

1000

- total:

1985

1865 /

1880

(**)

2010

Towable loads

900

1000

/ 1200

(**)

1200

– braked trailer

– trailer without brakes

600

400 / 600

(**)

600

(***) Versions with automatic transmission
(****) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in

relation to the maximum permissible loads.

(**) Automatic transmission versions with dual clutch
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the

maximum permitted loads.

273

Weights (kg)

1.4 T-jet 120 HP Petrol/LPG

1.4 Turbo Multi Air

136/140 HP

1.4 Turbo MultiAir

170 HP

(***)

Maximum load on the roof (versions
with roof rack bars)

Maximum load on tow hitch (trailer
with brakes)

(***) Versions with automatic transmission

WARNING Petrol/LPG versions: for some versions/markets, trailers cannot be towed so there are no provisions for fitting a tow hook.

274

TECHNICAL

Weights (kg)

1.6 E.Torq

2.4 Tigershark

(*)

Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)

1320

1575

Payload including the driver

(***)

545

505

Maximum permitted loads

(****)

1050

1150

– front axle

– rear axle

900

1000

- total:

1865

2080

Towable loads

800

905

– braked trailer

– trailer without brakes

600

400

Maximum load on the roof (versions
with roof rack bars)

Maximum load on tow hitch (trailer
with brakes)

(*) Where fitted
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in

relation to the maximum permissible loads.

(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the

maximum permitted loads.

275

Weights (kg)

1.6 16V MultiJet

Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)

1390 / 1415

(**)

Payload including the driver

(***)

515

Maximum permitted loads

(****)

1050

– front axle

– rear axle

900

- total:

1905 / 1930

(**)

Towable loads

1000 / 900

(**)

– braked trailer

– trailer without brakes

400

Maximum load on the roof (versions
with roof rack bars)

Maximum load on tow hitch (trailer
with brakes)

(**) Automatic transmission versions with dual clutch
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in

relation to the maximum permissible loads.

(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the

maximum permitted loads.

276

TECHNICAL

Weights (kg)

2.0 16V Multijet 120/140 HP

2.0 16V MultiJet 140/170 HP

(*)

Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)

1430

1530

(**)

/ 1535

(***)

/ 1540

(******)

Payload including the driver

(****)

580

550

(**)

/ 545

(***)

/ 540

(******)

Maximum permitted loads

(*****)

1150

– front axle

– rear axle

1000

- total:

2010

2080

Towable loads

1500

– braked trailer

– trailer without brakes

600

(*) Versions with automatic transmission
(**) 2.0 16V Multijet 140CV versions
(***) 2.0 16V Multijet 170CV versions
(******) Automatic transmission versions for specific markets
(****) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in

relation to the maximum permissible loads.

(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the

maximum permitted loads.

277

Weights (kg)

2.0 16V Multijet 120/140 HP

2.0 16V MultiJet 140/170 HP

(*)

Maximum load on the roof (versions with roof
rack bars)

Maximum load on tow hitch (trailer with
brakes)

(*) Versions with automatic transmission

278

TECHNICAL

SUPPLIES

1.4 T-jet 120 HP Petrol/LPG

1.4 Turbo Multi Air

Prescribed fuels and original

lubricants

Fuel tank (litres):

Unleaded petrol with RON no
lower than 95 (Specification
EN228) (1.4 Turbo Multi Air
versions) / Unleaded petrol
with RON no lower than 95
(Specification EN228/LPG
(Specification EN589)
(1.4 T-jet 120 HP Petrol/LPG
versions)

including a reserve of (litres):

5 ÷ 7

Fuel tank (LPG) (litres):

–

Engine cooling system

5.5

5.2

Mixture of demineralised water
and 50% PARAFLU

(*)

Engine sump and filter (litres):

3.25

3.6

SELENIA DIGITEK P.E.
(1.4 Turbo Multi Air versions) /
SELENIA Multipower GAS
(1.4 T-JET 120HP Petrol/LPG
versions)

(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU

and 40%

demineralised water.

279

1.4 T-jet 120 HP Petrol/LPG

1.4 Turbo Multi Air

Prescribed fuels and original

lubricants

Gearbox/differential casing
(litres):

2.0

2.0 / 2.1

(**)

/ 6.0

(***)

TUTELA TRANSMISSION
GEARFORCE (versions with
manual transmission/dual
clutch automatic transmission)
/ TUTELA TRANSMISSION
AS8 (versions with automatic
transmission)

Hydraulic brakes circuit (kg):

0.83

TUTELA TOP 4/S

Windscreen and rear window
washer fluid reservoir (litres):

2.5

Mixture of water and liquid
PETRONAS DURANCE SC 35

(**) Automatic transmission versions with dual clutch
(***)Versions with automatic transmission

280

TECHNICAL

1.6 E.Torq

2.4 Tigershark

(*)

Prescribed fuels and original

lubricants

Fuel tank (litres):

Unleaded petrol with RON no
lower than 95
(EN228 specifications)

including a reserve of (litres):

5 ÷ 7

Engine cooling system

5.6

6.45

Mixture of demineralised water
and 50% PARAFLU

(**)

Engine sump and filter (litres):

4.7

5.3

SELENIA DIGITEK P.E.
(1.6 E.Torq versions) /
SELENIA K POWER 0W-20
(2.4 Tigershark versions)

Gearbox/differential casing
(litres):

2.0

–

TUTELA TRANSMISSION
GEARFORCE (versions with
manual transmission)
(1.6 E.Torq versions) / TUTELA
TRANSMISSION AS8
(2.4 Tigershark versions)

Hydraulic brakes circuit (kg):

0.83

TUTELA TOP 4/S

Windscreen and rear window
washer fluid reservoir (litres):

2.5

3.0

Mixture of water and liquid
PETRONAS DURANCE SC 35

(*) Where fitted
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU

and 40%

demineralised water.

281

1.6 16V MultiJet

2.0 16V MultiJet

Prescribed fuels and original

lubricants

Fuel tank (litres):

Diesel for motor vehicles
(EN590 Specification)

including a reserve of (litres):

5 ÷ 7

Engine cooling system

6.1

6.5

Mixture of demineralised water
and 50% PARAFLU

(*)

Engine sump and filter (litres):

4.8

4.3

SELENIA WR FORWARD

Gearbox/differential casing
(litres):

1.8

2.0

(**)

/ 6.0

(***)

TUTELA TRANSMISSION
GEARFORCE (versions with
manual transmission) /
TUTELA TRANSMISSION AS8
(versions with automatic
transmission)

Idler unit (PTU) (litres):

–

0.4

TUTELA TRANSMISSION B-5X

Rear differential (litres):

–

0.6

TUTELA TRANSMISSION
COMPAQ DRIVE

Hydraulic brakes circuit (kg):

0.83

TUTELA TOP 4/S

Windscreen and rear window
washer fluid reservoir (litres):

2.5

Mixture of water and liquid
PETRONAS DURANCE SC 35

(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU

and 40%

demineralised water.

(**) Versions with manual transmission
(***) Versions with automatic transmission

282

TECHNICAL

FLUIDS AND LUBRICANTS

Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications.
Lubricant quality is crucial for engine operation and duration.

104)

PRODUCT SPECIFICATIONS

Use

Features

Specification

Original fluids and

lubricants

Replacement interval

Lubricant for petrol
engines (except
2.4 Tigershark engine)

SAE 0W-30

ACEA C2 / API SN

9.55535-GS1

SELENIA DIGITEK P.E.

Contractual Technical

Reference N° F020.B12

According to Scheduled
Servicing Plan

Lubricant for petrol
engines
(2.4 Tigershark
engine)

SAE 0W-20

API SN

9.55535-CR1 or

MS-6395

SELENIA K POWER 0W-20

Contractual Technical

Reference N° F029.F14

According to Scheduled
Servicing Plan

Lubricant for
petrol/LPG engines

SAE 5W-40

ACEA C3/API SM

9.55535-T2

SELENIA Multipower GAS

Contractual Technical

Reference N° F922.E09

According to Scheduled
Servicing Plan

Lubricant for diesel
engines

SAE 0W-30

ACEA C2

9.55535-DS1 or

MS.90047

SELENIA WR FORWARD
Contractual Technical

Reference N° F.842.F13

According to Scheduled
Servicing Plan

If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to top
up; in this case optimal performance of the engine is not guaranteed.

283
