Jeep Renegade (2018 year). Instruction

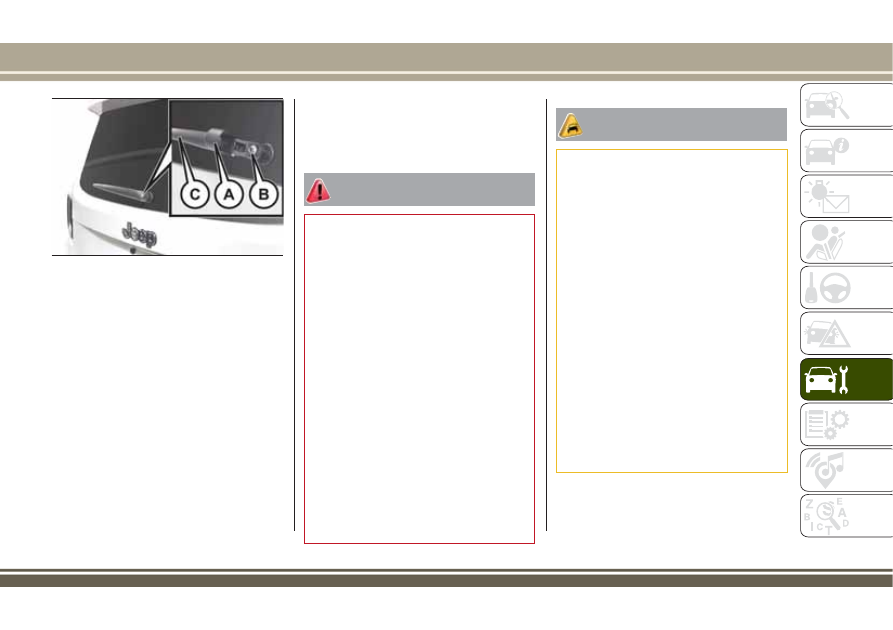

IMPORTANT Do not operate the rear
window wiper with the blade lifted
from the rear window.

Windscreen washer

The windscreen jets, located on the
bonnet, are fixed.
If there is no jet of fluid, firstly check
that there is fluid in the reservoir (see
paragraph “Engine compartment” in this
chapter). Then check that the nozzle
holes are not clogged; use a needle to
unblock them if necessary.

IMPORTANT In versions with a sun
roof, make sure that the sun roof is
closed before operating the window
washer jets.

Rear window washer

The rear window washer jets are fixed.
The nozzle holder is located above the
rear window.

WARNING

189) The air intake system (air cleaner,
rubber hoses, etc.) can be a protection in
the case of blowbacks from the engine.
DO NOT REMOVE this system unless you
need to carry out repair or servicing
operations. Before starting the engine,
ensure that the system has not been
removed: failure to observe this precaution
may result in serious injury.
190) Exhaust emissions are very
dangerous, and may be lethal. They
contain carbon monoxide, a colourless,
odourless gas which can cause fainting
and poisoning if inhaled.
191) The exhaust system may reach high
temperatures and may cause a fire if the
vehicle is parked on flammable material.
Dry grass or leaves can also catch fire if
they come into contact with the exhaust
system. Do not park or use the vehicle in a
place in which the exhaust system might
come into contact with flammable
material.

IMPORTANT

89) Incorrect servicing of the vehicle or
failure to carry out operations or repairs
(when necessary) may lead to more
expensive repairs, damage to other
components or have a negative impact on
the vehicle performance. Have any
malfunction inspected immediately by a
Jeep Dealership.
90) The vehicle is equipped with fluids
which are optimised or protecting its
performance and life and extending
service intervals. Do not use chemicals for
washing these components since they may
damage the engine, the gearbox or the
climate control system. This damage is not
covered by the vehicle’s warranty. If any
component needs to be washed due to
malfunctioning, use only the specific
liquid for that procedure.
91) An excessive or insufficient amount of
oil inside the base is extremely damaging
to the engine. Make sure it is always at an
adequate level.

205

J0A0346C

253

92) Always require the use of only
compressor coolants and lubricants
approved and suitable for the specific air
conditioning system fitted on the vehicle.
Some non-approved coolants are
flammable and may explode, with the risk
of injuries. The use of non-approved
coolants or lubricants may adversely affect
system efficiency, leading to expensive
repairs.
93) The air conditioner system contains
coolant under high pressure: to avoid
injuries to people or damage to the
system, any coolant addition or repair that
requires to disconnect the cables must be
carried out by a Jeep Dealership.

94) Vehicles equipped with catalytic
converter must be fuelled only with
unleaded petrol. Leaded petrol would
permanently damage the catalytic
converter and eliminate its ability to
reduce polluting emissions, seriously
compromising the engine performance,
which would be irreparably damaged. If
the engine does not work correctly,
especially if it starts irregularly or if there
is a reduction of its performance,
immediately go to a Jeep Dealership.
Prolonged and faulty operation of the
engine may cause overheating of the
converter and, as a consequence, possible
damage to the converter and the vehicle.
95) Using a gearbox fluid different from
that approved may compromise
gearshifting quality and/or cause vibration
of the gearbox itself.
96) It is recommended to have the vehicle
serviced by a Jeep Dealership. When
carrying out normal periodic operations
and small servicing interventions
personally on the vehicle, it is
recommended to use suitable equipment,
genuine spare parts and the necessary
fluids. Do not carry out any interventions if
you don't have the necessary experience.

LIFTING THE VEHICLE

If the vehicle is to be lifted, go to a Jeep
Dealership which is equipped with the
arm lift or workshop lift.

254

SER

VICING

AND

MAINTENANCE

WHEELS AND TYRES

SUGGESTIONS ABOUT THE
ROTATION OF THE TYRES

192) 193)

97) 98) 99) 100)

The front and rear tyres are subject to
different loads and stress due to steering,
manoeuvres and braking. For this reason
they are subject to uneven wear.
To resolve this problem, tyres should be
rotated at the appropriate time. This
operation is recommended for tyres with
a deep tread pattern, suitable both for
on-road and off-road driving.
Tyre rotation contributes to the
preservation of the grip and traction
performance on wet, muddy or snowy
roads, guaranteeing optimal driveability
of the vehicle.
In the case of irregular wear of the tyres,
the reason must be identified and
corrected before rotating them.

WARNING

192) Do not cross switch the tyres if they
are "unidirectional" type. In this case,
always take care not to fit the tyres with a
direction of rotation that is opposite to
that indicated: you would risk losing grip
and control of the vehicle.
193) Travelling with partially or completely
deflated tyres can cause safety problems
and damage the concerned tyre beyond
repair.

IMPORTANT

97) The road holding qualities of the car
also depend on the correct inflation
pressure of the tyres.
98) If tyre pressure is too low, the tyre may
overheat and be severely damaged as a
result.
99) Do not switch tyres from the
right-hand side of the vehicle to the
left-hand side, and vice versa.

100) Never submit alloy rims to repainting
treatments requiring the use of
temperatures exceeding 150°C. The
mechanical properties of the wheels could
be impaired.

SNOW CHAINS

101)

Front-wheel drive and four-wheel drive
versions: 7-mm snow chains can be used
on 215/65 R16 and 215/60 R17 tyres.
Chains cannot be fitted on
225/55 R18 tyres. e di incidenti.
IMPORTANT Use snow chains in
accordance with local regulations of each
country. In certain countries, tyres
marked with code M+S (Mud and Snow)
are considered as winter equipment;
therefore their use is equivalent to that of
the snow chains.
The snow chains may be applied only to
the front wheel tyres.
Check the tension of the snow chains
after the first few metres have been
driven.
Using snow chains with tyres with
non-original dimensions may damage the
vehicle.
Using different size or type (M+S, snow,
etc.) tyres between front and rear axle
may adversely affect vehicle driveability,

255

with the risk of losing control of the
vehicle and causing accidents.

IMPORTANT

101) Keep the vehicle's speed down when
snow chains are fitted; never exceed
50 km/h. Avoid potholes, do not drive over
steps or pavements and do not drive long
distances over roads without snow, to
avoid damaging both your vehicle and the
road surface.

BODYWORK

PRESERVING THE BODYWORK

Paintwork

102)

Touch up abrasions and scratches
immediately to prevent the formation of
rust.

Versions with matt paint
(where provided)
Some parts of the vehicle are painted
with a matte paintwork which requires
special care for its preservation

103)

Washing the car
To correctly wash the car, follow these
instructions:

if the vehicle is washed remove the

aerial from the roof;

Versions with stickers (where

provided): avoid washing with rollers
and/or brushes in washing stations. Wash
the car by hand only, using pH-neutral
detergents Dry it with a damp chamois
leather. Abrasive products and/or
polishes should not be used for cleaning
the car.

if high pressure jets or cleaners are

used to wash the vehicle, keep a
distance of at least 40 cm from the
bodywork to avoid damage or alteration.
Build up of water could cause damage to
the car in the long term;

wash the bodywork using a low

pressure jet of water;

wipe a sponge with a slightly soapy

solution over the bodywork, frequently
rinsing the sponge;

rinse well with water and dry with a jet

of air or a chamois leather.

IMPORTANT

102) In order to preserve the aesthetic
appearance of the paint abrasive products
and/or polishes should not be used for
cleaning the vehicle.

256

SER

VICING

AND

MAINTENANCE

103) Avoid washing with rollers and/or
brushes in washing stations. Wash the
vehicle only by hand using neutral pH
detergents; dry it with a wet chamois
leather. Abrasive products and/or polishes
should not be used for cleaning the car.
Bird droppings must be washed off
immediately and thoroughly as the acid
they contain is particularly aggressive.
Avoid (if at all possible) parking the
vehicle under trees; remove vegetable
resins immediately as, when dried, it may
only be possible to remove them with
abrasive products and/or polishes, which is
highly inadvisable as they could alter the
typical opaqueness of the paint. Do not
use pure windscreen washer fluid for
cleaning the front windscreen and rear
window; dilute it min. 50% with water.
Only use pure screen washer fluid when
strictly necessary due to outside
temperature conditions.

IMPORTANT

7) Detergents pollute the environment.
Only wash your vehicle in areas equipped
to collect and treat wastewater from this
type of activity.

257

TECHNICAL DATA

Everything you may find useful for
understanding how your vehicle is made
and works is contained in this chapter
and illustrated with data, tables and
graphics. For the enthusiasts and the
technician, but also just for those who
want to know every detail of their vehicle.

IDENTIFICATION DATA . . . . . . . . .260
ENGINE . . . . . . . . . . . . . . . . . .261
WHEELS. . . . . . . . . . . . . . . . . .265
DIMENSIONS. . . . . . . . . . . . . . .269
WEIGHTS . . . . . . . . . . . . . . . . .273
SUPPLIES. . . . . . . . . . . . . . . . .279
FLUIDS AND LUBRICANTS . . . . . .283
PERFORMANCE . . . . . . . . . . . . .287
FUEL CONSUMPTION . . . . . . . . .288
CO2 EMISSIONS. . . . . . . . . . . . .290
PRESCRIPTIONS FOR HANDLING THE
VEHICLE AT THE END OF ITS LIFE .292

259

IDENTIFICATION DATA

VEHICLE IDENTIFICATION
NUMBER

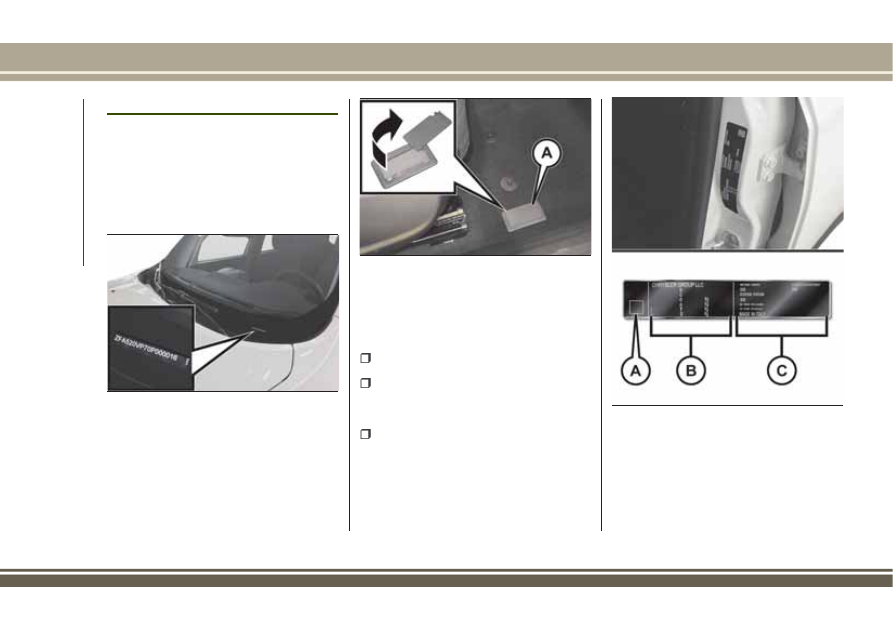

The Vehicle Identification Number (VIN)
is stamped on a plate on the front left
corner of the dashboard cover fig. 206,
which can be seen from outside the
vehicle, through the windscreen.

This number is also stamped on the
passenger compartment floor, next to the
front right seat.
Slide flap A fig. 207, operating as shown
in the figure, to access.

VIN PLATE

The plate is located on the left side front
door pillar fig. 208 and shows the data
about:

A: correct value of smoke coefficient

(for Diesel engines);

B: name of the manufacturer, vehicle

type-approval number, vehicle
identification number, max. permitted
weights;

C: engine identification, type variant

version, spare part number, colour code,
additional information.

206

J0A0030C

207

J0A0028C

208

J0A0446C

260

TECHNICAL

ENGINE

Versions

1.4 T-jet 120 HP

Petrol/LPG

1.4 Turbo Multi Air

136/140/170 OHP

1.6 E.Torq

2.4 Tigershark

(*)

Engine code

55277701

55263624

55263623

(**)

55263842

–

Cycle

Otto

Number and position of cylinders

4 in line

Piston bore and stroke (mm)

72.0 × 84.0

77 × 85.8

88.0 × 97.0

Total displacement (cm³)

1368

1598

2360

Compression ratio

9.8 ± 0.2

10 : 1

11 : 1

10 : 1

Maximum power (EC) (kW)

100

(*)

/ 103

/ 125

(**)

129

Maximum power (EEC) (HP)

120

136

(*)

/ 140

/ 170

(**)

110

175

corresponding engine speed (rpm)

5000

/ 5500

(**)

5500

6400

(*) Where fitted
(**) 1.4 Turbo MultiAir 170 HP version

261

Versions

1.4 T-jet 120 HP

Petrol/LPG

1.4 Turbo Multi Air

136/140/170 OHP

1.6 E.Torq

2.4 Tigershark

(*)

Maximum torque (EEC) (Nm)

215

230

/ 250

(**)

152

230

Maximum torque (EEC) (kgm)

23.5

/ 25.5

(**)

15.5

23.4

corresponding engine speed (rpm)

2500

1750

/ 2500

(**)

4500

3900

Spark plugs

NGK IKR9J8

NGK - SINGLE IR -

ZKR7BI -

10 JAPAN C128

Fuel

Automotive LPG

(Specification

EN589) (LPG fuel

supply)/Green

unleaded petrol

95 R.O.N.

(Specification

EN228) (petrol

fuel supply)

Unleaded petrol

95 R.O.N.

(EN228 specifications)

Unleaded petrol

95 R.O.N.

(EN228 specifications)

Unleaded petrol

95 R.O.N.

(EN228 specifications)

(*) Where fitted
(**) 1.4 Turbo MultiAir 170 HP version

262

TECHNICAL

Versions

1.6 16V MultiJet 95 HP

1.6 16V MultiJet 105 HP

1.6 16V Multijet

115/120 HP

(*)

Engine code

55260384

Cycle

Diesel

Number and position of cylinders

4 in line

Piston bore and stroke (mm)

79.5 × 80.5

Total displacement (cm³)

1598

Compression ratio

16.5 : 1

Maximum power (EC) (kW)

/ 88

Maximum power (EEC) (HP)

105

115

/ 120

corresponding engine speed (rpm)

4000

4500

3750

Maximum torque (EEC) (Nm)

320

Maximum torque (EEC) (kgm)

32.6

corresponding engine speed (rpm)

1750

Fuel

Diesel for motor vehicles

(EN590 Specification)

Diesel for motor vehicles

(EN590 Specification)

Diesel for motor vehicles

(EN590 Specification)

(*) Where fitted

263

Versions

2.0 16V Multijet 120 HP

2.0 16V Multijet 140 HP

2.0 16V Multijet 170 HP

Engine code

55263087

55263087 / 55263088

(*)

55263088

Cycle

Diesel

Number and position of cylinders

4 in line

Piston bore and stroke (mm)

83 × 90.4

Total displacement (cm³)

1956

Compression ratio

16.5

Maximum power (EC) (kW)

103

125

Maximum power (EEC) (HP)

120

140

170

corresponding engine speed (rpm)

4000

3750 / 4000

(*)

3750

Maximum torque (EC) (Nm)

320

350

Maximum torque (EC) (kgm)

32.6

35.7

corresponding engine speed (rpm)

1250

1500 / 1750

(*)

1750

Fuel

Diesel for motor vehicles

(EN590 Specification)

Diesel for motor vehicles

(EN590 Specification)

Diesel for motor vehicles

(EN590 Specification)

(*) Versions with automatic transmission

264

TECHNICAL

WHEELS

RIMS AND TYRES

Alloy or pressed steel rims. Tubeless
radial carcass tyres.
All approved tyres are listed in the
Registration Document.

IMPORTANT If there are any
discrepancies between the “Owner
Handbook” and the “Registration
Document”, take the information from
the latter. For safe driving, the car
must be fitted with tyres of the same
make and type on all wheels.

IMPORTANT Do not use air chambers
with tubeless tyres.

SPACE SAVER SPARE WHEEL

(where provided)
Tyre: T145/90 R16 106M
Rim: 4.0 B x 16H ET22

WARNING

194) If winter tyres with a lower speed
rating than that indicated in the
Registration Document are used, do not
exceed the maximum speed corresponding
to the speed rating of the tyres used.
195) DO NOT fit wheel hub caps when
using integral hub caps fixed (with
springs) to the steel rim and after sale
tyres provided with Rim Protector. Use of
unsuitable tyres and wheel caps may
cause sudden decrease of tyre pressure.

265

RIMS AND TYRES PROVIDED

194) 195)

Versions

Wheels

Tyres

Snow tyres

1.4 T-Jet 120 HP LPG

6.5J x 16 ET40

215/65 R16 98H

215/65 R16 98Q (M+S)

7J x 17 ET40

215/60 R17 96H

215/60 R17 96Q (M+S)

1.4 Turbo Multi Air

6.5J x 16 ET40

215/65 R16 98H

215/65 R16 98Q (M+S)

7J x 17 ET40

215/60 R17 96H

215/60 R17 96Q (M+S)

7J x 18 ET 40

225/55 R18 98V

225/55 R18 98Q (M+S)

1.6 E.Torq

6.5J x 16 ET40

215/65 R16 98H

215/65 R16 98Q (M+S)

7J x 17 ET40

215/60 R17 96H

215/60 R17 96Q (M+S)

7J x 18 ET 40

225/55 R18 98V

225/55 R18 98Q (M+S)

2.4 Tigershark

(*)

6.5J x 16 ET40

215/65 R16 98H

215/65 R16 98Q (M+S)

6.5J x 17 ET40

(**)

215/60 R17 96H (M+S)

(**)

215/60 R17 96Q (M+S)

7J x 17 ET40

215/60 R17 96H

215/60 R17 96Q (M+S)

7J x 18 ET 40

225/55 R18 98V

225/55 R18 98Q (M+S)

(*) Where fitted
(**) Trailhawk versions

266

TECHNICAL

Versions

Wheels

Tyres

Snow tyres

1.6 16V MultiJet

6.5J x 16 ET40

215/65 R16 98H

215/65 R16 98Q (M+S)

7J x 17 ET40

215/60 R17 96H

215/60 R17 96Q (M+S)

7J x 18 ET 40

225/55 R18 98V

225/55 R18 98Q (M+S)

2.0 16V MultiJet

6.5J x 16 ET40

215/65 R16 98H

215/65 R16 98Q (M+S)

6.5J x 17 ET40

(**)

215/60 R17 96H (M+S)

(**)

215/60 R17 96Q (M+S)

(**)

7J x 17 ET40

215/60 R17 96H

215/60 R17 96Q (M+S)

7J x 18 ET 40

225/55 R18 98V

225/55 R18 98Q (M+S)

(**) Trailhawk versions

267

COLD TYRE INFLATION PRESSURE

When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck that
the value is correct with the tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.

Tyres

Unladen/medium load

Full load

Full size spare

wheel

(*)

Space saver
spare wheel

Front

Rear

Front

Rear

215/65 R16 98H

2.4

2.2

2.4

4.2

215/60 R17 96H

2.4

2.2

2.4

225/55 R18 98V

2.4

2.2

2.4

(*) After using the spare wheel in an emergency, where necessary, align the pressure of the wheel to the recommended value as soon as

possible, with reference to the following table.

268

TECHNICAL

Jeep Renegade (2018 year). Instruction - part 16
