SCHEDULED SERVICING PLAN (Diesel versions)

IMPORTANT Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the
frequency indicated in the plan by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance
from the start of the plan may cause the allowed interval to be exceeded for some operations!

Thousands of miles

108

120

Thousands of kilometres

100

120

140

160

180

200

Years

Check the conditions/wear of tires and any pressure
adjustment; check conditions/expiry of the TireKit
recharge (where there is one)

Check operation of lighting system (headlights, direction
indicators, hazard warning lights, boot, passenger
compartment, glove compartment, instrument panel
warning lights, etc.)

Check and, if necessary, top up fluid levels(1)

Check exhaust emissions

(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.

238

SER

VICING

AND

MAINTENANCE

Thousands of miles

108

120

Thousands of kilometres

100

120

140

160

180

200

Years

Use the diagnosis socket to check supply/engine
management system operation, emissions and, where
provided, engine oil degradation

Visually inspect conditions of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)

Check windscreen/rear window wiper blade position/wear

Check operation of the windscreen wiper/washer system
and adjust jets, if necessary

Check cleanliness of bonnet and luggage compartment
locks, cleanliness and lubrication of linkage

Visually inspect conditions and wear of front and rear
disc brake pads and operation of pad wear indicator

239

Thousands of miles

108

120

Thousands of kilometres

100

120

140

160

180

200

Years

Visually inspect condition of the accessory drive belt(s)
(2)

Check tension of accessory drive belt (versions without
automatic tensioner)

Visually inspect conditions of toothed timing drive belt
(2)

Check oil level of electro-hydraulic actuator and top up if
necessary (1.6 16V Multijet versions with dual-clutch
automatic transmission)(3)

Check drive transmission idler unit (PTU) oil level (except
1.6 16V Multijet versions)

Check rear differential fluid level (except 1.6 16V
Multijet versions)

(2) The maximum mileage is 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years. If the vehicle is used in

heavy conditions (dusty areas, cold climates, urban driving, long periods of idling), the maximum mileage is 60,000 km. The belt must
be replaced every 4 years regardless of the mileage.

(3) Check to be carried out every year for cars on the road in countries with particularly severe climates (cold countries).

240

SER

VICING

AND

MAINTENANCE

Thousands of miles

108

120

Thousands of kilometres

100

120

140

160

180

200

Years

Change engine oil and replace oil filter

(4)

Replace accessory drive belt/s

(2)

Replace the toothed timing drive belt

(2)

Replace fuel filter cartridge (5)

Replace air cleaner cartridge (6)

Change the brake fluid

(7)

(4) The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signalled by

the warning light or message in the instrument panel. In any case, it must never exceed 2 years. Where the car is used mostly in urban
settings you need to replace the engine oil filter every year.

(2) The maximum mileage is 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years. If the vehicle is used in

heavy conditions (dusty areas, cold climates, urban driving, long periods of idling), the maximum mileage is 60,000 km. The belt must
be replaced every 4 years regardless of the mileage.

(5) If the car runs on fuel with quality below the relevant European specification, this filter should be replaced every 20,000 km
(6) If the vehicle is used in dusty areas, this cleaner must be replaced every 20,000 km.
(7) Brake fluid is to be replaced every 2 years regardless of the distance travelled.

241

Thousands of miles

108

120

Thousands of kilometres

100

120

140

160

180

200

Years

Replace the passenger compartment cleaner (6) (O) (•)

(6) If the vehicle is used in dusty areas, this cleaner must be replaced every 20,000 km.
(O) Recommended operations
(•) Obligatory operations

NOTE change automatic transmission oil and replace oil filter every 240,000 km.

242

SER

VICING

AND

MAINTENANCE

ENGINE COMPARTMENT

CHECKING LEVELS

177) 178)

83)

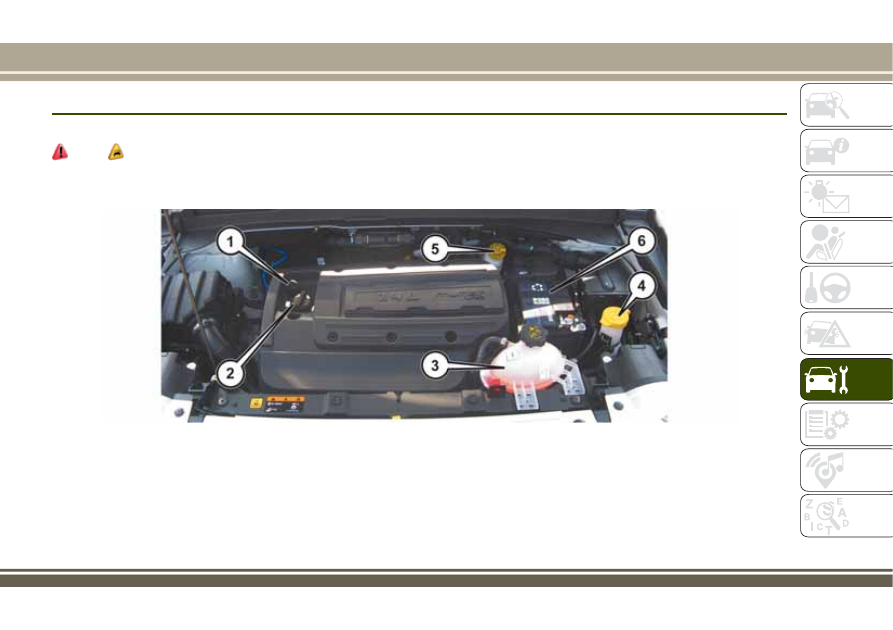

1.4 Turbo MultiAir version

1. Engine oil dipstick

2. Engine oil cap/filler

3. Engine coolant

4. Windscreen/rear window washer fluid

5. Brake fluid

6. Battery

196

J0A0138C

243

1.4 T-Jet 120 HP LPG version

1. Engine oil dipstick 2. Engine oil cap / filler 3. Engine coolant 4. Washer fluid for windscreen/rear window 5. Brake fluid 6.
Battery

197

J0A0395C

244

SER

VICING

AND

MAINTENANCE

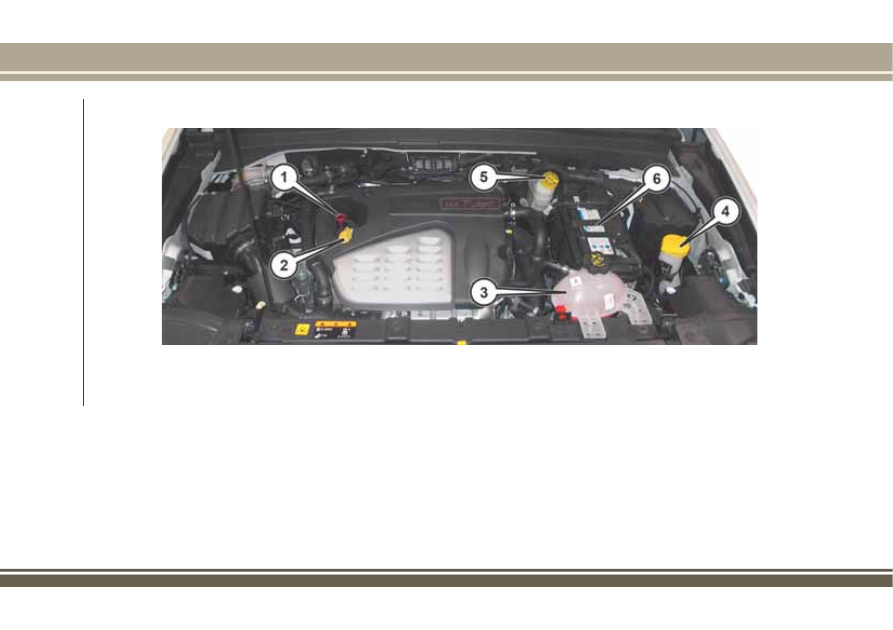

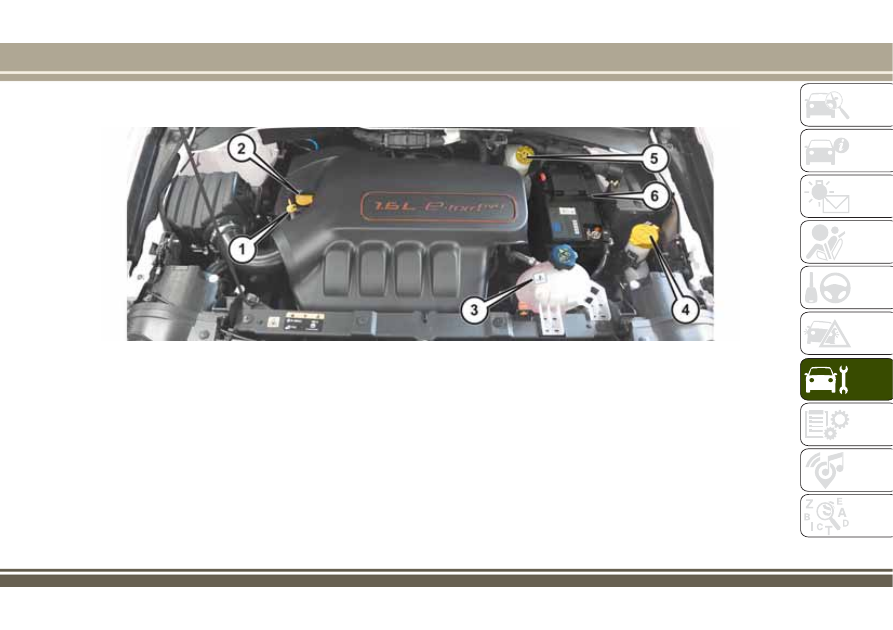

1.6 E.Torq version

1. Engine oil dipstick

2. Engine oil cap/filler

3. Engine coolant

4. Windscreen/rear window washer fluid

5. Brake fluid

6. Battery

198

J0A0369C

245

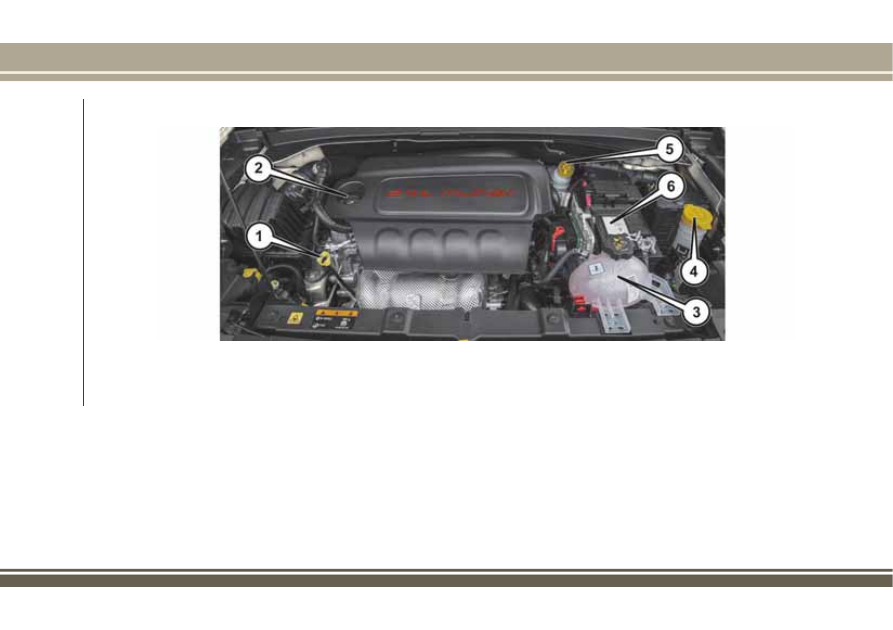

2.4 Tigershark version (where provided)

1. Engine oil dipstick

2. Engine oil cap/filler

3. Engine coolant

4. Windscreen/rear window washer fluid

5. Brake fluid

6. Battery

199

J0A0141C

246

SER

VICING

AND

MAINTENANCE

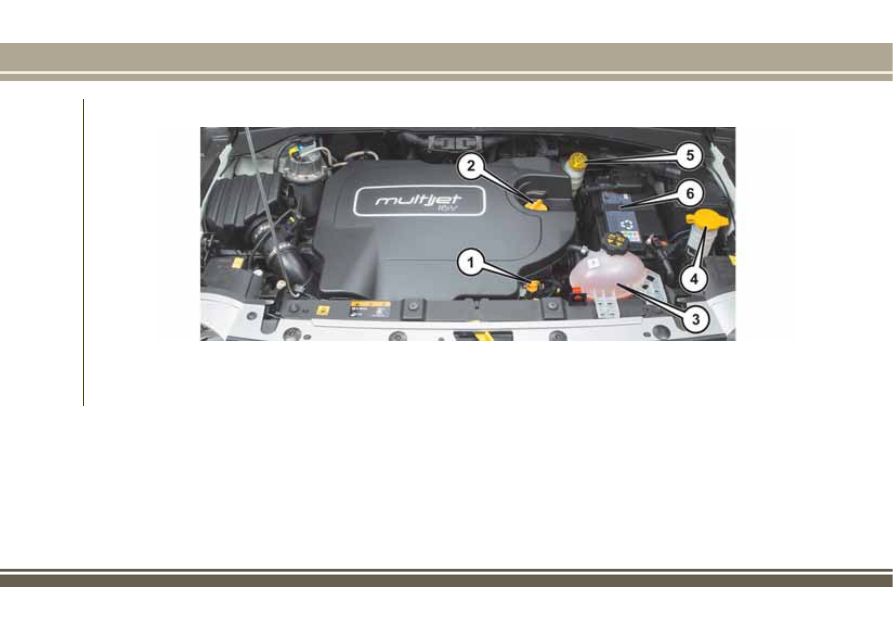

1.6 16V MultiJet version

1. Engine oil dipstick

2. Engine oil cap/filler

3. Engine coolant

4. Windscreen/rear window washer fluid

5. Brake fluid

6. Battery

200

J0A0139C

247

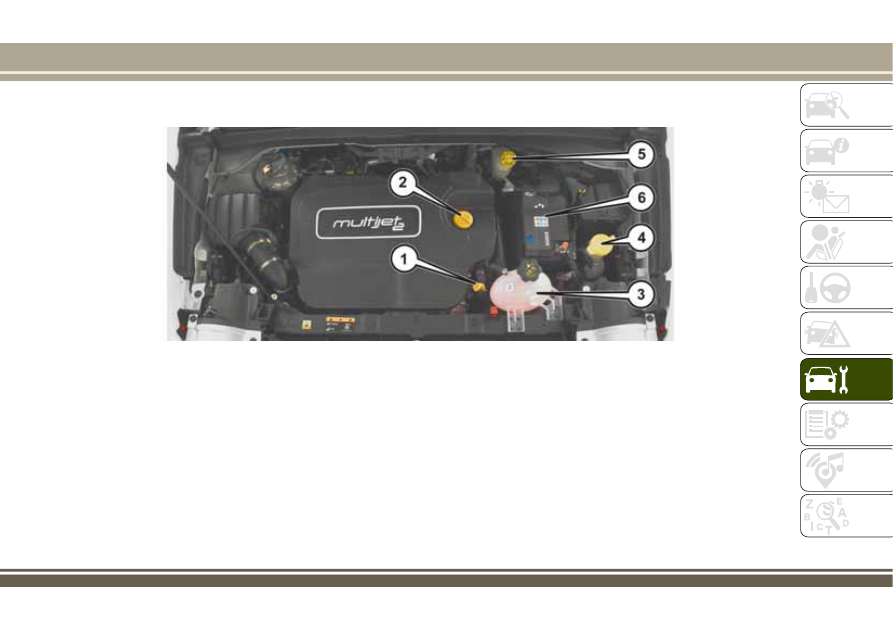

2.0 16V MultiJet version

1. Engine oil dipstick

2. Engine oil cap/filler

3. Engine coolant

4. Windscreen/rear window washer fluid

5. Brake fluid

6. Battery

201

J0A0140C

248

SER

VICING

AND

MAINTENANCE

ENGINE OIL

179)

84)

Check that the oil level is between the
MIN and MAX references on the dipstick
A. If the oil level is near or even under
the MIN line, add oil using the filler B to
reach the MAX line.
Take out the engine oil dipstick A, clean
it with a lint-free cloth and reinsert it.
Extract it again and check that the level
is between the MIN and MAX marks on
the dipstick.

Engine oil consumption

85)

The maximum engine oil consumption is
usually 400 grams every 1,000 km.
During the initial period of use the
engine oil consumption conditions
should be considered as having stabilised
after the first 5000 - 6000 km.

ENGINE COOLANT

180)

86)

If the level is too low, unscrew the cap of
reservoir C and add the fluid described in
the "Technical Specifications" section.

WINDSCREEN/REAR WINDOW
WASHER FLUID

181) 182)

If the level is too low, lift reservoir cap D
and add the fluid described in the
chapter "Technical Specifications".

BRAKE FLUID

183) 184)

87)

Check that the fluid is at the max. level.
If the fluid level in the reservoir is too
low, undo reservoir cap E and add the
fluid described in the chapter "Technical
Specifications".

AUTOMATIC TRANSMISSION /
TWIN CLUTCH AUTOMATIC
TRANSMISSION ACTUATION
SYSTEM OIL

The transmission control oil level should
only be checked at a Jeep Dealership.

BATTERY

185) 186) 187) 188)

The battery does not require the
electrolyte to be topped up with distilled
water. A periodic check carried out at a
Jeep Dealership is, however, necessary to
check efficiency.

IMPORTANT After the battery is
disconnected, the steering must be
initialised. The

warning light on the

instrument panel switches on to
indicate this. To carry out this
procedure turn the steering wheel all
the way from one end to the other or
drive in a straight line for about a
hundred metres.

IMPORTANT If the charge level
remains under 50% for a long time,
the battery is damaged by sulphation,
reducing its capacity and efficiency at
start-up.

CLIMATE CONTROL SYSTEM
MAINTENANCE

In winter, the climate control system
must be turned on at least once a month
for about 10 minutes. Have the system
inspected at a Jeep Dealership before the
summer.

WARNING

177) Never smoke while working in the
engine compartment: gas and
inflammable vapours may be present, with
the risk of fire.

249

178) Be very careful when working in the
engine compartment when the engine is
hot: you may get burned. Do not get too
close to the radiator cooling fan: the
electric fan may start; danger of injury.
Scarves, ties and other loose clothing
might be pulled by moving parts.
179) If the engine oil is being topped up,
wait for the engine to cool down before
loosening the filler cap, particularly for
vehicles with aluminium cap (where
provided). WARNING: risk of burns!
180) The cooling system is pressurised. If
necessary, only replace the plug with
another original or the operation of the
system may be adversely affected. Do not
remove the reservoir plug when the engine
is hot: you risk scalding yourself.
181) Do not travel with the windscreen
washer fluid reservoir empty: the
windscreen washer is essential for
improving visibility. Repeated operation of
the system without fluid could damage or
cause rapid deterioration of some system
components.
182) Some commercial additives for
windscreen washer fluid are flammable.
The engine compartment contains hot
components which may start a fire.

183) Brake fluid is poisonous and highly
corrosive. In the event of accidental
contact, immediately wash the affected
parts with water and mild soap. Then rinse
thoroughly. Call a doctor immediately if
swallowed.
184) The symbol

, on the brake fluid

container indicates if a brake fluid is
synthetic or mineral-based. Use of mineral
type fluids will damage the special rubber
seals of the braking system beyond repair.
185) Battery fluid is poisonous and
corrosive. Avoid contact with the skin and
eyes. Keep open flames away from the
battery and do not use objects that might
create sparks: risk of explosion and fire.
186) Using the battery with insufficient
fluid irreparably damages the battery and
may cause an explosion.
187) If the vehicle must remain unused
for a long time at a very low temperature,
remove the battery and take it to a warm
place, to avoid freezing.
188) When performing any operation on
the battery or near it, always protect your
eyes with special goggles.

IMPORTANT

83) Be careful not to confuse the various
types of fluids while topping up: they are
not compatible with each other! Topping
up with an unsuitable fluid could severely
damage your vehicle.
84) The oil level must never exceed the
MAX reference.
85) Do not add oil with specifications
other than those of the oil already in the
engine.
86) PARAFLU

anti-freeze fluid is used

in the engine cooling system; use the
same fluid type as that already in the
cooling system when topping up.
PARAFLU

may not be mixed with other

types of anti-freeze fluids. In the event of
topping up with an unsuitable product,
under no circumstances start the engine
and contact a Jeep Dealership.
87) Prevent brake fluid, which is highly
corrosive, from coming into contact with
painted parts. Should it happen,
immediately wash with water.

250

SER

VICING

AND

MAINTENANCE

88) Incorrect installation of electric and
electronic devices may cause severe
damage to your car. After purchasing your
vehicle, if you wish to install any
accessories (e.g. anti-theft, radio phone,
etc.), go to a Jeep Dealership, which will
suggest the most suitable devices and
advise you whether a higher capacity
battery needs to be installed.

IMPORTANT

4) Used engine oil and oil filters contain
substances which are harmful to the
environment. To change the oil and filters,
it is advisable to contact a Jeep Dealership
5) Used transmission oil contains
substances that may be dangerous for the
environment. It is advisable to contact a
Jeep Dealership to have the fluid changed.
6) Batteries contain substances which are
very dangerous for the environment. For
battery replacement, contact a Jeep
Dealership.

BATTERY RECHARGING

IMPORTANT

IMPORTANT After placing the ignition
device to STOP and having closed the
driver side door, wait at least one
minute before disconnecting the
electrical supply from the battery.
When reconnecting the electrical
supply to the battery, make sure that
the ignition device is in the STOP
position and the driver side door is
closed.

IMPORTANT Charging should be slow
at a low ampere rating for
approximately 24 hours. Charging for a
longer time may damage the battery.

IMPORTANT The cables of the
electrical system must be correctly
reconnected to the battery, i.e. the
positive cable (+) to the positive
terminal and the negative cable (–) to
the negative terminal. The battery
terminals are marked with the positive
(+) and negative (–) symbols, and are
shown on the battery cover. The battery
terminals must also be corrosion-free
and firmly secured to the terminals. If
a "quick-type" battery charger is used
with the battery fitted on the vehicle,

before connecting it disconnect both
cables of the battery itself. Do not use
a "quick-type" battery charger to
provide the starting voltage.

VERSIONS WITHOUT
STOP/START SYSTEM

To recharge, proceed as follows:

disconnect the terminal from the

negative battery pole;

connect the charger cables to the

battery terminals, observing the polarity;

turn on the charger;

when it is recharged, turn the charger

off before disconnecting it from the
battery;

reconnect the negative battery

terminal.

VERSIONS WITH STOP/START
SYSTEM

To recharge, proceed as follows:

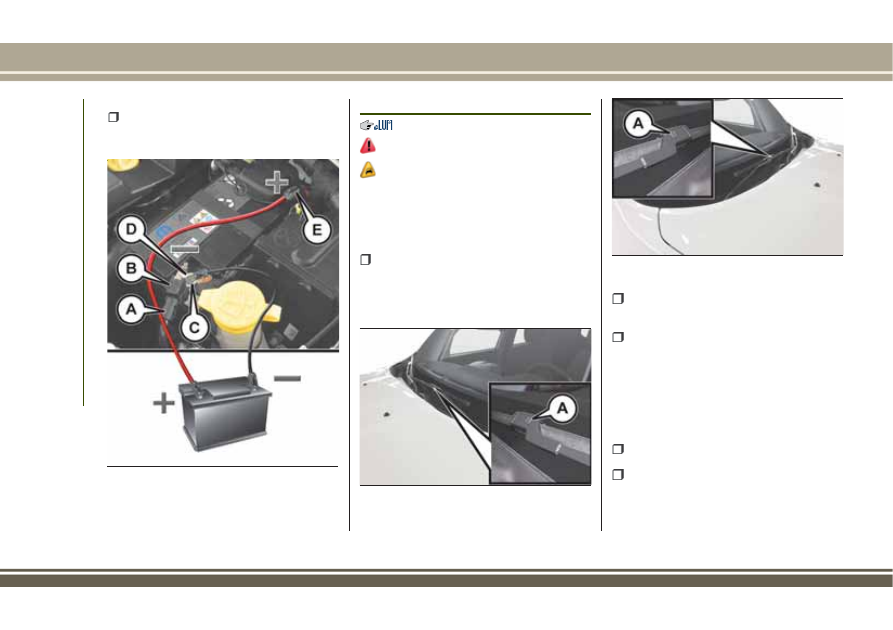

disconnect the connector A

fig. 202 (pressing the button B) from the
sensor C monitoring the battery
conditions, on the negative pole (–) D of
the battery;

connect the positive cable (+) of the

battery charger to the positive battery
terminal E and the negative cable (–) to
sensor terminal D as shown;

turn on the battery charger. At the end

of the charging process, switch the

251

battery charger off;

after having disconnected the charger,

reconnect connector A to the sensor C as
in fig. 202.

SERVICING PROCEDURES

189) 190) 191)

89) 90) 91) 92) 93) 94) 95) 96)

WINDSCREEN/REAR WINDOW
WIPER

Replacing the windscreen wiper blades

Proceed as follows:

raise the wiper arm, press tab A

fig. 203 (left hand drive versions) or
fig. 204 (right hand drive versions) of the
attachment spring and remove the blade
from the arm;

fit the new blade, inserting the tab in

the dedicated housing in the arm and
checking that it is locked;

lower the wiper arm on the

windscreen.

IMPORTANT Do not operate the
windscreen wiper with the blades lifted
from the windscreen.

Replacing the rear window wiper blade

Proceed as follows:

raise cover A fig. 205, undo nut B

and remove arm C;

correctly position the new arm, fully

tighten the nut B then lower the cover A.

202

J0A0700C

203

J0A0345C

204

J0A0517C

252

SER

VICING

AND

MAINTENANCE

Content .. 13 14 15 16 ..
