Jeep Renegade (2018 year). Instruction - part 18

Use

Features

Specification

Original fluids and

lubricants

Applications

Lubricants and
greases for drive
transmission

Synthetic lubricant.

9.55550-AV5 or

MS.90030-A5

TUTELA TRANSMISSION

AS8

Contractual Technical

Reference N° F139.I11

Lubricant for versions
with AT9 automatic
transmission

Fully synthetic oil with
dedicated additive.

9.55550-SA1 or

MS.90030-H1

TUTELA CS SPEED

Contractual Technical

Reference N° F005.F98

Lubricant for
electro-hydraulic
actuator (dual clutch
automatic transmission
versions)

SAE 75W grade
synthetic lubricant.

9.55550-MZ6 or

MS.90030-M1

TUTELA TRANSMISSION

GEARFORCE

Contractual Technical

Reference N° F002.F10

Manual gearbox and
differential

Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2.

9.55580-GRAS II

TUTELA ALL STAR

Contractual Technical

Reference N° F702.G07

Wheel side constant
velocity joints

Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency 0-1.

9.55580-GRAS II

TUTELA STAR 700

Contractual Technical

Reference N° F701.C07

Differential side
constant velocity joints

SAE 75W-90 API
GL5 grade synthetic
lubricant.

9.55550-DA6

TUTELA TRANSMISSION

B-5X

Contractual Technical

Reference N° F006.A14

Transfer unit (PTU -
4x4 versions)

SAE 75W-90 API
GL5 grade synthetic
lubricant.

9.55550-DA7

TUTELA TRANSMISSION

COMPAQ DRIVE

Contractual Technical

Reference N° F007.A14

Rear differential (RDM)
(4×4 versions)

285

Use

Features

Specification

Original fluids and

lubricants

Applications

Brake fluid

Synthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.

9.55597 or MS.90039

TUTELA TOP 4/S

Contractual Technical

Reference N° F005.F15

Hydraulic brakes and
hydraulic clutch controls

Diesel fuel additive

Antifreeze additive for
diesel, with protective
action for diesel
engines.

PETRONAS DURANCE

DIESEL ART

Contractual Technical

Reference N° F601.L06

To be mixed with diesel
(25 cc per 10 litres)

Protective agent for
radiators

Red protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.

9.55523 or MS.90032

PARAFLU

Contractual Technical

Reference

N° F101.M01

Cooling circuits
proportions of use: 50%
water 50% protective
fluid

(**)

Windscreen/rear
window washer fluid

Mixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.

9.55522 or MS.90043

PETRONAS DURANCE SC

Contractual Technical

Reference N° F001.D16

To be used diluted or
undiluted in windscreen
washer/wiper systems

(**) For particularly harsh climate conditions, a mixture of 60% protective fluid and 40% distilled water is recommended.

286

TECHNICAL

PERFORMANCE

Top speeds that can be reached after the initial period of vehicle use.

Versions

km/h

1.4 T-jet 120 HP Petrol/LPG

178

1.4 Turbo Multi Air 136/140 HP

181

1.4 Turbo Multi Air 136/140 HP

(*)

181

1.4 Turbo MultiAir 170 HP

196

1.6 E.Torq

177

2.4 Tigershark

(**)

–

1.6 16V MultiJet 95 HP

167

1.6 16V MultiJet 105 HP

171

1.6 16V Multijet 115/120 HP

178

1.6 16V Multijet 115/120 HP

(*)

178

2.0 16V MultiJet 120 HP

176

2.0 16V MultiJet 140 HP

182

2.0 16V MultiJet 170 HP

196

(*) Automatic transmission versions with dual clutch
(**) Where fitted

287

FUEL CONSUMPTION

The fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by specific
European Directives.

IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the vehicle, trim
level/equipment/accessories, use of the climate control system, vehicle load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The
fuel consumption will get more regular only after having driven the first 3000 km.

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)

Versions

Urban

Extra-urban

Combined

1.4 T-jet 120 HP Petrol/LPG

9.4

(****)

/ 12.4

(*****)

5.4

(****)

/ 7.2

(*****)

6.9

(****)

/ 9.1

(*****)

1.4 Turbo Multi Air 136/140 HP

7.6

5.1

6.0

1.4 Turbo Multi Air 136/140 HP

(*)

7.4

5.0

5.9

1.4 Turbo MultiAir 170 HP

(**)

8.7

5.9

6.9

1.6 E.Torq

8.8

5.1

6.5

1.6 E.Torq Stop/Start

7.8

5.0

6.0

(****) Running on petrol
(*****) Running on LPG
(*) Automatic transmission versions with dual clutch
(**) Versions with automatic transmission

288

TECHNICAL

Versions

Urban

Extra-urban

Combined

2.4 Tigershark

(***)

1.6 16V MultiJet 95 HP

5.1

4.0

4.4

1.6 16V MultiJet 105 HP

5.1

4.0

4.4

1.6 16V Multijet 115/120 HP

5.1

4.0

4.4

1.6 16V Multijet 115/120 HP

(*)

5.2

4.1

4.5

2.0 16V MultiJet 120 HP

6.0

4.6

5.1

2.0 16V MultiJet 140 HP

6.0

4.6

5.1

2.0 16V MultiJet 140 HP

(**)

6.7

5.1

5.7

2.0 16V MultiJet 170 HP

(**)

6.9

5.1

5.8

(***) Where fitted
(*) Automatic transmission versions with dual clutch
(**) Versions with automatic transmission

289

CO2 EMISSIONS

The CO

emission levels given in the following table refer to combined consumption.

Versions

CO EMISSIONS

ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE (g/km)

1.4 T-jet 120 HP Petrol/LPG

160

(****)

/ 148

(*****)

1.4 Turbo Multi Air 136/140 HP

140

1.4 Turbo Multi Air 136/140 HP

(*)

137

1.4 Turbo MultiAir 170 HP

(**)

160

1.6 E.Torq

149

1.6 E.Torq Stop/Start

141

2.4 Tigershark

(***)

1.6 16V MultiJet 105 HP

115

1.6 16V MultiJet 105 HP

115

1.6 16V Multijet 115/120 HP

115

(****) Running on petrol
(*****) Running on LPG
(*) Automatic transmission versions with dual clutch
(**) Versions with automatic transmission
(***) Where fitted

290

TECHNICAL

Versions

CO EMISSIONS

ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE (g/km)

1.6 16V Multijet 115/120 HP

(*)

118

2.0 16V MultiJet 120 HP

134

2.0 16V MultiJet 140 HP

134

2.0 16V MultiJet 140 HP

(**)

150

2.0 16V MultiJet 170 HP

(**)

151

(*) Automatic transmission versions with dual clutch
(**) Versions with automatic transmission

291

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFE

(Where provided)

FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service in terms
of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of their life, FCA
is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional costs. The
European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any expenses as a result
of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality service
for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the number
in the Warranty Booklet or by consulting the websites of the various FCA brands.

292

TECHNICAL

MULTIMEDIA

This chapter describes the main
functions of the Uconnect™ 5” LIVE or
Uconnect™ 7” HD LIVE or Uconnect™
8,4” HD Nav LIVE remote info systems
which may be installed on the car.

TIPS, CONTROLS AND GENERAL
INFORMATION . . . . . . . . . . . . . .294
Uconnect™ 5” LIVE. . . . . . . . . . .296
Uconnect™ 7” HD LIVE . . . . . . . .310
Uconnect™ 8.4” HD Nav LIVE . . . .325
MOPAR® CONNECT. . . . . . . . . . .340
OFFICIAL TYPE APPROVALS . . . . .341

293

TIPS, CONTROLS AND
GENERAL INFORMATION

196) 197)

105) 106)

ROAD SAFETY

Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.

RECEPTION CONDITIONS

Reception conditions change constantly
while driving. Reception may be
interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.

IMPORTANT The volume may be
increased when receiving traffic
information and news.

CARE AND MAINTENANCE

Observe the following precautions to
ensure the system is fully operational:

the display lens should not come into

contact with pointed or rigid objects
which could damage its surface; use a
soft, dry anti-static cloth to clean and do
not press.

never use alcohol, petrols and

derivatives to clean the display lens.

Prevent any liquid from entering the

system: this could damage it beyond
repair.

MULTIMEDIA DEVICES

IMPORTANT Some multimedia player
devices may not be compatible with the
Uconnect™ system.
Only use devices (e.g. USB flash drives)
from safe sources on the car. Devices
from unknown sources could contain
software infected by viruses which, if
installed on the car, could increase the
vulnerability of the car's electric/
electronic systems to hacking.

ANTITHEFT PROTECTION

The system is equipped with an
anti-theft protection system based on the
exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum safety and
prevents the secret code from being
entered after the power supply has been
disconnected.
If the check has a positive outcome, the
system will start to operate, whereas if
the comparison codes are not the same
or if the electronic control unit (Body
Computer) is replaced, the system will

ask the user to enter the secret code
according to the procedure described in
the paragraph below.

Entering the secret code

(excluding the versions with a Uconnect
7” HD Nav LIVE system)
When the system is switched on, if the
code is requested, the display will show
“Please enter Anti-Theft Code” followed
by the screen showing a keypad to enter
the secret code.
The secret code has four numbers from
0 to 9: to insert the code numbers, rotate
the BROWSE/ENTER dial and press to
confirm.
After entering the fourth digit, the system
begins operating.
If an incorrect code is entered, the
system displays “Incorrect Code” to
notify the user of the need to enter the
correct code.
After the 3 available attempts to enter
the code, the system displays “Incorrect
Code. Radio locked. Wait for
30 minutes”. After the text has
disappeared it is possible to start the
code entering procedure again.

Vehicle radio passport

(excluding the versions with a Uconnect
7” HD Nav LIVE system)
This document certifies ownership of the

294

MUL

TIMEDIA

system. The vehicle radio passport shows
the system model, serial number and
secret code.
In case you lose the radio passport,
please go to Jeep Assistance Network
with an ID and the car papers.

IMPORTANT Keep the vehicle radio
passport in a safe place so that you
can give the information to the
relevant authorities if the system is
stolen.

IMPORTANT

In the event of a fault, the system must
only be checked and repaired by a Jeep
Dealership.
If the temperature is particularly low, the
display may take a while to reach
optimum brightness.
If the vehicle is stopped for a while and
the external temperature is very high, the
system may go into “thermal protection”
mode, suspending operation until the
radio temperature returns to acceptable
levels.

Look at the screen only when it is
necessary and safe. If you need to look at
the screen for a long time, pull over to a
safe place so as not to be distracted
while driving.
Immediately stop using the system in the
event of a fault. Otherwise the system
might be damaged. Contact a Jeep
Dealership as soon as possible to have
the system repaired.

WARNING

196) Follow the safety rules here below:
otherwise serious injuries may occur to the
occupants or the system may be damaged.
197) If the volume is too loud this can be
dangerous. Adjust the volume so that you
can still hear background noises (e.g.
horns, ambulances, police vehicles, etc.).

IMPORTANT

105) Only clean the front panel and the
display with a soft, clean, dry, anti-static
cloth. Cleaning and polishing products
may damage the surface. Do not use
alcohol or similar products to clean the
panel or the display.

106) Do not use the display as a base for
supports with suction pads or adhesives
for external navigators or smartphones or
similar devices.

295

Uconnect™ 5” LIVE

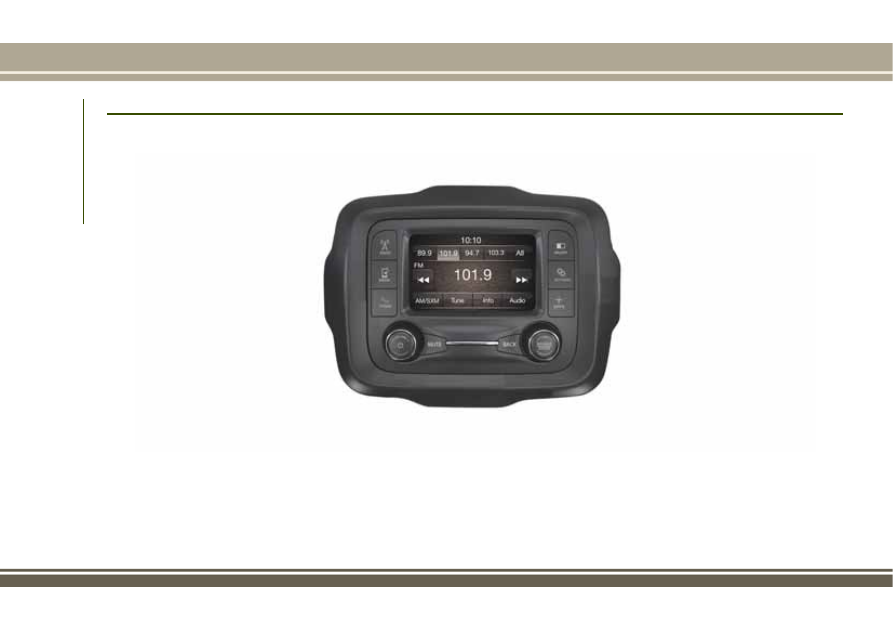

CONTROLS ON FRONT PANEL

211

J0A0891C

296

MUL

TIMEDIA

Front panel control summary table

Button

Functions

Mode

PHONE

Phone data display

Short button press

MEDIA

Source selection: USB, AUX (where provided)

Bluetooth®

Short button press

RADIO

Access to Radio mode with possibility of

selecting AM. FM or DAB (where provided)

Short button press

ON/OFF

Display on/off

Short button press

SETTINGS

Access the settings menu

Short button press

APPS

Access to the additional functions: (e.g. Time

display, Compass, Outside temperature,

Media Radio and Uconnect

™

LIVE services

where provided)

Short button press

TUNE SCROLL / BROWSE ENTER

Scrolling the list or tuning to a radio station

or select previous/next track

Knob clockwise/anticlockwise turning

Confirmation of the option displayed

Opens the radio station list (if available) or

the songs lists (Media source)

Short button press

297

Button

Functions

Mode

BACK

Exit the selection/return to previous screen

Short button press

MUTE

Volume activation/deactivation (Mute/Pause)

Activation/deactivation of microphone (in

Phone mode)

Short button press

VOLUME

Switching on

Short button press

Switching off

Short button press

Volume adjustment

Left/right rotation of knob

298

MUL

TIMEDIA

STEERING WHEEL CONTROLS

(where provided)

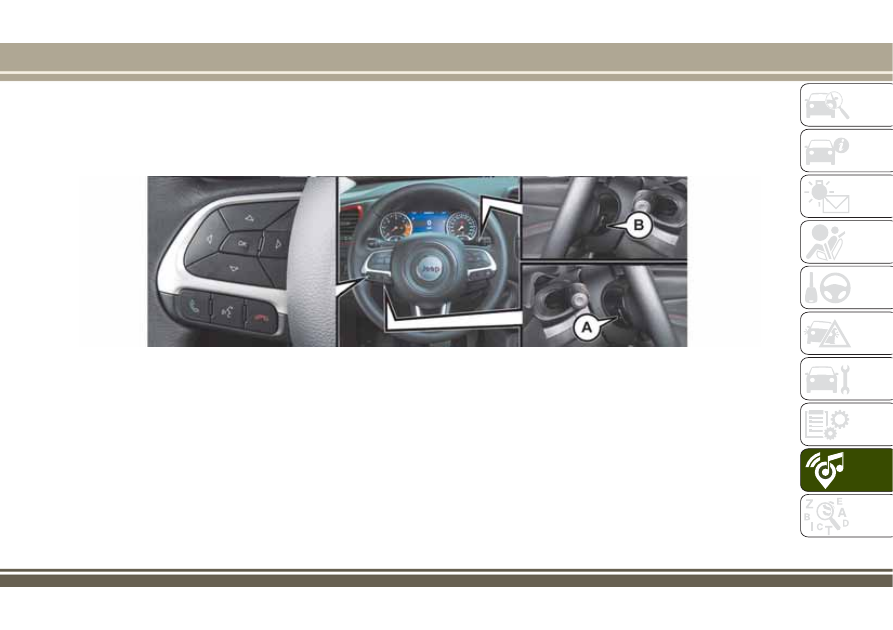

The controls for the main system functions are present on the steering wheel to make control easier. The activation of the function
selected is controlled, in some cases, by how long the button is pressed (short or long press) as described in the table below.

212

J0A0004C

299

Controls on steering wheel summary table

Button

Interaction

Acceptance of incoming call

Acceptance of the second incoming call and putting the active call on hold

The instrument panel displays a list of the last 10 calls and favourite phone numbers (only with call browsing active)

Activation of voice recognition

Interruption of the voice message in order to give a new voice command

Interruption of voice recognition

Rejection of incoming call

Ending of call in progress

Exits from the instrument panel display of the last calls (only with call browsing active)

Short press (Phone mode): selection, on the instrument panel display, of the last calls/text messages (only with call

browsing active)

300

MUL

TIMEDIA

Content .. 16 17 18 19 ..
