PARALLEL AND
PERPENDICULAR PARKING
DESCRIPTION

Activation

The system is activated pressing the
button on the dashboard (see "On/off"
paragraph): after being selected, the
system activates in search mode.
Considering that the system recognises
parking places even when it has not been
selected, it can be activated even
immediately after passing close to a
parking place suitable for the type of car.
The system will inform the driver,
through the instrument panel display,
about the operations to be performed for
a correct manoeuvre.

Selecting the type of parking

During the search and until the reverse
gear is engaged, the preferred type can
be selected for parking:

"Parallel": the car will search a parking

place parallel to the driving direction;

"Perpendicular": the vehicle will

search a parking place perpendicular to
the driving direction.

Selection of the search side

To select the search side and perform the
correct manoeuvre, act as follows:

Select the search for the parking

place and the manoeuvre on the

passenger side placing the direction
indicator in centre position (deactivated)
or pushed upwards.

Select the search for the parking

area and manoeuvre on the driver side
pushing the direction indicator
downwards.

Search for a parking place

Through the side sensors, the system
continuously searches for a free parking
place, suitable for the car’s dimensions.
While searching the vehicle should
continue following its route at a speed of
below 30 km/h and at a distance of
around 50 cm to 1.5 m from parked
vehicles.
A parking place is considered suitable if
it is about 80 cm longer than the
dimensions of the vehicle for parking
places parallel to the driving direction
and about 1 m per parking places
perpendicular to the driving direction,
compared to the vehicle's dimensions.

IMPORTANT While searching, vehicle
speed should not exceed 30 km/h;
when 25 km/h have been reached, the
driver is asked to decrease the speed;
if the speed of 30 km/h is exceeded, it
is deactivated (in this case, the system
can be restarted by pressing the button
on the instrument panel).

Manoeuvre

During manoeuvre, the vehicle's
movements can be controlled by
operating the accelerator, brake and
clutch pedals (versions with manual
gearbox), or the accelerator and brake
pedals (versions with automatic
transmission). Once a parking place has
been found, you will be asked to engage
reverse, leave the steering wheel and use
the pedals, while the system handles the
steering automatically to perform the
parking operation in the dedicated area.
During the manoeuvre it will be possible
to take advantage of the information
coming from the parking sensors (when
driving in reverse it is advisable to reach
the area where the rear sensors sound
continuously), but it is always advisable
to keep an eye on the surrounding area.
The car can be stopped during the
manoeuvre and, whilst remaining
stationary, reverse gear can temporarily
be released (for example, to allow a
pedestrian to go by in the area of the
manoeuvre).
The parking manoeuvre will be
interrupted in the following cases:

vehicle's speed is above 7 km/h;
the steering is (voluntarily or

unintentionally) moved (by grabbing it or
preventing it from moving);

173

uneven road surface or obstacles

before the wheels, affect vehicle's
movements, thus preventing it from
following the correct path.

IMPORTANT Manoeuvring is
deactivated if, after about 3 minutes,
parking has not been completed.

End of manoeuvre

The semi-automatic manoeuvre ends
when the display shows the message of
completed manoeuvre.
At the end of the manoeuvre, the driver
resumes control of the car and, if
necessary, has to complete parking
manually.

IMPORTANT INFORMATION

If the sensors undergo impact which

alters their position, the system operation
could deteriorate considerably.

The system reaches top performance

after the vehicle has covered about
50 km (system "self-calibration").

If the sensors are dirty, covered by

snow, ice or mud or are repainted vs. the
original conditions, the system operation
could result strongly degraded. It is
extremely important that the sensors are
always clean in order for the system to
operate correctly. During cleaning make
sure not to scratch or damage them;
avoid using dry or rough cloths. The

sensors should be washed using clean
water with the addition of car shampoo if
necessary. In washing stations, clean the
sensors quickly, keeping the steam
jet/high pressure washing nozzles at least
10 cm away from the sensors.

Ultrasonic sound sources (e.g.

pneumatic brakes of trucks or air drills)
nearby could negatively influence the
sensor performance.

Sensors may detect a non-existent

obstacle (echo noise) due to mechanical
noises, for example while washing the
vehicle, in the case of rain, strong wind,
hail.

The sensors may not detect objects of

a particular shape or made from
particular materials (very thin poles,
trailer beams, panels, nets, bushes,
anti-parking posts, pavements, rubbish
bins, motor vehicles, etc.). Always take
great care to check that the vehicle and
its path are actually compatible with the
parking place identified by the system.

The use of (one or more) tyres or

wheels of a different size to those at the
time of vehicle purchase could affect the
operation of the system.

If a trailer (with correctly engaged

socket) is present, the system will be
automatically disabled.

In "Search in progress" mode, the

system could incorrectly identify a
parking place to carry out the manoeuvre

(e.g. by a junction, driveways, roads
crossing the direction of travel, etc.).

In the case of parking manoeuvres on

roads on a gradient, the performance of
the system could be inferior and it may
deactivate.

If a parking manoeuvre is being

carried out between two parked vehicles
alongside the pavement, the system may
cause the vehicle to mount the
pavement.

Some manoeuvres at very tight bends

might be impossible to be carried out.

Take great care to ensure that

conditions do not change during the
parking manoeuvre (e.g. if there are
persons and/or animals in the parking
place, moving vehicles, etc.) and
intervene immediately if necessary.

During parking manoeuvres, pay

attention to cars approaching from the
opposite direction. Always comply with
the prescriptions of the Highway Code.

IMPORTANT Correct system operation
is not guaranteed if snow chains or the
space-saver wheel are fitted.

IMPORTANT The function only informs
the driver about the last appropriate
parking place (parallel or
perpendicular) detected by the parking
sensors.

174

TING

AND

DRIVING

IMPORTANT Some messages displayed
are accompanied by acoustic warnings.

WARNING

141) Parking and other dangerous
manoeuvres are, however, always the
driver’s responsibility. While carrying out
these manoeuvres, always make sure that
no people (especially children) or animals
are in the area concerned. The parking
sensors are an aid for the driver, but the
driver must never allow their attention to
lapse during potentially dangerous
manoeuvres, even those executed at low
speeds.
142) The search for the parking space and
the parking manoeuvres must be
performed in compliance with the current
regulations of the Highway Code.
143) If you wish to stop the steering wheel
with your hands during a manoeuvre, it is
advisable to handle it firmly on the outer
rim. Do not try and keep your hands on
the inside or hold the spokes.

IMPORTANT

64) The operation of the system is based
on various components: front and rear
parking sensors, side sensors, steering
system, wheels, braking system and
instrument panel. The malfunction of one
of these components could compromise
the operation of the system.
65) Only have the bumpers repainted or
any retouches to the paintwork in the area
of the sensors carried out by a Jeep
Dealership. Incorrect paint application
could affect the operation of the parking
sensors.

175

SIDE DISTANCE WARNING
SYSTEM

(where provided)

66)

The Side Distance Warning system has
the function of detecting the presence of
side obstacles near the vehicle using the

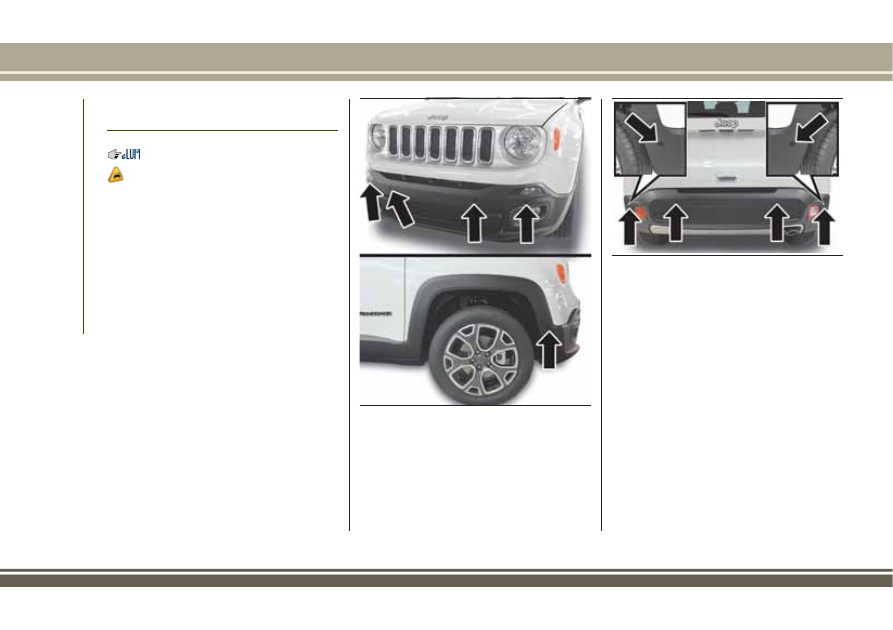

parking sensors located in the front
(fig. 127 ) and rear (fig. 128 ) bumpers.

The system warns the driver with an
acoustic signal and, where provided, with
visual indications on the instrument
panel display.

ACTIVATION/DEACTIVATION

The system can operate only after driving
a short distance and if the vehicle speed
is between 0 and 18 km/h (0 and
11 mph).
The system can be activated/deactivated
via the "Settings" menu of the
Uconnect™ system (for further
information see the dedicated
supplement).

127

J0A0164C

128

J0A0928C

176

TING

AND

DRIVING

OPERATION WITH A TRAILER

The system is automatically deactivated
when the trailer's electric plug is inserted
in the vehicle's tow hook socket. The rear
sensors are automatically reactivated
when the trailer's cable plug is removed.

IMPORTANT INFORMATION

Some conditions may influence the
performance of the Side Distance
Warning system:

reduced sensor sensitivity and a

reduction in the parking assistance
system performance could be due to the
presence of: ice, snow, mud, thick paint,
on the surface of the sensor;

the sensor may detect a non-existent

obstacle ("echo interference") due to
mechanical interference, for example
when washing the vehicle, in rain (strong
wind), hail;

the signals sent by the sensor can

also be altered by the presence of
ultrasonic systems (e.g. pneumatic brake
systems of trucks or pneumatic drills)
near the vehicle;

Parking assistance system

performance can also be influenced by
the position of the sensors, for example
due to a change in the ride setting
(caused by wear to the shock absorbers,
suspension), or by changing tyres,
overloading the vehicle or carrying out

specific tuning operations that require
the vehicle to be lowered.

the presence of a tow hook without

trailer, which may interfere with the
correct operation of the parking sensors.
Before using the ParkSense system, it is
recommended to remove the removable
tow hook ball assembly and the relevant
attachment from the vehicle when the
latter is not used for towing operations.
Failure to comply with this prescription
may cause personal injuries or damage to
vehicles or obstacles since, when the
continuous acoustic signal is emitted,
the tow hook ball is already in a position
that is much closer to the obstacle than
the rear bumper. If you wish to leave the
tow hook fitted without towing a trailer, it
is advisable to contact a Jeep Dealership
for the ParkSense system update
operations because the tow hook could
be detected as an obstacle by the central
sensors.

The presence of stickers on the

sensors can adversely affect the correct
operation of the system. Therefore, take
care not to place adhesives on the
sensors.

IMPORTANT

66) The sensors must be clean of mud,
dirt, snow or ice in order for the system to
operate correctly. While cleaning the
sensors, make sure not to scratch or
damage them; avoid using dry, rough or
hard cloths. The sensors should be washed
using clean water with the addition of car
shampoo if necessary. When using special
washing equipment such as high pressure
jets or steam cleaning, clean the sensors
very quickly keeping the jet more than
10 cm away.
67) Only have the bumpers repainted or
any retouches to the paintwork in the area
of the sensors carried out by a Jeep
Dealership. Incorrect paint application
could affect the operation of the parking
sensors.

177

LANESENSE SYSTEM (lane
crossing warning)

DESCRIPTION

68) 69) 70) 71) 72) 73)

The LaneSense system makes use of a
camera located on the windscreen to
detect the lane limits and calculate the
position of the vehicle within such limits,
in order to make sure that it remains
inside the lane.
When both limits of the lane are detected
and the vehicle crosses one of them
without the awareness of the driver
(direction indicator off), the system
provides a tactile warning by applying
torque to the steering wheel, signalling
the driver that he must take an action to
remain into the lane.
If the vehicle continues going beyond the
line of the lane without any intervention
from the driver, the

warning light (or

the corresponding graphic icon on the
reconfigurable multifunction display) will
be displayed on the instrument panel to
urge the driver to bring the vehicle back
into the limits of the lane.
IMPORTANT The system monitors the
presence of the driver's hands on the
steering wheel. If they are not detected,

the system emits an acoustic signal and
deactivates until it is reactivated by
pressing the dedicated button.
When one limit of the lane is detected
and the vehicle crosses it (direction
indicator off), warning light

(or the

icon on the reconfigurable multifunction
display) will be displayed on the
instrument panel to urge the driver to
bring the vehicle back into the lane. In
this case, the tactile warning (torque on
the steering wheel) is not provided.

SYSTEM ON/OFF

When the engine is started the system is
activated (LED on button

fig. 129 off).

Each time the engine is started, the
system keeps the activation status there
was when it was previously switched off.

Activation conditions

Once switched on, the system becomes
active only if the following conditions are
met:

the driver always keeps at least one

hand on the steering wheel;

vehicle speed ranges within 60 km/h

and 180 km/h (or equivalent values in
miles);

the lane limit lines are perfectly

visible on both sides;

there are suitable visibility conditions;
the road is straight or with wide radius

bends;

a suitable distance is kept from the

vehicle in front;

the direction indicator (for leaving the

lane) is not active;

the lane limit lines are perfectly

visible on both sides (for activation of the
tactile warning only).
NOTE The system does not apply torque
to the steering wheel every time a safety
system is activated (brakes, ABS, ASR
system, ESC system, Forward Collision
Warning Plus system, etc.).

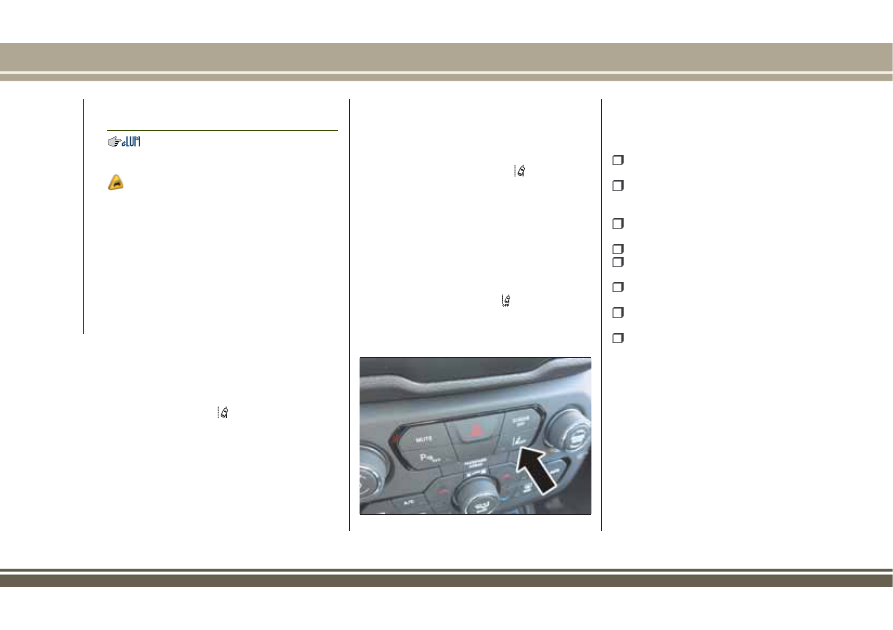

129

J0A0953C

178

TING

AND

DRIVING

IMPORTANT

68) The camera may have limited or
absent operation due to weather
conditions such as: heavy rain, hail, thick
fog, heavy snow, formation of ice layers on
the windscreen.
69) Camera operation may also be
compromised by the presence of dust,
condensation, dirt or ice on the
windscreen, by traffic conditions (e.g.
vehicles that are driving not aligned with
yours, vehicle driving in a transverse or
opposite way on the same lane, bend with
a small radius of curvature), by road
surface conditions and by driving
conditions (e.g. off-road driving). Make
sure the windscreen is always clean. Use
specific detergents and clean cloths to
avoid scratching the windscreen. The
camera operation may also be limited or
absent in some driving, traffic and road
surface conditions.
70) Projecting loads on the roof of the
vehicle may interfere with the correct
operation of the camera. Before starting
make sure the load is correctly positioned,
in order not to cover the camera operating
range.

71) If the windscreen must be replaced
due to scratches, chipping or breakage,
contact exclusively a Jeep Dealership. Do
not replace the windscreen on your own,
risk of malfunction! It is advisable to
replace the windscreen if it is damaged in
the area of the camera.
72) Do not tamper with nor operate on the
camera. Do not close the openings in the
aesthetic cover located under the interior
rear view mirror. In the event of a failure of
the camera, contact a Jeep Dealership.
73) Do not cover the operating range of the
camera with stickers or other objects. Also
pay attention to other objects on the
bonnet (e.g. a layer of snow) and make
sure they do not interfere with the camera

REAR CAMERA
(PARKVIEW® REAR
BACKUP CAMERA)

DESCRIPTION

144)

74)

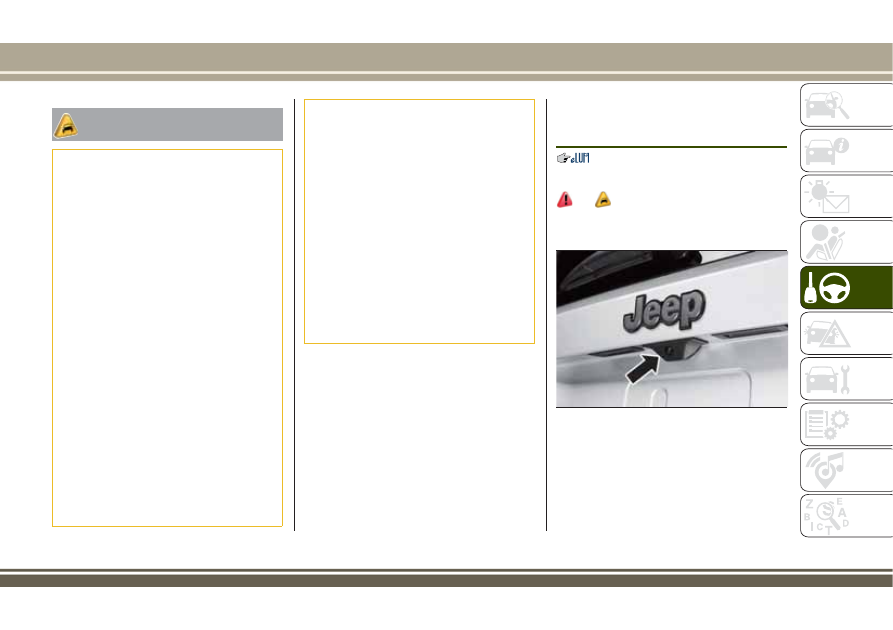

The camera is located on the tailgate
fig. 130.

Every time reverse is engaged, the
display fig. 131 of the Uconnect™
system shows the area around the
vehicle, as seen by the rear camera.

130

J0A0102C

179

SYMBOLS AND MESSAGES ON
THE DISPLAY

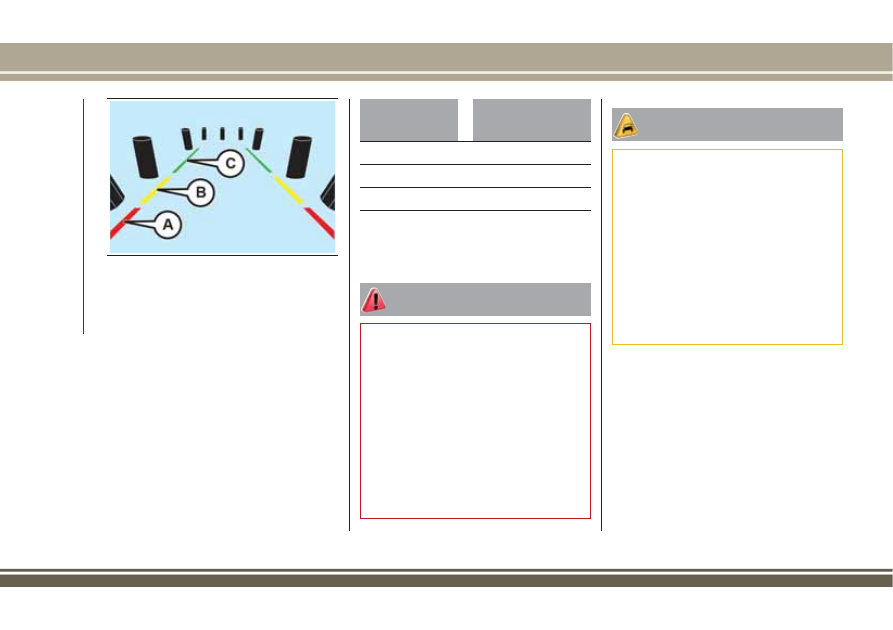

The active line grid is positioned on the
image to illustrate the width of the
vehicle and the expected reversing path
in accordance with the steering wheel
position.
A superimposed central broken line
indicates the centre of the car to
facilitate parking manoeuvres or tow hook
alignment.
The various coloured areas indicate the
distance from the rear part of the car.

Area

Distance from the rear

part of the car

Red (A)

0–30 cm

Yellow (B)

30–100 cm

Green (C)

1 m or more

IMPORTANT When parking, take the
utmost care over obstacles that may be
above or under the camera range.

WARNING

144) Parking and other potentially
dangerous manoeuvres are, however,
always the driver’s responsibility. While
carrying out these manoeuvres, always
make sure that no people (especially
children) or animals are in the area
concerned. The camera is an aid for the
driver, but the driver must never allow
his/her attention to lapse during
potentially dangerous manoeuvres, even
those executed at low speeds. Always keep
a slow speed, so as to promptly brake in
the case of obstacles.

IMPORTANT

74) It is vital, for correct operation, that
the camera is always kept clean and free
from any mud, dirt, snow or ice. Be careful
not to scratch or damage the camera while
cleaning it. Avoid using dry, rough or hard
cloths. The camera must be washed using
clean water, with the addition of car
shampoo if necessary. In washing stations
which use steam or high-pressure jets,
clean the camera quickly, keeping the
nozzle more than 10 cm away from the
sensors. Also, do not apply stickers to the
camera.

131

J0A0103C

180

TING

AND

DRIVING

REFUELLING THE VEHICLE

Always stop the engine before refuelling.

145) 146) 147)

PETROL ENGINES

Only use unleaded petrol with a number
of octanes (R.O.N.) not lower than 95
(EN228 specification).

DIESEL ENGINES

75)

Only use Diesel for motor vehicles
(EN590 specification).
When using or parking the vehicle for a
long time in the mountains or cold areas,
it is advisable to refuel using locally
available diesel. In this case, it is also
advisable to keep the tank over 50% full.

PETROL/LPG ENGINES

LPG FILLER CAP

The gas filler is located next to the petrol
filler cap. It has a check valve, located in
the filler body itself.

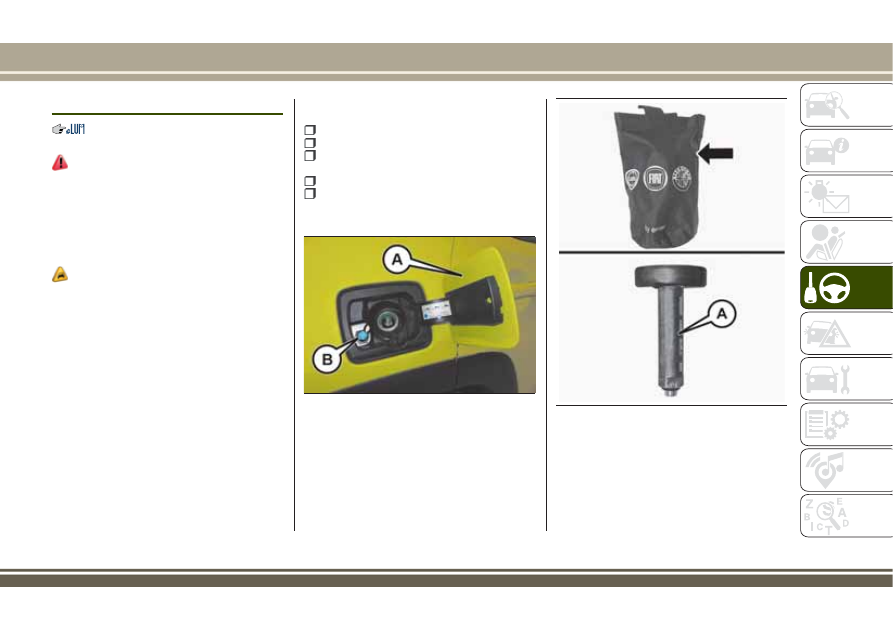

To access the LPG filler, open the access
flap A fig. 132 and undo the cap B.

Observe the following precautions during
the refuelling operation:

switch off the engine;
engage the electric parking brake;
put the ignition device in the STOP

position;

do not smoke;
hand the special adapter A

fig. 133 over to the qualified LPG
refuelling personnel.

IMPORTANT Depending on the
country, there are various types of
adapters for LPG refuelling pumps.
Filler adapter, supplied with the
vehicle and located in a special case,
is specifically designed for the country

132

J0A0945C

133

J0A0507C

181

in which the vehicle is sold. If you are
in a different country, find out what
type of adaptor is used there.

IMPORTANT Before refuelling with
LPG, the qualified personnel must
make sure that the adapter is correctly
screwed onto the filler.

IMPORTANT Look after the LPG
adapter carefully so that it does not get
damaged.

IMPORTANT Only use LPG for motor
vehicles.

IMPORTANT Only use the adapter
supplied with the vehicle as it is
equipped with a dedicated fuel
pre-filter.

REFUELLING PROCEDURE

Opening the flap

To refuel proceed as follows:

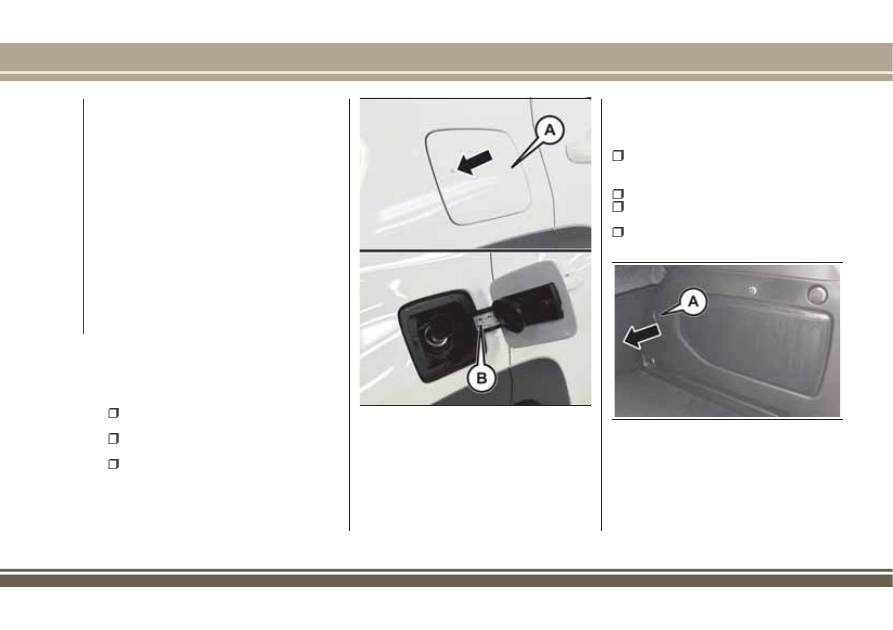

open flap A fig. 134, from the point

shown by the arrow;

introduce the dispenser in the filler

and refuel;

then remove the dispenser from the

filler and close flap A.

The refuelling procedure described
previously is illustrated on label B
fig. 134, which is applied inside the fuel
flap. The label also indicates the fuel
type (UNLEADED FUEL=petrol,
DIESEL=diesel fuel).

Emergency fuel flap opening

Proceed as follows:

working from inside the boot, rotate

hook A fig. 135 anticlockwise, and then
slide it towards the inside of the boot;

pull the cord to unlock the fuel flap;
open the fuel flap by pressing on it

(see the previous instructions);

correctly reposition the cord and the

hook in their housing.

134

J0A0182C

135

J0A0880C

182

TING

AND

DRIVING

(where provided)

Emergency refuelling

Proceed as follows:

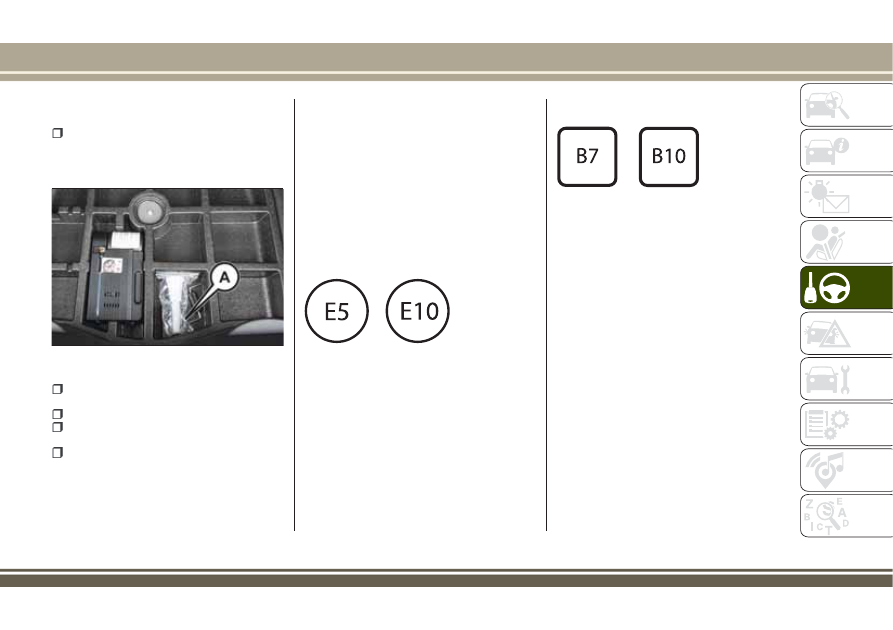

open the boot and get the adapter A

fig. 136, located in the toolbox or,
depending on the versions, in the TireKit
container;

open flap A fig. 134, following the

procedure described previously;

insert the adapter into the filler;
after refuelling, remove the adapter

and close the flap;

finally refit the adaptor in the boot.

Fuels - identification of vehicle
compatibility. Graphic symbol for consumer
information in accordance with EN16942

The symbols shown below facilitated
recognising the correct fuel type to be
used on your car.
Before proceeding with refuelling, check
the symbols inside the fuel filler flap
(where provided) and compare them with
the symbols shown on the fuel pump
(where provided).

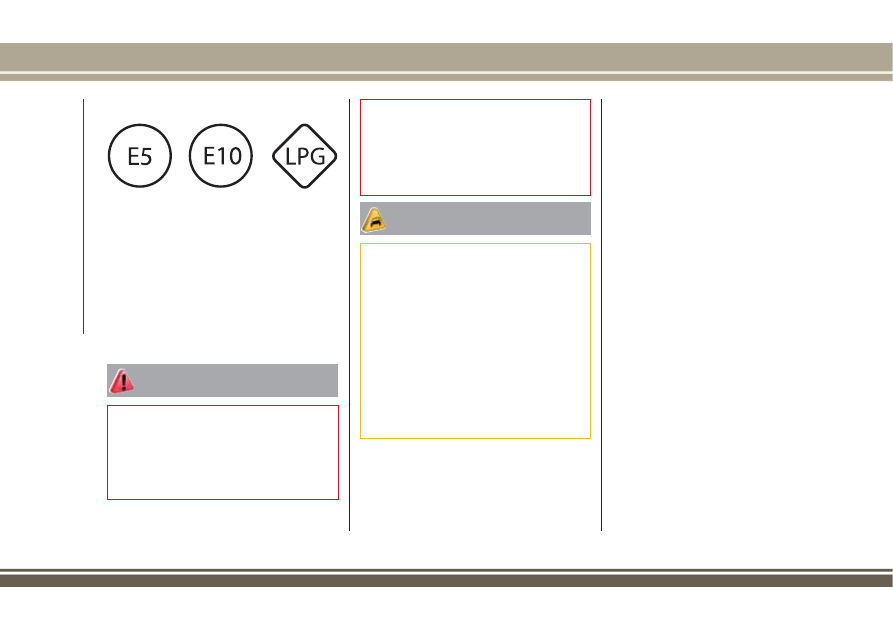

Symbols for petrol powered cars

E5: Unleaded petrol containing up to
2.7% (m/m) oxygen and with maximum
5.0% (V/V) ethanol compliant with
EN228.
E10: Unleaded petrol containing up to
3.7% (m/m) oxygen and with maximum
10.0% (V/V) ethanol compliant with
EN228.

Symbols for diesel powered cars

B7: Diesel containing up to 7% (V/V) of
FAME (Fatty Acid Methyl Esters)
compliant with EN590.
B10: Diesel containing up to 10% (V/V)
of FAME (Fatty Acid Methyl Esters)
compliant with EN16734.

136

J0A0200C

183

Symbols for petrol/LPG bi-fuel cars

WARNING

145) Do not apply any object/plug to the
end of the filler which is not provided for
the car. The use of non-compliant
objects/plugs could cause a pressure
increase inside the tank, resulting in
dangerous situations.

146) Do not bring naked flames or lit
cigarettes near to the fuel filler: fire risk.
Keep your face away from the fuel filler to
prevent breathing in harmful vapours.
147) Do not use a mobile phone near the
refuelling pump: risk of fire.

IMPORTANT

75) For diesel engines, only use diesel fuel
for motor vehicles in accordance with EN
590 European specifications. The use of
other products or mixtures may damage
the engine beyond repair and consequently
invalidate the warranty, due to the damage
caused. If you accidentally introduce other
types of fuel into the tank, do not start the
engine. Empty the tank. If the engine has
been run for even an extremely limited
amount of time, you must not only drain
the fuel tank, but the rest of the supply
circuit as well.

184

TING

AND

DRIVING

TOWING TRAILERS

TOW HOOK SETUP

148) 149)

Instructions for using the removable ball
head tow bar

IMPORTANT Before setting off, check the
correct locking of the removable ball
head tow bar, as follows:

the green mark of the knob must

coincide with the green mark on the tow
bar;

the knob is in the stop position on the

tow bar (without slot);

locked lock and key removed. The

knob cannot be removed;

ball head bar firmly secured to the

housing pipe. Check by shaking with a
hand.
The fitting procedure must be repeated if
any of the requirements are not met.
If even only one of the requirements is
not met the tow hook must not be used,
since there is risk of causing accidents.
Contact a Jeep Dealership.
The ball head tow bar can be
fitted/removed manually, without
requiring specific equipment.

IMPORTANT Never use vehicles or
work tools: the mechanism may be
damaged.

IMPORTANT Never unlock in the case
of trailer attached to the vehicle or
with rack fitted.

IMPORTANT When driving without
trailer (or without rack), the ball head
tow bar must be removed and the
closing plug must always be inserted
in the housing pipe. This applies
particularly if, due to the bar, the
visibility of the number plate or of the
lighting system is reduced.

185

REMOVABLE BALL HEAD TOW BAR

137

J0A0423C

186

TING

AND

DRIVING

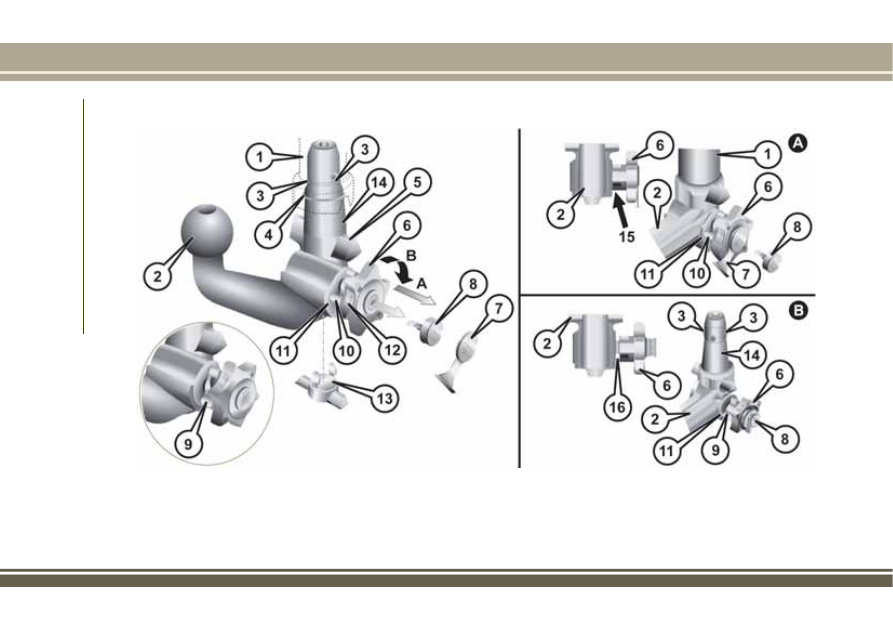

Key
1 – Housing pipe
2 – Ball head tow bar
3 – Locking balls
4 – Release ball
5 – Release lever
6 – Knob
7 – Cap
8 – Key
9 – Red marking (knob)
10 – Green marking (knob)
11 – Green marking (tow bar)
12 – Symbol (control release)
13 – Closing cap
14 – Engagement pin
15 – Absence of slots between 2 and 6
16 – Slot of 5 mm approx.
A: locked position (driving)
B: released position (removed)

Tow hook trim

Before fitting the ball head tow bar, the
tow hook trim on the rear bumper must
be removed.

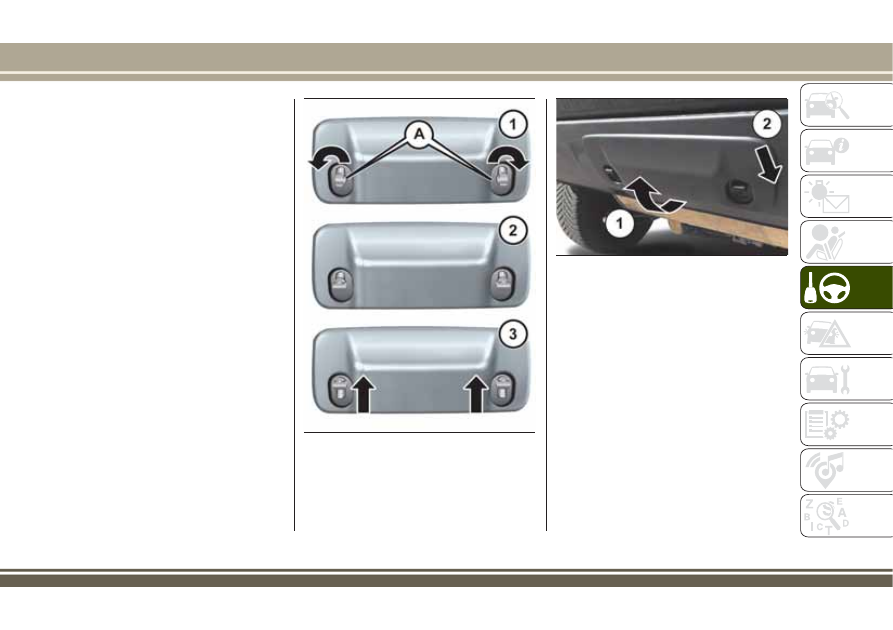

Trim removal: rotate devices A
fig. 138 90° towards the outside, as
indicated by the arrows. Then move them
upwards.

Turn the trim to release it (1 – fig. 139 )
and slide it downwards (2) to remove it.

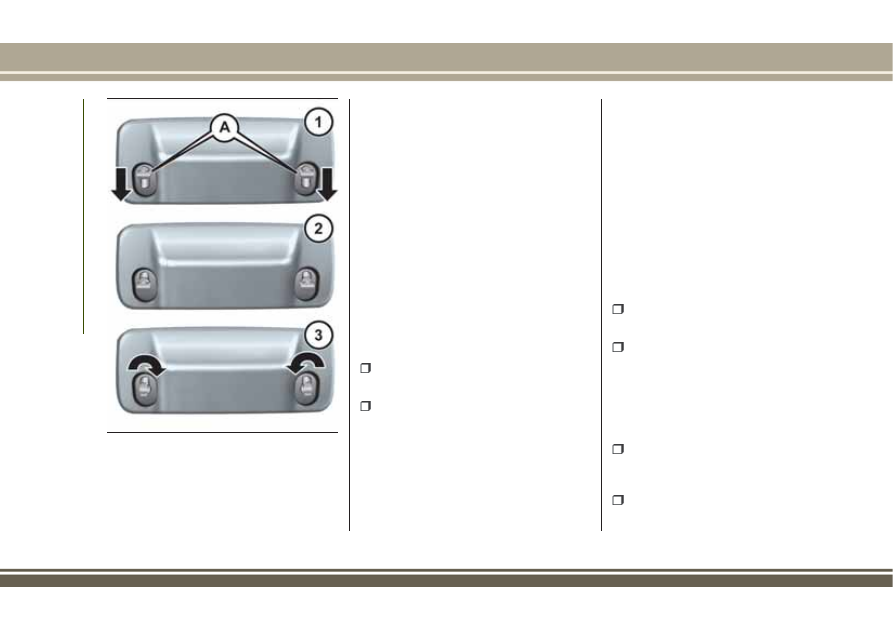

Trim refitting: move devices A
fig. 140 downwards then turn them
90° towards the inside, as indicated by
the arrows.

138

J0A0628C

139

J0A0627C

187

Installing the ball head tow bar

Remove the plug from the mounting
pipe.
The ball head tow bar is usually in the

released position when taken out from
the luggage compartment. This can be
observed by the knob spaced from the
tow bar, corresponding to a slot of
approximately 5 mm (see fig. 137 ) and
by the red mark on the knob directed to
the green mark on the tow bar. The tow
bar can be installed only when in these
conditions.
If the locking mechanism of the tow bar
is disengaged before the installation, or
at any other time, and is in the locked
position, it must be pre-loaded.
The locked position can be identified by
the green mark of the knob coinciding
with the green mark of the tow bar and
by the knob in the stop position on the
tow bar, namely without slot (see figure).
The locking mechanism is pre-loaded as
follows:

with key inserted and lock open,

extract the knob following the direction
of arrow A fig. 137;

then follow the direction of arrow B,

until it stops.
The release ball is pre-loaded and the
locking mechanism remains in the
pre-loading position even when the knob
is released.
The release lever is engaged and the
locking mechanism remains in the
pre-loading position even when the knob
is released.

The tow bar must be inserted in the
housing pipe with the coupling pin for
the installation. Insert from the bottom
and push upwards: the mechanism locks
automatically.
Close the lock and always remove the
key. The key cannot be removed when
the lock is released. Then fit the
protection cap on the lock.

IMPORTANT To prevent injury to limbs,
keep hands away from the knob when
locking.

Removing the tow bar

Proceed as follows:

remove the protection cap from the

lock and press it on the key grip. Open
the lock with the key;

grip the tow bar firmly, remove the

knob following the direction of arrow A
fig. 137, then rotate in the direction of
arrow B until it stops, in order to release
it in unlocked position. Then remove the
tow bar from the housing pipe. The knob
can then be released (it will
automatically stop in released position);

arrange the tow bar in the luggage

compartment so that it cannot be dirtied
and/or damaged by other transported
objects;

finally, insert the dedicated plug in

the mounting pipe.

140

J0A0631C

188

TING

AND

DRIVING

Content .. 9 10 11 12 ..
