Jeep Renegade (2018 year). Instruction

Important

Apply the plate in a highly visible point
of the vehicle, near the mounting pipe or
inside the luggage compartment.
To ensure correct operation of the
system, periodically remove all deposits
of dirt which may have accumulated on
the ball head bar and from the mounting
pipe. The lock must only be treated with
graphite.
Periodically lubricate the joints, the
sliding surfaces and the balls with grease
without resin or oil. Lubrication is also a
further corrosion protection.
if the vehicle is washed with
high-pressure jets, the ball head bar
must be removed and the dedicated plug
fitted. The ball head bar must never be
treated with high-pressure jets.
Two keys are supplied together with the
removable ball tow bar. Note down the
four-digit key number and keep it in a
safe place. This number is to be used for
ordering any duplicate keys that may be
required.

IMPORTANT To install a tow hook
contact a Jeep Dealership.

WARNING

148) The ABS with which the car is
equipped will not control the braking
system of the trailer. Particular caution is
required on slippery roads.
149) Never modify the braking system of
the vehicle to control the trailer brake.
The trailer braking system must be fully
independent of the car’s hydraulic system.

189

IN AN EMERGENCY

A punctured tyre or a burnt-out bulb?

At times, a problem may interfere with
our journey.

The pages on emergencies can help you
to deal with critical situations
independently and with calm.

In an emergency we recommend that you
call the freephone number found in the
Warranty Booklet.

It is also possible to call the national or
international universal freephone number
to search for the nearest Dealership.

HAZARD WARNING LIGHTS. . . . . .192
CHANGING A BULB. . . . . . . . . . .193
REPLACING FUSES . . . . . . . . . . .202
CHANGING A WHEEL . . . . . . . . .209
TIREKIT . . . . . . . . . . . . . . . . . .215
JUMP STARTING. . . . . . . . . . . . .218
FUEL CUT-OFF SYSTEM . . . . . . . .220
AUTOMATIC TRANSMISSION GEAR
LEVER UNLOCKING . . . . . . . . . .220
TWIN CLUTCH AUTOMATIC
TRANSMISSION LEVER UNLOCK . .222
BROKEN-DOWN VEHICLE TOWING .224
TOWING THE VEHICLE . . . . . . . . .225

191

HAZARD WARNING
LIGHTS

CONTROL

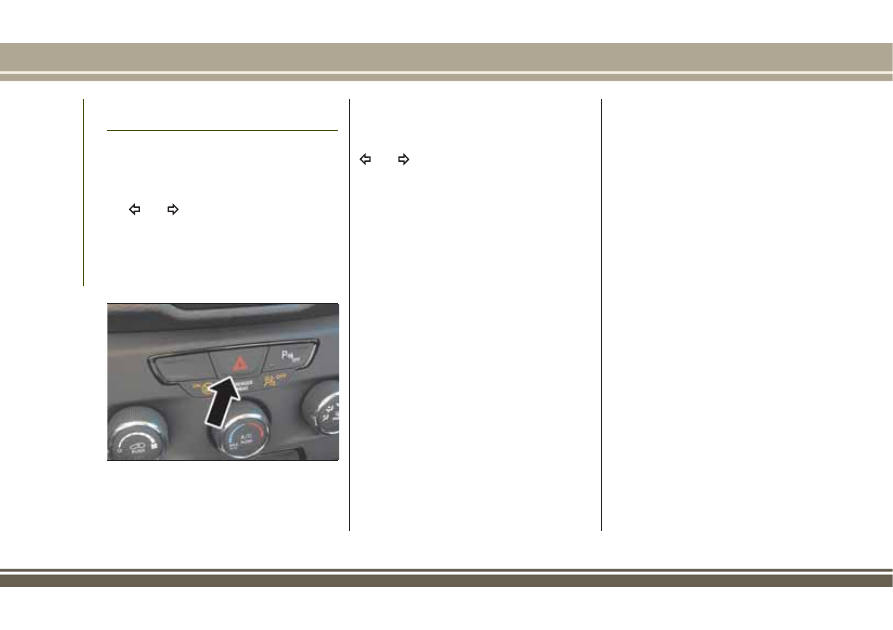

Press the button fig. 141 to switch the
lights on/off.
When the hazard warning lights are on,
the

and

warning lights flash.

IMPORTANT The use of hazard
warning lights is governed by the
highway code of the country you are
driving in: comply with legal
requirements.

Emergency braking

In the event of emergency braking the
hazard warning lights switch on
automatically as well as warning lights

and

in the instrument panel.

The lights switch off automatically when
emergency braking ceases.

141

J0A0954C

192

EMERGENCY

CHANGING A BULB

150) 151) 152) 153)

76)

GENERAL INSTRUCTIONS

Before replacing a bulb check the

contacts for oxidation;

replace blown bulbs with others of the

same type and power;

after replacing a headlight bulb,

always check its alignment;

when a light is not working, check

that the corresponding fuse is intact
before replacing the bulb. For the
location of fuses, refer to the paragraph
“If a fuse blows” in this chapter.

IMPORTANT When the weather is cold
or damp or after heavy rain or washing,
the surface of headlights or rear lights
may steam up and/or form drops of
condensation on the inside. This is a
natural phenomenon due to the
difference in temperature and
humidity between the inside and the
outside of the glass which does not
indicate a fault and does not
compromise the normal operation of
lighting devices. The mist disappears
quickly when the lights are turned on,
starting from the centre of the diffuser,
extending progressively towards the
edges.

193

Light bulbs

Type

Power

Front position/Daytime running lights (D.R.L.)

P21/5W

21/5W

Rear side/brake light

P21W

21 W

Low/high beams (halogen)

60/55W

Main beam/dipped beam headlights (Xenon gas discharge)

D5S

25 W

Front direction indicators

PY21W

21 W

Rear direction indicators

W16W

16 W

Side directional indicators (front and on the external rear voew mirror)

WY5W

5 W

3rd stop

LED

–

Number plate

W5W

5 W

Fog lights

H11

55 W

Rear fog light

W16W

16 W

Reversing light

W16W

16 W

194

EMERGENCY

Light bulbs

Type

Power

Front ceiling light

C5W

5 W

Front ceiling light (shade flaps)

C5W

5 W

Rear ceiling light (versions without sun roof)

C5W

5 W

Rear ceiling lights (versions with openable roof)

C5W

5 W

Luggage compartment light

W5W

5 W

Glove compartment light

W5W

4 W

195

REPLACING AN EXTERNAL BULB

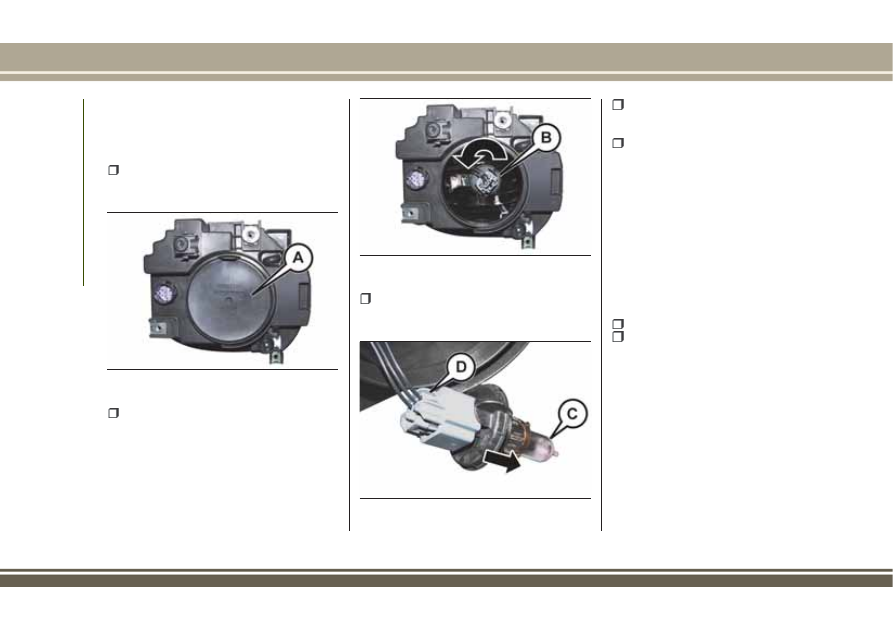

Front upper light group (halogen high/low
beams)

To replace the bulb, proceed as follows:

working from inside the engine

compartment, remove cover A fig. 142,
using the dedicated tab;

turn the bulb and bulb holder

assembly B fig. 143 anticlockwise and
then remove it sliding it outwards;

remove, sliding it outwards, the bulb

and bulb holder assembly C fig. 144,
disconnecting it from connector D;

install the new bulb and bulb holder

assembly, ensuring that it is locked
correctly;

then insert the bulb and bulb holder

assembly in its housing and turn it
clockwise, making sure that it is locked
correctly.

Front upper light group (Xenon gas emitting
high/low beams)

For this replacement, please refer to the
Jeep Assistance network.

Front lower light cluster

Parking light/daytime running lights
(D.R.L.) and front directional indicators
To replace the bulbs, proceed as follows:

steer the wheels completely;
using the screwdriver, undo screws A

fig. 145 and remove flap B;

142

J0A0260C

143

J0A0261C

144

J0A0414C

196

EMERGENCY

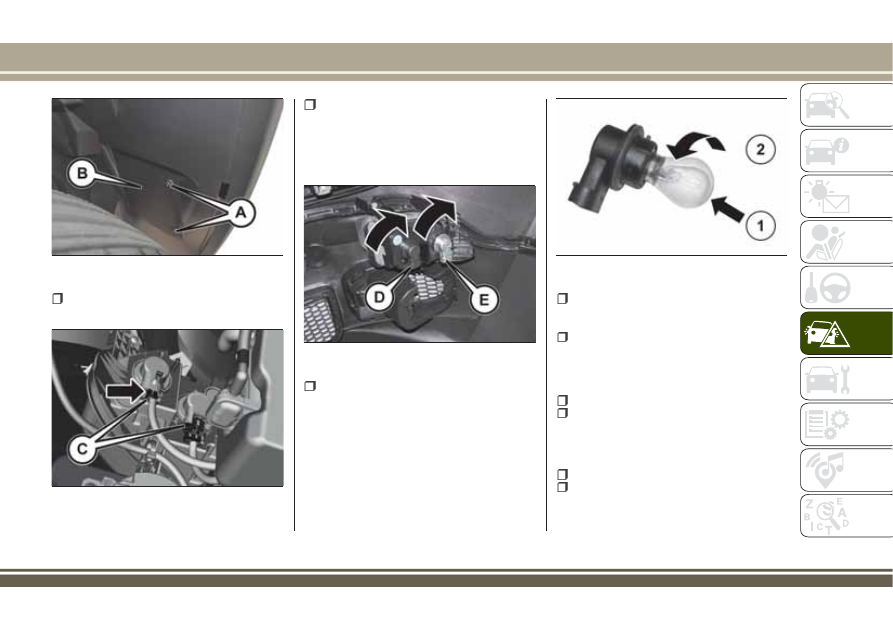

remove electrical connectors C

fig. 146;

turn anticlockwise (on the left device)

or clockwise (on the right device) and
remove the bulb and bulb holder
assemblies fig. 147: D = side
lights/daytime running lights (DRLs), E =
direction indicators;

replace the burnt bulb: to extract it,

press lightly on it (1 fig. 148 ) and at the
same time turn it counter-clockwise (2);

insert the new bulb, by pressing it

fig. 148 and turning it clockwise, making
sure that it locks correctly;

then insert the bulb and bulb holder

assemblies in their respective housings
and turn them anticlockwise (right side)
and clockwise (left side), ensuring that
they are locked correctly;

reconnect the electrical connectors;
finally, refit flap B fig. 145, fully

tightening fixing screws A.

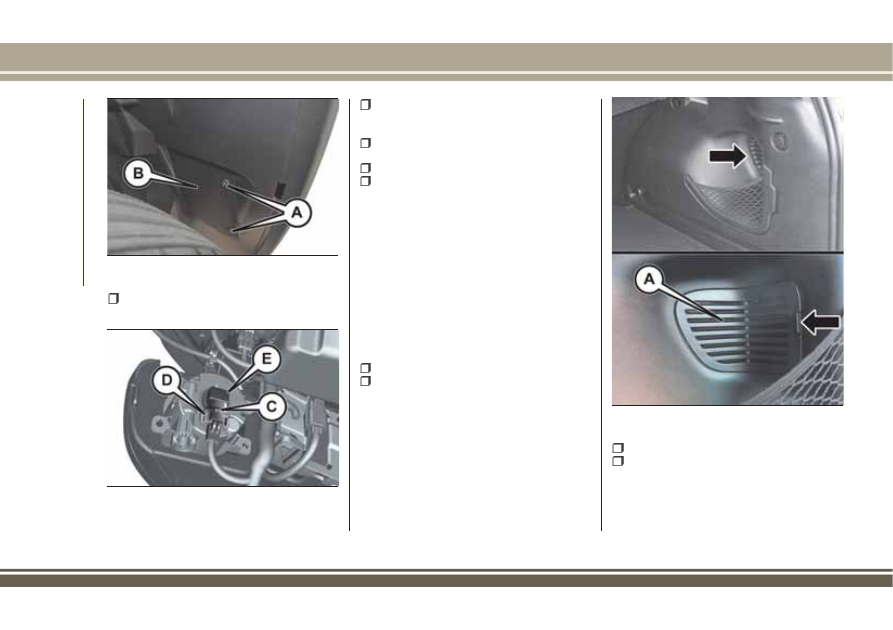

Front fog lights
To replace the bulbs, proceed as follows:

steer the wheels completely;
using the screwdriver, undo screws A

fig. 149 and remove flap B;

145

J0A0211C

146

J0A0306C

147

J0A0263C

148

J0A0264C

197

using tab C fig. 150, remove electrical

connector D;

turn the light bulb and holder E

fig. 150 counter-clockwise and replace
the bulb;

insert the new bulb and holder group,

making sure it is properly blocked;

reconnect the electrical connection;
finally replace flap B fig. 149,

screwing down the attachment screws A
completely.

Side turn light

Side direction indicators on door mirrors
(where provided)
For light bulb replacement, please refer
to Jeep Assistance Network.

Rear upper light group

This contains the parking lights, brake
lights and directional indicators.
To replace the bulbs, proceed as follows:

open the tailgate;
with the point indicated with an

arrows, remove flap A fig. 151;

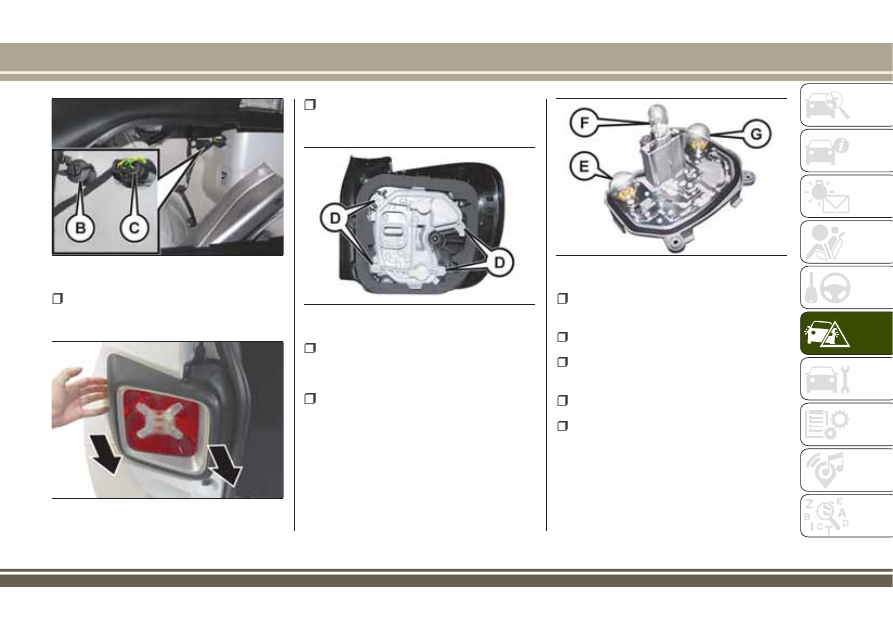

unscrew fixing device B fig. 152;
disconnect the electrical connector,

working on device C;

149

J0A0211C

150

J0A0301C

151

J0A0637C

198

EMERGENCY

remove the rear light group,

unscrewing towards the outside as shown
in fig. 153;

undo the four fixing screws D

fig. 154 and remove the bulb holder
unit;

replace the bulb involved (fig. 155:

E/G = brake lights, F = directional
indicators) (bulbs E and G always light
up at the same time);

fit the new bulb, making sure it is

correctly locked;

correctly remount the bulb holder

group for the rear light group, screwing
the four attaching crews tightly;

reposition the rear light cluster on the

car;

screw the attachment device for the

rear light group tightly and reconnect the
electrical connections;

refit flap A fig. 151, ensuring that it

locks correctly;

finally, close the tailgate.

152

J0A0296C

153

J0A0316C

154

J0A0268C

155

J0A0270C

199

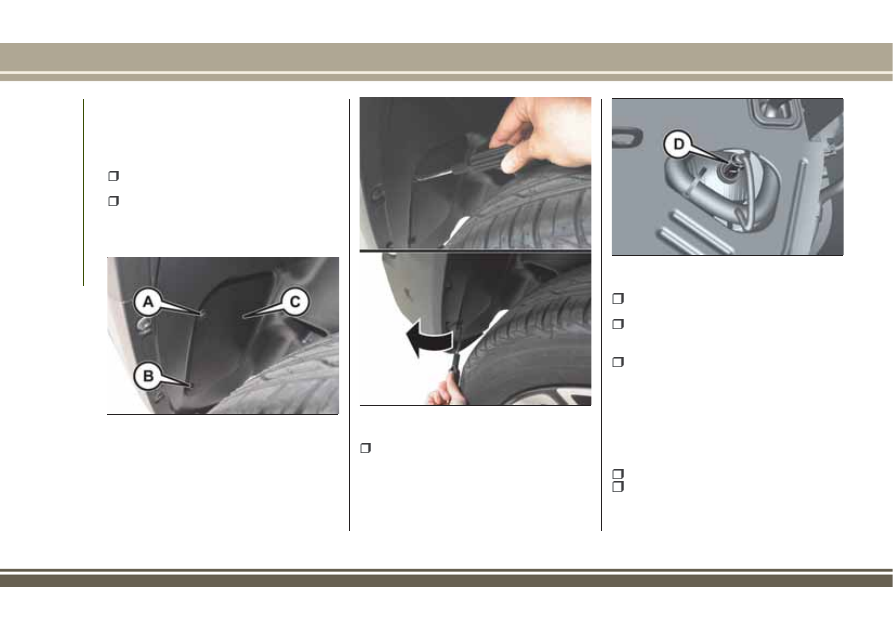

Rear lower light cluster

These contain the rear fog light bulbs
(left side) and reversing light bulbs (right
side).
To replace the bulbs, proceed as follows:

using the screwdriver, unscrew screws

A fig. 156 and B and remove flap C;

upper screw A is easy to access,

whereas for lower screw B it is necessary
to incline the blade of the screwdriver
appropriately as illustrated in fig. 157;

turn bulb holder D

fig. 158 anticlockwise and replace the
bulb concerned;

fit the new bulb, making sure it is

correctly locked;

refit the bulb holder in its housing and

turn it clockwise, making sure that it
locks correctly;

refit flap C correctly, completely

tightening the screws.

brake lights

The 3

brake lights are LED-based. To

replace them, contact a Jeep Dealership.

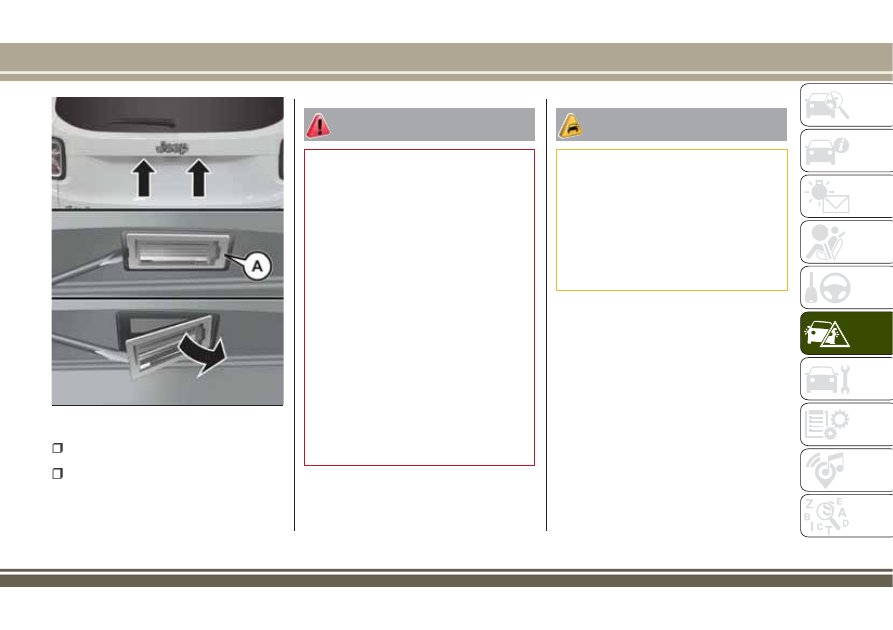

Number plate lights

To replace the bulbs, proceed as follows:

remove lenses A fig. 159;
turn the bulb holder clockwise and

remove the bulb;

156

J0A0212C

157

J0A0213C

158

J0A0302C

200

EMERGENCY

insert the new bulb, making sure it is

properly blocked in the holder;

finally, refit the lenses.

WARNING

150) Before replacing the bulb, wait for
the exhaust ducts to cool down: DANGER
OF SCALDING!
151) Modifications or repairs to the
electric system that are not carried out
properly or do not take the system
technical specifications into account can
cause malfunctions leading to the risk of
fire.
152) Halogen bulbs contain pressurised
gas, in the case of breakage they may
burst causing glass fragments to be
projected outwards.

IMPORTANT

76) Halogen bulbs must be handled
holding the metallic part only. Touching
the transparent part of the bulb with your
fingers may reduce the intensity of the
emitted light and even reduce the lifespan
of the bulb. In the event of accidental
contact, wipe the bulb with a cloth
moistened with alcohol and let the bulb
dry.

159

J0A0444C

201

153) Only replace the light bulbs when the
engine is off and in a position that does
not interfere with traffic and lets you
safely replace them (see the description in
the “Replacement” paragraph). Also
ensure that the engine is cold, to prevent
the risk of burns.

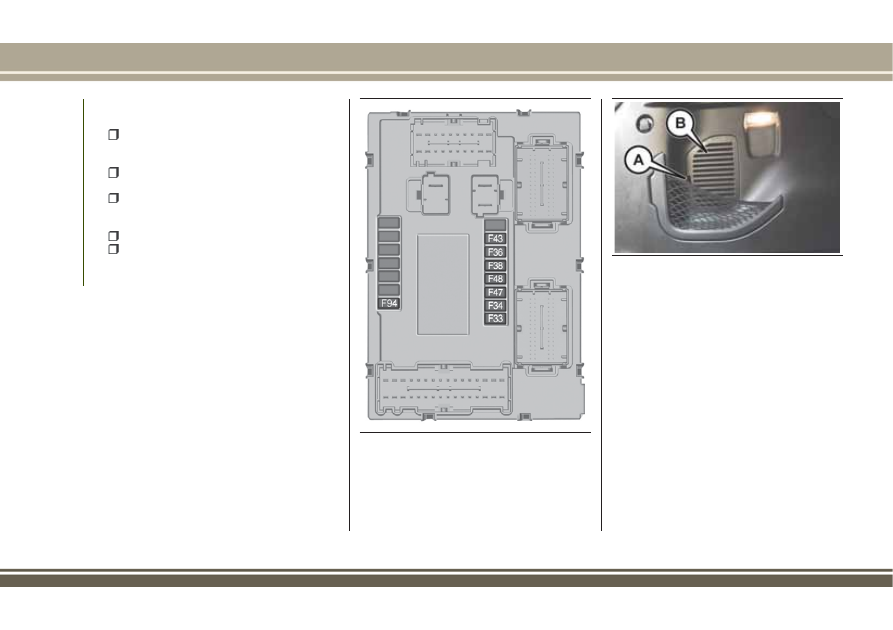

REPLACING FUSES

INTRODUCTION

154) 155) 156) 157) 158)

77) 78)

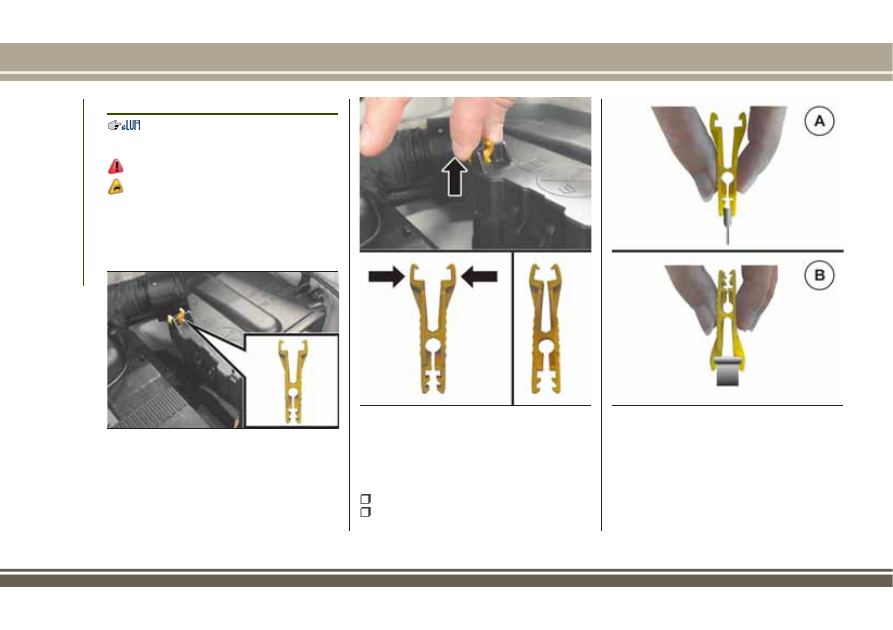

Fuse extracting pliers

To replace a fuse, use the pliers hooked
to the engine compartment fuse box
cover (see fig. 160 ).

Grab the pliers from the upper tabs, as
shown in fig. 161, press them and
extract the pliers pulling upwards.

The pliers have two different ends,
specifically designed (see fig. 162 ) to
remove the different types of fuse
present in the vehicle:

A: MINI fuse;
B: J-CASE fuse.

FUSE LOCATION

Fuses are grouped together in four
fuseboxes located in the engine
compartment, under the dashboard and
inside the boot.

160

J0A0250C

161

J0A0331C

162

J0A0686C

202

EMERGENCY

LPG versions

The LPG system components are
protected by specific fuses. Contact a
Jeep Dealership for replacement.

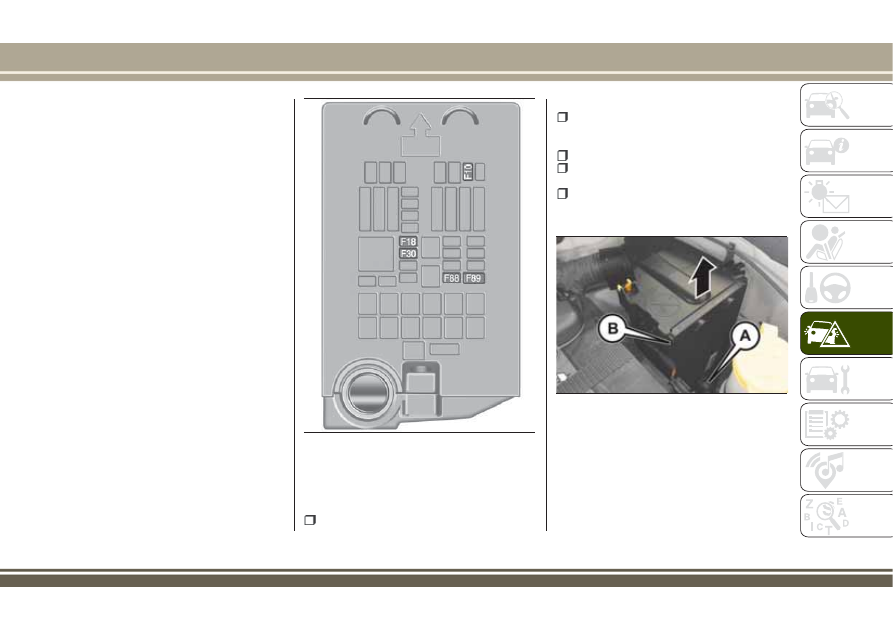

ENGINE COMPARTMENT FUSE
BOX

The fuse box is located by the side of the
battery fig. 163.

Releasing fixing screw and removing fuse
box cover

Proceed as follows:

fully tighten screw A fig. 164, using

the dedicated screwdriver provided;

slowly rotate the screw anticlockwise,

until resistance is encountered (do not
overtighten);

slowly release the screw;

opening is indicated by the entire

screw head coming out of its housing;

remove cover B fig. 164, sliding it

completely upwards, as indicated in the
figure.

The number identifying the electrical
component corresponding to each fuse is
shown on the cover. After replacing a
fuse, make sure that you have closed
cover B correctly.

163

J0A0117C

164

J0A0116C

203

Fitting fuse box cover and locking screw

Proceed as follows:

fix cover B fig. 164 to the box

correctly, sliding it down completely from
the top;

fully tighten screw A fig. 164, using

the dedicated screwdriver provided;

slowly rotate the screw clockwise,

until resistance is encountered (do not
overtighten);

slowly release the screw;
closure is indicated by the securing of

the entire screw head in its housing.

DASHBOARD FUSE BOX

The fuse box fig. 165 is located near the
left side of the steering column and the
fuses can be accessed easily from the
lower part of the dashboard.
For fuse replacement, contact a Jeep
Dealership.

LUGGAGE COMPARTMENT FUSE
BOX

To access the fuses use device A
fig. 166 and subsequently remove flap B.

165

J0A0114C

166

J0A0295C

204

EMERGENCY

Jeep Renegade (2018 year). Instruction - part 12
