5 . Install the timing belt cover sealing strips.

6 . Install the timing belt idler pulley.

Tighten the bolt to 45 Nm.

NOTE:

The generator mounting bracket upper rear bolt must be installed to the generator

mounting bracket before the generator bracket is installed to the engine.

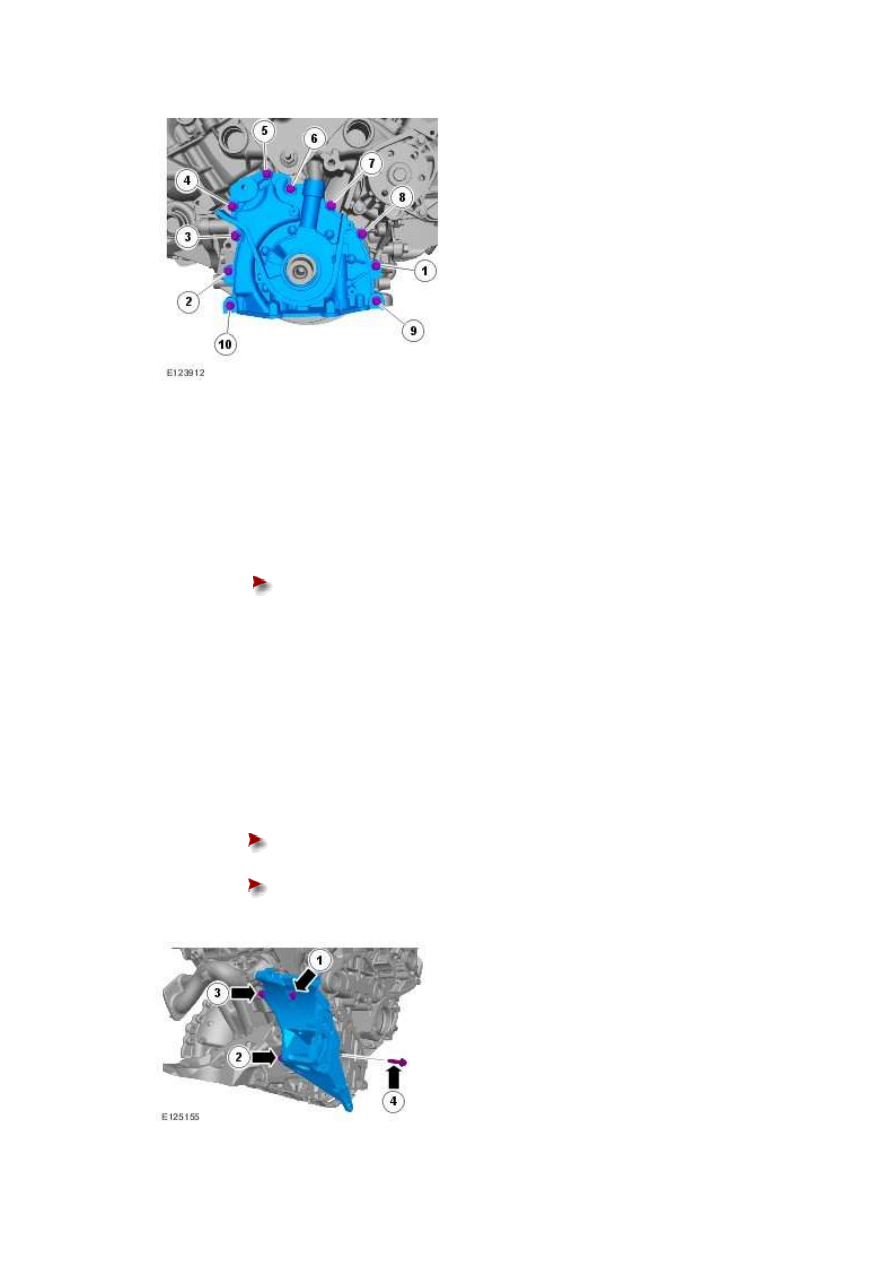

Install the generator mounting bracket.

Loosely install the 4 bolts.

Tighten the 4 bolts in the sequence shown to 23 Nm.

8 . Install the generator.

Tighten the 3 bolts to 47 Nm.

9 . Connect the generator electrical connections.

Attach the battery positve cable and tighten the nut to 12 Nm.

Reposition the battery positive cable connector cover.

Connect the electrical connection.

10 . Install the RH turbocharger outlet pipe.

Secure the 2 clips.

11 . Install the accessory drive belt tensioner.

Tighten the bolt to 47 Nm.

12 . Install the oil pan extension.

For additional information, refer to Oil Pan Extension (12.60.48)

13 . Install the crankshaft front oil seal.

For additional information, refer to Oil Pan Extension (12.60.48)

14 . Connect the battery ground cable.

For additional information, refer to Battery Disconnect and Connect

www.

Timing Belt

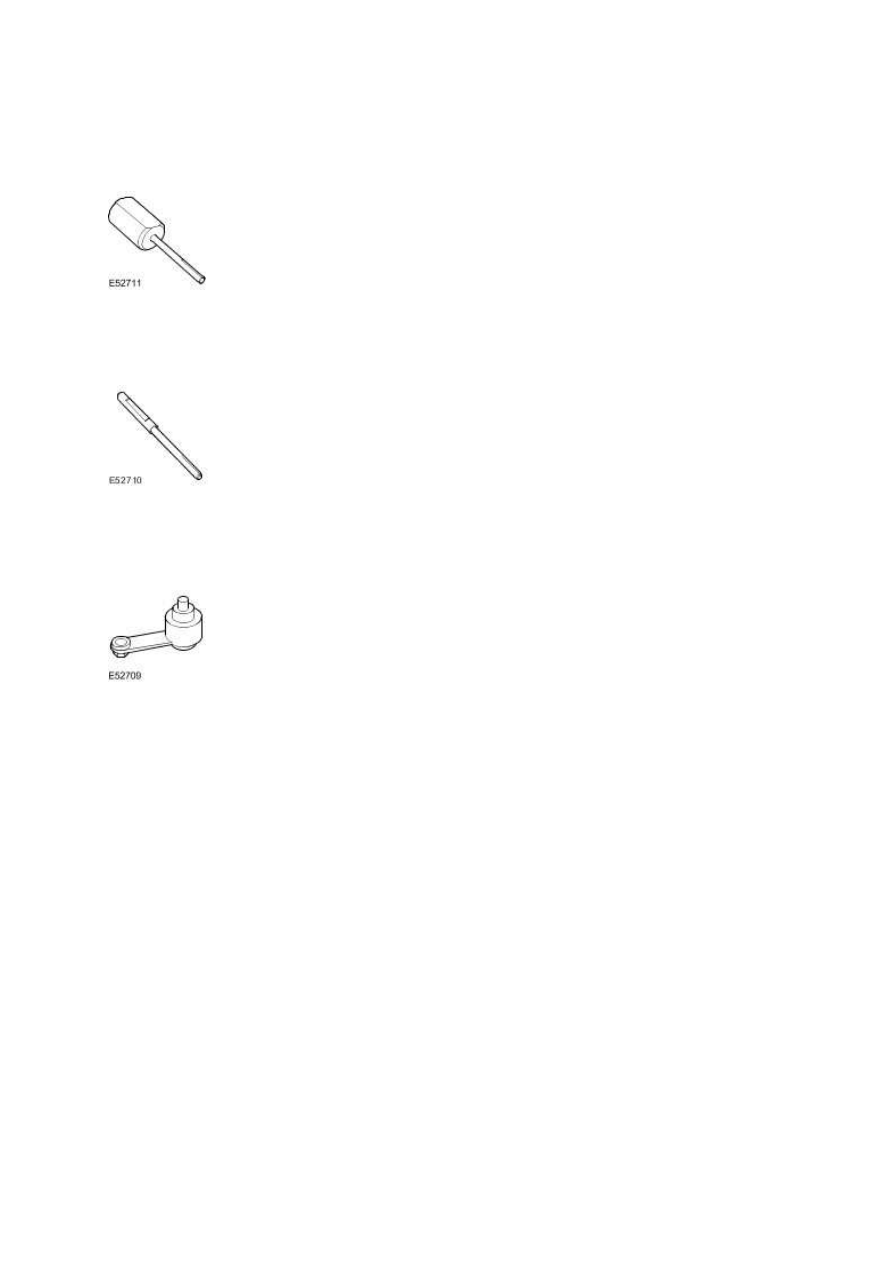

Special Service Tools

Check pin - camshaft pulleys

303-1132

Timing pin - camshaft pulleys

303-1126

Timing pin - flexplate automatic transmission

303-1117

Removal

1 . Disconnect the battery ground cable.

For additional information, refer to Battery Disconnect and Connect

2 . Remove the timing belt cover.

For additional information, refer to Timing Belt Cover

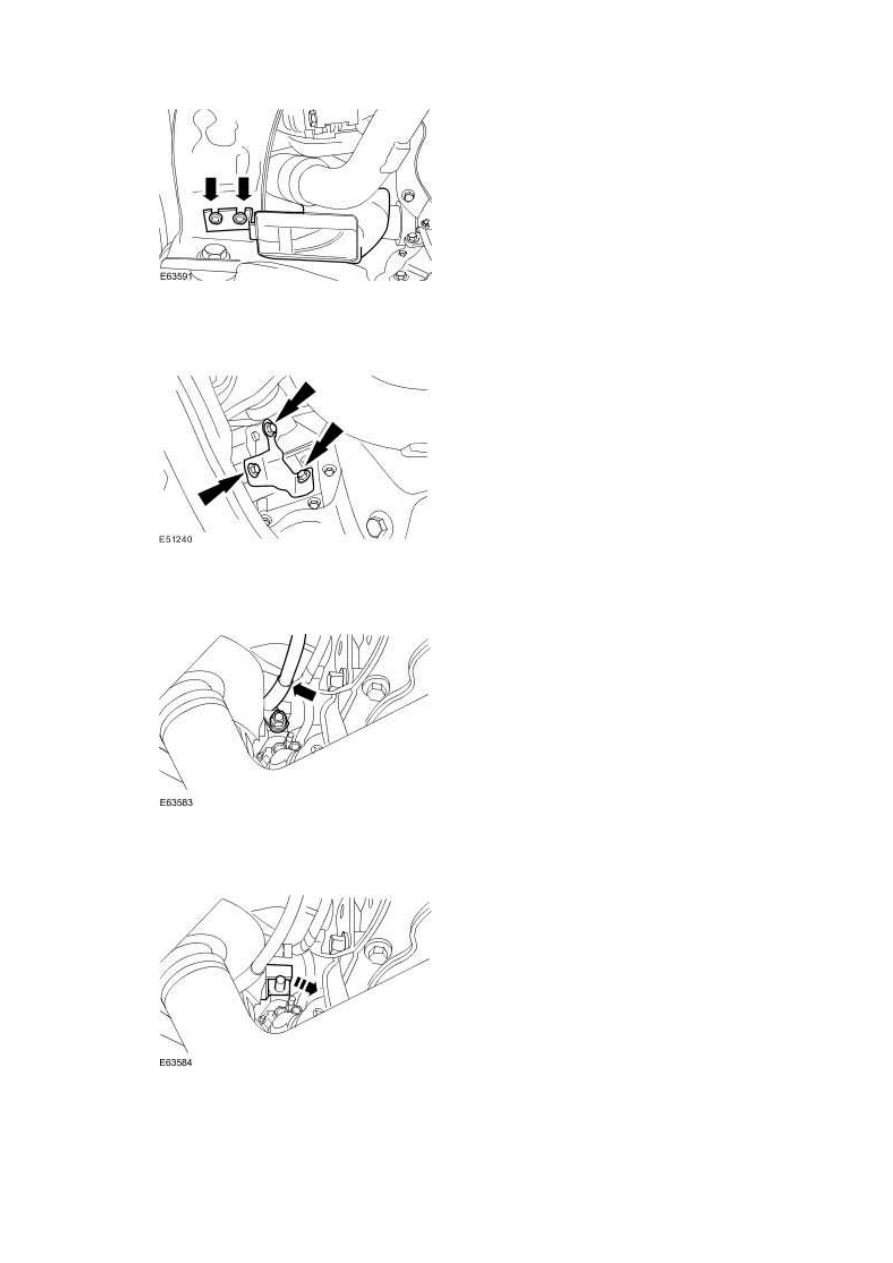

3 . Remove the generator cooling duct (if equipped).

4 . Remove the starter motor retaining bracket.

5 . Detach the starter motor positive cable.

6 . Reposition the starter motor positive cable.
