NOTE:





When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to

three decimal places and with a current calibration certificate. When testing resistance, always

take the resistance of the DMM leads into account.





NOTE:





Check and rectify basic faults before beginning diagnostic routines that involve pinpoint tests.



NOTE:





Inspect connectors for signs of water ingress, and pins for damage and/or corrosion.



NOTE:





If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an

intermittent concern may be the cause. Always check for loose connections and corroded

terminals.





DTC



Description



Possible Causes



Action



B1342  ECU is defective



Steering column lock
module - failure



Steering column lock module electronic

failure. Suspect faulty module, check

and install as required, refer to the new

module installation note at the top of

the DTC Index



B2162

Instrument

Cluster ID does

not match





Stored vehicle
identification details
incorrect



Steering column lock module electronic

failure. Configure steering column lock

module (Must enable SCLM and

instrument cluster to transfer ID) i.e.

Configure as for replacement new

module



B2168

Unable to

confirm

unlocked

condition





Steering column lock
module - failure (cannot
complete unlock
command)



Steering column lock module

mechanical failure. Suspect faulty

module, check and install as required,

refer to the new module installation

note at the top of the DTC Index



B2169

Unable to

confirm locked

condition





Steering column lock
module - failure (cannot
complete lock command)



Steering column lock module

mechanical failure. Suspect faulty

module, check and install as required,

refer to the new module installation

note at the top of the DTC Index



B2375

Hall Sensor

Failed in

Unlocking

Direction





Steering column lock
module - hall sensor
failure



Steering column lock module failure.

Suspect faulty module, check and install

as required, refer to the new module

installation note at the top of the DTC

Index



B2376

Lock Cycle -

Timing Invalid





Steering column lock
module - failure (Lock :
Time between Unlock
Edge to Lock edge is too
short)



Steering column lock module failure.

Suspect faulty module, check and install

as required, refer to the new module

installation note at the top of the DTC

Index



B2377

Unlock Cycle -

Timing Invalid





Steering column lock
module - failure (Unlock :
Time between Lock Edge
to Unlock edge is too
short)



Steering column lock module failure.

Suspect faulty module, check and install

as required, refer to the new module

installation note at the top of the DTC

Index



B2378

Hall Sensor

Failed in

Locking

Direction





Steering column lock
module - hall sensor
failure



Steering column lock module failure.

Suspect faulty module, check and install

as required, refer to the new module

installation note at the top of the DTC

Index



B2379

SCLM not

configured

(inhibited

mode)





Steering column lock
module is not configured
(set after first unlock
command)



Configure steering column lock module

(Must enable SCLM and instrument

cluster to transfer ID)









www.

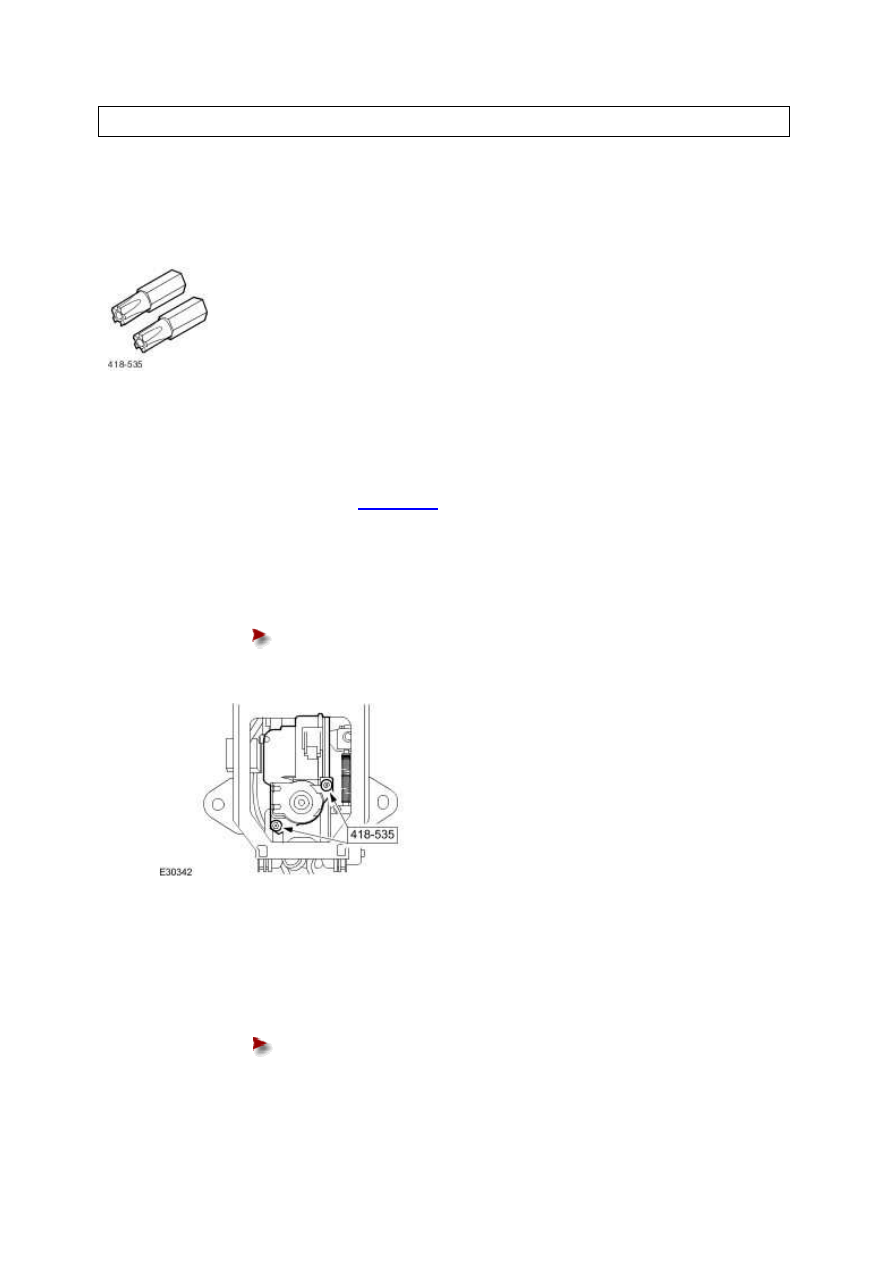

Removal and installation





Steering Column Lock Actuator (57.40.41)

Special Service Tools





5 point security torx bit

418-535

Removal



1 . Remove the steering column.

<<211-04>>

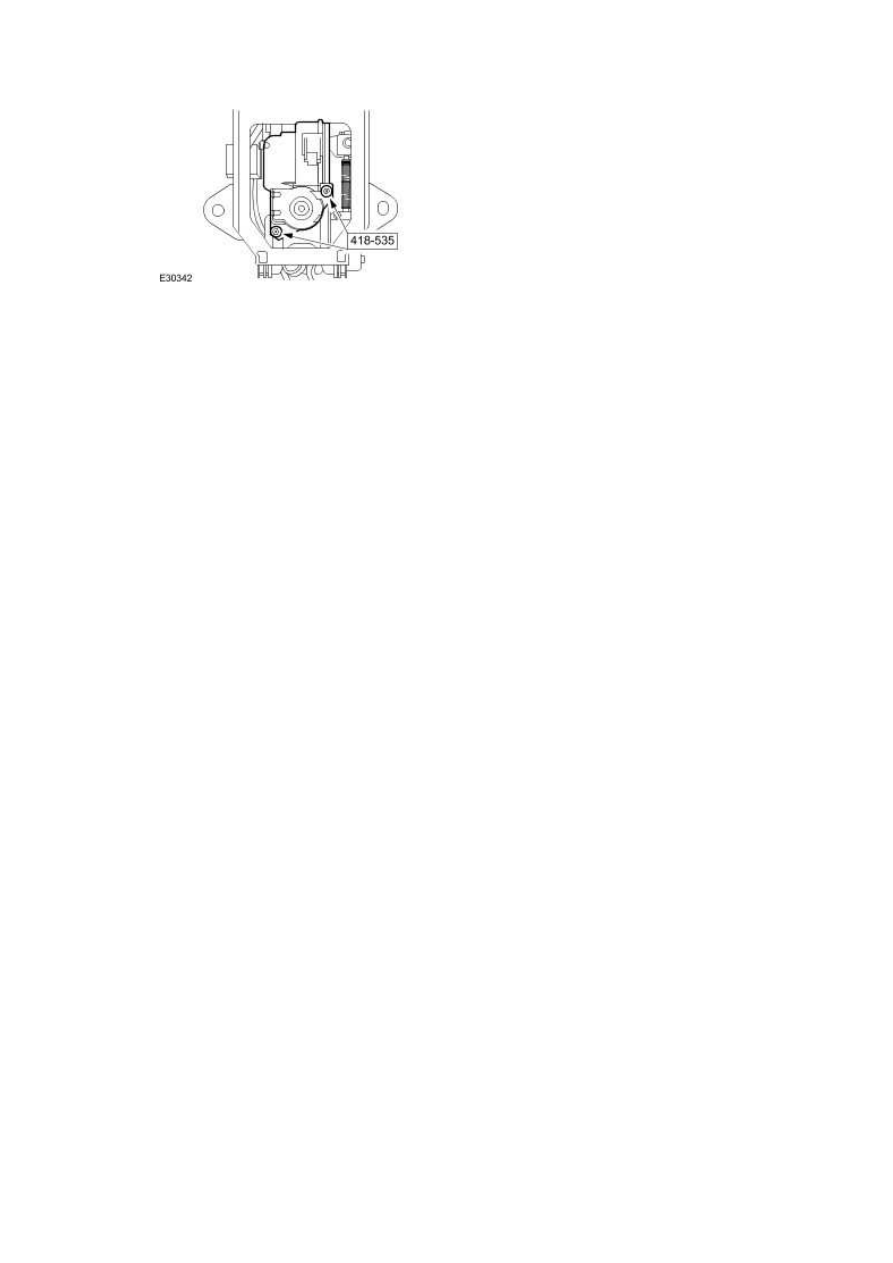

Remove the steering column lock actuator.





Using the special tool, remove the steering column lock actuator retaining

bolts.











Installation



1 . To install, reverse the removal procedure.





Tighten to 9 Nm.
