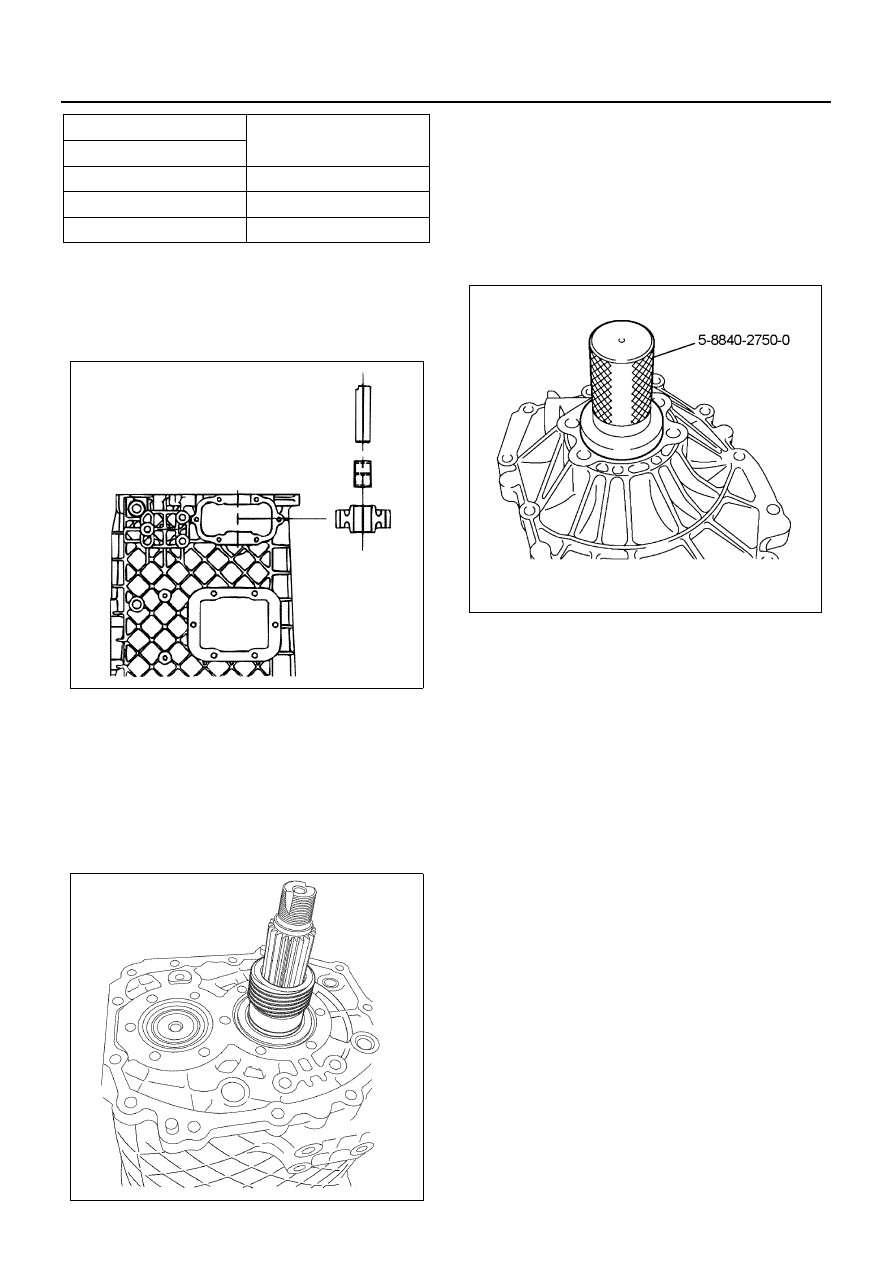

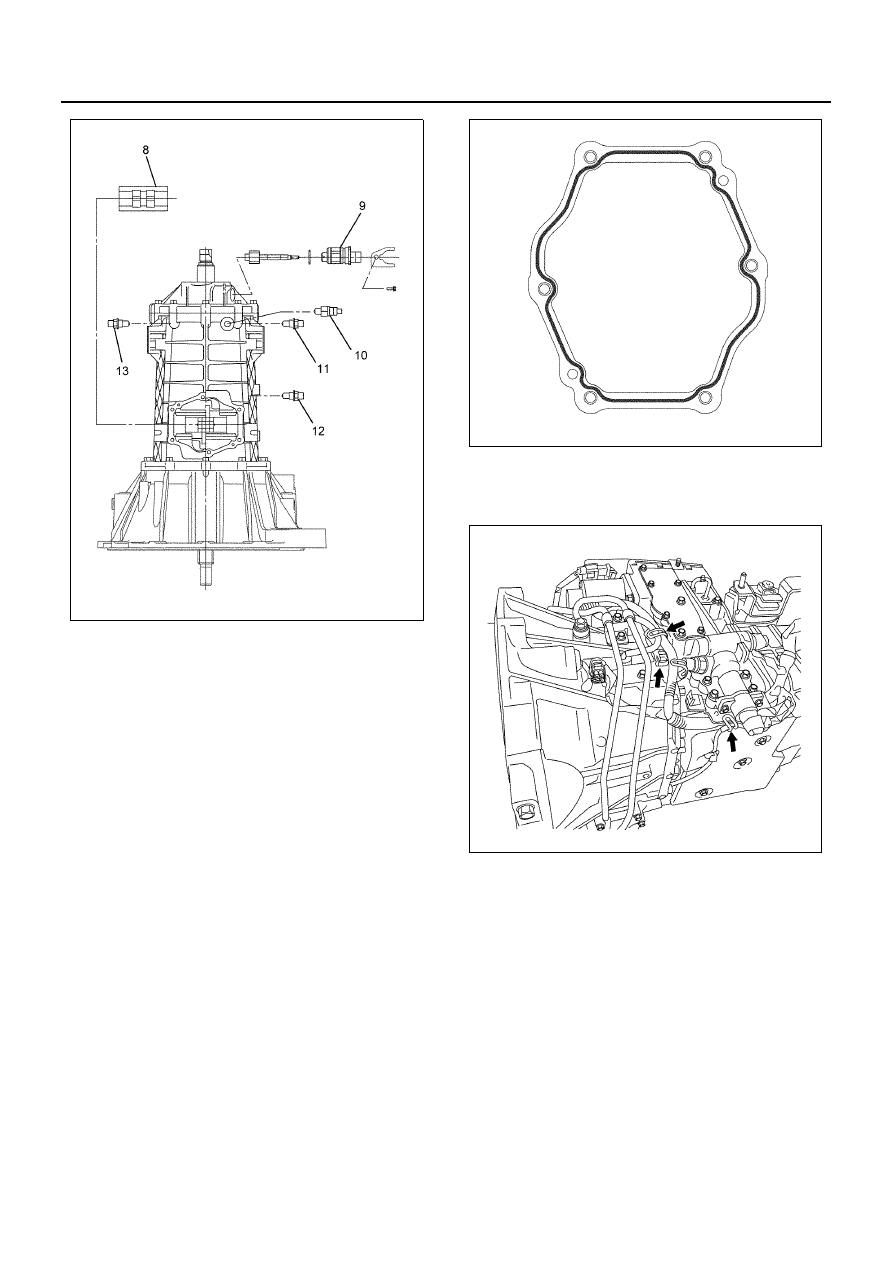

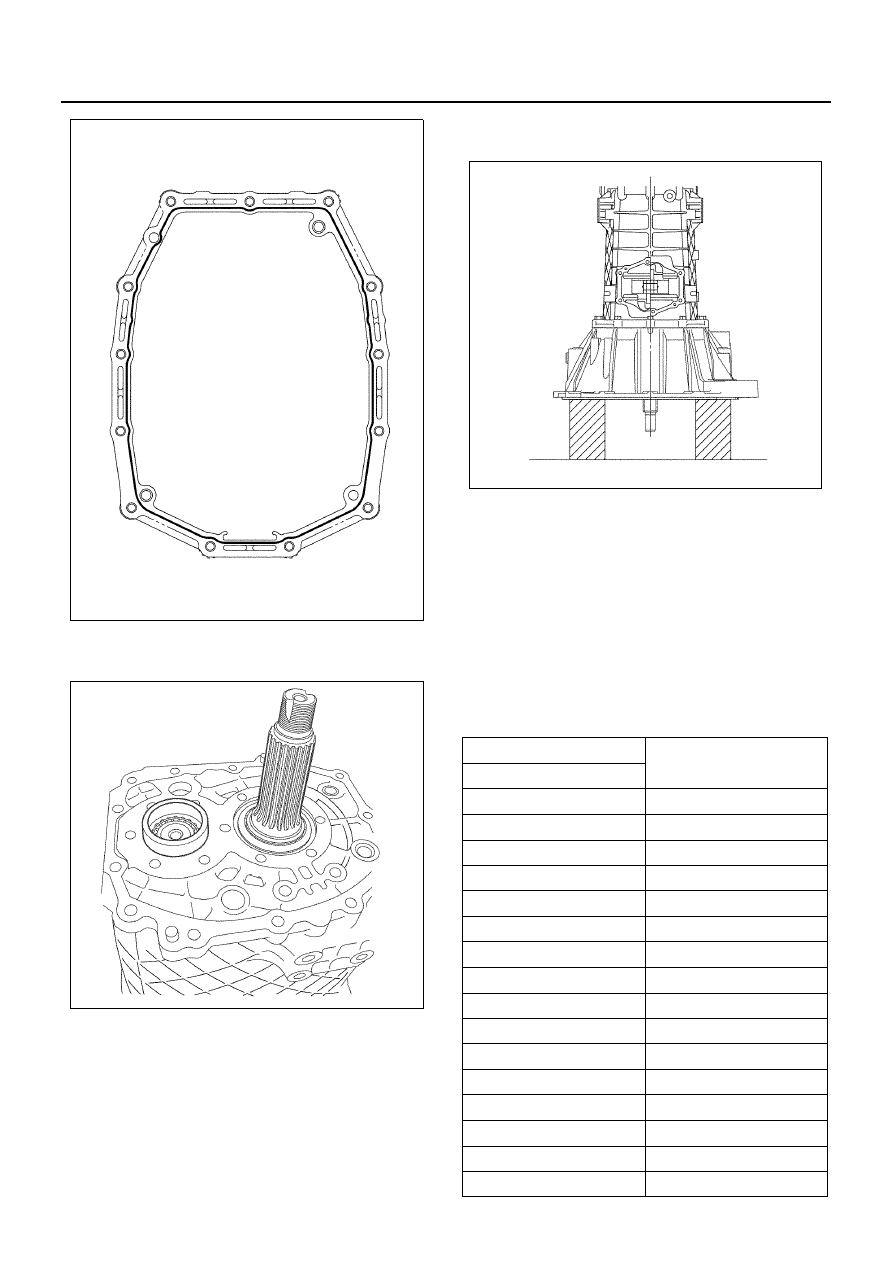

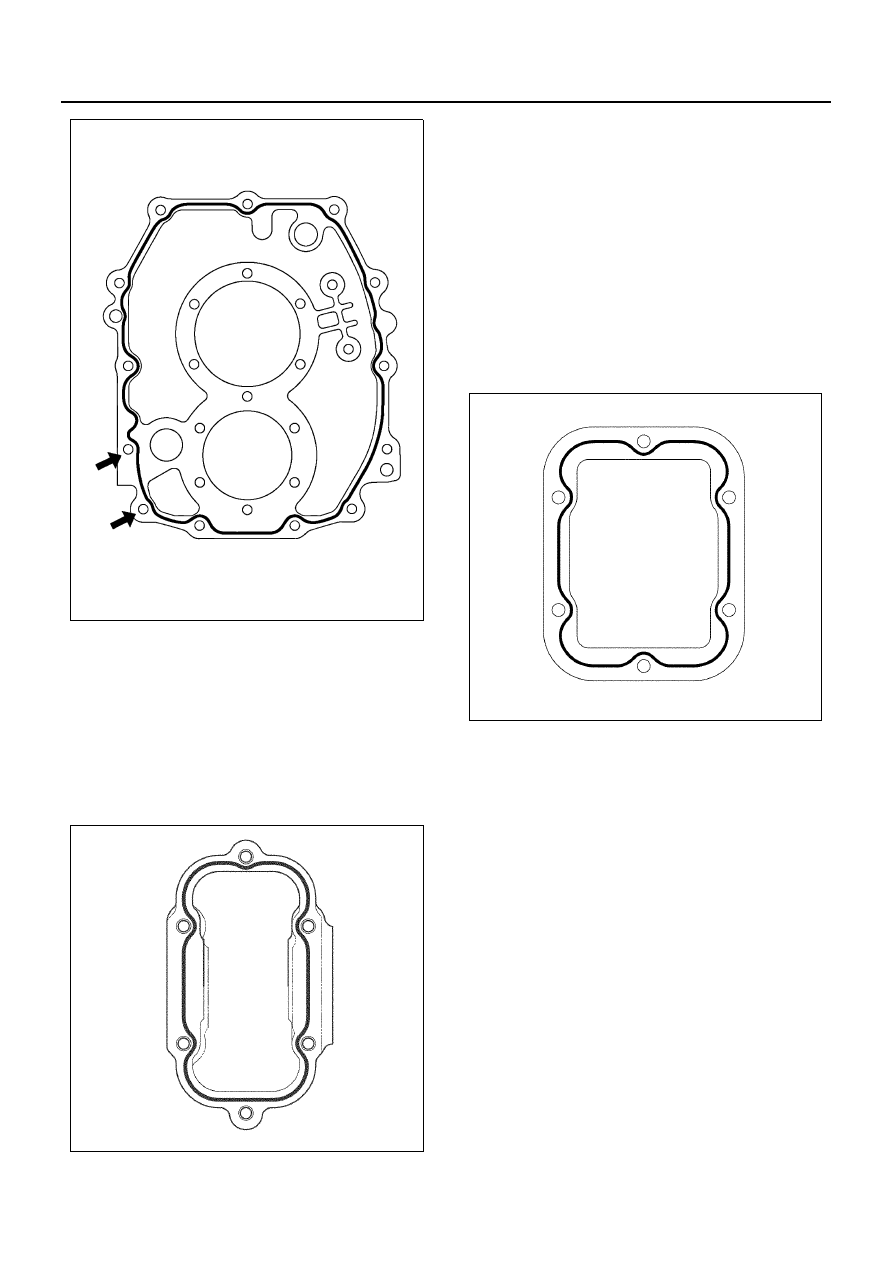

7B-60 Automatic Transmission (Smoother) 12. Install the bearing rear outer race in the transmission case. 13. Install counter shims. a. Set the gear position to neutral. b. Position the transmission assembly so the clutch housing is downwards. c. Rotate the counter shaft for more than 30 turns to fit the taper roller bearing in. d. Select the counter shim. • At 120-degree intervals, take measurements at three points for the depth • Use the table below to select the shim thickness to match the measured average N7A1113E N7A1114E Measured Value (mm) Shim Thickness (mm) From — To 3.34 — 3.40 3.19 3.28 — 3.34 3.13 3.22 — 3.28 3.07 3.16 — 3.22 3.01 3.10 — 3.16 2.95 3.04 — 3.10 2.89 2.98 — 3.04 2.83 2.92 — 2.98 2.77 2.86 — 2.92 2.71 2.80 — 2.86 2.65 2.74 — 2.80 2.59 2.68 — 2.74 2.53 2.62 — 2.68 2.47 2.56 — 2.62 2.41 2.50 — 2.56 2.35 2.44 — 2.50 2.29 N7A1115E |
