MANUAL TRANSMISSION 7B-45

Legend

1. Clutch housing

23. Shim; counter

2. Bush; Clutch housing

24. Counter rear bearing

3. 4th-5th, 6th shift arm

25. Detent assembly

4. Interlock plate

26. Reverse idle cover

5. Control box

27. PTO cover

6. Reverse switch

28. Sensor dummy plug

7. Detent assembly

29. Transmission case

8. Filler plug

30. Detent assembly

9. Detent assembly

31. 1st-reverse and 2nd-3rd shift arm

10. Spring pin

32. Front oil seal

11. Drain plug

33. Bearing outer race

12. 6th relay lever

34. Magnet

13. Snap ring

35. Speedometer driven gear

14. 6th shift arm and shift rod

36. Rear cover

15. Speedometer gear

37. Drain plug

16. Collar

38. Needle bearing; main end

17. Snap ring

39. Rear oil seal

18. 6th clutch hub assembly and sleeve

40. Parking brake assembly

N7A0346E

7B-46 MANUAL TRANSMISSION

Disassembly

Caution:
Be careful not to damage the transmission case and the
clutch housing because they are made of aluminum.
Further attention should be paid to the rib because its
damage weakens hardness of the case.
Do not hurt yourself when working on something heavy
such as cases and gears.

1. Remove the shift block assembly.

• Refer to CLUTCH.

2. Remove the shift fork and the support bolt.

• Refer to CLUTCH.

3. Remove the adjust hole cover securing bolt, and

then remove the parking brake drum.

• Refer to PARKING BRAKE ASSEMBLY.

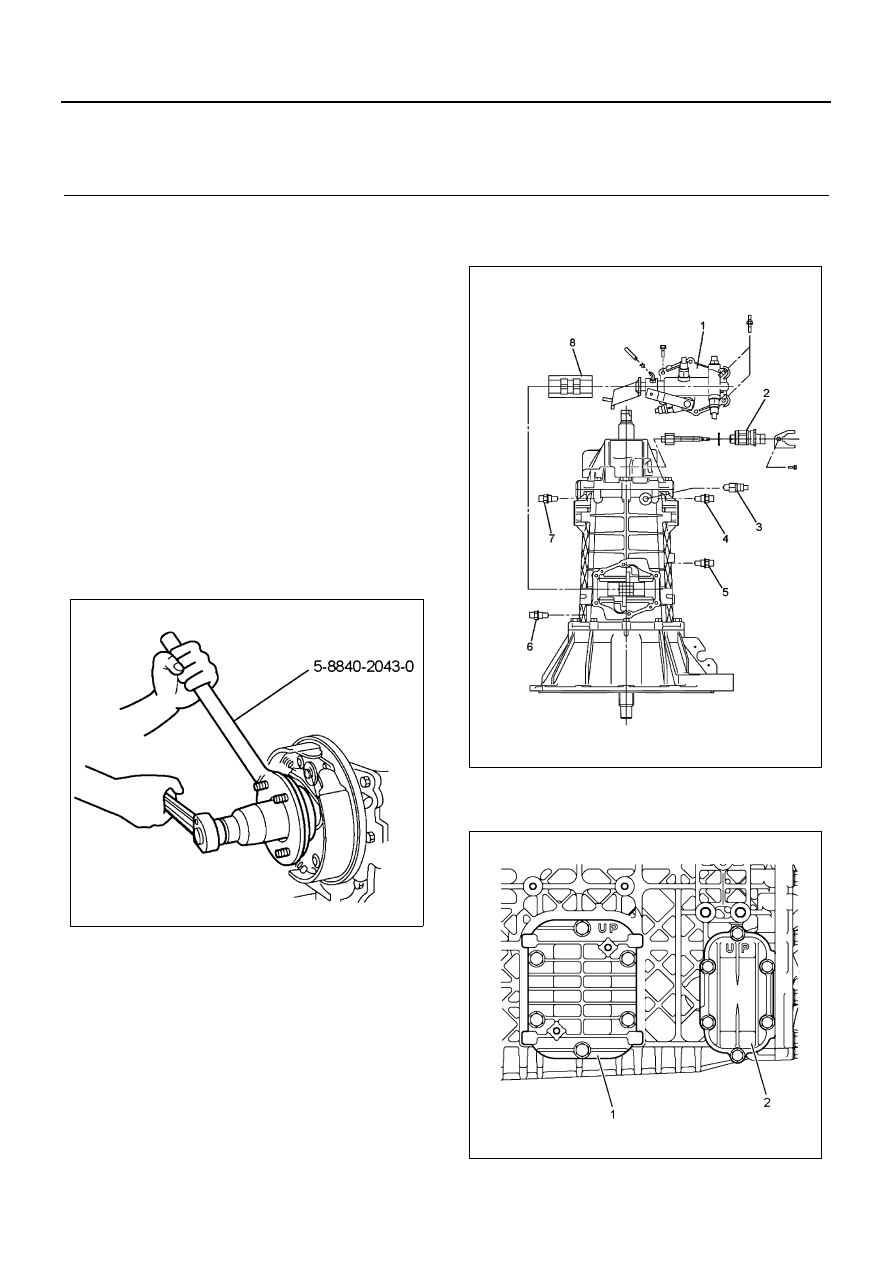

4. Raise the caulking portions (two parts) of the cou-

pling driver lock nut securely, and then remove the
lock nut using the flange holder 5-8840-2043-0.

5. Remove the coupling driver and the O-ring.
6. Remove the parking brake assembly.

• Refer to PARKING BRAKE ASSEMBLY.

7. Remove the filler plug and the O-ring.
8. Remove the drain plug and the O-ring.

• Drain transmission oil. Check the amount of oil

and the existence of metal particles and foreign
matters while draining oil.

9. Remove the noise cover.

10. Remove the speedometer driven gear (2).
11. Remove the reverse switch (3).
12. Remove the detent assembly (4) (5) (6) (7).

13. Remove the control box (1) and the interlock plate

(8).

14. Remove the front side cover (1).
15. Remove the reverse idle cover (2).

16. Remove the rear cover assembly.

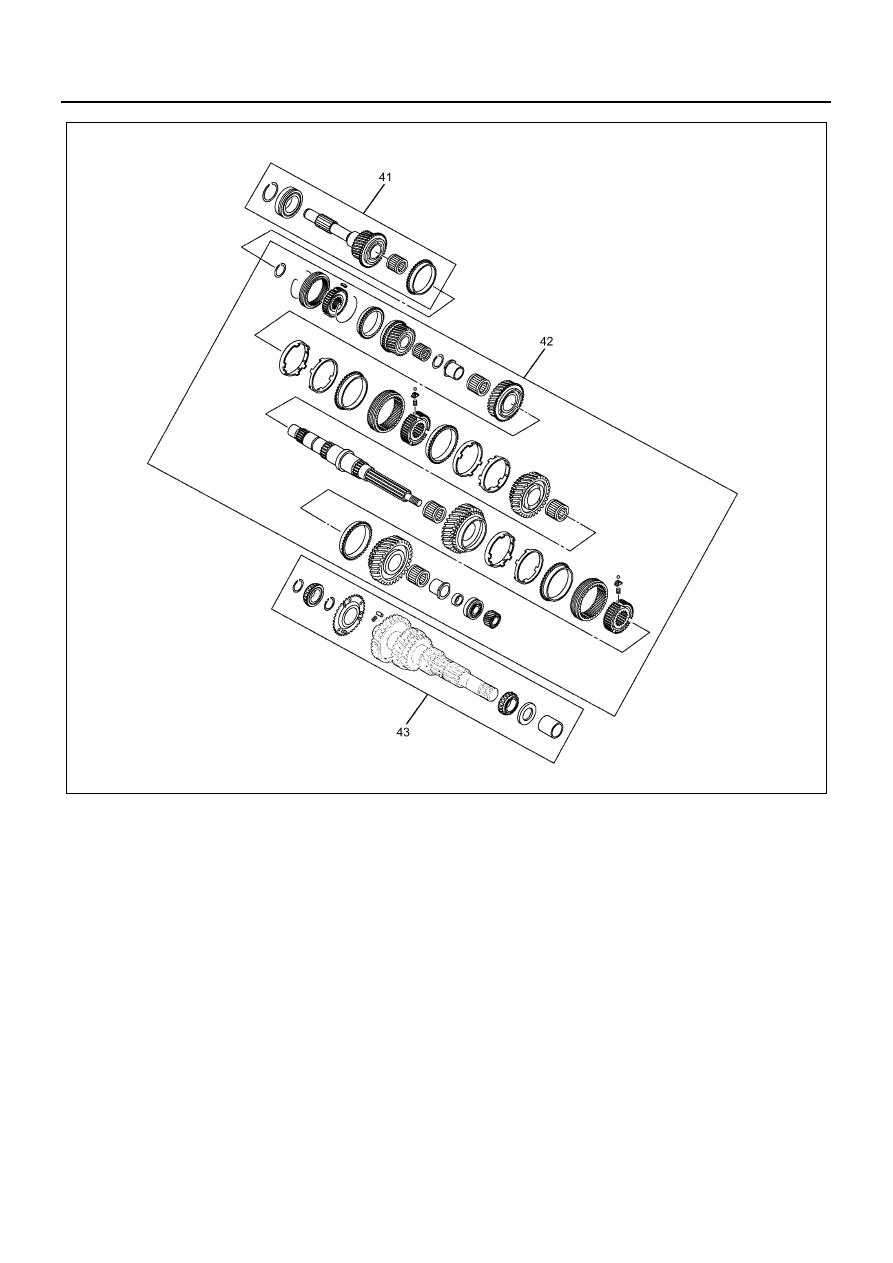

19. 6th gear and needle bearing

41. Top gear shaft assembly

20. Reverse idle shaft

42. Main shaft assembly

21. Reverse idle gear and needle bearing

43. Counter shaft assembly

22. Retainer

N7A0294E

N7A0347E

N7A0312E

MANUAL TRANSMISSION 7B-47

17. When worn or damaged parts are found after

checking the rear cover oil seal, remove it from the
rear cover using the flat-tip screwdriver.

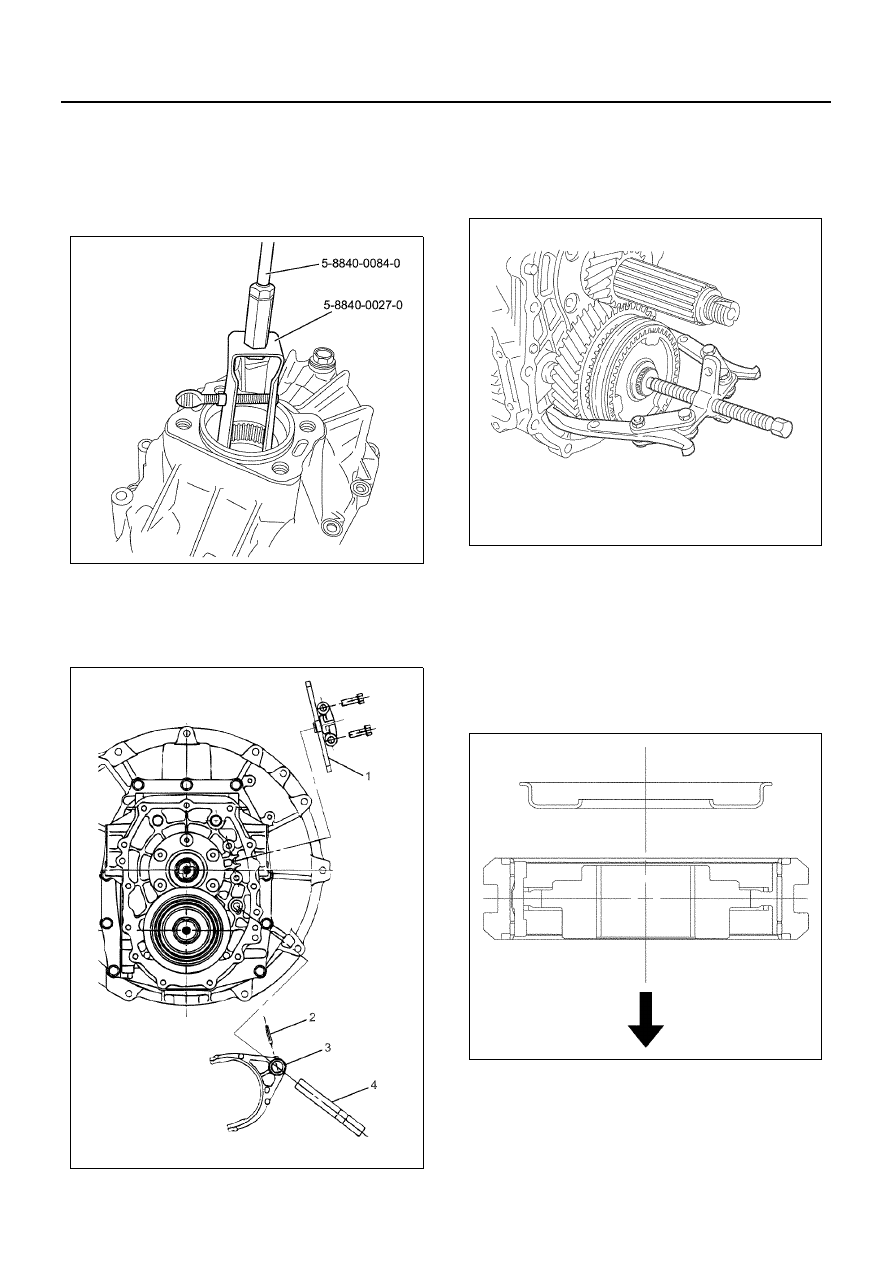

18. Remove the needle bearing; main end from the

rear cover using the remover 5-8840-0027-0 and
the sliding hammer 5-8840-0084-0.

19. Remove the 6th relay lever (1).
20. Remove the 6th shift arm (3) and 6th shift rod (4).

• Using the spring remover, drive out the spring

pin (2).

21. Using the snap ring pliers, remove the snap ring;

6th clutch hub.

22. Using the puller, remove the 6th clutch hub assem-

bly and sleeve, the 6th block ring, the 6th gear and
the needle bearing from the counter shaft.

23. Disassemble the 6th clutch hub assembly and

sleeve.
a. Remove the stopper from the clutch hub.

• The arrow mark shows the direction of the

transmission front side.

Caution:
When removing the stopper plate, replace it with a new
one on installation.

b. Disassemble the clutch hub assembly and

sleeve.

N7A1139E

N7A1140E

N7A1141E

N7A1142E

7B-48 MANUAL TRANSMISSION

24. Remove the collar and the speedometer gear.
25. Remove the retainer from the transmission case.
26. Pull out the reverse idle shaft, and then remove the

reverse idle gear and the needle bearing.

27. Remove the snap ring from the main shaft rear

bearing.

28. Remove the shim from the counter shaft rear bear-

ing.

29. Remove the spring pin; 4th-5th and 6th shift rod.

30. Remove the transmission case from the clutch

housing.

31. Remove the bearing rear outer race from the trans-

mission case.

32. Remove the 4th-5th and 6th shift rod, the 1st-re-

verse and 6th shift block and the 4th - 5th shift arm.

• When driving out the spring pin, put a round

pole on the opposite side of the shift rod not to
damage other parts, and then remove the
spring pin using the spring pin remover.

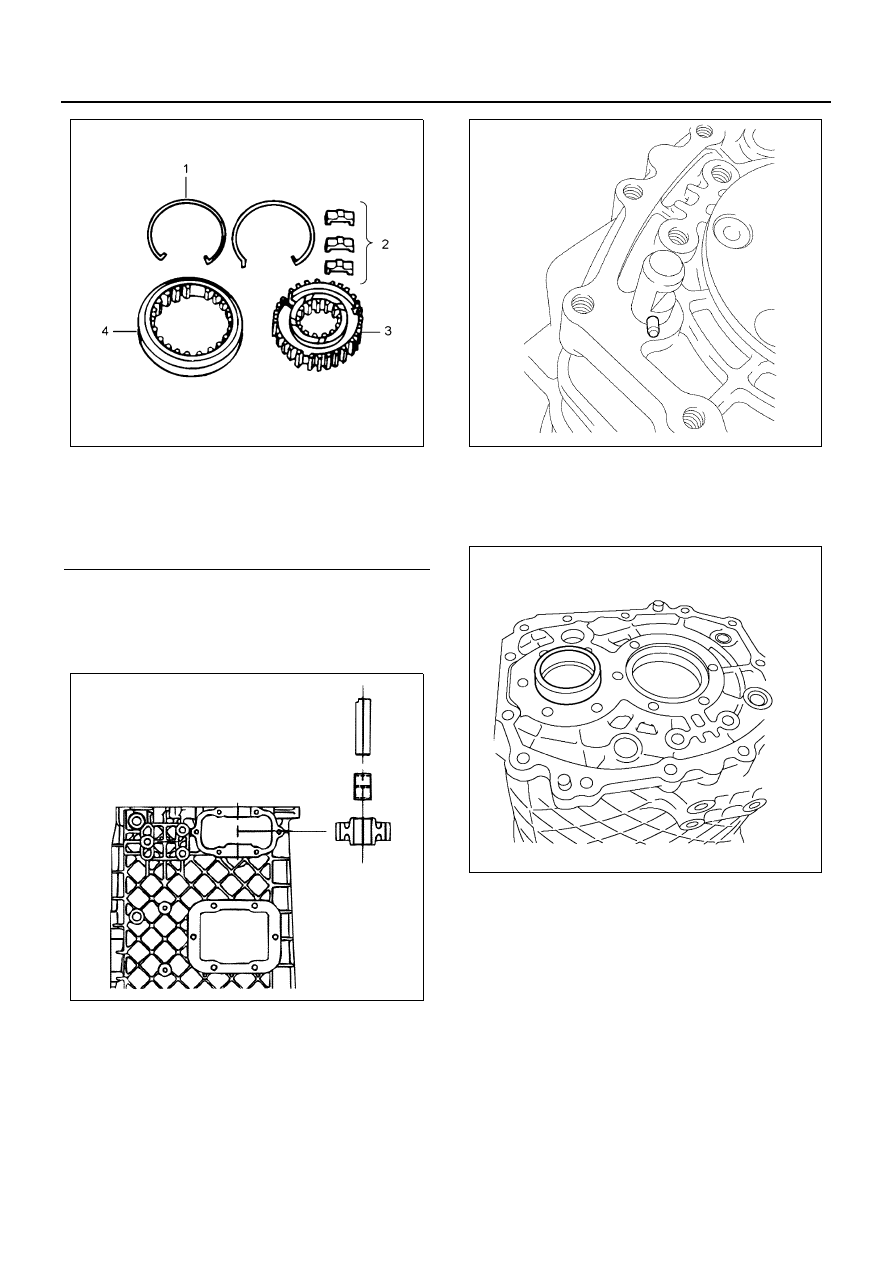

Legend

1. Spring
2. Insert
3. Clutch hub
4. Sleeve

N7A0352E

N7A1090E

N7A1145E

N7A0316E
