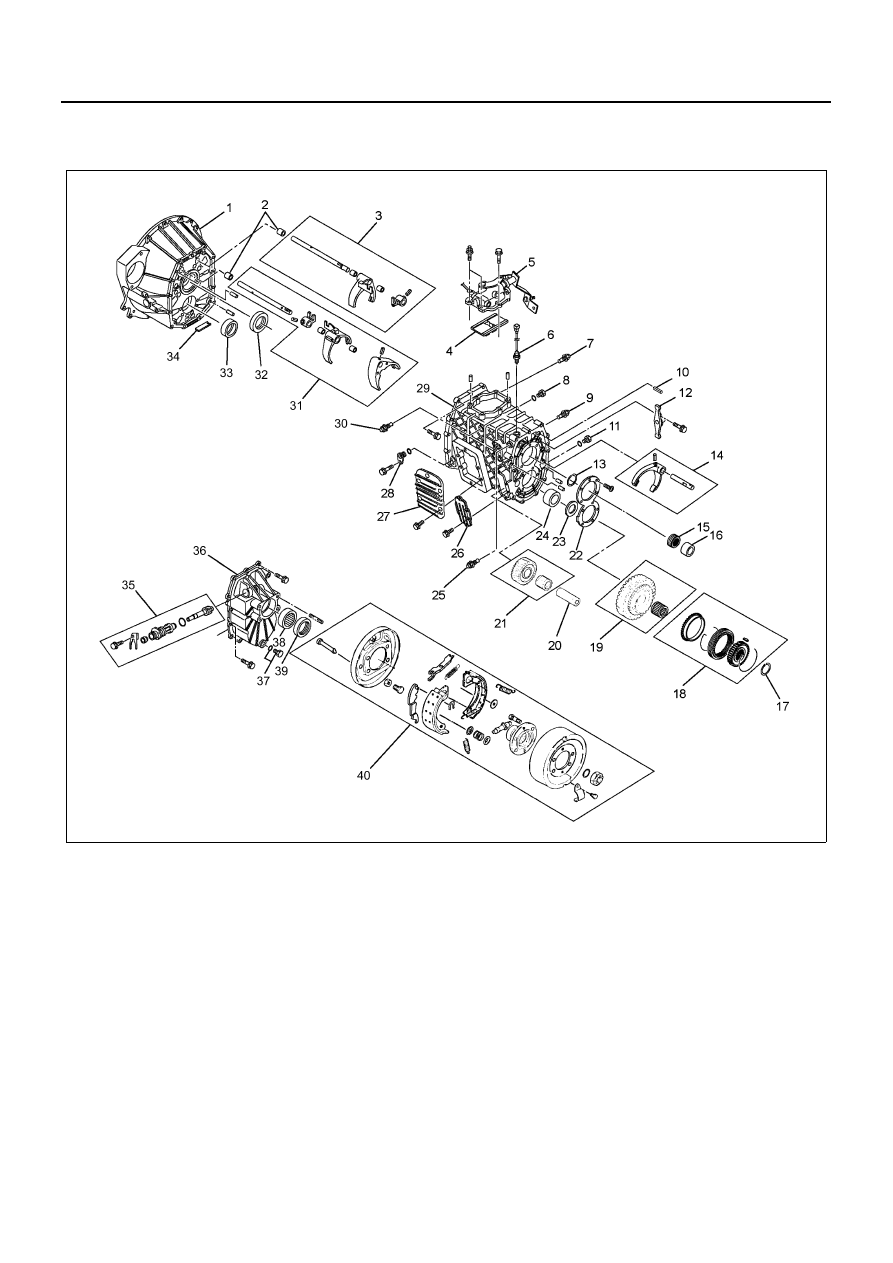

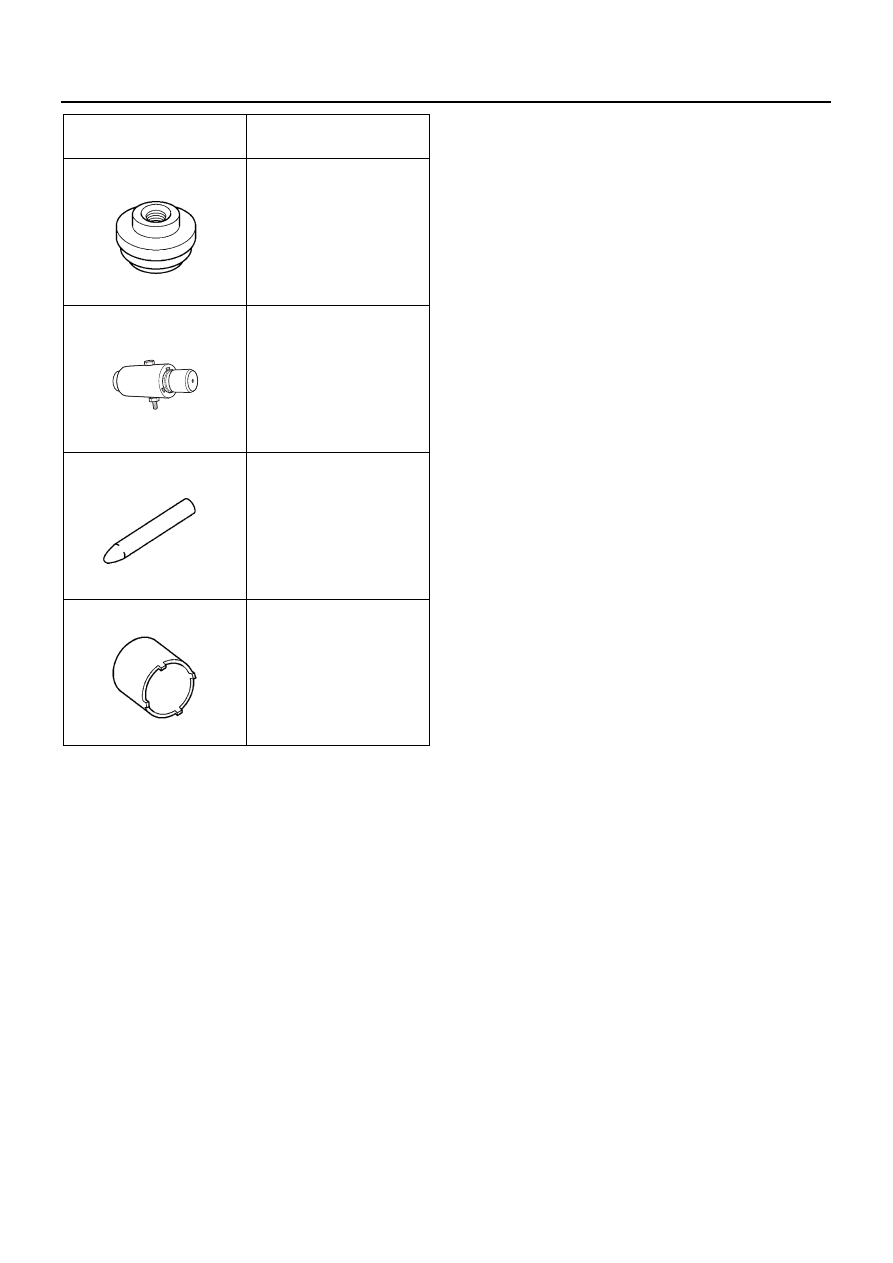

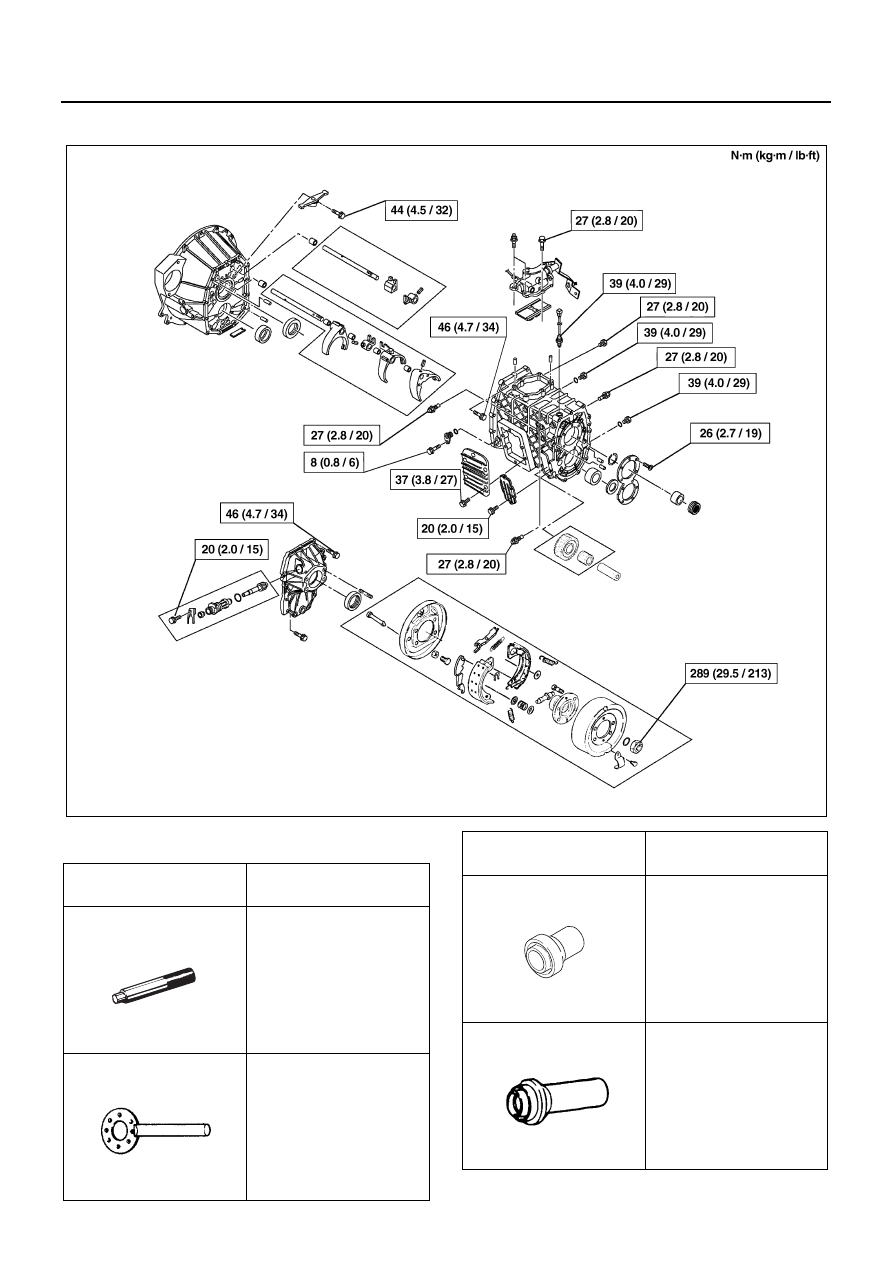

MANUAL TRANSMISSION 7B-41

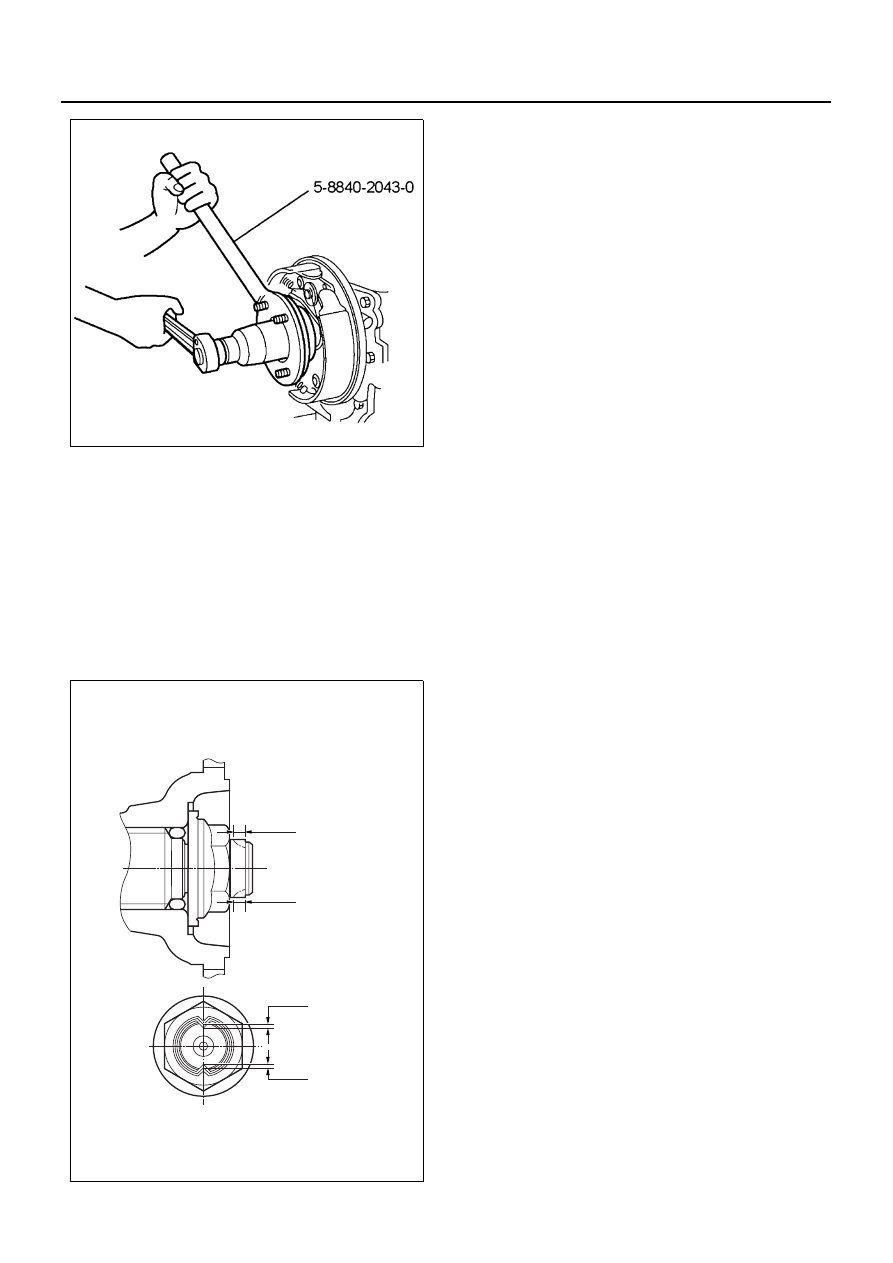

• After fixing it to the specified torque, align the lip
part of the nut to the V-groove of the shaft edge.
Securely caulk the two parts of the nut lip using
a chisel whose tip form is approx. 1 mm (0.04
in) radius by 60
°, to make a length (B) of 5 mm
(0.2 in) or more, and a clearance between the
bottom of the shaft and the nut lip (A) of 2.5 mm
(0.06 in) or less.
Caution:
If any crack is found on the caulking portions of the nut
after the check, replace the lock nut and caulk it again.
31. Install the parking brake dram and the adjust hole
cover securing bolt.
• Refer to PARKING BRAKE ASSEMBLY.
32. Install the shift fork and the support bolt.
• Refer to CLUTCH.
33. Install the shift block assembly.
• Refer to CLUTCH.
N7A0294E
MIN
5.0mm
MIN
5.0mm
MAX
2.5mm
MAX
2.5mm
A
B
N7A0297E
