MANUAL TRANSMISSION 7B-37

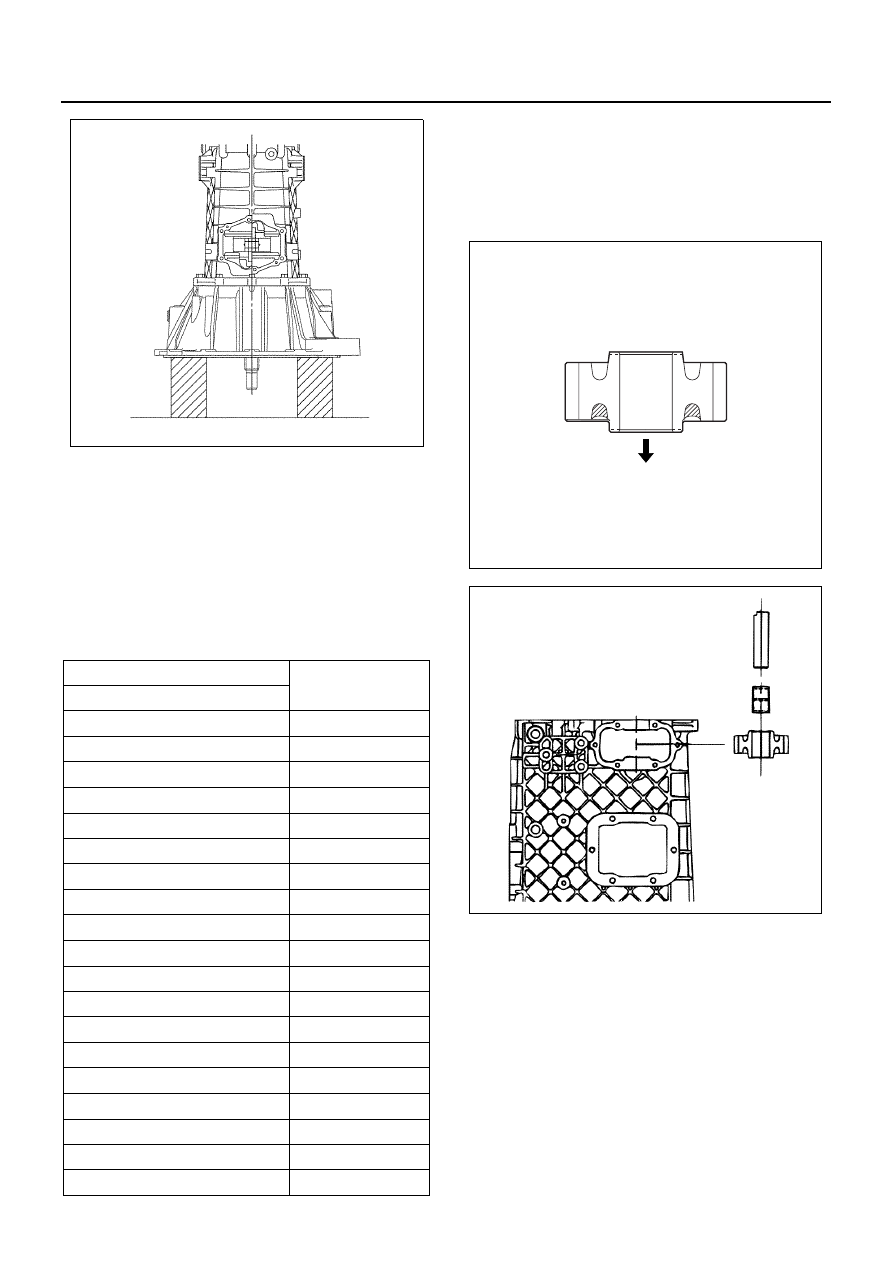

c. Revolve the counter shaft more then 30 times
and smooth the taper roller bearing.
d. Select the counter shim.
• Measure the depth at the points equally di-
vided into three from the end surface of the
transmission case to the outer ring edge sur-
face of the counter shaft rear bearing, and
then take an average of them.
• Select the shim whose thickness agrees
with the list below.
13. Install the snap ring to the main shaft rear bearing.
14. Apply engine oil 5W-30 to the needle bearing, in-
stall the reverse idle gear and needle bearing, and
then insert the reverse idle shaft.
• The arrow mark shows the direction of the
transmission front side.

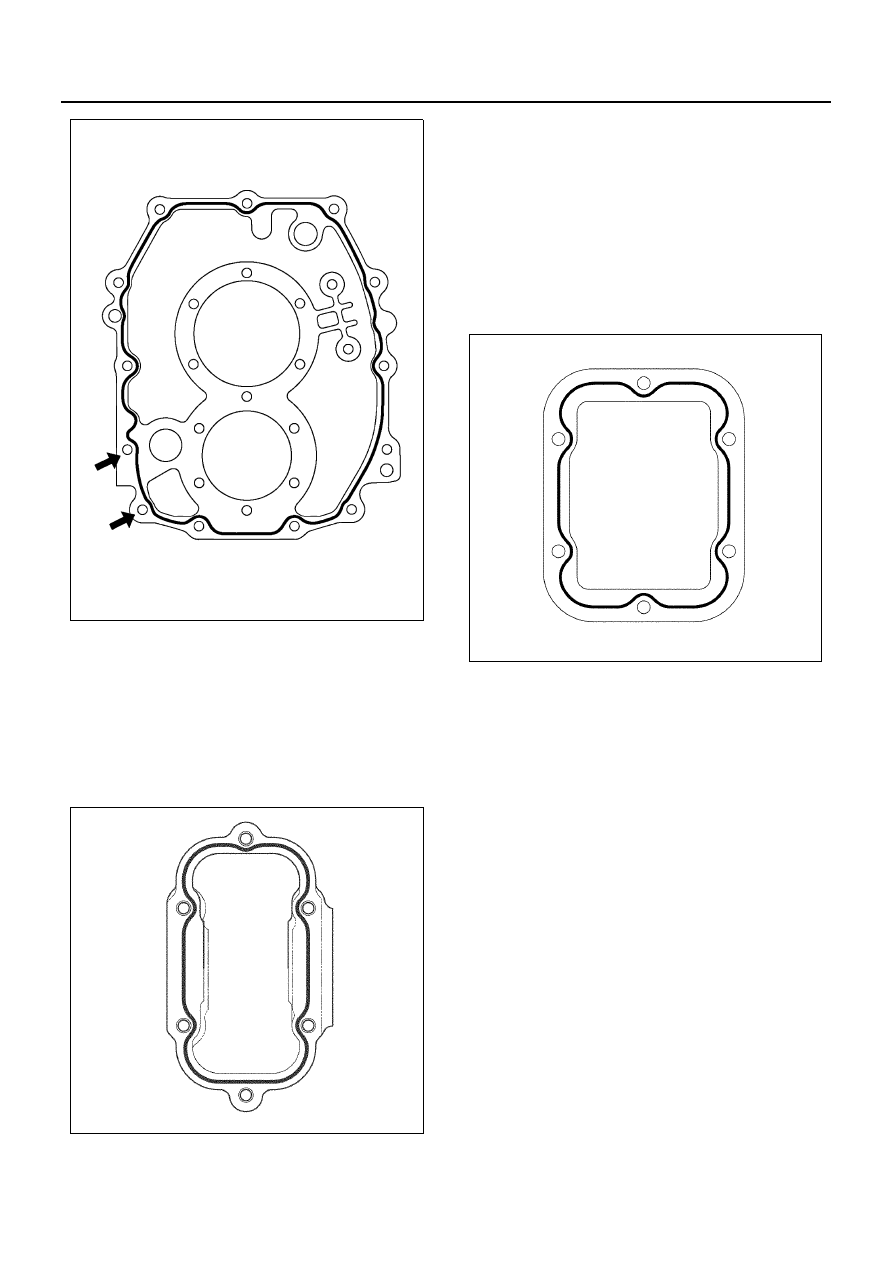

15. Install the retainer to the transmission case.
Tighten:
Retainer to 26 N
⋅m (2.7 kg⋅m / 19 lb⋅ft)
Caution:
Clean up the sealing agent on the screw thread of the
transmission case and replace all screws with new
ones.

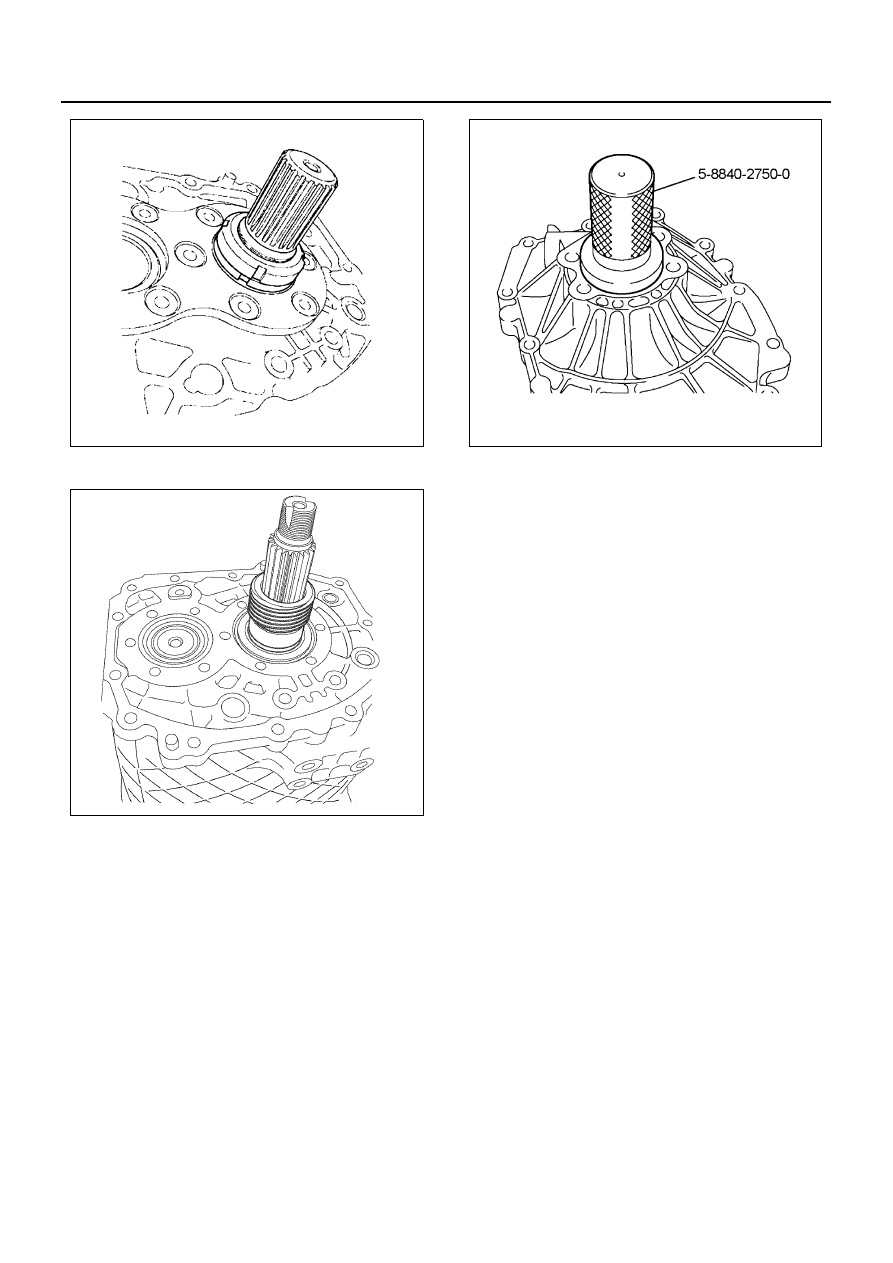

16. Fix the main shaft end lock nut using the wrench 5-
8840-2798-0. (4WD model)
Tighten:
Main shaft end lock nut to 359 N
⋅m (36.6 kg⋅m / 265 lb⋅ft)
Measured value, mm (in)
Thickness of
applicable shim
more than — less than
3.34 — 3.40 (0.132 — 0.133)
3.19 (0.125)
3.28 — 3.34 (0.130 — 0.131)
3.13 (0.123)
3.22 — 3.28 (0.127 — 0.129)
3.70 (0.120)
3.16 — 3.22 (0.125 — 0.126)
3.01 (0.118)
3.10 — 3.16 (0.122 — 0.124)
2.95 (0.116)
3.04 — 3.10 (0.120 — 0.122)
2.89 (0.113)
2.98 — 3.04 (0.118 — 0.119)
2.83 (0.111)
2.92 — 2.98 (0.115 — 0.117)
2.77 (0.109)
2.86 — 2.92 (0.113 — 0.114)
2.71 (0.106)
2.80 — 2.86 (0.110 — 0.112)
2.65 (0.104)
2.74 — 2.80 (0.108 — 0.110)
2.59 (0.101)
2.68 — 2.74 (0.106 — 0.107)
2.53 (0.099)
2.62 — 2.68 (0.104 — 0.105)
2.47 (0.097)
2.56 — 2.62 (0.101 — 0.103)
2.41 (0.094)
2.50 — 2.56 (0.099 — 0.100)
2.35 (0.092)
2.44 — 2.50 (0.096 — 0.098)
2.29 (0.090)
2.38 — 2.44 (0.094 — 0.096)
2.23 (0.087)
2.32 — 2.38 (0.092 — 0.093)
2.17 (0.085)
2.26 — 2.32 (0.089 — 0.091)
2.11 (0.083)
