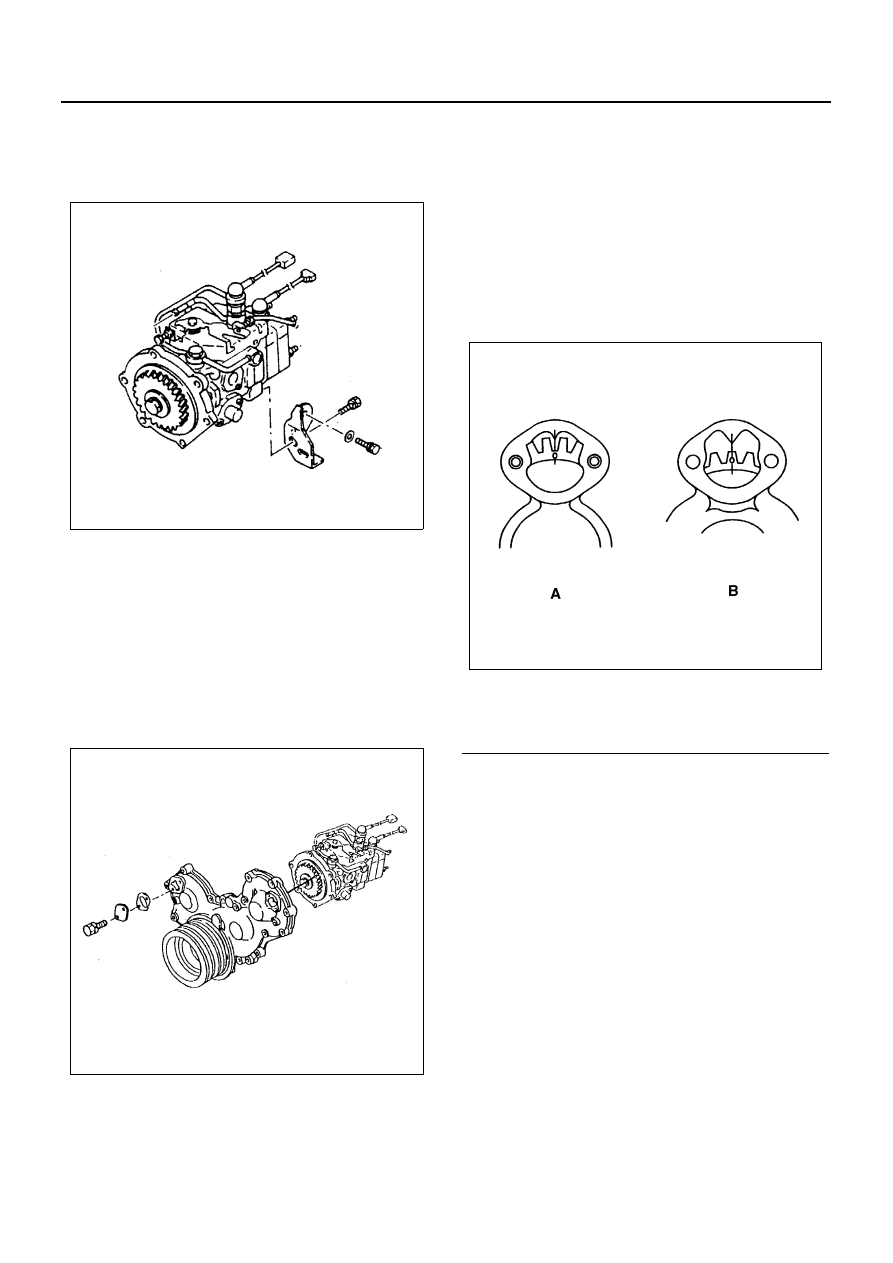

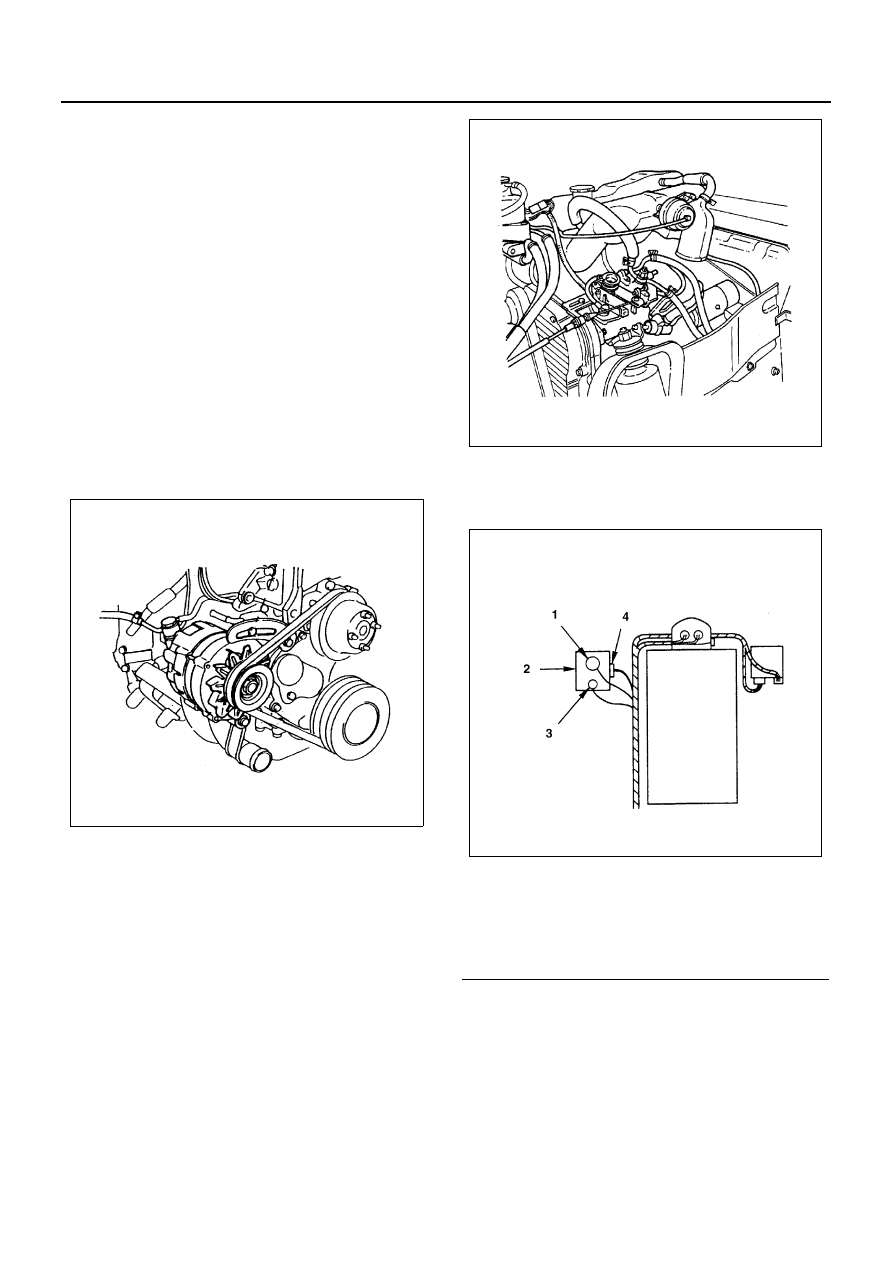

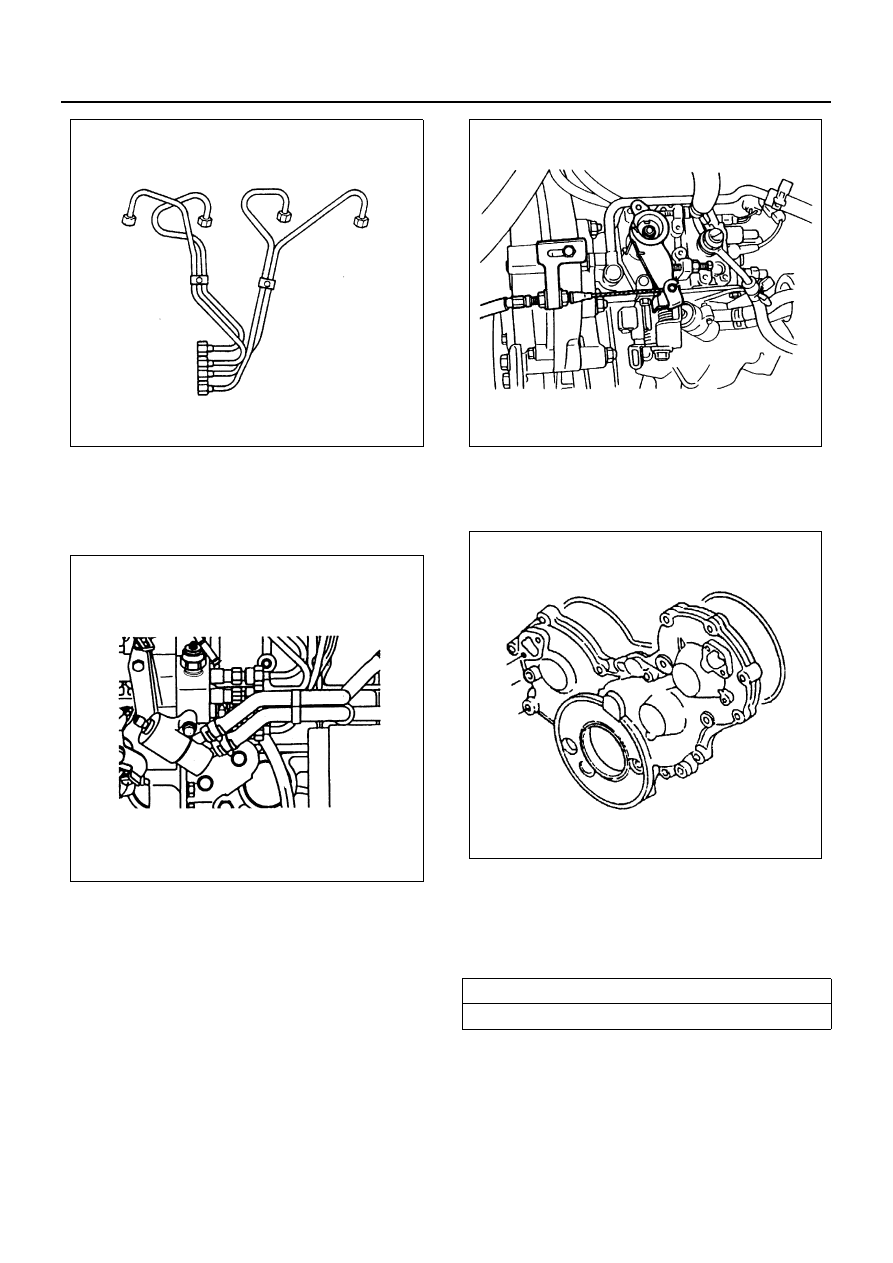

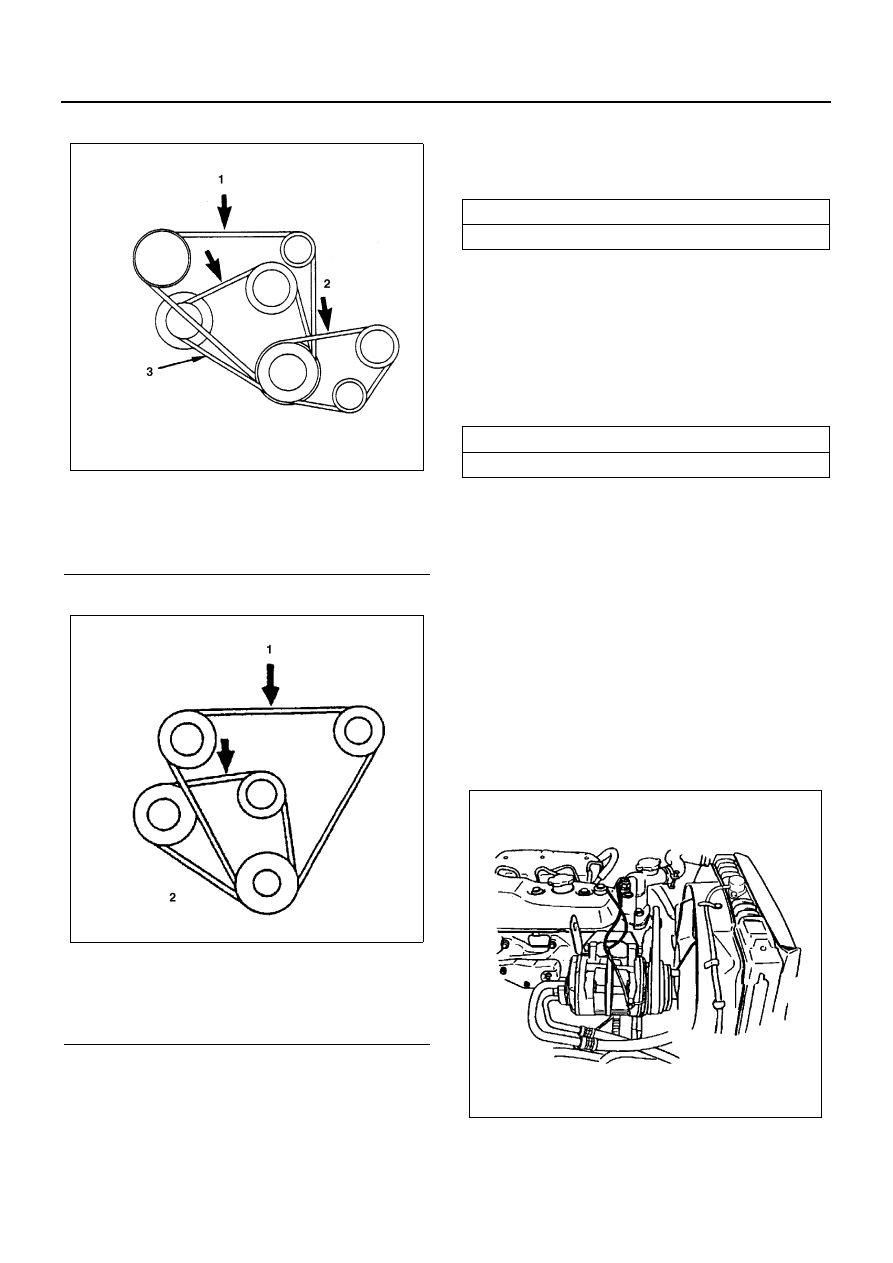

6C-34 ENGINE FUEL Removal Preparation: • Disconnect battery ground cable. 1. Cooling Fan Assembly • Remove clamp nut, and remove cooling fan as- sembly, distant pipe, and fan pulley. 2. Fan Shroud • Loosen power steering pump mounting bolt and adjust bolt, and remove the drive belt. 4. A/C Compressor Drive Belt (A/C Model) • Loosen A/C compressor idler pulley lock nut, ad- just bolt and remove the drive belt. 5. AC Generator Drive Belt • Loosen AC generator mounting bolt (under side) and adjust plate lock bolt, and remove the drive 6. Noise Shield Cover • Remove the control cable bracket bolt and remove the control lever side. 10. Fuel Hose • Disconnect the fuel feed hose and fuel return hose. 11. CSD (Cold Starting Device) Water Hose • Disconnect the water hose from injection pump side. 12. Injection Pump Harness • Remove the tachometer sensor (with tachometer), CSD solenoid, fuel cut solenoid. 13. Injection Pipe • Release pipe clip. and remove the injection pipe. Caution: • Be sure to plug the injection nozzle holder and de- livery holder to prevent the entry of foreign matter. 14. Injection Pump Assembly • Remove pump mounting nut. N6A3439E Legend 1. CSD solenoid N6A3440E N6A3441E |
