Engine Mechanical (4HK1-TC) 6A-25 2. Remove the gasket. Legend 1. Head Cover
3. Remove the fuel injector harness connector. Legend 1. Head Cover Case

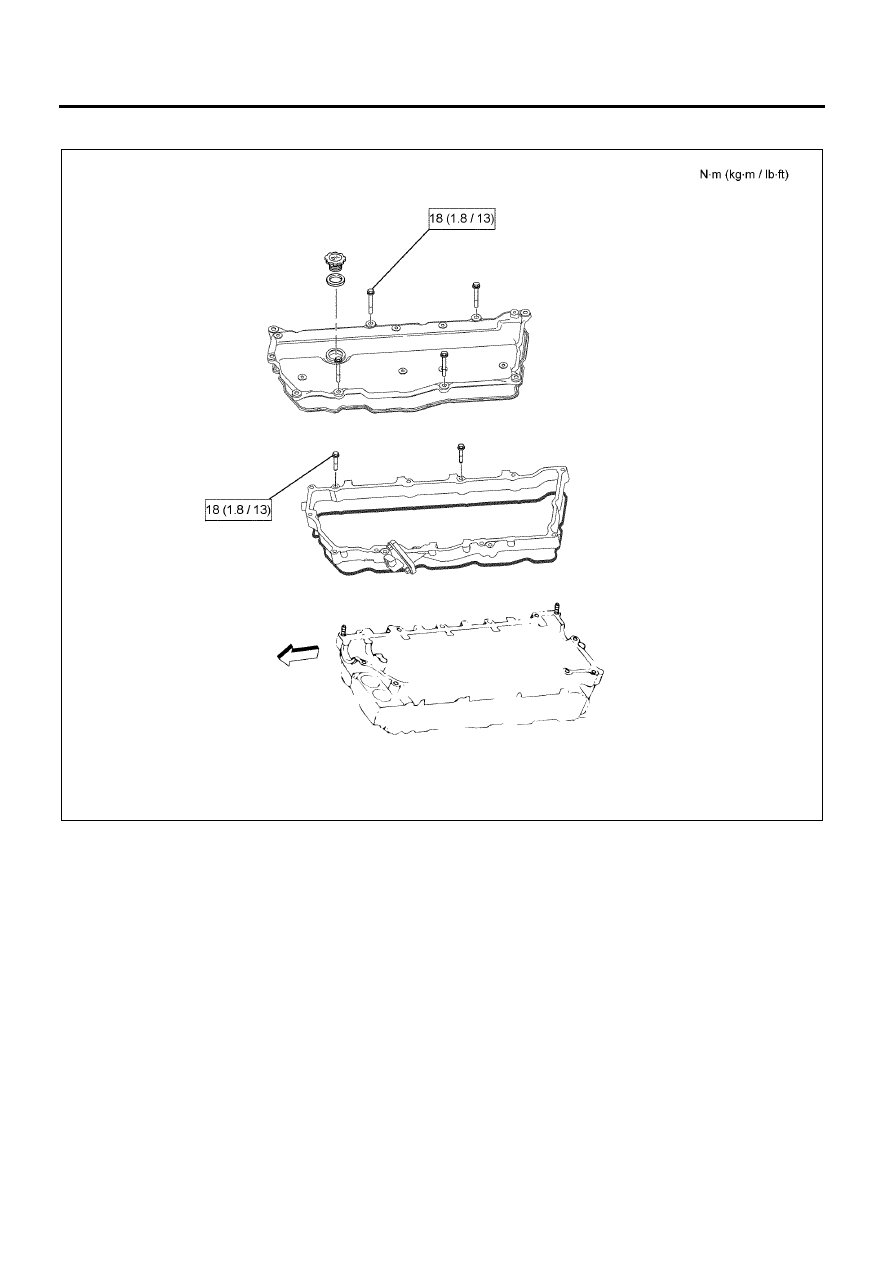

Installation 1. Install the gasket on the lower cover. Tighten: ⋅m (1.8 kg⋅m/13 lb⋅ft) 3. Install the fuel injector harness connector. Caution: Legend 1. Head Cover Case
4. Install the gasket on the head cover. the orders given on the figure. Tighten: ⋅m (1.8 kg⋅m/13 lb⋅ft) N6A6513E N6A6028E N6A6028E N6A6029E |
