30. Crankshaft Damper Pulley
1) Apply a coat of engine oil to the threads of the
bolts.

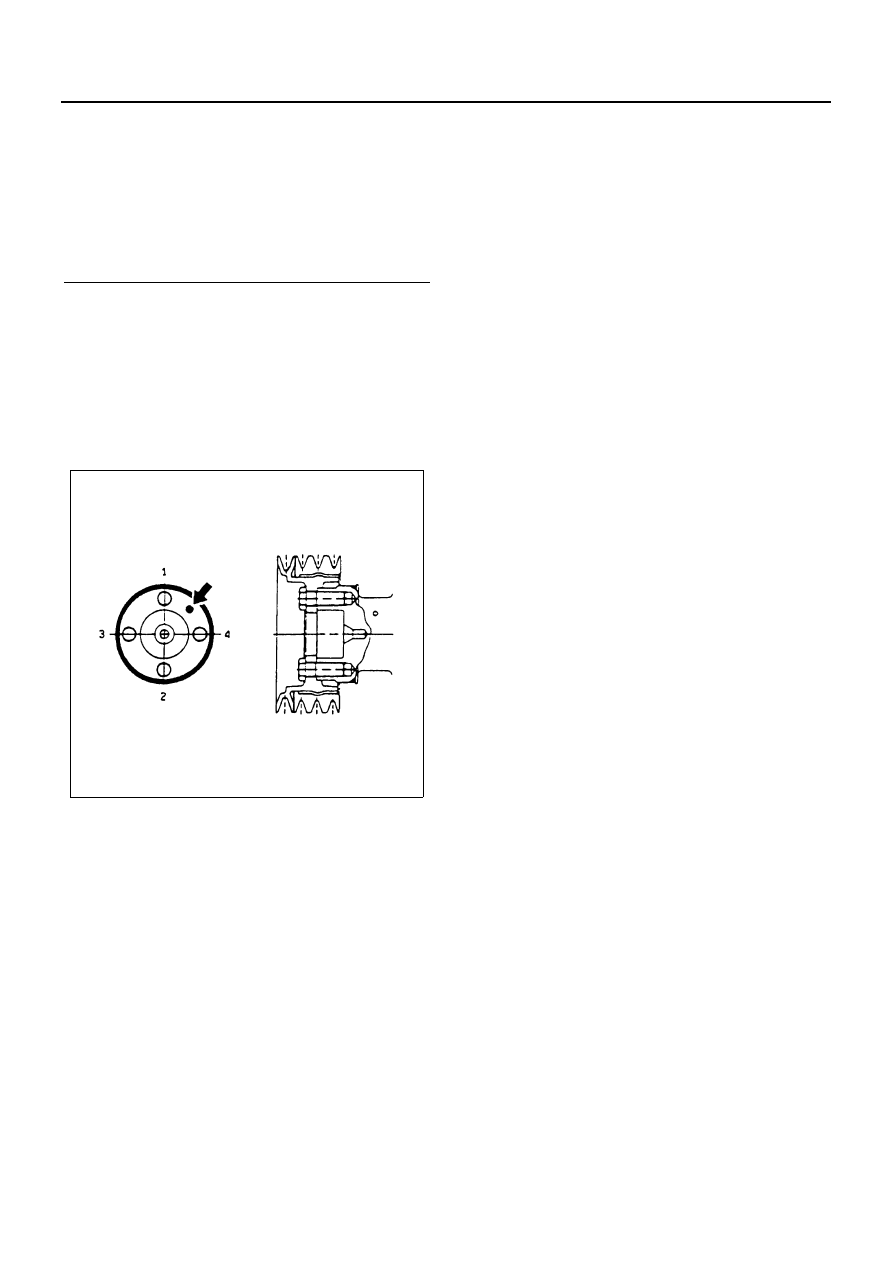

2) Align the damper pulley with the crankshaft
knock pin and tighten the bolts to the specified
torque in numerical order.
Tighten:
Damper pulley bolt to 200 N
⋅m (20.4 kg⋅m / 147 lb⋅ft)
31. Generator Bracket
32. Fan Belt Adjust Plate
33. Injection Pump Assembly
34. Engine Foot
35. Generator
36. Fan Belt
37. Fan Belt Adjustment
38. Vacuum Pump Rubber Hose
39. Vacuum Pump Oil Pipe
40. Oil Filter Assembly
41. Oil Pipe
42. Engine Control Lever Assembly
43. Engine Control Wire
44. Driven Plate
45. Clutch Pressure Plate Assembly
46. Cylinder Head Gasket

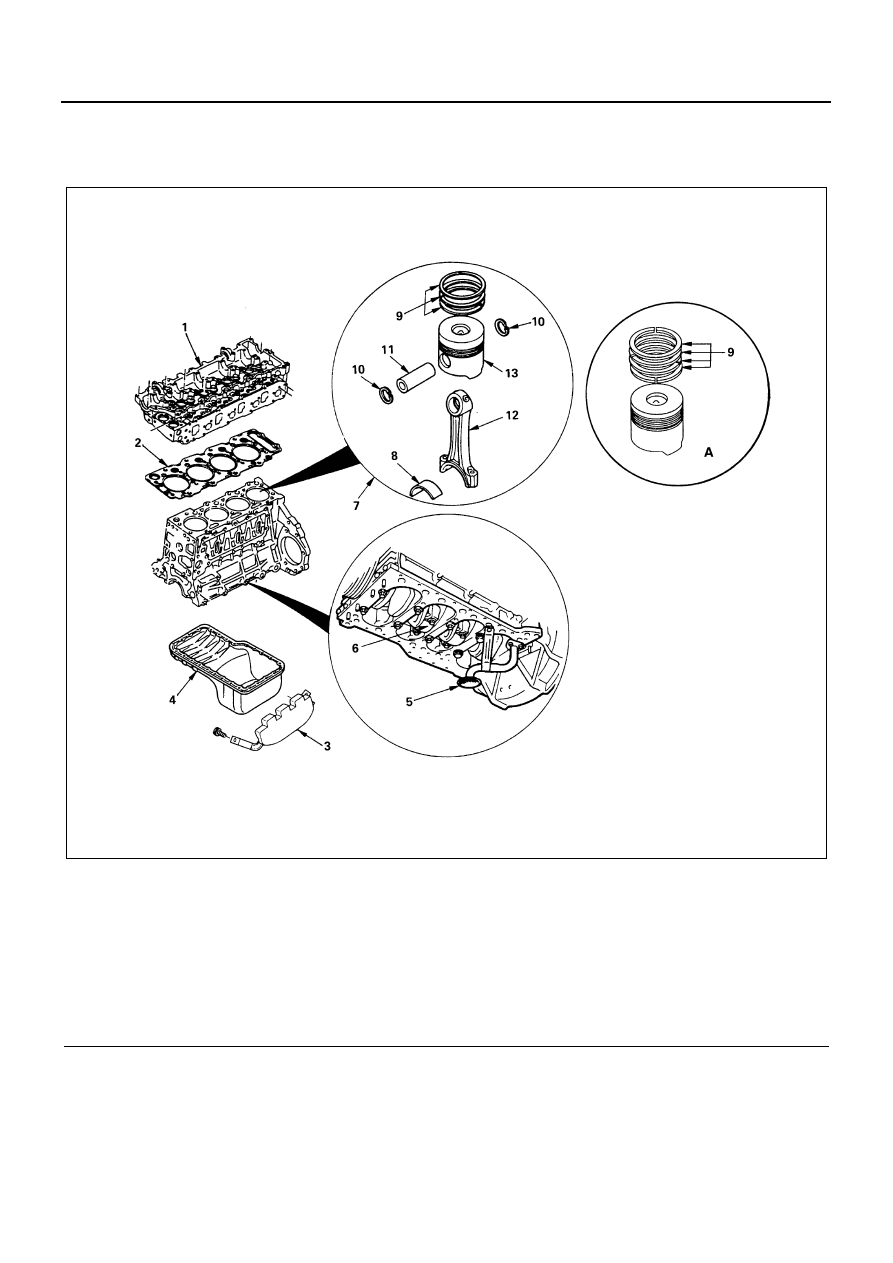

Above works refer to “CYLINDER BLOCK” section
in this manual.
47. Cylinder Head Assembly
Above works refer to “CYLINDER HEAD” section
in this manual.
Legend
1. Oil seal
2. Adapter
3. Ring
4. Adapter bolt
5. Sleeve
6. Washer (5 mm (0.20 in))
7. Center bolt
