0.30mm,0.40mm, 0.45 and 0.5mm.
Normally, the clearance between
these two gears is 0.15 -0.25mm,
while the side play ranges under
0.07mm. To adjust side play, mea鄄
sure four points with equal angle
around the driven gear, and the
gauge outfit of micrometer should be
in a vertical position.

To adjust tooth contact area, driven
gear should be coated with red lead
in three points, and 2-3 teeth should
coated in every point. Then rotate
gears clockwise and anti -clockwise

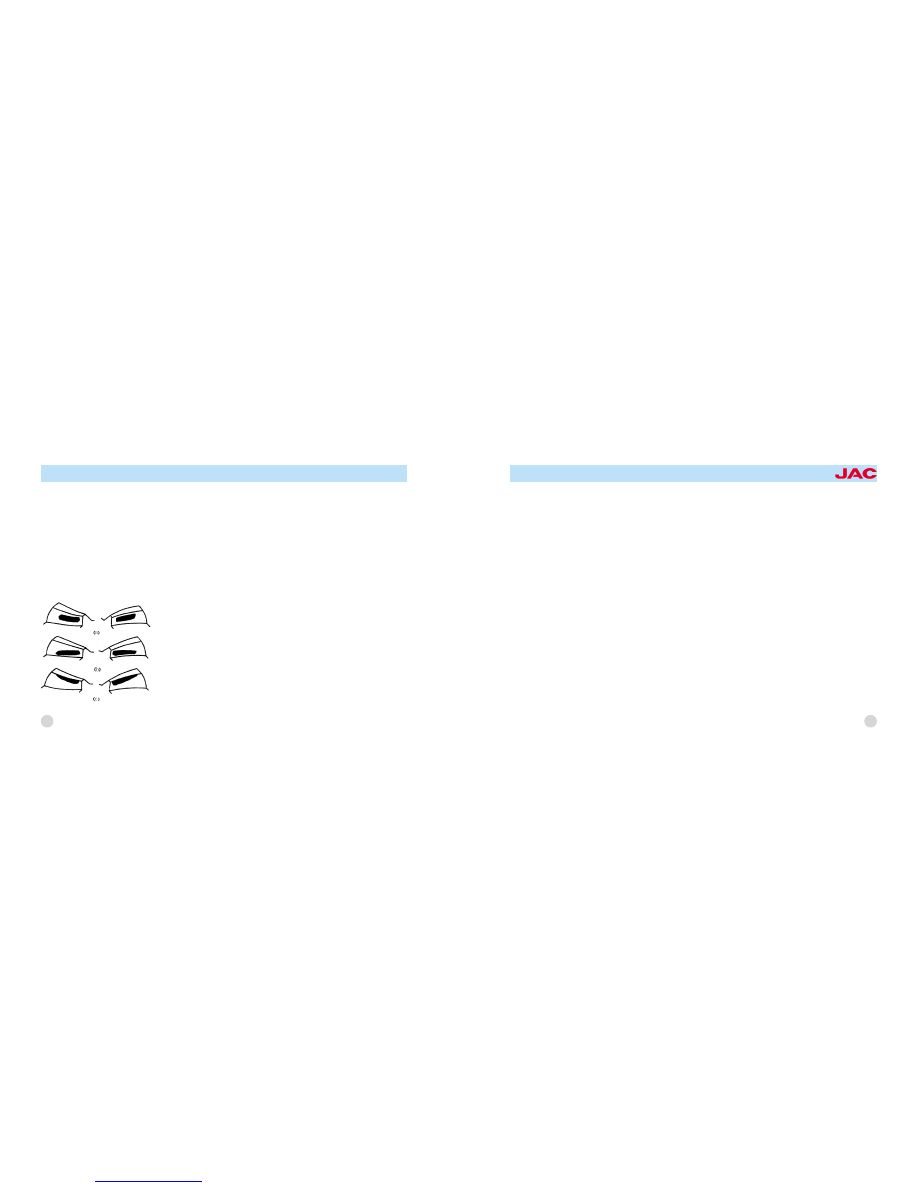

to get the trace of contact area. (see
the right figure). If tooth contact area
doesn't conform to the requirement
showed in figure (a), adjust it to con鄄
form to the requirement. If trace devi鄄
ate from convex or concave tooth
root, add adjusting shim. If trace de鄄
viate from convex or concave tooth
top, reduce adjusting shim.
Correct contact trace should deviate
from toe end of tooth, as figure (a),
trace deviate from convex or con鄄
cave tooth root, as figure (b), trace
deviate from convex or concave

tooth top, as figure(c).
Adjustment of rear axle's hub bear鄄
ing: tighten the bearing lock nut to a
certain force moment and release 1/
3 -1/4 circle. Pre -tightening force
moment is 490-588N.m
Maintenance of rear axle:
1. Hyperbola bevel gear requires a
strict standard of lubricating, only
can be filled with specified gear oil.
Don't use or mix with other gear oil,
or else, it will result in quickened
scratch and wear.
2. Don't remove or adjust the conical
gears and bearings of final drive, for
they have been matched and adjust鄄
ed in factory. Removing and adjust鄄
ing should be done only as the gears
are worn and the gear clearance is

38

OWNER爷S MANUAL for

HFC1061,HFC1063,HFC1083

series trucks

beyond the specified value or the
bearing axial clearance is too large,
or the damaged parts must be re鄄
placed.
3. Clean the vent plug regularly, dis鄄
assemble it when doing class -one
maintenance to make sure ventilation
expedite. A jammed air drain can
bring higher air pressure in the rear
axle, which will result in lubricant leak
from the drive pinion seal and other
welding line. Check the level of lubri鄄
cant in axle housing.
4. For a new vehicle, lubricant should
be replaced when doing class -two
maintenance. Afterwards, check the
quality of lubricant during class-two
maintenance every time. Replace
new lubricant if color -change or

thinness has taken place.
5. Dismantle the rear cover when do鄄
ing class -three maintenance. Clean
the inner cavity and final drive as鄄
sembly, screw bolt and nut referring
to the specified force moment.

Frame

Brief description of structure:
Truck of this series is of side-mem鄄
ber structure.
Using and maintenance
Side member, cross member and
every component fixed on the frame
are connected using rivet or thread
and welding. Only when all the com鄄
ponents are in perfect condition, can
the frame be used well. Having over鄄
all check when doing class -three
maintenance. Tighten the rivet and
thread if they loose and renovate the
cross member in time if there are
crack and shape distortion on it.
Shape distortion and damage of
frame have close relationship with
overloading and parking location and
driving condition (vehicle speed and
road condition).

39

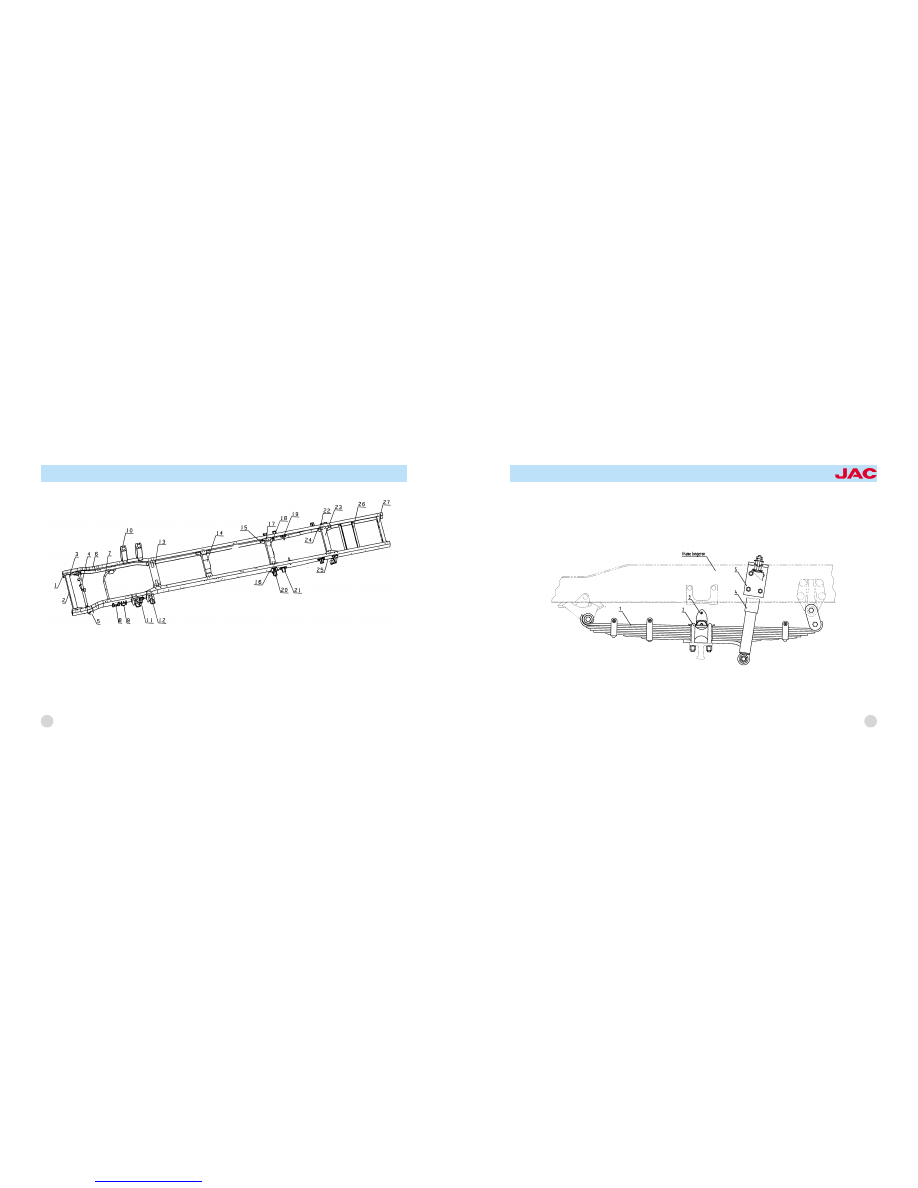

1. front bumper bracket assembly
2. the first cross beam
3. the first cross beam reinforced
plate
4. the second cross beam as鄄
sembly
5. front spring fixed support as鄄
sembly
6. side member

7. engine front support assembly
8. front steel spring limit stop
9. engine front support outer sup鄄
port
10. cab's rear support assembly
11. front spring shackle bracket
12. cab's rear support assembly
13. the third cross beam assembly
14. the fourth cross beam

15. frame's rear spring front rein鄄
forced plate
16. frame's reinforced plate
17. the fifth cross beam reinforced
plate
18. the fifth cross beam
19. rear shock absorber's support
assembly
20. rear spring fixed support

21. additional spring support
22. the sixth cross beam coupling
plate
23. the sixth cross beam
24. frame's rear spring rear rein鄄
forced plate
25. frame's reinforced plate
26. spare-tire carrier cross member
27. rear cross member

40

OWNER爷S MANUAL for

HFC1061,HFC1063,HFC1083

series trucks

Suspension

Brief introduction of the structure:
The suspension of this series of

trucks is composed of leaf spring and
bi -directional hydraulic telescopic
shock absorber. There is transverse

stabilizer mounted forward and back鄄
ward. The next figure shows our front
suspension assembly.

41

1.front leaf spring
2.front saddle clamp bolt
3.damping ring

4.shock absorber
5.front shock absorber supporter

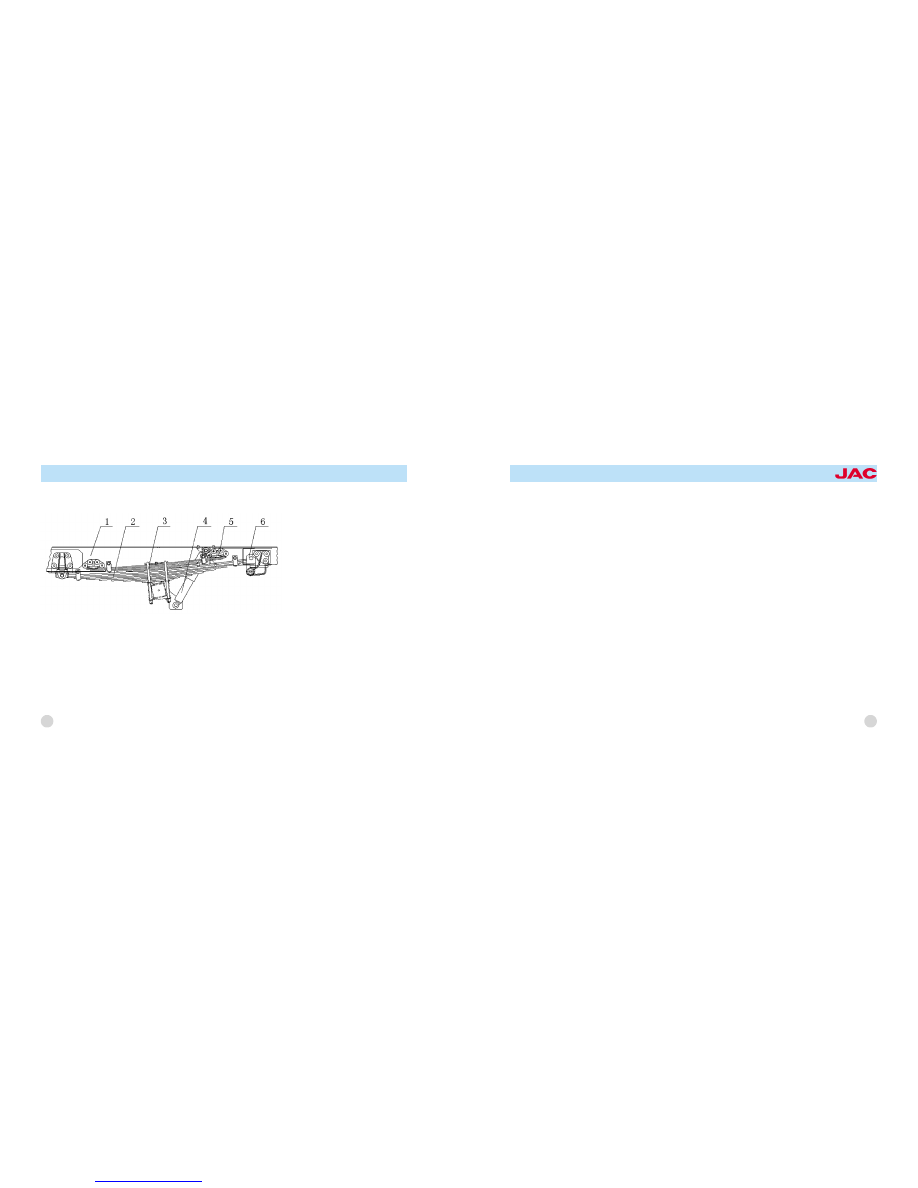

1. frame
2. rear leaf spring
3. rear center bolt

4. rear absorber
5. secondary spring bracket
6. rear shackle clamp

Using and maintenance of leaf spring
1. When vehicle runs for 200km and
500km during the beginning of
break -in period, check and tighten
U-type bolt on leaf spring with spec鄄
ified torque under load bearing state.

2. After break-in period, tighten U-
type bolt on leaf spring with speci鄄
fied torque when vehicle is fully
loaded. Do it also when leaf spring is
replaced or reset for running every
2000-3000km.

3. Tighten U - type bolt on leaf
spring with specified torque when ve鄄
hicle is fully loaded for running for
2000km-3000km.
4. Check and tighten exposed bolts
and nuts of the suspension (with ve鄄
hicle fully loaded) when doing class-
one maintenance. Check rubber
parts of the suspension, if the rubber
parts are worn greatly, replace them
instantly.
5. When doing class -two mainte鄄
nance, carry out class -one items
and dismantle the leaf spring as well
as lubricating it, check the transverse
stabilizer rod at the same time.
6. When doing class -three mainte鄄
nance, carry out class-two items and
dismantle all the rubber parts and

42

The next figure shows rear suspension assembly.

OWNER爷S MANUAL for

HFC1061,HFC1063,HFC1083

series trucks

replace new ones.
7. When replacing leaf spring and
dismantling or assembling center
bolt, pay attention to the assembling
direction of front and rear steel plate.
When tightening leaf spring U -type
bolt and nut, screw it using well-dis鄄
tributed force at first, then screw front
U -type nut according to specified
force moment and screw rear ones.
Using and inspection of shock ab鄄
sorber:
1. Check the absorber for tempera鄄
ture after running a certain length on
bad road surface (usually more than
10km) There is no resistance if the
temperature is low ( lower than air
temperature) and shock absorption
doesn't function. If one absorber has

much lower temperature than the
symmetrical one, the lower one's re鄄
sistance is much more smaller. Low鄄
er resistance result from lacking in oil
or from damage of some important
parts, and the absorber that lack in
resistance should be removed to in鄄
spect.
2. Check the shock absorber for oil
leak if continuous abnormal vibration
is detected in running.Oil leak should
be dealt with in time, so that the
shock absorber can work normally.
3. Check absorber when maintaining
vehicle. To check absorber, stick up
it and hold its lower end by vise,
then pull and press it for several
times. Normally the resistance is
bigger when pulled, otherwise the

absorber is damaged or lack in oil.
Repair and replace parts and add
absorber oil in time to avoid serious
damage.
4. If it's necessary to replace ab鄄
sorber rod, replace oil sealing at the
same time. If necessary, don't dis鄄
mantle valve parts casually.
5. When doing class -three mainte鄄
nance, dismantle and clean the ab鄄
sorber,replace the absorber oil.Don't
forget cleaning when adding oil.

43

Front axle

Brief description of structure:
Front axle assembly is composed of
front axle, steering knuckle, left
&right steering knuckle arms, king
pin, front brake and tie rod etc.
Adjustment of front axle:
1. Adjusting of the front wheel hub
bearing: To adjust front hub bearing
in axial retightening force, tighten
fastening nut with wrench, and
loosen knuckle nut for about 120益 .
Rotate the hub clockwise and anti -
clockwise, make sure that roller a鄄
gainst the tapered contact the bear鄄
ing outer race properly, then tighten
nut to the position where the rabbet
aims the split pin hole. Check the
hub if it can rotate freely and don't
swing a lot. Now, distort the split pin
and fix it.

44

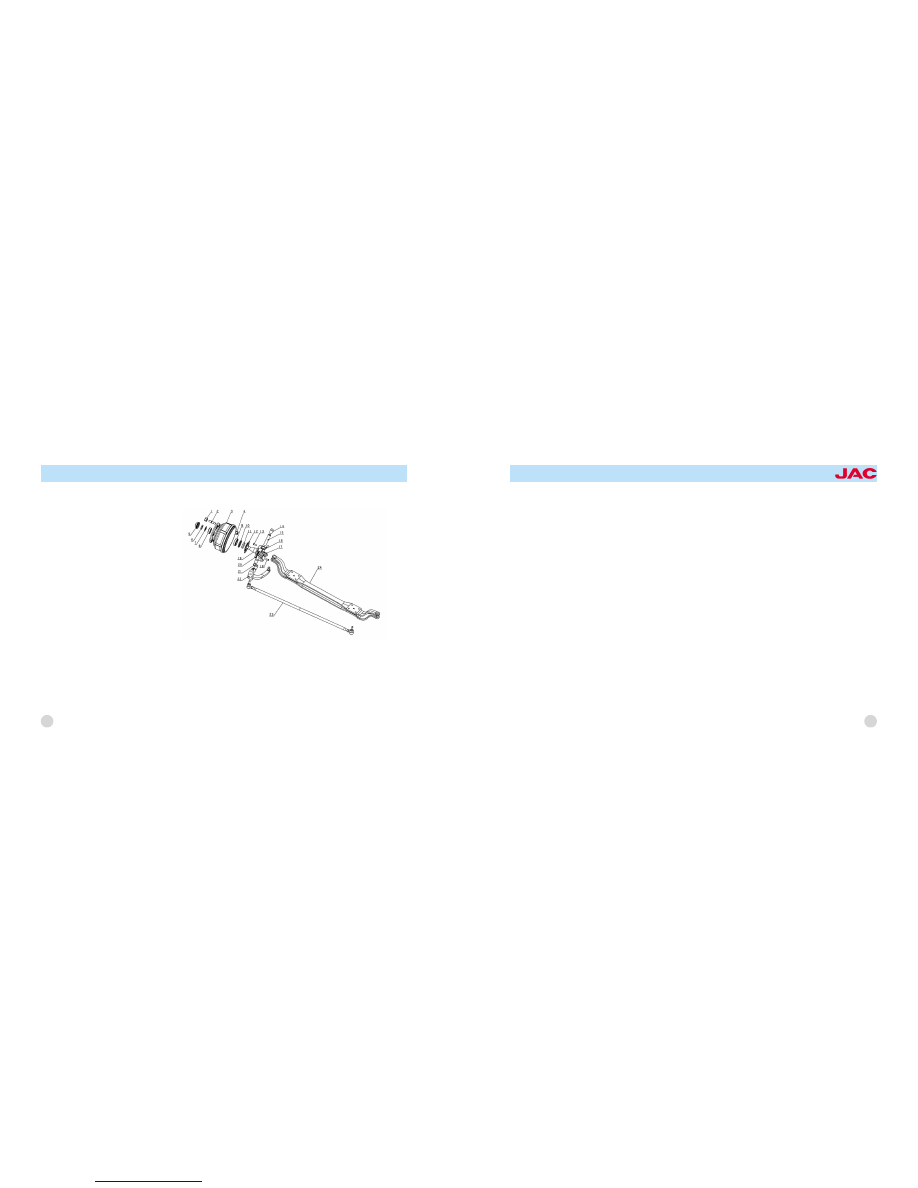

1.tire nut
2.front hub bolt
3.front hub and brake
drum assembly
4.front hub inside nut
5.hub cap
6.steering knuckle

7.lock plate
8.hub outside gearing
9.hub inside gearing
10.oil seal
11.oil seal carrier
12.oil guard
13.brake bottom plate bolt

14.bush
15.king pin
16.king pin latch
17.nut
18.steering stop bolt
19.steering knuckle pin
bush assembly

20.thrust bearing
21.steering knuckle king
pin lid
22.steering bending arm
23.tie rod assembly
24. front axle

OWNER爷S MANUAL for

HFC1061,HFC1063,HFC1083

series trucks

2. Adjustment of clearance between
knuckle and front axle: The clearance
is adjusted via adjusting shim, it
should be less than 0.1mm. Use
thrust washer to adjust its clearance.
3. Adjustment of toeing -in. The toe鄄
ing -in can be adjusted via adjusting
tie rod. Park the vehicle on a flat
ground, jack up its header and orient
front wheel just as vehicle run for鄄
ward. Loosen locking nuts of tie rod,
rotate the tie rod till the toeing -in fit
the specified size. Then tighten the
locking nuts.
Using and maintenance:
1. When doing class -one mainte鄄
nance, check tightening situation of
each nut. Lubricate longitudinal and
tie rod ball pin, steering knuckle king

pin and bush.
2. When doing class -two mainte鄄
nance, carry out class -one mainte鄄
nance items as well as doing some
checking. Check whether there is
damage and crack on steering
knuckle, steering knuckle bending
arm and left and right steering
knuckle arm. Check the fitness of
steering knuckle king pin and bush.
Check the wearing situation of longi鄄
tudinal and tie rod connector. Adjust
toe -in and dismantle hub according
to the formulation as well as lubricat鄄
ing hub gearing and adding lubrica鄄
tion.
3. When doing class -three mainte鄄
nance, disassemble to clean and
check it, then assemble it again .

Use thrust plate to adjust steering

knuckle and front axle if the clear鄄
ance between them become wide,
keep the clearance less than 0.1mm.

Replace king pin or bush if the

clearance between steering knuckle
king pin and bush reach 0.15mm.
Replace king pin if its diameter has
worn to 0.07mm.

Replace ball pin or ball cup of

steering longitudinal rod have worn a
lot and the clearance can not be re鄄
moved.

Replace hub oil seal if there is

damage and aging of cutting edge.

45
