Installation

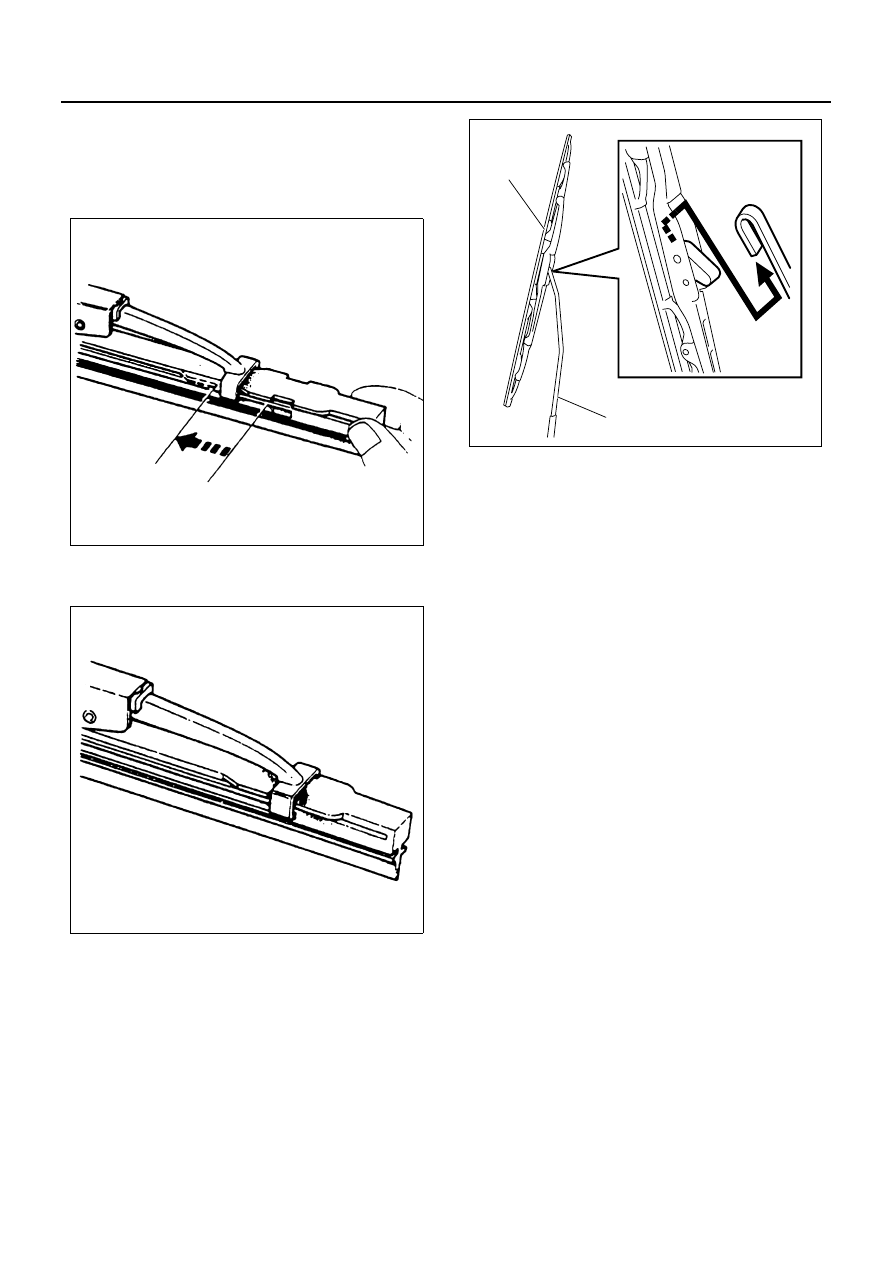

1. Wiper Blade Rubber
Install the click of the blade stay in the groove of the
new rubber and slide it in. Complete installation by
pushing the click.
Finally, check that the click of the stay has caught
in the hole of the rubber.
2. Wiper Blade
Push the lock of wiper blade (1) into the retentive
portion on the tip of wiper arm (2).

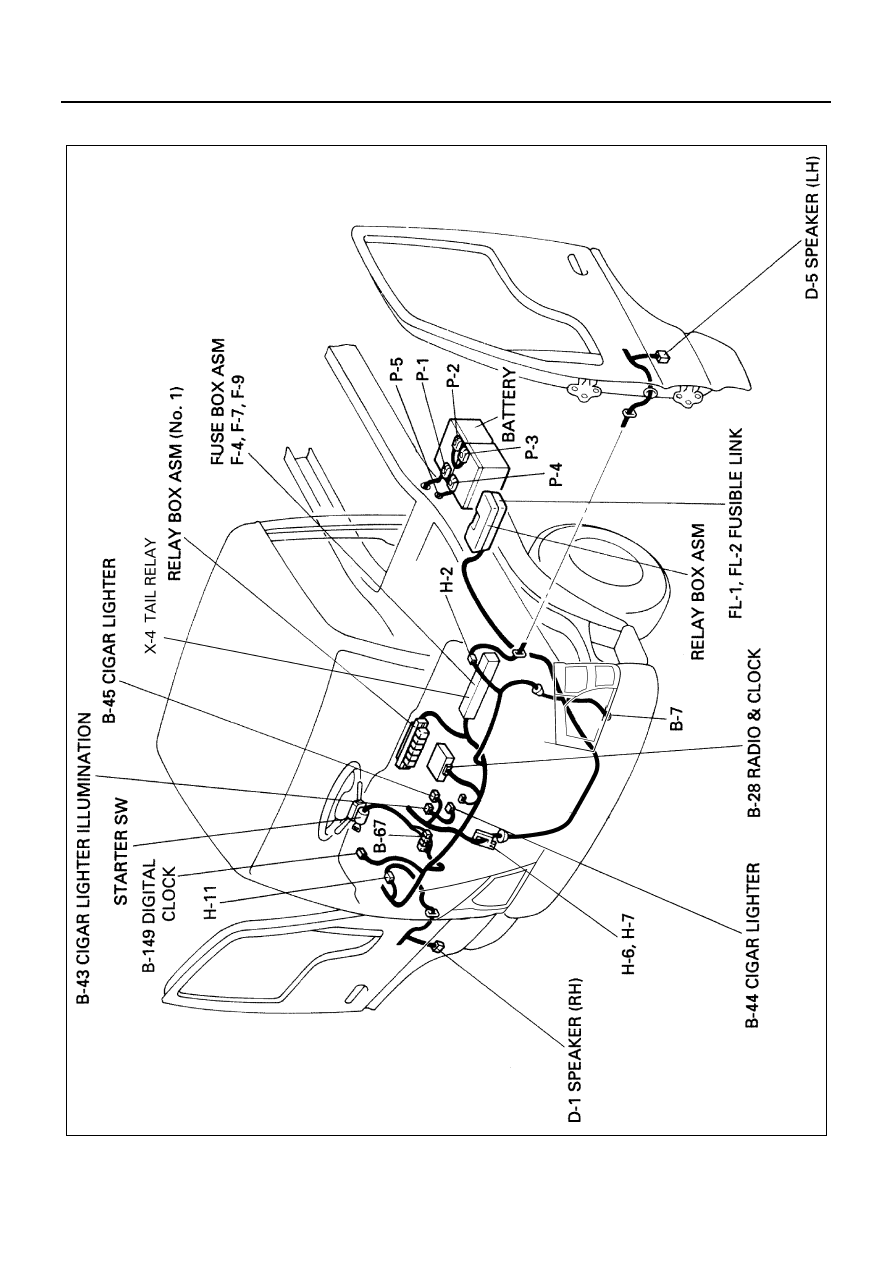

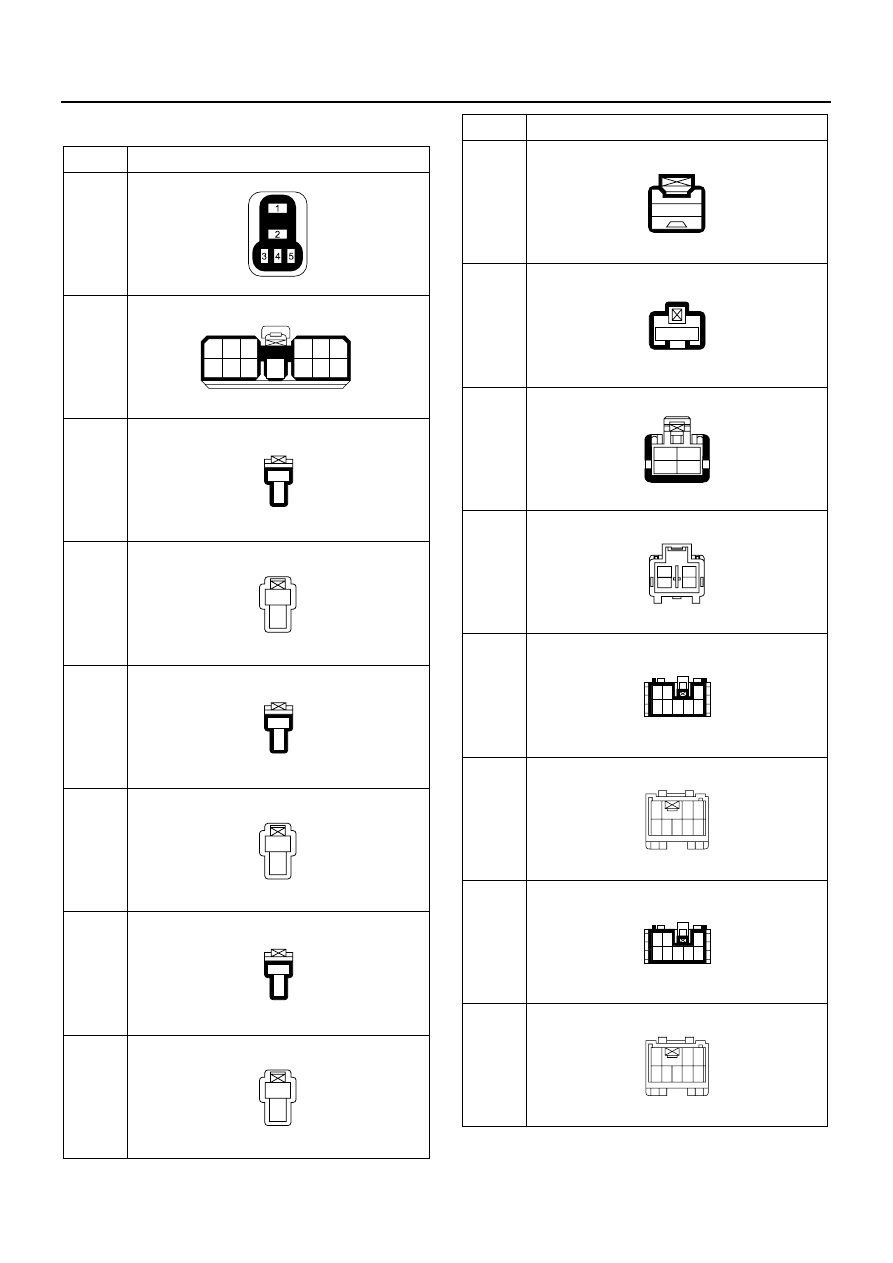

Audio and Cigar Lighter
General Description

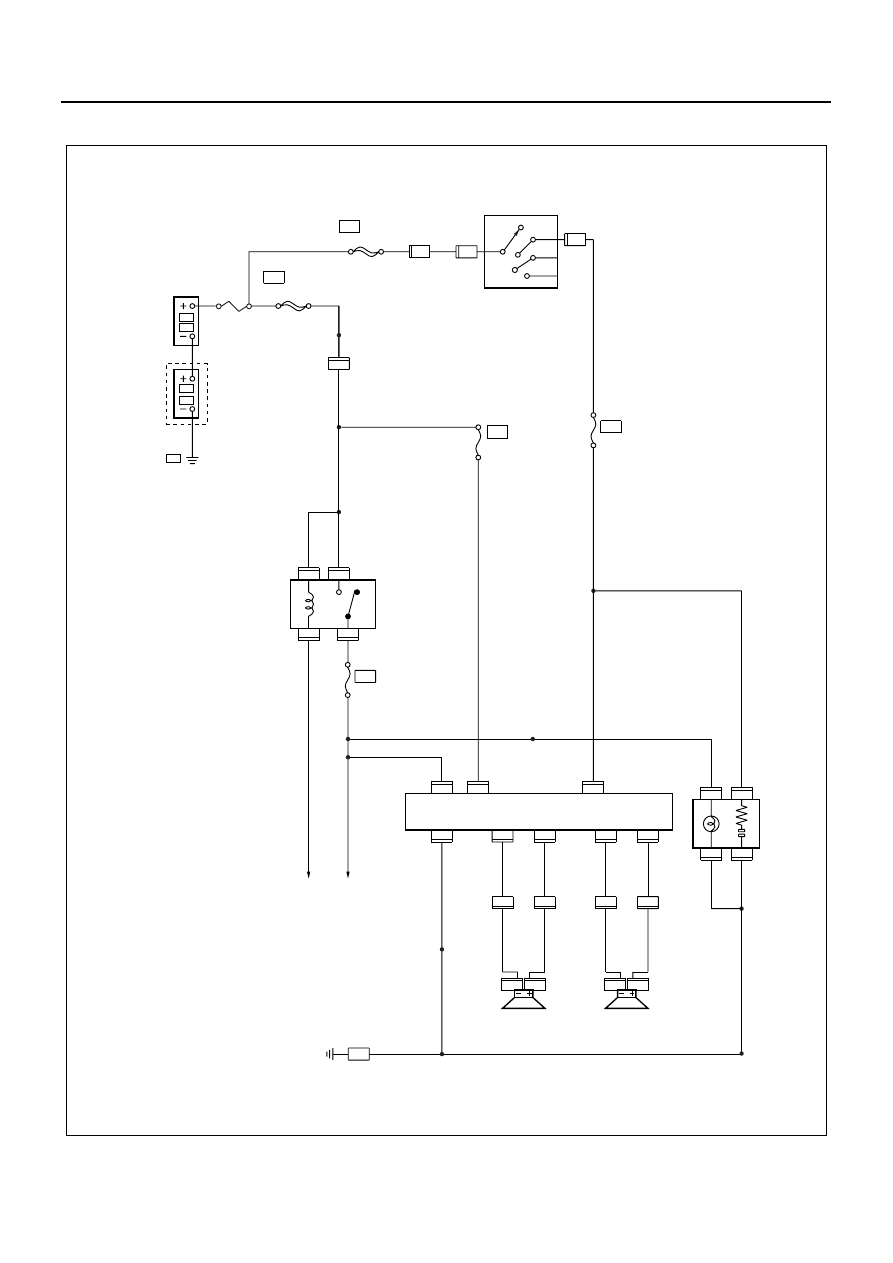

The circuit consists of the starter switch, radio, cigar
lighter and the relay.
The audio circuit is designed for the current to flow
through the receiver circuit when the radio switch is
turned on with the starter switch in “ACC” or “ON”. Cur-
rent runs through the memory circuit of the audio regard-
less of the position of the starter switch.
When the cigar lighter is pushed in with the starter
switch at either “ACC” or “ON” position, a circuit is
formed in the cigar lighter case to heat the lighter coil.
The cigar lighter is spring back to its original position af-
ter the lighter coil is heated.
