2-38 CAB AND FRAME

7. Glass

• Lower the glass to a position where the mount-

ing screw can be seen, and remove the 4
screws.

• Lower the front side of the glass. After the front

side of the glass comes off from the glass run,
pull up the rear side of the glass.

8. Window regulator

• Disconnect the harness connector of the power

window motor and remove the 5 mounting
screws.

9. Glass run

• Pull out the glass run from the door frame

groove.

10. Glass run rear channel

• Pull out the 2 mounting screws.

Installation

For installation, reverse the removal procedure taking
the following points into consideration.

1. Align the notch a of the glass run lip with the door

outer waist line A. Align the glass run slit b with the
door B and fit the glass run between A and B. Next,
align the notch c of the glass run lip with the door
outer waist line C and fit the glass run between B
and C. Fit the glass run in the channel within the
door. (Refer to the illustration shown on the next.)

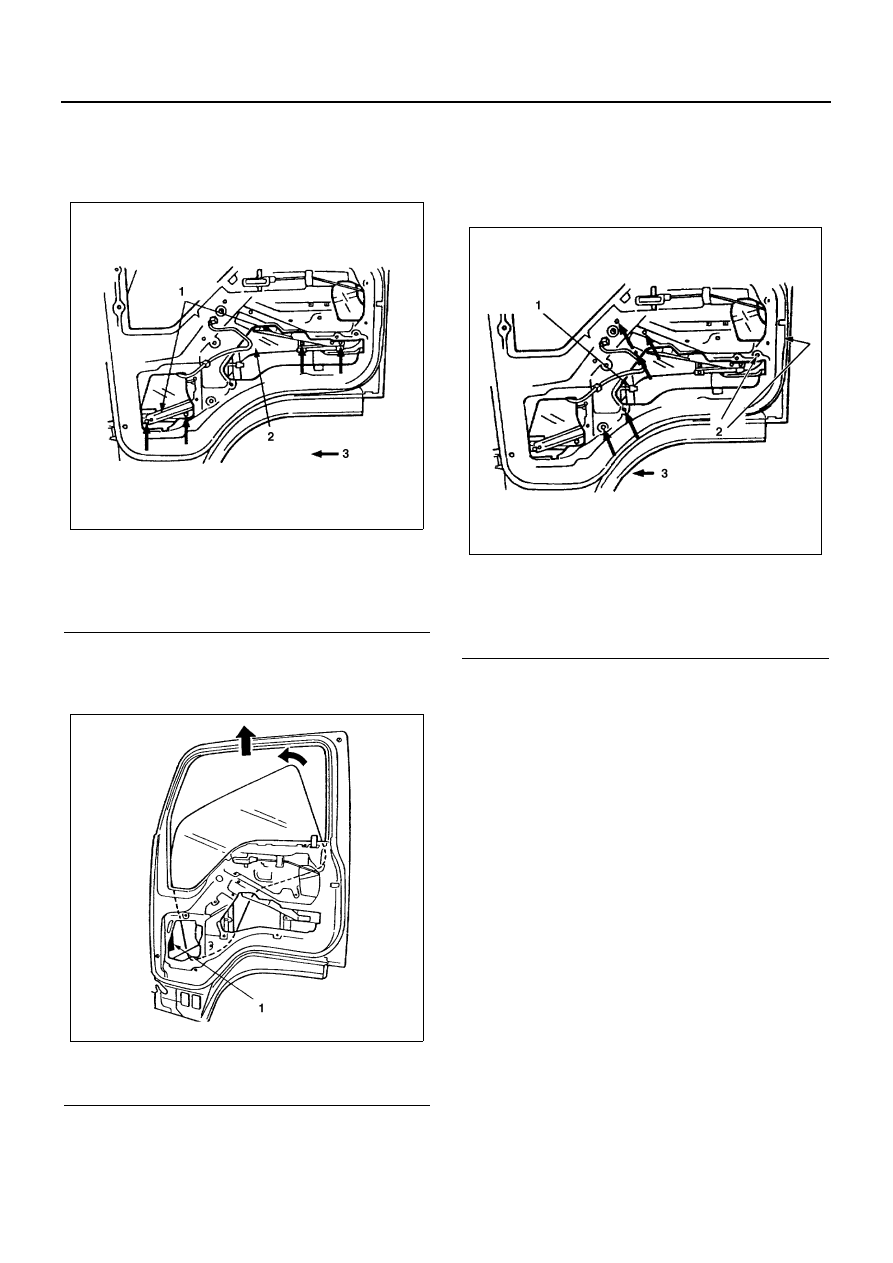

Legend

1. Window regulator
2. Glass
3. Screw

Legend

1. Glass run

N2A0069E

N2A0070E

Legend

1. Power window motor connector
2. Glass run rear channel mounting screw
3. Mounting screw position

N2A0071E

CAB AND FRAME 2-39

• Fit the glass run with the lip toward the outside

of the vehicle.

2. While the front side of the glass is lowered, insert

the glass into the door panel. First, insert the rear
side of the glass into the glass run, then insert the
front side into the glass run. Raise the front side
gradually along the glass run.

Caution:
When reusing the glass run, apply the sealant to the
range shown in the figure.

Sealant: CEMEDINE 366DX or equivalent

3. Temporarily tighten the window regulator mounting

screw (3) (basic hole) and tighten (1) to (5) firmly.
Lastly, tighten (3) (basic hole) firmly.

Tighten:
Window regulator mounting screw to 6 N

⋅m (0.6 kg⋅m/4

lb

⋅ft) — 7.8 N⋅m (0.8 kg⋅m/6 lb⋅ft)

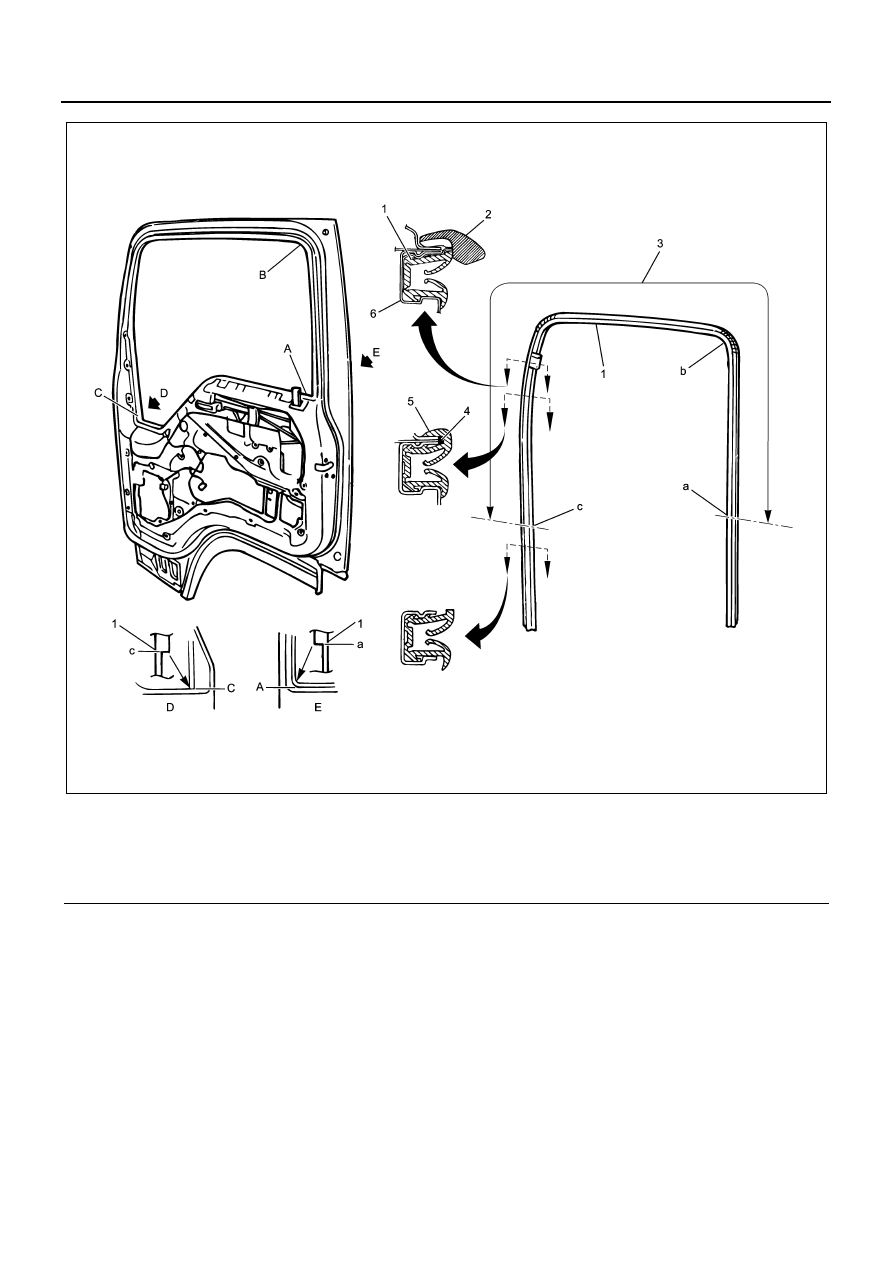

Legend

1. Glass run

4. Sealant

2. Glass guide

5. Lip

3. Sealant application range

6. Channel within the door

N2A0072E

2-40 CAB AND FRAME

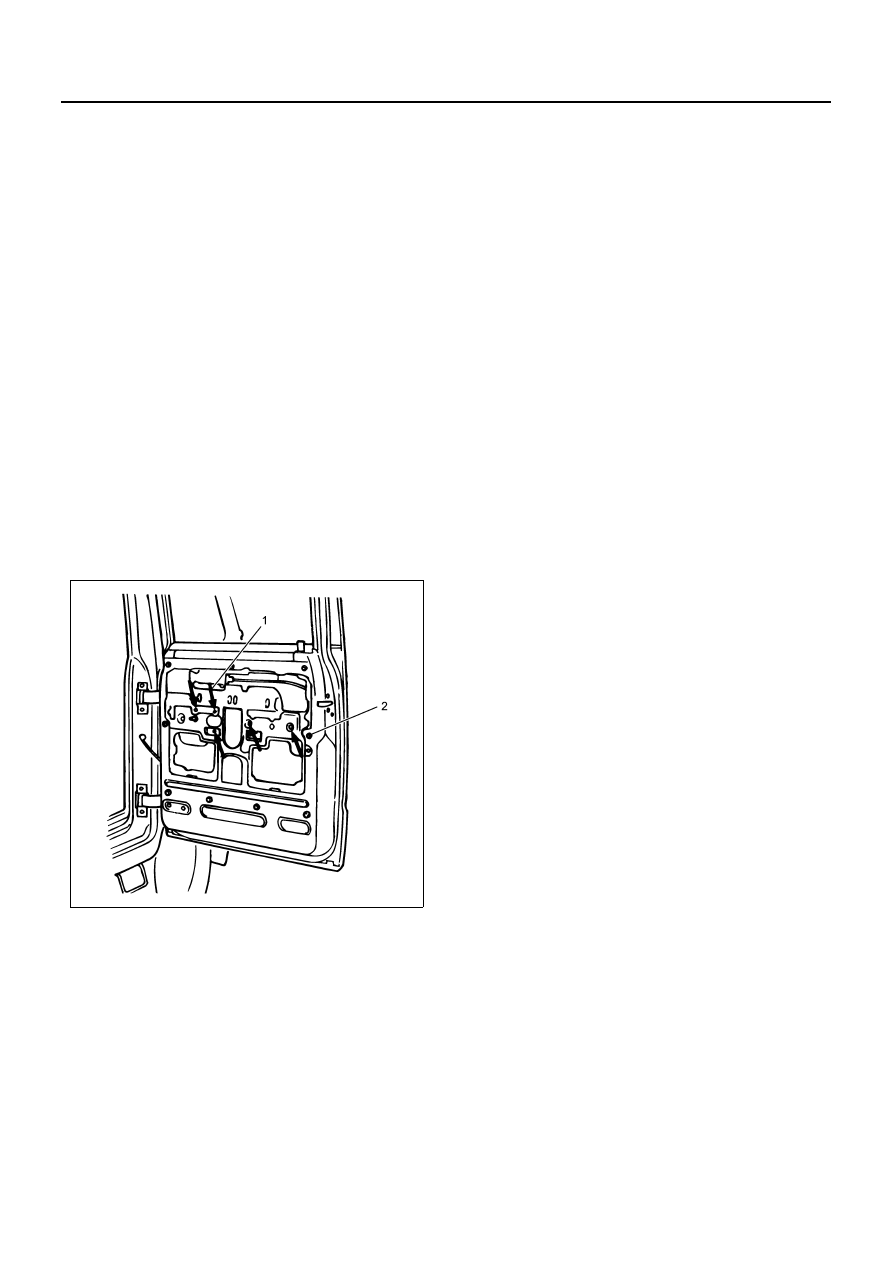

4. Glue the water-proof sheet with an IIR tape secure-

ly.
Check the water-proof sheet for breakage.

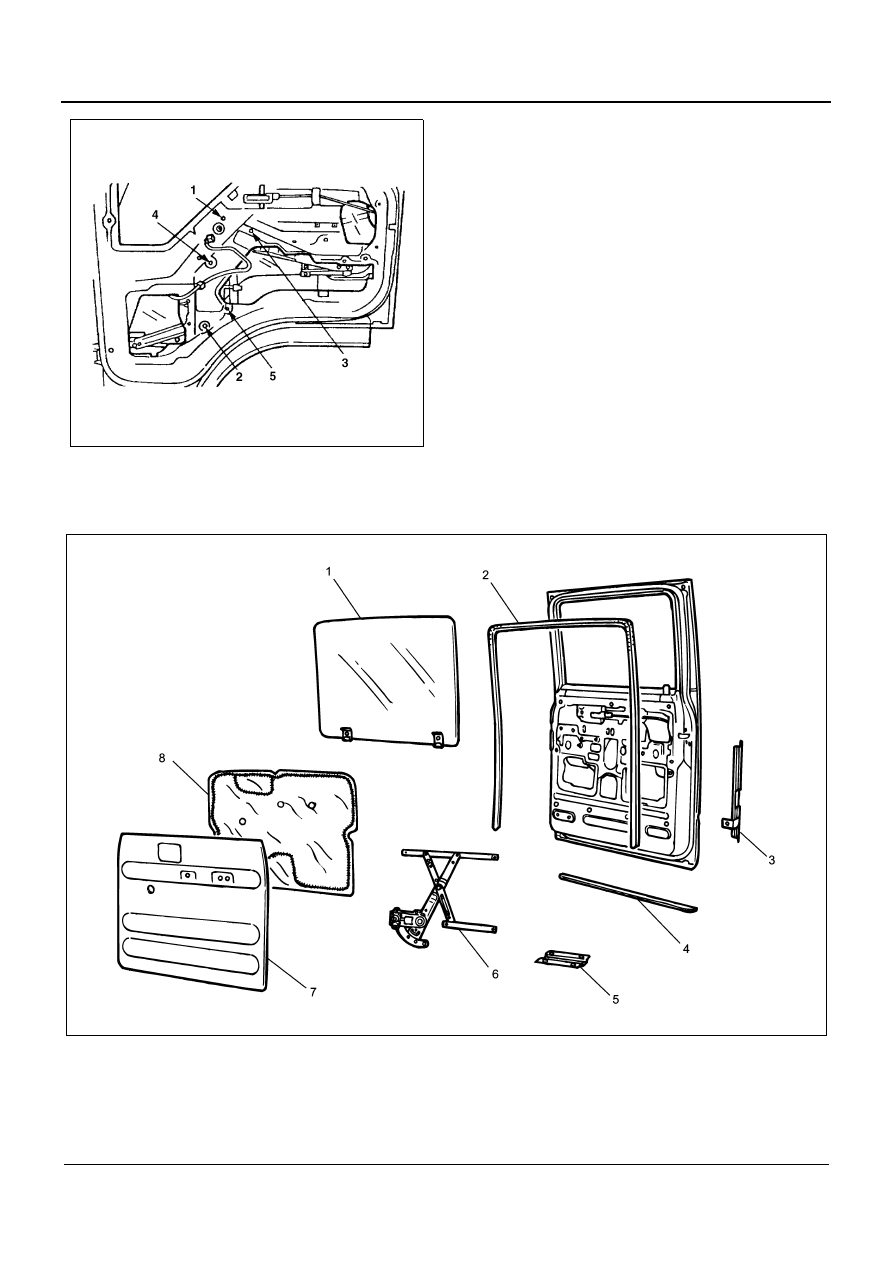

Rear Window Glass and Regulator

Component

N2A0073E

Legend

1. Rear door glass

5. Door bottom bracket

2. Glass run

6. Window regulator

3. Glass run rear channel

7. Rear door trim pad

4. Rear door glass plug

8. Water-proof sheet

N2A0074E

CAB AND FRAME 2-41

Removal

1. Rear door trim pad

• Refer to “Rear Door Trim Pad” in Interior & Ex-

terior Trim Section.

2. Water-proof sheet

• Peel off it carefully with a cutter or knife. Take

care not to damage it when peeling it off.

3. Bottom bracket

• Remove the 4 screws.

4. Rear door glass plug
5. Rear door glass

• Lower the glass to a position of working holes

where the mounting screws can be seen, re-
move the 2 screws and pull out them through
the working holes in the bottom of door.

6. Window regulator

• Remove the 5 mounting screws (1) and pull out

them through the working holes.

7. Glass run

• Pull out the glass run from the channel.

8. Glass run rear channel

• Remove the mounting screw (2) and pull it out.

Installation

For installation, reverse the removal procedure taking
the following points into consideration.

1. Align the notch (a) of the glass run lip (4) with the

door outer waist line (A). Align the glass run slit (b)
with the door (B) and fit the glass run between A
and B. Next, align the notch (c) of the glass run lip
with the door outer waist line (C) and fit the glass
run between B and C. Fit the glass run in the chan-
nel (5) within the panel with the lip (1) toward the
outside of the vehicle.

Caution:
When reusing the glass run, apply the sealant to the
range shown in the figure.

Sealant: CEMEDINE 366DX or equivalent

N2A0075E
