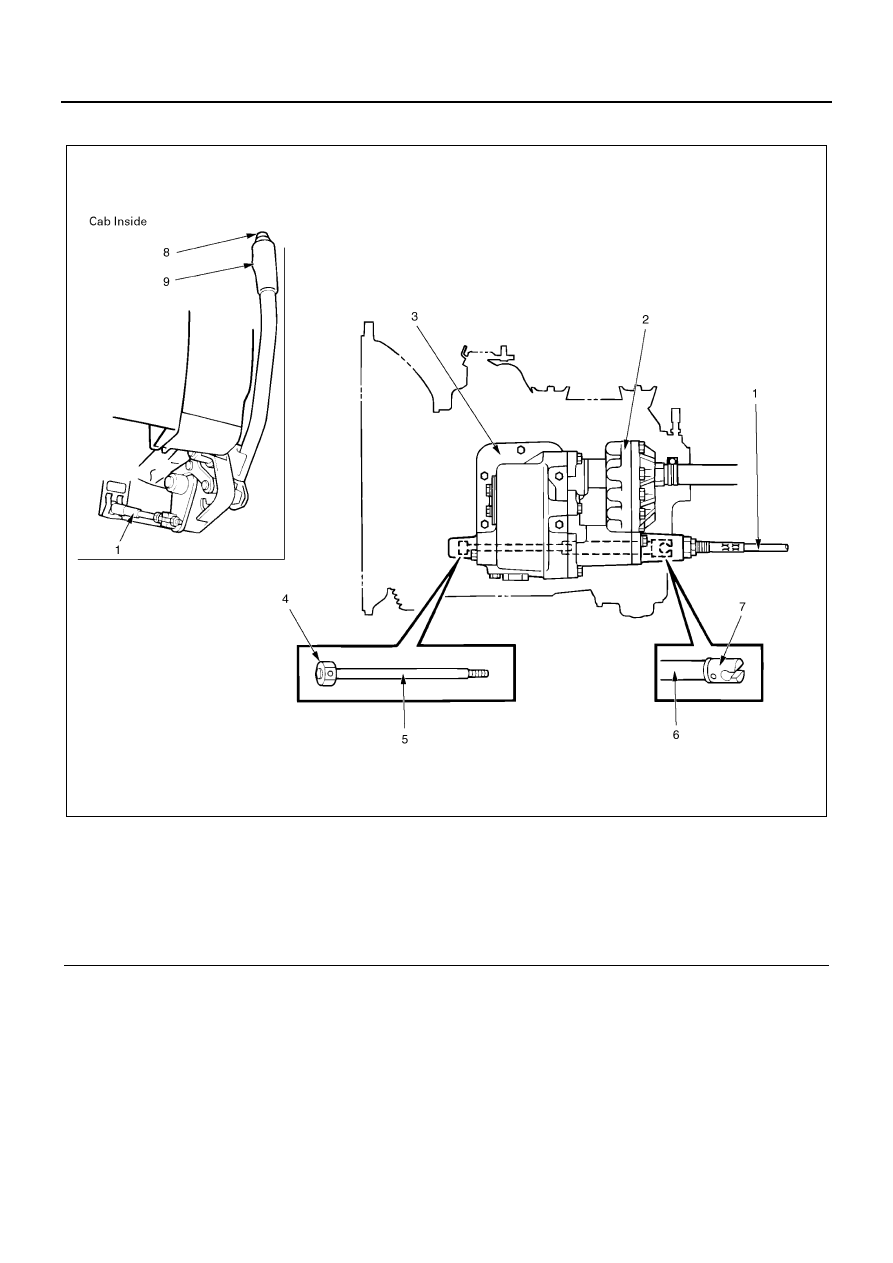

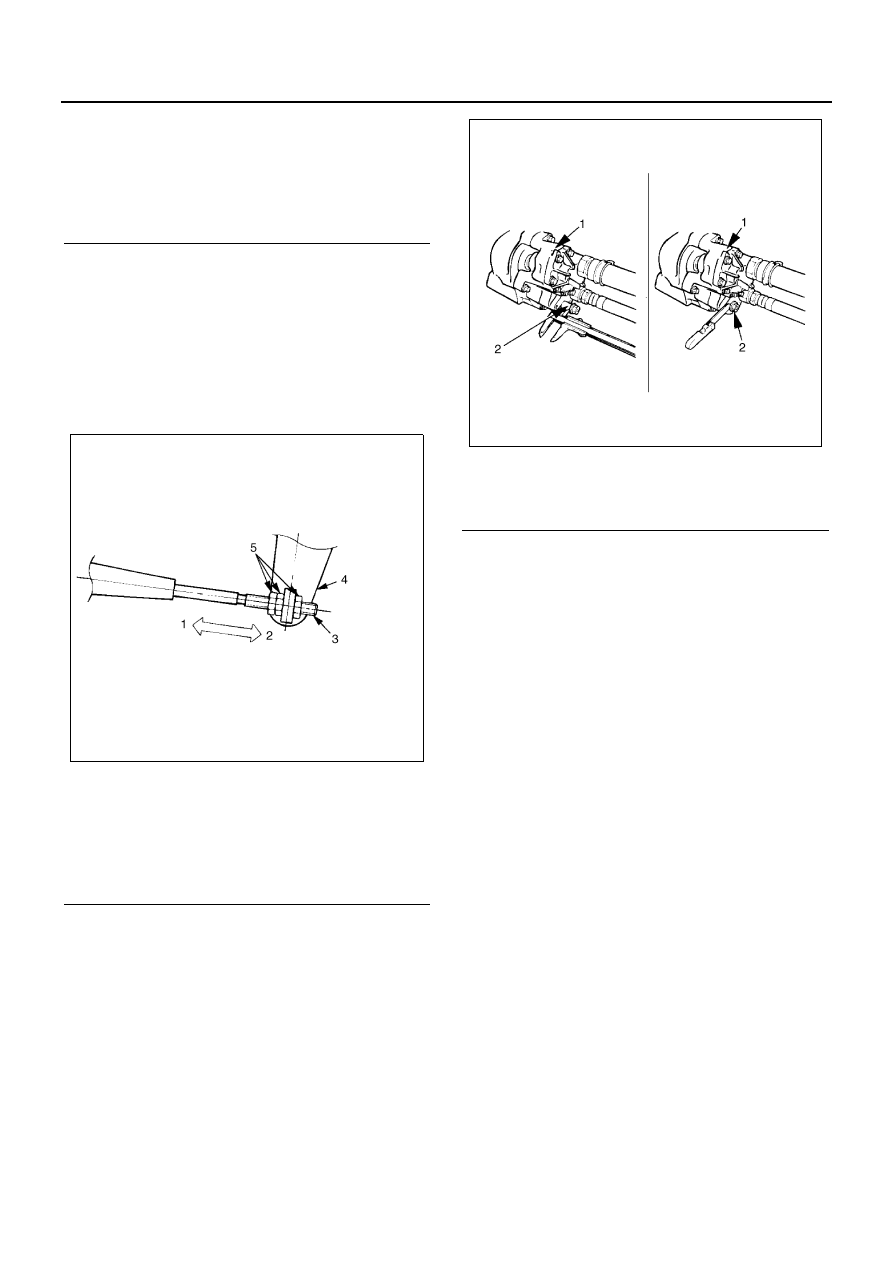

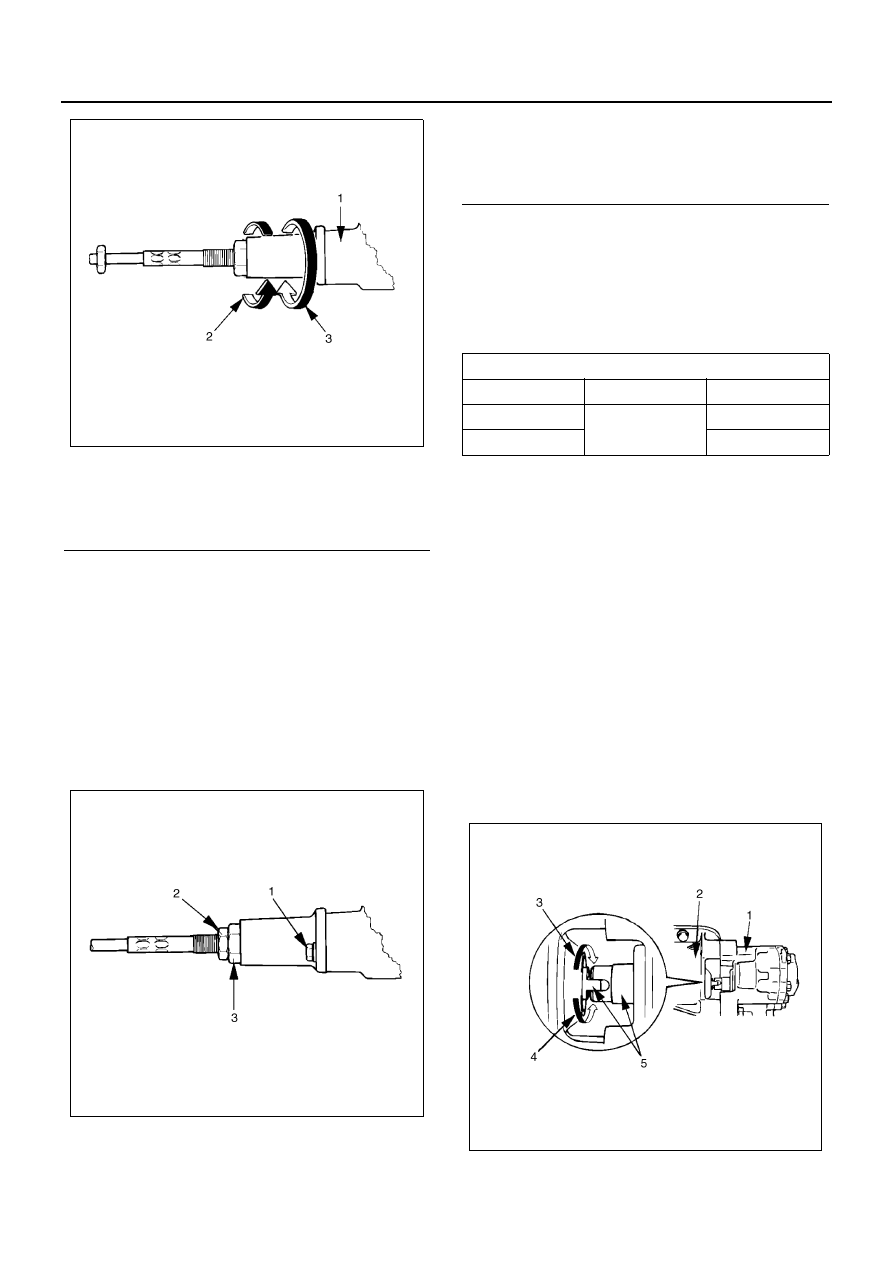

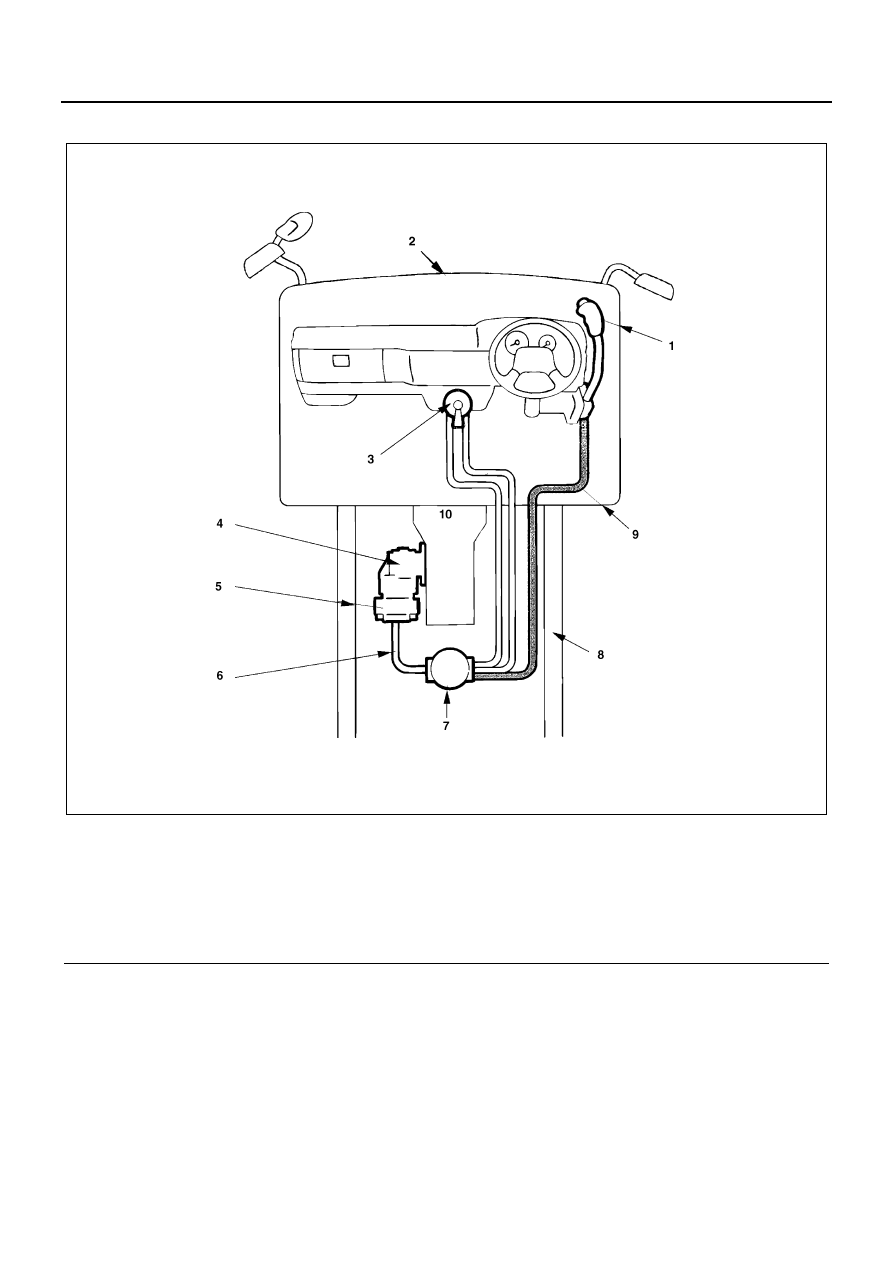

POWER TAKE OFF 00-23 4. If the cable is adjusted in the aforementioned meth- od and the amount of spool extrusion cannot be 5. If a spool extrusion dimension can be obtained, tighten the cable holder tightening bolt and lock nut Tighten: • Cable holder bolt to 23 N ⋅m (2.3 kg⋅m / 17 lb⋅ft) • Lock nut to 21 N ⋅m (2.1 kg⋅m / 15 lb⋅ft) Operability of the dump lever, rise of the body (car- 1. Check that the engine revolution per minute is 1,250 rpm and the rise and fall operations of the 2. Inspection of the dump lever control force and moderation • Inspect that the operation of the dump lever can lightly and smoothly be performed. Basic Value (On the Dump Lever Knob): 10 kgf (98 N) • When the dump lever is in the “Up” and “Down” positions, inspect that the lock operation can be 3. After having repeated the “Up” and “Down” posi- tions of the dump lever and slowly set them to the • Inspect that the shaft (driving shaft) rotates for- ward or backward. Legend 1. PTO NPA0049E NPA0050E Legend 1. Bolt Rise Time And Fall Time Sec. Rise Fall Single Cab within 20 within 20 Double Cab within 25 NPA0051E |
